Brand	Caroline Guitar Company
Model	Wave Cannon MKII Superdistorter
Product Type	Guitar Effects Pedal (Distortion/Overdrive)
Dimensions	Approx. 4.5 x 2.5 x 2 in (11.4 x 6.4 x 5.1 cm)
Weight	Approx. 1 lb (0.45 kg)
Power Supply	9V DC, center negative, 2.1mm tip (standard pedal power supply)
Current Draw	Approx. 50 mA
Input Impedance	1 MΩ (typical)
Output Impedance	10 kΩ (typical)
Controls	GAIN, TONE, FOCUS, VOLUME, RUMBLE (switch)
Special Functions	HAVOC footswitch for feedback and unpredictable noises
Bypass	True bypass
Construction	Metal enclosure, small batch hand-built in USA
Country of Origin	USA (Columbia, S.C.)
Warranty	Limited lifetime warranty against manufacturing defects
Accessories Included	None (power supply sold separately)
Maintenance	Clean with dry cloth; do not use solvents
Safety	Use only specified 9V DC adapter; do not open enclosure
Reparability	Contact manufacturer for service; no user-serviceable parts
Additional Features	RUMBLE switch increases bass; FOCUS scoops/flattens/boosts mids

Frequently Asked Questions - Wave Cannon Caroline

What power supply does the Wave Cannon need?

Use a standard 9V DC adapter with center negative polarity and 2.1mm tip. Current draw is approximately 50 mA.

How does the HAVOC switch work?

Hold down the HAVOC switch to generate feedback and unpredictable noises. For best results, the pedal must be first in your chain (or after true-bypass off pedals) so it can 'see' the guitar.

What does the RUMBLE switch do?

The RUMBLE switch increases bass frequencies, especially useful at lower gain settings. Flipping it may momentarily cut signal, which is normal.

What is the FOCUS control?

FOCUS adjusts midrange frequencies: it can scoop (cut), flatten (neutral), or boost the mids.

Can I use a different power supply?

Only use a 9V DC center negative adapter. Using other voltages or polarities may damage the pedal.

What are the sample settings from the manual?

The manual suggests three sample settings: 'Clean-ish boost' (Gain low, Tone noon, Focus flat, Volume high), 'Crunch rhythm' (Gain 2 o'clock, Tone 11, Focus boost, Volume unity), and 'Bold gain' (Gain max, Tone 3, Focus scoop, Volume past noon). Experiment to taste.

Is the Wave Cannon true bypass?

Yes, the pedal features true bypass, meaning no signal degradation when the effect is off.

Where is the Wave Cannon made?

It is hand-built in small batches in Columbia, South Carolina, USA.

What warranty does this pedal have?

Caroline Guitar Company offers a limited lifetime warranty covering manufacturing defects. It does not cover misuse, modifications, or unauthorized repairs.

How do I clean the pedal?

Wipe the enclosure with a dry, soft cloth. Do not use any solvents or abrasive cleaners.

USER MANUAL Wave Cannon Caroline

GAIN controls the amount of distortion. TONE makes things brighter or darker. FOCUS scoops, flattens, or boosts the midrange frequencies. VOLUME controls the overall output. RUMBLE increases the amount of bass available in the circuit, and is especially useful at lower gain settings. Flipping this switch may cut signal momentarily; this is perfectly normal.
Hold down the HAVOC switch for feedback and unpredictable noises! For Havoc to work, the Wave Cannon has to "see" the guitar as the very first pedal in your chain, or prefaced by true-bypass, non-buffered effect pedals that are turned off. Tune the craziness with the other controls on the pedal or your guitar. Results may vary.

Thank you for purchasing the new version of our flagship pedal, the Wave Cannon® MKII Superdistorter! This Cannon comes pre-loaded with balls! We've made this pedal to help you get even more terrific sounding distorted textures, from lighter drive and cranked, dirty amp crunch tones to the sound of a furry Godzilla devouring a junkyard full of broken a/c window units.

Proudly made in the USA at our small batch distortery™ in Columbia, S.C., this pedal is more than capable of overwhelming your amp with "amber waves of gain" to give you plenty of power, control, and fun – and that's even before we get to the Havoc switch.

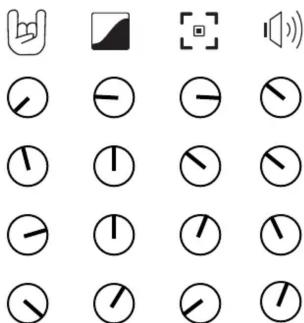

SAMPLE SETTINGS - FLAVOR TO TASTE

musical/personal agenda

"I don't really like pedals except that little green one from way back. Do they still make those?"

"I'm willing to have a ballad on our album if it helps sales."

"We love plagues, sorcery, and ancient empires, so yes, we do write love songs."

"Our galactic emperor would like to order your special ömelet. With extra ümläuts."

IMPORTANT - if you use a power supply, use only a 9V DC center negative tip power supply, BOSS PSA or equivalent industry standard units. Also, our warranty only covers component failures or manufacturing defects - it does not cover misuse or abuse of the product, modifications or unofficial work. Thanks again for supporting our work!

carolineguitar.com 803.250.1972

FRONT BACK
