HGS-1400RD - Iron Heinner - Free user manual and instructions

Product Type	Garment Steamer
Model	HGS-1400RD
Brand	Heinner
Power	1240-1470W
Voltage	220-240V
Frequency	50/60Hz
Color	Red/White
Water Tank Capacity	120 ml
Preheat Time	Approx. 30 seconds
Auto Shut-off	After 8 minutes of inactivity
Steam Control	Continuous steam with lock button
Accessories	Brush, Instruction Manual, Warranty Card
Safety Features	Automatic shut-off, cool-down protection
Handle	Foldable
Panel Material	Stainless steel

Frequently Asked Questions - HGS-1400RD Heinner

How do I fill the water tank?

First, unplug the steamer. Remove the water bucket and fill it with pure water only, up to the MAX mark (120 ml). Reattach the bucket securely before use.

How long does it take to preheat?

After plugging in and turning on the power, the indicator light will flash and the steamer preheats in about 30 seconds. When the light stops flashing and stays on, it is ready to use.

Can I use tap water?

No, only pure water (distilled or demineralized) should be used to avoid mineral buildup and damage.

How do I activate continuous steam?

Press and push down the steam button to lock it. The steam will spray continuously. To stop, press and push up to unlock.

What should I do if no steam comes out?

Check that the water tank is filled, the steamer is preheated (indicator solid), and the steam button is pressed properly. If still no steam, allow the unit to cool and clean any blockages.

How do I clean the steamer?

Unplug and let it cool. Wipe the exterior with a damp cloth. Do not immerse in water. Avoid scratching the stainless steel panel with abrasive tools.

Can I use the steamer on all fabrics?

It is suitable for most fabrics like cotton, wool, and silk. Always test on a hidden area first. Use the brush attachment for delicate fabrics to lift fibers.

Is vertical steaming possible?

Yes, the steamer can be used in any direction, including vertical. Keep the hot metal panel away from your body and fabrics.

How do I store the steamer?

Unplug and let it cool completely. Fold the handle and detach the water tank for compact storage. Keep it out of reach of children.

What does the flashing indicator mean?

A flashing light indicates the steamer is preheating or has entered auto shut-off mode. If it flashes after 8 minutes of inactivity, press the steam button to resume normal use.

USER MANUAL HGS-1400RD Heinner

White and red electric hair dryer with black fan blade (no visible text or symbols)

• Aparat de călcat vertical cu abur
• Putere: 1240-1470W
  • Culoare: roşu/alb

Line drawing of a hand washing machine with a lid and handle (no text or symbols)

PLIEREA MÂNERULUI

Line drawing of a steam iron with handle and base (no text or symbols)

White and red electric hair dryer with black filter, no visible text or symbols

• Garment steamer
  • Power: 1240-1470W
  • Color: red/white

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and keep it for later information

This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Garment steamer
Instruction Manual
Warranty card
Declaration of conformity
Brush

III. SAFETY MEASURES

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Care should be taken when using the appliance due to the emission of steam.
6. Unplug the appliance during filling and cleaning.
7. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
8. The fabric steamer must not be left unattended while it is connected to the supply mains.
9. The fabric steamer is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking
10. Keep the fabric steamer and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
11. The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
12. Don't touch the hot metal surface; don't let the steam on the human body, the steam will burn.
13. Don't let the power cord touch the hot surface of the appliance.
14. In order to avoid electric shock, do not be immersed in water or other liquid.
15. Do not use wet hands to touch the product.
16. Do not fill in with any other liquid except pure water,
17. The product is for household use only, please do not use it for commercial purpose.

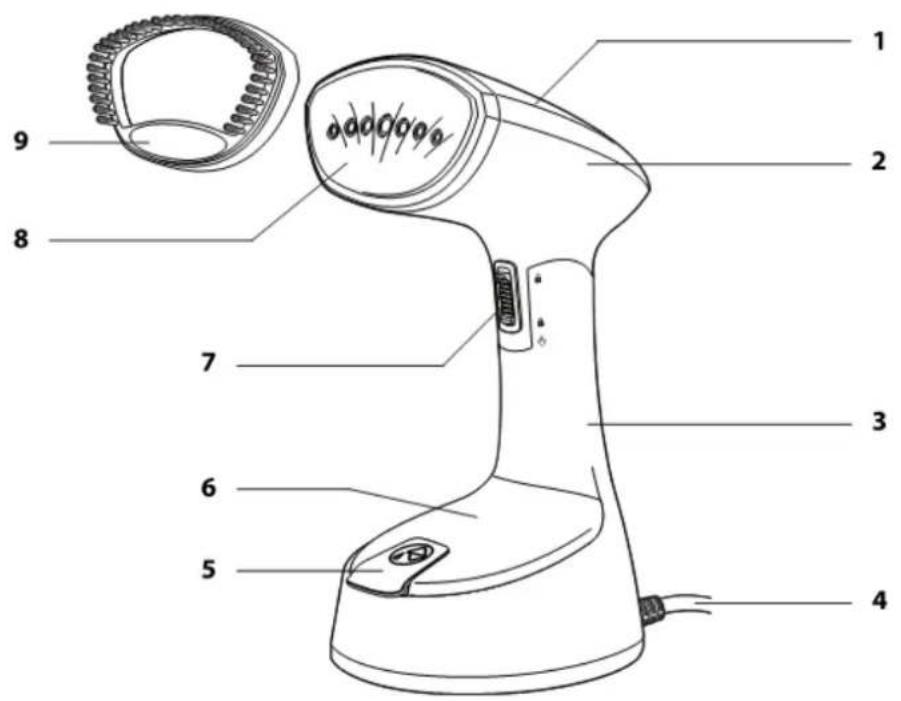

IV. PRODUCT DESCRIPTION

1. power
2. main body
3. handle
4. power cord
5. water bucket silicone cap
6. water bucket
7. steam lock button
8. steam panel
9. brush

V. USING THE APPLIANCE

Take off all the viscose and protective film before use at first time. According to the following instructions:

1. Before use steam, filling the water tank to MAX, the maximum capacity of the water tank is 120ml.
2. Please make sure to provide voltage and rated nameplate on the corresponding requirements before use.

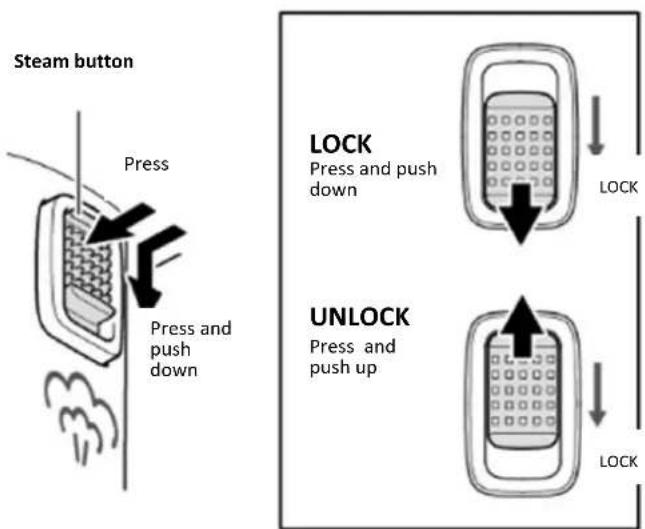

3. Put power plug into the socket and turn on the power button, the indicator lighting with flashing, the appliance goes to preheat. After 30 seconds later, the indicator stop flashing and keep lighting, the appliance complete to preheat, press the steam switch for using steam function (when the light is flashing, pressing the steam switch do not respond). 4. Press the steam button, when pressing the steam button, steam will be ejected. When pressing and pushing down the steam button, the button will be locked. After locking, the steam will be continuously sprayed.

Caution: Water may drip when the steam starts coming out. Be Careful not to get the cloth wet. Be sure to unlock it after use.

1. You can iron clothes directly with the brush installed on the machine.
2. You can use the machine in different directions at any time, but pay attention to that the metal panel is very hot, do not touch it.
3. After power on and heating, use the steam function for 8 minutes or put it at rest, the power will be cut off automatically, and the indicator light will change from normally on to fashing. Press the steam switch button again to resume normal use.
4. After use, unplug the power line, disconnect the power supply.
5. The handle can be folded up, and the water tank can be detached for convenient storage.

FILLING WATER INTO WATER BUCKET

Line drawing of a hairdryer with a bucket pouring liquid from a cup (no text or symbols)

HOW TO FOLD

Line drawing of a steam iron with handle and base (no text or symbols)

VI. CLEANING AND MAINTENANCE

1. Pull plug off, disconnect the power supply

Warning: stainless steel plate is very hot, burn care!

1. Surface with a cloth to scrub the cloth products, cannot be too wet, so as not to solution into the machine.

Note: Please note when cleaning, do not let water or solution into the machine.

In order to make a smooth stainless steel panel, try to avoid metal friction Stainless Steel panel!

Warning: do not put the machine into the water or other cleaning solution!

Rated voltage	220-240 V
Rated frequency	50/60Hz
Power	1240-1470W

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.
