AC-PS08CH - Air conditioner DEXP - Free user manual and instructions

Product Type	Portable Air Conditioner
Brand	DEXP
Model	AC-PS08CH
Cooling Capacity	Approx. 8000 BTU/h (2.3 kW)
Power Supply	220-240 V, 50 Hz
Dimensions (W x D x H)	Approx. 35 x 35 x 70 cm
Weight	Approx. 25 kg
Operating Modes	Cooling, Fan, Dehumidification
Remote Control	Yes, included
Drainage Method	Continuous drain or manual tank emptying
Refrigerant	R410A
Timer Function	Yes, 24-hour programmable
Air Filter	Washable, removable
Installation Kit	Includes window sealing plate and exhaust hose
Noise Level	Approx. 55 dB
Energy Efficiency	EER approx. 2.6
Storage Temperature	-10°C to 50°C
Warranty	1 year
Service Center	Refer to manual for authorized centers

Frequently Asked Questions - AC-PS08CH DEXP

How do I install the exhaust hose?

Connect the conical pipe to the top box and bottom ring, then attach to a window sealing plate. See Fig. 1 in the manual.

What does the 'Cooling' mode do?

Activates the compressor to lower room temperature. Use the remote control to select this mode and set the desired temperature.

How often should I clean the air filter?

Every two weeks during heavy use. Remove the filter, wash with mild soap, dry thoroughly, and reinstall.

Why is water leaking from the unit?

The internal water tank may be full or the continuous drain is not connected properly. Empty the tank or attach a drain hose.

Can I use the air conditioner without the exhaust hose?

No, the exhaust hose must be vented outside to remove hot air. Operating without it will not cool effectively.

How do I use the timer function?

Press the Timer button on the remote or unit, set the desired on/off time in hours, and confirm.

What should I do if the unit does not start?

Check the power cord and outlet. Ensure the water tank is not full. Wait 3 minutes after turning off before restarting.

How do I store the air conditioner during winter?

Clean the filter, drain all water, disconnect the hose, and store in a dry place above 0°C.

Is the remote control battery included?

Yes, the remote comes with a CR2032 battery installed. Replace when signal becomes weak.

Where can I find service centers?

Visit dns-shop.ru/service-center or refer to the user manual for authorized service locations.

USER MANUAL AC-PS08CH DEXP


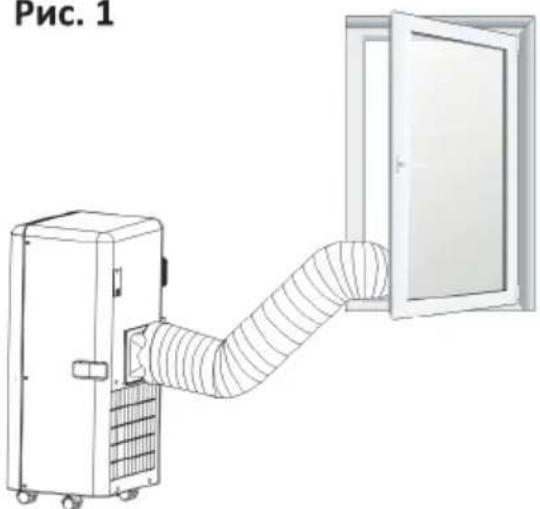

Рис. 1

Line drawing of a portable air conditioner unit connected to a door via coiled tubing (no text or symbols)

Рис. 3

Рис. 2

Diagram of a container with liquid and an arrow indicating direction, no text or symbols present

Diagram showing a portable air conditioner connected to a screen, with no text or symbols present.

Рис. 6

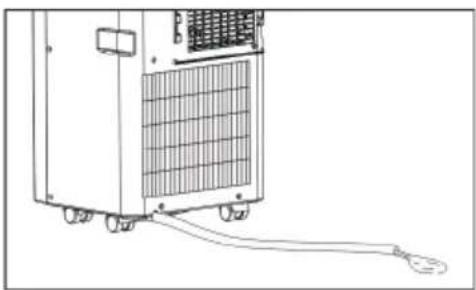

Подключение дренажа

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Line drawing of a mechanical device with a grid-patterned panel and attached tubing (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fans and attached cables (no text or symbols)

Line drawings of two household air conditioner units connected by coiled tubing, mounted on a floor (no text or symbols)

Работа с пультом ДУ

Режим охлаждения

Diagram showing a solar panel being delivered via an air conditioner to a satellite array (no text or symbols present)

Хранение
