Product Type	Atomic Wall Clock
Brand	AcuRite
Model	75100C
Dimensions	12 inches (diameter) x 1.5 inches (depth)
Weight	1.1 lbs
Power Source	1 AA battery (not included)
Battery Life	Approximately 12 months
Time Setting	Automatic atomic time sync (WWVB)
Time Display	Analog with hour, minute, second hands
Temperature Display	Indoor temperature in °F or °C
Temperature Range	32°F to 122°F (0°C to 50°C)
Daylight Saving Time	Automatic adjustment
Mounting	Wall mount with included hook
Material	Plastic frame with glass lens
Color	Black frame, white face
Compliance	FCC certified
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or cleaners.
Battery Replacement	Requires 1 AA alkaline battery. Replace when time or temperature display becomes erratic.
Warranty	Limited 1-year warranty
Country of Origin	China

Frequently Asked Questions - 75100C AcuRite

How do I set the time on my AcuRite 75100C atomic clock?

The clock automatically sets the time by receiving the WWVB atomic time signal. To force a manual sync, press and hold the SET button for 3 seconds. The clock will then search for the signal. Ensure it is placed near a window for best reception.

Why is my clock not receiving the atomic signal?

The atomic signal may be blocked by metal, concrete, or electronic interference. Place the clock away from large metal objects, computers, and TVs. Try moving it to a different wall or near a window. The signal is strongest at night.

How do I change the temperature from Fahrenheit to Celsius?

Press the SET button to enter settings mode. Use the + or - buttons to toggle between °F and °C. Press SET again to confirm.

What type of battery does the 75100C use?

It uses one AA alkaline battery (not included). Do not use rechargeable batteries as they may not provide consistent power.

How do I replace the battery?

Open the battery compartment on the back of the clock. Remove the old battery and insert a new AA battery, matching the polarity symbols (+ and -). Secure the compartment cover.

How do I reset my AcuRite clock?

Remove the battery, wait 30 seconds, and reinsert the battery. This will reset the clock to factory defaults, and it will search for the atomic signal.

Why is my clock showing the wrong time?

First, check if the clock has recently received the atomic signal. If not, try a manual sync (press and hold SET). If it still shows incorrect time, the clock may be in a location with weak signal, or the battery may be low.

Can I hang the clock on a wall?

Yes, the clock has a keyhole slot on the back for wall mounting. Use the provided hook or a screw to hang it securely.

What should I do if the clock stops working?

Check the battery and replace it if necessary. Ensure the battery contacts are clean. If the clock still does not function, perform a reset. If problems persist, contact AcuRite customer support.

Is the clock water-resistant?

No, the clock is not water-resistant. Keep it away from moisture and clean only with a dry cloth to avoid damage.

USER MANUAL 75100C AcuRite

Unpacking Instructions ...... 2

Package Contents 2

Product Registration 2

Features & Benefits......3

Clock Setup 4

Set the Time & Date 5

Care & Maintenance......6

Specifications......6

FCC Information 6

Customer Support 7

Warranty....7

Questions? Contact Customer Support at [phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACU▶RITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Unpacking Instructions

Remove the protective film that is applied to the LED screen prior to using this product. Locate the tab and peel off to remove.

Package Contents

1. Digital Clock
2. Power Adapter
3. Instruction Manual

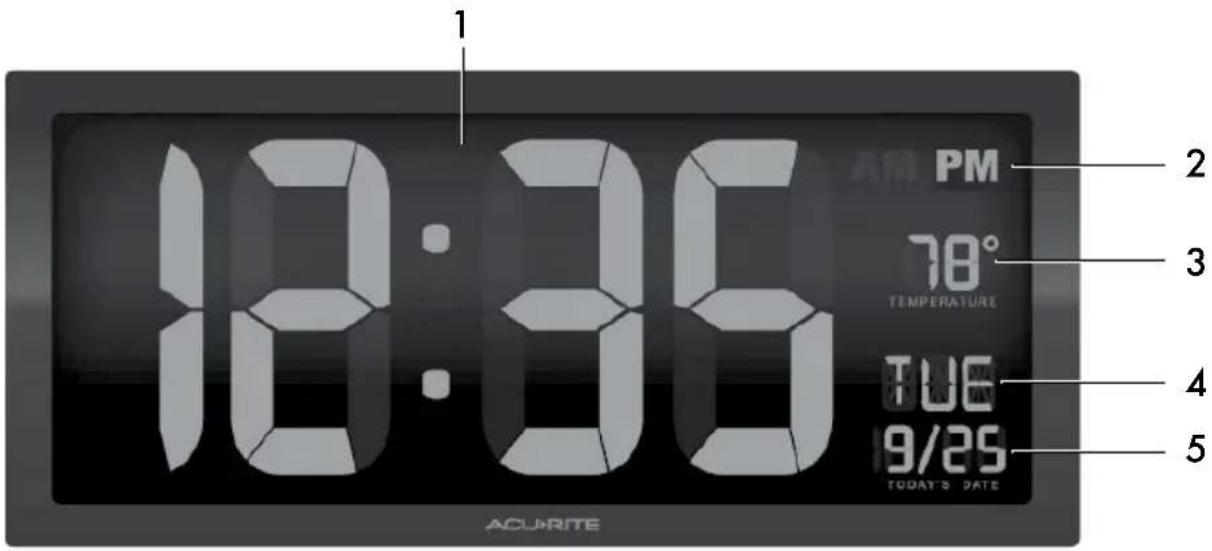

Features & Benefits

1. Clock
2. AM/PM Indicator
3. Indoor Temperature
4. Day of The Week
5. Date
6. Integrated Hang Holes For easy wall mounting.
7. Fold-Out Stand

8. Battery Compartment Cover

9. Power Adapter

10. Built-In Cord Storage Secures excess cord.
11. Battery Compartment
12. Button For setup preferences.
13. SET Button For setup preferences.
14. Button For setup preferences.

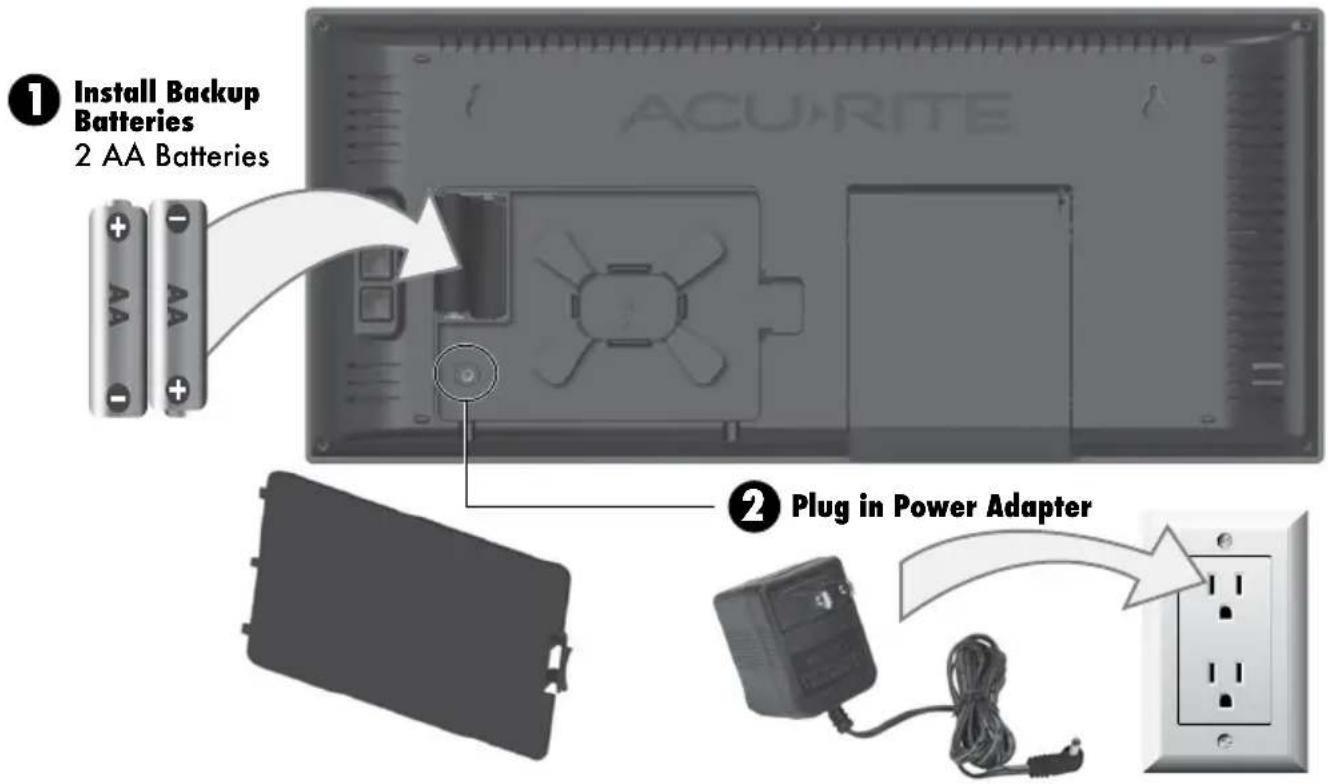

1 Install or Replace Backup Batteries

1. Remove the battery compartment cover.
2. Insert 2 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

② Plug in Power Adapter

Plug the power adapter into a power outlet.

IMPORTANT: Batteries are a backup power source to preserve records in the event of a power outage. Power adapter is required as the power source of this product.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to

be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Set the Time & Date

Press and hold the "SET" button, located on the back of the clock, to enter SET MODE. Once in SET MODE the preference you are currently setting will blink on the clock.

To adjust the currently selected (flashing) item, press and release the “▲” or “▼” buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the "SET" button to adjust the next preference. The preference set order is as follows:

AUTO DST (ON or OFF*)

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDER DAY

CALENDAR YEAR

TEMPERATURE UNITS (°F or °C)

You will automatically exit SET MODE if no buttons are pressed for 4 seconds. Enter SET MODE at any time by pressing AND HOLDING the "SET" button.

*If you live in an area that observes daylight saving time, DST should be set to ON.

Care & Maintenance

Clock Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air.

Specifications

TEMPERATURE RANGE	32°F to 122°F; 0°C to 50°C
POWER	9-ft. 5V, 1.2A power adapter (included)
	2 x AA alkaline batteries (for backup; optional)

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:

1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s).

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

) 221-1252

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas

IMPORTANT

PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warrantyprotection

www.AcuRite.com

SUPPORT

Support Forum

Archived Products

▶Register a Product

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.

We recommend that you visit us at www.AcuRite.com for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.

Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney, and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser. Chaney hereby disclaims all responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit for products it manufactures which have received normal wear and tear, been damaged (including by acts of nature), tampered, abused, improperly installed, damaged in shipping, or repaired or altered by others than authorized representatives of Chaney. The above-described warranty is expressly in lieu of all other warranties, express or implied, and all other warranties are hereby expressly disclaimed, including without limitation the implied warranty of merchantability and the implied warranty of fitness for a particular purpose. Chaney expressly disclaims all liability for special, consequential or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Chaney further disclaims all liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of Chaney's products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to assume for Chaney any other liability in connection with the sale of its products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this paragraph, and the preceding paragraph, unless done in writing and signed by a duly authorized agent of Chaney. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co. 965 Wells St., Lake Geneva, WI 53147
