75071T - Clock AcuRite - Free user manual and instructions

Product Type	Clock
Brand	AcuRite
Model	75071T
Dimensions	Approximately 5.5 x 4.5 x 1.5 inches
Weight	Approximately 0.8 lbs
Power Source	2 x AA alkaline batteries (not included)
Display Type	LCD display
Time Synchronization	Atomic clock with radio-controlled time (WWVB)
Time Zones	7 time zones (Atlantic, Eastern, Central, Mountain, Pacific, Alaska, Hawaii)
Daylight Saving Time	Auto DST adjustment (can be disabled)
Calendar	Displays date and day of week
Temperature Display	Indoor temperature in °F or °C
Temperature Range	32°F to 122°F (0°C to 50°C)
Alarm	Single daily alarm with snooze
Mounting Options	Desktop stand or wall mountable
Battery Life	Approximately 18 months
Maintenance	Clean with soft, dry cloth; avoid liquids
Safety	Keep away from moisture and extreme temperatures; use batteries correctly
Spare Parts	Batteries (AA alkaline)
Repairability	Contact AcuRite support for service; no user serviceable parts inside
Manual Availability	Free PDF download from AcuRite website or notice-facile.com

Frequently Asked Questions - 75071T AcuRite

How do I set the time on my AcuRite 75071T clock?

The clock automatically sets itself via the atomic signal (WWVB). To manually set time, press and hold the SET button for 3 seconds, then use the +/- buttons to adjust time, date, and time zone.

Why is my clock not receiving the atomic signal?

The atomic signal may be weak indoors. Try placing the clock near a window facing Fort Collins, Colorado (west direction). Avoid metal structures and electronic interference. The clock will attempt to sync nightly between midnight and 6 AM.

How do I change the battery?

Open the battery compartment on the back of the clock, remove old batteries, and insert two fresh AA alkaline batteries with correct polarity. Replace the cover.

What does the temperature display show?

The clock displays the current indoor temperature in Fahrenheit or Celsius. You can toggle between units by pressing the °F/°C button on the back.

How do I set the alarm?

Press the ALARM button to enter alarm mode. Use the +/- buttons to set the desired hour and minute. Press ALARM again to confirm. The alarm icon will appear on the display.

Why is the display blank or dim?

Check if the batteries are properly installed or need replacement. If the display is faint, try fresh batteries. Also ensure the contrast setting is adjusted via the SET button.

Can I disable Daylight Saving Time (DST)?

Yes. Press and hold the SET button for 3 seconds, navigate to the DST setting using +/- buttons, and toggle DST OFF. Refer to the manual for detailed steps.

How do I mount the clock on the wall?

The clock has a keyhole slot on the back. Use a screw (not included) appropriate for your wall type. Ensure the screw head fits the slot, then hang the clock securely.

What is the warranty for the AcuRite 75071T?

AcuRite offers a 1-year limited warranty against defects in materials and workmanship. Contact their customer support for warranty claims.

Where can I download the user manual?

You can download the free PDF manual from notice-facile.com or the official AcuRite support website. Search for model 75071T.

USER MANUAL 75071T AcuRite

Intelli-Time® Digital Clock

model 75071T

CONTENTS

Unpacking Instructions ...... 2

Package Contents ...... 2

Product Registration ...... 2

Features & Benefits......3

Clock Setup 4

Intelli-Time® Clock 4

Set the Time & Date .... 5

Using the Clock.... 5

Troubleshooting 5

Care & Maintenance......6

Replace Intelli-Time® Battery ... 6

Specifications......6

FCC Information 6

Customer Support......7

Warranty....7

Questions? Contact Customer Support at

[phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACU▶RITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Unpacking Instructions

Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.

Package Contents

1. Digital clock
2. Instruction Manual

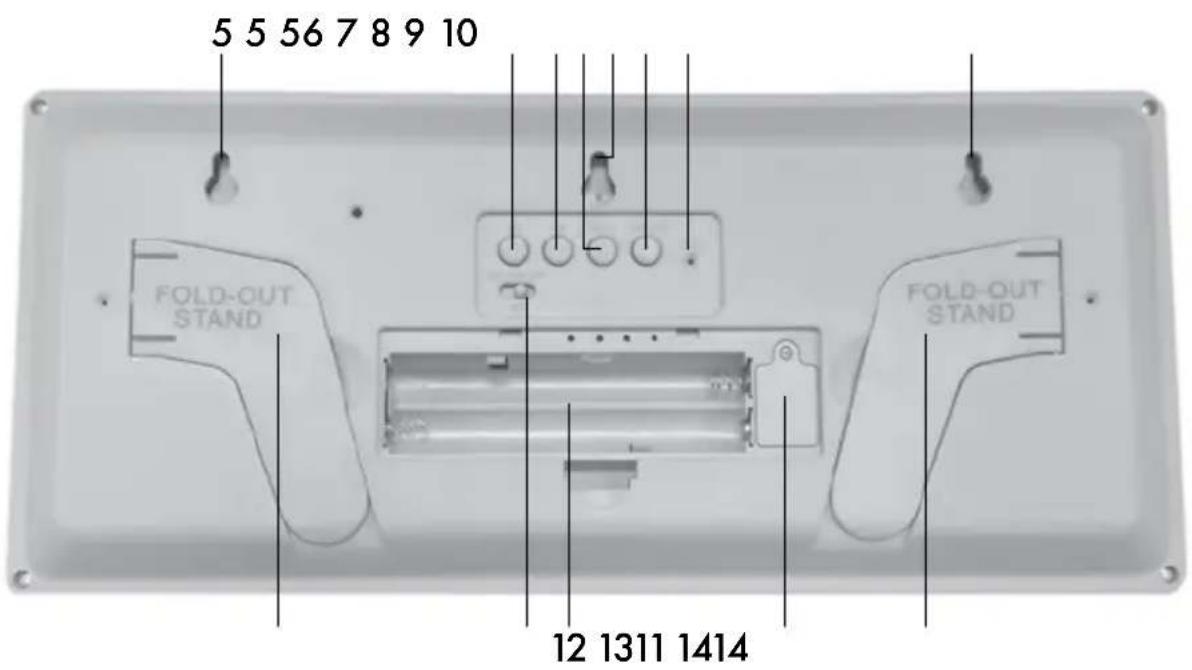

Features & Benefits

1. Intelli-Time® Clock
2. AM/PM Indicator
3. Time Zone Indicator
4. Daylight Saving Time Indicator
5. Integrated Hang Hole For easy wall mounting.
6. SET Button
7. UP Button

8. DOWN Button

9. TIME ZONE Button

10. RESET Button Full reset to factory defaults
11. DST OLD/NEW/OFF Switch for DST setup preferences.
    12.Battery Compartment
12. Intelli-Time® Battery Compartment
13. Fold-Out Stands

Install or Replace Batteries

1. Remove the battery compartment cover.
2. Insert 4 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

Install or Replace Batteries
4 AA alkaline batteries

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Intelli-Time® Clock

Intelli-Time clock and calendar are pre-programmed to the correct time and date, and update automatically for Daylight Saving Time. All you need to do is select your time zone using the "TIME ZONE" button.

Set the Time & Date

Set the time zone (HAST, AKST, PST, MST, CST, EST, AST) by pressing the "TIME ZONE" button, located on the back of the clock. The Time Zone selected is indicated on the clock display.

Set the Daylight Saving Time preference (NEW, OLD, OFF) using the DST switch, located on the back of the clock. If you live in an area that observes Daylight Saving Time, DST should be set to "NEW", even if it is not currently Daylight Saving Time. While DST is being observed, "Daylight ST" is indicated on the clock display.

Press and hold the "SET" button for 3 seconds to enter SET MODE. Once in SET MODE the preference you are currently setting will blink on the clock.

To adjust the currently selected (flashing) item, press and release the "UP" or "DOWN" buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the "SET" button to adjust the next preference. The preference order is as follows:

CLOCK HOUR (Please note AM/PM indicator)

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

You will automatically exit SET MODE if no buttons are pressed for 15 seconds. Enter SET MODE any time by pressing and holding "SET" button for 3 seconds.

OPERATION

Using the Digital Clock

To view the MONTH/DATE/YEAR, press and release the "SET" button. Press "SET" button again to display time. If no buttons are pressed after 15 seconds the display will automatically display time again.

Troubleshooting

Clock is too dark, hard to read or doesn't work	Reset the unit by pressing the reset button located on the back of the clock. This will reset the clock to the original factory settings. Time and date will need to be entered after a reset.
If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Clock Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air.

Replace Intelli-Time Clock Battery

Intelli-Time technology is powered by a pre-installed coin-cell battery that stores the time and date settings. The battery has a shelf life of several years. Time and date will need to be entered after replacing Intelli-Time battery. To replace the Intelli-Time battery:

1. Locate the coin cell battery compartment door inside the battery compartment of the clock. Unscrew and remove the compartment cover.

2. Insert 1 x CR2032 coin cell battery into the battery compartment, as shown. Install battery with "+" positive terminal facing right.

3. Screw in the battery cover.

WARNING: THIS PRODUCT CONTAINS A BUTTON-CELL BATTERY. IF SWALLOWED, IT COULD CAUSE SEVERE INJURY OR DEATH IN JUST 2 HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY IF INGESTED.

Specifications

POWER

4 X AA alkaline batteries

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

) 221-1252

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas

IMPORTANT

PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warrantyprotection

www.AcuRite.com

SUPPORT

Support Forum

Archived Products

▶Register a Product

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.

We recommend that you visit us at www.AcuRite.com for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.

Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney, and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser. Chaney hereby disclaims all responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit for products it manufactures which have received normal wear and tear, been damaged (including by acts of nature), tampered, abused, improperly installed, damaged in shipping, or repaired or altered by others than authorized representatives of Chaney. The above-described warranty is expressly in lieu of all other warranties, express or implied, and all other warranties are hereby expressly disclaimed, including without limitation the implied warranty of merchantability and the implied warranty of fitness for a particular purpose. Chaney expressly disclaims all liability for special, consequential or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Chaney further disclaims all liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of Chaney's products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to assume for Chaney any other liability in connection with the sale of its products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this paragraph, and the preceding paragraph, unless done in writing and signed by a duly authorized agent of Chaney. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co. 965 Wells St., Lake Geneva, WI 53147
