Product Type	GPS Navigation Device with RV-Specific Features
Model	Good Sam RVND 7725 LM
Brand	Rand McNally
Display Size	7 inches (estimated)
Power Source	12V vehicle charger or wall charger (included)
Battery Type	Internal rechargeable lithium-ion
Mounting	Windshield suction cup mount with adjustable angle
Connectivity	Wi-Fi, Mini-USB, SD card slot, external GPS port, audio output
Key Features	RV-specific routing, RV info (length, weight, height, propane), custom warnings (low bridges, steep grades), weather, fuel prices, traffic (optional), multi-stop trip optimization, trails recording, fuel logs, checklists, maintenance logs, junction view, virtual dashboard
Language Support	English, Spanish, French (spoken and on-screen)
Operating Temperature	32°F to 120°F (0°C to 49°C)
Cleaning Instructions	Use a moist cloth; do not use sharp objects on touch screen
Safety Compliance	FCC Part 15, IC RSS; follow local traffic laws and install mount safely
What's Included	GPS device, windshield mount, vehicle charger, USB cable, wall charger (7725 only), quick start guide
Warranty & Support	Toll-free support: 800-333-0136 (Mon-Fri, 7am-6pm CT), email: [e-mail]

Frequently Asked Questions - Good Sam RVND 7725 LM Rand McNally

How do I update maps and software on my Good Sam RVND 7725 LM?

Connect the device to your computer using the USB cable and download the Rand McNally Dock software from www.randmcnally.com/dock. The Dock will check for updates and allow you to install new maps, construction updates, and software upgrades.

How do I set up my RV parameters for accurate routing?

From the Main Menu, tap RV Tools then RV Info. Enter your RV type, length, height, weight, number of trailers, propane bottles, and ETA adjustment. These settings help avoid low bridges, steep roads, and other RV-unfriendly routes.

How can I avoid low bridges or weight-restricted roads?

Ensure your RV height and weight are correctly entered in RV Info. The device will automatically avoid roads with restrictions that exceed your vehicle’s dimensions. You can also manually add roads to the Avoid List by tapping the map and selecting 'Avoid' (permanent or temporary).

How do I connect to Wi-Fi and use weather or fuel price features?

Tap the Wi-Fi icon on the map screen, then enable Wi-Fi and select a hotspot. Enter the password if required. Once connected, you can view weather forecasts, current fuel prices, and traffic (if subscribed) from the same icon.

How do I restore the device to factory default settings?

Go to Preferences > General > About and look for a reset option. Alternatively, press the Reset button on the back of the device with a paperclip. This will cancel the current route but preserve personal data like address book and preferences.

How do I calibrate the touch screen if it’s not responding accurately?

In Preferences > General, tap Align screen. Follow the on-screen instructions to tap the target points. This calibrates the touch screen for accurate tapping.

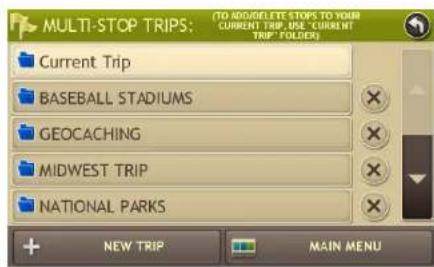

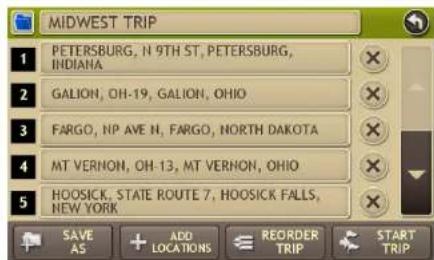

Can I create a multi-stop trip with multiple destinations?

Yes. From the Main Menu, tap Choose Destination > Multi-Stop Trips > New Trip. Name your trip, then tap Add Address to add stops. You can add up to 50 stops and reorder them manually or use the automatic optimizer for up to 10 stops.

How do I check the weather along my route?

Ensure Wi-Fi is connected, then tap the Wi-Fi icon on the map screen and select the Weather tab. You can view current conditions, 3-day forecast, and overlay weather (temperature, precipitation) on the map. Tap 'At Destination' to see weather at your destination.

How do I export fuel logs to my computer?

Connect the device to your computer and open the Rand McNally Dock. Click on Fuel, choose the export format (.xls or .csv), and save the file. The logs include date, location, gallons, and cost.

What should I do if the device freezes or stops responding?

Press the Reset button on the back of the device using a paperclip. This will restart the unit without deleting your saved data. If issues persist, contact Rand McNally support at 800-333-0136.

USER MANUAL Good Sam RVND 7725 LM Rand McNally

Powered by

RAND M McNALLY

User Manual

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet that is on a different circuit from the GPS unit.
• Consult the dealer or an experienced radio/TV technician for help.

IC Compliance Statement

This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

IC Caution

Intentional or unintentional changes or modifications to the equipment not expressly approved by Rand McNally could void the user's authority to operate the equipment.

The Global Positioning System (GPS) is a constellation of satellites that a GPS receiver uses to calculate geographical positions. To determine a position, data from at least three satellites is required. To determine elevation, the data from four or more satellites is required. Accuracy of the positioning varies from 10 feet to several hundred feet, depending on vehicle placement and the surrounding environment.

Geographical terrain (such as mountains), man-made structures (such as highway overpasses, bridges, and tall buildings), as well as weather can interfere with the GPS signal. For best GPS reception, position the device and mount with a clear line of sight to the sky. Some vehicles may have a limited view of the sky due to metal sun shields or a metallized windshield coating.

Map data includes the geographical coordinates for address locations and points of interest (POIs). With GPS reception, your device calculates a route to your selected location.

Customer Support

Call toll-free:

800-333-0136

Service hours:

Monday through Friday, 7 a.m. to 6 p.m. CT (Except official holidays)

E-mail:

[e-mail]

Table of Contents

Charge the Battery 2

Install the Mount 2

Your Good Sam GPS ....3

2. Settings 4

Main Menu 4

Guide to RV Tools and Device Preferences....5

RV Info 6

Warnings 7

General Preferences 8-9

Route Preferences ....10

Map Preferences ....11

3. Destinations ....12

Tips 13

New Location 14-17

Address Book 18-19

Multi-Stop Trips 20-22

Tap Map 23

Points of Interest (POIs) 24-27

Local Search 28

Confirmation Windows 29

Compare Routes....30

? Look for this icon for help tips on many screens.

Note: Some screens may appear different, depending on device model.

4. Maps & Routing ....31

Route Map Window 31

Exits Quick View 32

Directions Slide-Out List 33

Virtual Dashboard 34-35

Junction View 36

Location and Route Options 37

5. Tools & Features 38

Wi-Fi 38

Weather 39

Fuel Prices 40

RV Tools 41

Checklists 42

Maintenance 43

Trails 44

Fuel 45

Quick Planner 46

Road Atlas Information....47

Unit Converter 48

Calculator 48

Traffic Everywhere (optional) 49-50

6. Connect With Rand .... 51

Rand McNally Dock ....51

Custom POI Information 52-53

Export Fuel Logs 54

Tell Rand 55

More Information 56

Caution: Important Safety Information

Navigation

• Use this navigation device at your own risk.
• Use this navigation device only when it is safe to do so.
• Look at the display only when it is safe to do so.
• Traffic regulations always have priority over any instructions from the navigation system.
• Follow navigation system instructions only when local regulations and road traffic allow you do so.
• Make sure that the mount is securely mounted and properly adjusted before each trip.
• Note: If you do not understand the spoken instructions or are unsure of what to do next, refer to the navigation map on your navigation device.

Installation

• Make sure that the mount does not impair the driver's visibility.
• Do not attach the mount within the airbag deployment zone.
• When installing the mount, make sure that it does not pose a risk in the event of an accident.
• Do not run cables directly next to safety-relevant devices and power supplies.
  • After installation, check all safety-relevant equipment.
• Connect the wall charger to a 120V or 240V outlet only.
• Connect the vehicle charger to a 12V outlet only.

Device

• Do not use sharp-edged objects on the device touch screen.
• The device is not waterproof and is not protected against water damage.
• Protect the device from extreme temperatures. Operating temperature for the device is between 32 degrees F and 120 degrees F.
• Do not open the navigation device casing.

• Do not attempt to replace the battery. Contact Rand McNally Customer Support with questions about the battery.
  • Always follow local regulations when disposing of this device.

• Note: Make sure that there are no kinks in the cable and that it will not be damaged by any sharp objects.

• Note: Use only a moist cloth to clean the navigation device.
  • Note: Do not pull the cable to unplug the unit.

What's Included

• Good Sam GPS device
• Windshield mount with suction cup
- Quick Start Guide
- Vehicle charger
- USB cable
• Wall charger (7725 only)

Charge the Battery

It is recommended that the device is always connected to a power source during use.

Note: The vehicle may need to be on for the device to charge.

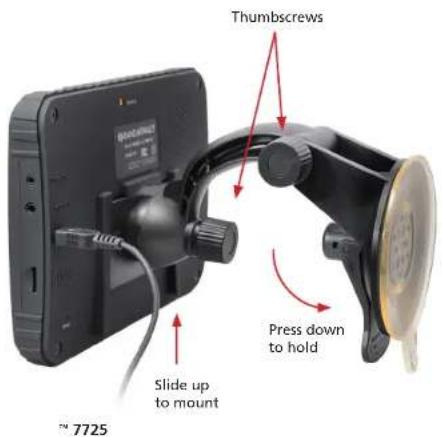

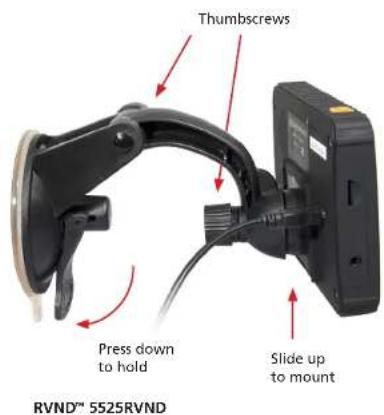

Install the Mount

Note: Follow all local regulations governing the placement of the mount.

1. Select an area with a line of sight to the sky and GPS satellites.
2. Clean and dry the mounting area.
3. Remove the suction cup protective film.
4. Adjust the angle of the mount using the thumbscrews.
5. Pull the suction cup lever up to release suction.
6. Plug the power cord into the device and the vehicle's 12-volt power source.
7. Slide the device onto the mount.
8. Place and hold the mount suction cup against the mounting surface.
9. Press the suction cup lever down until it snaps into place.
10. Adjust the device so that it can be easily seen and does not block the driver's line of sight.

RVND™ 5525

RVND™ 7725

Illustration of a blank tablet device with two red location pins labeled 1 and 2 (no text or symbols on the device itself)

Your Device

1 Power Button

Press and hold to turn on or off. While the device is running, the power button can also be used for quick access to certain features with one quick tap. See page 9 for Quick Power Press settings.

2 Battery Power Indicator

A red light indicates the battery is charging and blinks when the battery is low; a green light indicates the battery is fully charged.

3 External GPS Port

Used with an optional GPS antenna.

4 Speaker

5 Video Input (7725 only)

Connect to optional back-up or rear-view camera.

Note: When a camera is connected, tap the camera icon in the upper left corner of the map screen to view. A quick tap on the power button adjusts the brightness of the camera image.

6 Audio Output

Connect to optional external speaker.

7 Mini-USB Port

Connect the charger or the USB cord.

8 SD Card Slot

For future use, as needed.

9 Reset Button

Use the reset button on the back of the device to restart. This will cancel the current route, but preferences, address book, and other personal data will be saved.

Start Your Device

Each time you turn on your device, the Warning and Legal Consent window displays.

• To view Frequently Asked Questions (FAQs), tips, or a short tutorial on device use, tap Tutorial.
• Tap Accept, or if you turned the device off while on a route, tap Accept and Continue Previous Route.

2. Settings

Main Menu

1 Battery Power Indicator
2 RV Tools

Select to enter RV information, set warnings, and access other tools. (See page 5.)

3 Go To Map

Tap to view location on the map.

4 Choose Destination

Tap to select an address or point of interest (POI).

5 Preferences

Tap to set general, route, or map options. (See page 5.)

6 Mute/Unmute the Speaker

Tap to mute or unmute spoken instructions.

Note: You can also tap this icon when it appears on the map screen to mute/unmute.

7 Volume

Tap to increase or decrease spoken instructions volume.

Note: You can also mute the speaker from the map screen

when you see

Tap to unmute

2. Settings

1. Tap × and ✕ to view the options.
2. Tap the option to be set.
3. Enter the new information.
4. Tap Back to save changes.

RV Tools Page

RV Info

Bottles of Propane 6
Size of Each Bottle 6
Height 6
Number of Trailers 6
RV ETA Adjustment 6
RV Type 6
Total Length 6
Weight 6
Width 6

Warnings

Auto Dismiss Warnings....7
Construction Area 7
Crossing State Border/ Time Zone Change Warning ......7
Curve Warnings....7
Engine Brake Warnings....7
Hill Warnings 7
Narrow Road Warnings 7
Warning Display Size 7
Speed Limit Alert 7
Speed Limit Change 7

State Border Alert 7
Tollbooth Alert 7
Warning/Alert Prompts 7

Device Preferences

Page

General

About 9

Align screen 9
Brightness 8
Clock Setting 8
Day/Night Map Color 8
GPS Status 9
Home Time Zone 8
Keyboard 8
Language 8
My Custom POIs 8
Quick Power Press 9
Screen Click 8
Screen Snapshot Button 8
Tutorial 8
Units 8
Vehicle Type 8
Voice Name 8

Device Preferences

Page

Route

Avoid List....10

Cross-Country Borders 10

Dirt Roads 10

Fast Recalc 10

Ferries 10

Freeways 10

Junction View Distance....10

Recalculation 10

Route 10

States/Provinces to Avoid 10

Tollways 10

Tunnels 10

Turn Announcements....10

Turn View Distance....10

U-Turns 10

Map

Address Book Icons 11
Car Icon 11
Map Auto Zoom 11
POI Icons 11
Route Color 11
RV Icon 11
RV POI Icons 11

RV Info Options

RV Type Class A

Class A w/Tag Axle

Class B

Class C

Class C (Super)

Fifth Wheel

Hybrid Trailer

Popup Trailer

Toy Hauler Trailer

Travel Trailer

RV Camper

Bottles of Propane Use the + and - buttons or enter a numeric value by tapping the calculator.

Size of Each Bottle Use the + and - buttons or enter a numeric value by tapping the calculator.

Number of Trailers	0
	1
	2

Total Length Use the + and - buttons or enter a numeric (RV + Trailers) value by tapping the calculator.

Weight Use the + and - buttons or enter a numeric value by tapping the calculator.

Height Use the + and - buttons or enter a numeric value by tapping the calculator.

RV Info Options

Width Use the + and - buttons or enter a numeric value by tapping the calculator.

RV ETA Adjustment Increase ETA more

Increase ETA some

ETA ok

Decrease ETA some

Decrease ETA more

Set adjustments to your ETA due to weather or traffic conditions. You can add (increase) time to make the trip take longer or subtract (decrease) time to make the trip take less time.

Warnings Options

Warning/Alert Prompts None

Audio & Visual Visual

Audio

Auto Dismiss Warnings Never

After 10 seconds

After 30 seconds

Height and weight violations will not be auto dismissed.

Warning Display Size Full screen

Small bar

Curve Warnings Set warning distance to curves by using the + and - buttons.

Hill Warnings Set warning distance to hills by using the + and - buttons.

Engine Brake Warnings Set warning distance and locations where engine braking is prohibited by using the + and - buttons.

Narrow Road Warnings Set warning distance to narrow roads by using the + and - buttons.

State Border Alert Set warning distance to state borders by using the + and - buttons.

Crossing State Border/

Timezone Change Warning Off

On

Warnings Options

Toll Booth Alert Set warning distance to toll booths by using the + and - buttons.

Construction Area Set warning distance to construction areas by using the + and - buttons. Construction information is based on RoadWork "data distributed through the Rand McNally Dock. (See page 51.)

Speed Limit Change Set warning distance to speed limit changes by using the + and - buttons.

Set the amount over the posted limit at which the warning appears.

Set user-defined maximum speed to be warned whenever the vehicle exceeds that speed, regardless of posted speed limits.

Note: To turn warnings off completely, tap the - button until "off" displays.

2. Settings

General Preferences Options

Vehicle Type

RV

Car

Controls how routes are calculated.

Note: Some tools and settings may not be available in car mode.

Home Time Zone

Hawaii

Alaska

Pacific Time

Arizona

Mountain Time

Central Time

Eastern Time

Indiana (East)

Atlantic (Canada)

Newfoundland

Day/Night Map Color Always day

Always night

Automatic

Brightness Set separately for day and night modes.

My Custom POIs Tap Manage Custom POIs to specify how custom POIs are displayed on the map: set image, warning distance, warning type, and street/city/state level map display. Tap the "x" to delete any set of POIs. (See pages 52-53.)

General Preferences Options

Screen Click Click off

Click on

Tutorial View on-device tutorial

Keyboard

ABC

Computer (QWERTY)

Voice Name

Samantha

Tom (English only)

Language

English

Spanish

French

For the screen and spoken instructions.

Units U.S. Standard

Metric

Clock Setting 12-hour clock

24-hour clock

Screen Snapshot Button

Off

On

General Preferences Options

Quick Power Press POI along route

Screen snapshot

Main Menu

Show map

Toggle mute

Save current location

Tell Rand

The power button can also give you access to these screens at any time with one quick tap.

Align screen Calibrate the touch screen.

Note: Select this option if your device seems to have buttons that are hard to tap.

GPS Status Tap to show details about your location.

About Tap to show version information and copyrights.

Route Preferences Options Route Preferences Options

Note: The default settings for your device are already optimized for RV routing. Use the options below to fine-tune these settings. A route may still include a roadway or maneuver set to Avoid if the only legal route found contains these types of roads or the route is over several hundred miles.

Recalculation	Manual recalculate
Auto recalculate

Route	Fastest route
Shortest route

Freeways	Allow all (default)
Avoid freeways
Prefer freeways
Avoid small roads

TollwaysAvoid tollways

Allow tollways

U-Turns Allow u-turnsAvoid u-turns

Ferries	Allow ferries
Avoid ferries

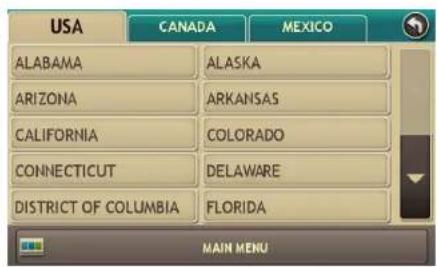

States/Provinces to Avoid

Tap the bottom right corner to access a list of states/provinces. Check the box to avoid.

Cross-Country BordersAvoid cross borders

Allow cross borders

Dirt Roads Allow dirt roads Avoid dirt roads

Tunnels Allow tunnels Avoid tunnels

Avoid List Tap on the map and select a road segment to add it to the Avoid List. (See page 23.)

Fast Recalc	Off
	On

Fast recalc calculates a route to a midpoint between your location and the destination, rather than recalculating the entire route from scratch. Best used on a long route that has short distances between intersections.

Turn Announcements Set three distances at which you want to be warned about an upcoming turn. The first announcement will be the farthest from the turn and the third the closest to it.

Turn View Distance Set the distance before the maneuver at which the local street turn view screen appears. (Note: In 3D map view, this warning is not needed and will be turned off.)

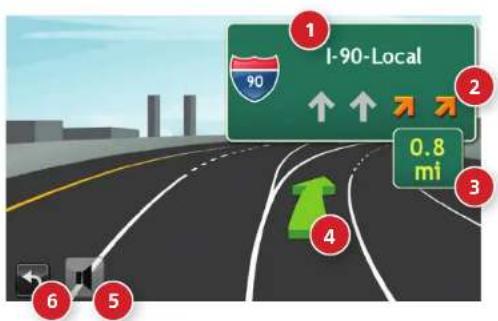

Junction View Distance Set the distance before the maneuver at which the highway junction view screen appears.

2. Settings

Map Auto Zoom Off

On, auto scale

On, street scale

On, city scale

On, county scale

Set to auto scale to keep the current vehicle position and the next turn in the map view at all times. Set to street/city/county scale to specify the maximum scale of the zoom.

Note: Map redraw speed is impacted by autozoom choice, especially when combined with 3D map display option.

POI Icons Off On

Select icons to display on map

Select restaurants, banks, and consumer POIs ("Other" category) to display on the map.

RV POI Icons Off On

Select parks, campgrounds, pet-friendly locations, and other RV POIs to display on the map.

Map Preferences OptionsMap Preferences Options

Address Book Icons Off On

Address book entries appear as pushpin icons unless they are assigned to a group. Grouped entries appear as folders. (See page 19.)

RV Icon Use the arrows to select different icons to display when using the RV setting. Use the slider to change the color.

Car Icon Use the arrows to select different icons to display when using the car setting. Use the slider to change the color.

Route Color Use the slider to select.

3. Destinations

Destinations

To access this window from the Main Menu, tap Choose Destination.

1 Back

Tap to return to the Main Menu.

2 NewLocation

Tap to route to a new location by address, city center, intersection, or latitude/longitude. (See page 14.)

3 History

Tap to route to a recently entered location.

4 Address Book

Tap to view a list of saved locations. (See page 18.)

5 Multi-Stop Trips

Tap to view a list of saved multi-stop trips or to create a new one. (See page 20.)

6 Points of Interest/POIs

Tap to search for a point of interest (POI) such as a gas station, restaurant, etc. (See page 24.)

Local Search

Tap to search for local businesses, restaurants, and more by name or keyword. (Note: Wi-Fi connection required.) (See page 28.)

8 Rand McNally Trips

Tap to view Rand McNally Trip content.

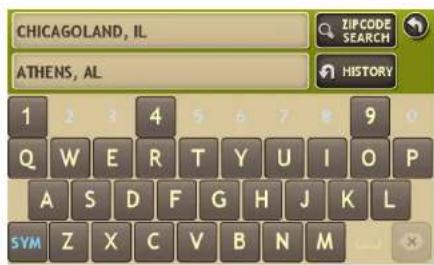

3. Destinations

Tap to view a longer list of names g the typed characters.

Tap to view a list of previously cations.

Add a space.

Delete last character and move k one space.

Type an apostrophe, hyphen, ther symbol.

Helpful Tips on Entering Addresses

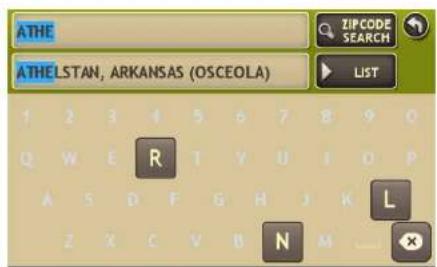

Auto-Complete Feature:

Enter the first few characters in a name and a short list displays a couple of names that start with the typed characters.

On the keyboard, the only keys available are for the next valid characters in a search name.

Continue entering characters until the searched-for name displays in the list. Tap on the name to select it.

Cities:

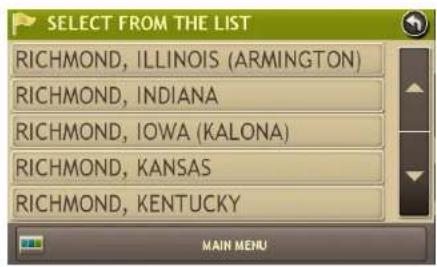

Some cities with common names such as "Athens" have several types of names associated with a city.

If a name does not display, continue typing characters until the name you are looking for displays in the list.

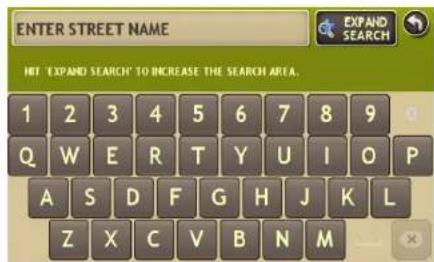

Streets:

If the next letter in the street name can not be selected on the keyboard, tap Expand Search to search a greater area.

The Expand Search button can also help locate addresses that may actually be in a different town, spelled slightly differently, or in a neighboring town.

Note: If you're entering a State or County Route, it's typically best to first either enter the State or County initials (for example, State Road 535 would be entered as "SR") but you may also need to try other options, such as "State Road" or "CA" for California, for example.

3. Destinations

New Location

1 Address

Tap to route to an address by entering the city, street, and number, or by entering the zip code and street. (See page 15.)

2 City Center

Tap to route to a city center. (See page 16.)

3 Intersection

Tap to route to two intersecting roads in a city. (See page 16.)

4 Back

Tap to return to the previous window.

5 Enter Lat/Long

Tap to route to a location by latitude and longitude. (See page 17.)

6 Main Menu

Tap to return to the Main Menu.

Search for an Address

1. Tap Choose Destination > New Location > Address.
2. Type the first few characters in the city name. As you type, a short list of matching city names displays.

3. Tap on a city to select it.

4. If the city is not displayed on the short name list, continue typing characters in the city name or tap List to display a long list of city names. Use the up and down arrows to view all cities/states. Tap on a city to select it.

5. On the next use, the city name selected in the previous search displays. Tap on the city name to search for a location in the city.

Note: If a city name appears twice within a state, you may need to check both for your specific address.

1. Or tap Zip Code Search. Type the zip code.
2. Type the first few characters in the street name, or if the next characters of the street name cannot be selected on the keyboard, tap Expand Search and search a wider area.
3. Tap on the street name from the displayed list.
4. Tap the street number or tap List to show a list of address ranges.
5. Tap on the street number range from the list. The Confirmation Window displays. (See page 29.)
6. Tap Begin New Route to navigate to the location.

3. Destinations > Addresses

Route to a City Center

1. Tap Choose Destination > New Location > City Center.
2. Type the first few characters in the city name.
3. Tap on the city/state name. The Confirmation Window displays. (See page 29.)
4. Tap Begin New Route to navigate to the location.

Route to an Intersection

1. Tap Choose Destination > New Location > Intersection.
2. Type the first few characters in the city name.
3. Tap on the city name.
4. Type the first few characters in the primary street name, or if the next characters of the street name cannot be selected on the keyboard, tap Expand Search and search a wider area.
5. Tap on the street name in the list.
6. Type the first few characters in the intersecting street name.
7. Tap on the intersecting street name. The Confirmation Window displays. (See page 29.)
8. Tap Begin New Route to navigate to the location.

3. Destinations > Addresses

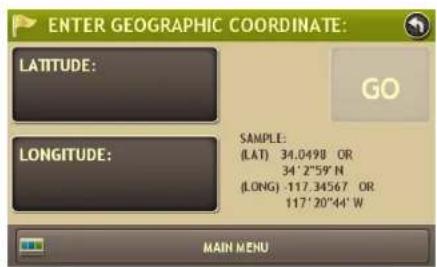

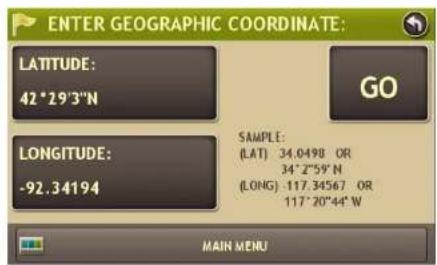

Route by Latitude/Longitude

1. Tap Choose Destination > New Location > Enter Lat/Long
2. Tap in the Latitude field.
3. Enter the latitude of the location and tap Enter.
4. Tap in the Longitude field.
5. Enter the longitude of the location and tap Enter.
6. Tap Go. The Confirmation Window displays. (See page 29.)
7. Tap Begin New Route to navigate to the location.

Note: There are two ways to enter latitude/longitude: by decimal degrees or by degrees, minutes, and seconds.

Address Book

Add Locations to the Address Book from the Confirmation Window (See page 29.):

1. Tap Save to Address Book.
2. Tap Yes to accept the default name or tap No to display a keyboard.
3. Type the name of the location and tap Enter to save the location in the Address Book. The Confirmation Window re-displays.

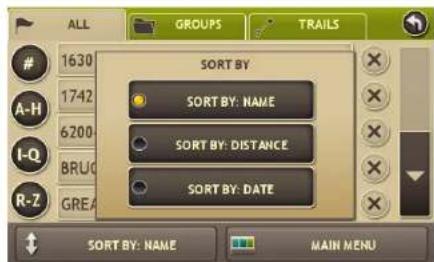

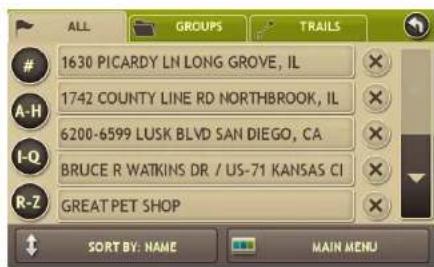

Entries

1. Tap Choose Destination > Address Book. Entries are alphabetically sorted by name.
2. To sort by distance or date, tap Sort By.
3. Select Sort By: Distance or Sort By: Date.

Note: Use the up and down arrows to scroll through the list or use the alphabet buttons on the left.

Note: The notepad icon indicates a note has been added for this location.

Route to an Address Book Location

1. Tap Choose Destination > Address Book.

2. Tap on the All Addresses tab or

3. Tap on the Groups tab.

4. Tap on an address to select it. The Confirmation Window displays. (See page 29.)

5. Tap Begin New Route to navigate to the location.

Create a Group

1. Tap Choose Destination > Address Book
2. Tap on the Groups tab.
3. TapNew Group.
4. Type the group name.
5. To select a different color folder, tap
6. Tap on a color, then tap Close.
7. When finished, tap Enter.

Tap on the ✗ next to a group to delete the group. Addresses will still be saved in the Address Book.

Note: You can also choose to display address book icons on the map. (See page 11.)

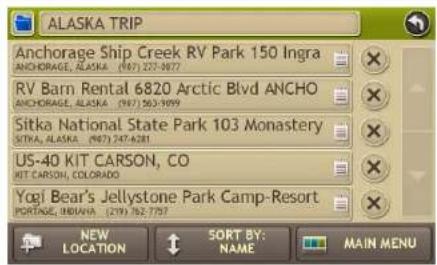

Add an Address to a Group

1. Tap Choose Destination > Address Book.
2. Tap the Groups tab.
3. Tap on the group you want to add an address to.
4. Tap New Location.
5. Tap Enter New Address, History, Address Book, or POI.
6. If you selected:

• History, Saved, or POI, the selected location is added to the group.
- Enter a New Address, tap Yes to accept the default name or tap No to display a keyboard and enter a new name.

Remove an Address From a Group

1. Tap Choose Destination > Address Book
2. Tap on the Group tab.
3. Tap on the Group you want to remove the address from.
4. Tap on the ✗ next to the address to be removed.
5. TapYes.

3. Destinations > Multi-Stop Trips

Create a Multi-Stop Trip

1. Tap Choose Destination > Multi-Stop Trips.
2. TapNew Trip.
3. Type the trip name.
4. To select a different color folder, tap
5. Tap on a color, then tap Close.
6. When finished, tap Enter.

Note: A multi-stop trip can include up to 50 stops.

Add a Stop

Note: You can add locations in the order you want to route to them or reorder stops later (See page 21.)

1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route.
3. TapAdd Address.
4. To add an address, tap Enter New Address, History, Address Book, or POI.

5. A Confirmation Window asks if you want to add another stop. Tap:

6. Yes to add another stop

7. No if the route is complete.

8. Tap Back to save changes.

Remove a Stop

1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route.
3. Tap on the ✗ next to the stop to be removed.
4. TapYes.

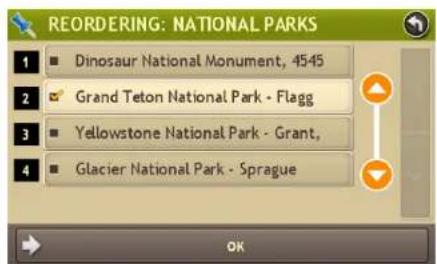

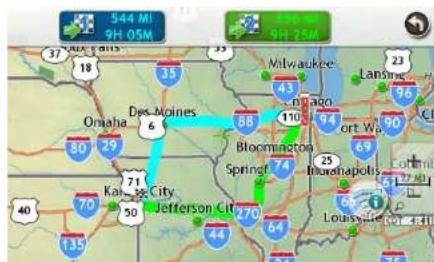

Reorder Routes

Optimize Automatically

After all locations have been added to a multi-stop trip, you can run the optimizer wizard to organize your trip.

1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Automatic/Optimize.
5. Tap Select First Stop and select the first stop, or No Preference.
6. Tap Select Last Stop and select the last stop, or No Preference.
7. Tap Yes to return to your current location to complete the route or No to complete the route at the last stop.
8. Tap Start Trip to begin the route.

Note: There is a limit of ten stops that can be optimized automatically.

Reorder a Route Manually

1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Manual.
5. Tap on the stop to be moved and tap the arrows to move stops up or down.
6. When finished, tap OK.
7. Tap Start Trip to begin the route.

3. Destinations > Multi-Stop Trips

Select and Run a Saved Route

1. Tap Choose Destination > Multi-Stop Trips.
2. Tap on the route to select it.
3. Tap Start Trip. The Confirmation Window displays. (See page 29.)
4. Tap Begin New Route to navigate to the location.
5. The device calculates the route to your first stop. When you have reached the stop, a message displays.
6. Tap:
7. NextStop - To calculate a route to the next stop in the route.
8. Skip Next Stop - To skip the next stop and calculate a route to the stop after the next one.
   • End Current Trip - To end the route at the current stop.

Note: To view your entire trip, select Summary Map View from the Route Display Options. (See page 33.)

Delete a Route

1. Tap Choose Destination > Multi-Stop Trips. The Multi-Stop Trips window displays.
2. Tap on the ✗ next to the route to be deleted.
3. A confirmation message displays.
4. Tap:

- Yes to delete the route.

- No to keep the route.

3. Destinations > Tap Map

Tap on the Map

When you tap on the map screen, the crosshairs – display.

1 Add as Via

Add a via—an interim stop between the origin and the destination.

2 Avoid

If the location is along the current route, the location is permanently blocked and added to the Avoid List. (See page 10.) Tap the location and choose Remove Avoid to remove the block.

If the location is not along the current route, the avoid will be temporary.

3 Set Origin

Tap to set the location as the starting point of the route.

4 Route to Here

Tap Begin New Route to navigate to the location.

3. Destinations > POIs

Points of Interest (POIs)

1 My RV/Near Car

Tap to search for a point of interest near the current vehicle location.

2 City

Tap to search for a point of interest in a city.

3 MyRoute

Tap to search for a point of interest along the vehicle route.

4 Destination

Tap to search for a point of interest near the route destination.

5 Back

Tap to return to the previous window.

6 Custom POI

Tap to select a custom POI location. (See page 52.)

7 Quick Stops

Tap to find a travel center near the current RV location.

8 Main Menu

Tap to return to the Main Menu.

3. Destinations > POIs

Points of Interest (POIs)

1 RV Campgrounds

Tap to search for RV campgrounds.

See page 27 to filter commercial campgrounds by amenities.

2 RV Services

Tap to search for an RV services POI.

3 Parking & Rest Areas

Tap to search for RV parking at rest stops and Walmart locations.

4 Travel Centers

Tap to search for a travel center. See page 27 to filter by amenities.

5 Rand McNally Editor's Picks

Tap to search for national parks, festivals, and other places to visit.

6 Other Categories

Tap to select from a wide range of restaurants, shopping, and other POIs.

7 Back

Return to previous window.

Other Categories

1. Tap Choose Destination > Points of Interest.
2. Select a search type (My RV/My Car, City, My Route, or Destination).
3. TapOther Categories.
4. Tap on a category. (For example, tap Hospital/Emergency.)
5. If necessary, tap on a subcategory type. (For example, tap Pharmacy.)
6. Tap on a location from the list or
7. Tap All.
8. Tap on the Spell button to display the keyboard.
9. Type the first characters in the POI name.
10. Tap on the POI name in the displayed list.
11. Tap on a location from the list.

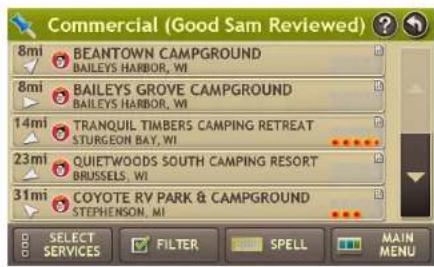

Select and Filter Commercial Campgrounds and Travel Centers

To select only locations with amenities that you are interested in, filter your search results.

1. Tap Choose Destination > Points of Interest.
2. Select a search type (My RV/My Car, City, My Route, or Destination).
3. Tap RV Campgrounds > Commercial (Good Sam Reviewed) or Travel Centers.
4. TapSelect Services.
5. Click on the check box of each amenity to be included in the search.
6. TapOK. The window displays POI locations with your selected amenities.
7. Tap on a location from the list.
8. A check next to Filter indicates the search terms have been applied. Tap Filter to return to general search results.

Rate a Point of Interest

You can rate campgrounds and other POIs from the Confirmation Window. (See page 29.)

For each POI, the top row indicates the community rating from fellow drivers for the point of interest. The bottom row indicates your individual rating.

1. Tap on the POI Ratings button.
2. Use — and te+rate the facility.
3. Tap Create Comment and type a personal comment on the facility.
4. Tap Enter to save the comment.
5. TapBack to save changes.

Note: You can share ratings with fellow RVers through Rand McNally Dock software for your Mac or PC. (See page 51.)

3. Destinations > Local Search

Note: This feature requires a Wi-Fi connection. (See page 38.)

Use Local Search to search the Internet for a restaurant, business, or any type of location by name, keyword, or category. Tap Choose Destination > Local Search.

Choose whether to search:

1 near your RV
2n a specific city
3ear your destination

Select a category, or tap Keywords to search using a specific name (e.g., "Subway") or a keyword ("sandwich").

4 Tap Nearby Food to show a list of area restaurants based on your current location.
5 Tap My Local History to show a list of previous searches.

3. Destinations > Confirmation Windows

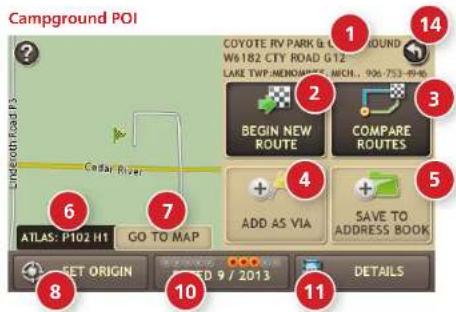

Confirmation Windows

1 DestinationAddress

The selected location address.

2 Begin New Route

Tap to route to destination.

3 CompareRoutes

Tap to choose between two routes. (See page 30.)

4 Add as Via

Add this location as an interim stop between the origin and destination. This automatically makes the current route a multi-stop trip. (See page 20.)

5ave to Address Book

Add the location to the Address Book or add to Address Book group. (See page 18).

6 Atlas

Cross-reference to printed Rand McNally Atlas and Motor Carriers' Road Atlas. (Page numbers apply to the most recent Atlas.)

7Go to Map

Tap to view this location on a map.

8et Origin

Tap to set the location as the starting point of a route.

9Menu

Tap to return to the Main Menu.

10 OI Rating

Tap to rate or add a comment to this location, or view community ratings. (See page 27.)

11 details

Tap to view detailed campground ratings and amenities.

12dit Entry

Rename or edit this entry in the Address Book.

13Note

Add a note about this location in the Address Book.

14ack

Tap to return to previous window.

3. Destinations > Compare Routes

Compare Routes

1. From the destination confirmation window, tap Compare Routes to view two calculated routes: the primary route and an alternative route.
2. The top of the screen displays the total distance and time for each route. Zoom in to get a closer look at each route on the map.
3. Tap on #1 or #2 to select that route.

4. Maps & Routing

Route Map Window

1 NextManeuver

Tap to repeat spoken next maneuver instructions.

2 RoadName

Name of street you will turn onto next.

3 Miles/Time

Displays remaining distance. Tap to select from: home arrival time, arrival time, remaining time, home time, and elevation.

4 ExitsQuickView

Slide out to show upcoming exit information. (See page 32.)

5 Directions Slide-Out List

Tap to select a route display option. (See page 33.)

6 ZoomIn/ZoomOut

7 Wi-Fi

Tap to access Wi-Fi hotspots and connected features. (See page 38.)

8MainMenu

Tap to return to the Main Menu.

9 CompassDirection

Tap to change the map display. An icon in the upper right corner displays the selected option: North up (N), heading up (arrow), or 3D (3). Also displays Wi-Fi status.

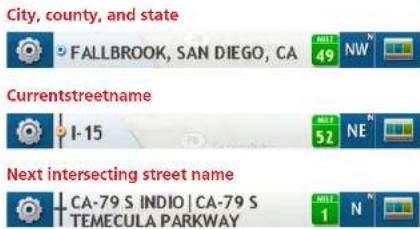

10 RoadInformation

Tap to view current information by city, street, or upcoming intersection.

11 LocationandRouteOptions

Tap to see current location information, change route settings, detour, or cancel a route. (See page 37.)

12 CurrentSpeed

Tap to display the Virtual Dashboard. Turns red for speed warnings. (See page 34.)

13 Speed Limit

Tap to open a "Tell Rand" message about speed limits.

14 Traffic

Tap to view the Traffic window. (See page 49.)

15 Mute

Tap to mute the speaker.

16 CurrentMileMarker

Tap to open a "Tell Rand" message.

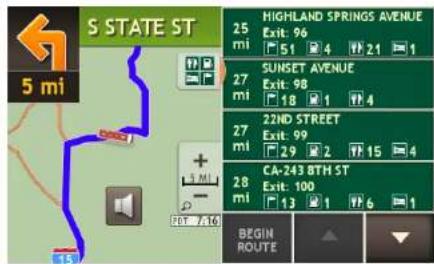

Exits Quick View

Slide out to show Points of Interest and amenities at upcoming exits. The list displays the distance to the next exit, exit name and number, and a count of available amenities.

1. Tap on an exit to bring up the notes icon
2. Tap the icon to display local amenities by category.
3. Tap on any item in the list to route to that location.

Trip Summary (for multi-stop trips)

Summary Map View (entire trip)

Directions Slide-Out List

Route Display Options

1. When first opened, the slide-out list displays in Detail View.
2. Use ▲ and ▼view the instructions.
3. To change the display option, tap Route Display Options. See Highway View, Trip Summary, and Summary Map View at left.

1 Rise/Set

Displays the times of sunrise and sunset for your current location.

2 MPH

Displays the current vehicle speed, in miles per hour.

3 Distance, Time

Displays remaining distance and time.

4 Distance

Displays the distance to the next maneuver and the type of maneuver.

5 Street/RoadName

Displays the street name you will be on after performing the next maneuver. Tap on any item in the list to view it on the map and to detour around it if necessary.

6 Total Distance and Time

Total distance and time for the entire trip.

7 Leg

Number of the leg and distance.

8 LegDestination

Leg destination.

Virtual Dashboard

To show the Virtual Dashboard, tap the Current Speed.

1 Current speed.
Note: Turns red when speed limit warning exceeded. (See page 7 to set speed limit alert.)
2 Sunrise and sunset times based on vehicle location (latitude/longitude) and day.
3 Elevation at current location.
4 Percentage of current trip completed, distance to next maneuver, and the number of miles and time spent on the trip to this point.
5 Vehicle odometer. Tap the pencil to reset.
6 Gather trip information for up to three trips. Includes odometer settings, hours, and speeds.
7 Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3). (See page 35.)
8 Select to automatically reset the information in each tab after the vehicle has remained stationary for the specified number of hours.
9 View fuel logs and add fuel purchase information.
10 Return to the Route Map Window.

Manually Reset Trip Information

1. Tap on the tab you want to reset.
2. To set the odometer for the selected tab back to zero, tapReset All.
3. Information is captured as you travel the route.

Automatically Reset Trip Information

To reset trip information after the vehicle has remained stationary after a specific number of hours:

1. Tap on the tab you want to reset.
2. Tap Auto Reset.
3. Tap + to increase the number of hours.
4. Tap — to decrease the number of hours.
5. To save changes, tap Change.
6. The Tab displays the auto reset number of hours.

4. Maps & Routing

Junction View

When on a route, Junction View displays when you have an upcoming maneuver. Once past the maneuver, Junction View closes and the previous window displays.

1 Signs to follow for the next maneuver.
2 Number and direction of lanes for the next maneuver.
3 Distance to the upcoming maneuver. Distance decreases as you approach the ramp.
4 Lane assist arrow.
5 Mute the speaker.
6 Return to previous window.

4. Maps & Routing

Location and Route Options

1 Nearest cross street
2 Current road you're on, current town you're in
3 Latitude and longitude at current location
4 Current location by mile marker
5 Return to previous window

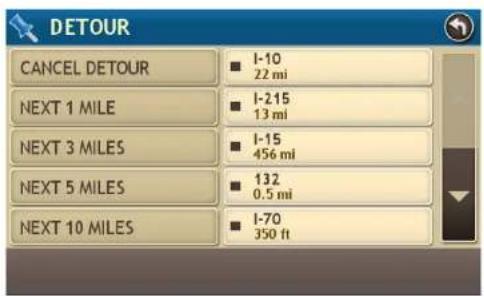

6 Detour

Around Part of the Route

1. On the left side of the window, tap the number of miles on the route to be avoided.
2. The route is recalculated.

Around a Specific Roadway

1. On the right side of the window, tap and to view a list of roads in the current route.
2. Tap on one or more roadways to be avoided. A check mark √ appears in front of each selected road.
3. Tap Detour to recalculate the route.

7 Skip to next stop (for multi-stop trips)
8 Cancel current route
9 Save current location to the Address Book (See page 18.)
10 Access Avoid List (See page 10.)
11 Access Route Settings (See page 10.)

Wi-Fi

For information on setting up a Wi-Fi hotspot through your cellular phone or laptop computer, please visit www.randmcnally.com/wifihelp for basic instructions, or contact your wireless carrier.

Note: Wi-Fi connectivity requires a supporting feature and data plan from your wireless service provider. As the user, you are responsible for all data charges. Please contact your wireless service provider to make sure you do not exceed the limits of your data plan.

Once you have established a Wi-Fi hotspot:

1. Tap WiFi icon on the map screen. (Also accessible from the Preferences menu.)
2. Tap WiFi at the bottom of the screen.
3. Tap Enable WiFi to search for available hotspots.
4. Tap the hotspot you want to connect to.
5. Enter the network password. (Note: Many passwords are case sensitive. To access lowercase letters, set the Keyboard to Computer (Qwerty). See page 8.)
6. Tap Disable WiFi to turn Wi-Fi connectivity off. (Note: Disable to save battery power.)

Weather

Notes:

• This feature requires a Wi-Fi connection.
- The refresh speed of the weather display is dependent on the connection speed. Weather information is updated every few minutes while Wi-Fi connection is active.
- Weather display depends on active weather patterns and map zoom level.

To view current weather information and the three-day forecast for your location, tap the Wi-Fi icon 📄 on the map screen and tap the Weather tab.

1 View details for current weather alerts.
2 View weather information at your destination.
Note: You can view weather information at any other location by tapping the map and then the Wi-Fi icon and Weather tab.
3 Select the type of weather overlay to display on the map.

4 Select from a variety of weather types:

• No weather (turn off)
• Traffic impact
• Temperature
• Feels like
• Current precipitation intensity and type
  • Probability of precipitation
  • Forecasted precipitation intensity, type, and clouds
  • Forecasted precipitation intensity and type
• Dew point
• Relative humidity
• Wind speed

5 Slide to adjust the transparency of the overlay on the map.

Note: Use the slider to readjust for visibility when switching between day and night modes.

5. Tools & Features

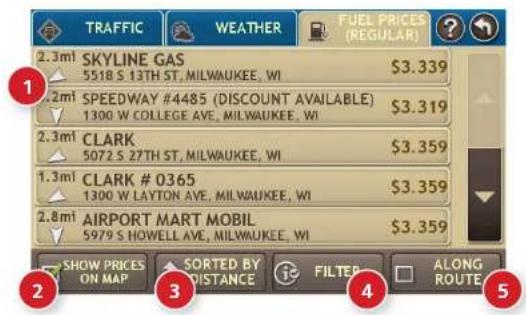

Fuel Prices

Note: This feature requires a Wi-Fi connection.

To show fuel prices, tap the Wi-Fi icon on the map screen and tap the Fuel Prices tab.

1 Displays stations and prices, with distance as the crow flies.
2 Check to show the icons and prices on the map screen.
3ort by distance or price.
4 Apply filters for type of fuel and specific brand.
5 Check to show fuel prices along the route.

5. Tools & Features

RV Tools

Note: Some features are not available in Car Mode.

1 Back

Return to the Main Menu.

2 RV Info

Enter RV information (weight, length, etc.). (See page 6.)

3 Checklists, Maintenance, Trails, and Fuel

View pre-trip and other checklists; maintenance notes; trails; and fuel purchase information. (See pages 42-45.)

4 Warnings

Set warnings for hills, speed limits, and more. (See page 7.)

5 Quick Planner

Between two major cities, quickly calculate the distance, driving time, and cost. (See page 46.)

6 Rand McNally Atlas

View emergency contact and other information. (See page 47.)

7 TellRand

Compose a message to send to Rand McNally when you connect to the Dock. (See page 51.)

8 Converter

Quickly convert distance, weight, and temperature. (See page 48.)

9 Calculator

(See page 48.)

Checklists

1. Tap RV Tools.
2. Tap Checklists, Maintenance, Trails, Fuel.
3. Tap the Checklists tab.

To complete a preset checklist:

1. Tap on a checklist to select it.
2. Tap the box next to each task to check it off the list.

Or

To add a new checklist:

1. Tap Custom Checklist.

2. Enter the name of the new checklist.

3. Select the new checklist from the list.

4. Tap Add Item to add tasks.

5. Tap the box next to each task to check it off the list.

6. Tap Back to save changes.

7. If you have not checked off all the tasks, a warning displays. Tap Cancel to continue completing tasks, Uncheck All to clear all checklist tasks, or OK to save changes.
8. The Checklists tab redisplays, with the number of completed tasks on the right (for example, 2 of 28).

To delete a checklist or an item from a checklist, tap ✗.

Note: If you delete preset checklists and want to restore them, tap Restore Default.

Maintenance

Keep track of maintenance performed on your RV.

1. Tap RV Tools.
2. Tap Checklists, Maintenance, Trails, Fuel.
3. Tap the Maintenance tab.
4. Tap Add Note and enter the details.
5. Tap Back to save changes.

Tap any note to edit or to change the date.

To delete a note, tap ✗.

Trails

Use Trails to record a "bread-crumb" path of GPS coordinates where your RV has traveled.

1. Tap RV Tools.
2. Tap Checklists, Maintenance, Trails, Fuel.
3. Tap the Trails tab.

4. To record a trail, tap New Trail.

5. To end the trail, tap the Trails icon on the map screen.

1. The trail is recorded in the Trails tab.

2. Tap on a trail to view details.

3. Tap Show on Map to display the trail on the map screen.

4. Tap Edit Name to change the name of the trail.

5. Tap Set Color to change the color of the trail.

Note: The Trails feature is also accessible from the Address Book. (See page 18.)

Fuel

1. Tap RV Tools.
2. Tap Checklists, Maintenance, Trails, Fuel.
3. Tap the Fuel tab to view a list of fuel logs by quarter.
4. Tap Add Fuel to record the date, location and cost of fuel purchase.
5. Tap on any field to edit.
6. Tap Save.
7. Once fuel purchases have been entered, tap on a quarter to view the details.
8. You can View by State or View by Month.
9. Tap the state or month to view fuel purchases.
10. Tap View All to see all fuel purchases.

Quick Planner

Use this tool to quickly estimate the mileage and time between cities. This tool covers larger cities in North America.

1. TapRV Tools.
2. Tap Quick Planner.
   The revenue or cost per mile used in the last computation displays.
3. Tap From City 1 and select the city.
4. Tap To City 2 and select the city.
5. The distance displays.
6. Tap Cost per Mile and enter the per mile rate or tap Total and enter the total amount.
7. Tap the new dollar amount and tap Enter.
8. The dollar amounts readjust automatically.
9. Tap Average Speed (MPH) enter a speed:
10. Tap - or + to decrease or increase the speed.
11. Tap the calculator to enter a speed.
12. Tap Change.
13. The driving time displays.

Road Atlas Information

To reference Rand McNally's Atlas and Motor Carriers' Road Atlas:

1. TapRV Tools.
2. Tap Road Atlas Information.
3. Select the appropriate country tab.
4. Select the appropriate state/province to view emergency and other key phone numbers.

5. Tools & Features

Unit Converter

1. TapRV Tools.
2. Tap Converter.
3. Tap on the first field and select the type of conversion to perform.
4. Tap on the second field and enter the value to be converted.
5. TapEnter.

Calculator

1. TapRV Tools.
2. Tap Calculator.

Traffic Everywhere

Traffic Everywhere is available as an optional service on the Rand McNally Dock. (See page 51.)

Note: This feature requires a Wi-Fi connection.

To view traffic information, tap the Wi-Fi icon on the map screen and then tap the Traffic tab.

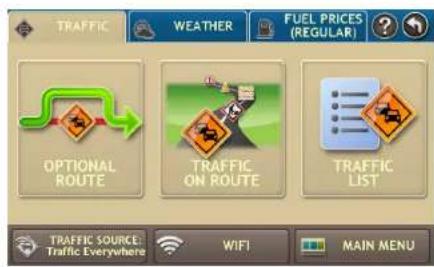

Traffic Window

1 OptionalRoute

Tap to select either a recalculated route based on traffic events or to stay on the current route.

2 Traffic on Route

Tap to view traffic events along your route. Tap Filter to choose to display traffic flow, incidents, or both.

3 Traffic List

Tap to view a list of traffic events in the area. Tap Filter to choose to display flow, incidents, or both.

4 Back

Tap to return to the previous screen.

5 Traffic Off/Traffic Everywhere

Tap to turn traffic reporting off.

6Vi-Fi

Check Wi-Fi connection status.

7Menu

Tap to return to the Main Menu.

8Detailed list

Tap any item to view on the map and detour if necessary.

9low

Check to display traffic flow in the list and on the map.

10 incidents

Check to display incidents in the list and on the map.

Traffic Icons

Accident Accident Incident Closure Carriageway

Exit blocked Entrance blocked Traffic Carpool Road work

Obstruction Dangerous Road condition Temperature

Chance of precipitation

Wind

Activities Security

Delay

Cancel

Travel time

Size/weight limit

Visibility

Heavy traffic

Moderate traffic

Light traffic

Rand McNally Dock™

The Rand McNally Dock enables you to receive software upgrades and access map updates, construction updates, and additional features.

Simply download the Dock software for your PC or Mac at www.randmcnally.com/dock and connect your device using the USB cable provided.

With the Rand McNally Dock, you can also:

• Export fuel logs to your home computer
• Upload custom POIs, such as red light cameras and railroad crossings, to your device
• Access the Rand McNally support site and online store
• Read product news and announcements
• Send feedback and suggestions to Rand McNally through "Tell Rand"

Custom POI Information

Use custom POIs to upload lists of your own locations to your device.

There are two types of custom POIs:

1. Destinations you can route to.
2. Alert locations, such as red light cameras and railroad crossings, you want to be warned about when they are along your route.
   Lists of custom POIs are available from third-party sources such as POI Factory: www.poi-factory.com.

Or enter your own list. Tips for formatting your own list of POIs:

1. Files must be in .csv format.
2. You can enter locations by longitude/latitude (in decimal format), address, or both.

3. Separate each piece of information with a comma. Do not use spaces before or after commas.

4. Enter in order the longitude, latitude, location name, street address, city, state, zip, and country. For example:

5. Longitude/latitude and address: -87.761039,42.059611,Rand McNally,9855 Woods Dr,Skokie,IL,60077,USA

6. Longitude/latitude only: -87.761039,42.059611,Rand McNally

- Address only: „Rand McNally,9855 Woods Dr,Skokie,IL,60077,USA (Note: In this example, there are two commas at the beginning. Commas are required as placeholders for fields with no data in them.)

Custom POI Information

To upload custom POI files to your device:

1. Connect your device to the Rand McNally Dock.
2. On the Dock, click Add Your Own POI.
3. Click POI (for destinations) or Alert POI (for warnings).
4. Select the file from your computer.
5. Click Open to automatically transfer the file to your device.
6. Unplug your device from your computer.
7. Plug your device into power using the power adapter.
8. Turn the device on.
9. Depending on the size, the download could take up to 30 minutes.

Note: "Failed records" are those for which some information was dropped from the records. If you would like to know why some records failed, plug your device into your computer, and view the error messages in the Dock.

1. Customize how you want the POIs to display in Preferences > My Custom POIs. (See page 8.)

Export Fuel Logs

Use this feature to export fuel purchase information to your computer. The exported file can be in .xls or .csv format.

On the Rand McNally Dock:

1. Click on Fuel.
2. Select where you want the file to be downloaded, and click Save.

3. The file is download to your computer. When finished, a notification message displays.

4. Click Ok.

Tell Rand

While you're en route with your device, you can enter messages for Rand McNally regarding construction, vehicle restrictions, addresses, your device, and more. The next time you connect to the Rand McNally Dock, you can reopen, edit, and send the message.

1. Tap RV Tools.
2. Tap Tell Rand. On the left side, tap Current Location. Enter Different Location or Find Location on Map.
   Note: You can also open a Tell Rand message by tapping the speed limit or mile marker on the map screen, or with the power button by setting the Quick Power Press to Tell Rand. (See page 9.)
3. If you selected Enter Different Location, enter it as an address. If you selected Find Location on Map, tap on the map to set the crosshairs at that location, then tap Back.
4. On the right side, tap the type of message you want to send.
5. Type your message.
6. Tap Enter to save the message.
7. To discard the message and return to the previous window, tap Back.
8. To send the message, connect your device to the Rand McNally Dock.
9. On the Dock, click Tell Rand to access and send the messages saved on your device.

For more information

• Rand McNally Website www.randmcnally.com/rvgps
• Support www.randmcnally.com/support
• GPS accessories www.randmcnally.com/gps-accessories
• Rand McNally Dock www.randmcnally.com/dock
• Demo Videos www.youtube.com/randmcnallyonline

Trademarks

Rand McNally, TripMaker, and Best of the Road are registered trademarks and RVND is a trademark of RM Acquisition LLC, d/b/a Rand McNally.

The RVer's Friend is a registered trademark of TR Information Publishers.

Good Sam is a registered trademark of Good Sam Enterprises, LLC.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

InfoGation is a registered trademark of InfoGation Corporation.

© 2013 Rand McNally. © 2012 HERE. All rights reserved.

Rand McNally follows a continuous improvement process and reserves the right to provide enhancements that may not be reflected in the pictures and specifications in this manual.

The information contained herein may be changed at any time without prior notification. Neither this manual nor any parts thereof may be reproduced for any purpose whatsoever without the express written consent of Rand McNally, Inc., nor may it be transmitted in any form either electronically or mechanically, including photocopying, and recording. All technical specifications, drawings, etc. are subject to copyright law.

Solid red rectangular background with no text, symbols, or patterns
