ESG 5 - Headphones ENERGY SISTEM - Free user manual and instructions

Product Type	Over-Ear Wireless Headphones
Brand	Energy Sistem
Model	ESG 5
Driver Diameter	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Bluetooth Version	5.0
Wireless Range	Up to 10 m
Battery Capacity	300 mAh
Battery Life	Up to 20 hours
Charging Time	Approximately 2 hours
Charging Port	Micro USB
Weight	About 180 g
Dimensions (Folded)	160 x 150 x 50 mm
Controls	Multifunction button, volume +/-
Microphone	Built-in for hands-free calls
Noise Cancellation	Passive noise isolation
Foldable Design	Yes, for portability
Compatible Devices	Bluetooth-enabled devices, also works with 3.5mm cable
Included Accessories	Micro USB cable, 3.5mm audio cable, user manual

Frequently Asked Questions - ESG 5 ENERGY SISTEM

How do I pair the ESG 5 headphones with my phone?

Turn on the headphones by holding the power button for 3 seconds until the LED flashes red and blue. Enable Bluetooth on your phone and select 'ESG 5' from the list. If prompted, enter PIN 0000.

How do I charge the headphones?

Connect the included Micro USB cable to the charging port on the right earcup and the other end to a USB power source. The LED will turn red during charging and turn off when fully charged (about 2 hours).

What is the battery life?

The battery lasts up to 20 hours of continuous playback at moderate volume. Actual life may vary based on volume level and usage.

Can I use the headphones while charging?

Yes, you can use the headphones in wired mode (with the 3.5mm cable) while charging, but Bluetooth playback is not available during charging.

How do I reset the headphones?

If the headphones are unresponsive, press and hold the power button for 10 seconds until the LED turns off, then release. Turn them back on normally.

Are the headphones water-resistant?

No, the ESG 5 headphones are not water-resistant. Keep them away from water and moisture to avoid damage.

Can I use the headphones with a non-Bluetooth device?

Yes, you can use the included 3.5mm audio cable to connect to devices without Bluetooth, such as older MP3 players or on airplanes.

How do I answer a call?

When a call comes in, press the multifunction button once to answer. Press again to end the call. You can also long-press to reject a call.

What should I do if the sound is only coming from one side?

First, check the audio cable connection if using wired mode. For Bluetooth, ensure the source device is not in mono mode. Also, try resetting the headphones as described above.

Where can I find the user manual?

The user manual is available for free download in PDF format from the official Energy Sistem website or through the product page on notice-facile.com.

USER MANUAL ESG 5 ENERGY SISTEM

Care and maintenance 3

Features 4

General features 4

Technical specifications 4

AUDIO 4

CABLE 4

MICROPHONE 4

OTHER FEATURES 4

Product content 4

General overview 4

Main functions 5

Switching on and off the device 5

Other functions 5

Safety 6

Warranty 6

Declaration of conformity 6

Introduction

• Thank you for your trust in our company and for buying the new Headphones ESG 5 Shock. We hope you enjoy the product.
  • Gaming headset with Sound Vibration technology to experience vibration when playing video games.
• Self-adjusting headband and breathable ear pads designed for long gaming sessions.
• Omnidirectional boom mic and blue LED lights.
  • We recommend reading this manual to enjoy your device safely and with maximum performance.

Care and maintenance

• Do not expose your Headphones ESG 5 Shock to impacts, dust, humidity or high temperatures.
• Do not use neither corrosive nor abrasive cleaning products.
• Keep the headphones clean and free of dust using a soft dry cloth.
• Do not disassemble your headphones. All repair works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.

Features

General features

• Over-ear headphones providing better isolation and more comfort.
- Dive into action with these headphones featuring Sound Vibration technology.
- Blue LED light design to stand out when playing video games, listening to music, etc.
- Omnidirectional boom mic to provide you with the best voice chat experience.
- Breathable ear pads to enjoy long gaming sessions in comfort.
- Switch, smartphones, PS4, Xbox One and PC compatible.

Technical specifications

AUDIO

• Frequency response: 20 Hz \~ 20 kHz
- Driver diameter: 50 mm
- Neodymium magnet
- SPL: 107 ± 3 dB
• Maximum power: 20 mW
• Over-ear, closed design
- Type: dynamic
- Impedance: 32 ohms
- THD < 1%
• Sound Vibration technology

CABLE

• Length: 220 cm
• Plug: 3.5 mm jack
  • Volume, microphone, light and vibration control

MICROPHONE

• Type: flexible boom microphone
• Sensitivity: -38 dB ± 3 dB (@1 kHz)
• Frequency range: 50 Hz \~ 10 kHz

OTHER FEATURES

• LED Light
  • Self-adjusting headband

Product content

• Headphones ESG 5 Shock
• 2 male to 1 female mini jack adapter

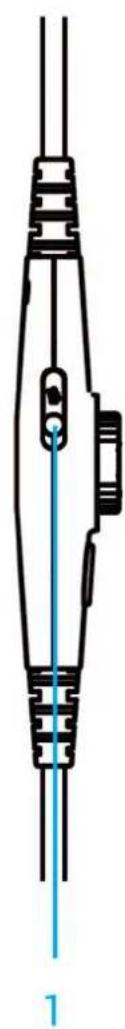

General overview

Microphone On/Off1.

Vibration On/Off2.

Volume +/Volume -3.

2 male to 1 female mini jack adapter4.

3.5 mm jack audio cable5.

USB cable6.

Main functions

Switching on and off the device

Plug the 3.5 mm jack audio cable (5) and the USB cable (6) into your PC or console to start using your Headphones ESG 5 Shock. If your source device features two separate audio and microphone connections, you can use the 2 male to 1 female mini jack adapter (4) that comes with the product.

Other functions

Make the most of your gaming experience using the buttons below:

- Set the desired volume level using Volume +/Volume - (3).

ENERGY♥SISTEM

• Slide the Microphone On/Off (1) switch up or down to switch on or off the microphone.
• Press the Vibration On/Off (2) button to switch on or off the vibration mode.

Note: We recommend leaving a distance of approximately 5 cm between lips and microphone to ensure optimal performance.

Safety

• Before using the headphones, turn the volume down and slowly turn it up until you set an appropriate volume level.
• Avoid noisy environments that force you to turn up the volume really high when using your headphones.
• Listening to loud music over a long period of time may cause your ears to get used to high volume levels, resulting in irreversible hearing loss.
• Adjust the volume of your headphones to hear important external sounds.

Warranty

You can check the warranty terms here

Declaration of conformity

Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488

Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)

Tel: [phone]

We declare under our own exclusive responsibility that the product

Description: Headphones

Brand: Energy Sistem

Model: Headphones ESG 5 Shock

Manufacturer: Energy Sistem Technology, S.A.

Manufacturing country: China

referred to in this declaration is in compliance with the essential norms and standards

• EN 55032:2015
• EN 55020:2017+A11:2011+A12:2016

in conformity with the provisions of the Directive 2014/30/EU of the European Parliament and the Council of 29th March 2014.

Finestrat, 1st September 2019

b

Javier Álvarez Rodríguez

Innovation & Technology Director

CE
