Product Type	Portable PA System
Model	PWMA-890UI
Brand	Pyle
Amplifier Power	500 Watt Dual Channel (RMS 250W)
Speaker Configuration	8" Woofer + 3" Compression Tweeter
Frequency Response	35 Hz - 20 kHz
Sound Pressure Level (SPL)	94 dB (1W/M)
Total Harmonic Distortion (THD)	<1%
Wireless Microphone Frequency	VHF High Band (170-216 MHz)
Wireless Operating Range	Up to 100 ft (30 m)
Built-in Battery	12V 7AH Rechargeable Lead-Acid
Battery Charging Time	Approximately 6 hours continuous
Battery Life (Unit)	Approximately 3 hours
Battery Life (Microphone)	Approximately 45 hours
AC Power Input	110V/220V Selectable (via voltage selector)
Input Connectors	2 x 1/4" Wired Mic, 1 x 1/4" Guitar, 1 x Audio Input, 1 x iPod Dock
Media Playback	FM Radio, USB/SD MP3 Player
Controls	Volume (Mic1, Mic2, Guitar, Audio, iPod), Echo, Treble, Bass
Included Accessories	Handheld Microphone, Lavalier Microphone, Headset Microphone
Cleaning & Maintenance	Do not use volatile solvents (toluene, alcohol, gasoline). Avoid moisture and direct sunlight.
Safety Precautions	Use correct power supply. Do not open chassis. Keep ventilated. Unplug if not working properly.
Spare Parts & Repairability	Contact retailer or nearest distributor for service or replacement parts.

Frequently Asked Questions - PWMA-890UI Pyle

What is the power output of the PWMA-890UI?

The amplifier delivers 500 watts peak power (dual channel) and 250 watts RMS.

How long does the built-in battery last?

The unit battery lasts approximately 3 hours on a full charge. The handheld microphone battery lasts about 45 hours.

How do I charge the battery?

Connect the AC power cord to a wall outlet and turn on the amplifier. The charger indicator lights red during charging and turns off when fully charged. Charging time is about 6 hours.

What type of microphones are included?

The system includes one handheld VHF wireless microphone, one lavalier microphone, and one headset microphone.

Can I use wired microphones with this system?

Yes, there are two 1/4'' wired microphone input jacks with separate volume controls.

What is the wireless range of the microphones?

The wireless microphones have an operating range of up to 100 feet (30 meters).

How do I connect a guitar or other instrument?

Use the 1/4'' Guitar Input jack on the rear panel and adjust the Guitar Volume control accordingly.

Can I play music from a USB drive or SD card?

Yes, insert a USB drive into the USB jack or an SD/MMC card into the card slot. Use the Mode control to select USB/SD playback.

How do I adjust the sound quality?

Use the Treble and Bass controls to adjust high and low frequencies. The Echo control adds a reverb effect.

What should I do if the low voltage indicator comes on?

The yellow low voltage indicator means the battery is low. Charge the unit as soon as possible. If the indicator flashes, it is almost empty.

USER MANUAL PWMA-890UI Pyle

1600 63rd Street, Brooklyn NY 11204

PYLE®

PWMA-890UI

OPERATING INSTRUCTIONS

500 WATT DUAL CHANNEL WIRELESS RECHAGEABLE PORTABLE PA SYSTEM WITH DOCK STATION, FM RADIO USB/SD MP3 PLAYER HAND HELD MICROPHONE, AND LAVALIER/HEADSET MICROPHONE INCLUDED

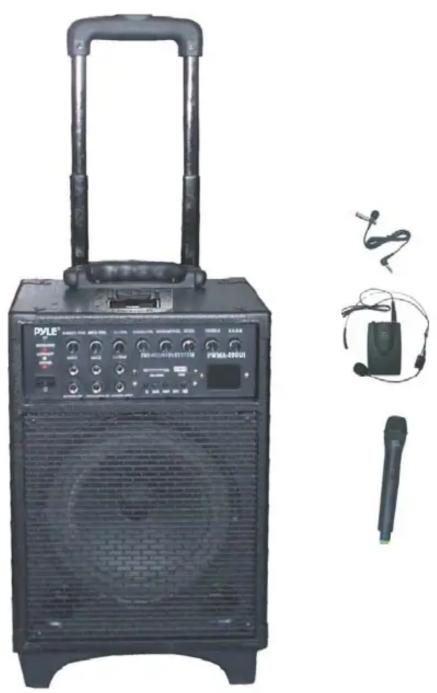

Exterior view of a black PYLE audio amplifier device with external earphones and microphone (no visible text or symbols)

GENERAL DESCRIPTIONS

1. It is consist of one set of of wireless and two wired microphone input circuits, both of them has separated volume control.

2. The standard accessories are VHF high band wireless transmitter and receiver.

3. It is equipped with built-in 7AH/12V rechargeable battery which can be charge 6 hours continuously, also DC power can be used directly.

4. One guitar input function, one audio input and one iPod dock are supplied.

5. Treble and bass control are supplied.

6.Echo control is supplied.

1. With voltage selector switch for selecting a suitable one according to different countries.

8.8 " Woofer and 3 " compression tweeter.

REMARKS

1. Correct power must be used, don't use any other power except the specified one.
2. Don't drag the power cable when pull out the plugs, just hold the plug to pull it out from socket.
3. Don't open chassis: it is very dangerous either open the chassis or put your hand inside the chassis, don't do it. If the device is not under normal working, pull out the plug at once and contact your retailer or nearest distributor.
4. Don't take volatile solvent such as toluene, alcohol, gasoline to clean the surface.
5. Please don't put it in a unventilated environment or at direct sunlight in summer.
   6.Avoid moisture or rain

SYSTEM FUNCTION FIGURE

1. Wireless Mic/MIC1 Volume Control
   2.MIC2 Volume Control
2. Guitar Volume Control
3. Audio Volume Control
   5.Ipod Dock
   6.Ipod/MP3 Volume Control
4. Echo Control
5. Treble Control
6. Metal Corner
   10.Bass Control
   11.SD/MMC Card Jack
   12.USB Jack
   13.Screen
   14.Next Control
   15.Play/Pause Control
7. Prev Control
   17.Mode Control
8. Remote Signal Control
9. Vent Hole
   20.Fixed Stand For The Unit
   21.Vent Hole
   22.Woofer Speaker
   23.Guitar Input Jack
   24.Audio Output Jack
   25.Ipod/mp3 Input Jack
   26.Audio Input Jack
   27.MIC2 Input Jack
   28.Power Switch
   29.Power Indicator
   30.MIC1 Input
   31.Low Voltage Indicator
10. Charger Indicator
    33.RF Indicator For Wireless Mic

1. Trailer Handle
   35.Heating Pane
   36.Handle
2. Voltage Selector Switch
   38.AC Fuse
   39.2PIN Power Socket
   40.External DC Input Jack
   41.Fixed Stand For The Trailer
   42.Rechargeable Battery Cover
   43.7AH/12V Rechargeable Battery
   44.Truckle Of Trailer
   45.Lavalier Microphone
   46.Headset Microphone
   47.Handheld Microphone

INSTRUCTIONS

1. Confirm the power

① AC Power: Before operation, please confirm the voltage is same as the specified one marked on the label. If not, the unit will be damaged.
② Built-in Rechargeable Battery: You needn't plug-in the AC power when the voltage for rechargeable battery is enough but use the battery directly.
③ When the Low Voltage Indicator comes yellow, it indicates the battery voltage is not enough, please charge it in time.
④ When the Low Voltage Indicator comes out, it indicates the voltage is standard now.
⑤ If the unit is not used for a long time, please charge the rechargeable battery every 2 months, 8-10 hours for each time.

2. Operation Instructions:

① Plug the power cable into the socket and connect it with this amplifier system.
② Switch on the amplifier, the Power Indicator comes red.
③ During charging, RECHARGE indicator comes red, when the indicator flashing, that means battery is almost full while it is ready all indicators will off.
④ During charging, you can play music at the same time, then RECHARGE indicator will flashing with the current consumption indicating the speed of charge. Charge time is in direct proportion to the volume of music. When the battery is full, RECHARGE indicator will stop flashing and then off.
⑤ Put a 5V battery into handheld microphone (bodypack transmitter), push the Power Switch to middle, the Power Indicator will flash once, RF Indicator comes on green, the speakers are quiet.

⑥ Push the Power Switch of handheld microphone(bodypack transmitter) to ON position, your sound can be heard from amplifier when speaking. Adjust the Volume Control/Echo Control/Treble Control/Bass Control to proper position to avoid feedback.
⑦ If the Power Indicator of microphone (bodypack transmitter) comes on at all times, it indicates the battery lack of power, please replace the battery.
⑧ Connect relative cable of guitar with Guitar Input Jack on this system, you can play wonderful music.

3. Wired Microphone:

① Two way wired microphone input jacks are supplied for two people us simultaneously.
② Plug Wired microphones into the jacks separately.
Adjust Echo Control to get better sound.
④ Adjust the volume of each microphone to make sure the sound is satisfactory.

AMPLIFIER

Power supply:	AC200V/50Hz AC110V/60Hz including a built-in 12V7AH rechargeable battery
Frequency response:	35Hz-20KHz
SPL:	94dB (1W/M)
T H.D.	<1%
Input wired mic:	-58dBV 600
Speaker:	8 "woofer, 3 " tweeter
RMS Power	250W
Input jack:	2 × 1/4^ wired mic jack. 1 × 1/4^ GUITAR IN jack 1 XAudio input jack

RECEIVER

Carrier frequency range:	170-216 MHz
RF sensitivity:	≤slant 101dB
Image rejection:	≥slant 60dB
Operation range	100ft

TRANSMITTER

Carrier frequency range.	170-216 MHz
RF power output:	≤slant 10mW
Modulation level:	15K
Operation temperature:	-18°C-60°C
Power supply:	5V
Unit Battery Life.	Approx.3 Hours
Mic Battery Life:	Approx.45 Hours
