Product Type	Grill Air Fryer Combo Plus
Model Number	MFC-AF-6B
Capacity	6 Quarts (5.7 Liters)
Power	1550W, 120V, 60Hz
Temperature Range	100°F - 500°F (38°C - 260°C)
Display Type	LED Digital Display
Cooking Modes	12 Presets: Air Fry, Slow Cook, Steam, Sauté, Grill, Bake, Roast, Rice, Simmer, Sous Vide, Fry, Keep Warm
Included Accessories	Inner Pot, Glass Lid, Air Frying Lid, Grill Plate, Ladle
Main Construction Material	Stainless Steel (main unit), Non-stick coating (Inner Pot)
Safety Features	Overheating protection, automatic shut-off
Cleaning	Inner Pot and Glass Lid are dishwasher safe; base wipe with damp cloth
Warranty	90-day money-back guarantee, 1-year replacement guarantee
Voltage	120V AC
Frequency	60Hz
Power Cord Length	Short (approx. 2-3 ft) to reduce tripping hazard
Usage	Household only, countertop use
Certifications	FCC Part 15 compliant
Country of Origin	China
Control Type	Rotary knob with push-to-select and touch buttons
Overheat Protection	Automatic shut-off if inner temperature control fails

Frequently Asked Questions - Grill Air Fryer Combo Plus MFC-AF-6B PowerXL

How do I use the Air Fry function?

Select the Air Fry preset using the control knob, then press Start. Use the Air Frying Lid and ensure the wire harness is properly aligned. Adjust time and temperature as desired.

Can I use metal utensils with the Inner Pot?

No, to prevent scratching the non-stick coating, use non-metal utensils such as silicone or wood.

What should I do if the display shows error E1 or E2?

E1 indicates a bottom temperature sensor open circuit, E2 a short circuit. Stop using the appliance and contact customer service for assistance. Do not attempt to repair.

How should I clean the appliance?

Allow the appliance to cool completely. The Inner Pot and Glass Lid are dishwasher safe; hand washing is recommended. Wipe the base with a damp cloth. Never immerse the base or cord in water.

Is the Glass Lid dishwasher safe?

Yes, the Glass Lid is dishwasher safe. However, hand washing is recommended to prolong its life.

Can I cook rice in this appliance?

Yes, use the Rice preset. Add rice and water according to the ratio (1.5 cups liquid per cup of long-grain white rice). Cover with the Glass Lid and press Start.

What is the purpose of the Grill Plate?

The Grill Plate is used for grilling foods and can also be placed in the Inner Pot during air frying to circulate air under the food. Always preheat it when grilling.

How can I prevent white smoke from coming out of the appliance?

White smoke is usually caused by excess oil. Wipe down the Inner Pot and food to remove excess oil before cooking.

Can I use the appliance without the Inner Pot?

No, the Inner Pot must always be in place during use. The appliance will display 'POT' if the Inner Pot is missing.

What is the Sous Vide function and how do I use it?

Sous Vide cooks food sealed in a plastic bag at a precise low temperature in water. Fill the Inner Pot with water, select Sous Vide, set time and temperature, cover with the Glass Lid, and add the sealed bags once the water reaches the set temperature.

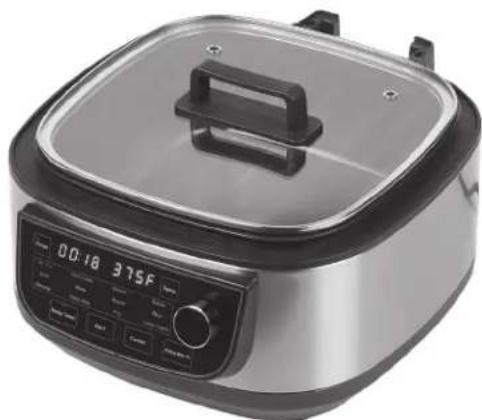

USER MANUAL Grill Air Fryer Combo Plus MFC-AF-6B PowerXL

PowerXL™ products that exceed

GRILL AIR FRYER COMBO PLUS

Owner's Manual

Save These Instructions - For Household Use Only

MODEL: MFC-AF-6B CAPACITY: 6 Qts. POWER: 1550W, 120V

When using electrical appliances, basic safety precautions should always be followed. Do not use the PowerXL Grill Air Fryer Combo Plus until you have read this manual thoroughly.

Visit TristarCares.com

for tutorial videos, product details, and more.

Guarantee Information Inside

PowerXL Grill Air Fryer Combo Plus

BEFORE YOU BEGIN

The PowerXL Grill Air Fryer Combo Plus will provide you many years of delicious family meals and memories around the dinner table. But before you begin, it's very important that you read this entire manual, making certain that you are totally familiar with this appliance's operation and precautions.

Technical Specifications

Model Number	Supply Power	Rated Power	Capacity	Temperature	Display
MFC-AF-6B AC 120V/60Hz 1550W 6 Quarts 100° F/38° C-500° F/260° C LED

Table of Contents

IMPORTANT SAFEGUARDS 4

Parts & Accessories 8

Using the Control Panel 10

Cooking Mode Presets Explained 11

Instructions for Use 12

Cooking Guidelines & Tips 14

Troubleshooting 20

Frequently Asked Questions 21

Cleaning & Storage 22

Money-Back Guarantee 23

WARNING

When using electrical appliances, always follow these basic safety precautions.

1. Read all instructions carefully to prevent injuries.
2. This appliance should not be used by children younger than eight years old. This appliance can be used by children eight years old or older if they are continuously supervised. This appliance can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of the reach of children younger than eight years old. Cleaning and user maintenance should not be performed by children.
3. ALWAYS PLACE UNIT ON A FLAT, HEAT-RESISTANT SURFACE. Intended for counter top use only. DO NOT operate on an unstable surface.
4. Cooking appliances should be positioned in a stable location with the handles (if any) positioned to avoid the spillage of hot liquids.
5. DO NOT place your appliance on a cooktop, even if the cooktop is cool, because you could accidentally turn the cooktop on, causing a fire, damaging the appliance, your cooktop, and your home.
6. DO NOT operate the appliance in an enclosed space or under low-hanging cabinets. Proper space and ventilation is needed to prevent property damage that may be caused by steam released during operation.
7. NEVER operate the appliance near any flammable materials, such as dish towels, paper towels, curtains, or paper plates.
8. DO NOT let the cord hang over the edge of the table or counter or touch hot surfaces.

9. U SE CAUTION when moving the Inner Pot during or after a cooking cycle.

10. Always handle hot Inner Pots with oven mitts while cooking. Place hot cookware on heat-resistant surfaces when not seated in the appliance base.

11. CAUTION HOT SURFACES: This appliance generates heat and steam during use. To avoid injury, do not touch the hot surfaces during operation. Proper precautions must be taken to prevent the risk of personal injury, fires, and damage to property.
12. DO NOT USE this appliance for anything other than its intended use.
13. NEVER FILL THE INNER POT to more than two thirds capacity. Many foods increase in volume or bubble vigorously while cooking and might boil over the top. Cooking with the lid will prevent splatter and possible injury if bubbles burst and touch exposed skin.
14. The use of accessory attachments not recommended by Tristar may cause injuries.
15. A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
16. NEVER plug into an outlet located below the counter. The hanging cord may present a hazard.
17. NEVER cover the steam release port on the Lid or the air vents on the back of the base of the appliance.
18. DO NOT use this appliance outdoors.
19. DO NOT OPERATE if the cord or plug are damaged. If the appliance begins to malfunction during use, immediately unplug the cord from the power.
20. DO NOT USE OR ATTEMPT TO REPAIR A MALFUNCTIONING APPLIANCE. Contact Customer Service for assistance (see the back of the manual for contact information).
21. UNPLUG THE APPLIANCE from the outlet when not in use and before cleaning. Allow the appliance to cool before attaching or removing parts.

SAVE THESE INSTRUCTIONS - FOR HOUSEHOLD USE ONLY

IMPORTANT SAFEGUARDS

1. NEVER immerse the appliance base and Air Frying Lid in water. If the appliance falls or accidentally becomes immersed in water, unplug it from the wall outlet immediately. Do not reach into liquid if the appliance is plugged in and immersed. Do not immerse or rinse cords or plugs in water or other liquids.
2. To prevent risk of injury, replace only with authorized parts as recommended by Tristar.
3. NEVER leave cookware or Inner Pot empty over a hot burner. This could damage the Inner Pot.
4. NEVER put your cookware in the microwave or toaster oven. This is a hazard that can cause electric sparks or fire and could possibly damage the appliances and your cookware.
5. NEVER leave your cookware unattended. This helps to avoid potential injury to children or the risk of fire.
6. ALWAYS supervise children who are near cookware when in use, or injury may result.
7. DO NOT handle hot cookware without hand protection. Use care and oven mitts when cooking because the Inner Pot, its handles, and the appliance will become hot.
8. Exercise caution when using the Glass Lid. As with any glassware used for cooking, the Glass Lid could shatter due to sudden temperature changes or due to impact if it is dropped or knocked against a hard object.
9. If the Glass Lid should crack, chip, or become damaged, STOP USING it immediately.
10. D O NOT attempt to repair cookware if it is damaged.
11. This product is for home use only. It is NOT INTENDED for camping or commercial use.
12. DO NOT use aerosol cooking sprays. These sprays will build up on cookware and become difficult to remove while reducing the non-stick coating performance.
13. This appliance is not intended for deep frying foods. Extreme caution must be used when moving the appliance when it contains hot liquids or hot oil.

14. Only use the provided vessel and approved parts to avoid damage to the appliance.

15. Do not put any food or liquid in the base of the appliance.

16. Do not place any metal objects inside (or on) the base of the appliance. Metal will activate the induction pads. Do not place your hands on the induction heating element when hot. It will retain heat and burn you.
17. Do not touch hot surfaces. Use the handles or knobs.
18. Risk of electrical shock. Cook only in removable container. Only use the Base with the Inner Pot.
19. Before using your new appliance on any countertop surface, check with your countertop manufacturer or installer for recommendations about using appliances on your surfaces. Some manufacturers and installers may recommend protecting your surface by placing a hot pad or trivet under the appliance for heat protection. Your manufacturer or installer may recommend that hot pans, pots, or electrical appliances should not be used directly on top of the countertop. If you are unsure, place a trivet or hot pad under the appliance before using it.
20. To disconnect, turn any control to "off" (press the Cancel Button) and then remove the plug from the wall outlet.
21. Oversized foods or metal utensils/containers must not be inserted into the appliance as they may create a fire or risk of electric shock.
22. A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
23. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, which involves a risk of electric shock.
24. This appliance is for home use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Tristar will not be held liable for damages.

IMPORTANT SAFEGUARDS

1. Extreme caution should be exercised when using containers constructed of material other than metal or glass.
2. Do not place any of the following materials in the appliance: paper, cardboard, plastic, and the like.
3. Do not store any materials, other than accessories included with the appliance, in the appliance when not in use.
4. Press the "Cancel" button to turn off the appliance.
5. This appliance is not intended to be operated using an external timer or separate remote-control system.
6. The appliance must not be immersed.

WARNING: Avoid spillage on the connector.

WARNING: The heating element surface remains hot after use.

WARNING: Spilled food can cause serious burns.

WARNING: Keep the appliance and its cord away from children.

WARNING: Never drape the cord over the edge of a counter.

WARNING: Never use an outlet located below the counter.

WARNING: Never use an extension cord.

WARNING:

For California Residents

This product can expose you to Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Tristar Products, Inc., 490 Route 46 East, Fairfield, NJ 07004 973-287-5177

SAVE THESE INSTRUCTIONS - FOR HOUSEHOLD USE ONLY

CAUTION

• Always operate the appliance on a horizontal surface that is level, stable, and noncombustible.
• This appliance is intended for normal household use only. It is not intended for use in commercial or retail environments.
• If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and the manufacturer will not be held liable for damages.
  • Always unplug the appliance after use.
• When the cooking time has completed, cooking will stop and the fan will continue running for 10 seconds to cool down the appliance.
• Let the appliance cool down for approximately 30 minutes before handling, cleaning, or storing.

Overheating Protection

Should the inner temperature control system fail, the overheating protection system will be activated and the appliance will not function. Should this happen, unplug the appliance. Allow time for the appliance to cool completely before restarting or storing.

Electric Power

The appliance should be operated on a dedicated electrical outlet. If the electrical outlet is being used by other appliances, your new appliance may not operate properly.

Electromagnetic Fields

This appliance complies with all standards regarding electromagnetic fields. If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

CAUTION: Using the Power Cord

• Plug the power cord into a 120V grounded outlet with no other appliances on the same outlet. Plugging other appliances into the outlet will cause the circuit to overload.
• Never tug the plug forcefully from the wall outlet.
• NEVER USE WITH AN EXTENSION CORD.
• DO NOT USE WITH ANY OTHER ELECTRICAL OUTLET or modify the plug.

• A short power supply cord is provided to reduce risk of becoming entangled or presenting a tripping hazard.

• This appliance has been designed for use with a 3-prong, 120V dedicated electrical outlet (with no other appliances plugged into the same outlet). Plugging other appliances into the outlet may cause the circuit to overload.

• Always attach the electrical cord to the appliance before plugging the appliance into an outlet.

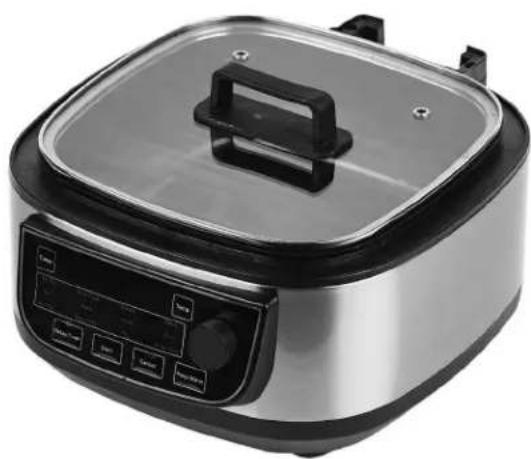

Parts & Accessories

NOTE: Unpack all contents from the packaging. Contents vary by model. Check all packaging material carefully for parts. Please remove any clear or blue protective film on the components.

Parts & Accessories

1. MAIN UNIT: Features sturdy stainless steel construction throughout. Cleans easily with a damp sponge or cloth and a mild detergent. Avoid harsh, abrasive cleaners. NEVER submerge this appliance in water or liquids of any kind.

2. AIR FRYING LID: Attach the Air Frying Lid when using air frying cooking modes (see the "Attaching the Air Frying Lid" section).

3. AIR INLET VENT

1. LID HANDLE: Always use the handle and avoid touching the lid. The lid may become very hot during the cooking process and can cause injury.

2. CONTROL PANEL: Use the Control Panel to use the cooking presets and set the cooking time and temperature (see "Using the Digital Control Panel" section). Turn the Control Knob to display the presets.

3. CONTROL KNOB

7. POWER CORD

8. AIR OUTLET VENT

1. INNER POT: Must be used at all times.

10. GLASS LID

1. GRILL PLATE: Used when grilling food. When grilling meat and vegetables, be sure to preheat the Grill Plate. The Grill Plate can also be used when air frying to circulate air under the food and when steaming to raise food above the liquid. Must be placed in the Inner Pot when used.

12. LADLE

Using the Air Frying Lid Using the Glass Lid

Using The Digital Control Panel

TO START: Plug the Power Cord into the wall outlet.

The Digital LED Display will illuminate and a series of dashes will display.

1. Selecting a Preset Cooking Mode: 12 preset cooking modes are available: Air Fry, Slow Cook, Steam, Sauté, Grill, Bake, Roast, Rice, Simmer, Sous Vide, Fry, and Keep Warm.
   To select a cooking mode, rotate the Control Knob (A) to the right or left and the presets will be illuminated on the Digital LED Display (B). Once a preset is illuminated, press the Start Button to select it and the heating process will begin. The preset time and temperature will display.
2. Timer Button: To adjust the cooking time, press the Timer Button once and rotate the Control knob to the desired time. The time may be changed at any time during the cooking process.

3. Temperature Button: Press the Temperature Button and rotate the Control Knob to the desired temperature. The temperature may be changed at any time during the cooking process.

4. Delay Timer: The following presets allow use of the Delay Timer: slow cook, steam, bake, roast, rice, and simmer.

5. Start Button: Press the Start Button to choose a preset and begin the cooking process. You may also press the Start Button after the Time and Temperature are chosen.
6. Cancel Button will stop any cooking process immediately.
7. Keep Warm Function: Most presets will keep your food warm until you are ready to serve it. You may adjust the time for keeping food warm by selecting the Keep Warm Button and turning the Control Knob to select the desired time.

Cooking Mode Presets Explained

Cooking Mode Preset Lid Function

Air Fry	Air Frying Lid	Fry your favorite foods with air instead of a large amount of oil. Works with foods like chicken, fries, mozzarella sticks, and more. To use the dehydrate function under the Air Fry preset, set the cooking temperature between 100°F/38°C and 210°F/99°C . Then, you will be able to set a cooking time between 1 and 10 hours.
Slow Cook	Glass Lid Cooks food at a low temperature for a long time.
Steam	Glass Lid	Used for steaming foods. A small amount of water will come to a boil to create steam. Best when used with a rack and the Glass Lid.
Sauté	Glass Lid Heats the pan for use as a fry pan. 375°F/191°C max.
Grill	Air Frying Lid	Used for grilling foods. Heats the Grill Plate to the highest temperature ( 500°F/260°C ).
Bake	Air Frying Lid Used for baking.
Roast	Air Frying Lid	Used to cook whole pieces of meat, fish, or vegetables, by circulating hot air to cover the food, cooking it evenly on all sides.
Rice	Glass Lid	When the Rice preset is selected, the display will show a rotating symbol. The timer will not count down when using the Rice preset because the cooking time will vary depending on the quantity of rice being cooked. The appliance will switch to Keep Warm mode when the cooking cycle is complete.
Simmer	Glass Lid Cooks food gently at a low temperature below boiling.
Sous Vide	Glass Lid Temperature-controlled water cooking.
Fry	Glass Lid	Fry food with oil. Not for deep frying. Never fill the Pan with more than one (1) inch of oil. Set the timer for the desired doneness. Never use the Air Fry Lid with this setting.
Keep Warm	Glass Lid	Cooks food at a low temperature for a long time. Used for sauces for slow liquid cooking.

NOTE: See "Cooking Guidelines & Tips" section for more information.

Before Using for the First Time

1. Read all material, warning stickers, and labels.
2. Remove all packing materials, labels, stickers, and clear or blue protective film.

3. Wash the Inner Pot and Glass Lid with warm, soapy water. NOTE: Only the Inner Pot and Lid are dishwasher safe. Never wash or submerge the appliance base in water or the dishwasher.

4. Wipe the inside and outside of the appliance Base with a clean, moist cloth.

5. Before cooking food, preheat the appliance for a few minutes to allow the appliance to burn off the manufacturer's protective coating of oil. Wipe the appliance with warm, soapy water and a dishcloth after the burn-in cycle.

Preparing for Use

1. Place the appliance on a stable, level, horizontal, and heat-resistant surface.
2. Select or set the cooking mode for your recipe.

A Versatile Appliance

The PowerXL Grill Air Fryer Combo Plus is designed to cook a wide variety of your favorite foods. The charts and tables provided within this manual and the Recipe Guide will help you get great results

Please refer to this information for proper time/temperature settings and proper food quantities.

Recommendations & Tips

Proper Cooking Utensils: To prevent scratching the coating, we recommend using nonmetal utensils with your cookware. Do not cut food on the cookware using sharp utensils, such as forks, knives, mashers, or whisks, that can scratch the cooking surface.

Instructions for Use

Getting Started

NOTE: The Inner Pot must be inserted into the appliance Base to start a cooking cycle.

1. Select and prepare recipe for cooking.
2. Place the Inner Pot in the Base as shown (see Fig. i).

3. Place all ingredients in the Inner Pot.

4. Add a lid if necessary. NOTE: The Air Frying Lid is used only for air fry, grill, bake, and roast cooking functions. Keep the Air Frying Lid in the upward position or remove it and add the Glass Lid when using the other cooking functions. The Air Frying Lid cannot be closed when using non-air fryer cooking functions.

Attaching the Air Frying Lid

Place the Air Frying Lid on top of the Base, aligning the six pins in the Air Frying Lid's Wire Harness with the six holes in the Base's Wire Harness. The Air Fry preset will not function unless the Wire Harnesses are aligned properly. Do not twist the Air Frying Lid to close. The Air Frying Lid does not lock.

FIG. i

NOTE: Do not tilt or angle the lid when placing or removing. Lift or lower the lid straight up or down to ensure that the wire harnesses in the lid and base connect properly.

Never attempt to pick up the appliance with the Air Fry Lid or lid handle.

Step By Step

1. Once the appliance is plugged in, it will beep once. The screen will light up.
2. Rotate the Control Knob left or right and select the desired Preset Mode. The preset Time and Temperature will be displayed. Press the Start Button once to select the preset and start the cooking process
3. Depending upon the cooking mode, the time countdown will not begin until predetermined cooking temperature is reached.
4. When the cooking time has elapsed, the appliance will switch to Keep Warm for most cooking modes.

Customizing the Cooking Process

As you become more familiar with the appliance, you might want to tweak the settings to suit your individual taste. Adjusting the cooking time and temperature and setting up the cooker for Time Delay cooking and Manual Presets are all possible with the PowerXL Grill Air Fryer Combo Plus. See the "Cooking Guidelines & Tips" section.

Cooking Guidelines & Tips

Preset Mode Chart

The times and temperatures on this chart show the basic default settings for the appliance. As you become familiar with the appliance, you will be able to make minor adjustments to suit your taste.

NOTE: The Slow Cook, Simmer, and Sous Vide presets often require manual time and temperature settings.

Preset	Default Temperature	Default Time	Temperature Range	Time Range
Air Fry (Dehydrate)	375° F (190° C) 18 mins.		215° F/102° C-500° F/260° C (100° F/38° C-214° F/100° C)	1-59 mins.(1 min.-10 hrs.)
Slow Cook	195° F (90° C)	4 hrs.	190 F/88° C-210° F/99° C	1-12 hrs.
Steam	212° F (100° C)	30 mins.	–	10-59 mins.
Sauté	350° F (177° C)	35 mins.	250° F/121° C-375° F/190° C	10 mins.-2 hrs.
Grill	450° F (190° C)	30 mins.	250° F/121° C-500° F/260° C	1-59 mins.
Bake	325° F (163° C)	35 mins.	250° F/121° C-500° F/260° C	1-59 mins.
Roast	350° F (177° C)	45 mins.	250° F/121° C-500° F/260° C	1-59 mins.
Rice	–	45 mins.	–	–
Simmer	205° F (96° C)	30 mins.	190° F/88° C-212° F/100° C	1 min.-2 hrs.
Sous Vide	140° F (60° C)	4 hrs.	110° F/43° C-195° F/90° C	10 mins.-12 hrs.
Fry	375° F (190° C)	45 mins.	250° F/121° C-375° F/190° C	10 mins.-2 hrs.
Keep Warm	160° F (71° C)	2 hrs.	–	1-8 hrs.

Internal Temperature Meat Chart

Use this chart and a food thermometer to ensure that meat, poultry, seafood, and other cooked foods reach a safe minimum internal temperature.

**For maximum food safety, the U.S. Department of Agriculture recommends 165° F/74° C for all poultry; 160° F/71° C for ground beef, lamb, and pork; and 145° F/63° C, with a 3-minute resting period, for all other types of beef, lamb, and pork. Also review the USDA Food Safety Standards.

Food Type Internal Temp.*

Beef & Veal	Ground 160° F (71°C)
	Steaks, roasts: medium 145° F (63°C)
	Steaks, roasts: rare 125° F (52°C)
Chicken & Turkey	Breasts 165° F (74°C)
	Ground, stuffed 165° F (74°C)
	Whole bird, legs, thighs, wings 165° F (74°C)
Fish & Shellfish Any type 145° F (63°C)
Lamb	Ground	160° F (71°C)
	Steaks, roasts: medium 140° F (60°C)
	Steaks, roasts: rare 130° F (54°C)
Pork	Chops, ground, ribs, roasts	160° F (71°C)
	Fully cooked ham	140° F (60°C)

Cooking Guidelines & Tips

Air Frying Guidelines

NOTE: Keep in mind that these settings are guidelines. Since ingredients differ in origin, size, shape, and brand, we cannot guarantee the best settings for your ingredients.

FOOD ITEM	QUANTITY	SHAKE	TEMP	COOK TIMEAdjustable Range (Increments)	COMMENTS
Thin Frozen Fries 1 1/4 cups YES 400° F (204°C) 15-16 mins. (1 min.) -
Thick Frozen Fries 1 1/4 cups YES 400° F (204°C) 15-20 mins. (1 min.) -
Homemade Fries 1 1/4 cups YES 400° F (204°C) 10-16 mins. (1 min.) Add 1/2 tbsp. oil
Homemade Potato Wedges 1 1/4 cups YES 360° F (182°C) 18-22 mins. (1 min.) Add 1/2 tbsp. oil
Hash Browns 1 cup YES 360° F (182°C) 15-18 mins. (1 min.) -
Steak	1/4-1.1 lb		360° F (182°C)	8-12 mins. (1 min.)	-
Pork Chops	1/4-1.1 lb		360° F (182°C)	10-14 mins. (1 min.)	-
Hamburger	1/4-1.1 lb		360° F (182°C)	7-14 mins. (1 min.)	-
Sausage Roll	1/4-1.1 lb		400° F (204°C)	13-15 mins. (1 min.)	-
Chicken Drumstick	1/4-1.1 lb		360° F (182°C)	18-22 mins. (1 min.)	-
Chicken Breast	1/4-1.1 lb		360° F (182°C)	10-15 mins. (1 min.)	-
Spring Rolls	1/4-3/4 lb	YES	400° F (204°C)	15-20 mins. (1 min.)	Use oven-ready
Frozen Chicken Nuggets	1/4-1.1 lb	YES	400° F (204°C)	10-15 mins. (1 min.)	Use oven-ready
Frozen Fish Sticks	1/4-1.1 lb		400° F (204°C)	6-10 mins. (1 min.)	Use oven-ready
Mozzarella Sticks	1/4-1.1 lb		360° F (182°C)	8-10 mins. (1 min.)	Use oven-ready
Cake	1 1/4 cups		320° F (160°C)	20-25 mins. (1 min.)	Use baking pan
Quiche	1 1/2 cups		360° F (182°C)	20-22 mins. (1 min.)	Use baking pan/oven dish
Muffins	1 1/4 cups		400° F (204°C)	15-18 mins. (1 min.)	Use baking pan
Baked Goods	1 1/2 cups		320° F (160°C)	20 mins. (1 min.)	Use baking pan/oven dish

Cooking Guidelines & Tips

Sous Vide

What is Sous Vide?

In the sous vide method of cooking, food is sealed inside a plastic bag immersed in water and cooked at a lower temperature. Sous vide allows for greater control and evenly cooked results. The sous vide method holds food at the perfect level of doneness for much longer than regular cooking methods would allow.

The Sous Vide Cooking Cycle

1. With the Inner Pot in the appliance, fill the Inner Pot with water. Turn the Control Knob to Sous Vide.
2. Adjust the cooking time and temperature and then press the Start Button to confirm.
3. Cover with the Glass Lid.
4. The appliance will beep once the water reaches the desired temperature. Add the sealed bags to the water. The timer begins once the appliance has reached the desired temperature and will beep again once the timer has expired.

CAUTION: Remove hot cooking bags with plastic tongs to prevent piercing and burns from hot water. Use oven mitts.

Tip

When using the Sous Vide function the timer will not begin counting down until the desired temperature is reached. Reaching the desired temperature may take 30 minutes or more.

What are the Basic Steps?

• The food must be in a sealed plastic bag or vacuum-sealed bag. Remove all air from sealed bags to prevent the bags from floating.
• Submerge pouches into the water bath after the liquid has reached your desired temperature.
  • Cook for at least the minimum amount of time called for in your recipe.
• Remove each pouch carefully from the water bath. NOTE: Meat, poultry, or fish can be seared in a hot pan to create a crisp surface immediately before serving.

Use the Glass Lid when using the Sous Vide method

Cooking Guidelines & Tips

Sous Vide Guidelines

Food Temperature Time Cooking Tip

Beef

Rare 125°F/52°C 1 hr. 15 mins. Sear with butter in hot skillet

Medium Rare 135°F/57°C 1 hr. 15 mins. Sear with butter in hot skillet

Medium 140°F/60°C 1 hr. 15 mins. Sear with butter in hot skillet

Medium Well 150°F/65°C 1 hr. 15 mins. Sear with butter in hot skillet

Well Done 160°F/71°C 1 hr. 15 mins. Sear with butter in hot skillet

Rib Roast (Medium) 140°F/60°C 6-14 hrs. Sear all over, slice thin

Pork
Roast 155°F/68°C 3 hrs. Sear in skillet with butter & herbs
Chops (Medium) 145°F/63°C 1 hr. Sear in skillet with butter & herbs
Chops (Well Done)	160°F/71°C	1 hr.	Sear in skillet with butter & herbs
Poultry
Chicken Breast	150°F/65°C	1 hr.	Sear in skillet with butter & herbs
Dark Meat	165°F/74°C 1 hr. Sear in skillet with butter & herbs
Fish
Filet or Steak	125°F/52°C	45 mins.	Sear in skillet with butter & herbs
Eggs
Poached	150°F/65°C	1 hr.	Serve on toast or muffin
Vegetables
Green	180°F/82°C	5-20 mins.	Toss with olive oil, salt & nuts
Root	180°F/82°C	1.5-3 hrs.	Slice/toss with butter & herbs

Cooking Guidelines & Tips

Rice

1. Place the Inner Pot into the appliance.
2. Add the water, rice, salt, and oil.
3. Turn Control Knob to Rice.
4. Push the Start Button to confirm. Cover with the Glass Lid.
5. The display will state "rice" and the rotating circle will spin during the cooking cycle.

Ratio for Long-Grain White Rice

Combine 1 ½ cups of liquid with 1 cup of rice; this will yield about 2 cups rice or enough for 4 (½-cup) servings.

Ratio for Brown Rice

Combine 2 cups of liquid with 1 cup of brown rice; this will yield about 2 cups rice or enough for 4 ( 1/2 -cup) servings.

Tips

• Foods that are smaller in size usually require a slightly shorter cooking time than larger foods.
• Large quantities of food only require a longer cooking time than smaller quantities.
• Shaking smaller-sized foods halfway through the cooking process ensures that all the pieces are fried evenly.

• Adding a bit of vegetable oil to fresh potatoes is suggested for a crispier result. When adding oil, do so just before cooking and add only a small amount onto the potato.

• Snacks normally cooked in an oven can also be cooked in the appliance.

• Use premade dough to prepare filled snacks quickly and easily. Premade dough also requires a shorter cooking time than homemade dough.
• You can use the appliance to reheat foods. Simply set the temperature and time to however warm you want your food.

Cooking Guidelines & Tips

Shaking/Flipping (for Air Frying)

To ensure even cooking, some foods require shaking/flipping during the cooking process. Gently shake/flip the contents as needed and place them back in the appliance to continue cooking.

CAUTION: The appliance and Inner Pot will be hot. Wear an oven mitt during this procedure:

1. Open the Lid.
2. Flip the food in the Inner Pot.
3. Close the Lid on the appliance and continue cooking.

Slow Cooking Tip

When slow cooking, the timer will not begin counting down until the desired temperature is reached. Reaching the desired temperature may take 30 minutes or more.

Symptom Possible Cause Solution

The appliance does not work	The appliance is not plugged in. Plug the Power Cable into a wall socket.
	You have not turned the appliance on by setting the cooking time and temperature.	Turn the Control Knob to select a preset and then press the Start Button to begin the cooking process.
	The appliance is plugged into a shared outlet.	The appliance must be the only item plugged into the outlet.
Food is not cooked	The Inner Pot is overloaded. Use smaller batches for more even cooking.
	The temperature is set too low. Raise temperature and continue cooking.
Food is not fried evenly	Some foods need to be shaken during the cooking process.	See the "Shaking/Flipping (for Air Frying)" section.
White smoke coming from appliance Too much oil is being used. Wipe down to remove excess oil.
French fries are not fried evenly	Potatoes are not prepped properly. Consult a recipe for potato type and prep.
	Fries are not cut evenly. Cut fries thinner or reshape fries.
	Fries are too crowded. Spread fries out or cook a smaller batch.
	Potatoes are not rinsed properly during preparation.	Pat dry to remove excess starch.
Fries are not crispy Raw fries have too much water.		Dry potato sticks properly before misting oil.
		Cut sticks smaller.
		Add a bit more oil.
Error message displayed on Control Panel.	Varies See the "Display Error Indicator" chart.

Frequently Asked Questions

Can I use any type of pan to cook in my PowerXL Grill Air Fryer Combo Plus?

No. Only use the Inner Pot that comes with the appliance.

Does the appliance get hot?

The appliance gets hot during use and stays hot for a while after use. Avoid touching the appliance with your bare hands during and after use. Use oven mitts or potholders when handling food or parts of the appliance when hot.

Display Error Indicator

DO NOT USE OR

ATTEMPT TO REPAIR A

MALFUNCTIONING UNIT.

Contact customer service for further information.

NOTE: The E6 error may be caused by too little liquid in hot pan. The appliance will display E6. Shut off appliance, turn on appliance, add more liquid or turn down heat setting.

Display Shown Cause of Error

E1 Bottom temperature sensor open circuit.

E2 Bottom temperature sensor short circuit.

E3 Dry cooking due to empty pot.

LID Wrong lid.

POT Without inner pot, must insert inner pot.

E5 Top temperature sensor short circuit.

E6 Overheat. Too little liquid.

E7 Top temperature sensor open circuit.

Easy Maintenance

• Be sure to let the appliance cool down and unplug it from the wall socket before cleaning.
• When cleaning the Inner Pot, allow the Inner Pot to cool completely before washing. Never immerse hot cookware in water as this will cause irreparable warping.
• Cleaning your Inner Pot is quick and easy. After each use, wash it in hot water with mild soap or dish detergent. Rinse thoroughly and wipe dry immediately with a soft dish towel. If any food particles remain, fill the cookware with hot water and liquid dish detergent, soak until the water becomes lukewarm, and use a sponge or soft cloth to remove any remaining food particles.
• Do not use steel wool or metal pads. They could leave coarse scratches.
• To keep the appliance clean, wipe away the enclosure with damp cloth and then dry it with a clean, dry cloth. Never immerse the main body of the appliance in water for cleaning!
• To protect against electric shock, DO NOT immerse the main parts of the appliance, cord, or plug in water or other liquids.
• Make sure that the device is properly cleaned before storing it in a dry place.

Removing Stubborn Residue

When food is burned on the cookware, a stubborn black residue may remain. If regular cleaning does not loosen it, soak in hot water and 1 tbsp. of non-lemon detergent for 15 minutes. Allow the water to become lukewarm before you drain and rinse. Wipe with a plastic spatula or nonabrasive sponge to loosen residue. Repeat if necessary.

Dishwasher Safe

Only the Inner Pot and Glass Lid are dishwasher safe. Although these components are dishwasher safe, we recommend cleaning by hand. Hand-washing preserves the life of the cookware and helps to maintain its appearance. If cleaning in the dishwasher, follow the suggested guidelines:

• Load the dishwasher carefully. Other dishes and flatware may mark the surface of your cookware.
• Be sure to remove soil from other dishes and flatware. It can be abrasive to nonstick coating.
  • We recommend using a non-lemon detergent.
• Regular dishwasher cleaning will eventually scratch any surface.
• To protect yourself from electric shock, NEVER immerse the device, or the Power Cord in water or other liquids.
• DO NOT use any petroleum products, which will damage the outer appliance housing and the Control Panel.
• DO NOT use/store any flammable, acid, or alkaline materials or substances near the device, as this may reduce the service life of the device and lead to deflagration (fire) when the device is turned on.
• DO NOT stack heavy objects on top of the appliance. Excessive weight could possibly damage the appliance.

PowerXL™ products that excel

GRILL AIR FRYER COMBO PLUS

90-Day Money-Back Guarantee

The PowerXL Grill Air Fryer Combo Plus is covered by a 90-day money-back guarantee. If you are not 100% satisfied with your product, return the product and request a replacement product or refund. Proof of purchase is required. Refunds will include the purchase price, less processing and handling. Follow the instructions in the Return Policy below to request a replacement or refund.

Replacement Guarantee Policy

Our products, when purchased from an authorized retailer, include a 1-year replacement guarantee if your product or component part does not perform as expected, the guarantee extends only to the original purchaser and is not transferable. If you experience an issue with one of our products within 1 year of purchase, return the product or the component part for replacement with a functionally equivalent new product or part. The original proof of purchase is required, and you are responsible to pay to return the unit to us. In the event a replacement unit is issued, the guarantee coverage ends six (6) months following the receipt date of the replacement unit or the remainder of the existing guarantee, whichever is later. Tristar reserves the right to replace the unit with one of equal or greater value.

Return Policy

If, for any reason, you would like to replace or return the product under the money-back guarantee, your order number can be used as the return merchandise authorization number (RMA). If the product was purchased in a retail store, return the product to the store or use "RETAIL" as the RMA. Return your product to the address provided below for a replacement, which will incur no additional processing and handling fees, or for the refund of your purchase price, less processing and handling. You are responsible for the cost of returning the product. You can locate your order number at www.customerstatus.com. You can call customer service at 973-287-5177 or email [e-mail] for any additional questions. Pack the product carefully and include in the package a note with (1) your name, (2) mailing address, (3) phone number, (4) email address, (5) reason for return, and (6) proof of purchase or order number, and (7) specify on the note whether you are requesting a refund or replacement. Write the RMA on the outside of the package.

Send the product to the following return address:

PowerXL Grill Air Fryer Combo Plus

Tristar Products

500 Returns Road

Wallingford, CT 06495

If the replacement or refund request has not been acknowledged after two weeks, please contact Customer Service at 973-287-5177.

Refund

Refunds requested within the money-back guarantee timeframe will be issued to the payment method used at purchase if the item was purchased directly from Tristar. If the item was purchased from an authorized retailer, proof of purchase is required, and a check will be issued for the item and sales tax amount. Processing and handling fees are non-refundable.

PowerXL™ products that excel

GRILL AIR FRYER COMBO PLUS

We are very proud of the design and quality of our PowerXL Grill Air Fryer Combo Plus.

This product has been manufactured to the highest standards. Should you have any questions, our friendly customer service staff is here to help you.

For parts, recipes, accessories, and everything PowerXL, go to tristarcares.com or scan this QR code with your smartphone or tablet:

To contact us, email us at [e-mail] or call us at 973-287-5177.

Distributed by:

Tristar Products, Inc.

Fairfield, NJ 07004

© 2021 Tristar Products, Inc.

Made in China

PXL-GAFCP_IB_WM_ENG_V1_210409
