APX12 GO BT - Loudspeaker American Audio - Free user manual and instructions

Product Type	Active Battery Powered Portable Speaker
Brand	American Audio
Model	APX12 GO BT
Driver Configuration	12" Woofer with 1.5" Voice Coil & 1" High Frequency Driver
Amplifier	Class D, 200W Peak / 65W RMS
Frequency Response	40Hz - 18kHz
Sensitivity	93 ± 2 dB
Battery	12V / 700mAh rechargeable, up to 8 hours use
Charging Time	Up to 4 hours
Power Supply	AC 115/230V, 50/60Hz (switching)
Bluetooth	Yes, with TWS (True Wireless Stereo) support
Wireless Microphone	UHF, 500 MHz, FM modulation, 65 ft (20m) range
Media Playback	MP3 from USB flash drive or SD card
FM Tuner	Yes, with auto-scan
Display	LCD Screen
Inputs	XLR (mic/line), 1/8" stereo mini jack, RCA line in, USB, SD
Outputs	XLR line out
Controls	MP3/BT volume, Mic volume, Line volume, Wireless mic volume, Treble, Bass, Power switch
Remote Control	Included wireless remote with play/pause, volume, EQ, mode, number pad
Dimensions (LxWxH)	16.375" x 14" x 27.5" (415 x 355 x 700 mm)
Weight	35 lbs (16 kg)
Mounting	Pole mount cup on bottom
Built-in Mobility	Retractable handle and wheels
Included Accessories	Power cable, UHF wireless microphone, remote control
Maintenance	Clean with soft dry cloth only; avoid volatile liquids
Safety	Indoor use only; keep away from moisture and heat; adult supervision required
Warranty	1 year limited (registration required)
Repairability	No user-serviceable parts; refer to qualified technician; fuse replacement only with same rating

Frequently Asked Questions - APX12 GO BT American Audio

How do I pair my phone via Bluetooth?

Ensure Bluetooth is enabled on your phone. On the speaker, press MODE to activate Bluetooth. On your phone, select "APX12 GO BT" from the list of available devices. The speaker will pair automatically.

How do I use True Wireless Stereo (TWS) to link two speakers?

Turn on both speakers and press MODE to activate Bluetooth on each. Press the "TWS Stereo Link" button on one speaker; a chime will confirm pairing. The audio source will then transmit to both speakers in left/right stereo.

How long does the battery last and how long to charge?

The battery provides up to 8 hours of playtime on a full charge. Charging time is up to 4 hours. Use the included power cable to connect to an AC outlet.

How do I use the FM radio?

Press MODE until FM radio mode is selected. Press Play/Pause to auto-scan available stations. Use Skip Backward and Skip Forward to browse stations. Reception depends on signal strength.

Can I use a microphone with the speaker? How?

Yes, the speaker includes a UHF wireless microphone. Install two AA batteries, turn on both the microphone and speaker. They pair automatically. You can also connect a wired XLR microphone to the MIC input.

What are the input options for connecting audio sources?

The speaker has XLR (mic/line), 1/8" stereo mini jack, RCA line inputs, plus USB and SD card slots for MP3 playback. Use the appropriate cable for your device.

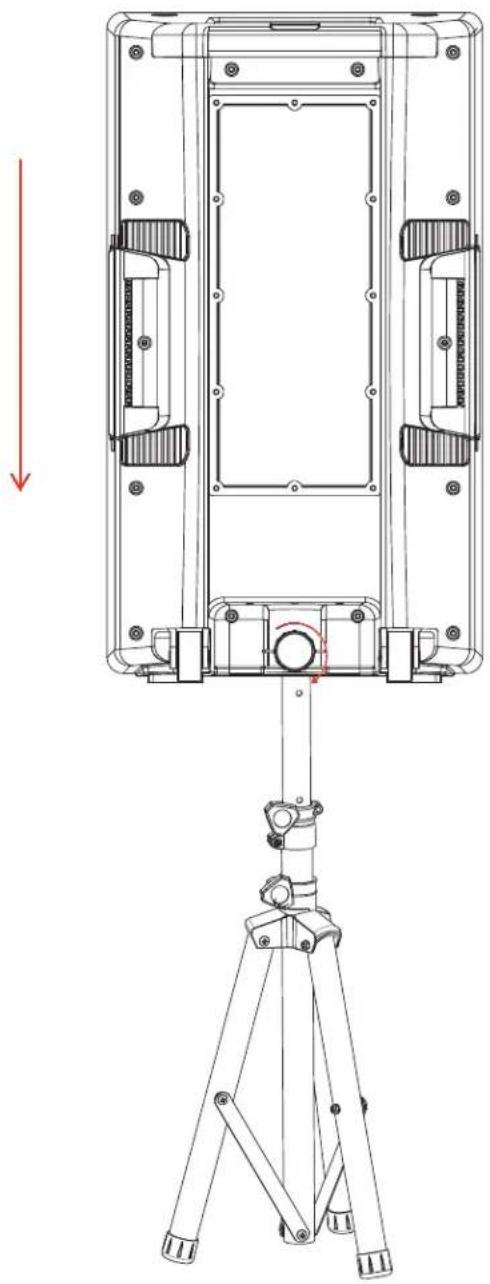

How do I mount the speaker on a pole?

The speaker has a pole mount cup on the bottom. Carefully lower the speaker onto a compatible tripod stand or pole (not included). Tighten the mounting knob on the back to secure it. Ensure the stand is stable.

How should I clean and maintain the speaker?

Use only a soft dry cloth to clean the cabinet. Never use furniture wax, benzine, or other volatile liquids. Disconnect power when not in use for long periods.

What safety precautions should I follow?

Do not expose the speaker to rain or moisture. Use indoors only. Keep away from heat sources. Protect your hearing from prolonged exposure above 85 dB. Do not block ventilation slots. Keep out of reach of children.

What should I do if there is no sound from the speaker?

Check that power is on and volume levels are up. Ensure the audio source is connected and playing. Verify Bluetooth pairing or cable connection. If using microphone, check batteries. If problem persists, contact customer support.

USER MANUAL APX12 GO BT American Audio

APX12 GO BT
User Manual

©2022 ADJ PRODUCTS LLC®, all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ® and AMERICAN AUDIO® logos and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-AMERICAN AUDIO® brands and product names are trademarks or registered trademarks of their respective companies.

ADJ PRODUCTS LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper or unsafe operation of this product.

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA 90040

323-582-2650 | Fax [phone] | www.adj.com | [e-mail]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

[phone] | Fax [phone] | www.americandj.eu | [e-mail]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

[phone] | [e-mail]

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is key to protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!

DOCUMENT VERSION

An updated version of this document may be available online. Please check www.adj.com for the latest version of this manual.

Date Document Version Notes
06/09/2020 1.0	Initial Release
11/25/2020 2.0	Updated Operation
12/08/2020 3.0	Made correction to Operation
05/04/2021 4.0	Updated Overview, Controls and Features
09/24/2021 5.0	Updated Document Version QR Code
04/18/2022 6.0	Updated Operation (updated Microphone)

CONTENTS

General Information 4
Handling 5
Unpacking 8
Safety 9
Key Features I Product Registration 10
Control and Features 11
Operation 13
Installation 16
Technical Specifications 17
Dimensional Drawings 18

GENERAL INFORMATION

INTRODUCTION: Congratulations and thank you for purchasing the American Audio® APX 12 GO BT professional battery powered speaker. This speaker is a representation of American Audio's continuing commitment to produce the best and highest quality audio products possible at an affordable price. The APX12 GO BT is a 12-inch active speaker featuring battery power, Bluetooth pairing, flash drive playback, built-in FM radio, and an LCD screen. This speaker's extremely high efficiency design, low power consumption, and strong output power is ideal for small and mid-size events. The speaker includes a pole mount cup and an integrated trolley and handle. Please read and understand this manual completely before attempting to operate your new speaker system. This booklet contains important information concerning the proper and safe operation of your new speaker.

CUSTOMER SUPPORT: American Audio® provides a toll free customer support line, to provide set up help and answer any questions or problems you might encounter during initial set up or operation. You may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacific Standard Time.

Phone: [phone]

E-mail:

[e-mail]

Caution! There are no user serviceable parts inside this speaker. Do not attempt any repairs without being instructed to do so by an authorized American Audio technician. Doing so will void your manufacturer's warranty. In the unlikely event your speaker may require service, please contact American Audio®.

HANDLING

ELECTRICAL PRECAUTIONS:

The lightning flash symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person or persons.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK COVER). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICE TO YOUR AUTHORIZED AMERICAN AUDIO SERVICE TECHNICIAN.

The exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

HANDLING

IMPORTANT SAFETY INSTRUCTIONS

- READ INSTRUCTIONS – All the safety and operating instructions should be reviewed before operating the product.

- RETAIN INSTRUCTIONS – The safety and operating instructions should be retained for future reference.

- HEED WARNINGS – All warnings on the products and in the operating instructions should be adhered to.

- FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.

- CLEANING – The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides, or other volatile liquids, as they may corrode the cabinet.

- ATTACHMENTS – Do not use attachments that have not been recommended by the product manufacturer, as they may result in hazardous conditions.

- WATER AND MOISTURE – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, or in any other similar conditions.

- ACCESSORIES – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table that has been recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory that has been recommended by the manufacturer.

- CART – A product and cart combination should be moved only with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

- VENTILATION – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

- POWER SOURCES – This product should be operated only from the type of power source indicated on the product label. If you are not sure of the type of power supply available, consult your product dealer or local power company.

- LOCATION – The appliance should be installed in a stable location.

- NON-USE PERIODS – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

- LIGHTNING – For added protection for the product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges.

- POWER LINES – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• OVERLOADING – Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock.

- FUSE REPLACEMENT – Ensure that main power is disconnected prior to replacing the fuse. Replace the fuse only with a fuse of the same rating and power, as described on the fuse panel.

- OBJECT AND LIQUID ENTRY – Never push objects of any kind into this product through openings, as they may come into contact with dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind of the product.

- SERVICING – Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

HANDLING

IMPORTANT SAFETY INFORMATION (CONT'D)

• REPLACEMENT PARTS – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or parts which have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
• SAFETY CHECK – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
• WALL OR CEILING MOUNTING – The product should NOT be mounted to a wall or ceiling.
• HEAT – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact an electrician to replace your obsolete outlet. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED PLUG.
• If this product is equipped with a three-wire grounding type plug (a plug having a third pin for grounding), it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace your obsolete outlet. DO NOT DEFEAT THE SAFETY PURPOSE OF THE GROUNDING TYPE PLUG.

POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug, convenience receptables, and the point where they exit from the product.

DAMAGE REQUIRING SERVICE – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug has been damaged.
• If liquid has been spilled into, or objects have fallen onto, the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and may require extensive work by a qualified technician to restore the product to normal operation.
• If the product has been dropped or damaged in any way.
• When the product exhibits a distinct change in performance, indicating a need for servicing.

HANDLING

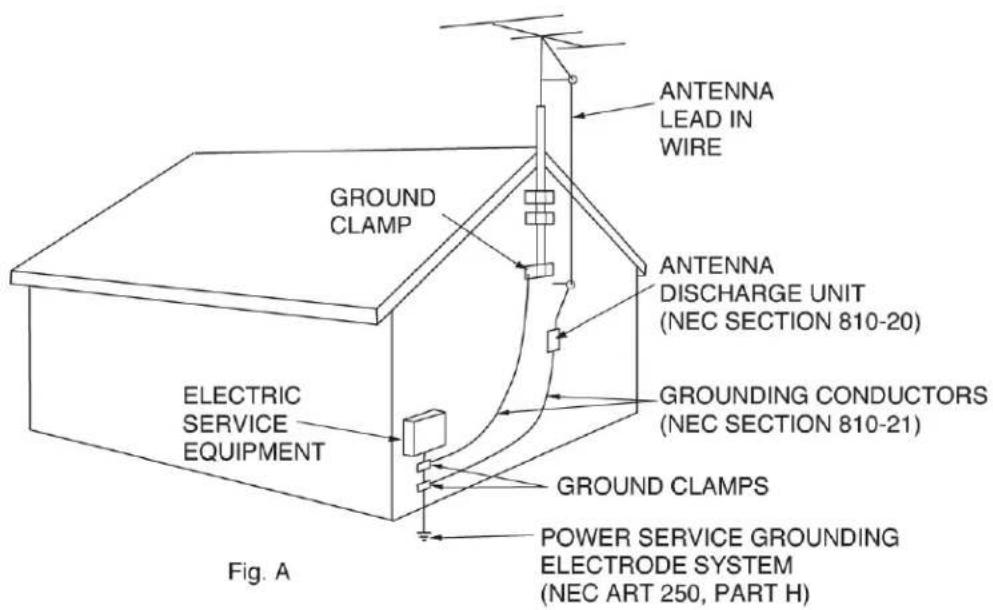

OUTDOOR ANTENNA GROUNDING – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFP A70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See the illustration below for reference.

NEC — NATIONAL ELECTRICAL CODE

UNPACKING

Every APX12 GO BT has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the system have arrived intact. In the event that damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Please do not return the speaker to your dealer without first contacting customer support.

SAFETY

- The APX12 GO BT speaker can easily reproduce sound pressure levels (SPLs) sufficient enough to cause severe and permanent hearing damage. A great degree of care should be taken to protect your ears from prolonged exposure to SPL in excess of 85 dB.

• For adult use only. Keep out of reach of children.
• Be sure all power is turned off before connecting speakers.
• When using the speaker, always make sure the grille is attached.
• Always use a power cord that meets the manufacturer's exact power specifications.
• Disconnect from main power before making any type of connection.
  • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
  • This speaker is intended for indoor use only. Use of this product outdoors voids all warranty coverage.
  • Always mount this speaker in a safe and stable manner.
• Power Cord Protection – Power supply cords should be routed so that they are not likely to be walked upon or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the speaker.
• Heat – The speaker should be situated away from heat sources such as radiators, heat registers, stoves or other mixers (including amplifiers) that produce heat.
• Be sure to save the packing carton in the event that the unit needs to be returned for service.
• Read all documentation before attempting to operate your new device. Please save all your documentation for future reference.
• Do not spill water or other liquids into or onto your speaker.
• Be sure that the local power outlet matches that of the required voltage for your speaker.
• Do not attempt to operate this speaker if the power cord has been frayed or broken.
• Please route your power cord out of the path of foot traffic.
• Always have the gain controls set to their lowest level during initial power-up to prevent speaker damage.
• Servicing – The user should not attempt to service the speaker beyond what is described in this manual. All other servicing should be referred to qualified service personnel. The speaker should be serviced by qualified personnel when any of the following occurs:

A. Objects have fallen onto, or liquids have been spilled into, the speaker.
B. The speaker has been exposed to rain or water.
C. The speaker does not appear to operate normally or exhibits a change in performance.
D. The terminal/cross-over plate has been damaged.

KEY FEATURES

• LCD Display
• MP3 Playback
• Bluetooth Wireless Pairing with Mobile Phone, Tablet, or Laptop
• FM Tuner
• SD Card Port
• USB Port
• Mini Jack Input (1/8")
  • XLR In/Out for PA or DJ Mixer
  • UHF Handheld Microphone
• Remote Control
• Battery Power
  • Built-in Wheels and Retractable Handle

INCLUDED ITEMS:

• Power Cable (x1)
  • UHF Wireless Microphone (x1)
• Remote Control (x1)

PRODUCT REGISTRATION

The APX12 GO BT carries a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper and included in the shipping container. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting customer support at [phone]. All packages returned to the service department not displaying an R.A. number on the outside of the shipping package will be returned to the shipper unopened.

The serial and model number for this unit are located on the rear panel. Please write down the numbers here and retain them for future reference.

Model No.: ____

Serial No.: ____

Date Purchased: ____

Dealer Name: ____

CONTROL AND FEATURES

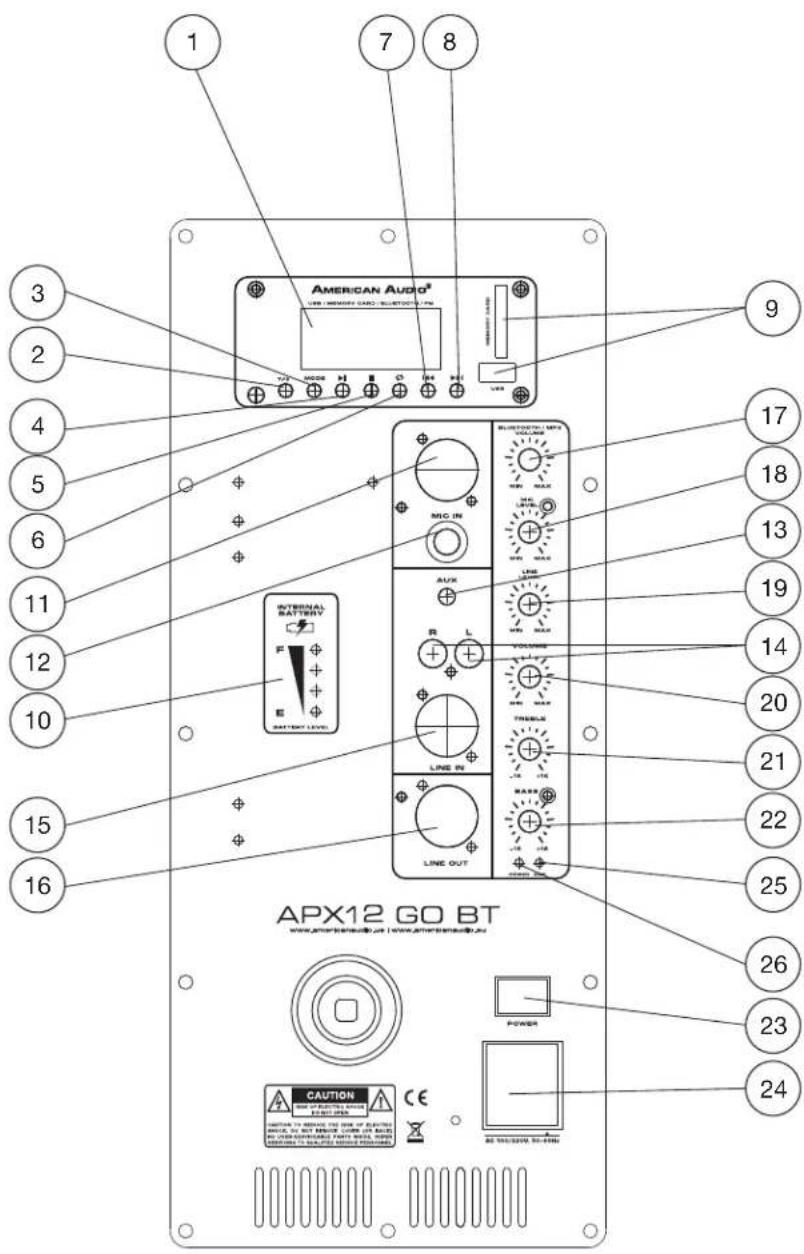

REAR PANEL

1. LCD Screen
2. TWS Button
3. Mode Button
4. Play/Pause Button
5. Stop Button
6. Repeat Button
7. Skip Back Button
8. Skip Forward Button
9. Flash Drive Slot
10. Battery Charge Indicator
11. XLR Microphone Input
12. MP3 Input
13. 1/8" Stereo Mini Jack Input
14. Left/Right Line Input
15. XLR Line Input
16. XLR Line Output
17. MP3/ Bluetooth Volume /Control
18. Mic Input Volume Control
19. Line Input Volume Control
20. Wireless Mic Vol. Control
21. Treble Volume Control
22. Bass Volume Control
23. Power Switch
24. Power Inlet w/ Integrated Fuse
25. Power Indicator Light
26. Clip Indicator Light

CONTROL AND FEATURES

REMOTE CONTROL

1. Stop
2. Switch Mode (USB / SD / Bluetooth)
3. Mute
4. Skip to Previous
5. Skip to Next
6. Play / Pause
7. Decrease Volume
8. Increase Volume
9. Tone Level Control
10. Number Pad

NOTE: Signal transmitter is housed in the End Cap. In order to minimize risk of signal interference, avoid gripping the microphone by the end cap when in use.

Connecting the Microphone Wirelessly to Your Speaker:

1. Check that the microphone has been fitted with two (2) AA batteries. Switch on both the microphone and the main power switch on the speaker.
2. Your wireless microphone and built-in receiver come preset from the factory, but should the need arise to re-pair these devices, press and hold the Channel button on the microphone until the Display Panel illuminates and flashes.
3. Wireless pairing should now be complete.

OPERATION

WIRELESS MICROPHONE

SAFETY WARNINGS!

• Do not expose to water or liquids of any kind!
• Do not expose to heat or fire!
• Do not use in locations with a high risk of signal interference, such as airports or hospitals!
• Do not disassemble the product! There are no user-serviceable parts contained inside this unit, and attempting any repairs yourself may void the manufacturer's warranty! Contact an authorized service representative for all repair needs!
• If the product is not working as intended, or displays a noticeable change in performance, please contact an authorized representative for any repair needs!

ACCESSORY SPECIFICATIONS:

• Bandwidth: 500 MHz
• Modulation Method: FM (frequency modulation)
• Frequency Response Range: 50 Hz \~ 15 KHz
• Signal to Noise Ratio: 72 dB
• Operation Temperature: 14°F \~ 122°F (-10°C \~ 50°C)
- Operating Voltage: 3V
• Effective Range: 65 feet (20 meters)

• Maximum Offset Frequency: +25 KHz (comprehensive characteristics)

OPERATION

WIRELESS PAIRING FOR MOBILE PHONES AND OTHER DEVICES

1. Ensure that wireless pairing is enabled on the wireless device that is being paired to the APX12 GO BT.
2. On the device being paired to the APX12 GO BT, select the APX12 GO BT speaker by selecting the device named "APX12 GO BT."
3. The APX12 GO BT will automatically pair wirelessly with your device.

TWS SET UP: This device's True Wireless Stereo (TWS) capability allows the user to pair the audio source wirelessly to two separate devices and transmit separately to the left and right channels. To set up TWS, follow the directions below:

1. Connect both speakers to power, and turn their power switches on.
2. Press the MODE button to activate Bluetooth on the speakers. "bt" will be displayed on the screen.
3. Press the "TWS Stereo Link" button. The device will chime to indicate that TWS has successfully been enabled.

FM RADIO PROGRAMMING

1. Find the row of buttons located below the display screen, and use the MODE button to select FM radio mode.
2. Press the Play/Pause button (2nd button from the left) to scan for all available FM radio stations.
3. Use the Skip Backward button (2nd button from the right) and the Skip Forward button (right-most button) to scroll through the stations that were found in Step 2.

Please note: The speaker may not be able to pick up a particular FM radio channel if the signal from the channel is too weak.

INSTALLATION

POLE MOUNTING

The APX12 GO BT is designed to accommodate a pole-mounted installation.

Use the two carry handles mounted located on both sides of the rear panel to carefully lift the speaker and lower it onto a compatible mounting device.

PRODUCT IS HEAVY! USE GOOD FORM WHEN LIFTING IN ORDER TO PREVENT INJURY! SEEK ASSISTANCE FROM ANOTHER PERSON IF NECESSARY!

Make sure that the mounting device inserts fully and securely into the pole mounting slot on the underside of the speaker.

Secure the speaker in place by tightening the mounting knob at the bottom of the back side of the speaker.

ENSURE THAT BOTH THE MOUNTING DEVICE AND THE MOUNTING SURFACE ARE STABLE! IF USING A COLLAPSIBLE TRIPOD, ENSURE THAT THE TRIPOD LEGS ARE DEPLOYED TO A STABLE POSITION! NEGLECTING TO DO SO MAY RESULT IN BODILY INJURY AND DAMAGE TO YOUR SPEAKER AND/OR MOUNTING DEVICE!

TECHNICAL SPECIFICATIONS

Speaker:

• 12" Woofer with 1.5" Voice Coil
• 1" High Frequency Driver
• 200 Watts Peak Power
• Class D Amplifiers with 65 Watts RMS
• Freq Response: 40Hz-18KHz
• Sensitivity: 93 +/- 2 dB

Features:

• Battery power up to 8 hours of use
- Battery life indicator
- Bluetooth® TWS (True Wireless Stereo) wireless link two of the speakers using reliable Bluetooth connectivity (Models shipping September 2021)
- LCD display
- Plays MP3 files from USB or SD Card inputs
- FM tuner
- Includes retractable carrying handle and wheels
- Tripod mount on the bottom of speaker

Input / Outputs:

• Inputs: XLR, 1/8-inch jack, RCA
• Output: XLR
  • Mic Inputs: XLR or 1/4 -inch

Rear Controls:

• MP3 Volume Control
- Microphone Volume Control
• Line Level Control
• Master Volume Control
- Treble Control
- Bass Control

Wireless Remote Controls:

• Play/Pause
  • Volume Control
• EQ Control
• Mute
• Mode
• Previous / Next

Power:

• Switching AC Power Supply: AC115/230V
• Battery: 12V, 700mA
• Charge time: Up to 4 hours for a full charge

Dimensions / Weight:

• Dimensions (LxWxH): 16.375" x 14" x 27.5" / 415 x 355 x 700mm
  • Weight: 35 lbs. / 16kg.

Specifications may be subject to change without prior written notice.

DIMENSIONAL DRAWINGS

Dimensions may not be drawn to scale.
