Product Type	Audio Mixer with USB Interface
Model	PMX462
Brand	Pyle
Channels	3
Built-in Effects	16 Digital Effects (Hall, Room, Reverb, Delay)
MP3 Player	Yes, with Bluetooth and USB playback
Input Connectors	Combo XLR & 6.35mm (1/4") Jack, Stereo 6.35mm, 3.5mm AUX
Output Connectors	MAIN OUT (L/R), SUB OUT, PHONES (3.5mm & 6.35mm)
Phantom Power	+48V, switchable
Equalization	2-band per channel: Bass ±15dB/80Hz, Treble ±15dB/12kHz
USB Interface	USB 2.0 for data transfer, recording, and power supply
Power Supply	DC 5V/1A via USB or included wall adapter
Frequency Response	20Hz - 20kHz ±1dB
Total Harmonic Distortion (THD)	≤0.5% @ +4dBμ (22Hz-22kHz)
Dimensions (L x W x H)	9.06" x 9.06" x 2.17" (230 x 230 x 55 mm)
Chassis Material	Rugged metal
Clip Indicator	PEAK LED per channel
Recording Support	Integrated sound card for computer recording
Bluetooth	Yes, for wireless audio streaming
Included Accessories	Mixer interface, USB cable, wall adapter

Frequently Asked Questions - PMX462 Pyle

How do I connect the PMX462 to my computer for recording?

Use a USB 2.0 cable to connect the mixer's USB port to your computer. The computer will automatically install the driver. You can then use software to record audio from the mixer.

How do I use the Bluetooth function?

Press the MODE button until the display shows BT. Enable Bluetooth on your device, search for and select the mixer. A sound prompt confirms successful pairing.

How do I apply effects to my audio?

Use the DSP Select knob to choose one of 16 effects (e.g., Hall, Room, Delay). Adjust the FX controls to set effect level and depth.

What is the phantom power for?

The +48V PHANTOM POWER button supplies 48V DC to XLR inputs for condenser microphones that require external power. Turn it on only when using such microphones.

Can I power the mixer via USB?

Yes, the mixer can be powered via USB (DC 5V/1A) from a computer, power bank, or USB wall adapter. Ensure the power source provides at least 1A.

How do I adjust the volume for headphones?

Connect headphones to the PHONES jacks (3.5mm or 6.35mm) and adjust the PHONES LEVEL knob to desired volume.

What does the PEAK LED indicate?

The PEAK LED flashes when the input signal is too high and may cause distortion. Reduce the GAIN control to avoid clipping.

How do I switch between channel input and USB playback?

Use the CH/USB switch to select either the analog channel inputs or the USB audio source for the main output.

What are the 6 EQ presets for MP3?

Press the EQ key to cycle through Normal, Rock, Pop, Classical, Jazz, and Country presets. These affect only the MP3 player audio.

How do I clean the mixer?

Use a dry, soft cloth. Do not use paint thinners, solvents, or chemical wipes. Avoid excessive dust and vibration.

USER MANUAL PMX462 Pyle

VISIT US ONLINE: Have a question? Need service or repair? Want to leave a comment? PyleUSA.com/ContactUs

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

PYLE

PyleUSA.com

PMX462

3-Channel Audio Mixer with USB Interface

Built-in FX Processor MP3 Player, XLR & 6.35 Jack Connectors

PMX464

4-Channel Audio Mixer with Recording Interface

Built-in FX Processor/AUX Input & MP3 Player, 2 XLR I/O Connectors

PMX466

6-Channel Audio Mixer w/ Recording Interface

Built-in Multi-FX Processor/AUX Input & MP3 Player, 4 XLR I/O Connectors

USER MANUAL

For the best results and the satisfaction from your new unit, please read this manualthoroughly, and retain it for future reference.

ATTENTION

To avoid the possibility of malfunction/damage to the product, damage to data, or damage to other property, Please follow the points as below.

• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the device, TV, or radio may generate noise.
• In order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components. Do not expose the device to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day).
• Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.
• When cleaning the device, use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical impregnated wiping cloths.
• Condensation can occur in the device due to rapid, drastic changes in ambient temperature when the device is moved from one location to another, or air conditioner is turned on or off. For example, using the device while condensation is present can cause damage. If there is reason to believe that condensation might have occurred, leave the device for several hours without turning on the power until the condensation has completely dried out.
• Avoid setting all controls to their maximum. Depending on the condition of the connected devices, doing so may cause feedback and may damage the speakers.
• When turning on the power in your audio system, always turn on the power amplifier LAST, to avoid speaker damage. When turning the power off, the power amplifier should be turned off FIRST for the same reason.

PRECAUTIONS WHEN USING THE USB 2.0 AND 5V DC TERMINALS

When connecting the USB2.0 connector to computer, please must abide by following points. If not, it may cause computer crash, breakdown, or losing data. If the computer or mixer crash, please restart the application software or computer operating system, or disconnect the mixer, then power on again.

• Use an USB cable. USB 3.0 cable cannot be used.
• Before connecting the computer to the USB 2.0 terminal, exit from any power-saving mode of the computer (such as suspend, sleep, standby).

3 CHANNEL MIXER

4 CHANNEL MIXER

6 CHANNEL MIXER

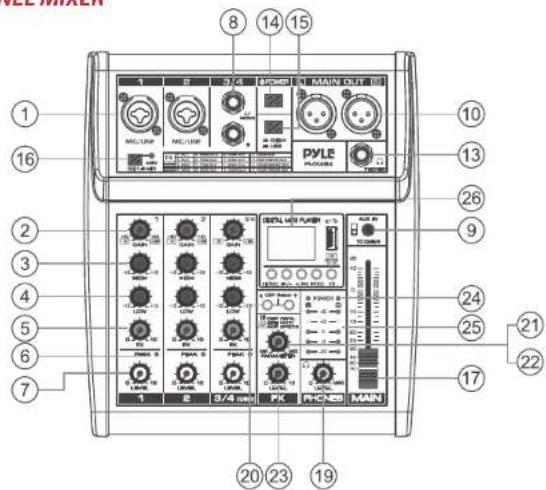

CHANNEL INPUT AND OUTPUT

1. [MIC/LINE] Mono input, connect the microphone, musical instrument or audio device (CD player and so on) to the device. The sockets are supporting both XLR and UNBALANCED 1/4" PLUG.

UNBALANCED 1/4" PLUG

1. [GAIN] Controller, determines the basic volume of each channel, adjust them for the maximum volume performance, when the volume gets too loud, the [PEAK] LED indicator light will keep flashing.
2. [HIGH] Treble tone controller, adjust the controller to enhance or attenuate for 15dB at 12KHz.
3. [LOW] Bass tone controller, adjust the controller to enhance or attenuate for 15dB at 80Hz.

4. [FX] Controller, adjust the signal level from the channel to the reverberation line. Please note, the signal level will vary with the different setting of the channel attenuator. If using the stereo channel, will mix the signals from L and A channels, then send it to reverberation line.

5. [PEAK] LED indicator light, when the volume of input signal or volume after adjusting equalizer is too high, the LED indicator light will keep flashing, please rotate the [GAIN] CONTROLLER counterclockwise to turn down the volume.

6. [LEVEL] Controller, adjust to balance the volume of each channels.
7. [STEREO INPUT] Jacks, for connecting to line level device (e.g. electric keyboard) via 6.35 plugs, if only connect to L (MONO) jack, the mixer will send out the same mono signal to L and R outputs.
8. [AUX IN] 3.5mm jack, this is an auxiliary input, flexible connectivity for a variety of external devices.
9. [MAIN OUT] Output, connect the active speaker or amplifier.
10. [SUB OUT] Control to send the audio signal to SUB output for monitoring and recording.
11. [PHONES] Jack, connect with 3.5mm earphones, the socket is supporting stereo phone plug.
12. [PHONES] Jack, connect with 6.35 earphones, the socket is supporting stereo phone plug.
13. [POWER] Button, power ON/OFF the mixer.
14. [CH/USB] Convert switch, select the input signal from "channel" or "USB".
15. [+48V PHANTOM POWER] Button/LED, when the button is turned ON, the LED light is on, provide DC+48V phantom power to XLR plug on MIC mono input. Please turn on this button when using the condenser microphone which is powered by a phantom power.
16. [MAIN LEVEL] Fader, adjust the overall volume from [MAIN OUT] output signal.
17. [SUB] Fader, control the volume of SUB output.
18. [PHONES LEVEL] Earphone controller, adjust the volume of earphone.
19. [DSP Select] You can choose to assign one of 16 effect programs to your mix. (Hall, Room, Reverb etc. see the effect list on page 6).
20. [DELAY] Controller, adjust the depth of the reverberation.
21. [PARAMETER CONTROL IN ADDING DIGITAL EFFECTS] Used to adjust the depth of the selected effect, speed, etc.
22. [FX] Controller, adjust the volume of effect.
23. [POWER INDICATOR] The indicators light up when the mixer's power is on.
24. [LEVEL INDICATORS] Show the signal level from [MAIN OUT] out. Adjust the [LEVEL] controller to lower the level if [PEAK] indicator light up in RED.
25. [MP3 FUNCTION INTRODUCTION]

A. WIRELESS BT CONNECTION

- Press the "MODE" button in order to select the wires BT mode, the BT icon on display is flashing and displays BT.

- Open the BT for pairing, after successful pairing, there will be a sound prompt.

B. BUTTON FUNCTION

- "▶//SET" button, press first time to pause the playing song, press again to continue playing.

- "◀/-" button, short press to play the previous song, press and hold to reduce the input volume.

- "→/+"button, short press to play the next song, press and hold to increase the input volume.

- [MODE] Selecting button, switching the functional model, select USB, REC, BT in order.

• Press the "MODE" key to select the REC state.
• Press the "▶//REC" button to start recording, the LED screen shows the recording time. Press the "▶//REC" button again to pause the recording.
• Press the"MODE" key back out the recording.

When the computer data cable is connected, it will enter to PC playing states automatically (The computer will install the driver automatically at the first connection, need to wait until the installation is finished to play or record)

E. EQ control key, there are 6 kinds of sound effects.

(Normal/Rock/Pop/Classic/Jazz/Country)

BUILT-IN DSP

You can choose to assign one of 16 effect programs to your mix.

Effects List as below:

DIGITAL 321481 16 DSP

01·HALL1	09·285MS DELAY
02·HALL2	10·560MS DELAY
03·ROOM1	11·860MS DELAY
04·ROOM2	12·1000MS DELAY
05·REVERB+DELAY	13·1400MS DELAY
06·125MS DELAY	14·800MS PINGPONG DELAY
07·175MS DELAY	15·1000MS PINGPONG DELAY
08·225MS DELAY	16·1400MS PINGPONG DELAY

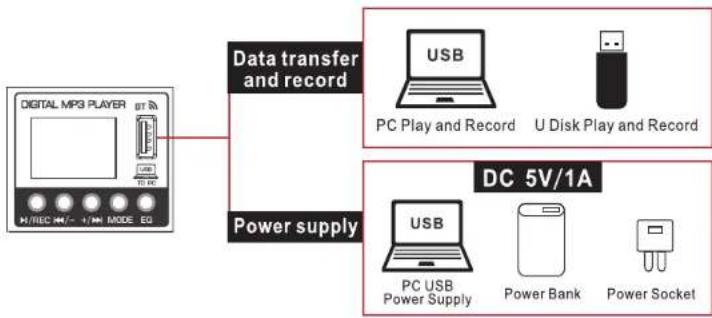

USB FOR DATA TRANSFER AND RECORD, AND POWER SUPPLY

USB FOR POWER SUPPLY ONLY

Connect with PC USB port, Power bank or power socket to supply power to mixer. It must meet the following requirements:

Output voltage: 4. BV to 5. 2V

Output Current: 1A or even more
