Type de produit	Vitroceramic hob (electric)
Modèle	UT-ECOKERAMIK
Marque	Ursus Trotter
Dimensions (L x P x H)	Approx. 59 x 52 x 5 cm
Poids	Approx. 8 kg
Alimentation	220-240 V ~ 50/60 Hz, 16 A
Puissance totale	Approx. 7000 W
Nombre de zones de cuisson	4 zones
Type de zones	Radiant (vitroceramic)
Affichage	Digital touch controls
Fonctions principales	Booster, timer, child lock, residual heat indicator
Entretien et nettoyage	Clean with a damp cloth and mild cleaner after each use; avoid abrasive products
Sécurité	Automatic switch-off, overheat protection, child lock
Pièces détachées	Contact Ursus Trotter service for spare parts
Réparabilité	Repairable by qualified technician; user-replaceable parts: none
Informations générales	For indoor use only; installation by a licensed electrician required

Frequently Asked Questions - UT-ECOKERAMIK Ursus Trotter

How do I clean the UT-ECOKERAMIK hob?

Use a damp cloth with a mild glass ceramic cleaner. Avoid abrasive sponges or harsh chemicals. Wipe after each use.

What type of cookware is compatible with this hob?

Use flat-bottomed pots and pans made of stainless steel, enameled steel, or aluminum. Avoid copper or glass cookware on the radiant zones.

Does the hob have a child lock?

Yes, the UT-ECOKERAMIK features a child lock function. Activate it by pressing and holding the lock button for 3 seconds.

What should I do if the hob does not turn on?

Check that the power supply is connected and the fuse is not blown. Ensure the main switch is on. If problem persists, contact technical support.

Can I install the hob myself?

Installation must be done by a licensed electrician due to high power requirements. Follow the manual for proper cutout dimensions.

How do I use the timer function?

Select a cooking zone, then press the timer button. Use +/- to set minutes. The zone will shut off automatically when time ends.

What does the residual heat indicator mean?

An H appears if the zone is still hot. Do not touch until the indicator disappears. This helps prevent burns.

Why does the hob emit a beep?

Beeps indicate touch commands, timer alerts, or error signals. Refer to the manual for specific beep codes.

How do I unlock the hob after a power cut?

The hob may lock automatically after power loss. Press and hold the on/off button for 3 seconds to reset.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format. Search for 'Ursus Trotter UT-ECOKERAMIK'.

USER MANUAL UT-ECOKERAMIK Ursus Trotter

German Engineering & Design

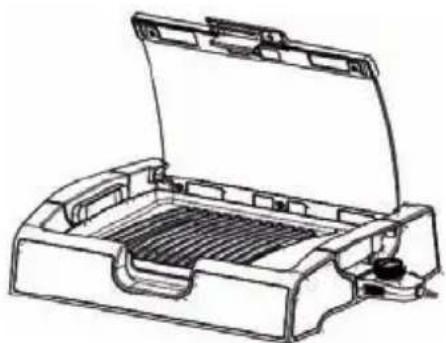

ELEKTROGRILL

Parrilla eléctrica

MANUAL DE USUARIO Y LETRA DE GARANTÍA

ELEKTROGRILL

UT-ECOKERAMIK2

AC220V, 50/60HZ, 1500W

1. Tapa de vidrio superior
2. Placa ceramica Eco-keramik
3. bandeja residuos
4. Cuerpoe exterior
5. Termostato ajustable
6. Interlock de seguridad

Para uso

Signal Word Definitions

DANGER – Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. Usage of this signal word is limited to the most extreme situations.

WARNING – Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION – Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury or product/property damage. It also alerts against unsafe practices.

Read all instructions before use

WARNING-- To reduce the risk of fire, electric shock, or serious personal injury:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• For indoor use only.
• Do not immerse the appliance into water.
• Charcoal or similar combustible fuels must not be

used with this appliance.

• Warning: The surfaces are liable to get hot during use.
• The side and front surface is hot, should not be touched.
• This electrical appliance contains a heating function. Surfaces, also
• different than the functional surfaces, can develop high temperatures. Since
  • temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched.
• When symbol IEC 60417-5041(DB:2002-10, ▲) is used, it means "Caution: Hot surface"

CAUTION-- To reduce the risk of personal injury or product/property damage:

• This product is intended for indoor, non-industrial, non-commercial, household use only as a panini maker and healthy grill. Do not use the item outdoors or for any other purpose.
• Do not allow the Power Cord to hang where it may be tripped over or pulled (e.g., over the edge of a table or counter).

Special instructions

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

– The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

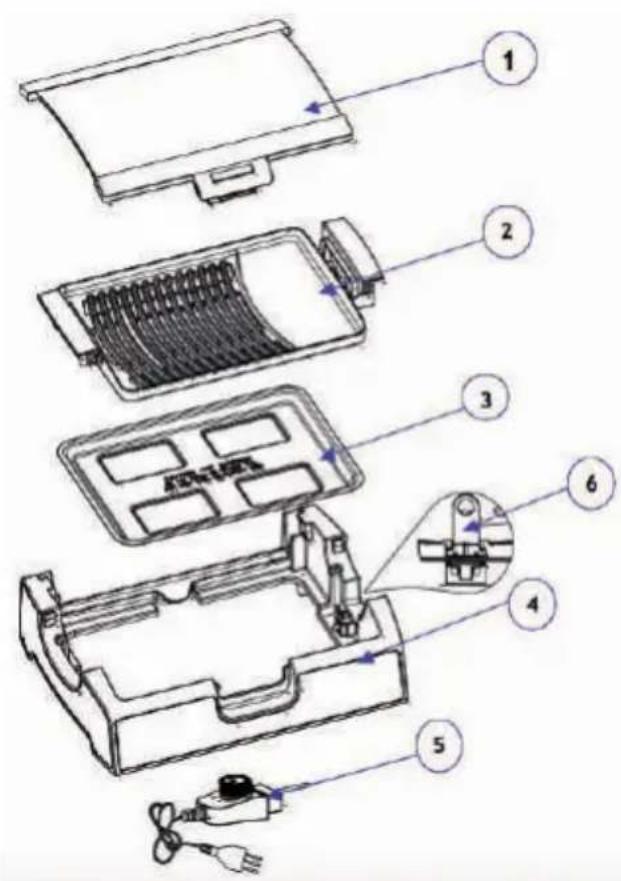

Parts and features

1. Glass lid
2. Cooking plate
3. Oil Drip Tray
4. Hou sing
5. Adjustable thermostat
6. Safety Interlock

To Use

CAUTION: Do not use this product to cook or defrost frozen food. All food must be completely defrosted before cooking it with this product.

• Unroll the mains lead fully.
- Check that the voltage in the country where you

are using the device corresponds to the voltage indicated on the device.

• Plug the device into a socket which is in good condition and earthed to avoid any danger.
• Unplug the electric power lead after use and before any cleaning or maintenance operations or assembling any accessories.
• Connect the thermostat plug to the device (see "Assembly" below); check that the thermostat button is in the minimum position
• Select the cooking temperature with the help of the thermostat button. The indicator light will switch on to indicate that the device is heating up.
• Preheat the grill to reach the ideal cooking temperature. When the device has reached the desired temperature, the indicator light will switch off.
• Hold lid handle to upright position, lid can stand upright.
  • Then place the food on the grill.
  • The cooking time will depend on the type of food and your personal taste.

Ractical advice

• Defrost frozen foods before grilling them.
- To grill meat, put the thermostat button in its maximum position and make sure that the grill has been fully preheated before cooking. To cook the meat traditionally, according to your taste, select the temperature which best suits you.
• Take care not to scratch the special coating on the cooking plates as they will lose their non-stick quality. Use a traditional wooden spatula or a specially designed heat resistant plastic utensil. Do not use sharp and/or pointed metal objects.
- In the event of partial use of the grill surface, place all food in the centre of the grill.

Note

•The first time you use the Grill it may have a slight odor and may smoke a bit. This is normal and common to appliances with nonstick surfaces.
- A plastic cleaning spatula can be used for cleaning the grilling plate and frying plate after you have finished cooking and the unit has cooled down completely (at least 30 minutes). Using the cleaning tool on a hot surface for too long will cause the plastic to melt.

Care and cleaning

- When finished cooking, unplug from the outlet and allow the grill to cool completely before cleaning. Never transport the unit when it is hot.

- Pull out the connector. If cleaning is necessary, wipe over unit with a slightly damp cloth. DO NOT IMMERSE THE CONNECTOR IN WATER OR ANY OTHER LIQUID.

- Lift the cooking plate off the Body and pour off any excess grease or liquid from the metal drip tray. The cooking plate can be washed in the dishwasher. The drip tray and the plastic Body must be cleaned by hand.

- Do not use steel wool pads or harsh, abrasive cleaners on the cooking surface as they ma damage the nonstick coating. Never use a caustic oven cleaner as this will damage the cooking surface.

- To remove cooked on food, use a plastic spatula. Be sure to clean the handles after each use. Dry thoroughly with a soft cloth or paper towel.

- The power cord assembly should not be immersed in water or placed in the dishwasher. To clean, wipe with a damp cloth.

- The appliance inlet must be carefully dried before the appliance is used again.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

POLIZA DE GARANTIA

Ursus Trotter
