Type of Product	Irrigation Controller
Brand	Irritrol
Model	2713APRDK-LF
Dimensions (W x H x D)	Approx. 8 x 6 x 3 inches (20.3 x 15.2 x 7.6 cm)
Weight	Approx. 1.2 lbs (0.54 kg)
Power Supply	24 VAC, 50/60 Hz, 1.0 A max
Number of Stations	6 stations (expandable with modules)
Main Functions	Automatic watering schedules, manual operation, rain delay, seasonal adjustment, zone programming
Programs	3 independent programs (A, B, C) with 4 start times each
Watering Duration	1 minute to 99 hours per zone
Rain Sensor Compatible	Yes, with sensor bypass
Display	LCD with menu-driven interface
Outdoor Use	Weatherproof enclosure (NEMA 3R rating)
Maintenance	Clean display and enclosure with damp cloth; check and clean filter regularly
Safety Features	Built-in surge protection, automatic shut-off on fault
Spare Parts	Transformer, solenoid valves, terminal strips, faceplate
Repairability	Modular design; user-replaceable parts available
Warranty	5 years limited
Compliance	UL, CSA, FCC
Manual Language	English (EN)

Frequently Asked Questions - 2713APRDK-LF Irritrol

How do I set the current time and date on my Irritrol 2713APRDK-LF?

Press the 'Set Time' button, then use the +/- keys to adjust hours and minutes. Press 'Next' to set the day, month, and year. Confirm with 'Enter'.

How many watering zones does the 2713APRDK-LF support?

It supports up to 6 stations, expandable with additional modules. Each zone can be programmed independently.

Why is my controller not turning on?

Check the power supply: ensure the transformer is plugged in and the circuit breaker is not tripped. Also verify the 24 VAC output at the controller terminals.

Can I connect a rain sensor to this controller?

Yes, it is rain sensor compatible. Connect the sensor wires to the 'SEN' terminals and enable the sensor in the settings menu.

How do I program a watering schedule?

Select a program (A, B, or C), set the start times and duration for each zone. Use the 'Program' button to cycle through options and adjust with +/- keys.

What should I do if a zone doesn't water?

Check the wiring to the solenoid valve, ensure the zone is programmed with a duration, and verify the valve is not blocked. Also test the solenoid with a multimeter.

How do I manually start watering?

Press the 'Manual' button, select the zone, and set the duration. The controller will run that zone immediately.

Is the 2713APRDK-LF suitable for outdoor installation?

Yes, it has a weatherproof enclosure rated NEMA 3R, suitable for outdoor mounting in sheltered locations.

How do I reset the controller to factory defaults?

Press and hold the 'Reset' button (usually beneath the faceplate) for 5 seconds. All programming will be erased.

Where can I find spare parts for my Irritrol controller?

Spare parts such as transformers, solenoid valves, and faceplates are available through Irritrol dealers or online retailers. Use the model number 2713APRDK-LF.

USER MANUAL 2713APRDK-LF Irritrol

Drip Zone Valve Kits Installation Instructions

Click on the links to view the documents.

Drip Zone Valve Kit

Models 2500DK-1-LF and 2500DK-1-MF

Installation Instructions

373-0512 Revision B

Drip Zone Valve Kit

Models 2711APRDK-LF and 2711APRDK-MF

Installation Instructions

373-0513 Revision B

Drip Zone Valve Kit

Models 2713APRDK-LF and 2713APRDK-MF

Installation Instructions

373-0514 Revision B

Drip Zone Valve Kit

Models 700DK-075-LF

Installation Instructions

373-0515 Revision B

Drip Zone Valve Kit

Models 700DK-1-LF and 700DK-1-MF

Installation Instructions

373-0516 Revision B

Drip Zone Kit - Less Valve

Models DK-LV-LF and DK-LV-MF

Installation Instructions

373-0535 Revision A

Drip Zone Valve Kit Models 2500DK-1-LF and 2500DK-1-MF Installation Instructions

Kit Components

• Irritrol 2500 Series Valve, Model 2500TF
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 2500TF
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 2500TF Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Drip Zone Valve Kit Models 2711APRDK-LF and 2711APRDK-MF Installation Instructions

Kit Components

• Irritrol 2700 Series Valve, Model 2711APR
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
• 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
• 3/4" Anti-siphon Electric Control Valve, Model 2711APR
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
  ♦ Adjustable Flow Control

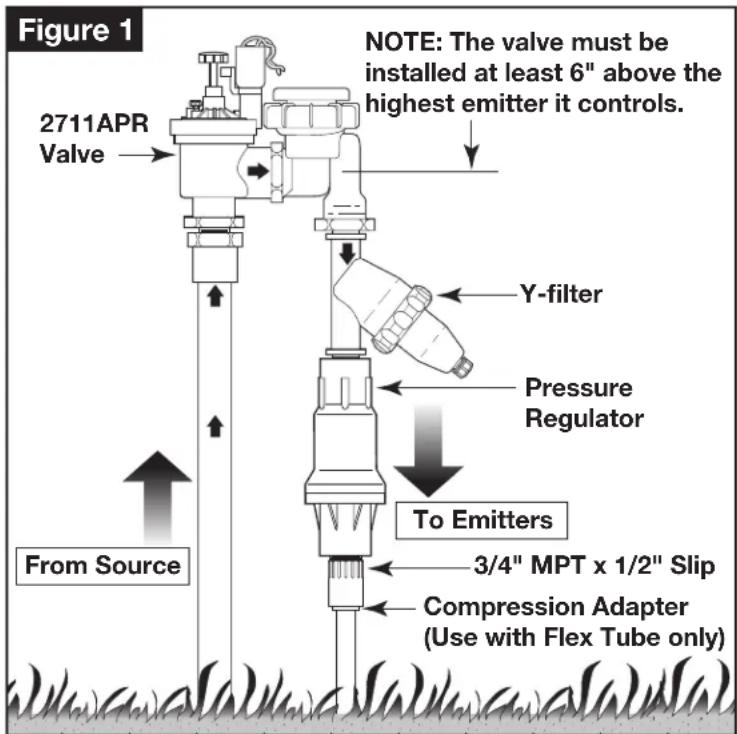

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.
⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.

2. Thread the pressure regulator inlet into the Y-filter outlet.

3. Connect the water source supply line and piping to drip emitters.

NOTE: Refer to the 2711APR Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Kit Components

• Irritrol 2700 Series Valve, Model 2713APR
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
• 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" Anti-siphon Electric Control Valve, Model 2713APR
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Refer to the 2713APR Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Kit Components

• Irritrol 700 Series Valve, Model 700B-.75
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
  • Flow Rate at 25 psi: 0.1–8 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 700B-.75
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  • Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 ½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 700 Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Irritrol®

Get more done™

Drip Zone Valve Kit Models 700DK-1-LF and 700DK-1-MF Installation Instructions

Kit Components

• Irritrol 700 Series Valve, Model 700-1
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF model) 0.1–8 GPM (MF model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 700-1
  ♦ Operating Pressure: 10–150 psi
  • 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

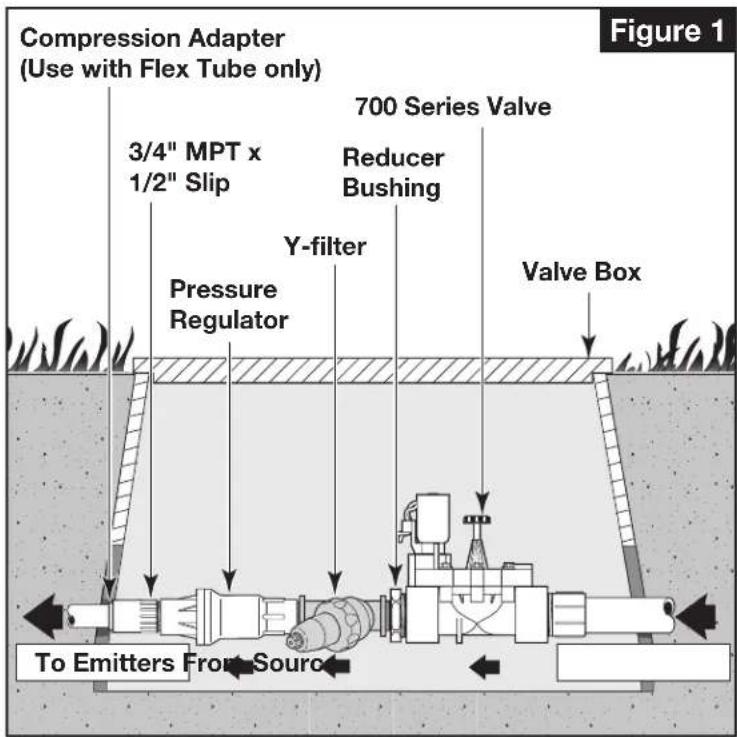

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 ½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 700 Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Irritrol®

Get more done™

Drip Zone Kit - Less Valve Models DK-LV-LF and DK-LV-MF Installation Instructions

Kit Components

• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Maximum Supply Pressure: 150 psi
- Downstream Pressure Regulation: 25 psi
- Flow Rate at 25 psi: (LF model) 0.1–8 GPM (MF model) 2–20 GPM
• Filtration: 150 Mesh Stainless Steel Screen

Installation Procedure

CAUTION: When assembling the drip zone kit components, use just 1 12 to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the pressure regulator inlet into the Y-filter outlet.
2. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: To adapt the Drip Zone Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

© Irritrol • www.irritrol.com • For Technical Assistance, call 1-800-333-3125 Part Number 373-0535 revision A
