HFH-L2000SL - Heating Heinner - Free user manual and instructions

Product Type	Fan Heater
Brand	Heinner
Model	HFH-L2000SL
Power Output	2000 W
Heating Settings	2 (1000 W / 2000 W)
Fan Only Mode	Yes
Thermostat	Adjustable thermostat
Dimensions (W x H x D)	25 x 30 x 20 cm
Weight	2.5 kg
Power Supply	230 V ~ 50 Hz
Power Cord Length	1.5 m
Overheat Protection	Yes, automatic shut-off
Tip-Over Switch	Yes
Noise Level	Low (fan operation)
Oscillation	No
Remote Control	No
Display	None
Cleaning	Wipe with damp cloth; clean air filter regularly
Safety Certifications	CE, RoHS
Spare Parts Availability	Contact Heinner support

Frequently Asked Questions - HFH-L2000SL Heinner

What is the power consumption of the Heinner HFH-L2000SL?

The heater has a maximum power output of 2000 W. It offers two heat settings: 1000 W and 2000 W. At maximum setting, it consumes 2 kWh per hour of operation.

How do I clean the air filter?

Turn off and unplug the heater. Locate the air intake grille, usually at the back or side. Remove the filter (if accessible) and gently vacuum or wash with mild soap and water. Dry completely before reinstalling.

What safety features does this heater have?

It includes overheat protection that automatically shuts off the heater if internal temperatures exceed safe levels, and a tip-over switch that turns it off if it is knocked over.

Can I use the heater in a bathroom?

No, the HFH-L2000SL is not rated for bathroom use. It should only be used in dry indoor areas away from water sources.

Is the heater noisy?

The heater operates with a fan, but noise levels are low compared to many space heaters. It is suitable for use in bedrooms and offices.

How do I turn on the heater?

Plug the heater into a suitable power outlet. Use the control dial or knob to select the desired heat setting (fan only, 1000 W, or 2000 W). Adjust the thermostat to your preferred temperature.

What is the warranty period?

Heinner typically offers a 2-year warranty for domestic use. Check your purchase receipt or contact local support for exact terms.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. While safety features are in place, always turn it off when leaving the room or sleeping.

What does the 'SL' in the model name mean?

'SL' likely stands for 'Silent' or 'Slim Line', indicating quieter operation or a compact design.

Where can I find replacement parts?

Contact Heinner customer service or an authorized service center. Some parts like the power cord may be available through repair shops.

USER MANUAL HFH-L2000SL Heinner

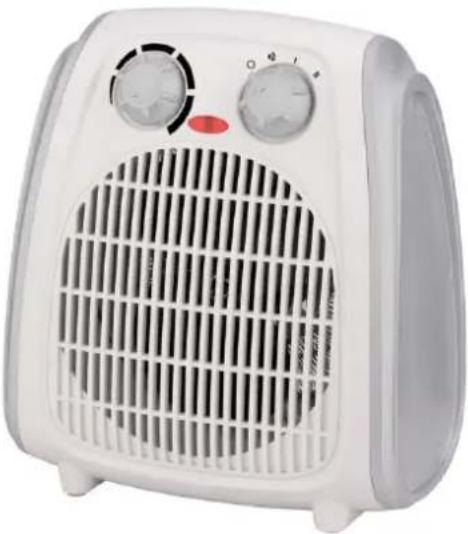

White portable electric heater with heat exchanger and control knobs (no visible text or symbols)

White portable electric heater with ventilation grille and two control knobs (no visible text or symbols)

This product is only suitable for well insulated spaces or occasional use

• Fan heater
  • Power: 1000W/2000W
  • 2 heating settings

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and kee it for later information

This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Fan heater
➢ Instruction Manual
Warranty card

III. SAFETY MEASURES

Thank you for buying this fan heater. Please read these instructions carefully and keep them in a safe place for future reference.

When switched on for the first time a slight odor might be emitted for a few minutes. This is harmless and occurs with most heaters when any slight traces of dust or lubricants that may have collected in the factory are heated away.

PRECAUTIONS:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• WARNING: In order to avoid overheating, do not cover the heater.
• The heater must not be located immediately below a socket-outlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

IV. USING THE APPLIANCE

SYMBOL FUNCTION

0 OFF

FAN ONLY

I LOW HEAT

II HIGH HEAT

Your heater is equipped with a 4-position rotary switch

• Set the rotary switch to maximum for fast warm up of a room. Once the room is comfortable, select a lower setting to reduce electrical consumption and to prevent the room from becoming too warm.
• Adjust the thermostat to maximum and select the desired power setting. Once the room is comfortable, rotate the thermostat counterclockwise, until the heater shuts off. The thermostat will now maintain the temperature by cycling the heater on or off. During particularly cold weather, the low power setting may be insufficient to satisfy the thermostat. Select a higher setting for these periods.
  • It is better to work for 5-10 seconds in only fan mode before turning off the fan.

OVERHEATING

• The thermostat will turn the machine off it overheats.
• Overheating can be caused by obstruction to the air intakes on the back of the machine or the grill on the front. If this occurs please disconnect the machine and allow it to cool for 30 minutes. Remove any obstruction and turn the machine back on.

SAFETY TIP-OVER SWITCH:

- The appliance is fitted with a tip-over switch. When you use the appliance in an upright position on a flat and stable surface, the tip-over switch will be on. In the event the heater is knocked over, the heater will stop functioning automatically.

V. CLEANING AND MAINTENANCE

• There are no parts inside the machine that require your attention or servicing. Do not try to open the outer case. By doing so you could damage the motor and heating element and invalidate the warranty. If you have a problem with the heater, or if the power cord gets damaged in any way, you MUST take the unit to a suitably qualified engineer or electrical repair centre.
• Before cleaning the machine, please make sure it is disconnected from the power supply and has cooled down completely.
• Never cleaning the machine, please make sure it is disconnected from the power supply and has cooled down completely.
• Never clean the machine with water and do not let it get wet under any circumstance.
• The outside case and be cleaned using a slightly damp lint-free cloth [a small amount of detergent can be used if required].
• To remove any dust particles etc. form inside the front grill, or the rear air intakes, you can use a regular vacuum cleaner.
  • Always make sure the machine is completely dry before using.
• If you are not going to use the heater for a while it is best to make sure it is clean and dry and then store it inside a plastic bag in a cool dry place.
• With sensible care and attention this heater will give you many years of good service and economical heating.

VI. TECHNICAL FICHE

Table	Model identifier for electric local space heaters
Model number:	HFH-L2000SL
Item		Symbol	Value	Unit
Heat output
Nominal heat out-put		P_nom	1.8-2	kW
Minimum heat out-put (indicative)		P_min	0.015	kW
Maximum continuous heat output		P_max,c	2	kW
Auxiliary electricity consumption
At nominal heatoutput		el_max	N/A	kW
At minimum heatoutput		el_min	N/A	kW
In standby mode		el_SB	N/A	kW
Type of heat input, for electric storage local space heaters only (single select)
manual heat charge control, with integrated thermostat				Yes No
manual heat charge control with room and/or outdoor temperature feedback				Yes No
electronic heat charge control with room and/or outdoor temperature feedback				Yes No
fan assisted heat output				Yes No
Type of heat output/room temperature control (single select)
single stage heat output and no room temperature control				Yes No
Two or more manual stages, no room temperature control				Yes No
with mechanic thermostat room temperature control				Yes No
with electronic room temperature control				Yes No
electronic room temperature control plus day timer				Yes No
electronic room temperature control plus week timer				Yes No
Other control options (multiple selections possible)
room temperature control, with presence detection				Yes No
room temperature control, with open window detection				Yes No
with distance control option				Yes No
with adaptive start control				Yes No
with working time limitation				Yes No
with black bulb sensor				Yes No
Contact details	Network One DistributionStr. Marcel Iancu, Nr. 3-5, Bucureşti, 020757,Tel: [phone], www.heinner.com , www.nod.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

ВЕНТИЛАТОРНА ПЕЧКА

Модел: HFH-L2000SL

White portable electric heater with ventilation grille and two control knobs (no visible text or symbols)

White portable electric heater with ventilation grille and control knobs (no visible text or symbols)
