Brand	Peerless-AV
Model	KIL755-EUK (also compatible with KIP series)
Product Type	TV Stand / Mount
Dimensions (KIL755)	33.75 x 55.75 inches (XX x YY)
Weight Capacity	Not specified; designed for typical flat panel TVs
Material	Steel, plastic components, hardware included
Mount Type	Wall mount (wood stud only)
Stud Size Requirement	Minimum 2x4 nominal wood stud
Maximum Drywall Thickness	5/8 inch
Included Hardware	M5, M6, M8 screws (various lengths), multi-washers, spacers, wood screws, concrete anchors (not used), adaptor brackets, cable ties, power strip, allen wrench, front cover
Power Strip	Included (600-0370)
Tools Required	Phillips screwdriver, allen wrench (4mm), drill with 5/32 bit, stud finder, level
Installation	Follow step-by-step manual; use assistant for heavy lifting
Safety Warnings	Use provided hardware; do not overtighten; ensure proper ventilation; indoor use only
Warranty	Limited 5-year warranty from original end-user purchase
Indoor Use Only	Yes
Compliance	Designed for wood stud installation; do not install over gypsum board >5/8"
Additional Features	Swivel arm for access behind display; cable management with ties; spacer option for deeper TVs
Environment	Keep away from direct sunlight and heat sources
Customer Support	Phone: 800-4-SIGNAGE | Email: [e-mail]

Frequently Asked Questions - KIL755-EUK Peerless-AV

What is the maximum TV size this mount supports?

The KIL755-EUK is designed for large flat-panel TVs, but specific size is not listed. Ensure the TV weight and VESA pattern are compatible with the included hardware (M5, M6, M8 screws and spacers).

Can I install this mount on concrete or brick walls?

No, the mount is exclusively designed for wood stud walls. The included concrete anchors are not used for this model. Do not attempt installation on other wall types.

What tools are needed for installation?

You will need a Phillips screwdriver, a 4mm allen wrench (included), a drill with a 5/32 inch bit, a stud finder, and a level.

How tight should the screws be?

Tighten screws until the head contacts the surface, then give an additional 1/2 turn. Do not overtighten, as this may damage the product. Ensure screws get at least three full turns.

Does the mount come with a power strip?

Yes, a power strip (part 600-0370) is included. It should be mounted securely and routed to avoid tripping hazards.

Can I use spacers if my TV is thicker?

Yes, spacers (part 540-1059) are provided. They are optional and can be used to adjust the distance between the adapter brackets and the TV back.

How do I clean the mount?

Use a soft, dry cloth to wipe the surface. Avoid water, moisture, and harsh chemicals as they may cause damage or corrosion.

What is the warranty period?

Peerless-AV offers a limited 5-year warranty from the date of purchase by the original end-user, but no longer than 6 years after manufacture.

Is this mount suitable for outdoor use?

No, this product is indoor use only. Outdoor use may lead to product failure or injury due to moisture and temperature extremes.

Where can I get replacement hardware?

Contact Peerless-AV customer support at [e-mail] or call 800-4-SIGNAGE for replacement parts.

USER MANUAL KIL755-EUK Peerless-AV

WARNING

ENG - This product is designed to be installed on wood stud. Hardware is included for wood stud installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. To reduce the risk of electric shock or fire, do not expose product to water or moisture. Be sure power cord is routed so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid overloading electrical outlets or extension cords. Always disconnect the power cord from the power outlet when installing, servicing, or not using the product for an extended period of time. Do not block ventilation slots or fan exhaust on product. Blocking airflow could damage product. Arrange product to allow air to flow freely around product. Keep product away from direct sunlight or any source of heat. For support please call 800-4-SIGNAGE.

ENG Symbols

ENG Screws must get at least three full turns and fit snug.

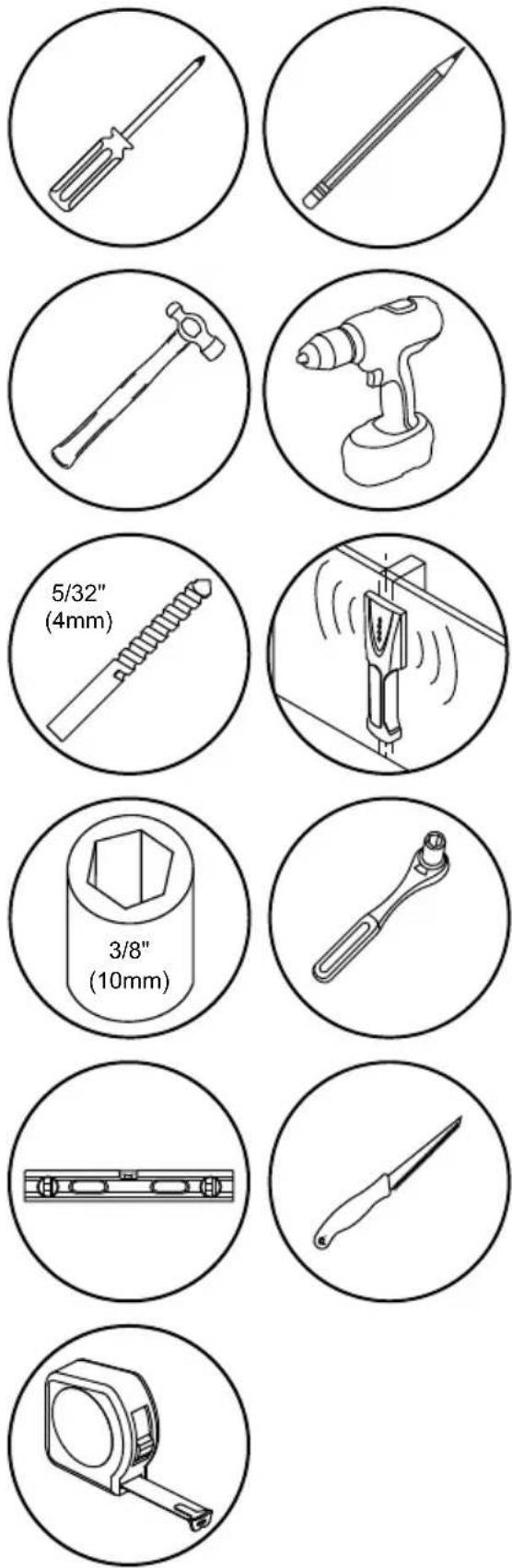

ENG Tools Needed for Assembly.

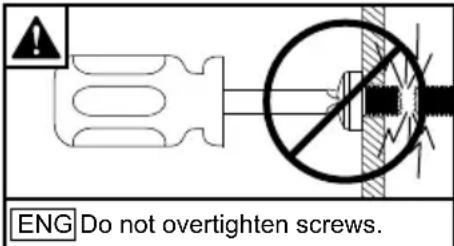

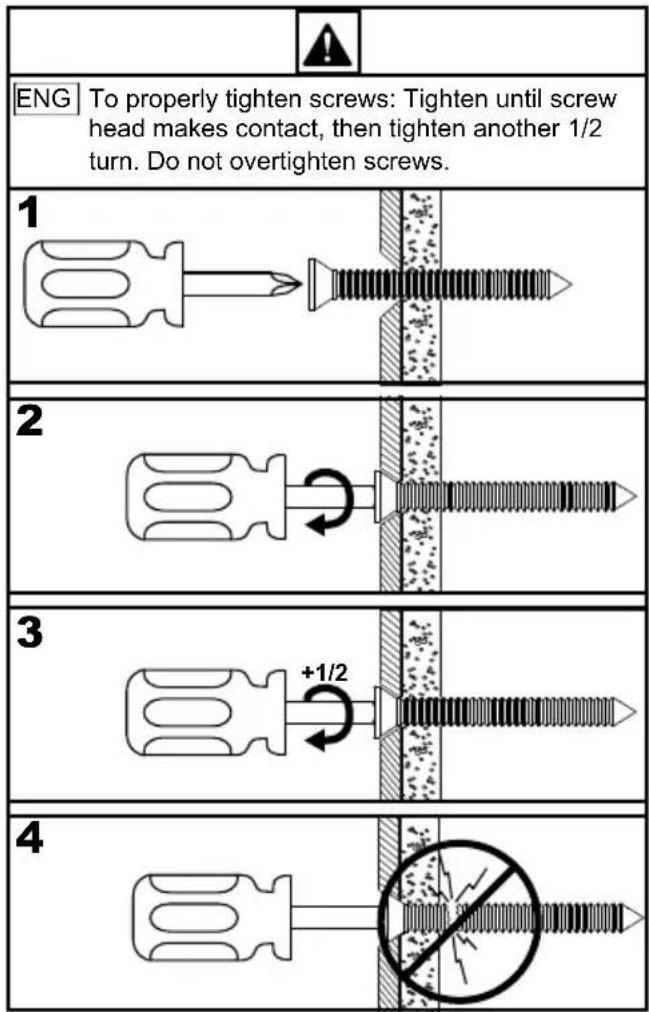

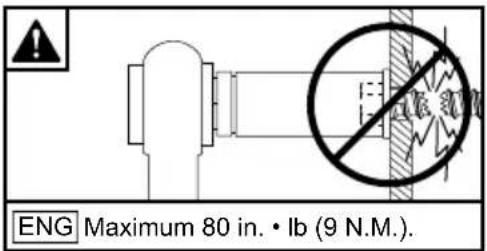

[ENG] To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws.

Parts List		KIP740 KIP740-S Part #	KIP742 KIP742-S Part #	KIP743 KIP743-S Part#	KIP746 KIP746-S Part #	KIP747 KIP747-S Part #Description Qt
A back assembly 1 150-T1693 150-T1694 150-T1694 150-T1690 150-T1691
B M5 x 12mm pan phl screw 4 520-1027 520-1027 520-1027 520-1027
C M5 X 25mm pan phl screw	4	520-9543	520-9543	520-9543	520-9543	520-9543
D M6 x 12mm pan phl screw 4 520-1128 520-1128 520-1128 520-1128
E M6 x 25mm pan phl screw 4 520-1208 520-1208 520-1208 520-1208
F M8 x 12mm pan phl screw 4 520-9571 520-9571 520-9571 520-9571
G M8 x 25mm pan phl screw 4 520-1031 520-1031 520-1031 520-1031
H M5/M4/M6 multi washer 4 580-1398 580-1398 580-1398 580-1398
I 1/4"spacer	4	540-1059 540-1059	540-1059 540-1059	540-1059 540-1059
J M5 x 20mm skt screw	2	520-1065	520-1065	520-1065	520-1065	520-1065
K 4mm allen wrench	1	560-9646	560-9646	560-9646	560-9646	560-9646
L front cover BLK	1	150-P1596P	150-P1599P	151-P1610	150-P1593P	150-P1594P
front cover SLV		150-4596P	150-4599P	151-4610	150-4593P	150-4594P
M #14 x 2.5" wood screw	4	5S1-015-C03	5S1-015-C03	5S1-015-C03	5S1-015-C03	5S1-015-C03
N adaptor bracket	2	150-T1689	150-T1689	150-T1689	150-T1689	150-T1689
O power strip	1	600-0370	600-0370	600-0370	600-0370	600-0370
P cable tie	6	560-1756	560-1756	560-1756	560-1756	560-1756
Q concrete anchor (not used)	4	590-0320	590-0320	590-0320	590-0320	590-0320

Parts List
	Description Qty	KIP748	KIP749	KIP755
		KIP748-S	KIP749-S	KIP755-S
		Part #	Part #	Part#
A back assembly 1 150-T1692 150-T1695 150-T1695
B M5 x 12mm pan phl screw 4 520-1027 520-1027 520-1027
C M5 X 25mm pan phl screw 4 520-9543 520-9543 520-9543
D M6 x 12mm pan phl screw 4 520-1128 520-1128 520-1128
E M6 x 25mm pan phl screw 4 520-1208 520-1208 520-1208
F M8 x 12mm pan phl screw 4 520-9571 520-9571 520-9571
G M8 x 25mm pan phl screw 4 520-1031 520-1031 520-1031
H M5/M4/M6 multi washer 4 580-1398 580-1398 580-1398
I 1/4"spacer		4 540-1059 540-1059 540-1059
J M5 x 20mm skt screw	2	520-1065	520-1065	520-1065
K 4mm allen wrench	1	560-9646	560-9646	560-9646
L front cover BLK	1	150-P1595P	151-P1818	150-P1600P
front cover SLV		150-4595P	151-4818	150-4600P
M #14 x 2.5" wood screw	4	5S1-015-C03	5S1-015-C03	5S1-015-C03
N adaptor bracket	2	150-T1689	150-T1689	150-T1689
O power strip	1	600-0370	600-0370	600-0370
P cable tie	6	560-1756 560-1756 560-1756
Q concrete anchor (not used) 4 590-0320 590-0320 590-0320

L (1)

H (4)
M5/M4/M6 washer

I (4)
spacer

J (2)
M5 x 20mm

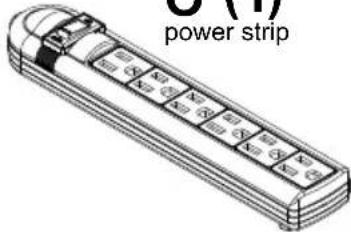

O (1)

P (6)
cable tie

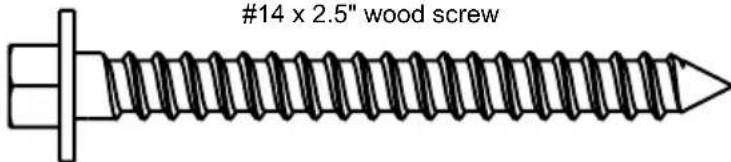

M (4)

14 x 2.5" wood screw

N (2)
adaptor bracket
Q (4)

concrete anchor

1

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8".

1-1

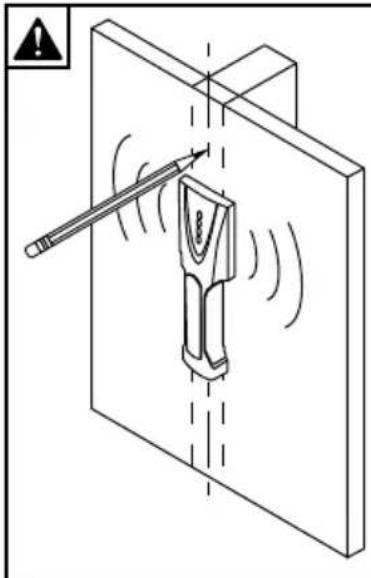

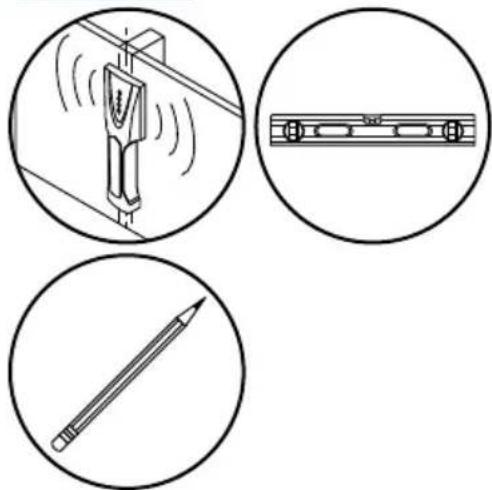

ENG Use stud finder to locate and mark stud center lines.

1-2

KIP740, KIP742, KIP743	XX = 27.25, YY = 43.5
KIP746, KIP747, KIP748	XX = 30.25, YY = 48.25
KIP749, KIP755	XX = 33.75, YY = 55.75

1-3

ENG Level wallplate. Mark mounting holes on stud.

1-4

ENG Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required).

1-5

1-6

ENG

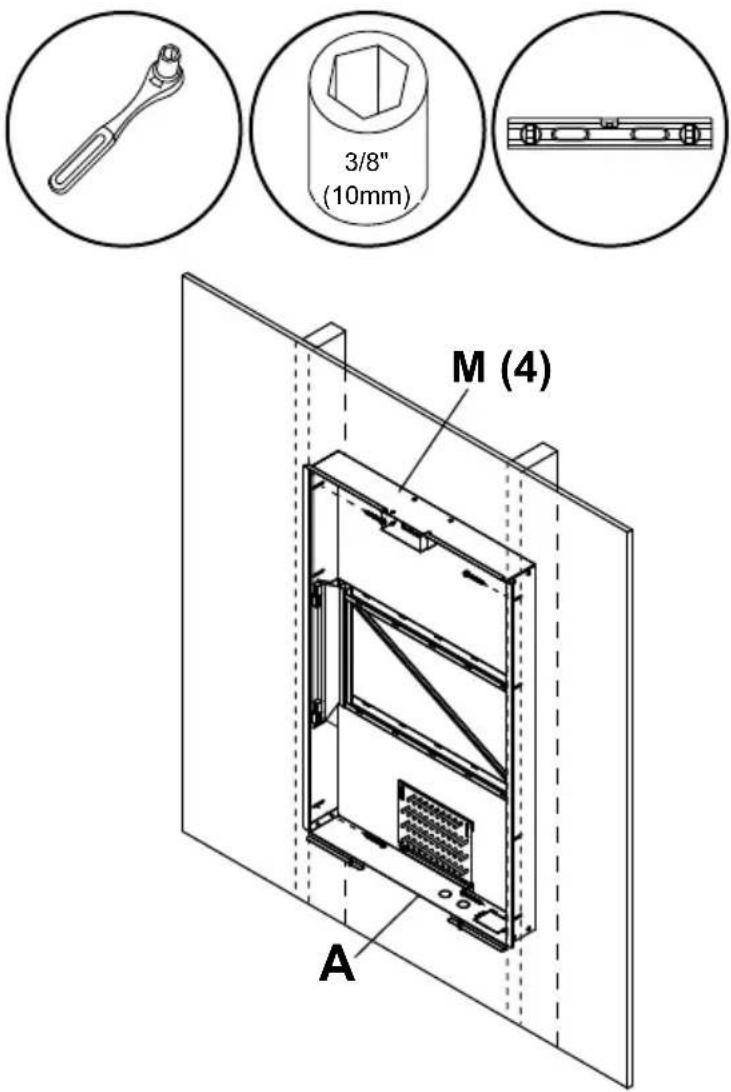

Level wallplate. Install using wood screws provided.

2

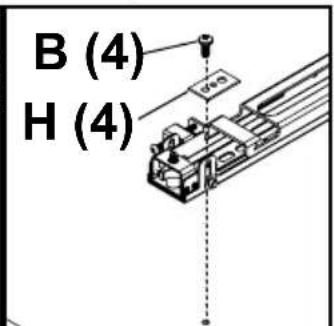

ENG Center adapter brackets vertically on back of screen.

3

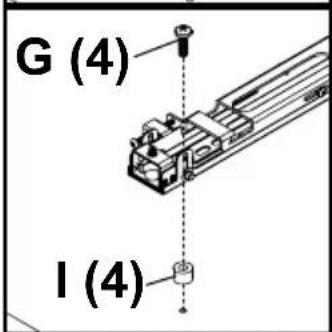

ENG Use of spacers is optional.

4

5

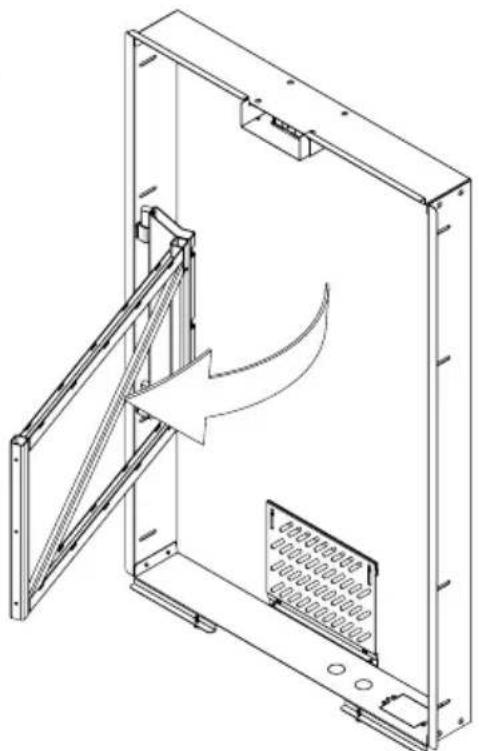

ENG Note: Mounting arm swings out to access adapter brackets and behind display.

7

8

9

KIP740, KIP740-S, KIP742, KIP742-S, KIP743, KIP743-S, KIP746, KIP746-S, KIP747, KIP747-S, KIP748, KIP748-S, KIP755, KIP755-S

ENG This page intentionally left blank.

LIMITED FIVE-YEAR WARRANTY

Peerless Industries, Inc. ("Peerless") warrants to original end-users of Peerless products will be free from defects in material and workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long a implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless ^® product.

This warranty gives specific legal rights, and you may also have other rights which vary from state to state.
