Product Type	Electret Condenser Microphone (Omni)
Brand	Voice Technologies
Model	VT506WA
Application Area	Theatre, Film, Broadcasting
Polar Pattern	Omni-Directional
Frequency Range	40Hz - 20kHz
Sensitivity	-60dB ±3dB (1V/microbar, 10mV/Pa)
Noise Level	26dB A-weighted
Maximum Input SPL	118dB
Impedance	3 kOhm
Bias Voltage (+VDC)	1.3V (0.9 to 20V max.)
Current Drain	25 μA
Wiring Configuration	3-wire: Red (+VDC), Copper (NF), Green (Ground)
Microphone Dimensions (Head)	13 x 7 x 3.5 mm
Cable Length	1.5 m (59 in)
Cable Diameter	1.5 mm
Weight	7 g
Colors Available	Black, Beige, White (other on request)
Protection	RF protected, Waterproof VTO box
Special Features	Rising frequency response for speech intelligibility; Flexible cable with excellent rubbing noise isolation
Included Accessories	AC, DM, PW, TT, RBM2 mounts
Cleaning Instructions	Use a dry, soft cloth to clean the microphone. Avoid moisture and solvents.
Safety Precautions	Do not expose to extreme temperatures or humidity. Handle with care to avoid damage.
Spare Parts / Repairability	Contact Voice Technologies or authorized dealer for spare parts or repair.
Documentation	User manual available in PDF (2 pages)

Frequently Asked Questions - VT506WA Voice Technologies

What type of microphone is the Voice Technologies VT506WA?

The VT506WA is an electret condenser microphone with an omni-directional polar pattern, designed for professional audio applications in theatre, film, and broadcasting.

What is the frequency response of the VT506WA?

The frequency response ranges from 40Hz to 20kHz, with a rising characteristic to enhance speech intelligibility.

What is the sensitivity of this microphone?

The sensitivity is -60dB ±3dB (1V/microbar, 10mV/Pa).

What power supply does the VT506WA require?

It requires a bias voltage of 1.3V (operating range 0.9V to 20V max.) and draws a current of 25 μA.

What are the dimensions and weight of the microphone?

The microphone head measures 13 x 7 x 3.5 mm, and the cable is 1.5 meters (59 inches) long with a diameter of 1.5 mm. The total weight is only 7 grams.

What accessories are included with the VT506WA?

The microphone comes with five accessories: AC, DM, PW, and TT for head fixation, and RBM2 for invisible mounting of the lavalier mic.

Is the VT506WA RF protected?

Yes, the VT506WA is RF protected, making it suitable for use in environments with radio frequency interference.

How should I clean the VT506WA microphone?

Clean the microphone with a dry, soft cloth. Avoid exposing it to moisture, solvents, or abrasive materials.

What colors are available for the VT506WA?

Standard colors are black, beige, and white. Other colors are available upon request.

What is the wiring configuration of the VT506WA?

The microphone uses a 3-wire configuration: Red for +VDC, Copper for NF (shield), and Green for Ground.

USER MANUAL VT506WA Voice Technologies

Close-up of a black USB connector with a circular port and cable (no text or symbols visible)

A classic. Brilliant sound.

The Voice Technologies VT506 is a high-quality and RF protected electret condenser microphone (omni).

It is designed for performing talent in broadcast, theatre and film. It has a rising frequency response to assure speech intelligibility and for under-clothing use. The molding injection adds a high solidity to the VT506. Voice Technologies counts also on an especially flexible cable, which has excellent isolation from rubbing noise.

Colors: black, beige, white (other colors on request)

Application area: Theatre - Film - Broadcasting

The VT506 comes in the solid, waterproof VTO box with the following accessories:

Three open containers with blue and white enclosures containing various electronic devices (no visible text or labels)

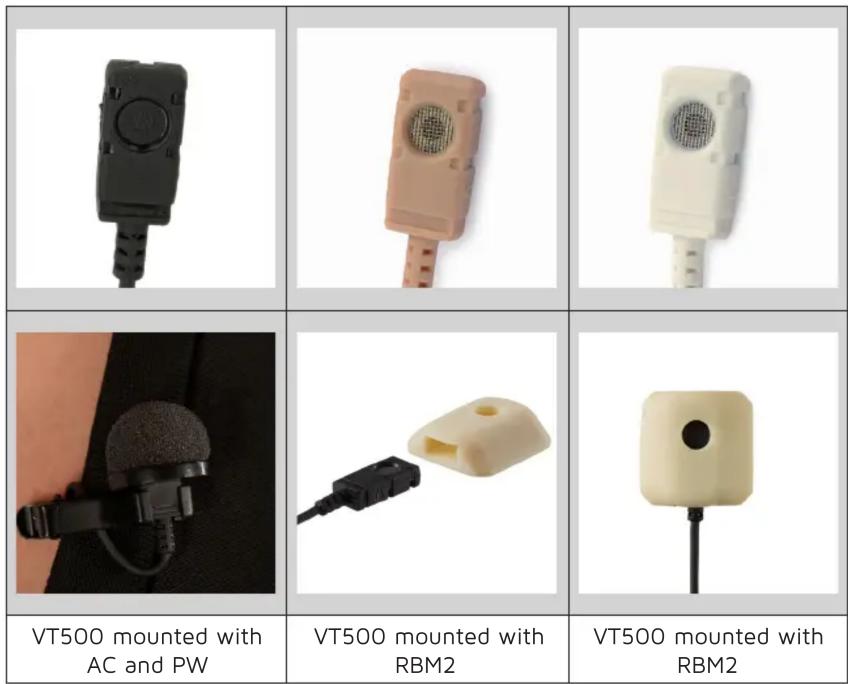

	AC	Fixation at the microphone head for a better connectionColors: black, beige or white
	DM	Fixation at the microphone head for a better connectionColors: black, beige or white
	PW	Perfect for light wind, for example from speechColors: black, beige or white
	TT	Fixation at the microphone head for a better connectionColors: black, beige or white
	RBM2	Perfect tool to mount the lavalier mic absolutely invisible. Put the mic into the hole at the side until the top is in the middle of the front hole.

Specifications:
Generating Element: Electret Condenser
Polar pattern: Omni-Directional
Frequency Range: 40Hz- 20kHz
Sensitivity: -60dB ±3dB 1V/microbar (10mV/Pa)
Noise level: 26dB "A" weighted
Max. Input SPL: 118dB
Impedance: 3 kOhm
Bias/+VDC: 1.3V (0.9 to 20V max.)
Colors: black, beige, white	(other colors on request)
Current drain: 25 μA
Microphone Dimensions:	13x7x3.5mm
Cable	Length 1.5m (59") ∅ 1.5mm
Weight:	7 g

Wiring Configuration (3-wire):
Red +VDC
Copper NF
Green Ground
