VT500X - Microphone Voice Technologies - Free user manual and instructions

Product Type	Lavalier Microphone
Brand	Voice Technologies
Model	VT500X
Element	Electret Condenser
Polar Pattern	Omni-Directional
Frequency Range	40 Hz – 20 kHz
Sensitivity	-79 dB max (1V/µbar)
Noise Level	26 dB "A" weighted
Maximum Input SPL	118 dB
Impedance	3 kΩ
Bias Voltage	1.3 V (0.9–20 V)
Current Drain	25 µA
Microphone Dimensions	13 × 7 × 3.5 mm (0.51 × 0.28 × 0.14 in)
Cable Length	1.5 m (59 in)
Cable Diameter	1.5 mm
Weight	7 g (0.25 oz)
Color Options	Black, Beige
Waterproof Rating	IPX8 (1 m underwater for 24 hours)
Cable Reinforcement	Sweat-, cut- and tear-resistant
Application Areas	Theatre, Film, Broadcast, Industrial, Outdoor

Frequently Asked Questions - VT500X Voice Technologies

Is the VT500X truly waterproof?

Yes, the VT500X is IPX8 certified, meaning it can be submerged in up to 1 meter of water for 24 hours without damage. The capsule is fully sealed and the cable is reinforced against moisture.

What type of connector does the VT500X have?

The VT500X typically comes with a standard 3.5mm or TA5/TA4 connector depending on version, but it can be ordered with various terminations to match wireless transmitters. It requires bias voltage (0.9–20 V) from the transmitter or an external phantom adapter.

Can I use the VT500X with a smartphone?

The VT500X is designed for professional use and requires bias voltage. For smartphones, you would need an adapter like the VT1126 phantom adapter or a compatible wireless system. There are dedicated mobile versions (VT506Mobile) if you need direct plug-and-play.

What is the cable length and is it replaceable?

The standard cable is 1.5 m (59 in) long, with a diameter of 1.5 mm. The cable is not user-replaceable, but Voice Technologies offers custom lengths and connectors upon request. The cable is reinforced for durability.

How do I clean the VT500X after outdoor use?

For the waterproof capsule, you can rinse it with fresh water and gently dry with a soft cloth. Avoid using chemicals. The cable can be wiped clean. Do not submerge the connector. For windscreens, wash with mild soap and water, then air dry.

Does the VT500X require a battery?

No built-in battery. It is an electret condenser microphone that needs bias power (1.3 V typical, range 0.9–20 V) supplied by the connected device (wireless transmitter, mixer, or phantom adapter).

What windscreens are recommended for the VT500X?

Voice Technologies offers a Professional Windscreen (PW) and a Standard Windscreen (SW) for the VT500/506 series. For extreme outdoor use, a fur windscreen (like the WSi or WSC) can be used to reduce wind noise.

Is the VT500X suitable for live theater?

Absolutely. It is designed for theatre, film, and broadcast. The omni pattern provides natural voice reproduction, and the robust construction withstands demanding stage use. The reinforced cable resists sweat and movement noise.

What accessories are included with the VT500X?

Typically, the VT500X comes with a tie-tac clip (TT), an alligator clip (AC), and a professional windscreen. Optional accessories include a Dracula mount, rubber body mount, and waterproof VTO box. Always check the package contents as they may vary.

How does the VT500X differ from the VT500 or VT506?

The VT500X is the most rugged version with IPX8 waterproofing (1m/24h) and a super-reinforced cable. The VT500 has a standard cable and lower water resistance, while the VT506 has a lifted high-frequency response for clarity. The VT500X focuses on extreme durability for outdoor and industrial use.

USER MANUAL VT500X Voice Technologies

VT500X EXTREME

1m under water for 24 hours

Swiss precision for excellent audio quality

VOICE TECHNOLOGIES

Swiss Precision for excellent Audio quality since 1998

In the 1990ies a team of technicians made different experiments with diverses microphones. Due to the fact that Swiss watches have been very successful they had the vision to use the Swiss precision also in the development and production of miniature microphones.

Common miniature microphones consisted of two plastic parts glued together. The objective therefore was to produce a miniature microphone made all of a piece to offer a small and very robust product.

Portrait of an older man with gray hair and glasses, wearing a red sweater (no visible text or symbols)

This was the cornerstone for the first Voice Technologies miniature lavalier microphones VT500 and VT506 which have become a worldwide standard in the Pro Audio market.

Gerfried Bauer one of the founders and a pioneer in the Pro Audio industry has a longtime experience as engineer based on a close cooperation with internationally well-known european microphone and headphone companies.

Voice Technologies has committed itself to the classic Swiss

values: inventive ideas, precision, top-quality materials and modern fabrication techniques. Our products are built to a standard of offering the best solutions for a wide range of applications.

Such functional and equally precise microphones are not only made through years of experience and

Close-up of a hand using a microscope to press or sample the objective lens (no text or symbols visible)

know how. The highest standards of manufacturing and materials as well as strict quality controls are principle in our production.

The direct connection to our customers and end users is of central importance; New pro-

ducts or even new developments arise very often in close cooperation with our customers.

The microphone, headset and earphone products we manufacture are widely used all over the world. Not only professional users in broadcasting, theater, Film and Video production – but also police departments and security services. Our lavaliers are commonplace on major productions in the U.S. and other markets including motion picture, popular reality TV, major award shows and primetime talk shows.

Close-up of a black plastic clip attached to a light blue fabric edge (no text or symbols visible)

Unique qualities are the trademark of every Voice Technologies solution. The VT500WATER is truly unique with its IPX7 certification - the second highest rank in accordance with the International Standard IEC 60529 for water resistance. The VT500WATER has proven its robustness inter alia on catamarans of the famous 'America's Cup World Series AC45 Wingsailed'.

Content

Omni Microphones VT500/506 Series	5
Omni Microphones for Smartphones and Videocameras	6/7
Omni Waterproof Microphones	8-10
Omni Miniature Microphones VT400 Series	11
Omni Waterproof Microphone VT400 Series	12
Cardioid Microphones	13
Earphones	14-16

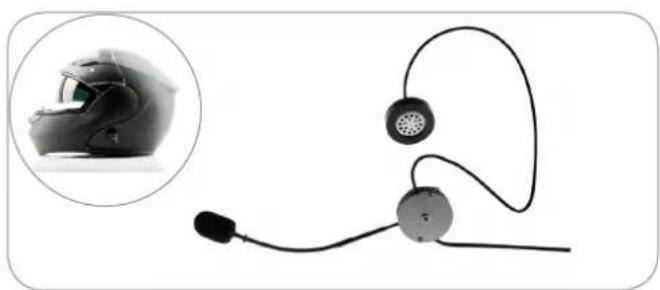

Security Earphone / Helmet Kit	17

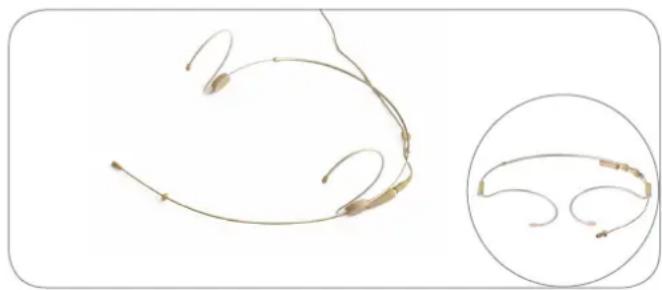

Omni Headworns	18/19
VT SWITCH Headworn (Omni optional Cardioid)	20
Cardioid Headworns / Sports Headworn	21-22
Earhanger - Headworn Combinations	23/24

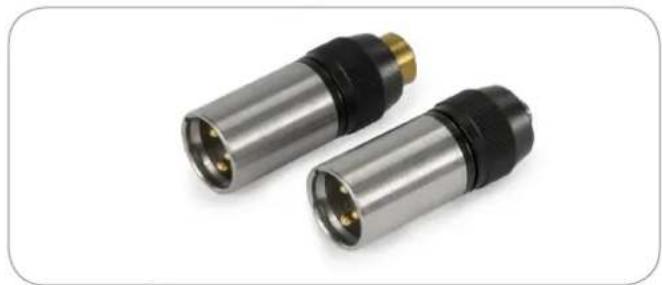

Phantom Adapters - Connectors - Accessories	25-29
Application and Differences - Matching Adapters	30/31

Close-up of a black plastic clip attached to a textured fabric surface (no text or symbols visible)

VT500 Omni Lavalier Microphone

Close-up of a black USB cable connector (no text or symbols visible)

Natural voice reproduction. Universal use.

High-quality and all-purpose electret condenser microphone (omni) for performing talent in broadcast, theatre and film. Due to the special molding injection the microphone is rugged and shockproof.

The cable is flexible cable and has excellent isolation from rubbing noise. Speech clarity is enhanced by a slight frequency emphasis giving excellent voice reproduction while eliminating placement constraints.

• Generating Element: Electret Condenser
  • Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
  • Sensitivity: -59dB ±3dB re 1V/microbar (1.1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
  • Colors: black, beige, white

Area of application: • Theatre

• Film
• Broadcast

VT506 Omni Lavalier Microphone

Close-up of a black USB cable connector (no text or symbols visible)

A classic. Brilliant sound.

High-quality and electret condenser microphone(omni). It is designed for performing talent in broadcast, theatre and film. It has a rising frequency response to assure speech intelligibility and for under-clothing use.

The molding injection adds a high solidity to the VT506. The cable is flexible and has excellent isolation from rubbing noise.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
• Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
  • Colors: black, beige, white

Area of application: • Theatre

• Film
• Broadcast

VT506Mobile Lavalier Microphone for Smartphones

Smartphone displaying a web interface with connected cables (no visible text or symbols on the device)

Only the perfect sound makes the video complete.

The popular VT506 lava- lier microphone is now also available as VT506MOBILE, adapted to the current ge- neration of smartphones. Whether it's for social media videos like YouTube or Vimeo, reports, Talking-Head interviews, private recordings or as a backup for sound engineers. It is produced with a special molding injection technique and the length of the cable is 2.5m so that it is ideal also for interviews.

• Generating Element: Electret Condenser
  • Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
• Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 2.5m (98") ∅ 1.5mm
  • Weight: 10 g (0.35 oz)
• Colors: black

Area of application: • Social media videos

• Reports, Talking-Head interviews,
- Backup for sound engineers

VT506Video Microphone for DSLR Videocameras

Close-up of a DSLR camera with attached black cable and connector (no visible text or symbols)

Moving picture needs the best sound.

The VT506VIDEO is also based on the VT506 and has a matching connector for video cameras. Whether it's for social media videos like YouTube or Vimeo, reports, Talking-Head interviews, private

recordings or as a backup for sound engineers. It is produced with a special molding injection technique and the length of the cable is 2.5m so that it does not appear in the video.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
• Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 2.5m (98") ∅ 1.5mm
  • Weight: 10 g (0.35 oz)
• Colors: black

Area of application: • Social media videos

• Reports, Talking-Head interviews,
- Backup for sound engineers

INTERVIEW KIT VT506MOBILE

Product photo of a black automotive electronic device with attached earphones and cables (no visible text or symbols)

For MoJo (mobile journalism) and all smartphone content creators who do not want to resign on professional sound quality.

The popular VT506MOBILE is now also available as kit with two matched VT506Mobile microphones and an IA-2 adapter to record two interview participants simultaneously at an equal sound level straight to the smartphone.

The kit contains:
2 VT506Mobile microphones (matched pair)
2 Alligator Clips
2 Professional Windscreens
1 IA-2 Adapter

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
• Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 2.5m (98") ∅ 1.5mm
  • Weight: 10 g (0.35 oz)
• Colors: black

Area of application: • For MoJo (mobile journalism) and

content creators, podcasts, social

media-videos (Youtube, Vimeo)

Video

in

Talking-Head-Format

Person holding smartphone and ear cap device, no visible text or symbols

Black hard drive connected to a flat battery pack (no visible text or symbols)

Close-up of a black electronic component with two leads and a small connector (no visible text or symbols)

Plug & Play with smartphones

The VT506Mobile works directly with the most important recording apps.

VT500X Waterproof Omni Lavalier Microphone

Close-up of a black USB cable with a circular connector, labeled 'WATERPROOF IPX 8' and '54 FOR 24 HOURS' (no other text or symbols visible)

Extreme situations - don't bother about water anymore.

Based on the popular lava- lier microphone VT500 and the waterproof versions VT- 500WATER and VT500WA Water Adventure but even IPX-8 certificated (1m under water for 24 hours). Besi-

de of the maximum capsule protection it has a reinforced cable against sweat, cuts and tearing. This microphone is the ideal solution for the toughest outdoor shoots and stage applications.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
• Sensitivity: max. -79dB
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
• Colors: black, beige

Area of application: • Theatre/Film

• Broadcast
• Industrial applications

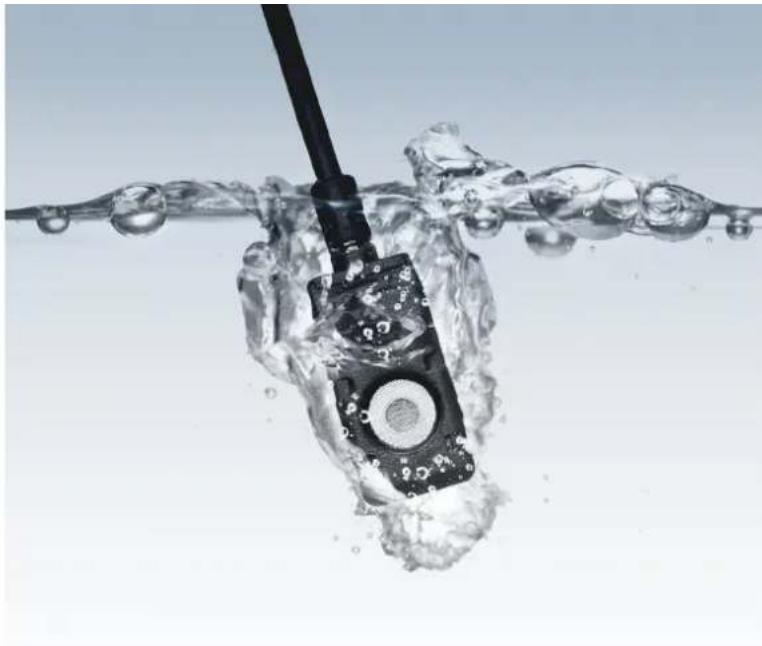

Close-up of a hand holding a walkie-talkie emerging from water, creating splashes (no text or symbols visible)

IPX8 certificated = 1m under water for 24 hours

For the most demanding situations:

VT500X EXTREME

VT500WA Water Adventure Omni Lavalier Microphone

Close-up of a black electrical plug with three mounting holes, labeled 'IPX 7 REFLECTED' and 'THEOR 30 HOURS' (no other text or symbols visible)

Resistance redefined. Ready for every adventure.

Based on the popular lavalier microphones VT500 and VT506. This is particularly noticeable in the clear vocal reproduction as they stay true to the source. Another trademark is the outstanding sound characteristics in the frequency range from 40 Hz to 20 kHz and extremely low self-noise. In addition to the capsule protection they have an extremely reinforced cable against sweat, cuts and tearing. As IPX-7 certified microphones they even endures temporary water submersion.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
  • Sensitivity: -59dB ±3dB re 1V/microbar (1.1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
• Colors: black, white

Area of application: • Broadcast and live area, theatre

• Sports events
• Rental houses

VT506WA Water Adventure Omni Lavalier Microphone

Close-up of a black electrical plug with mounting holes, labeled 'WATERPRO2 IPX 7' and 'INVERSE 3D MINUTES' (no other text or symbols visible)

Microphones for the toughest daily productions in the world, ultra-resilient, waterproof with ultra-robust cable delivering the best voice quality even under the most adverse conditions. Ideal for punishing day-to-day production, sports, rental houses or for environmentally ruthless outdoor shoots.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
  • Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
• Colors: black, white

Area of application: • Broadcast and live area, theatre

• Sports events
• Rental houses

VT500WATER Waterproof of Omni Lavalier Microphone

Close-up of a black mechanical component with water droplets, labeled 'IPX 7 INTEGRATED 3D HOURS' in a blue circular badge (no other text or symbols)

VT506WATER Waterproof of Omni Lavalier Microphone

Close-up of a beige plastic electrical connector with a black circular end, labeled 'WATERPROUT IPX 7' and 'IN FOR 3D MODELS' (no other text or symbols visible)

No recording gets washed away.

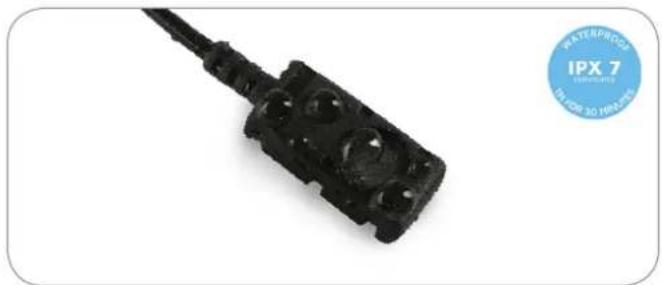

Waterproof versions (IPX-7 certificated) of the VT500 /VT506 lavalier microphones. Due to a special molding injection treatment the microphones can even be temporarily situated completely under water, without taking any damage. This enables a special flexible use in broadcast and live area or even at sports events.

In addition the microphones are rugged and shockproof. The cable is flexible and has excellent isolation from handling noise.

• Generating Element: Electret Condenser
  • Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
  • Sensitivity: -59dB ±3dB re 1V/microbar (1.1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: 1.5m (59")/beige 1.8m (71") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
• Colors: black, beige

Area of application: • Broadcast and live area, theatre

• Sports events
  • Outdoor applications

• Generating Element: Electret Condenser

• Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
• Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 118dB
• Impedance: 3 kΩ
  • Bias/+VDC: 1.3V (0.9-20V)
  • Current drain: 25 μA
• Mic dimensions: 13x7x3,5mm (0.51x0.28x0.14")
  • Cable: 1.5m (59")/beige 1.8m (71") ∅ 1.5mm
  • Weight: 7 g (0.25 oz)
  • Colors: black, beige

Area of application: • Broadcast and live area, theatre

• Sports events
  • Outdoor applications

VT401 Omni Lavalier Microphone

Close-up of a black cable with a metallic connector, isolated on white background (no text or symbols)

Ultra miniature and light.

Very small and extremely lightweight electret condenser microphone. Fitted with an ultra-miniature microphone capsule, it is in most cases almost unnoticeable and easy to place. Ideal for inconspicuous placement for per-

forming talent in broadcast, theatre, production and film sound.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 20Hz-20kHz
  • Sensitivity: -46dB ±3dB 1V/microbar (5mV/Pa)
• Noise level: 30dB "A"weighted
  • Max. Input SPL: 125dB (HS: 115dB)
• Impedance: 4.5kΩ
  • Bias/+VDC: 0.8-5V
• Mic dimensions: 8x3,2mm (0.31x0.13")
  • Cable: Length 1.5m (59") ∅ 1mm
  • Weight: 5g (0.18 oz)
  • Colors: black, beige

VT403 Vocal Lavalier Microphone

Close-up of a white medical catheter with a metallic tip, isolated on white background (no text or symbols)

Best sound on every stage.

Ultra-miniature Hi-SPL microphone for use with a wireless body pack transmitter. The water resistant microphone is fitted with a subminiature microphone capsule and has a high electromagnetic interference protection.

It has an open and clear sound and is excellent for vocalists and stage presentations. The VT403 has a very low inherent noise and a low distortion for high sound pressure levels.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 100Hz - 20kHz
• Sensitivity: -48dB ±3dB 1V/microbar (4mV/Pa)
• Noise Level: 33dB "A" Weighted
  • Max. Input SPL: 136dB
  • Impedance: 2 kΩ
  • Bias/+VDC: 3V (1.5-9V max.)
• Mic Dimensions: ∅ 8.6x3.1mm (0.34x0.12")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 6 g (0.21 oz)
  • Colors: black, beige, white

Area of application: • Stage/Theatre

- Broadcast

Area of application: • Stage/Musicals

- Film

• Vocals

VT403WA Waterproof Vocal Lavalier Microphone

Close-up of a beige medical or laboratory probe with a circular watermark indicating 'IPX 7 TINOR 30 MINUTES' (no text on the probe itself)

Stage your adventure.

The WA version is waterproof (IPX-7 certificated) with a digital protection built in RF filter and has a cable that is extremely reinforced against sweat, cuts and tearing. Even with its small dimensions, it displays an enormous

presence when it comes to sound and has an excellent performance at high sound pressure levels. The ultra-miniature Hi-SPL microphone impresses with an open and clear sound.

• Generating Element: Electret Condenser
• Polar pattern: Omni-Directional
  • Frequency Range: 100Hz - 20kHz
• Sensitivity: -48dB ±3dB 1V/microbar (4mV/Pa)
• Noise Level: 33dB "A" Weighted
  • Max. Input SPL: 136dB
  • Impedance: 2 kΩ
• Bias/+VDC: 3V (1.5-9V max.)
• Mic Dimensions: ∅ 8.6x3.1mm (0.34x0.12")
  • Cable: 1.5m (59")/beige 1.8m (71")
  ∅ 1.5mm
  • Weight: 6 g (0.21 oz)
• Colors: black, beige

Area of application: • Stage/Musicals

- Film

- Vocals

- Film - Vocals

Portrait of a woman with blonde hair and green eyes wearing a black collared shirt and earring (no text or symbols visible)

VT100 Cardioid Microphone

Close-up of a black cable with two connector holes, isolated on white background (no text or symbols)

Clear voice reproduction in noisy environments.

Professional lavalier microphone designed for clear, accurate voice reproduction. Thanks to the cardioid characteristic it produces nearly no feedback and reduces background noise. The rotatable clip allows an exact positioning of the microphone. Ideal in noisy environments or when the talent is close to the monitor speakers. The VT100 is perfect for public address and presenters. The small microphone capsule unit is detachable from the mounting base.

VT106HOF Miniature Cardioid Microphone

Close-up of a white cable connector with a magnified inset showing its internal structure (no text or symbols visible)

The VT106HOF Miniature Cardioid Microphone (High Open Frequencies) has a clear and open sound pickup and high sensitivity. Microphones for use in theatre performances and musicals need to meet specific demands. The complex ma-

nufacturing process of the VT106HOF enables a high level of water resistance, it is unobtrusive as possible, durable and still transmits voices with the best possible quality.

• Generating Element: Subminiature Cardioid Condenser
• Polar pattern: Cardioid
  • Frequency Range: 100Hz - 15kHz
• Sensitivity: -44dB ±3dB 1V/microbar (6mV/Pa)
• Noise level: 31.5dB SPL „A“ weighted
  • Max. Input SPL: 130dB
• Impedance: 1600Ω
  • Bias/+VDC: 1.3-10V (max.)
  • Mic Dimensions: ∅ 5.3x21mm (0.21x0.83")
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 13g (0.46 oz)
• Colors: black

Area of application: • Stage

• Public address and presenters

• Generating Element: Electret Condenser (tensioned diaphragm)
  • Polar Pattern: Hyper-Cardioid
  • Frequency Range: 100Hz-6kHz
• Sensitivity (@ 1kHz): -49dB ±3dB 1V/microbar (3.5 mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 113dB SPL
  • Impedance: 4.4 kΩ
• Bias/+VDC: 1.3-10V
  • Cable: Length 1.5m (59") ∅ 1.5mm
  • Weight: 13 g (0.46 oz)
• Colors: beige

Area of application: • Theatre

• Musical
• Reality TV Shows

VT60M Miniature Earphone, straight cable

Close-up of a beige medical device with a curved handle and spherical connectors (no visible text or symbols)

Excellent sound, almost invisible.

connected with a thin cable that can be difficult to see in most applications.

Very small and extremely lightweight earphone that's totally unobtrusive!

It delivers quality sound as well as isolation from outside noise. The built-in receiver is

• Element: Ultra Subminiature Magnetic
Receiver
• Frequency Range: 200Hz - 8kHz
• Sensitivity: 104dB ±3dB
• Impedance: 500Ω
• Cable: Length 1.5m (59") ∅ 1mm
- Plug: 3,5mm Right Angle Phone
- Dimensions: 9.5x4.5x5.7mm (0.37x0.18x0.22")
• Weight: 5g (0.18 oz)
- Colors: beige

Area of application: • Stage

• Theatre
• Broadcast

VT602 Stereo Earphone, straight cable

Coiled medical or electronic earplifier with two earments and a connector (no visible text or symbols)

The renowned VT600-sound. In Stereo.

Stereo version of the well-known VT600. Excellent sound and ease of use are the primary user benefits. Ideal solution for discreet "stereo" listening (for example with a professional camera).The

VT602 comes with 2 Flexible Ear Inserts. The open frame design still allows the user to hear ambient noise, they fit without pressure entirely in the outer auditory canal. They are very comfortable even after many hours, are hygienic and can be cleaned very easily.

• Element: Subminiature Magnetic Receiver
• Frequency Range: 200Hz-8kHz
• Sensitivity: 104dB ±3dB
• Impedance: 500Ω
• Distortion: 5% max.
- Receiver Size: 15.8x5.5x6.7mm (0.62x0.22x0.28")
• Cable: Length 1.2m (47") ∅ 1.5mm
- Plug: 3.5mm Right Angle Phone
• Weight: 15g (0.53oz)
- Colors: beige

Area of application: • Camera

Area of application: • Camera

VT600 Earphone, straight cable

Close-up of a medical or laboratory device with a coiled tube and a beige bulb-like component (no visible text or symbols)

Discrete listening was never so comfortable.

Designed for inconspicuous listening requirements. Excellent sound and ease of use are the primary user benefits; there is no need for a custom ear mold or snap fit parts, one size effectively fits

all. The VT600 is equipped with a short bend loop. The earphone will interface with any wireless or hardwired receiver for monitoring.

• Element: Subminature Magnetic Receiver
• Frequency Range: 200Hz-8kHz
• Sensitivity: 104dB ±3dB
- Impedance: 500
• Distortion: 5% max.
- Receiver Size: 15.8x5.5x6.7mm (0.62x0.22x0.28")
- Cable: Length 1.5m (59") Ø1mm
- Plug: 3.5mm Stereo or Mono Connector
• Weight: 10 g (0.35 oz)
• Colors: black, beige

Area of application: • Stage

• Security
• Broadcast

VT600C Earphone with coiled cable

Close-up of a medical or surgical device with a coiled cord, a small connector, and a transparent tube (no text or symbols visible)

Discrete listening was never so comfortable.

Designed for inconspicuous listening requirements. Excellent sound and ease of use are the primary user benefits; there is no need for a custom ear mold or snap fit parts, one size effectively fits

all. The VT600C is equipped with a short bend acoustic loop. The earphone will interface with any wireless or hardwired receiver for monitoring.

• Element: Subminature Magnetic Receiver
• Frequency Range: 200Hz-8kHz
• Sensitivity: 104dB ±3dB
- Impedance: 500
• Distortion: 5% max.
- Receiver Size: 15.8x5.5x6.7mm (0.62x0.22x0.28")
- Cable: Length 1.5m (59") Ø1.5mm
- Plug: 3.5mm Mono Connector (Stereo Connector on request)
• Weight: 10 g (0.35 oz)
- Colors: beige

Area of application: • Stage

• Security
• Broadcast

VT600T Earphone with coiled tube

Medical device with attached tubing and connector (no visible text or symbols)

Discrete listening was never so comfortable.

Designed for inconspicuous listening requirements. Excellent sound and ease of use are the primary user benefits; there is no need for a custom ear mold or snap fit parts, one size effectively fits all. The VT600T is equipped with a coiled acoustic tube. The earphone will interface with any wireless or hardwired receiver for monitoring.

• Element: Subminature Magnetic Receiver
• Frequency Range: 200Hz-8kHz
• Sensitivity: 104dB ±3dB
- Impedance: 500
• Distortion: 5% max.
- Receiver Size: 15.8x5.5x6.7mm (0.62x0.22x0.28")
- Cable: Length 1.5m (59") Ø1mm
- Plug: 3.5mm Stereo or Mono Connector
• Weight: 10 g (0.35 oz)
• Colors: black, beige

Area of application: • Stage

• Security
• Broadcast

VT600D Earphone with detachable tube

Medical device with earpiece and connector, shown in two views (no text or symbols)

Discreet, easy to use and hygienic.

The VT600D earphone features outstanding sound and wearing comfort. The sound tube just clicks to the driver, enabling easy change of the whole spiral tube including the earpiece - preserving hygiene even when multiple people work with the same receiver. The users merely connect their spiral tubes to the receiver and are ready to go. With its flexible cable and the soft, elastic silicone earpiece (size S/M/L/XL for left or right ear), the VT600D is comfortable to wear.

• Element: Subminature Magnetic Receiver
• Frequency Range: 200Hz-8kHz
• Sensitivity: 104dB ±3dB
- Impedance: 500
• Distortion: 5% max.
- Receiver Size: 15.8x5.5x6.7mm (0.62x0.22x0.28")
- Cable: Length 1.5m (59") Ø1.5mm
- Plug: 3.5mm Stereo Connector
• Weight: 12 g (0.42 oz)
- Colors: beige

Area of application: • Stage

• Security
• Broadcast

VT610TC125 /VT610TC32 Earphone

Medical or medical device setup with a curved wire, a small orange object, and a black connector (no visible text or symbols)

Great sound quality for pro- gram that matters.

Designed for inconspicuous listening requirements. The earphone has a standard, typical size 125Ω (or 32Ω) driver. In combination with a coiled acoustic tube the sound is directed into the ear

canal. This method reduces the ingress of ambient noise.

All parts can easily be exchanged. Other plugs or another cable length are available on request.

• Element: Magnetic Receiver
• Frequency Range: 100Hz-4kHz
- Sensitivity: 120 dB ±3dB at 1000 Hz
- Impedance: 125 or 32 ± 30% at 1000Hz
• D.C. Resistance: 44 ± 3
• Cable: Length 1.5m (59")
- Plugs: 3.5mm Right Angle Phone (Mono)
• Weight: 20 g (0.71 oz)
- Colors: black

Area of application: • Broadcast

- Security

VT HK Helmet Kit

Product photo of a sports headset with earbuds and cable, shown in an inset image (no text or symbols)

Stay connected without com- promises.

The VT HK Helmet kit has been designed on customers demand. Thanks to its high-quality miniature Cardioid capsule an optimal reproduction of the voice is guaranteed also with head wind. The

flexible boom allows a precise adjustment to the helm. Two loudspeakers are mounted in a compact body, which easily can be mounted in the helmet. The VT HK Helmet kit is very robust.

• Generating Element: Electret Condenser
• Polar Pattern: Cardioid
  • Frequency Range: 50Hz-18kHz
• Sensitivity: -53dB ±3dB 1V/microbar (2.2mV/Pa)
• Noise Level: 32dB „A“ weighted
  • Max. Input SPL: 120dB
  • Impedance: 2.8 to 6.8 kΩ, nominal 4.4kΩ
• Bias/+VDC: 1.5-9V
  • Element: Magnetic Receiver
  • Frequency Range: 100Hz-4kHz
  • Sensitivity: 120dB ±3dB
• Impedance: 125 or 32 ± 30% at 1000Hz

• Cable: Length 1.5m (59") ∅ 3mm

• Weight: 20 g (0.70 oz)

- Colors: black

VT DUPLEX Lightweight Omni Headworn

Pure electrical circuit lines without any symbols

Double-sided. High comfort.

Headworn microphone with two ear hooks based on the successful VT901 MKII. This adds stability and ensures highest wearing comfort no matter if the microphone is worn on the left or right side. Available in two sizes, making it a perfect fit for both adults and children. The flexible gooseneck and the exchangeable cable guarantee maximum versatility. The headworn microphone VT DUPLEX is delivered with the innovative, nearly invisible windscreen Wsi.

VT DUPLEX VOCAL Lightweight Omni Headworn

Coiled medical or surgical device with two copper clips and a central connector (no text or symbols visible)

Let the audience hear your real voice.

Vocal version of the successful VT Duplex being ideal for singers and stage performers. With its Omnidirectional capsule it masters high sound pressure levels and boasts very low self-noise. The miniature capsule with a diameter of only 3mm is placed in a robust housing. The adjustable headband is extremely comfortable and available in two sizes. The mic boom is flexible and can be worn either on left or right side.

• Generating Element: Electret Condenser
  • Polar Pattern: Omni-Directional
  • Frequency Range: 20Hz-20kHz
• Sensitivity: -35dB ±3dB 1V/microbar (17.8mV/Pa)
• Noise Level: 25dB "A" weighted
  • Max. Input SPL: 125dB
  • Impedance: 2kΩ (+/- 30%)
• Bias/+VDC: 0.8-5V
  • Cable: Length 1.2m (47") ∅ 1.3mm
  • Weight: 12 g (0.42 oz)

• Colors: beige

• Generating Element: Electret Condenser

• Polar Pattern: Omni-Directional
  • Frequency Range: 100Hz-20kHz
• Noise Level: 33dB "A" weighted
  • Max. Input SPL: 136dB
  • Impedance: 2kΩ (+/- 30%)
• Bias/+VDC: 3V (1.5-9V max.)
  • Cable: Length 1.2m (47") ∅ 1.3mm
  • Weight: 12 g (0.42 oz)
• Colors: beige

- Sensitivity: -48dB ±3dB 1V/microbar (4mV/Pa)

Area of application: • Theatre

- Broadcast

- Presentation

Area of application: • Theatre

• Stage
• Singing

VT700 Omni Headworn Microphone

Simple line drawing of a curved, segmented object with two small circular markers (no text or symbols)

Simple design. Big in sound.

Its Omni pattern is less prone to "popping" and wind noise and excels with clear and natural voice reproduction. A perspiration drip ring on the gooseneck ensures the microphone capsule stays dry at all times. Very comfortab-

le, lightweight and unobtrusive headworn. The flexible gooseneck enables the user to position the microphone for optimum sound and gain before feedback. The cable runs neatly behind the neck for maximum concealment.

• Generating Element: Electret Condenser
• Polar Pattern: Omni-Directional
  • Frequency Range: 100Hz- 18 kHz
• Sensitivity (@ 1kHz): -43dB ±3dB 1V/microbar (7.1mV/Pa)
• Noise Level: 32dB "A" weighted
  • Max. Input SPL: 125dB
• Impedance: 2.8k to 6.8k , nominal 4.4k
  • Bias/+VDC: 1.5-9V (max.)
  • Dynamic Range: 93db
  • Signal Noise Ratio: 62dB @94dB SPL
  • Cable: Length 1.5m (59") ∅ 2mm
  • Weight: 17 g (0.60 oz)
• Colors: beige

Area of application: • Presentations

- Theatre

- Broadcast/Studio

VT701MKII Lightweight Omni Headworn

Two views of a medical or surgical device with attached tubing, shown in two circular insets (no text or symbols visible)

Fits perfect, hardly seen, sounds ideal.

Superlight headworn microphone with an ultra miniature capsule head. It is ideal for applications requiring minimum visibility (stage, broadcast, public address and presenters). The sound is clear

and natural.

The adjustable ear hooks allow the mic boom to be on either side and lay flat for easy transport. The VT-701MKII has an adjustable, thin headband for a nearly invisible fit. The performers are free to focus on their performance!

• Generating Element: Electret Condenser
  • Polar Pattern: Omni-Directional
  • Frequency Range: 20Hz-20kHz
• Noise Level: 25dB "A" weighted
  • Max. Input SPL: 125dB
  • Impedance: 2kΩ (+/- 30%)
• Bias/+VDC: 0.8-5V
  • Cable: Length 1.2m (47") ∅ 1.3mm
  • Weight: 12 g (0.42 oz)
• Colors: beige

- Sensitivity: -35dB ±3dB 1V/microbar (17.8mV/Pa)

Area of application: • Theatre

• Broadcast
• Presentation

Close-up portrait of a woman with green eyes and earphones, wearing a dark blazer (no visible text or symbols)

VT SWITCH Omni Headworn

Medical catheter device with attached tubing and a close-up inset showing its connector (no text or symbols visible)

Switch to Switch – quick hanges for the theatre stage.

VT Switch features a screw thread enabling quick and effortless changing of the microphone capsule. With this technology, the capsule can easily be changed even when the actor or actress is already

costumed and made up. The neckband stays in place, only the capsule is being changed. Whether a change in the circumstances demands a switch of polar patterns or a microphone is obstructed by make up – the VT Switch makes changing and switching easy.

• Generating Element: Electret Condenser
• Polar Pattern: Omni-Directional (optional: Cardioid)
  • Frequency Range: 50Hz-20kHz
• Sensitivity (@ 1kHz): -44dB ±3dB 1V/microbar (6mV/Pa)
• Noise Level: 31.5dB "A" weighted
  • Max. Input SPL: 130dB
  • Impedance: 1.5kΩ
  • Signal Noise Ratio: more than 60dB @1kHz/Pa A-weighted
• Bias/+VDC: 1.3-10V
  • Cable: Length 1.2m (47") ∅ 1.8mm
  • Weight: 21 g (0.74 oz)
• Colors: beige

Area of application: • Stage

- Presentations

VT720W Waterproof Sports Headworn

Close-up of a black and blue medical device with connectors (no text or symbols visible)

Hard workout? Not for your microphone.

Noise-cancelling, waterproof headset microphone for sports and aerobics instructors as well as television field for wireless transmission and amplification voice.

The Bi-directional micropho-

ne head is waterproof and the condenser microphone capsule is a highly efficient noise canceller, which prevents feedback from loudspeakers or interference from crowd noise etc. The headband behind the neck is adjustable.

• Generating Element: Electret Microphone
• Polar Pattern: Super Cardioid
  • Frequency Response: 100Hz-10kHz
• Sensitivity (3-wire): -44dB±3dB 1V/microbar (6.3mV/Pa)
• Bias/+VDC: 1.5-12V
  • Cable: Length 1.4m (55") ∅ 3mm
  • Weight: 50 g (1.76 oz)
• Colors: blue

Area of application: • Sports and aerobics instructors

VT800 Headworn Cardioid

Close-up of a medical or laboratory device with attached wires and connectors (no visible text or symbols)

Voice is present and focused.

Cardioid headworn microphone for applications where there is an abundance of ambient sound. Much consideration has been put into the physical design of the VT800: the adjustable, gooseneck style mic boom enables the talent to

stay close to monitor speakers and to produce a clear, intelligible voice over the noise. The cable runs neatly to the back of the neck for best concealment. The headband is highly resistant to corrosion and is easy to clean.

• Generating Element: Electret Condenser
• Polar Pattern: Cardioid
  • Frequency Range: 100Hz- 10kHz
• Sensitivity (@ 1kHz): -53dB ±3dB 1V/microbar (2.2mV/Pa)
• Noise Level: 32dB "A" weighted
  • Max. Input SPL: 120dB based on 9V supply
• Impedance: 2.8k to 6.8k , nominal 4.4k
  • Dynamic Range: 88dB
  • Signal Noise Ratio: 62dB @94dB SPL
• Bias/+VDC: 1.5-9V
  • Cable: Length 1.5m (59") ∅ 2mm
  • Weight: 18 g (0.63 oz)
• Colors: beige, black

Area of application: • Presentations

• Speaker/Moderator
• Stage

VT DUPLEX-CARDIOID Miniature Headworn Cardioid

Pure electrical circuit lines without any symbols

VT DUPLEX CARDIOID: A Miniature Cardioid Headset with clear and open sound pickup and high sensitivity. Our complex manufacturing process enables a high level of water resistance so that the headset can be used in demanding production environments. Available in two headband sizes the VT DUPLEX CARDIOID can be adapted optimally to anyone and ensures a high wearing comfort. Each headset includes a specially designed distance holder for the mic boom to avoid contact noise.

• Generating Element: Electret Condenser
  (tensioned
  diaphragm)
• Polar Pattern: Hyper-Cardioid
  • Frequency Range: 100Hz-6kHz
• Sensitivity (@ 1kHz): -49dB ±3dB 1V/microbar (3.5 mV/Pa)
• Noise Level: 26dB "A" weighted
  • Max. Input SPL: 113dB SPL
• Impedance: 4.4 kΩ
  • Bias/+VDC: 1.3-10V
  • Cable: Length 1.15m (45") ∅ 1.9mm
  • Weight: 15 g (0.53 oz)
• Colors: beige

Area of application: • Presentations

- Speaker/Moderator

- Stage

- Speaker/Moderator - Stage

Portrait of a smiling woman wearing a headset, with no visible text or symbols.

VT901MKII Earhanger Microphone

Close-up of a medical or laboratory probe with a coiled cable and probe tip, isolated on white background (no text or symbols)

Perfect fitting. Discreet design.

It boasts a specialized superminiature omni capsule producing very natural speech and vocals perfect for broadcast and stage. The soft "spiral ear fastener" gives any user the perfect fit every time without the fear of it slipping off. The high wearing comfort is achieved through the low weight as well as through its very flexible material; thus the microphone is comfortable even after many hours. The cable and the spiral ear-wrap is removable and can be easily exchanged.

VT910DC Earhanger Microphone

Two medical or surgical instruments with attached wires, no visible text or symbols

Perfect ergonomics for live & broadcast. Super light omni condenser 'Earhanger' microphone. Ideal for use on stage or broadcast applications requiring minimum visibility. The VT910DC is flexible, with a lightweight contoured loop

for an universal fit on either ear. The cable is removable and can be easily exchanged. The VT910DC remains less apparent than a conventional headset and more comfortable for extended wear.

• Generating Element: Electret Condenser
  • Polar Pattern: Omni-Directional
  • Frequency Range: 20Hz-20kHz
• Sensitivity: -35dB ±3dB 1V/microbar (17.8mV/Pa)
• Noise Level: 25dB "A" weighted
  • Max. Input SPL: 125dB
  • Impedance: 2kΩ (± 30%)
• Bias/+VDC: 0.8-5V
  • Cable: Length 1.2m (47") ∅ 1.3mm
  • Weight: 5 g (0.18 oz)

• Colors: beige

• Generating Element: Electret Condenser

• Polar Pattern: Omni-Directional
  • Frequency Range: 20Hz-20kHz
  • Sensitivity: -42dB ±3dB 1V/microbar (7.9mV/Pa)
  • Max. Input SPL: 122dB
  • Impedance: 1kΩ (±30%)
  • Bias/+VDC: 1.3V (0.9-5V)
  • Cable: Length 1.4m (55") ∅ 1.3mm
  • Weight: 7 g (0.25 oz)
• Colors: beige

Area of application: • Vocals

- Broadcast

- Stage

Area of application: • Stage

- Broadcast

- Presentation

VT760MKII Omni Headset Combination

Medical or medical device with attached wires and connectors, no visible text or symbols

Highest flexibility for your best performance.

The VT760MKII is a combination of a VT700 headworn with a VT600 earphone. It allows you to communicate with your immediate environment and simultaneously listen and speak with your headset. The flexible goo- seneck enables the user to position the microphone for optimum sound. It is a light and very comfortable head- set. The headband is highly resistant to corrosion and is easy to clean.

• Generating Element: Electret Condenser
• Polar Pattern: Omni-Directional
  • Frequency Range: 100Hz - 18 kHz
• Sensitivity (@ 1kHz): -43dB ±3dB 1V/microbar (7.1mV/Pa)
• Noise Level: 32dB "A" weighted
  • Max. Input SPL: 125dB
• Impedance: 2.8kΩ to 6.8 kΩ, nominal 4.4 kΩ
  • Bias/+VDC: 1.5-9V (max.)
  • Dynamic Range: 93db
  • Signal Noise Ratio: 62dB @94dB SPL
  • Cable: Length 1.5m (59") ∅ 2mm
  • Weight: 42 g (1.48 oz)
• Colors: beige

Area of application: • Broadcast studio operations

• Presentations
• Communication

VT860MKII Cardioid Headset Combination

Close-up of a medical or surgical device with wires and connectors (no visible text or symbols)

As flexible as your work.

The VT860MKII is a combination of a VT800 headworn with a VT600 earphone. It allows you to communicate with your immediate environment and simultaneously listen and speak with your headset. Ideal for applica-

tions where there is an abundance of ambient sound. The adjustable, gooseneck style mic boom enables the talent to stay close to monitor speakers and to produce a clear, intelligible voice over the noise. The headband is highly resistant to corrosion and is easy to clean.

• Generating Element: Electret Condenser
• Polar Pattern: Cardioid
  • Frequency Range: 100Hz - 10 kHz
• Sensitivity (@ 1kHz): -53dB ±3dB 1V/microbar (2.2mV/Pa)
• Noise Level: 32dB "A" weighted
  • Max. Input SPL: 120dB based on 9V supply
• Impedance: 2.8k to 6.8k , nominal 4.4k
  • Dynamic Range: 88dB
  • Signal Noise Ratio: 62dB @94dB SPL
• Bias/+VDC: 1.5-9V
  • Cable: Length 1.5m (59") ∅ 2mm
  • Weight: 49 g (1.73 oz)
  • Colors: beige, black

Area of application: • Broadcast studio operations

• Presentations
• Communication

VT1126 Electret Phantom Adapter (Phantom Power 48V)

Two metallic USB connectors with black and gold caps, shown against a white background (no text or symbols visible)

Small tool that allows hard-wired use of lavalier microphones. It converts Phantom 48V to electret power and outputs the audio as an elec-
tronically balanced signal.

Range of models with standard sockets to fit the plugs:
VT1126-TA3/A for TA3 (AKG) - VT1126-TA4/S for TA4 (Shure)
VT1126-TA5/L for TA5 (Lectrosonics) - VT1126-AL6P for Audio Limited 6Pin VT1126-SK5 for Sennheiser SK50/3000/5000
VT1126-S3.5 for Sennheiser Evolution G2 System
- Dimensions: Length 54mm (2.1") ∅ 20mm
• Weight: 55 g (1.94 oz)

Connectors matching to Voice Technologies Microphones

Standard Accessories for VT500/506 Series

Open blue and transparent plastic tool case with a black headset (no visible text or symbols)

VTO Box waterproof

Close-up of two black plastic mechanical components with circular color swatches (no text or symbols visible)

AC Alligator Clip

Three black mechanical components with circular holes, shown in a row (no text or symbols visible)

DM Dracula Mount

Two black circular objects with textured surfaces, one partially filled and the other with a small display (no visible text or symbols)

PW Professional Windscreen

Close-up of three electronic components with metallic fittings and a black plastic housing, shown without any visible text or symbols.

TT Tie Tac Clip

Close-up of a beige, rounded rectangular object with a small yellow hole on top (no text or symbols visible)

RBM Rubber Body Mount

Optional Accessories for VT500/506 Series

Simple 3D-rendered object resembling a mechanical or electronic component with a black central section, no visible text or symbols.

CC Cage Clip DAC

Silhouette of a bird perched on a branch with a small black dot above (no text or symbols)

LAC Long Alligator Clip

Simple black-and-white illustration of a mechanical clamp or bracket (no text or symbols)

Dual Alligator Clip

Close-up of a cylindrical object with a dark textured surface and a small black dot on the right side (no text or symbols visible)

SW Standard Wind- screen

Standard Accessories for VT100

Open plastic medical device with blue internal components and a black connector (no visible text or symbols)

waterproof

Close-up of a small mechanical component with a black circular mark (no visible text or symbols)

DT100 ClipVTO Box

Two dark, rounded objects on a white background, one with a small black dot nearby (no text or symbols)

WS100/8 Windscreen

Standard Accessories for VT106HOF

Open blue and transparent plastic medical device with a black connector (no visible text or symbols)

VTO Box waterproof

Illustration of a stylized bird or crane-like creature with a curved body and a small round head (no text or symbols)

AC400 Alligator Clip

Simple illustration of a beige oval-shaped object with a small circular element on the right (no text or symbols)

WS106 Windscreen

Close-up of a white plastic mechanical component with a central hole (no text or symbols visible)

RFM Rubber Face Mount

Standard Accessories for VT400 Series

Open blue plastic medical device with a black connector, no visible text or symbols

VTO Box waterproof

AC4 Alligator Clip DM4

Two wooden furniture pieces with circular and square cutouts, no visible text or symbols

Dracula Mount

Three cylindrical objects with varying shades of brown and black, displayed against a white background (no text or symbols)

Wsi401 Mini-Wind-screen

Close-up of a small, light-colored plastic electronic component with two protrusions (no text or symbols visible)

RBM Rubber Body Mount

Windscreen for VT401

Two circular objects with varying shades of beige and black, resembling food items or biological samples (no text or symbols visible)

WS400/700 Windscreen

Standard Accessories for VT600 Series

Exterior view of a transparent plastic case containing a small logo with a white 'V' symbol (no readable text or labels)

VTO/EP Box waterproof

Illustration of a wooden object with a curved handle and two circular elements (no text or symbols)

AC400 Alligator Clip

Close-up of a single, beige, textured object resembling a stylized plant or seed pod (no text or symbols visible)

Ear beige

Close-up of a metallic mechanical component with threaded shaft and flange (no visible text or symbols)

Ear Accordion

Simple curved line drawing inside a rounded square frame (no text or symbols)

Elbow for VT600/ VT600C

Simple line drawing of a medical or laboratory device with a curved handle and rectangular body (no text or symbols)

Tube for VT600T/ VT600D

Standard Accessories for VT610

VT610 Box

Close-up of a beige, spiral-shaped object with a small hole, resembling a food item or abstract form (no text or symbols visible)

Ear beige

Simple line drawing of a resistor with a looped end (no text or symbols)

Tube for VT610

Close-up of a black mechanical component with a flanged top and rounded base (no visible text or symbols)

Speaker for VT610

Close-up of a small mechanical component with a black circular top and metallic base (no visible text or symbols)

Color Clip for VT610

Coiled black audio jack with terminal connector (no text or symbols visible)

Cable for VT610

Standard Accessories for VT60M

VTO/EP Box waterproof

Illustration of a mechanical clamp or bracket component (no text or symbols visible)

AC400 Alligator Clip

Close-up of a white plastic mechanical component with no visible text or markings

Ear Accordion short

VT600D/VT602

Flexible Ear Insert

VT600D

TC Tube Coupler

Boxes and Cases for Headsets

VT701/901/910Box for VT701/901/910

Black and white photo of a black electronic device with a logo on the lid (no visible text or symbols)

Case4 for Headsets

Windscreens

Two cylindrical objects with different textures, one beige and one black, against a white background (no text or symbols)

WSi701/901 for VT701/VT901/Duplex

Two smooth, oval-shaped objects in black and beige tones, with two additional circular shapes in the top-right corner (no text or symbols)

WS701/901 for VT701/VT901/Duplex

Simple illustration of a beige oval-shaped object with a small dark spot, accompanied by two circular color swatches (light and black) in the corner.

WS800 for VT800/VT860

Simple circular diagram with a dark center and a small circle on the right (no text or symbols)

WS400/700 for VT700/VT760

Simple illustration of a brown oval-shaped object with a small circular mark on the right (no text or symbols)

WSC for VT Duplex Cardioid/ VT Switch

Close-up of a dark, textured cylindrical object with a small black dot nearby (no text or symbols visible)

WS720 for VT720W

Other Accessories

Simple beige spiral shape with two small circles above it, no text or symbols present.

VT901Earpart for VT901

VT701/901Cable for VT701/901/DUPLEX

Close-up of a beige medical or laboratory probe with a metallic connector (no text or symbols visible)

Cable for DUPLEX Cardioid/Vocal

AC400 for VT901/701/Duplex

Straps for VT700/800series/ VT Switch

DH Distance Holder for DUPLEX Cardioid

Model No. Product Typ	Pattern Application	Special
VT500 Lavalier Mic Omni			BroadcastStageFilm		flat frequency response
VT500WATER Lavalier	Mic Omni		BroadcastStageFilm	same cable as the VT500 but a waterproof head	flat frequency response
VT500WA WATER ADVENTURE	Lavalier Mic Omni		BroadcastStageFilm	same head as VT500WATER, but sweat-, cut-and tear-resistant cable	flat frequency response
VT506 Lavalier Mic Omni			BroadcastStageFilm		high frequencies lifted up
VT506WATER Lavalier	Mic Omni		BroadcastStageFilm	same cable as the VT506 but a waterproof head	high frequencies lifted up
VT506WA WATER ADVENTURE	Lavalier Mic Omni		BroadcastStageFilm	same head as VT506WATER, but sweat-, cut-and tire-resistant cable	high frequencies lifted up
VT401 Lavalier Mic Omni			StudioBroadcast		standard sensitivity
VT403 Vocal Lavalier	Mic Omni		BroadcastStage/FilmSinging	3-wire microphone, also for singing, 136dB SPL	high sensitivity
VT403WA Vocal Lavalier	Mic Omni		BroadcastStage/FilmSinging	same as VT403, but a waterproof head and sweat-, cut- and tire-resistant cable	high sensitivity
VT100	Lavalier Mic Cardioid	Noisy surroundings
VT106HOF Lavalier Mic Cardioid			BroadcastStage/FilmSinging	can be used in demanding production environments	high open frequencies
VT DUPLEX Headworn	Mic Omni		BroadcastStageConference	high sensitivity capsule, very thin neck part, easy to adjust, high wearing comfort, available in two sizes	high sensitivity
VT DUPLEX VOCAL	Vocal HeadwornMic	Omni	BroadcastStage/FilmSinging	masters also high sound pressure and has a very low inherent noise, easy to adjust, high wearing comfort, available in two sizes	high SPL (136dB)
VT DUPLEX CARDIOID	Head Worn Mic Cardioid		PresentationsSpeaker/ModerationStage	clear and open sound pickup and high sensitivity	high sensitivity

Model No. Product Typ	Pattern Application	Special
VT700 Head Worn Mic	Omni • Stage/Film			high sensitivity capsule, discreet 2.3mm neck part, the perfect way between robust and discreet, strap for size adjustment
VT701MKII Head Worn	Mic Omni		• Broadcast• Stage• Conference	high sensitivity capsule, very thin neck part, easy to adjust
VT720W	Head Worn Mic	Super Cardioid	• Aerobic and outdoor	robust adjustable neck part, waterproof mic head
VT800 Head Worn Mic	Cardioid		• Speaker/Moderation• Stage	high sensitivity near speech capsule, discreet 2.3mm neck part, the perfect way between robust and discreet, strap for size adjustment
VT SWITCH Head Worn	Mic Omni/Cardioid		• Stage• Presentations	detachable capsule, screw system
VT901MKII Earhanger	Omni		• Conferences• Stage	easy to wear, ultra thin gooseneck, self adjusting at ear
VT910DC Earhanger	Omni		• Conferences• Stage	bigger capsule than VT901MKII, gooseneck over ear
VT760MKII	Headworn with Earpiece	Omni	• Broadcast• Communication	combination of VT700 and one VT600, strap for size adjustment
VT860MKII Headworn	with Earpiece	Cardioid	• Sport Presentations• Noisy surroundings	combination of VT800 and one VT600, strap for size adjustment

Model No.	Product Typ	Size	Application	Special
VT1126	Phantom Power	54x20mm	• Mic connection to mixers and recorders	internal batterie for phantom power

Model No.	Product Typ	Application	Special
VT610	Standard Earpiece	• InEar
VT600	High-end Earpiece for Speech	• InEar	particular clear speaker, cable and short tube all straight
VT600C/H	High-end Earpiece for Speech	• InEar	same style like VT600 but with a long coiled tube
VT600D	High-end Earpiece for Speech	• InEar	detachable tube
VT600T	High-end Earpiece for Speech	• InEar	same stye like VT600 but with coiled part in the cable
VT602	Stereo Earpiece for Speech	• Stereo InEar	stereo version of VT600
VT60M	Ultra small earpiece for speech	• InEar	ultra small earpiece, speaker disappears in ear, perfect sound

Swiss precision for excellent audio quality

VOICE TECHNOLOGIES

20 YEARS Swiss Precision

VT Switzerland manufactured by:

Audio Bauer Pro AG

Bernerstrasse-Nord 182

CH-8064 Zurich, Switzerland

Phone: [phone]

Email: [e-mail]
