Product Type	Freezer
Brand	Kenmore
Model	17182
Electrical Requirements	115 V, 60 Hz, 10 A dedicated circuit
Power Cord	3-prong grounded plug
Temperature Control	5-position dial (1 warmest, 5 coldest); recommended setting 3
Power Light	Green, indicates power is connected
Run Light	Green, illuminates when compressor is running
Defrost Method	Manual defrost; use plastic scraper (included)
Defrost Drain	Front drain outlet with plug; drain hole inside bottom left front
Storage Baskets	2 top storage baskets for smaller items
Lid Handle	Recessed handle in front center of lid
Wheels	Right side wheels for rolling; lift left side to move
Leveling	Adjustable metal or wood shims between foot pads and floor
Installation Clearance	1 inch back and left side; 3 inches right side (compressor vent)
Operating Temperature Range	Surrounding temperatures up to 110°F (43°C); down to 32°F (0°C)
Refrigerant	Flammable refrigerant; consult manual for handling
Cleaning Interior	Use 2 tbsp baking soda in 1 quart warm water; rinse and dry
Cleaning Exterior	Warm water and mild liquid detergent; rinse and wipe dry
Defrost Frequency	Defrost when frost is 1/4 to 1/2 inch thick
Power Failure	Frozen food stays frozen at least 24 hours if lid kept closed
Warranty	1 year on appliance; lifetime on storage bins
Safety Features	Child entrapment prevention; grounding plug; flammable refrigerant warnings

Frequently Asked Questions - 17182 KENMORE

Why does my freezer not run?

Check if the freezer is plugged into a GFCI circuit, the temperature control is not in OFF position, or the house fuse/circuit breaker is blown. Ensure the plug is tight. If power is out, check house lights.

How do I defrost the freezer?

Unplug the freezer, remove food, and leave the lid open. Use a plastic scraper to remove soft frost. For hard frost, place a pan under the drain outlet, pull the drain plug forward to expose the hole, and rotate it so it faces down. Remove the inside drain plug to let water drain. Replace plugs after cleaning.

What temperature setting should I use?

The recommended setting is position 3. For colder temperatures, turn toward 5; for warmer, toward 1. Allow several hours for temperatures to stabilize after adjustment.

How to clean the inside of the freezer?

After defrosting, wash inside surfaces with a solution of 2 tablespoons baking soda in 1 quart warm water. Rinse and dry. Use mild detergent for removable parts; do not wash in dishwasher.

Why is my freezer running too much or too long?

Possible causes: hot weather, recently storing warm food, frequent lid openings, lid not closing properly, dirty gasket, or temperature set too cold. Check and adjust accordingly.

What should I do during a power failure?

Keep the lid closed. Frozen food stays frozen for at least 24 hours. If power outage continues, use dry ice (7-8 lbs every 24 hours) with gloves. If freezer fails, call service immediately.

How to level the freezer?

Ensure all bottom corners rest firmly on a solid floor. Use metal or wood shims between foot pads and floor if needed. Leveling is important for proper lid sealing.

What does the Run light indicate?

The green Run light illuminates when the compressor is running to reach or maintain the set coldness level. If the light is off but freezer is cold, the bulb may be burned out.

How to prevent moisture formation inside the freezer?

Moisture inside is normal in hot, humid weather. Ensure the lid seals properly, avoid frequent or prolonged lid openings, and check that the gasket is clean and intact.

Can I use an extension cord?

No. The freezer must be plugged directly into a dedicated 115 V, 60 Hz, 10 amp grounded outlet. Do not use an extension cord or adapter plug.

USER MANUAL 17182 KENMORE

Record Model/Serial Numbers

Please read and save these instructions

This Use & Care Guide provides specific operating instructions for your model. Use your unit only as instructed in this guide. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

Record your model and serial numbers below for future reference. This information is listed in a label located on the lower right exterior wall.

Model Number: 111. or ____ Serial

Number: ____ Purchase Date: ____

IMPORTANT

Use only soap and water to clean serial plate.

Table of Contents

Record Model/Serial Numbers...... 2

Important Safety Instructions...... 2

First Steps 5

Energy Saving Ideas ....5

Freezer Use.... 5

Temperature Control......6

Care & Cleaning....7

Defrosting....7

Power or Freezer Failure......8

Before You Call....9

Warranty....11

Service......Back Cover

Important Safety Instructions

Safety Precautions

Do not attempt to install or operate your unit until you have read the safety precautions in this Use & Care Guide. Safety items throughout this manual are labeled with a Danger, Warning, or Caution based on the risk type.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

Indicates installation, operation, or maintenance information which is important but not hazard-related.

Important Safety Instructions

DANGER

DANGER Risk of fire or explosion.

Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

DANGER Risk of fire or explosion.

Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing.

CAUTION

CAUTION Risk of fire or explosion.

Flammable refrigerant used. Consult repair manual/owner's guide before attempting to service this product. All safety precautions must be followed.

CAUTION Risk of fire or explosion.

Dispose of properly in accordance with federal or local regulations. Flammable refrigerant used.

CAUTION Risk of fire or explosion

due to puncture of refrigerant tubing. Follow handling instructions carefully.

Flammable refrigerant used.

WARNING

Read all safety instructions before using your new appliance.

For Your Safety

• Do not store or use gasoline or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.
• Do not operate the unit in the presence of explosive fumes.
• Remove and discard any spacers used to secure the basket during shipping. Small

objects are a choke hazard to children.

- Remove all staples from the carton. Staples can cause severe cuts and also destroy finishes if they come in contact with other appliances or furniture.

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the unit is unpacked. Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers and can quickly cause suffocation.

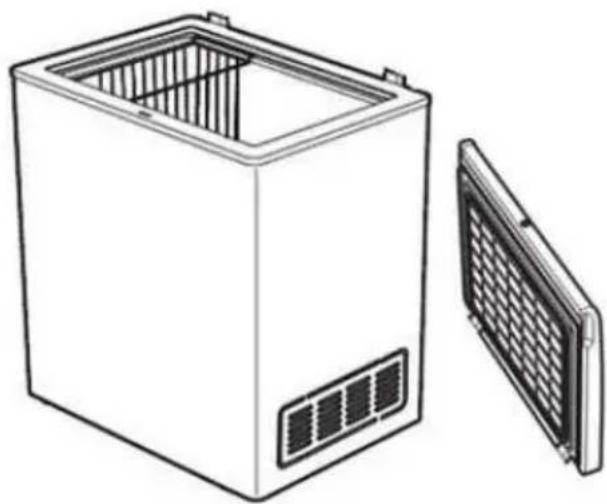

Proper disposal of your appliance

DANGER: Risk of child entrapment!

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your appliance, please follow the instructions below to help prevent accidents.

Before you throw away your old unit:

• Remove lid.
• Leave basket in place within freezer so children may not easily climb inside.
• Have refrigerant removed by a qualified service technician.

Line drawing of a white rectangular appliance with a side view showing its front panel and internal structure (no text or symbols)

Important Safety Instructions

IMPORTANT

Your old unit may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may cause harm to the environment if released to the atmosphere. If you are throwing away your old unit, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under the provisions of environmental legislation.

WARNING

These guidelines must be followed to ensure that safety mechanisms in this unit will operate properly.

Electrical Information

- The unit must be plugged into its own dedicated 10 amp, 115 Volt, 60 Hz. AC only electric outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Do not use an extension cord or adapter plug.

- Immediately repair or replace any power cord that becomes frayed or damaged.

- Never unplug the appliance by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.

- Unplug the appliance before cleaning and before defrosting to avoid electrical shock.

• Performance may be affected if the voltage varies by 10% or more. Operating the unit with insufficient power can damage the motor. Such damage is not covered under the warranty.
• Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the appliance from being turned off accidentally.
• Avoid connecting unit to a Ground Fault Circuit Interruptor (GFCI).

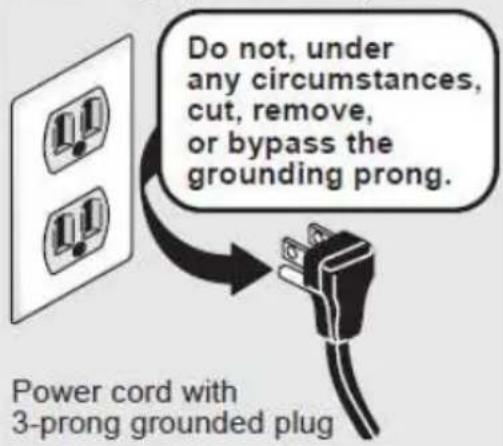

Grounding type wall receptacle

First Steps

This Use & Care Guide provides specific operating instructions for your model. Use the unit only as instructed in this Use & Care Guide. Before starting the appliance, follow these important first steps.

Installation

• Choose a place that is near a grounded electrical outlet. Do Not use an extension cord or an adapter plug.
• For the most efficient operation, the freezer should be located where surrounding temperatures will not exceed 110°F (43°C). Surrounding temperatures of 32°F (0°C) and below will not affect freezer operation.
• Allow space around the unit for good air circulation. Leave a 1-inch space between the back and left side and a wall, and on the right side at least 3 inches between the compressor vent and a wall.

Leveling

The freezer must have all bottom corners resting firmly on a solid floor. The floor must be strong enough to support a fully loaded freezer. If needed, add metal or wood shims between foot pads and floor.

NOTE

It is Very Important for your freezer to be level in order to function properly. If the freezer is not leveled during installation, the lid may be misaligned and not close or seal properly, causing cooling, frost, or moisture problems.

Cleaning

• Wash any removable parts, the freezer interior, and exterior with mild detergent and warm water. Wipe dry. Do not use harsh cleaners on these surfaces.
• Do not use razor blades or other sharp instruments, which can scratch the appliance surface when removing adhesive labels. Any glue left from the tape can be removed with a mixture of warm water and mild detergent, or touch the residue with the sticky side of tape already removed. Do not remove the serial plate.

Energy Saving Ideas

- The freezer should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.

• Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer.
• Freezer shelves should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient.
• Organize and label food to reduce lid openings and extended searches. Remove as many items as needed at one time, and close the lid as soon as possible.

Freezer Use

• To turn the freezer on, plug the power cord into a properly grounded 3 prong electrical outlet. The green Power On light located on the temperature control will illuminate.
• For safe food storage, allow four hours after plugging in for the freezer to cool down completely. The freezer will run continuously for the first several hours. Foods that are already frozen may be placed in the freezer after the first few hours of operation. Unfrozen foods should NOT be loaded into the freezer until the freezer has operated for four hours.
• When loading the freezer, freeze only three pounds of fresh food per cubic foot of freezer space at one time. Distribute packages to be frozen evenly throughout the freezer.

Temperature Control

• The temperature control dial is located on the lower front exterior wall. There are 5 positions on the dial. Position 5 is the coldest and 1 is the least cold setting.
• The Recommended Setting, indicated on the dial at position 3, should provide optimum frozen food storage within normal operating conditions in most situations.
• If a colder temperature is desired, turn the control dial pointer toward position 5. Turn the dial pointer toward 1 for a less cold temperature. Adjust the temperature gradually, in small increments, and allow several hours for temperatures to stabilize between adjustments.

Power and Run Lights

The green Power light indicates that the freezer is properly connected to electrical power. The light glows even when the temperature control is turned to OFF.

The green Run light illuminates when the compressor is running to reach or maintain the set coldness level in the freezer.

If the Power light goes out, refer to Freezer does not run section in the Troubleshooting Guide. If the freezer appears to be operating, the light element may be burned out. To schedule light element replacement, call 1-844-553-6667.

Defrost Drain

The defrost drain provides a method of draining the water during defrosting and cleaning. See Defrosting in Care & Cleaning section.

Wheels

The right side of the freezer is equipped with wheels so that you can roll the freezer into location. Raise up the left side of the freezer to push the freezer along on the wheels. CAUTION: Obtain the aid of an assistant if the freezer feels too heavy for you to safely lift it up on its left side.

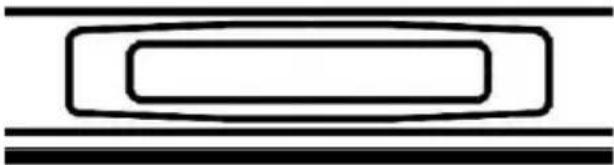

Freezer Lid Handle

There is a built-in recessed handle in the front center of the freezer lid to aid in the raising and lowering of the lid.

Simple diagram with two concentric rectangles above horizontal lines (no text or symbols)

CAUTION

Be careful when the freezer lid is raised that it doesn't close on you while you are inserting or removing items.

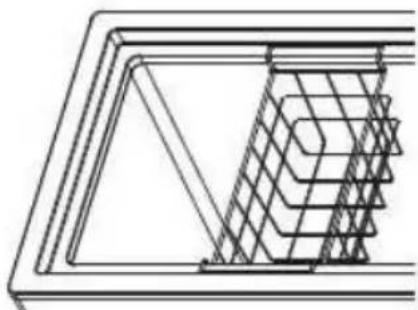

Storage Basket

The freezer is equipped with two convenient top storage baskets for smaller items. The baskets rest on the front and back edges of the freezer compartment.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Care & Cleaning

CAUTION

Damp objects stick to cold metal surfaces. Do not touch inferior metal surfaces with wet or damp hands.

Between Defrostings

To avoid frequent defrosting, occasionally use a plastic scraper to remove frost. Scrape with a pulling motion. Never use a metal instrument to remove frost.

CAUTION

Freezer must be unplugged (to avoid electrical hazard) from power source when defrosting unit.

Defrosting

WARNING

DO NOT use a sharp or metallic instrument to remove frost from the refrigerator interior, as damage to refrigerant tubing (located behind interior walls) may occur. Tubing damage may allow flammable refrigerant gas leakage, which can result in personal injury.

It is important to defrost and clean the freezer when 14 to 12 inch of frost has accumulated. Frost may tend to accumulate faster on the upper part of freezer due to warm, moist air entering when lid is opened. Always unplug freezer, remove food and leave lid open when defrosting.

If frost is soft, remove by using a plastic scraper (included). If frost is glazed and hard, place a shallow pan beneath the drain outlet at front of freezer (Fig. 1).

Pull the drain outlet plug forward enough to expose the drain hole in the plug shaft (Fig. 1). Rotate plug so that hole faces straight down. The arrow on the plug will also face straight down (Fig. 2).

Simple line drawing of a mechanical component with a cylindrical shaft and flange (no text or symbols)

Figure 1

Simple circular diagram with concentric rings and a small triangular notch at the bottom (no text or symbols)

Figure 2

Simple line drawing of a mechanical component with a cylindrical shaft and flange, connected by a diagonal line (no text or symbols)

Figure 3

Remove the drain plug from the drain hole on the inside bottom left front corner of the freezer (Fig. 4). Defrost water will drain out through the hole in the outside drain plug (Fig. 3). Check pan occasionally so water does not overflow.

Replace the drain plugs when defrosting and cleaning are completed. If the drain is left open, warm air may enter the freezer.

Cleaning the Inside

After defrosting, wash inside surfaces of the freezer with a solution of two tablespoons of baking soda in one quart (1.1 liters) warm water. Rinse and dry.

Wring excess water out of the sponge or cloth when cleaning in the area of the controls, or any electrical parts.

Wash the removable parts and baskets with the baking soda solution mentioned above, or mild detergent and warm water.

Rinse and dry. Never use metallic scouring pads, brushes, abrasive cleaners, or alkaline solutions on any surface. Do not wash removable parts in a dishwasher.

Cleaning the Outside

Wash the cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Vacation and Moving Tips

WARNING

If leaving the freezer lid open while on vacation, make certain that children cannot get into the freezer and become entrapped.

Short Vacations: Leave the freezer operating during vacations of less than three weeks.

Long Vacations: If the freezer will not be used for several months:

• Remove all food and unplug the power cord.
• Clean and dry the interior thoroughly.
• Leave the freezer lid open slightly, blocking it open if necessary, to prevent odor and mold growth.

Moving: When moving the freezer, follow these guidelines to prevent damage:

• Disconnect the power cord plug from the wall outlet.
• Remove foods, then defrost, and clean the freezer.
• Secure all loose items such as base panel, baskets, and shelves by taping them securely in place to prevent damage.
• In a moving vehicle, secure freezer in an upright position to prevent movement. Also protect outside of freezer with a blanket, or similar item.

NOTE

If unit is turned off or unplugged for several hours, do not open freezer lid unnecessarily. This will maintain the coldest temperature inside and reduce the recovery time to desired temperature once the unit is turned back on.

Power Failure/Freezer Failure

If a power failure occurs, frozen foods will stay frozen for at least 24 hours if the freezer is kept closed. If the power failure continues, pack seven or eight pounds of dry ice into the freezer every 24 hours. Look in the Yellow Pages under Dry Ice, Dairies, or Ice Cream manufacturers for local dry ice suppliers. Always wear gloves and use caution when handling dry ice.

If the freezer has stopped operating, see Freezer does not run in the

Troubleshooting Guide. If you cannot solve the problem, call an authorized servicer immediately. If the freezer remains off for several hours, follow the directions above for the use of dry ice during a power failure. If necessary, take the food to a local locker plant until the freezer is ready to operate. Look in the Yellow Pages under Frozen Food Locker Plants.

TROUBLESHOOTING GUIDE	Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.
CONCERN POTENTIAL CAUSE COMMON SOLUTION
Freezer does not run.	1. Freezer is plugged into a circuit that has a ground fault interrupt.2. Temperature control is in the OFF position.3. Freezer may not be plugged in or plug may be loose.4. House fuse blown or tripped circuit breaker.5. Power outage.	1. Use another circuit. If you are unsure about the outlet, have it checked by a certified electrician.2. See Setting the Temperature Control Section.3. Ensure plug is tightly pushed into outlet.4. Check house fuse or circuit breaker.5. Check house lights. Call local Electric Company.
Freezer runs too much or too long.	1. Room or outside weather is hot.2. Freezer has recently been disconnected for a period of time.3. Large amounts of warm or hot food have been stored recently.4. Lid is opened too frequently or too long.5. Lid may be slightly open.6. Temperature Control is set too low.7. Freezer gasket is dirty, worn, cracked, or poorly fitted.	1. It is normal for the freezer to work harder under these conditions.2. It takes 4 hours for the freezer to cool down completely.3. Warm food will cause freezer to run more until the desired temperature is reached.4. Warm air entering the freezer causes it to run more. Open lid less often.5. See Lid Will Not Close in this Before You Call Section.6. Turn control knob to a warmer setting. Allow several hours for the temperature to stabilize.7. Clean or change gasket. Leaks in the lid seal will cause freezer to run longer in order to maintain desired temperature.
Interior Freezer temperature is too cold.	Temperature Control is set too cold.	Turn the control to a warmer setting. Allow several hours for the temperature to stabilize.
Interior Freezer temperature is too warm.	1. Temperature Control is set too warm.2. Lid is kept open too long or is opened too frequently.3. Lid may not be seating properly.4. Large amounts of warm or hot food may have been stored recently.5. Freezer has recently been disconnected for a period of time.	1. Turn control to a colder setting. Allow several hours for the temperature to stabilize.2. Warm air enters the freezer every time the lid is opened. Open the lid less often.3. See Lid Will Not Close in this Before You Call section.4. Wait until the freezer has had a chance to reach its selected temperature.5. Freezer requires 4 hours to cool down completely.
Freezer external surface temperature is warm.	The external freezer walls can be as much as 30°F warmer than room temperature.	This is normal while the compressor works to transfer heat from inside the freezer cabinet.
CONCERN POTENTIAL CAUSE COMMON SOLUTION
Louder sound levels whenever freezer is on.	Modern freezers have increased storage capacity and more stable temperatures. They require a high efficiency compressor.	This is normal. When the surrounding noise level is low, you might hear the compressor running while it cools the interior.
Longer sound periods when compressor comes on.	Freezer operates at higher pressures during the start of the ON cycle.	This is normal. Sound will level off or disappear as freezer continues to run.
Popping or cracking sound when compressor comes on.	Metal parts undergo expansion and contraction, as in hot water pipes.	This is normal. Sound will level off or disappear as freezer continues to run.
Bubbling or gurgling sound, like water boiling.	Refrigerant (used to cool freezer) is circulating throughout the system.	This is normal.
Vibrating or rattling noise.	1. Freezer is not level. It rocks on the floor when it is moved slightly.2. Floor is uneven or weak. Freezer rocks on floor when it is moved slightly.3. Freezer is touching the wall.	1. Level the unit. Refer to Leveling in the First Steps section of this Use & Care Guide.2. Ensure floor can adequately support freezer.3. Move freezer slightly. Refer to Leveling in the First Steps section after moving if necessary.
Moisture forms on inside freezer walls.	1. Weather is hot and humid, which increases internal rate of frost build-up.2. Lid may not be seating properly.3. Lid is kept open too long, or is opened too frequently.	1. This is normal.2. See Lid Will Not Close in this Before You Call section.3. Open the lid less often.
Moisture forms on outside of freezer.	Lid may not be seating properly, causing the cold air from inside the freezer to meet warm moist air from outside.	See Lid Will Not Close in this Before You Call section.
Odors in freezer.	1. Interior needs to be cleaned.2. Foods with strong odors are in the freezer.	1. Clean interior with sponge, warm water, and baking soda.2. Cover the food tightly.
Lid will not close.	1. Freezer is not level. It rocks on the floor when it is moved slightly.2. Floor is uneven or weak. Freezer rocks on floor when it is moved slightly.	1. This condition can force the cabinet out of square and misalign the lid and lid seal. Refer to Leveling in the First Steps section of this Use & Care Guide.2. Refer to Leveling in the First Steps section of this Use & Care Guide.

KENMORE LIMITED WARRANTY

WITH PROOF OF SALE the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions.

One Year on Appliance

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appliance will receive free repair. If the appliance cannot be repaired it will be replaced free of charge.

Lifetime on Storage Bins

FOR AS LONG AS IT IS USED from the date of sale, a free replacement will be supplied for a defective refrigerator or freezer compartment storage bin.* If the defect appears within the first year, a new bin will be installed at no charge. If the defect appears after the first year, a new bin will be supplied but not installed at no charge. This Lifetime warranty covers only storage bins, and does not apply to any other related component or mechanism. You are responsible for the labor cost of bin installation after the first year from the date of sale. *Warranty coverage applies to door bins, drawer bins and basket bins. Defects must be verified by a Sears authorized service representative.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

All warranty coverage applies for only 90 DAYS from the sale date if this appliance is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Transform SR Brands Management LLC, Hoffman Estates, IL 60179

Line drawing of a white rectangular storage unit with a side panel showing internal compartments (no text or symbols)

Simple diagram with two concentric rectangles above horizontal lines (no text or symbols)

ATENCIÓN

Technical line drawing of a structural frame with internal grid and support components (no text or symbols)

Cuidado y Limpieza

ADVERTENCIA

Diagram of a mechanical component with two circular holes and an arrow pointing to a circular feature (no text or symbols)

Fig. 4

Customer Care Hotline

To schedule in-home repair service or order replacement parts
