Product Type	DVD Player with HDMI
Model	ADVD-360HDMI
Brand	Aiwa
Disc Compatibility	DVD, DVCD, DVD-R, DVD-RW, VCD, SVCD, CD, CD-R, CD-RW, MP3, WMA, Kodak Picture CD, JPEG, MPEG4 (DivX)
Video Outputs	Composite, S-Video, Component (YPbPr), HDMI (480i/576i/576P/720p/1080i/1080p)
Audio Outputs	Stereo 2.0 (RCA), Coaxial, Optical, 5.1-Channel (RCA)
USB Port	1 x USB 2.0 front
Microphone Inputs	2 x 6.3mm (1/4") front
Power Supply	100-240V ~ 50/60Hz
Power Consumption	13W
Dimensions (W x H x D)	360 x 38 x 205 mm
Net Weight	1.5 kg
Remote Control	Yes, infrared, 2 x AAA batteries, range ~5m (15 ft)
Region Code	4 (Australia/New Zealand)
Parental Control	8 levels, password protected (default 0000)
Playback Features	Repeat, A-B Repeat, Zoom (up to 4x), Slow, Step, Program, Multi-Angle (up to 9), Subtitle (up to 32), Audio (up to 8), OSD
USB File Support	Video: MPEG1/2/4, XviD, DivX (.avi); Audio: MP3 (.mp3); Photo: JPEG (.jpg, .jpeg); Text: TXT (.txt)
CD Ripping	Yes, to USB as MP3
Laser Type	Class 1, 655 nm wavelength
Cleaning	Use dry soft cloth; wipe disc radially from center to edge
Safety Features	Auto standby after inactivity; unplug during lightning

Frequently Asked Questions - ADVD-360HDMI AIWA

What disc formats does the Aiwa ADVD-360HDMI support?

The player supports DVD, DVCD, DVD-R/RW, VCD, SVCD, CD, CD-R/RW, MP3, WMA, Kodak Picture CD, JPEG, and MPEG4 (DivX) discs. It also plays USB media in compatible formats.

How do I connect the player to my TV?

You can use HDMI for best quality (carries both video and audio). Alternatively, use Component (YPbPr), S-Video, or Composite (yellow RCA) for video. For audio, use the stereo RCA outputs, coaxial or optical digital outputs, or the 5.1-channel analog outputs if your receiver supports it. Only one video output should be connected to avoid interference.

Can I play files from a USB flash drive?

Yes, insert a USB drive into the front USB port. Press DVD/USB on the remote to switch to USB mode. The player supports video (MPEG1/2/4, XviD, DivX in .avi), audio (MP3), photos (JPEG), and text (TXT) files. Use the directional keys to navigate and press OK to play.

How to use the CD ripping (copy) function?

Insert a CD/MP3/MP4 disc and connect a USB drive. Press Stop then Copy on the remote to enter the CD Ripping menu. Follow on-screen instructions to select tracks and options. The player converts CD audio to MP3 files and saves them to the USB drive. Press Exit to return to disc mode.

How do I set parental controls?

Press Setup and navigate to Parental. Enter the default password 0000. Choose a rating level from 1 (all ages) to 8 (all discs). The player will block discs rated higher than the set level. You can change the password under Password in the Setup menu.

What should I do if there is no picture on the TV?

Check that the TV is on and set to the correct AV/HDMI input. Ensure all connections are secure and the cables are not damaged. Verify the player's Video Out setting matches your connection (e.g., HDMI or component). If using a VCR or other device between, connect the player directly to the TV. Try a different disc to rule out disc issues.

Why is my remote control not working?

First, press the Power button on the player or remote to turn it on. Point the remote directly at the remote sensor on the front panel, within 15 feet and ±60 degrees. Remove obstacles. Check if the batteries are installed correctly (+/-) and have charge. Replace with new AAA batteries if needed. Avoid strong light sources near the sensor.

How should I clean the player and discs?

For the player, unplug it and wipe the exterior with a soft dry cloth. Do not use liquids or chemicals. For discs, hold by the edges, wipe radially from center to edge with a soft dry cloth. Never use benzene, thinners, or sprays. Store discs vertically in cases. If moisture condenses inside the player, leave it on for 1-2 hours with no disc.

How can I program a custom playlist on a DVD or USB?

For DVDs, press Prog during playback to enter Program mode. Use the numeric keypad to enter track and chapter numbers in the left and right columns. Navigate with direction keys, press OK to confirm, then press Play to start the programmed sequence. Press Prog to cancel. This feature may not work on all discs. For USB files, you cannot program; play them in order.

What is the region code of this player and does it matter?

The Aiwa ADVD-360HDMI is set to region code 4, which covers Australia, New Zealand, and other regions. If you try to play a DVD from a different region (e.g., region 1 or 2), the player will display 'Wrong Regional Disc' and will not play it. This is a standard restriction. Check the disc's region code on its packaging.

USER MANUAL ADVD-360HDMI AIWA

Black electronic device labeled 'aiwa' with control knobs and ports (no readable text beyond branding)

Instruction Manual

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS....1

PRECAUTIONS 2

Connections....3

ABOUT OPTICAL DISCS 4

Disc Requirements....4

Disc Care and Maintenance 4

Handling a Disc 4

Cleaning a Disc....4

LOCATION OF CONTROLS 5

Front Panel 5

Rear Panel 5

Remote Control 6

GETTING STARTED 7

Remote Control 7

Power Supply 7

BASIC OPERATIONS....8

Menu Navigation 8

Numeric Keypad 8

Adjusting the Volume 8

Disc Error Messages 8

Power Management 8

Basic Playback....9

Play/Pause/Stop 9

Previous/Next (Skip) 9

Forward/Reverse (Search) 9

Slow 9

PLAYER FUNCTIONS....10

Menu/ Title 10

Mute 10

Setup 10

On-Screen Display 10

Repeat Mode 10

Repeat A-B Mode 10

DVD/USB 11

Volume Up/Down 11

Zoom 11

Multi-Angle/Subtitle/Audio 12

Program....12

USB Connection and operation 13

SETUP.... 14

Screen & Custom Settings 14

Language Settings.... 15

Audio Settings 15

SPECIFICATIONS.... 16

TROUBLE SHOOTING.... 17

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions carefully. Keep these instructions for future reference.
2. Heed all warnings and follow all instructions.
3. Do not expose to water or moisture.
4. Clean only with a dry cloth.
5. Keep objects away from ventilation openings. Do not block ventilation openings at any time.
6. Do not install near any apparatus that produces heat such as stoves, radiators, amplifiers, etc.
7. Do not force the power plug into a wall outlet.
8. Do not place heavy objects on the power cord. Protect the cord from being walked on, pinched by objects, or torn and exposed to liquids (especially at plugs, convenience receptacles, and the point at which they exit from the device).
9. Use only with attachments/accessories specified by the manufacturer. Use of attachments/accessories not recommended by the product manufacturer may be hazardous.
10. Unplug the device during lightning storms. Unplug the device and remove any batteries when the device will be unused for long periods of time.
11. Do not use this device near water. Do not place objects filled with liquids (e.g., vases) on the device. Never spill liquid of any kind on the device.
12. Never push objects of any kind into this device through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.
13. Do not drop or otherwise subject the device to impact.
14. Do not open or attempt to repair this device. Refer all repairs to authorized service personnel.
15. When replacements parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
16. Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to determine that the device is in proper operating condition.
17. Always operate the product from a power source of the same voltage, frequency and rating as indicated on the rating label.
18. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
19. Children should be supervised to ensure that they do not play with the appliance.
20. Do not operate the product with a damaged cord or plug, or if the product malfunctions, or is dropped and damaged in any manner.
21. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

WARNING:

To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.

CAUTION:

This Digital Video Disc player employs a laser system. To prevent direct exposure to the laser beam, do not try to open the enclosure or defeat the safety interlocks. When open and the interlocks are defeated, visible laser radiation is present.

Use of controls, adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. DO NOT STARE INTO THE BEAM.

Do not make any changes or modifications to the equipment unless other wise specified in the manual.

CAUTION:

The stand by/ on switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet. In case of an accident to avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time. (For example: when on holiday).

Simple line drawing of three interlocking arrows forming a recycling symbol (no text or labels)

For recycling or disposal information about this product, please contact your local authorities.

CONNECTIONS

Audio Connections at a Glance

Audio Options: Choose one

1. HDMI (If choosing this option, you don't need a separate video output)
2. Coaxial output
3. Optical output
   4.5.1 Channel output via RCA cables
4. Composite audio (Red/white RCA)

Video Connections at a Glance

Video Options: Choose one

1. HDMI (If choosing this option, you don't need a separate audio output)
2. Component video (YPbPr)
3. S-Video
4. Composite video (Yellow RCA)

Note: choose one of the video outputs according to the TV.

ABOUT OPTICAL DISCS

Disc Requirements

This DVD player supports playback of the following discs.

Type	Disc Mark	Content Type	Disc Size	Max. Playback Time
DVD-Video Discs		Audio + Video (moving picture)	12 cm	133 min (SS-SL)
				242 min (SS-DL)
				266 min (DS-SL)
				484 min (DS-DL)
Audio Compact Discs (CDs)		Audio	12 cm	74 min
JPEG CDs	--	Still Picture	12 cm	--

This player is compatible with :DVD/DVCD/DVD-R/DVD-RW/VCD/SVCD/CD/CD-R/CD-RW/MP3/WMA/Kodak picture CD/JPEG/MPEG4 (DIVX) etc.

Disc Care and Maintenance

Optical discs (DVDs, CDs) contain high-density compressed data and need proper handling.

Handling a Disc

Hold a DVD/CD by its edges. Avoid touching the recorded side of the disc. To remove a DVD/CD from its storage case, press down on the center retention mechanism of the case and lift the disc out.

Do not subject discs to prolonged exposure of direct sunlight, high humidity, or high temperatures.

Do not bend or press discs.

To reduce the risk of scratches, always put discs back in their case after use. Store discs vertically in a cabinet.

Do not place stickers or labels on either side of a disc.

Cleaning a Disc

Use a dry, soft cloth to wipe off any fingerprints and dust from the playing surface of the disc. Wipe in a straight line radially from the center to the outside edge of the disc. Small dust particles and light stains will not affect playback quality.

Never use chemicals such as record sprays, anti-static sprays, benzene, or thinners to clean a disc. Doing so will damage the surface of the disc permanently.

LOCATION OF CONTROLS

Front Panel

1. Power Button
   2.Disc Tray
   3.Open/Close
   4.Remote Control Sensor
   5.USB Port
   6.Stop Button
2. Prev Button
3. Microphone Volume Dial
   9.Microphone Inputs
   10.Play/Pause Button
4. Next Button

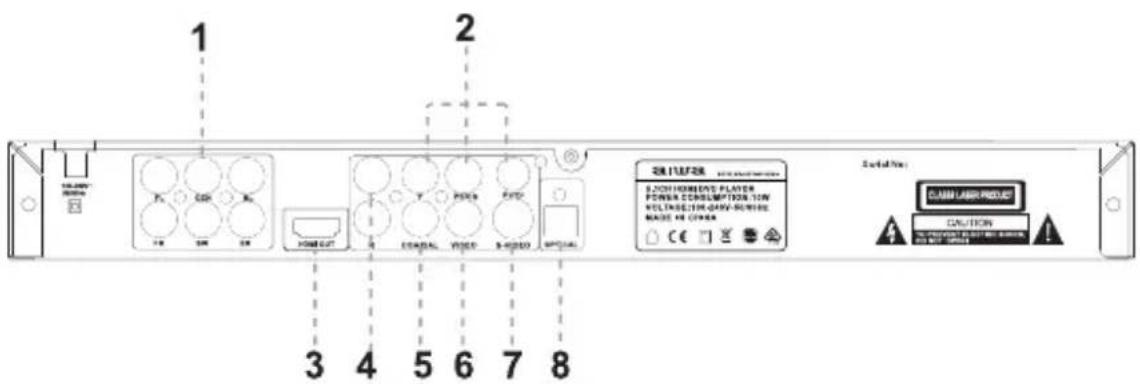

Rear Panel

1. 5.1-Channel Audio Out
2. Component Video Out (Progressive Scan)
3. HDMI Port (High-Definition Multi-Media Interface)
4. 2.0-Channel Audio Out:
   L-CH (Left Channel)
   R-CH (Right Channel)
5. Coaxial Digital Audio Out
6. Composite Video Out
7. S-Video out
8. Optical out

Remote Control

1. POWER BUTTON
2. OSD BUTTON
3. STEP BUTTON
4. DVD/USB BUTTON
5. MUTE BUTTON
6. TITLE BUTTON
7. DIRECTION BUTTON
8. SETUP BUTTON
9. L/R BUTTON
10. PREV BUTTON
11. VOL- BUTTON
12. NEXT BUTTON
13. PLAY/ PAUSE BUTTON
14. VIDEO BUTTON
15. PROG BUTTON
16. REPEAT BUTTON
17. PBC BUTTON
18. LANGUAGE BUTTON
19. SUBTITLE BUTTON
20. OPEN/CLOSE BUTTON
21. TIME BUTTON
22. NUMERIC BUTTONS
23. MENU BUTTON
24. ENTER BUTTON
25. ZOOM BUTTON
26. N/P BUTTON
27. REV BUTTON
28. VOL+ BUTTON
29. FWD BUTTON
30. STOP BUTTON
31. A-B BUTTON
32. CLEAR BUTTON
33. SLOW BUTTON
34. RETURN BUTTON
35. COPY BUTTON
36. ANGLE BUTTON

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared remote sensor during operation. The sensor may not be able to receive signals properly if the sensor is covered, if there is a large object between the remote control and the sensor, or if it is exposed to direct sunlight or a strong artificial light (e.g., fluorescent or strobe lights). In this case, change the direction of the light or reposition the unit to avoid direct lighting.

GETTING STARTED

Remote Control

Refer to the diagram. Remove the battery compartment cover located on the rear of the remote control. Insert batteries, making sure to match their polarities (+/-) to the markings on the inside of the compartment. Replace the cover.

To use the remote, point it at the remote sensor of the player. Operate the remote within 15 feet of the sensor and at an angle of +/- 60 degrees.

Batteries in the remote will last for approximately 1 year. Replace the batteries if the remote control does not work. Do not mix old with new batteries, or different types of batteries.

Remove the batteries from the remote if it will not be used for a long period of time.

WARNING

The batteries used in the remote control may present a fire or chemical burn if mistreated. Do not recharge, disassemble, incinerate, or heat the battery (100°C).

Keep batteries away from children.

Power Supply

This unit should be used with 100-240V 50/60Hz AC wall outlets, only.

Caution:

Do not connect the power plug to a power outlet other than that which is indicated here and on the label as this may result in the risk of fire or electric shock.

Do not handle the power plug with wet hands. Doing so may cause electric shock.

BASIC OPERATIONS

Menu Navigation

To navigate DVD disc menus or the player's setup menus:

Press the Direction keys to select a desired feature or option in the menu.

Press ENTER to confirm a selection in the menu.

For some menu options, you may be able to use the numeric keypad to input data.

Press CLEAR to cancel an entry.

Black and white digital camera key with four directional buttons (no text or symbols)

CLEAR

Numeric Keypad

Use the numeric keypad to skip directly to a DVD chapter or CD track. (Some discs may not allow direct access function.)

Use the numeric keypad to input numeric data in menu option fields when possible.

Note: Use the 10+ key for inputting numbers greater than 10. For example, to choose 11, press 10+ and 1; to choose 21, press 10+ two times and then 1.

Adjusting the Volume

Press VOL+ or VOL- on the remote control to adjust your player's volume level output.

Disc Error Messages

The following messages will be displayed on-screen if there is a problem with the format of the loaded disc.

WRONG REGIONAL DISC. The region code of the disc does not match the player's region code. This unit works with region code 4 disc.

WRONG PASSWORD. The parental rating level of the disc is higher than the parental rating level setting of the player. The player will not play the disc.

WRONG DISC. The player is equipped with automatic disc quality detection software. If the player detects a disc that is damaged or has a format problem, it may play the disc at a lower quality or stop play completely, depending on how damaged the disc is.

Note:

DVD disc production quality may vary; some discs may deviate from the industry standard. Some incorrectly-formatted discs may still play, however, the playback and operational quality of the disc may be substandard.

Power Management

If the player will not be in use for a long period of time, press the Power Button to set the unit to Standby mode. Then turn off at the outlet, unplug the player, and remove the batteries from the remote control.

BASIC OPERATIONS

Basic Playback

1. Prepare the connections and power supply.

Press the Power Button on the unit or remote control to turn the player on.

1. Load a disc.

Press the Open/Close button to open the disc tray. Insert a disc with the label-side up. Press the Open/Close button again to close the disc tray.

If a single-sided disc is inserted upside-down, the player will display NO DISC or BAD DISC.

1. Start playback.

Press PLAY to start playback (some discs may start playing automatically).

Play/Pause/Stop

Press 📂 to play the disc for the first time.

Press 🏠 during playback to pause. Press 🏠 again to resume playback.

Press ☐ during playback to stop the disc ( Pre-Stop ). Press ⏻ to resume playback at the time-point at which the disc was stopped.

Press ☐ when the disc is Pre-Stopped to stop playback completely. (When ⬇ is pressed, the disc will start playing from the beginning.)

Previous/Next (Skip)

Press 📂 to skip to the next track (DVD, CD, etc).

Press 📄 to return to the previous track (DVD, CD, etc).

Forward/Reverse (Search)

Repeatedly press ➤ to search forward through a disc.

Repeatedly press 🔥 to reverse.

Press 🏠 for normal playback.

Slow

Press SLOW for slow-motion playback. Each successive press of SLOW will change the rate of slow-motion playback. Press ⚪ to resume normal playback.

Step

Press STEP for frame-by-frame playback. Each successive press of STEP will advance the video one frame. Press ▶ to resume normal playback.

Note:

Audio will be muted during fast-forward, fast-reverse, and slow-motion playback.

PLAYER FUNCTIONS

Menu / Title / Pbc

Press the MENU key during DVD playback to return to the disc's Main menu. Press the TITLE/PBC key during DVD playback to return to the disc's Title menu. Press the TITLE/PBC key during VCD playback to the disc's PBC menu.

Mute

Press MUTE to muffle/ release sound.

Setup

Press the SETUP key to enter the player's setup menu. Enter the Setup menu to adjust the player's internal settings; please see the SETUP section for more details.

On-Screen Display /OSD

The On-Screen Display (OSD) indicator is a user-friendly interface designed to display playback type status. The OSD indicator will display information based on the type of disc that has been loaded (i.e., DVD or CD).

Press the Display key to show time information on-screen; press it a third time to exit the on-screen display mode.

N/P

Set the format of this player to select the color format of TV: "NTSC/PAL/AUTO".

L/R

Press this button repeatedly to select between left, right or both audio channels in CD/VCD/SVCD discs.

RETURN:

Press this button to go back(menus).

Repeat Mode

Press REPEAT to change the repeat mode of the player. Each successive press of REPEAT will change the mode.

Note: Some DVD discs do not allow Repeat mode.

Repeat A-B Mode

To repeat a specific section of a disc (play on a loop):

1. Press A-B to set the desired start point (A) of the section to be repeated.
2. Press A-B again to set the desired end point (B) of the section to be repeated.
3. The section A-B will now play repeatedly as a loop. Press A-B again to resume normal-playback.

PLAYER FUNCTIONS

DVD/USB

Press DVD/USB key to switch between DVD mode and USB mode.

Volume Up /Down

While playing a disc, press the VOL+ or VOL- button to adjust the volume level output.

Zoom

Press ZOOM to change the magnification level of the picture.

During DVD playback, each successive press of ZOOM will change the level of magnification.

During JPEG CD playback, each successive press of ZOOM will change the level of magnification.

When the magnification level is greater than Normal/100%, use the NAVIGATION keys to pan around the magnified picture.

When the magnification level is equal to 100%, use the NAVIGATION keys to rotate the picture.

Note: The picture quality will decrease as the zoom level (magnification) increases.

PLAYER FUNCTIONS

Multi-Angle/Subtitle/Language

During playback of a DVD that has been mastered with multiple angles, press ANGLE to view the available alternate camera angles. (A DVD may have up to 9 selectable angles.)

During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the available subtitle tracks. (A DVD may have up to 32 selectable subtitles.)

During playback of a DVD that has been mastered with alternate language/audio tracks, press LANGUAGE to hear the alternate tracks. (A DVD may have up to 8 selectable audio tracks.)

Program

Preset the target files to be played automatically by a given order. Press the PROG button to display the program menu. (e.g. DVD Mode).

Note:

Use the numeric keypad to input numbers directly to the fields. Use the navigation keys to move between entry fields.

Load a DVD and press the PROG button to enter Program mode.

Use the navigation keys to select a field.

Use the numeric keypad to enter track numbers in the left T columns (or press CLEAR to delete).

Use the numeric keypad to enter chapter numbers in the right C columns (or press CLEAR to delete).

To start over, use the navigation keys to select Clear to delete all Track/Chapter selections.

To play your programmed selections, press Play/Pause button or use the navigation keys to select Play. Press PROG to cancel.

USB CONNECTIONS & OPERATION

USB Device Connection

Insert an USB flash drive into the USB port.

To access the DVD/USB

Press the DVD/USB button on the remote control to switch between DVD mode and USB mode

When the DVD Player has loaded the contents of the USB flash device press DOWN or UP to choose the files.

Audio Playback

Press UP/DOWN direction button to select the desired track and press the OK button to play.

Press the ⬤ / ⬺ button to fast-forward / reverse through the current file.

Press the PLAY button for normal playback.

Photo Playback

Press UP/DOWN direction button to select the desired photo and press the OK button to start picture slideshow playback.

Press the PLAY button to pause, press it again to resume slideshow.

Press the Left/Right direction button to rotate the current photo, press the Up/Down direction button to reverse the current picture.

Press ⬙ to view the next photo, press ⬙ to view the previous photo.

Press the Stop button to stop and return to main menu.

Video Playback

Press UP/DOWN direction button to select the desired track and press the OK button to play.

Press the PLAY button to pause playback, press it again to resume.

Press the ⬤ / ⬤ button to fast-forward / reverse through the current track.

Press the PLAY button for normal playback.

Press ⏻ to play the next track, press ⏻ to play the previous track.

Press the Stop button to stop and return to main menu.

COPY function Instruction

This DVD player is with CD RIPPING function. with this function, you may

rip the content in the CD Disc to Mp3 format file and then store in your USB.

You can also copy the content from your MP3, MP4, JPEG disc to your USB memory device.

While playing the CD/MP3/MP4 disc, connect the USB to the DVD player.

Press the "Stop" button first and then press "COPY" button on the remote controller to enter the CD RIPPING menu. Follow the instruction in the menu and use the Navigation keys and Enter key on the remote controller to change the options that you like. Press "Exit" on the screen to quit and return to the disc mode.

SETUP

Various features of the player can be adjusted in the SETUP menu:

1. Press the SETUP button to display the setup menu.
2. Press the direction button to select the desired item.
3. Press OK to confirm.

Screen & Custom Settings

Item	Description	Setting
TV SYSTEM	Sets the player's Video Out signal type. Set this to correspond with your TV. The standard for Australia and New Zealand are PAL.	PAL
SCREEN SAVER	The screensaver prevents burn-in damage to the player's screen.	ON
VIDEO OUT	Sets the player's Video Out mode.	YUV
TV TYPE	Sets the aspect ratio of the display. 4:3 ps and 4:3LB are used with standard television displays; 16:9 is used with widescreen television displays.	4:3 PS
PASSWORD	To change the password: enter the old password and then the new password. Press the OK button to confirm. The initial password is 0000To unlock: Enter the correct password and then press the OK button.If you have forgotten the password, please contact Customer Service for assistance.	0000
PARENTAL	Sets the maturity rating level of the player. The player will not play any discs rated higher than this settingThere are eight rating levels. Level 1 will restrict playback to discs suitable for people of all ages.Level 8 will allow playback of all discs, including those suitable for adults only.To set the rating level:1. Enter the correct password to unlock. See Pass word.2. Select the desired rating level and press the OK button to confirm.	8
DEFAULT	To reset all the settings to factory default settings.This does not reset the parental control password.	RESET

SETUP

Language Setting

Item	Description	Default Setting
OSD LANGUAGE	Sets the language of the player's on-screen display.	English
AUDIO LANGUAGE	Sets the default language audio track of loaded DVDs.	English
SUBTITLE LANGUAGE	Sets the default subtitle track of loaded DVDs.	Off
MENU LANGUAGE	Sets the default menu language of loaded DVDs.	English

Audio Settings

Item	Description	Default Setting
AUDIO OUT	Sets the player's Coaxial Out (audio) signal. For use with 5.1-channel receivers (see your receiver's manuals for more details).	SPDIF/RAW

SPECIFICATIONS

Specifications

Video & Audio	Supports: DVD/VCD/CD/JPEG/MP3/MP4 etc.
HDMI Output	480i/576i/576P/ 720p (50Hz) /720p(60Hz)/1080i(50Hz) /1080i(60Hz)/1080P(50Hz)/1080P(60Hz)
Signal Output	Color system : PAL/NTSCAudio system: audio DAC 24 bit/96KHzVideo output: 1Vpp(at 75ohm)Audio output: (Stereo):2Vrms(1KHz, 0dB)
FrequencyResponse	CD: 2Hz-20KHz(EIAJ)DVD: 4Hz-22KHz(48k)4Hz-22KHz(96k)
Signal/Noise Ratio	CD audio 90dB
Audio Distortion	CD audio 0.05%
Output Terminals	Video (composite) Output x 1Component Video Output (Progressive Scan)x 1HDMI output x 1S -Video output x 1Down Mix Stereo output (Left and Right) x1Digital audio (coaxial) output x 1Optical out x 15.1-Channel Audio Output x 1
Input Terminals	USB slot x12 x Microphone Inputs
Pickup	Wave length: 655nm
Laser Power	Class 1
Power Supply	100-240V~ 50/60Hz
Power Consumption	13W
Unit Size	360X205X38mm
Net Weight	1.5Kg

Supported USB file formats

Media file	Format	Decoder
		Video	Audio
Video	*.avi	MPEG-1	MPEG-1 Layer2MPEG-1 Layer3MPEG-2 Layer3AC3
		MPEG-2
		MPEG-4
		MPEG-XVID
		DIVX
	MPEG(*.mpeg,*.mpg,*.dat,*.vob)	MPEG-1 MP
		MPEG-2 MP
Music	*.mp3		MPEG-1 Layer3
			MPEG-2 Layer3
	*.cda
Photo	*.jpg
Text	*.txt

Specifications and manual are subject to change without notice.

TROUBLE SHOOTING

If you have a problem with this player, please read the troubleshooting guide below. If these resources do not resolve the problem, please contact Technical Support.

There is no power to the device.

• Press the Power Button on the unit or the remote control to turn the unit on.
• Ensure that the AC adapter cord is securely connected to the player and the proper wall outlet.

The device will not play the disc.

• Ensure that a supported disc is loaded in the player label-side up.
- Ensure that the disc's rating level does not exceed the player's parental rating level.
• Ensure that the disc is not damaged or too dirty. Clean the disc or try another disc.
- Moisture may have condensed inside the player. Remove the disc and leave the player on for 1-2 hours and then try again.

There is no picture.

• Ensure that the TV set has been powered on and is set to the correct AV mode.
• Ensure that the connections between the player and the TV are secure and correct.
- Check if the connection cables are damaged.

The picture is noisy or distorted.

• The disc may be damaged or dirty. Clean the disc or try another one.
- Reset your TV's color system.
- Ensure that the player is connected directly to the TV (and not through a VCR, cable box, satellite receiver, etc.)

The picture is not full-screen.

• Change the aspect ratio setting of your player from the Setup menu.
- Select a different aspect ratio option from the DVD disc menu.

There is no sound or distorted sound.

• Ensure that the TV and amplifier have been turned on and properly set up.
• Ensure that the TV and amplifier connections are secure and correct.
• If using the coaxial connection, use a standard shielded coaxial cable, and not an AV cable.
• Try a different Audio track of the DVD by pressing AUDIO.
• Ensure that the MUTE function of the TV, Amplifier, or Player is not engaged.

The remote control doesn't work.

• Press the Power Button on the unit or remote control to turn on the unit.
• Ensure that there are no obstacles between the remote and the player.
- Point the remote at the remote sensor on the main unit.
• Ensure that the batteries in the remote retain a charge and have been installed correctly.
• Try replacing the remote's batteries.

The player has malfunctioned.

- Unplug the player. After 30 minutes, plug in and power on the player -- the restore function should reset the player.

aiwa
