Product Type	Chest Freezer
Model	CF24Q0W
Capacity	24 cubic feet
Voltage	115 V AC, 60 Hz
Amperage	15 A (recommended circuit)
Defrost Type	Manual
Temperature Control	Knob with settings 1 (warmest) to 7 (coldest); recommended setting 4 or 5
Lid Type	Counterbalanced
Drain Plug	Located on inside floor for defrost water drainage
Rollers	Yes, for easy movement
Storage Basket	Included (1 piece)
Plastic Scraper	Included for frost removal
Installation Clearance	5 inches (12.7 cm) from back and sides for air circulation
Ambient Temperature Range	55°F to 90°F (13°C to 32°C)
Cleaning	Interior: warm water with baking soda solution (2 tbsp per quart); exterior: mild detergent and warm water; condenser coils vacuumed when dusty
Safety Features	Grounded 3-prong plug, child entrapment warnings, refrigerant gas warnings
Warranty	1 year limited parts and labor; compressor 2nd-5th year limited (parts only)

Frequently Asked Questions - CF24Q0W Avanti

How do I adjust the temperature on my Avanti CF24Q0W freezer?

The temperature control knob is located on the lower right corner. Settings range from 1 (warmest) to 7 (coldest). For normal use, set to 4 or 5. Allow several hours for temperature to stabilize after adjustment.

How often should I defrost the freezer?

Defrost when frost on the walls is excessive, typically 1/4 to 1/2 inch thick. This ensures efficient operation and energy savings.

What should I do if the freezer stops working?

Check if it is plugged in, the circuit breaker is not tripped, and the thermostat knob is not set to '1'. If the unit was recently unplugged, wait 3-5 minutes before restarting. Allow 4 hours for complete cooling.

How do I clean the interior of the freezer?

Unplug the freezer and remove food. Wash inside with a warm cloth and a solution of 2 tablespoons of baking soda per quart of water. Rinse and dry thoroughly. Clean the door gasket to maintain efficiency.

Where is the drain plug located for defrosting?

The drain plug is on the inside floor of the freezer. Pull it straight out to allow defrost water to drain into a shallow pan placed outside the drain outlet.

Can I store medicine or medical products in this freezer?

No. The manual explicitly states: 'THIS FREEZER IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.'

Why is there moisture forming on the inside walls?

Moisture inside is normal in hot, humid weather. It can also occur if the door is left open too long or not sealed properly. Check the door gasket and ensure the door closes completely.

How much clearance is needed around the freezer?

Allow at least 5 inches (12.7 cm) of space between the back and sides of the freezer for proper air circulation. Avoid placing it near heat sources or in direct sunlight.

What type of electrical outlet is required?

A standard 115/120 Volt, 60 Hz, 3-prong grounded outlet is required. Do not use an extension cord or adapter. A dedicated circuit of 15 amps is recommended.

What is the warranty coverage for this freezer?

Avanti provides a 1-year limited warranty covering parts and labor for defects. For the 2nd through 5th year, a replacement compressor is provided free of charge, but you pay service labor and freight. The warranty does not cover damage from power surges or misuse.

USER MANUAL CF24Q0W Avanti

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Help Us Help You	3
Parts and Features	4
Chest Freezer Safety	5
Important Safeguards	6
Important Safety Instructions	7
Installation Instructions	7
Before Using Your Freezer	7
Installation of Your Freezer	7
Electrical Connection	8
Operating Your Freezer	9
Temperature Control	9
Defrosting Your Freezer	9
The Freezer Compartment	10
Care and Maintenance	10
Cleaning Your Freezer	10
Vacation Time	10
Moving Your Freezer	10
Energy Saving Tips	11
Troubleshooting Guide	11 – 12
Service for Your Appliance	13

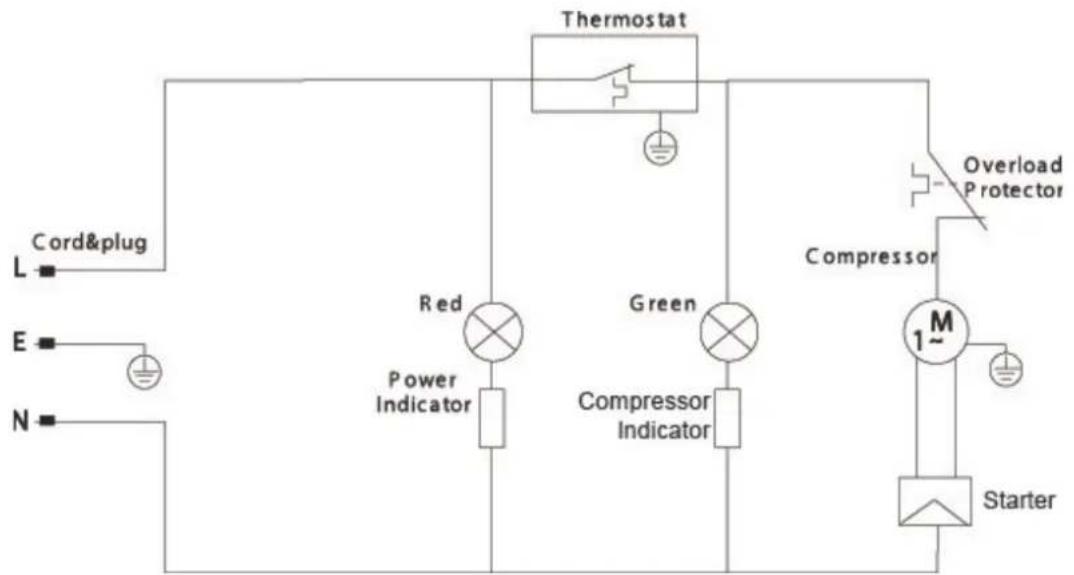

Wiring Diagram	13
Your Avanti Products Warranty	14
Instrucciones en Español	15 – 21
Registration Information and Registration Card	23

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new freezer properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS FREEZER IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the bottom outside wall of the freezer.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your freezer.

If you received a damaged freezer, immediately contact the dealer (or builder) that sold you the freezer.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for assistance.

FIRST, contact the people who serviced your freezer. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products LLC

10880 NW 30 Street

Miami, FL 33172 USA

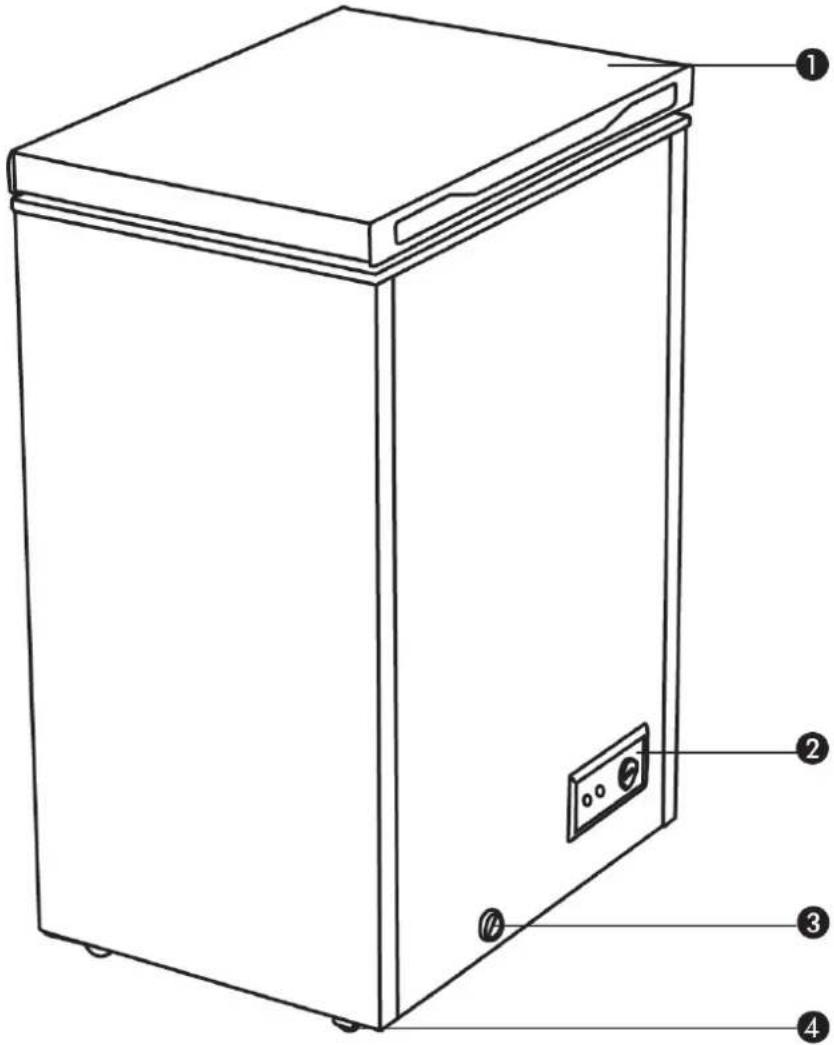

PARTS & FEATURES

1 COUNTER BALANCED LID
2 TEMPERATURE CONTROL
3 DRAIN PLUG
4 ROLLERS

CHEST FREEZER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the wards" DANGER", "WARNING" or "CAUTION".

! DANGER !

WARNING

CAUTION

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

REFRIGERANT GAS WARNINGS

Before the chest freezer is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the chest freezer, follow basic precautions, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord
• Replace all panels before operating
• It is recommended that a separate circuit, serving only your chest freezer, be provided. Use receptacles that cannot be turned off by a switch or pull chain
• Never clean chest freezer parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet
• Unplug the chest freezer or disconnect the power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your chest freezer unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

WARNING

• Use two or more people to move and install the chest freezer. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your chest freezer, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 55^0F (13^0C) and below 90^0F (32^0C) . This unit must be installed in an area protected from the elements, such as wind, rain, water spray or sunlight.
• The chest freezer should not be located next to ovens, grills or other sources of high heat.
• The chest freezer must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of the chest freezer.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the chest freezer to be leveled in order to work properly. You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the chest freezer
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your freezer, follow these basic precautions:

Read all instructions before using the freezer.DANGER or WARNING:Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned freezer are still dangerous, even if they will “just sit in the garage a few days.”Before you throw away your old freezer:Take off the doors. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the freezer.Never clean freezer parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other freezer. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Freezer

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

■ 1 Storage Basket
1 Instruction Manual
■ 1 Plastic Scraper

• Before connecting the freezer to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

Installing Your Freezer

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded.
- Allow 5 inches of space between the back and sides of the freezer, which allows the proper air circulation.
- Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the freezer not to perform properly.
- Avoid locating the freezer in moist areas.
- Plug the freezer into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
- After plugging the appliance into a wall outlet, allow the unit to cool down for 2\~3 hours before placing food in the freezer compartment.

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

• Your freezer has one control for regulating the temperature. The temperature control is located on the lower right hand corner.
• The first time you turn the unit on, switch the temperature control to the position number 7 and run for at least 2 hours before putting frozen foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.
• The range of the temperature control is from position "1" the warmest to "7" the coldest. Adjust the temperature control to the setting that best suits your needs. The setting of "4 or 5" should be appropriate for home or office freezer use.
  • To turn the freezer off, unplug the unit from the electrical outlet.

NOTE:

• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the freezer will not start.
  • Large amounts of food will lower the cooling efficiency of the appliance.
• If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.

Defrosting Your Freezer

• When? For the most efficient operation and minimum energy consumption, defrost the freezer when the frost on the freezer walls is excessive or 14 to 12 inch thick.
• Choose a time when the stock of frozen food is low.

CAUTION

Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp or metallic instrument to remove frost as it may damage the cooling coils and will void the warranty. We recommend using the plastic scraper provided with your unit.

• Remove the frozen food from the freezer and place it in a cooler to protect the food.
  • Unplug the freezer. The Power Supply light should be off (red light out).
• During defrosting, the ice melts into the cabinet.
• Remove the drain plug on the inside floor of the freezer by pulling straight out.
• Place a shallow pan outside drain outlet. The defrost water will drain out.
• Check the pan occasionally so the water does not overflow.
• Clean the interior of the freezer.
• Replace the plug on the inside floor.
• Reset the thermostat to desired setting.
• Allow the cabinet to cool for two hours.
• Return food to the freezer.

HELPFUL HINT:

Defrosting usually takes a few hours. Leaving the door open will help speed the process. Also, pouring warm water (not boiling) on the ice/frost will help speed melting. If you must use a scraper- please use caution - it is very easy to damage the freezer compartment and void your warranty.

The Freezer Compartment

• This compartment is designed for the long-term storage of frozen food. Storage time is up to three months.
• The storage life of frozen foods varies and the recommended storage time should not be exceeded. The instructions regarding the care of frozen foods should be followed when defrosting the freezer.
• Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer's instructions for a three star frozen food storage compartment or home freezer.
• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.
• The freezer door is susceptible to breaking due to excessive ice build up. Be sure to defrost when the ice reaches 14 to 12 inch thick.
• A storage basket is provided for the organization of odd-shaped items. To reach other packages in the freezer, just slide the basket to one side, or lift it out.

CARE AND MAINTENANCE

Cleaning Your Freezer

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn the thermostat knob to "1", unplug the freezer, remove the food and storage basket.
• Wash the inside with a damp warm cloth containing a water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the storage basket with a mild detergent solution.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the freezer should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.
• The condenser coils should be vacuumed when they are dusty or dirty.
• It is recommended that the unit be cleaned each time it is defrosted to help keep the unit odor free and running efficiently.

Vacation Time

• Remove all the food.
• Unplug the freezer.
• Clean the freezer.
• Leave the door open slightly to avoid possible formation of condensation, mold, or odors.
• Use extreme caution in the case of children. The unit should not be accessible to child's play.
• Short vacations: Leave the freezer operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

Moving Your Freezer

• Remove all the food.
• Securely tape down all loose items inside your freezer.
• Remove the rollers to prevent damage.
• Tape the doors shut.
• Be sure the freezer stays in the upright position during transportation.

Energy Saving Tips

• The freezer should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer.
• Freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

PROBLEMS WITH YOUR FREEZER

You can solve many common freezer problems easily, saving you the cost of a possible service call.

Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Freezer does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The thermostat knob is at "1".
Compressor turns on and off frequently.	The room temperature is hotter than normal.A large amount of food has been added to the freezer.The door is open too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The freezer does not have the correct clearances.The freezer has recently been disconnected for a period of time. Four hours are required for the freezer to cool down completely.
Temperature inside the freezer is too warm.	Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the freezer every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the freezer has had a chance to reach its selected temperature.The freezer has recently been disconnected for a period of time. Four hours are required for the freezer to cool down completely.
Temperature inside the freezer is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.Fast Freeze switch is turned on. This causes continuous running of the compressor and bypasses the temperature control.
Temperature of external freezer surface is warm.	The exterior freezer walls can be as much as 30°F warmer than room temperature. This isnormal while the compressor works to transfer heat from inside the freezer cabinet.
Popping or cracking sound when compressor comes on.	Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will level off or disappear as freezer continues to run.
Bubbling or gurgling sound, like water boiling.	Refrigerant (used to cool freezer) is circulating throughout the system. This is normal.
Vibrations.	Check to assure that the freezer is on a level surface.Floor is uneven or weak. Freezer rocks on the floor when it is moved slightly. Be sure floor can adequately support freezer. Level the freezer by putting wood or metal shims under part of the freezer.The freezer is touching the wall. Re-level the freezer and move it from the wall.See “Installation Instructions”.
Moisture forms on inside freezer walls.	Weather is hot and humid, which increases internal rate of frost build-up. This is normal. Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on outside of freezer.	Door is slightly open, causing cold air from inside the freezer to meet warm moist air from outside.
The door will not close properly.	The freezer is not on a level surface.The gasket is dirty.The storage basket is out of position.

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti freezers. With the purchase of your Avanti freezer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your freezer inside and out.

WIRING DIAGRAM

YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTYFor the second through the fifth year from the date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the product to the service center and back to the user's home, as maybe required, are the user's responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to spoilage.Incidental or consequential damagesParts and labor costs for the following will not be considered as warranty:Chest freezer lid liners.Plastic cabinet liners.Punctured evaporator that voids the warranty on the complete sealed system.	Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.WARRANTY - REFRIGERATION - COMPRESSOR

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC.

P.O.Box 520604 – Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name			Model #	Serial #
Address			Date Purchased	Store / Dealer Name
City	State	Zip	E-mail Address
Area Code	Phone Number		Occupation
Did You Purchase An Additional Warranty			As your Primary Residence, Do You:
☐ Extended☐ None			☐ Own ☐ Rent
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:			Your Age:
			☐ under 18 ☐ 18-25 ☐ 26-30☐ 31-35 ☐ 36-50 ☐ over 50Marital Status:☐ Married ☐ Single
☐ Price☐ Product Features☐ Avanti Reputation☐ Product Quality☐ Salesperson Recommendation☐ Other: ____☐ Friend / Relative Recommendation☐ Warranty☐ Other: ____			Is This Product Used In The:☐ Home ☐ BusinessHow Did You Learn About This Product:☐ Advertising☐ In-Store Demo☐ Personal Demo

Comments:

CF24Q0W - 08282015

PRINTED IN CHINA
