Product Type	Air Purifier
Model	A231 / A230
Dimensions (W x D x H)	9.5 in x 9.5 in x 14.6 in
Weight	6.75 lbs
Power Supply	AC 120 V / 60 Hz
Power Consumption	55 W
Room Size Coverage	230 sq. ft.
Filtration Stages	4-Stage: Fine Mesh Pre-Filter, True HEPA Filter, Activated Carbon Filter, PlasmaWave
Filter Type	360° All-in-One True HEPA Filter
Replacement Filter SKU	1712-0110-00
Fan Speeds	Auto, Low, Medium, High
Auto Mode	Yes, adjusts fan speed based on air quality
Sleep Mode	Yes, minimum fan speed, disables lights and PlasmaWave
Air Quality Indicator	Red (poor), Amber (fair), Blue (good)
PlasmaWave Technology	Yes, can be enabled/disabled
Filter Life (True HEPA)	Approx. 12 months
Pre-Filter Cleaning Interval	Every 14 days
Filter Replacement Indicator	Yes, LED alerts when to replace
Warranty	2 years (USA and Canada)
Package Contents	Unit, 360° All-in-One True HEPA Filter, User Manual

Frequently Asked Questions - A231 Winix

How often should I replace the filter?

The 360° All-in-One True HEPA Filter should be replaced approximately every 12 months. The Check Filter indicator light will illuminate when it is time to replace.

Can I wash the True HEPA filter?

No, the True HEPA filter cannot be washed. Washing will damage it. Only the Pre-Filter can be cleaned with a vacuum or soft brush.

How do I clean the air purifier?

Unplug the unit. Wipe the exterior with a soft damp cloth using room temperature water, then dry. For the interior, turn the unit upside down, remove the filter cover, and vacuum the interior. Clean the Pre-Filter every 14 days with a vacuum or soft brush.

How do I reset the filter replacement indicator?

After replacing the filter, use a paper clip or small object to press and hold the Filter Reset Button for at least 5 seconds until the Filter Replacement Indicator turns off.

What does the Air Quality Indicator color mean?

The indicator shows three levels: Red (poor air quality), Amber (fair), and Blue (good). The sensor takes about 4 minutes to detect air quality after powering on.

Can I use the air purifier 24/7?

Yes, the unit is designed for continuous use. It features Auto Mode which adjusts fan speed automatically, and Sleep Mode for quiet operation at night.

What is PlasmaWave technology and is it safe?

PlasmaWave is a technology that helps reduce airborne pollutants. It can be enabled or disabled via the PlasmaWave button. It is safe and produces a chirping or buzzing sound during operation, which is normal.

What is the recommended placement?

Place the unit on a hard, flat surface away from direct sunlight. Leave 12-18 inches of space from walls, TVs, and other electronics to avoid interference. Do not block intake or outlet vents.

Is the air purifier energy efficient?

Yes, this model is ENERGY STAR certified. Its energy efficiency is measured by the ratio of CADR for smoke to power consumption (CADR/Watt).

What is covered under the warranty?

The product comes with a two-year warranty valid in the USA and Canada. The warranty covers defects but is void if damage results from misuse or negligence. A proof of purchase is required.

USER MANUAL A231 Winix

PACKAGE CONTENTS

Unit

360° All-in-One True HEPA Filter

User Manual

WHERE TO USE

Allow 12 \~ 18 in. of space between TVs, radios, and other electronics Electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sunlight

Direct exposure may cause product malfunction or failure. Only place on hard, flat surfaces

Flimsy or slanted surfaces may result in abnormal noise and vibrations.

Allow 12 \~ 18 in. from walls

For maximum air flow.

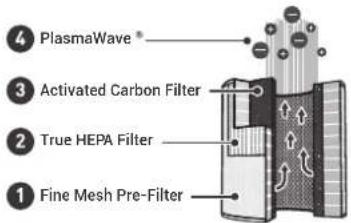

4-STAGE

AIR PURIFICATION

Air Purification means it removes inanimate particles

INITIAL OPERATION

1. Turn the product upside down.
2. Grab the handle at the bottom of the product, turn counter-clockwise, and pull out the filter cover.
3. Remove the protective vinyl from the filter installed inside the product.
4. Install the filter top side down into the bottom of unit until it is fully inserted. The top of the filter shows the opening and the bottom of the filter is solid.
5. After installing the filter, turn the handle clockwise to close the filter cover.
6. Return the product to an upright position and resume normal operation.

MAINTENANCE

When to Replace Filters

Filter Indicator Light When to Service When to Replace
360° All-in-OneTrue HEPA Filter	Check Filter	Clean once every 14 days	Lasts Approx. 12 months

• When the Check Filter indicator LED is on, it is time to replace the All-in-One True HEPA Filter.
• Intervals between filter replacement may vary depending on environment.

REPLACING FILTERS

Resetting Filter Life:

After replacing the 360° All-in-One True HEPA Filter, use a small object such as a paper clip, to press and hold the Filter Reset Button for at least 5 seconds until the Filter Replacement Indicator turns off.

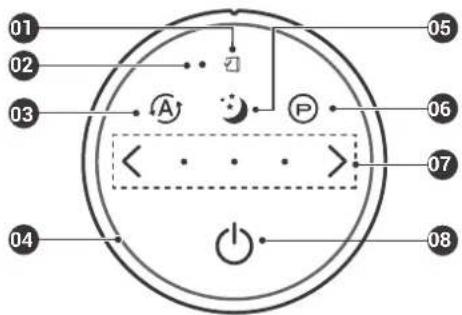

CONTROL PANEL

1. Filter Replacement Indicator

LED light indicates when it is time to change the filter.

1. Filter Reset Button

After replacing the 360° All-in-One True HEPA Filter, use a small object such as a paper clip, to press and hold the Filter Reset Button for at least 5 seconds until the Filter Replacement Indicator turns off.

1. Auto Mode Button

The unit will default to Auto with PlasmaWave ^® enabled when first powered on.

• Auto Mode automatically adjusts fan speeds according to your indoor air quality. The fan speed will adjust to low when air quality is good, medium when fair, and to high when poor.

1. Air Quality Indicator

Color coded LED light indicates one of three levels of Air Quality:

Red (poor), Amber (fair), and Blue (good).

1. Sleep Mode Button

When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.

• Fan speed will automatically set to minimum speed (lower than 'Low') which will be nearly silent.

• When Sleep Mode is active, PlasmaWave ^€ will be disabled, but it can be turned back on.

• PlasmaWave ^E Button

Enables or disables PlasmaWave ^®

"When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave ^9 , it is normal and does not signify product failure." Press the PlasmaWave ^6 Technology button when the unit is on to enable or disable this feature.

1. Fan Speed Indicator Buttons

Indicates the current fan speed.

- Use the Fan Speed arrow buttons to set the desired fan speed. Fan speeds cycle over in this sequence: Auto, Low, Medium, High, Auto.

1. Power Button

Turns the unit on or off. During the first 30 seconds of power, the Air Quality Indicator will cycle through Blue, Amber and Red colors.

- Smart Sensor takes approximately 4 minutes to detect the air quality in the environment before normal operation begins.

CLEANING CARE

Cleaning the Filters:

Clean with a vacuum or a soft brush.

• Only clean the Pre-Filter.
  • This filter CAN NOT be washed.
• Intervals between filter cleaning may vary depending on the air quality.

Cleaning the Exterior & Interior:

Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth. After turning the product upside down, remove the filter cover and clean the interior with a vacuum cleaner.

- For optimal performance, clean every 14 days.

NOTICE

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
  • Before cleaning or maintaining, ensure unit is unplugged
• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.

UNIT SPECIFICATIONS

Model Name A231 / A230 Dimensions			9.5 in(W) x 9.5 in(D) x 14.6 in(H)
Power Voltage	AC 120 V / 60 Hz	Weight 6.75 lbs
Power Rate	55 W	Replacement Filter	FILTER O/SKU: 1712-0110-00
Verified Room Size	230 sq.ft.

The exterior, design, and product specifications may be changed without prior notice to improve product performance.

Contact Winix for product related inquiries and customer service

• Dedicated Call Center [phone]
Website: www.winixamerica.com

To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address.

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions.

Ensure filters are inserted before running unit. Running the unit without filters may shorten the lifespan of the unit and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit.

Objects can include pins, rods, and coins. Do not touch any part of the interior of the unit with wet hands.

The high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked.

Blockage may lead to increased internal temperatures, causing product failure and deformation.

Do not use the unit as a step stool or place heavy objects on it.

Personal injury may occur or product failure and deformation.

When turning the product upside down, install the filter with care in the direction that the bottom (blocked) side of the filter is visible from the top. If the filter direction is not installed properly, it may cause product damage and user injury.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

- If the power cord is damaged, it must be replaced with a special cord. Assembly available from the manufacturer or its service agent.

• This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- This unit is not intended to be used to preserve documents or in art conservation.

Do not pull on the power cord when unplugging the unit.
Do not tie or knot the power cord when unit is in operation.
If the unit becomes submerged in water, unplug it and contact customer service.
Do not unplug or move the unit while in operation.
Do not plug additional appliances into the same outlet or power supply.
Do not touch the plug with wet hands.
Unplug the unit when not in operation for extended periods of time.
Do not place around heating elements.
Do not use around mist or fumes from industrial oil or around large quantities of metallic dust.
The cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it.
Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.).
Do not place in an area with excessive amounts of noxious gases.
Do not place near any flammable materials (aerosols, fuel, gases, etc.).
Do not have the unit facing into wind or drafts.
Do not place below any electrical outlet.
Do not place in excessively humid areas where the unit may become wet.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
Do not place unit closer than 12 inches from the wall during operation. It may cause condensation on the wall and the surrounding area.

TWO YEARS WARRANTY

The terms of the warranty are as follows.

1. This product is manufactured under stringent quality control and inspections.

2. The warranty will be voided if product failure is a result of negligence or misuse by the consumer.

3. A proof of purchase must be presented upon claiming a Product Warranty.

4. Store the proof of purchase in a safe place or register your product on winixamerica.com to upload your proof of purchase.

5. This warranty is valid only in the USA and Canada.

* for more information visit https://winixamerica.com/terms-and-conditions/

Product Name		Air Purifier
Model Name		A231 / A230
Purchase Date
Warranty Period		Two (2) Years
Place of Purchase
Place of Purchase tel.
Customer	Address
	Name
	Tel.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or on experienced radio / TV technician for help.

This device contains license-exempt transmitter(s) / receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions:

• This device may not cause interference.

- This device must accept any interference, including interference that may cause undesired operation of the device.

Thank you for purchasing a Winix air purifier. This product is for household use only.

IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER

WARNING:

Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.

- Do not repair or modify the unit. All repairs should be completed by a qualified technician.

- The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet. Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.

- Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.

- Use AC 120 V only.

- Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.

- Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up.

- Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.

- If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.

- Remove the power plug from the outlet when not in use.

- Do not handle the power plug with wet hands.

- Do not operate the unit when using indoor smoke-generating insecticides.

- Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.

- Do not use the unit where it is humid or where the unit may become wet, such as the bathroom.

- Do not insert fingers or foreign objects into air intake or outlet.

- Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.

- Unit will not remove carbon monoxide emitted from heating appliances or other sources.

IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER

- Do not block the intake or outlet vents.

- Do not use near hot objects, such as a stove.

- Do not use where the unit may come into contact with steam.

- Do not use the unit on its side.

- Keep away from products that generate oily residue, such as a deep fryer.

- Do not use detergent to clean the unit.

- Do not operate without a filter.

- Do not wash and reuse the True HEPA Filter.

- Hold the handle on the back of the unit to transport.

- Do not hold by the front panel.

- Do not stick any small objects in the air outlet vents or fan.

WINIX

AIR PURIFIER

Line drawing of a WINIX brand speaker with perforated grille and circular pattern (no text or symbols)

A231 / A230 USER MANUAL

Intertek

Independently Tested Consumer Trusted.

The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for smoke and the electrical energy it consumes, or CADR/Watt.

• The product warranty is printed on the back of this guide. This product is manufactured for use only in USA / CA. This product is suitable for 120 V only.
