Product Type	Compact Refrigerator
Brand	Magic Chef
Model	MCBR240
Capacity	2.4 cu. ft.
Dimensions (W x H x D)	17.5" x 20.1" x 24.8"
Net Weight	39.7 lbs
Power Supply	115V~ / 60Hz
Temperature Control	Manual dial (MIN to MAX, OFF position)
Cooling System	Compressor-based
Refrigerant	Flammable (type not specified)
Defrost Type	Manual (when frost reaches 1/8")
Interior Shelves	1 adjustable glass shelf, 1 steel wire shelf
Door Storage	Small door compartment
Ice Cube Tray	Included
Drip Tray	Included for defrost
Leveling Legs	2 front adjustable legs
Door Reversal	Reversible (instructions provided)
Installation Type	Freestanding only
Clearance Required	5" (12.7 cm) on back and sides
Ambient Temperature Range	50°F to 85°F (10°C to 30°C)
Warranty	1 year parts and labor, 5 years compressor (parts only)
Safety Features	Child entrapment warnings, flammable refrigerant precautions

Frequently Asked Questions - MCBR240 Magic Chef

How do I adjust the temperature on my Magic Chef MCBR240?

The temperature control is a manual dial located at the top left inside the refrigerator. Turn it from MIN (warmest) to MAX (coldest). The recommended setting for normal use is MED. To turn off cooling, set the dial to OFF. Allow several hours for temperature to stabilize after adjustment.

How do I defrost the refrigerator?

Defrost when frost on the freezer wall reaches 1/8" (3 mm). Remove food and the ice cube tray, ensure the drip tray is in place, and unplug the unit. Keep the door open; defrost usually takes a few hours. For faster defrosting, place a bowl of warm water inside. After defrosting, empty and wash the drip tray. Never use sharp or metallic instruments to remove frost as they may damage the cooling coils.

Why is my refrigerator making unusual noises?

Common sounds include:
- Popping or cracking: normal expansion/contraction of metal parts when the compressor runs.
- Bubbling or gurgling: normal refrigerant circulation.
- Vibrations: ensure the refrigerator is level and not touching the wall. Adjust the leveling legs if needed.

Can I reverse the door opening direction?

Yes, the door is reversible. You will need a cross-bladed screwdriver and assistance. Follow the steps in the manual: remove the plastic hinge cover, unscrew the bottom bracket, slide the door off, move the top hinge to the opposite side, reinstall the door and bottom hinge, and adjust the leveling legs. Caution: tilt the appliance backward, do not lay it flat to avoid damaging the coolant system.

How should I clean my refrigerator?

Unplug the refrigerator and remove all food. Wash the interior with a solution of 2 tablespoons of baking soda in 1 quart of warm water. Clean the exterior with mild detergent and warm water. Dry with a soft cloth. Keep the door gasket clean to ensure proper sealing.

What clearances are needed for installation?

Allow at least 5 inches (12.7 cm) of space on the back and sides for proper ventilation. Place the refrigerator on a strong, level floor away from direct sunlight and heat sources. The ambient temperature should be between 50°F and 85°F. This unit is for freestanding use only; do not install in recessed or built-in areas.

What should I do when going on vacation?

For short vacations (less than 3 weeks), leave the refrigerator running. For long vacations, remove all food, unplug the unit, clean and dry the interior, and leave the door slightly open (block it open if necessary) to prevent mold and odors. Keep children away to avoid risk of entrapment.

Why is frost building up inside the freezer?

Frost buildup is normal and increases in hot, humid weather or if the door is opened frequently or left open. Ensure the door is fully closed and the gasket is sealing properly. If frost exceeds 1/8", defrost as instructed. Overloading or storing hot foods can also contribute.

Is the refrigerator safe for use around children?

The manual includes warnings about child entrapment. Never allow children to play with, operate, or crawl inside the refrigerator. Before discarding an old refrigerator, remove the doors and leave shelves in place to prevent children from climbing inside.

What is the warranty coverage for the MCBR240?

MC Appliance Corporation provides a one-year warranty covering parts and labor from the date of purchase. The compressor (parts only) is covered for five years. The consumer is responsible for labor and transportation after the first year. A dated sales receipt is required for service. The warranty applies to use in the contiguous US, Alaska, Hawaii, and Puerto Rico.

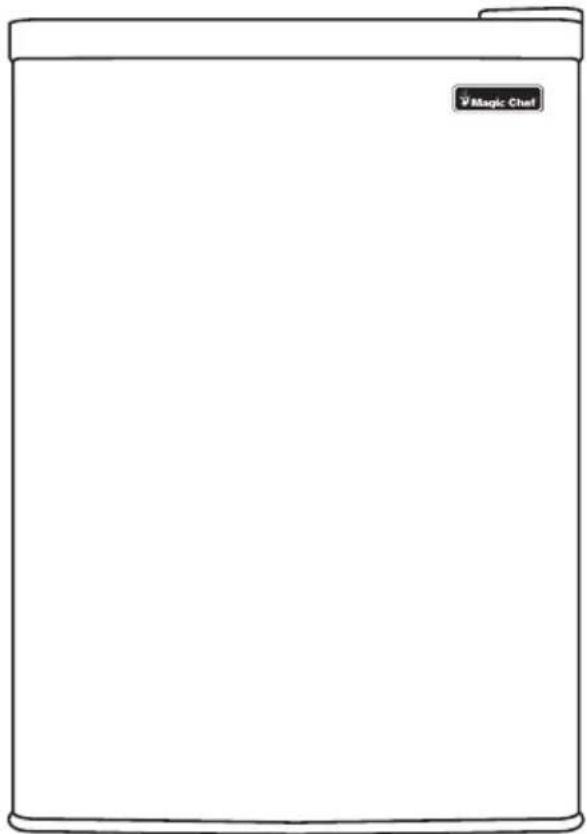

USER MANUAL MCBR240 Magic Chef

2.4 Cu. Ft.

Compact Refrigerator

User'sManual

Product Registration

Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef® product.

WARNING

To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your refrigerator.

1) WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2) WARNING----Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3) WARNING----Do not damage the refrigerant tubing to increase the risk of a leak when handle, move and use of refrigerator.
4) WARNING----Do not use electrical appliances inside the food storage compartments of the appliances, unless they are of the type recommended by the manufacturer.
5) WARNING----DANGER: Never allow children to play with, operate, or crawl inside the refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors
- Leave the shelves in place so that children may not easily climb inside.

6) The appliance has to be unplugged before carrying out user maintenance on the appliance.

7) This appliance can be used by children age 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and maintenance should not be made by children without supervision.

8) If the component part is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

9) Please abandon the refrigerator according to local regulations as the unit contains flammable blowing gas and refrigerant.

10) Follow local regulations regarding disposal of the appliance due to flammable refrigerant and blowing gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.

11) This appliance is intended to be used in household and similar environments; such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

12) Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity of refrigerator.

13) Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension can negatively affect the unit's performance.

Caution: risk of fire

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED SERVICE PERSONNEL TO CARRY OUT SERVICES OR REPAIRS INVOLVING THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

TABLE OF CONTENTS

NAMES OF THE PARTS.... 2

SPECIFICATIONS.... 3

IMPORTANT SAFETY INSTRUCTIONS.... 4

INSTALLATION INSTRUCTION

MAKING THE ICE CUBES.... 6

HOW TO DEFROST.... 7

ASSEMBLING LEGS.... 7

DOOR REVERSAL INSTRUCTION 8

CARE AND MAINTENANCE

CLEANING YOUR REFRIGERATOR.... 10

VACATION TIME.... 10

MOVING YOUR REFRIGERATOR.... 10

ENERGY SAVING TIPS.... 10

TROUBLESHOOTING GUIDE.... 11

REFRIGERATOR WARRANTY.... 12

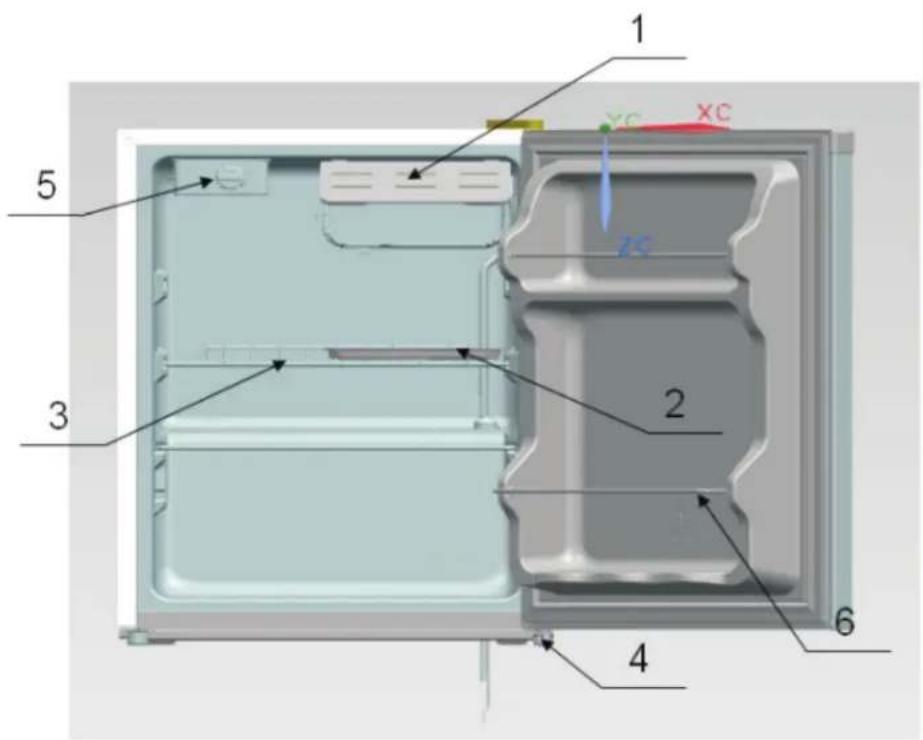

1. Small door

2. Pan, drain

3. Steel wire shelf

4. Leveler, leg

5. Thermostat

6. Wire steel bar

Refrigerating chamber

• The Refrigerating Storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

WARNING

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frost bite.

SPECIFICATIONS-Model#MCBR240W1.B1.S1.C

Product Description	Magic Chef 2.4 cu.ft. Refrigerator
Model No. MCBR240W1.B1.S1.C
Capacity 2.4 Cu. Ft.
Unit Dimensions(inches)	Width Height Depth
	17.5" 20.1"24.8"
Net Weight (Ibs) 39.7 (Ibs)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

Read all instructions before using the refrigerator.DANGER or WARNING:Risk of child entrapment.To avoid the possibility of child entrapment, please take the following precautions before throwing out the refrigerator.Remove all doors from the unit.Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator.Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or an explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 9)

Installing Your Refrigerator

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded.
- Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air ventilation. Adjust the feet to keep the refrigerator level.
- Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50^ F or above 85^ F will hinder the performance of this appliance. This unit is not designed for use in a garage or any other outside installation.
- Avoid locating the refrigerator in moist areas.
- Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter.
- After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 2\~3 hours under before placing food in the refrigerator or freezer compartment.

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115V\~ / 60Hz electrical outlet with three-prong ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with a representative at 888 775-0202 or visit our website to request warranty service at www.mcappliance.com.

DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing

CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed

CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used

CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used

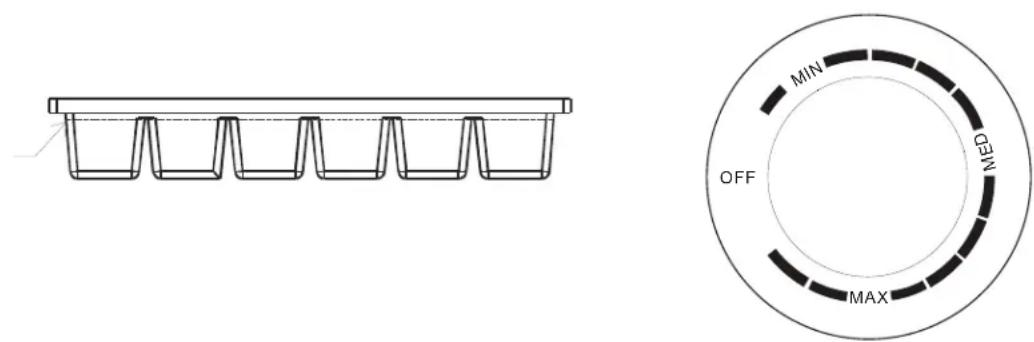

• Your refrigerator has one control for regulating the temperature. The temperature control is located on the top left hand corner of the refrigerator compartment
• The first time you turn the unit on, adjust the temperature control knob to "MAX" and run for at least 2 hours before putting foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.
• The range of the refrigerator temperature control is from position "MIN" the warmest to "MAX" the coldest. Adjust the temperature control to the setting that best suits your needs. The setting of "MED" should be appropriate for home or office refrigerator use.
• To turn off the refrigerator, please turn the temperature control knob to "OFF". Please note that turning the temperature control knob to "OFF" position stops the cooling cycle, but does not disconnect the power supply to the refrigerator

NOTE

• If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
  • Large amounts of food will lower the cooling efficiency of the appliance.
• Do not place the foods on the air outlet, and leave spaces for airflow.
• If you choose to change the thermostat setting, adjust thermostat control by one increment at a time. Allow several hours for temperature to stabilize between adjustments.

Making the Ice Cubes

Take out the ice cube tray and fill the tray to 80% capacity with drinkable water. Put the ice cube tray back into the freezer compartment and close the door.

• Turn the temperature control knob to "MAX".
  • Wait for approximately two to five hours.
  • Twist the ice cube tray and release the ice cubes.
• Reset the temperature control knob to the normal recommended setting. ("MED")

AssemblingLegs

• Your refrigerator has two leveling legs which are located in the front bottom corners of your refrigerator. After properly placing your refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. The refrigerator door will close easier when the leveling legs are extended.

HowtoDefrost

Defrost whenever frost on the wall of the freezer compartment becomes 1/8" thick. Never us a sharp or metallic instrument to remove frost as it may damage the cooling coils. (A punctured cooling coil will cause serious damage to the product and will void the warranty). We recommend using a plastic scraper. To defrost, remove foods and ice cube tray from the freezer compartment. Make sure the drip tray is in place and unplug the unit. Defrosting usually takes a few hours. To defrost faster, keep the door open and place a bowl of warm water in the refrigerator. After defrosting, empty water from the drip tray and wash the drip tray in warm water.

Door Reversal Instruction

Caution: To avoid injury to yourself and/or property, we recommend someone assist you during the door reversal process.

- Ensure the appliance is unplugged and empty.

- Adjust the two leveling feet to their highest position.

•We recommend you have someone to assist you.

Tools required

• Cross-bladed screw driver

NOTE:

To take the door off it is necessary to tilt the appliance backward. You should rest the appliance on something solid e.g. a chair just below the top panel so you can access the bottom of the refrigerator.

DO NOT lay the appliance completely flat as this may damage the coolant system.

1

Simple line drawing of a mechanical lever or pivot (no text or symbols)

Remove the plastic covering from the top door hinge.

2

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Unscrew the three screws from the bottom bracket. Remove the foot from opposite side.

3

Illustration of screwdrivers, a plastic bottle, and a mechanical component (no text or symbols)

Place to one side. Slide the Appliance door down about

4

Line drawing of a mechanical component with two mounting holes and a flat edge (no text or symbols)

15cm and off the
Top hinge pin and lift away from the Appliance.

5

Pure mechanical linkage diagram without any text, numbers, or symbols

Remove the two screws from top bracket and replace on the other side. You will need to first remove the plastic caps from the other side.

6

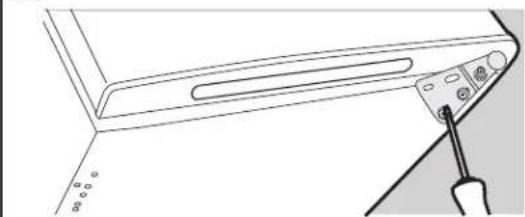

Line drawing of a computer monitor with a screwdriver inserted, showing no text or symbols

Slide the Appliance door back on to the Top hinge, making sure it's the right way up. Screw the bottom hinge into place on the new side. Replace the other foot on the other side. Replace the plastic covering by clicking back into position on the door hinge.

7

Simple line drawing of a hexagonal prism with a horizontal line inside, no text or symbols present.

Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge.
Re-adjust the levelling feet.

CARE AND MAINTENANCE

Cleaning Your Refrigerator

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all food content.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the refrigerator should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.

Vacation Time

• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all the food.
• Clean the refrigerator.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
• Use extreme caution in the case of children. The unit should not be accessible to child's play.
• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

Moving Your Refrigerator

• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Tape the doors shut.
• Be sure the refrigerator stays in the upright position during transportation.

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

TROUBLESHOOTING GUIDE

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

PROBLEM POSSIBLE CAUSE
Refrigerator does not operate. Not frequently.	plugged in.The circuit breaker tripped or a blown fuse.
	The room temperature is hotter than normal.A large amount of food has been added to the refrigerator.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely.
Temperature inside the refrigerator is too warm.	Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has had a chance to reach its selected temperature.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely.
Temperature inside the refrigerator is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
Temperature of external refrigerator surface is warm.	The exterior refrigerator walls can be as much as 30F warmer than room temperature. This is normal while the compressor works to transfer heat from inside the refrigerator cabinet.
Popping or cracking sound when compressor comes on.	Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will level off or disappear as refrigerator continues to run.
Bubbling or gurgling sound, like water boiling.	Refrigerant (used to cool refrigerator) is circulating throughout the system.This is normal.
Vibrations. Check to assure that	the refrigerator is on a level surface.Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Be sure floor can adequately support refrigerator. Level the refrigerator by putting wood or metal shims under part of the refrigerator.The refrigerator is touching the wall. Re-level the refrigerator and move from the wall.See “Installation Instructions”.
Moisture forms on inside refrigerator walls.	Weather is hot and humid, which increases internal rate of frost build-up. This is normal.Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on outside of refrigerator.	Door is slightly open, causing cold air from inside the refrigerator to meet warm moist air from outside.
The door will not close properly.	The refrigerator is not on a level surface.The gasket is dirty.

Limited Warranty

MC Appliance Corporation warrants each new Compact Refrigerator to be free from defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at the company's option, for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. A copy of the dated sales receipt or invoice is required to receive warranty service, replacement or refund.

In addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material and workmanship for a period of five years. The consumer is responsible for all labor and transportation expenses related to the diagnosis and replacement of the compressor after the initial one-year warranty expires. In the event the unit requires replacement or refund under the terms of this warranty, the consumer is responsible for all transportation expenses to return the unit to our factory prior to receiving a replacement unit or refund. A copy of the dated sales receipt/invoice is required to receive warranty service, replacement or refund.

This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii and Puerto Rico. This warranty does not cover the following:

• Damages due to shipping damage or improper installation.
• Damages due to misuse or abuse.
• Content losses due to failure of the unit.
  • Inside components such as door panels, door shelves, racks, light bulbs, etc.
  • Repairs performed by unauthorized service agents.
  • Service calls that do not involve defects in material and workmanship such as instructions on proper use of the product or improper installation.
• Replacement or resetting of house fuses or circuit breakers.
• Failure of this product if used for other purposes than its intended purpose.

• Disposal costs for any failed unit not returned to our factory.
• Any delivery/installation costs incurred as the result of a unit that fails to perform as specified.
- Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician is not available.
- The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
• Refunds for non repairable products are limited to the price paid for the unit per the sales receipt.
• This warranty is non transferable. This warranty applies only to the original purchaser and does not extend to any subsequent owner(s).

Limitations of Remedies and Exclusions:

Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.

Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Model Parts & Labor

Compressor (Parts Only) Type of Service

MCBR240W1 One Year Five Years Carry In

MCBR240B1 One Year Five Years Carry In

MCBR240S1 One Year Five Years Carry In

MCBR240C One Year Five Years Carry In

For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service or order parts.

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Illustration of screw fasteners and a mechanical component (no text or symbols)

Deje a un lado.

4

Line drawing of a laptop keyboard with key points (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Line drawing of a device panel with a tool inserted, showing no text or symbols

Simple line drawing of a hexagonal container with a handle and side gap (no text or symbols)

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef® logo is a registered trademark of CNA International, Inc.

www.mcappliance.com Printed in China
