Product Type	High-Speed HDMI 4K Cable
Model	P568-010-WH
Cable Length	10 ft (3 m)
Color	White
Connector Type	HDMI Male to HDMI Male
Video Resolution	Up to 3840 x 2160 (4K x 2K) @ 30 Hz
Data Transfer Speed	Up to 18 Gbps
HDMI Specification	1.3
HDCP Compliance	2.2
Conductor Gauge	30 AWG
Shielding Type	Premium Foil and Braid
Connector Plating	Gold-plated
Jacket Material	Flexible PVC
Strain Relief	Integral, Molded
Operating Temperature	32 to 113 °F (0 to 45 °C)
Storage Temperature	-40 to 176 °F (-40 to 80 °C)
Operating Humidity	10 to 85% RH
Storage Humidity	5 to 90% RH
Warranty	Lifetime Limited
Supported Features	Ultra HD 4K, Multi-channel Audio, iPad2 Video Mirroring (with adapter)

Frequently Asked Questions - P568-010-WH Tripp Lite

What is the maximum video resolution supported by the P568-010-WH?

The cable supports Ultra HD 4K x 2K (3840 x 2160) at 30 Hz.

Is this cable compatible with older HDMI devices?

Yes, it is backward compatible with previous HDMI generations, though older devices may not support 4K resolution.

What is the cable length?

The cable is 10 feet (3 meters) long.

Can I use this cable for Apple devices?

When used with an Apple Digital AV Adapter, it supports iPad2 video mirroring for playing games, watching videos, or presentations.

Does the cable support audio?

Yes, it supports multi-channel audio over HDMI.

What is the color of the cable?

The cable is white, suitable for discreet installation.

Is the cable shielded?

Yes, it features premium foil and braid shielding to protect against EMI/RFI noise.

What warranty does Tripp Lite provide?

This product comes with a lifetime limited warranty from Tripp Lite.

Is the connector gold-plated?

Yes, the connectors are gold-plated for maximum conductivity and corrosion resistance.

What is the HDMI specification version?

The cable complies with HDMI 1.3 and supports HDCP 2.2 for 4K content protection.

USER MANUAL P568-010-WH Tripp Lite

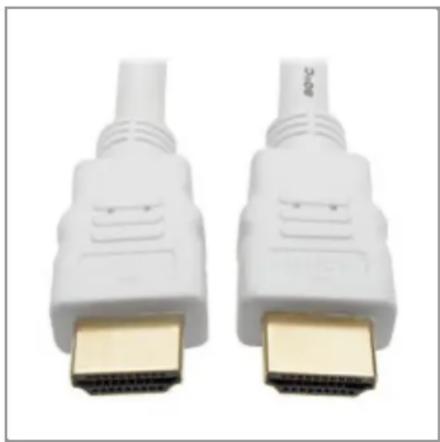

High-Speed HDMI 4K Cable with Digital Video and Audio, Ultra HD 4K x 2K @ 30 Hz (M/M), White, 10 ft.

MODEL NUMBER: P568-010-WH

Highlights

• Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
  • Supports data transfer speeds up to 18 Gbps
• Complies with HDCP 2.2 standards
• Premium foil and braid shielding protects against EMI/RFI noise
• Gold-plated white connectors for optimal signal transfer

Package Includes

• P568-010-WH High-Speed HDMI 4K Cable (M/M), White, 10 ft.

Description

The P568-010-WH High-Speed HDMI 4K Cable (M/M) is recommended for digital signage, video presentations, point-of-sale displays, classrooms and other applications that display Ultra High Resolution (UHD) video and multi-channel audio. It connects 4K-enabled source devices, such as computers and Blu-ray players, to 4K-enabled displays, such as monitors, projectors and televisions.

This cable supports video resolutions up to Ultra HD 4K x 2K (3840 x 2160) at 30 Hz and data transfer speeds up to 18 Gbps. When used with an Apple® digital AV adapter, it supports iPad2® video mirroring for playing games, watching videos or displaying presentations.

The 10-foot molded 30 AWG cable features premium foil and braid shielding to deliver reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Gold-plated white connectors provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. A flexible PVC jacket makes the HDCP 2.2-compliant cable easy to install in tight spaces.

Features

Connects HDMI Source to 4K TV, Projector or Monitor

- Ideal for digital signage, video presentations, point-of-sale displays, classrooms and other applications with 4K video and multi-channel audio

High Performance and Wide Compatibility

• Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
• Supports data transfer speeds up to 18 Gbps
- Complies with HDCP 2.2 standards
• Supports iPad2 video mirroring when used with Apple digital AV adapter
- Backward compatible with previous HDMI generations

Superior Quality Ensures a Flawless Signal

- Corrosion-resistant gold-plated white connectors for maximum conductivity and minimum data loss

• Fully molded 30 AWG construction with integral strain relief reduces stress and adds flexibility
• Premium foil and braid shielding for EMI/RFI noise protection
• Flexible PVC jacket easy to install in tight spaces

Specifications

INPUT
Cable Length (ft.) 10
Cable Length (m) 3
PHYSICAL
Color White
ENVIRONMENTAL
Operating Temperature Range 32 TO	113 F (0 TO 45 C)
Storage Temperature Range -40 TO 176 F (-40 TO 80 C)
Operating Humidity Range 10 TO 85% RH
Storage Humidity Range 5 TO 90% RH
CONNECTIONS
Side A - Connector 1 HDMI (MALE)
Side B - Connector 1 HDMI (MALE)
FEATURES & SPECIFICATIONS
HDMI Specification 1.3
HDCP Specification 2.2
WARRANTY
Product Warranty Period (Worldwide)	Lifetime limited warranty
