Type de produit	Hi-Fi System
Marque	BOSS
Modèle	656BCK
Dimensions (L x H x P)	Approx. 400 x 300 x 250 mm
Poids	Environ 5 kg
Alimentation	AC 220-240 V, 50/60 Hz
Puissance de sortie	2 x 50 W RMS
Récepteur AM/FM	Oui
Lecteur CD	Oui
Port USB	Oui
Bluetooth	Oui, version 4.0
Entrée auxiliaire	Oui (jack 3.5 mm)
Télécommande	Oui, incluse
Écran	Affichage LED
Nettoyage	Chiffon doux et sec, pas de produits abrasifs
Sécurité	Ne pas exposer à l'humidité, débrancher avant nettoyage
Pièces détachées	Disponibles auprès du fabricant
Réparabilité	Confier à un professionnel
Température de fonctionnement	5 °C à 35 °C
Accessoires inclus	Câble d'alimentation, télécommande, piles, manuel d'utilisation

Frequently Asked Questions - 656BCK BOSS

How do I connect my smartphone via Bluetooth?

Press the Source button until 'Bluetooth' appears. Activate Bluetooth on your phone, search for 'BOSS 656BCK', and pair. The system will confirm connection.

What should I do if there is no sound?

Check that the system is not muted. Ensure the correct source is selected. Verify speaker connections. Try adjusting the volume. If still silent, try a different audio source.

How do I clean the Hi-Fi system?

Use a soft, dry cloth. Do not use any solvents or abrasive cleaners. Avoid getting moisture into the ventilation openings.

Can I use the system while charging a device via USB?

Yes, the USB port can charge compatible devices (e.g., smartphones) while the system is on. Note: charging may affect audio performance slightly.

Why is my remote control not working?

First, check the batteries; replace if needed. Ensure there are no obstacles between the remote and the system. Point the remote directly at the sensor. If still not working, try resetting the system by unplugging for 10 seconds.

How do I reset the system to factory settings?

To reset, unplug the power cord from the outlet, wait 10 seconds, then plug it back in. This will clear all settings. For a full reset, press and hold the Power button for 5 seconds while the unit is on.

What audio formats are supported via USB?

The USB port supports MP3 and WMA files. The device must be formatted as FAT32. Files should be stored in a single folder or root directory.

Can I use external speakers with this system?

The system has an auxiliary output (line out) that can be connected to external amplifiers. However, built-in speakers are designed for optimal performance. Check the manual for specifications.

How do I set the clock?

Press and hold the Clock/Timer button until the hour flashes. Use the +/- buttons to adjust. Press again for minutes. Confirm with Clock/Timer.

Is there a sleep timer?

Yes. Press the Sleep button repeatedly to set the timer (from 90 to 10 minutes). The system will turn off automatically after the set time.

USER MANUAL 656BCK BOSS

How to Handle Discs....1

Lithium Battery Cell Warnings....1

Installation 2

Prepare Radio 2

Mount Radio 2-3

Wiring Connections.... 3

Removal of the Main Unit 3

Control Panel Button Locations 4

General Operation....5

Turn Unit On/Off 5

Adjust Volume (VOL) 5

Adjust Menu Options (SEL)......5

Set the Clock (CLK) 5

Change the Source (SRC) 5

Loudness On/off (LOUD) 5

Preset Equalizer (EQ)......5

Mute On/off (MUTE) 5

Reset System (RESET) 5

Radio Operation 6

Switch Between US and EU Frequency 6

Change Bands (BAND) 6

Manual Tuning (|<< / >>|)....6

Auto Seek Tuning (|<< / >>|) 6

Automatic Music Search (AMS) 6

Store/Recall Preset Stations (1 - 6) 6

Local/DX (LOC) 6

Stereo/Mono (ST) 6

Disc/USB/Card Operation....7

Insert Disc/USB/SD....7

Eject Disc/USB/SD 7

Play/Pause 7

Next/Previous Track....7

Fast Forward/Backward 7

Track Search 8

Track/Folder Navigation 8

Bluetooth Operation....9

Pair and Connect 9

Make a Call 9

Redial Last Dialed Number 9

Answer a Call....9

End a Call 9

Switch Audio Between Car and Phone 9

Adjust Talk Volume....9

Audio Streaming (A2DP)....9

Remote Control 10

Remove Insulating Sheet.... 10

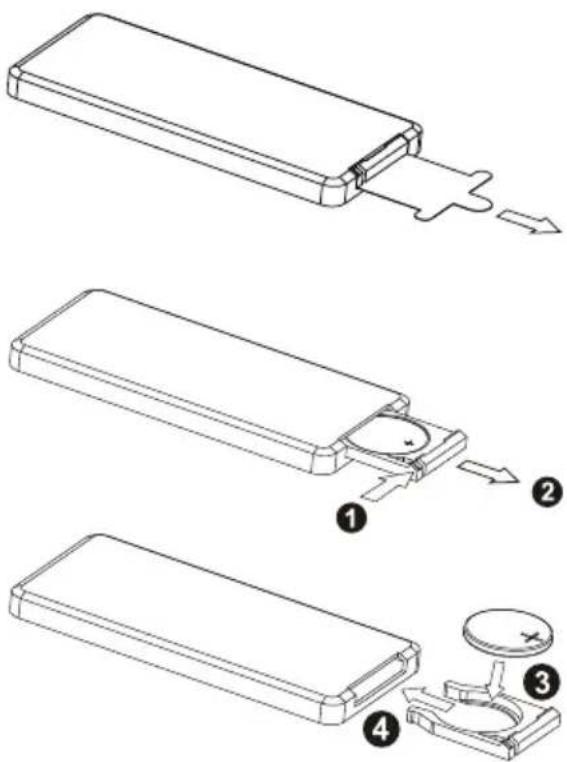

Replace Lithium Battery Cell.... 10

Remote Control Operation 10

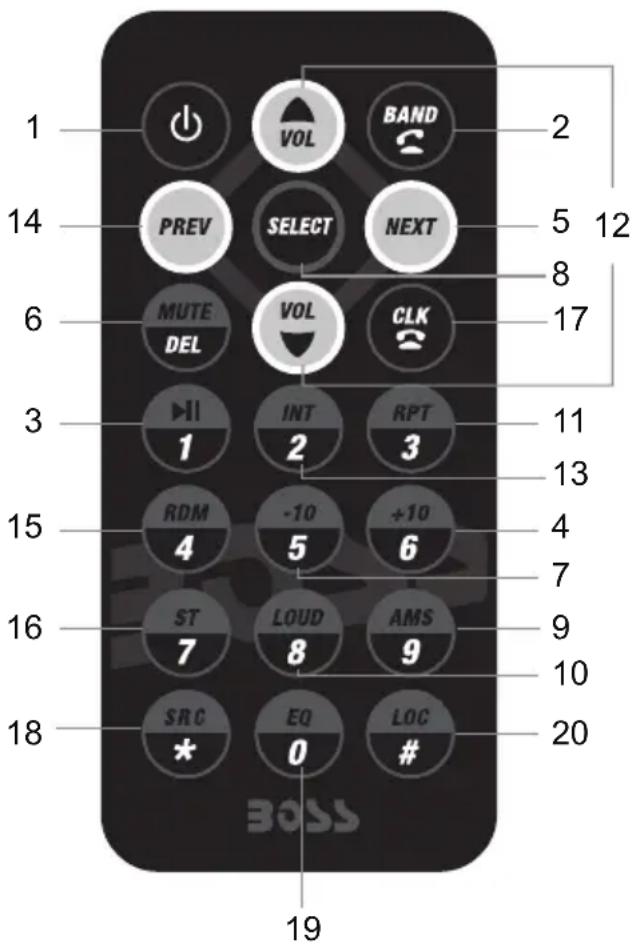

Button Names and Locations....11

Troubleshooting.... 12

Specifications 13

How to Handle Discs

• Handle a disc by its edges. Do not touch the playing side.
• Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners.
• After removing a disc from the disc slot, place the disc in a sleeve or case to keep it clean and prevent scratches.
• Do not stick paper or tape on the disc surface. If there is glue (or adhesive) on the disc surface, remove it before using the disc.

Lithium Battery Cell Warnings

• Cell leakage may cause damage to the remote control.
• Do not throw cells into fire, as this may cause an explosion.
• Keep battery cells out of reach of children.

Two-step illustration showing hand holding a circular object, then cleaning a curved object (no text or symbols)

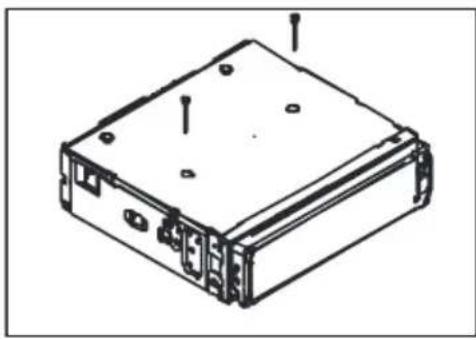

Prepare Radio

1. Before you begin, disconnect the battery negative terminal.
2. Remove the transport screws.

Technical line drawing of a rectangular electronic device with mounting holes and mounting points (no text or symbols)

1. Remove chassis from the mounting sleeve.

If you want to remove the chassis from the mounting sleeve, first move the plastic trim out from both sides. Next, insert the two bracket keys into the left and right side of the chassis, as illustrated, to separate the chassis from the housing.

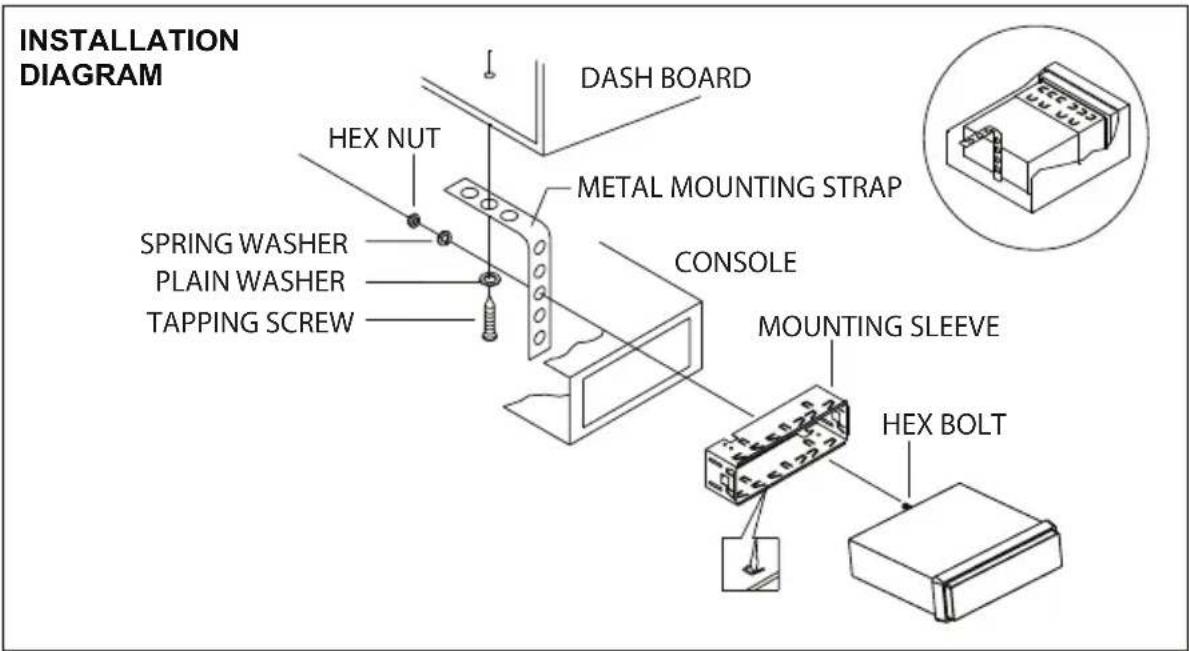

Mount Radio

Refer to the "Installation Diagram" to install the unit.

1. Bend the tabs on the mounting sleeve, where necessary, to ensure that the front part of the main unit will remain fixed into the vehicle dash opening.
2. Insert radio into the mounting sleeve.
3. Use a metal strap to secure the rear part of the chassis using the hardware indicated.
4. Make wiring connections, as illustrated in the "Wiring Diagram."
5. Install the plastic trim out.

• Only use speakers with 4 ohms impedance.
• Do not attach the control panel to the chassis before wiring is complete.
• The maximum current of the auto antenna is 200mA.

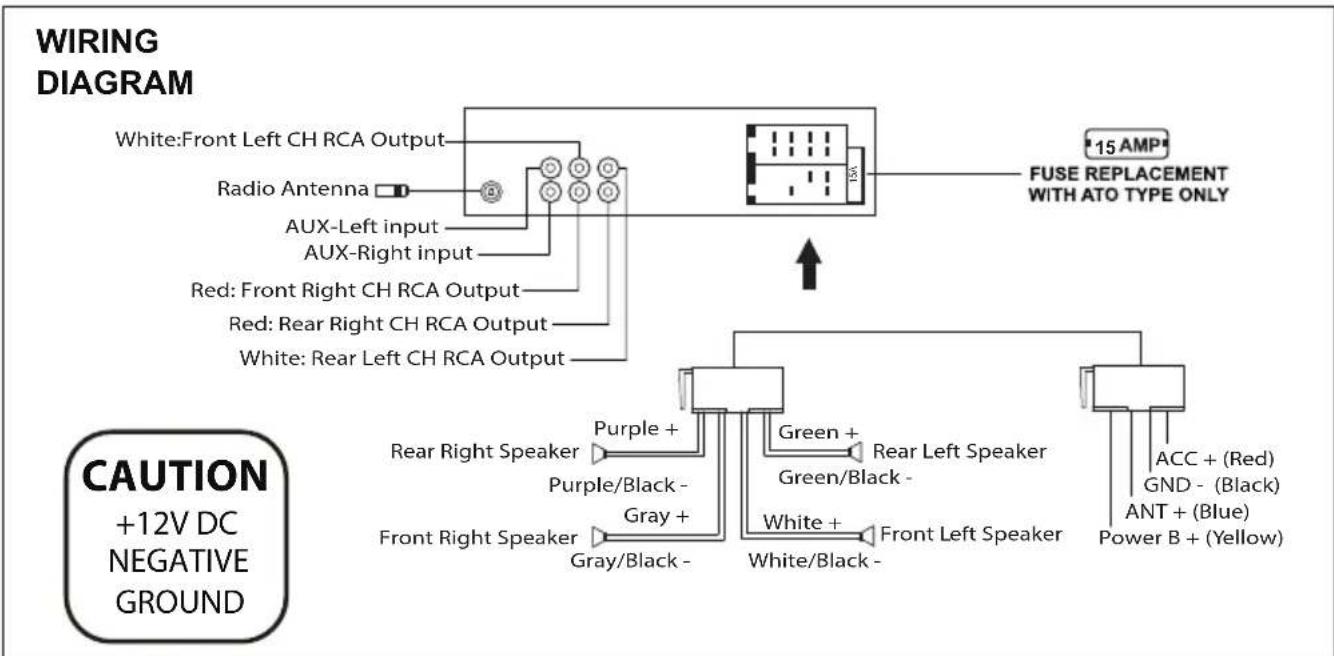

Wiring Connections


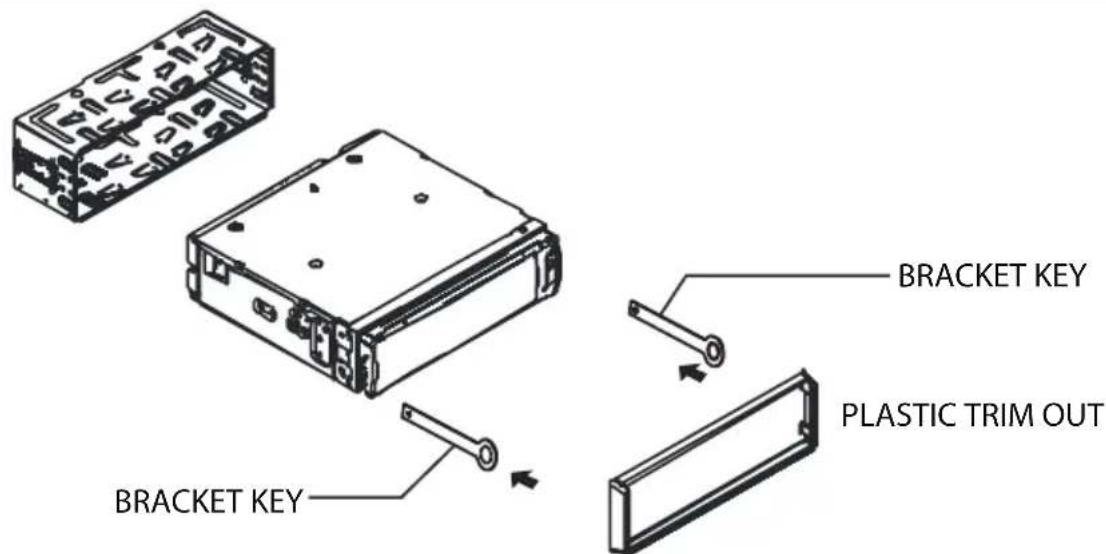

Removal of the Main Unit

1. Remove the metal strap from the main unit.
2. Remove the plastic trim out from the main unit.
3. Insert a bracket key into the left and right side of the main unit and draw the unit out of the mounting sleeve.

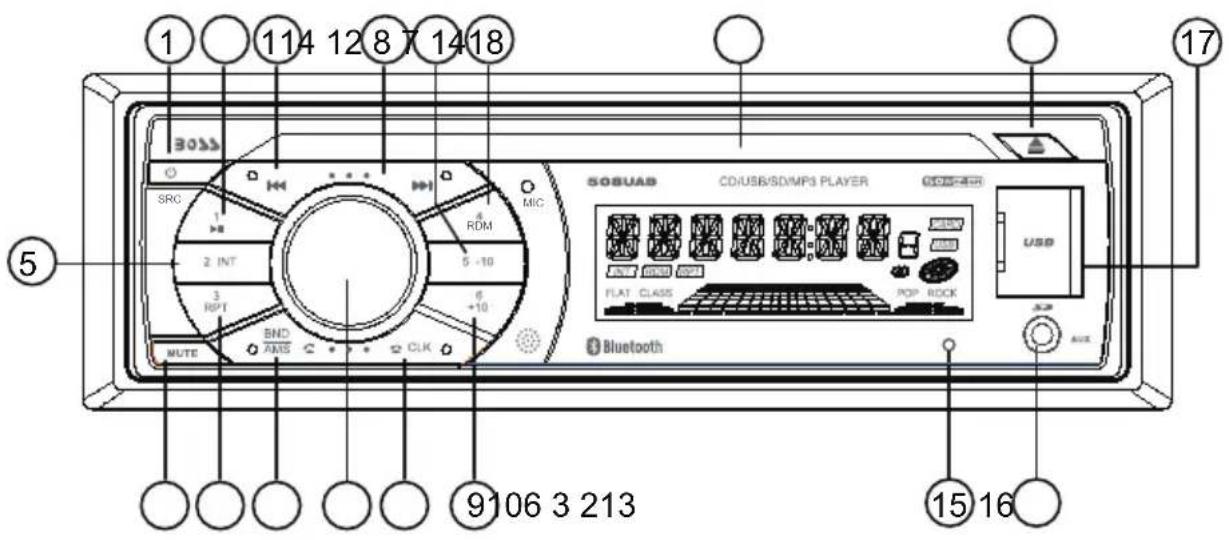

1. POWER/SRC (source) button
2. SEL (select/menu) button and VOL (volume) knob
3. BAND/AMS (automatic music search) and button

4. || or 1 button

5. INT (intro) or 2 button
6. RPT (repeat) or 3 button
7. RDM (random) or 4 button
8. -10 or 5 button
9. +10 or 6 button
10. CLK (clock) and ≡ button
11. |<< button

12. | button

13. MUTE button
14. EJECT button
15. RESET button
16. AUX IN (auxiliary input) jack
17. USB port/Micro SD Card slot
18. Disc slot

Turn Unit On/Off

Press the power ( /SRC button to turn on the unit. Press and hold it to turn off the unit.

Press the power (⏻) button on the remote control to turn the unit on or off.

Adjust Volume (VOL)

Rotate the VOL knob on the front panel or press the VOL+/- button on the remote control to increase or decrease the volume level.

Adjust Menu Options (SEL)

• Press the SEL button repeatedly to cycle through the following adjustable audio functions: BASS, TREBLE, BALANCE, FADER, EQ OFF, LOUD OFF, DX, STEREO and VOLUME.
• Press and hold the SEL button to access these additional functions: VOL (LAS/ADJ), AREA EU/US, Clock 12/24, and BEEP ON/OFF.

Set the Clock (CLK)

1. To display clock time, press the CLK button.
2. To set clock time, press and hold the CLK button and the hour will flash.
3. Press the I<< or >>I button or press the NEXT or PREV button to adjust the hour.
4. Press the CLK button and the minutes will flash.
5. Press the I<< or >>I button or press the NEXT or PREV button to adjust the minutes.
6. During Bluetooth mode, the clock can not be adjusted.

Change the Source (SRC)

Press the SRC button to switch between RADIO, BT, DISC, USB, CARD and AUX-IN modes.

Loudness on/off (LOUD)

Press the LOUD button on the remote control to turn on the loudness to reinforce the output of bass frequencies, press again to turn it off.

Press the EQ button on the remote control to choose a desired preset equilizer mode: OFF, FLAT, POP, ROCK, CLASS.

Mute on/off (MUTE)

Press the MUTE button on the remote control to toggle mute on or off. The muted state will be also released, when the volume knob or VOL+/- button are used.

Reset System (RESET)

The RESET button is used to reset all parameters to factory default settings.

This function may be used when the LCD does not display normally or sound is distorted, or when any of the controls are disabled. To reset your system, use a thin object with a pointed end to depress the RESET button.

Switch Between US and EU Frequency

In radio mode, press and hold the VOL button to select the AREA EU/US, then rotate it to switch between US (USA) and EU (Europe) frequency. The system will change the frequency setting in about 3 seconds.

Change Bands (BAND)

Press the BAND button to switch between the F1 (FM1), F2 (FM2), F3 (FM3), A1 (AM1) and A2 (AM2) bands. Each band stores up to six preset stations.

Manual Tuning (|<< / >>|)

Press and hold the >>| or |<< button to enter manual tuning mode. In manual tuning mode, press the >>| or |<< button to move the radio frequency number up or down one step.

Auto Seek Tuning (|<< / >>|)

In standby mode or while not in manual tuning mode, quickly press the >>| or |<< buttons to move to the next/previous available station automatically.

Automatic Music Search (AMS)

Press and hold the AMS button for more than 2 seconds to select six strong stations and store them in the current band. The radio will automatically scan the current frequency and enter the six strongest stations into the preset memory positions for that band.

Briefly press the AMS button on the remote control to scan each preset station in each band.

Store/Recall Preset Stations (1 - 6)

The radio can store 6 preset stations for each band (FM1, FM2, FM3, AM1 and AM2) for a total of 30 stored stations.

1. To memorize a station, turn the radio on and select the desired band and station.
2. Press and hold the desired preset button (numbered 1 - 6 on the face of the radio) for more than 2 seconds to save the station to that preset number.
3. Repeat for the remaining five presets on the current band and for all presets on the other four bands.
4. A stored station can be recalled at any time by choosing a band and then pressing the corresponding preset button.

LOCAL/DX

In urban areas, most stations are strong enough and “LOCAL ON” mode should be selected.

Switch to LOCAL OFF mode to search for stations with weaker signals.

Press the LOC button on the remote control to choose local or distant reception mode.

STEREO/MONO

FM station is received in stereo mode. However, if the signal is weak or reception is not as good as you would like, switching to MONO mode usually improves the overall sound quality.

Press the ST button on the remote control to choose FM STEREO or MONO audio effect.

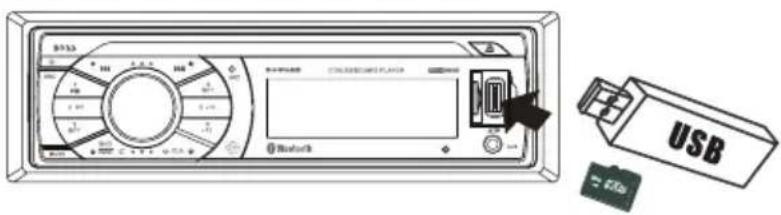

Insert Disc/USB/SD

• To play 6hea disc, insert a disc with the label surface up into the disc slot. Playback will begin automatically.
• To play files on a USB/SD device, open the USB port cover and insert the USB/SD storage device into the USB/SD port. Playback will begin automatically.

Eject Disc/USB/SD

• To eject a disc, first press the > button to stop playback. Press the (eject) button to eject the disc and then remove it.
• To eject a USB device or SD card, first press the > || button to stop playback, then remove the storage device or card.

Play/Pause

Press the >|| (play/pause) button to pause or resume playback.

Next/Previous Track

• To play the next track, press the button.NEXT
• To play the previous track, briefly press the PREVn.

Fast Forward/Backward

• To fast forward, press and hold the >>| or > button.
• To fast backward, press and hold the |<< or < button.

Introduction Scan

Press the INT button to play the first 10 seconds of each track, press again to stop the introduction scan and play the current track.

Repeat the Same Track

Press the RPT button to play the current track repeatedly, press again to stop the repeat playback and resume normal playback.

Playing all tracks in random

Press the RDM button to play all tracks in random order, press again to cancel this function.

Track Search

During CD, USB or SD playback, press the AMS button to select one of the following 3 track search modes:

1) NUM SCH (Searching by track number)
2) DIR SCH (Searching by directory number)
3) FILE SCH (Searching by track or file name)

1) NUM SCH (Searching by track number)

a) In playback of CD or files with MP3 format, press the AMS button once to access the track or file number searching mode which allow you to quickly find a specific track or MP3 file by its serial number, and the "NUM SCH" and "NUM ***" will appear on the LCD display in sequence, and the first symbol "*" will blink.
b) Rotate the VOL knob to select the number of your favorite track or file with high speed.
c) Finally press the SEL button to confirm and play the selected file.

2) DIR SCH (Searching by directory number)

The folder search mode allows you to quickly find an MP3 track or file under a specific group folder.

a) In playback of files with MP3 format, press the AMS button twice, the "DIR SCH" will be shown on the LCD display.
b) Rotate the VOL knob to select a desired folder.
c) Press the SEL button to play the first track or file of the selected folder.

3) FILE SCH (Searching by track or file name)

This track or file name search function allows you to quickly find an MP3 title by its name.

a) Press the AMS button three times, the "FILE SCH" and "*----" will be shown on the LCD display in sequence, and the first character "*" will blink.
b) Rotate the VOL knob to change the first character (*). The character will be changed from "A" to "Z", "0" to "9" and "_", "-", "+", "space". Press the SEL button to confirm the character entered and the next character will blink for setting. Press the AMS button to delete the incorrect character.
c) When mached files was found, press the SEL button to start play the searched file. If the file was not found, "NO MATCH" message will be visible on the display.

Track/Folder Navigation

• During USB or SD card mode, press the 5/-10 button to go backward 10 tracks. Press the 6/+10 button to jump forward 10 tracks.
• During USB or SD card mode, press and hold the 5/-10 button to go back one folder. Press and hold the 6/+10 button to go up one folder. You can repeat this function depending on the number and level of folders.
  • These buttons have no function if the USB device or SD card has no folders.

Pair and Connect

Prior to using the Bluetooth device as a handsfree system for a Bluetooth-enabled mobile phone for the first time, you must pair and connect the two devices as follows:

1. In any mode, prior to pairing and connecting, the BT logo flashes in the LCD indicating that no device is connected. To begin pairing, enable BT mode on your mobile phone.
2. When the phone finds the car audio system, the BOSS AUDIO name will be displayed.
3. Choose the BOSS AUDIO from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing.
4. When pairing is complete, the mobile phone audio will automatically transfer to the car audio system whenever a call is made or received, or when the mobile phone plays musics.

Make a Call

• To make a call, dial the call directly from the paired mobile phone.
• To make a call with this Bluetooth handsfree system.

a) When linking up the Bluetooth mobile phone to this car audio handsfree system, press the ⚡ button to access the dial telephone number mode, then press the "0\~9", * and # button on the remote control to input the telephone number, the entered number will be shown on the LCD.

b) If a number has been incorrectly input, press the DEL button or ⚫ button to delete it.

c) Press the ⬆ button to make outgoing call.

Redial Last Dialed Number

Press and hold the button on the control panel to redial the last dialed phone number.

Answer a Call

• When the mobile phone is called, the incoming telephone number displays in the LCD.
• To receive the call, press the button on the control panel or remote control.

Reject or End a Call

To reject the call or end an active call, press the 🔒 button.

Switch Audio Between Car and Phone

During a call, press the VOL knob/button to switch the audio source from the car audio system back to your mobile phone.

Adjust Talk Volume

• During a call, use VOL knob or VOL + and VOL - buttons to adjust the volume level.
• Use the MUTE button to mute sound.

Audio Streaming (A2DP)

1. Press the VSRC button to enter BT mode and display media in the LCD.
2. When a mobile device is paired, music played through that device will automatically be heard through the car audio system.
3. Press the >>| or |<< button to play the next or previous song/file on the mobile phone.
4. Press the >|| button to pause or resume music playback.

Remove Insulating Sheet

The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed.

Replace Lithium Battery Cell

1. When the lithium cell battery becomes weak, replace it as illustrated on the right.
2. Press and hold the movable block in the direction indicated by arrow 1. At the same time, pull the cell holder out of the remote control in the direction indicated by arrow 2.
3. Replace the old cell with a new one, making sure the (+) polarity is facing upward.
4. Re-insert the cell holder into the remote control.

• Cell leakage may cause damage to the remote control.
• Do not throw cells into fire, as this may cause an explosion.
• Keep battery cells out of reach of children.

Remote Control Operation

Position the emitting window of the remote control toward the sensor window of the unit.

• The operation angle for front panel remote control reception is about 30 degrees.
• The distance between the emitting window of the remote control and the sensor window of the unit should remain less than 5 meters.

Button Names and Locations

1. Power button
2. BAND or button

3. || or 1 button

4. • 10 or 6 button
5. NEXT button
6. MUTE or DEL button
7. • 10 or 5 button
8. SEL (select) button
9. AMS (automatic music search) or 9 button
10. LOUD (loudness) or 8 button
11. RPT (repeat) or 3 button
12. VOL (volume) button
13. INT (intro) or 2 button
14. PREV (previous) button
15. RDM (random) or 4 button
16. ST (stereo) or 7 button
17. CLK or 📞 button
18. SRC or * button
19. EQ(Equalizer) or 0 button
20. LOC (local) # button

Note: To operate remote control, pull out the plastic from the battery compartment at back of remote control. Then point remote control at unit and start.

Symptom Cause Solution
No Power Car ignition not on	Switch ignition key to “ACC”
	Fuse blown Replace fuse
Disc cannot be loaded Another disc	r disc is already in the player	Eject disc and insert new one
Disc cannot be read Disc was	inserted upside down	Insert disc with label facing upward
	Disc is dirty or scratched Clean	the disc or try to play a new one
	Temperature inside the car is too high	Allow vehicle to cool before using player
No sound Volume turned down	Adjust volume to desired	level
	Wiring not properly connected	Check and repair wiring connection
Operation keys not working F	front panel not properly fixed into place	Reinstall the front panel
	Car interior is too hot Allow vehicle to cool before using player
Sound skips Installation angle	is more than 30 degrees	Adjust installation angle to less than 30 degrees
	Disc is dirty or scratched Clean	disc or try to play a new one
Radio does not work Antenna	cable not connected	Insert antenna cable firmly
Automatic radio station selection does not work	Signals are too weak Select a	station manually

General

Power Supply Requirement.... DC 12V

Current Consumption 10A MAX

Maximum Power Output....50W x 4CH

Radio

FM

USA/Europe.... 87.5 MHz - 107.9 MHz/87.5 - 108.0 MHz

Usable Sensitivity ....30 dBu

I.F. Frequency....10.7 MHz

AM

USA/Europe.... 530 KHz - 1710 KHz/522 - 1620 KHz

Usable Sensitivity ....20 dBu

I.F. Frequency 450 KHz

CD/USB/Card

Usable Audio Formats CD/MP3/WMA

Pre-amp Output....Front and Rear

Frequency Response 20 Hz - 20 KHz

S/N Ratio 60dB

BT

BT Profile supports ......A2DP, AVRCP, HSP, HFP

Range of frequency 2.4GHz spectrum

USER'S MANUAL

508UAB

BLUETOOTH®

MP3-COMPATIBLE CD AM/FM RECEIVER

BOSS®

AUDIO SYSTEMS

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com | 805.751.4853

tech support: www.bossaudio.com/technical-support

0815

iPod® / iPhone® are trademarks of Apple, Inc. registered in the U.S. and other countries.

BOSS Audio Systems is not affiliated with Apple, Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks

by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.
