Freeloader 170L - Water heater Vulcan - Free user manual and instructions

Brand	Vulcan
Model	Freeloader 170L
Product Type	Water Heater
Capacity	170 liters
Energy Source	Electric
Power Rating	3.6 kW
Voltage	230 V
Dimensions (Height x Diameter)	1500 mm x 500 mm
Weight (empty)	45 kg
Maximum Temperature	75 °C
Thermostat Type	Adjustable
Pressure Relief Valve	Included
Installation Type	Vertical, wall-mounted
Connection Size	1/2 inch BSP
Insulation Material	Polyurethane foam
Tank Material	Enameled steel
Anode Protection	Magnesium anode rod
Safety Features	Thermal cutoff, pressure relief valve
Maintenance	Annual anode rod inspection and replacement if needed
Spare Parts	Thermostat, anode rod, heating element, gaskets
Warranty	5 years on tank, 2 years on parts
Compliance	CE, RoHS

Frequently Asked Questions - Freeloader 170L Vulcan

What is the capacity of the Vulcan Freeloader 170L water heater?

The Vulcan Freeloader 170L has a capacity of 170 liters, suitable for medium to large households.

What are the dimensions of this water heater?

Approximate dimensions are 1500 mm height and 500 mm diameter. Always check the manual for exact measurements.

What type of energy does the Freeloader 170L use?

It is an electric water heater with a power rating of 3.6 kW at 230 V.

How do I set the temperature on the water heater?

The thermostat is adjustable. Typically, setting it to 60°C is recommended to prevent scalding and reduce energy use.

How often should I perform maintenance?

It is recommended to inspect the anode rod annually and replace it every 3-5 years to prevent tank corrosion.

Can I install the water heater myself?

Installation should be done by a qualified professional to ensure compliance with local plumbing and electrical codes.

What safety features does it have?

It includes a thermal cutoff to prevent overheating and a pressure relief valve to avoid excess pressure buildup.

What spare parts are available for this model?

Common spare parts include the thermostat, heating element, anode rod, and gaskets. Contact Vulcan support.

How long is the warranty?

The warranty covers 5 years on the tank and 2 years on parts against manufacturing defects.

What does the pressure relief valve do?

The pressure relief valve automatically releases water if internal pressure exceeds safe levels, preventing tank rupture.

USER MANUAL Freeloader 170L Vulcan

Vulcan air purifier with laser flares in the background (no visible text or symbols on main subject)

Illustration of a showerhead with white dots and raindrops on a teal background (no text or symbols)

Our special thermostat keeps water at a temperature of 73°C (higher than the 3 star hot water system you may be replacing), meaning you use less hot water for the same length hot shower you're used to enjoying*

• 4 Star energy efficiency
- Made in Australia
- 5 Year Warranty ^†
• Mains Pressure at multiple taps
• 135L and 170L models
• Natural gas or Propane
• Steel jacket and enamelled steel cylinder
• National service back-up

THAT'S VULCAN® VALUE

High quality and performance at an affordable price. Three good reasons why Vulcan is such a popular choice for reliable water heating.

Vulcan is built with the best: Quality materials and proven technology make Vulcan a great choice for reliable water heating.

Vulcan is tough: The Vulcan storage cylinder is made from high strength steel able to withstand varying water and heating cycle pressures.

Vulcan is adaptable: The balanced flue and durable steel jacket make Vulcan gas models easy to install and easy to live with. They can be installed on an approved base against a wall or recessed into a wall cavity.

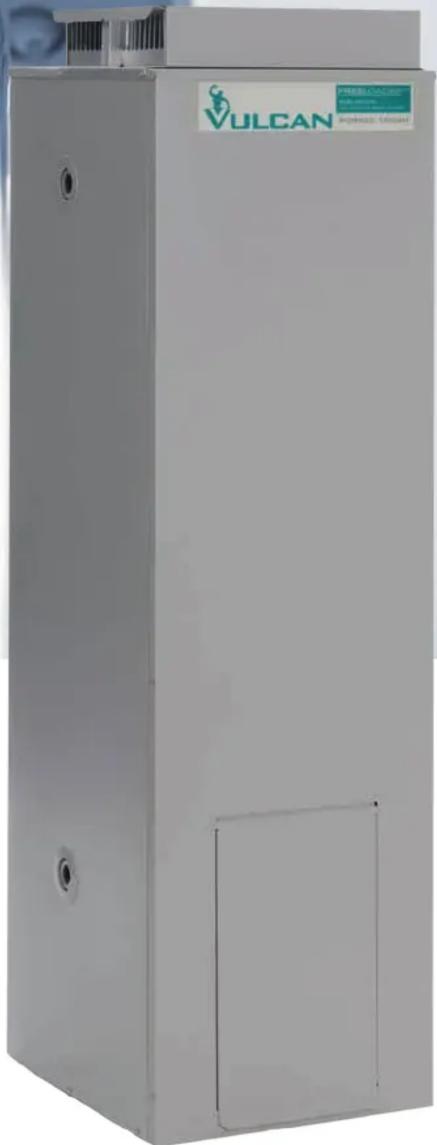

VULCAN FREELOADER 4 STAR GAS HOT WATER – Product data

		648135 648170
No. of people – Moderate Climate 2-4 3-5
No. of people – Cool Climate 2-3 3-4
Warranty 5 Years
Installation Outdoor Only
Gas Type Natural Gas/Propane
Hourly Gas Consumption Natural Gas	MJ 27 27
Gas Energy Rating		4.3 Stars	4 Stars
Storage Capacity	Litres	135	170
Recovery Rate	Litres/ Hour at 45°C	113	113
Dimensions	A mm	1558	1858
	B mm	422	422
	C mm	502	502
	D mm	988	1213
	E mm	328	403
	F mm	298	298
	G mm	1478	1778
	K mm	473	473
	L mm	208	208
Approx. Weight Empty	kg	59	69
Relief Valve Setting	kPa	1400	1400
ECV Setting #	kPa	120 0	120 0
Max. Water Supply Pressure	kPa
With Expansion Control Valve*		960	960
Without Expansion Control Valve		1120	1120
Water Connections		Rp 34	Rp 34
Gas Connection		Rp 12	Rp 12

Must be installed with the back of the water heater against a wall. Minimum distances from the flue terminal to openings into a building, corners and return walls apply.
† Warranty: 5 years on cylinder, 3 years labour on cylinder. 1 year on parts and labour. For full details contact your nearest Vulcan distributor. Conditions apply. See the
Vulcan warranty set out in the Owner's Guide & Installation Instructions or view at www.vulcan.com.au/warranty.

ECV not supplied with water heater.

* Based on the most common temperature 43°C shower through a 9 litre/minute showerhead mixing with cold water at 10°C Vulcan 4 star 648 Series with thermostat set at 73°C delivers 15-20% more continual shower time than the Vulcan 3 Star 641 Series with thermostat set at 65°C.
® Vulcan is a registered trademark of Rheem Australia Pty Ltd.
^TM Registered trademark of Standards Australia Limited.
Rheem Australia Pty Ltd,
1 Alan St, Rydalmere, NSW 2116 Australia.
Materials and data are subject to change without notice.

The Australian Gas Association

quality ISO 9001

AS 3498 WMKA00153
