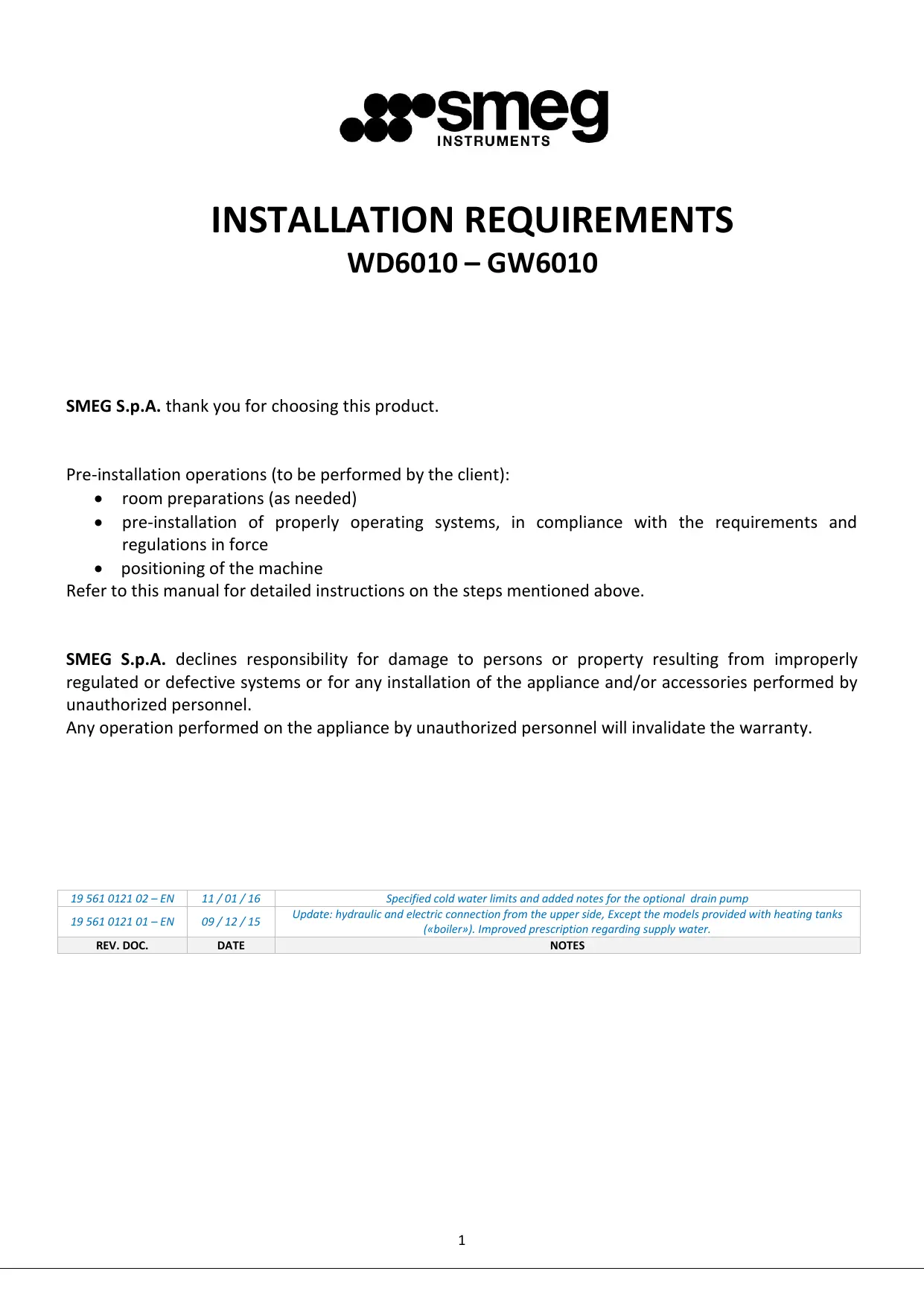

INSTALLATION REQUIREMENTS WD6010 - GW6010

SMEG S.p.A. thank you for choosing this product.

Pre-installation operations (to be performed by the client): e room preparations (as needed) e pre-installation of properly operating systems, in compliance with the requirements and regulations in force e _ positioning of the machine Refer to this manual for detailed instructions on the steps mentioned above.

SMEG S.p.A. declines responsibility for damage to persons or property resulting from improperly

regulated or defective systems or for any installation of the appliance and/or accessories performed by unauthorized personnel.

Any operation performed on the appliance by unauthorized personnel will invalidate the warranty.

19561012102-EN | 11/01/16 Specified cold water limits and added notes for the optional drain pump 19561012101-EN | 09/12/15 | VPdate: hydraulic and electric connection from the upper side, Except the models provided with heating tanks {«boiler»). improved prescription regarding supply water.

REV. DOC. DATE NOTES WD6010-GW6010 INSTALLATION REQUIREMENTS ez°smeg

ELECTRICAL SYSTEM REQUIREMENTS CAUTION VAN It is essential that the electrical system to which the machine is connected complies with current regulations.

All electrical testing operations and equipment installation should be made by qualified and trained personnel. The designated personnel is responsible for ensuring the safety and efficiency of earth connection.

Components must always be replaced with genuine spare parts.

Refer to the Technical Data sheet to recognize the device’s electrical characteristics and connection requirements.

The device is supplied with a cable with insulated wire terminals; it is not supplied with a plug. The electrical connection of the device must be carried out with a permanent connection.

CIRCUIT-BREAKER ÂÀ A CIRCUIT-BREAKER must be installed for each appliance.

Circuit-breaker characteristics: a. Omnipolar: must break all live conductors; b. Easily accessible to the user; c. Easily operated (no additional tools required); d. Located in close proximity to the appliance; e. Clearly marked as the appliance circuit-breaker

The same specifications apply to the main switch on the machine: it must be easily accessible. Do not place objects in a way that limits accessibility.

A PROTECTIVE DEVICE specifically for the appliance (e.g. magneto thermal breaker or fuse on every phase, with appropriate dimensions based on the electrical characteristics indicated) should be installed in the room's electrical panel.

WD6010-GW6010 INSTALLATION REQUIREMENTS Technical data

“drinking water type” (ref. limits provided by European Directive 98/83/CE)

"CW" COLD WATER Connection:

3/4" maschio-male - DN20

Max. hardness: 10° Ferro Max - Fe2+ / Fe3+ [max] 0,5 ppm pH: 7:8

"HW" WARM WATER Connection:

3/4" maschio-male - DN20

"DW" DEMI WATER Connection:

3/4" maschio-male - DN20

Max. conductivity / pH:

30 uS/cm / 5+8 pH TDS max

Note: if local-regional requirements are more stringent than those prescribed above, the local requirements shall be followed. It remains the user's responsibility to provide water supply that

comply with the requirements.

WD6010-GW6010 INSTALLATION REQUIREMENTS

"EC" Electrical connections

w Type: Standard 5 Standard Voltage: 400V 3N° / PE / 50Hz / 24A pu] re] a Electrical protection required: 3P+N, 32 A [= 9 Cable and min. section: 5x6 mm = Configurable Voltage: 230V 3” / PE / 50Hz / 36A e] ÿ Electrical protection required: 3P,40A (] tr Cable and min. section: 4x6 mm°

Potenza - Power: 13 kW

"EX" EXHAUST DUCT Connection: #50 mm {2in)

80% for temperatures up to 31°C (88°F) with a linear drop to 50% humidity at 40°C (104°F)

Noise level emission:

WD6010-GW6010 INSTALLATION REQUIREMENTS ez°smeg

1) Itis the customer’s responsibility to insure that the specified pressure ranges are respected (water mains and, if applicable, steam and air pressure). The pressure has to be measured at the point of connection to the device.

2) Itis customer’s responsibility to provide, if necessary, shock arrestors and / or pressure regulators to eliminate water hammer conditions.

3) Itis customer’s responsibility to provide shutoff valves for incoming cold, hot, demineralized water, and steam and air (optional). The valves must always be easily accessible to the operator.

4) Itis the customer’s responsibility to provide a proper drainage system based on the requirements of the device and in accordance with national and local regulations. It is necessary to prevent backflow to the device.

5) Steam exhaust: It is customer’s responsibility to ensure that the ducts are constructed to prevent the accumulation of condensate. If the machine is connected to free discharge pipes for steam/fume exhaust, condensation deposit in pipes must be prevented. Moreover, this section of the machine must be equal to or higher than the given dimensions and there must not be areas With condensation deposits. In case of fume extraction, the clearances as shown in the schemes must be observed. At any rate the indicated flow rates must be observed and the materials must be resistant to the expected temperatures.

Even in case of two or more machines installed side by side, the service area required must be respected.

7) In case of double-door machines, it is customer’s responsibility to provide a barrier wall for the separation between the loading side (unclean side) and the unloading side (clean side).

Smeg S.p.A. Instruments Division Via Leonardo da Vinci, 4 -42016 GUASTALLA - R.E. Tel +39 0522 8211 — Fax +39 0522 821 592 E-mail: instruments@smeg.it —- www.smeg-instruments.com

WD6010 - GW6010 EN - DOUBLE DOOR EN - Note: Except the model provided with heating tanks («boiler»), starting from the 06/11/2015 the devices are prepared for hydraulic and electric connection from the upper side.

ERONT VIEW LOADING SIDE UNLOADING SIDE (CLEAN)

LOADING SIDE (UNCLEAN)

© MAINS SWITCH UNLOADING SIDE (CLEAN)

L LOADING SIDE (UNCLEAN)

l l 1 1 1 MAINS SWITCH 1 1 l 1

NS Ds = CLEARANCE AREA - FUNCTIONAL ACCESS (BOTH SIDES) PLANT VIEW e33°smeg a $ OR A RE | 00" 2001D 502-200 DATA-DATE SPA INSTALLATION Via Leonardo da Vinci 4 | REPROQUENAN OR TRANSFER OF TE REQUIREMENTS 195610121.02 - B 11.01.2016 Va ar en me on

WD6010 - GW6010 EN - DOUBLE DOOR EN - Cconnections from above

NOTE: THE CONNECTION CAN BE ARRANGED 90

ALSO ON THE LEFT SIDE EN - Note - Exception: For models equipped with boilers, 7 the «upper side» connection system is not available

42016 Guastalla (RE) ITALIA FORM. A4 SUEG SPA WD6010 - GW6010 EN - SINGLE DOOR EN - Note: Except the model provided with heating tanks (»boiler»), starting from the 06/11/2015 the devices are prepared| / for hydraulic and electric connection from the upper side.

© LOADING SIDE (UNCLEAN) PLANT - BASAMENT VIEW

sme Ka nmrouane ou cesaane ve passeur! DOC DOCID TODDoE DAATDNTE Via Leonardo da Vngi& rrepeonueret

anngaonemone | RÉSORNENTS 195610121.02 - F 11.01.2016

MACHINE WITH OPTIONAL DRAIN PUMP INSTALLED Connecting the exhaust pipe
