X322BV-HD - Television Sceptre - Free user manual and instructions
Find the device manual for free X322BV-HD Sceptre in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | LED Television |
| Brand | Sceptre |
| Model | X322BV-HD |
| Screen Size (Diagonal) | 32 inches |
| Display Resolution | 1366 x 768 (HD Ready) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 3000:1 (Dynamic) |
| Brightness | 250 cd/m² |
| Viewing Angle (H/V) | 178°/178° |
| Dimensions (W x H x D) - Without Stand | 28.9 x 17.2 x 3.1 inches |
| Dimensions (W x H x D) - With Stand | 28.9 x 19.3 x 7.5 inches |
| Weight - Without Stand | 10.5 lbs |
| Weight - With Stand | 11.7 lbs |
| Power Consumption (Typical) | 60 W |
| Power Consumption (Standby) | <0.5 W |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Video Inputs | HDMI 1.4 (x2), VGA, Component, Composite |
| Audio Inputs | 3.5mm headphone jack, RCA L/R |
| USB Port | 1 x USB 2.0 (for media playback) |
| Tuner | ATSC (Digital), NTSC (Analog) |
| Speaker Output | 2 x 8W |
| Wall Mount Pattern | 200 x 200 mm (VESA) |
| Networking | None (no built-in Wi-Fi) |
| Remote Control | Includes IR Remote |
| Cleaning Instructions | Use a soft, dry cloth; avoid harsh chemicals |
| Safety Certifications | UL, FCC, Energy Star |
| Repairability | Replaceable power board and LED backlights |
Frequently Asked Questions - X322BV-HD Sceptre
How do I connect my cable/satellite box to the TV?
Use an HDMI cable from your box to one of the HDMI ports on the TV. Alternatively, use component or composite cables for older devices.
Why is there no sound coming from the TV?
Check that the volume is not muted and that the audio output is set to TV speakers. Also verify that external devices are properly connected.
How can I mount the TV on a wall?
The TV supports VESA 200x200 mm wall mounts. Use a compatible mount and follow the instructions provided with the mount.
The remote control is not working. What should I do?
Replace the batteries with new ones. Ensure there are no obstructions between the remote and the IR sensor on the TV. Try resetting the remote by removing batteries and pressing all buttons for 2 seconds.
How do I perform a factory reset?
Go to Menu > Settings > System > Reset & Admin > Reset Factory Defaults. Confirm the reset. All settings will be restored to original.
What is the screen resolution of this TV?
The Sceptre X322BV-HD has a native resolution of 1366x768 (HD Ready).

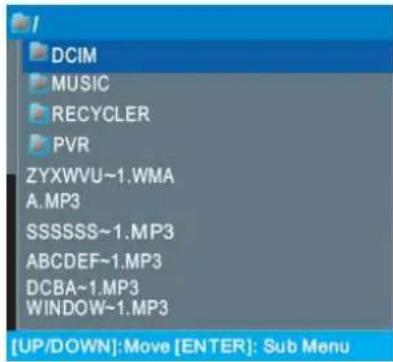

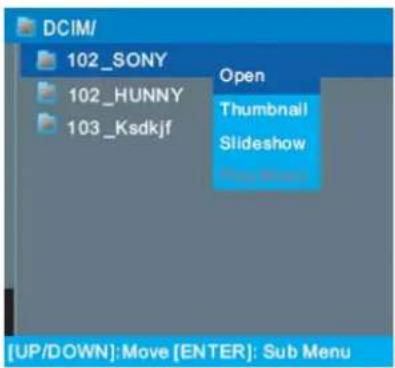

Can I plug a USB drive to watch movies?
Yes, the TV has a USB 2.0 port that supports playback of video, music, and photo files. Ensure the USB drive is formatted in FAT32 or NTFS.
Why does the TV show 'No Signal'?
Check that your source device is turned on and properly connected. Use the Input button to select the correct HDMI or AV source. For antenna, perform a channel scan.
How do I clean the TV screen safely?
Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not spray liquids directly; dampen the cloth slightly with water if needed. Avoid ammonia or alcohol-based cleaners.
Is the TV Energy Star certified?
Yes, the Sceptre X322BV-HD is Energy Star certified, ensuring energy efficiency and lower power consumption.
