iBT77 - Loudspeaker IHOME - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Dimensions	7.5 x 3.5 x 3 inches
Weight	1.2 lbs
Power Source	Rechargeable Lithium-ion battery (USB-C charging)
Charging Time	3 hours
Play Time	Up to 10 hours
Bluetooth Version	5.0
Bluetooth Range	30 feet (10 meters)
Speaker Type	Full-range stereo
Output Power	5W (RMS)
Frequency Response	80Hz – 20kHz
Impedance	4 ohms
Connectivity	Bluetooth, 3.5mm AUX input
Controls	Power, Volume +/-, Play/Pause, Pairing, Call button
LED Indicators	Bluetooth pairing, battery level
Microphone	Yes, for hands-free calling
Water Resistance	IPX5 (splash resistant)
Material	Plastic with fabric grille
Color	Black
Warranty	1 year limited
Included Accessories	USB-C charging cable, 3.5mm AUX cable, user manual
Cleaning Instructions	Wipe with a dry, soft cloth; do not use abrasive cleaners
Safety Precautions	Avoid exposure to extreme temperatures, moisture, and dropping
Spare Parts Availability	Not available; speaker is not user-serviceable
Repairability	Not user repairable; contact support for issues

Frequently Asked Questions - iBT77 IHOME

How do I pair my iHome iBT77 with a Bluetooth device?

Turn on the speaker by pressing the Power button. Press and hold the Pairing button (or Bluetooth icon) until the LED flashes blue. On your device, enable Bluetooth and select 'iHome iBT77' from the list. When paired, the LED turns solid blue.

How do I charge the iBT77 speaker?

Connect the included USB-C cable to a USB power source (e.g., computer or wall adapter). Plug the cable into the charging port on the speaker. The battery LED will indicate charging status; a full charge takes about 3 hours.

How do I reset the iBT77 speaker?

If the speaker becomes unresponsive, press and hold the Power and Volume Up buttons simultaneously for 5 seconds. The speaker will turn off and reset to factory settings. You will need to re-pair with your device.

How do I adjust the volume on the iBT77?

Use the Volume + and Volume - buttons on the speaker. You can also adjust the volume from your connected device. Note that the speaker's volume control works independently of your device's volume.

Can I connect the iBT77 using an AUX cable?

Yes. Use the included 3.5mm AUX cable to connect your device to the AUX input on the speaker. The speaker will automatically switch to AUX mode. Note that Bluetooth playback will be paused.

How do I use the speakerphone function?

When a call comes in, press the Call button to answer. To end a call, press the same button. The built-in microphone allows hands-free conversation. To reject a call, press and hold the Call button.

How do I check the battery level?

Press the Power button once (without turning off). The battery LED will show the approximate level: green for high, amber for medium, and red for low. When the battery is very low, the speaker will warn with a tone.

What is the Bluetooth range of the iBT77?

The iBT77 has a Bluetooth range of approximately 30 feet (10 meters) in open space. Walls and obstacles may reduce the range. Keep your connected device within range for uninterrupted playback.

What should I do if there is no sound from the speaker?

First, ensure the speaker is powered on and the volume is turned up. Check that your device is paired and playing audio. If connected via AUX, verify the cable is fully inserted. Try resetting the speaker or re-pairing if necessary.

How do I clean the iBT77 speaker?

Unplug the speaker and turn it off. Use a dry, soft cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Avoid getting moisture into the ports. For the grille, use a soft brush to remove dust.

USER MANUAL iBT77 IHOME

Rechargeable Bluetooth Speaker with Speakerphone

CHARGE BEFORE USE

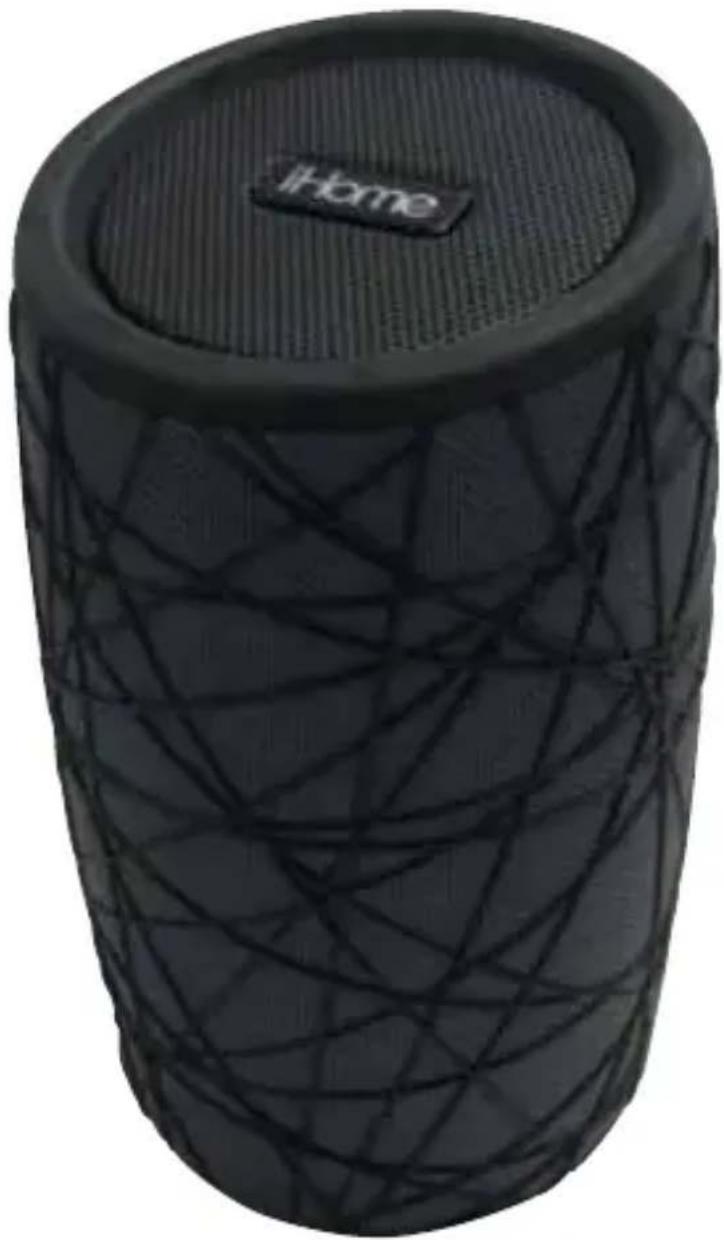

Black cylindrical device with a textured surface and 'iHome' logo on top (no other text or symbols visible)

Introduction

Thank you for purchasing the iHome iBT77. This product is designed to provide high quality wireless sound for your Bluetooth audio device. When linked to a second iBT77 speaker (sold separately), you can enjoy real wireless stereo.

This instruction booklet explains the basic operation and care of the unit. Please read it carefully and keep for future reference.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as thinner or similar materials can damage the surface of the unit.

What's Included

• iBT77 speaker
• USB charging cable
• Carry strap

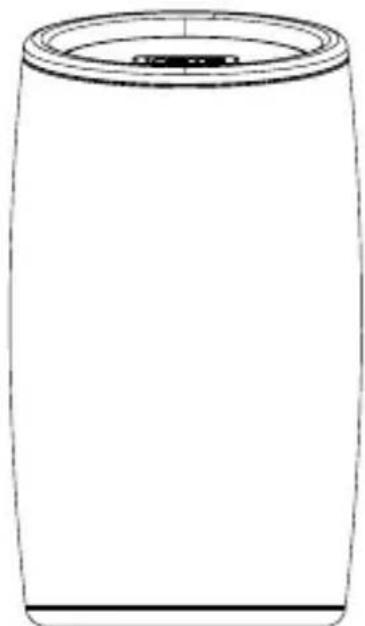

Simple line drawing of a cylindrical container with a lid and base (no text or symbols)

iBT77

Coiled cable with two USB connectors (no text or symbols visible)

USB charging cable

Simple line drawing of a curved tube with a handle, no text or symbols present

Carry strap

iBT77

Meet Your iBT77

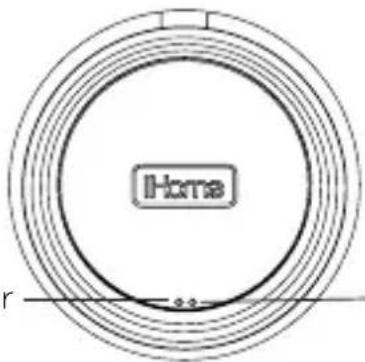

Top

Red Charging Status Indicator Light

Blue Bluetooth Status Indicator Light
Green Wireless Stereo Status Indicator Light

Microphone (under grill)
Reset Port

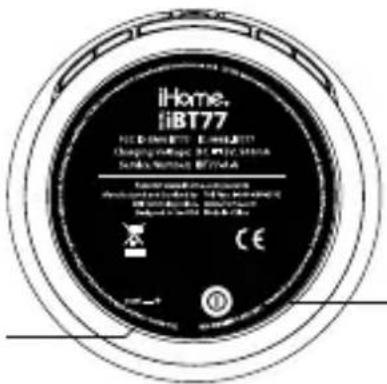

Bottom

Power Button

Simple line drawing of a cylindrical object with a vertical seam and label 'ODD' (no text or symbols beyond the label)

Carry Strap Channel

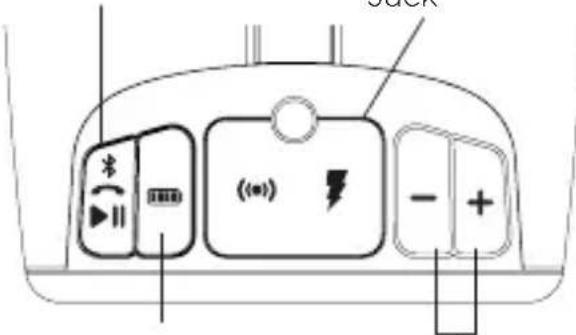

Back

Bluetooth/Speakerphone/Play/Pause Button

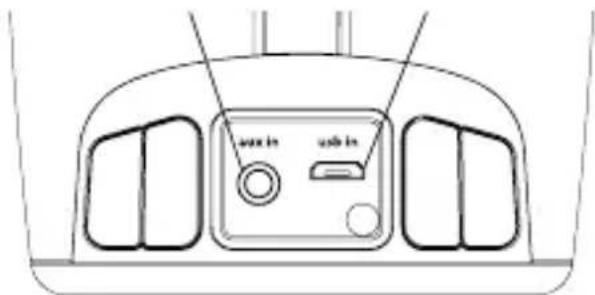

Water resistant rubber cover Jack

Aux-in Jack

USB in Charging Port

Battery Review Button (press and hold for voice)
Lower/Raise Volume Buttons

Getting Started: Carry Strap

The iBT77 has a channel on the upper cabinet above the controls to attach the included carry strap. To attach the carry strap, form a small loop in one end of the carry strap. Insert this loop through the channel, then pull the loop back through the larger loop formed in the carry strap to tighten.

Simple line drawing of a rope tied to a vertical pole, no text or symbols present

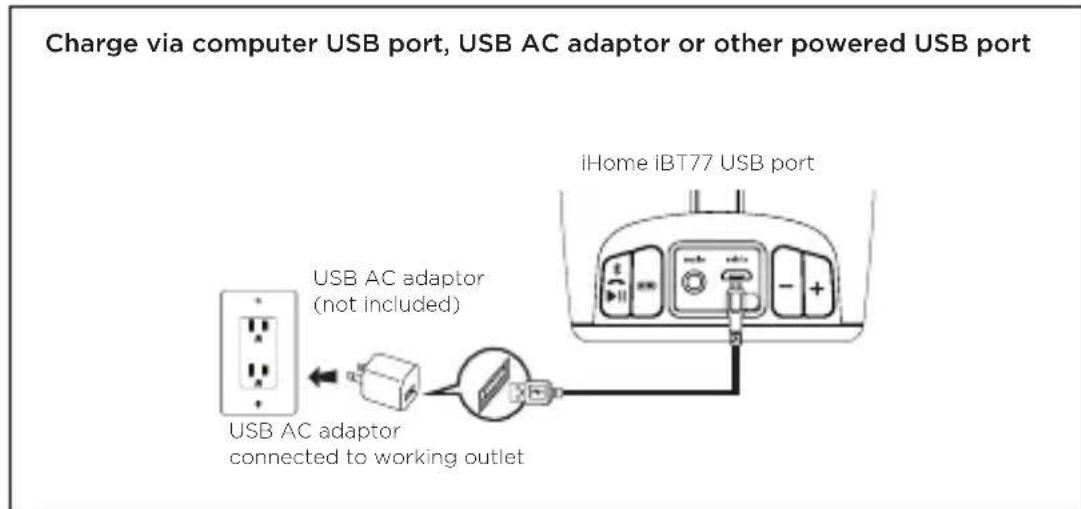

Charging the Unit

CHARGE UNIT BEFORE USE/KEEP UNIT OFF FOR FASTER CHARGING

1. Connect the micro USB plug on the included USB charging cable to the micro USB in Charging Port on the back of the unit under the rubber cover.

2. Connect the standard USB plug end of the cable to a power USB port on a computer, a USB AC adaptor or other USB charging device. For first time use, charge unit for about 4 hours. The status indicator LED on top of the unit glows solid red while charging and turns off once unit is fully charged.

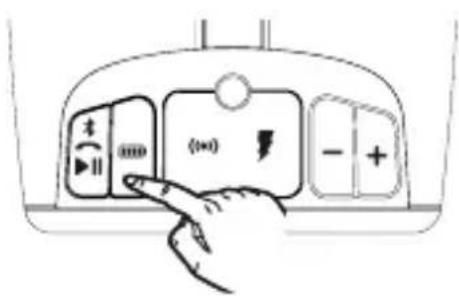

Reviewing Battery Charge Level (Charger is Disconnected and unit is ON)

1. Press and hold the Battery Button when unit is ON but not charging (micro USB cable not connected) to enter Battery Review Mode. The built-in voice will announce the current battery level.

TIP: On some iOS (Apple) devices, you can view the iBT77 battery status on your device's screen. When device is paired and connected, look for a vertical battery icon next to the Bluetooth icon on the upper

right corner of the device's screen.

Using the iBT77

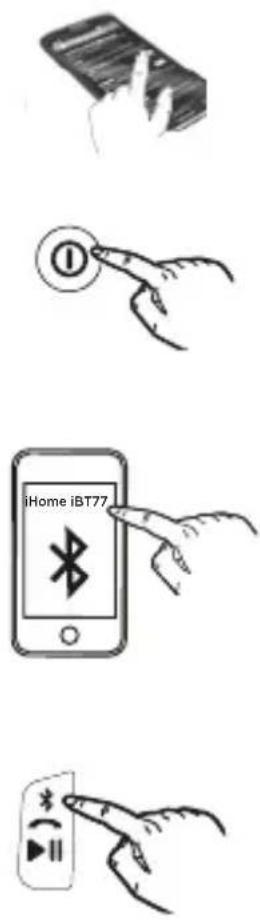

Pairing Your Device

Pairing is the set-up process to introduce your Bluetooth-capable device to the iBT77. Once your device is paired, the iBT77 can recognize it and you can play your audio through it.

1. Turn on your Bluetooth device and make it "discoverable" by turning on Bluetooth mode (check in Options or Settings).

2. Press and hold the Power Button to turn on the iBT77. The first time the unit is powered on, it will enter auto-pairing mode: the unit will beep and the Bluetooth status indicator light on top of the unit will flash quickly while the unit attempts to pair. "iHome iBT77" should appear in your device's Bluetooth menu. Select "iHome iBT77" on device to begin/complete pairing. If prompted for a passcode, enter "1234" on your device's keypad. 1 beep will sound and the Bluetooth status indicator light will appear solid blue, indicating the iBT77 is paired and ready to play music. There should also be an indication on your device. If no device is successfully paired within 3 minutes the iBT77 will default to previous mode.

3. To pair with a different device or at a different time, make sure unit is powered on, then press and hold the Bluetooth/Speakerphone/Play/Pause Button for 2 seconds. Select "iHome iBT77" on device to pair.

Once the iBT77 is paired to a device, it will attempt to autolink when the device is within range (about 33 feet).

Playing Audio Via Bluetooth

1. Press and hold the Power Button to turn on the unit. The Bluetooth status indicator will glow solid blue when a linked device is in range and detected. You can then listen to audio streamed wirelessly from your paired Bluetooth device.
2. Press the Bluetooth/Speakerphone/Play/Pause Button to play and pause.
3. Press the - or + Button to adjust the iBT77 volume. You can also adjust volume from your device.
4. When done listening, press the Power Button to turn the unit OFF. Remember to turn off your device, too.

Speakerphone Operation

NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call. In Wireless Stereo mode, call will only come through left speaker.

1. When a call is received, playing music is muted to hear the ring tone and the cabinet lights flash green. Press the Bluetooth/Speakerphone Button to answer the call, or press and hold to reject the call.

2. When a call is completed, press the Bluetooth/Speakerphone Button to end the call and resume previous function.

Using the iBT77

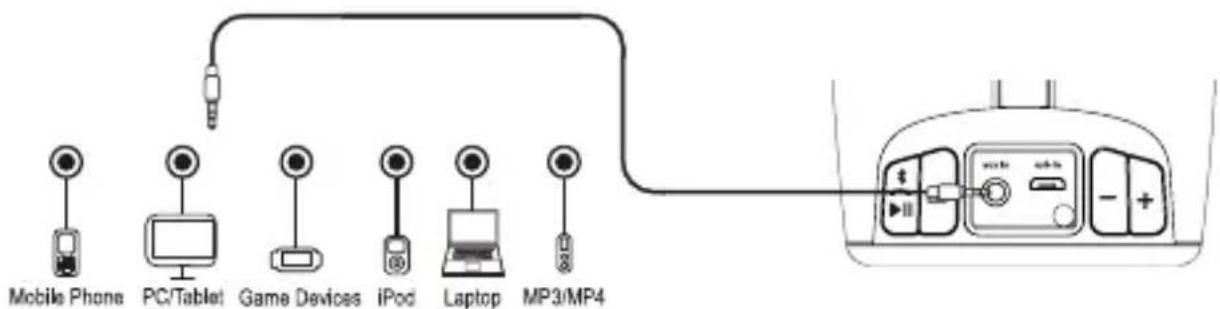

Playing Audio via Aux In

1. Connect micro USB charging/audio cable to the Charging/Aux-in USB Port on the side of the unit and connect the 3.5mm audio plug end to the headphone or line-out jack on your audio device.
2. Press and hold the Power Button to turn the unit ON.
3. Power on the audio device and use the controls on the device to play or pause audio and to navigate tracks.
4. Press the - or + Button to adjust the system volume. You can also adjust volume from your device.
5. When done listening, press the Power Button to turn the unit OFF. Remember to turn off your device, too.

NOTE: Make sure Bluetooth audio is not playing or you will not hear aux audio.

Wireless Stereo Mode

The iBT77 features Wireless Stereo capability, allowing you to enjoy real stereo sound when two iBT77 speakers are linked (additional speaker sold separately).

1. Press and hold the Power Button on BOTH speakers within 10 seconds.
2. Press and hold the Bluetooth/Speakerphone Button AND the - Button together at the same time on each speaker to begin linking process. The status indicator on the speaker will flash green.
3. When linked, a voice will announce "LEFT CHANNEL" and "RIGHT CHANNEL" and the status indicator on the right speaker will glow solid green.
4. Delete earlier instances of "iHome iBT77" from your device Bluetooth menu. Then re-pair speakers to Bluetooth device.
5. Press the Bluetooth/Speakerphone/Play/Pause Button to play, pause and navigate tracks.
6. Press the - or + Button to adjust the iBT77 volume. You can also adjust volume on your device.
7. Press the Power Button on EITHER speaker to turn both speakers OFF.

Troubleshooting

Unit doesn't respond (no power, locked up/ "frozen")

• Make sure unit is completely charged.
- Check that all connections are correct and properly plugged in.
- Make sure your device is properly paired with the iBT77.
• Make sure the unit is on
- If the unit does not respond, try resetting the unit. Insert the end of a paperclip or similar into the Reset Port located on the bottom of the unit. Note that doing so will clear settings.
- To reset Bluetooth, press and hold the Bluetooth Button for 10 seconds.

Trouble pairing device with iBT77

Bluetooth implementation varies depending on your device's hardware and operating system. Please see our website for updates on pairing.

• When you power ON the speaker, it will automatically link with the last previously paired Bluetooth device if the device is still within range (about 33 feet).
• If your device does not auto-link when within range, re-pair the device. To do so, first delete the iBT77 from your Bluetooth device's menu.
• Make sure your device is working properly. Check your device's manual for details on Bluetooth pairing and linking.

For further information and to see the latest instructions, visit www.ihome.com/support

Internal Rechargeable Lithium-ion Battery

This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact Customer Service at -1-800-288-2792.

WARNING/DISPOSAL OF UNIT

Please do NOT attempt to change the battery yourself. Doing so may damage the unit and will void the warranty. When disposing of unit, follow the disposal instructions below:

• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices.
• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which ones in your area do so.

CAUTION

The battery used in this device may present a risk of fire, explosion or chemical burn if mistreated

• Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.
• Always confirm that the temperature is 5^ - 35^ (41° - 95° Fahrenheit) before you charge the battery. Leakage or deterioration of the battery may occur if this warning is not heeded.
• Never expose the battery to any liquid.
• Never expose the battery to excessive heat such as direct sunlight or fire. Never use the battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
  • Always keep the battery out of the reach of infants and small children.

FCC Information

iBT77

FCC ID:EMOIBT77

IC:986B-IBT77

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3 (B)/NMB-3(B)

Canada Statement

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture - The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation - The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
3. Heat - The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
4. Power Sources - The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Only use the AC adapter that came with the unit.
5. Power-Cable Protection - Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning - The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleaning instructions.
7. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
8. Attachments - Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading - Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service - The unit should be serviced by qualified service personnel when:
    a. the power supply cable or plug has been damaged.
    b. objects have fallen into or liquid has been spilled into the enclosure.
    c. the unit has been exposed to rain.
    d. the unit has been dropped or the enclosure damaged.
    e. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse - If the unit is to be left unused for an extended period of time, such as a month or longer, charge the unit fully before storage
13. Servicing - The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.
14. Magnetic Interference: This product's speakers contain powerful magnets which could cause interference or damage to sensitive equipment such as hard drives, CRT televisions and monitors, as well as medical, scientific, and navigational devices. Keep this unit away from these products at all times.

LIMITED 1 YEAR WARRANTY

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized by Customer Service.

If service is required, please call Customer Service at 1-800-288-2792 to obtain a Return Authorization Number and shipping instructions. A copy of the sales receipt is required to validate in-warranty status.

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD's or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,

shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI product.

© 2017 SDI Technologies, Inc. All rights reserved

Questions? Visit www.ihome.com

or call 1-800-288-2792 Toll Free
