Product Type	10 Gigabit Ethernet Patch Cable
Model	10G-CAB-05
Brand	Luxul
Cable Category	Cat6a (or higher)
Connector Type	RJ45 Male to RJ45 Male
Length	0.5 m (1.6 ft)
Data Rate	10 Gbps
Frequency	500 MHz
Shielding	S/FTP (Shielded Foiled Twisted Pair)
Conductor Material	Stranded Copper
Jacket Material	PVC (Polyvinyl Chloride)
Outer Diameter	Approx. 6.0 mm
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Bend Radius	4x cable diameter
Weight	Approx. 30 g
Compliance	RoHS, IEEE 802.3an (10GBASE-T)
Wiring Standard	TIA/EIA-568-B.2
Boot Type	Snagless molded boot
Application	Data center, server room, high-speed network connections
Maintenance	Wipe with dry cloth; avoid sharp bends
Safety	Low smoke zero halogen (LSZH) optional

Frequently Asked Questions - 10G-CAB-05 Luxul

What is the maximum data rate supported by the 10G-CAB-05 cable?

The cable supports up to 10 Gbps (10GBASE-T) over distances up to 100 meters, but at 0.5 meters it provides optimal performance.

What type of connectors does this cable use?

It uses RJ45 connectors on both ends, compatible with standard Ethernet ports.

Is the 10G-CAB-05 cable backward compatible with slower speeds?

Yes, it is fully backward compatible with 1000BASE-T (1 Gbps), 100BASE-TX, and 10BASE-T networks.

What is the cable length?

The model 10G-CAB-05 indicates a length of 0.5 meters (approximately 1.6 feet).

Is this cable shielded?

Yes, it features S/FTP shielding (braid + foil) to reduce electromagnetic interference.

Can I use this cable for PoE (Power over Ethernet)?

Yes, the cable supports PoE/PoE+ applications, delivering power up to 30W.

What is the recommended bend radius?

The minimum bend radius is 4 times the cable diameter to avoid signal degradation.

How do I clean the cable?

Use a dry, soft cloth to wipe the connectors and jacket. Do not use liquid cleaners.

Is the 10G-CAB-05 suitable for outdoor use?

No, it is designed for indoor use only. Use an outdoor-rated cable for external installations.

What is the warranty period for this cable?

Luxul typically offers a limited lifetime warranty against manufacturing defects. Check with your supplier for details.

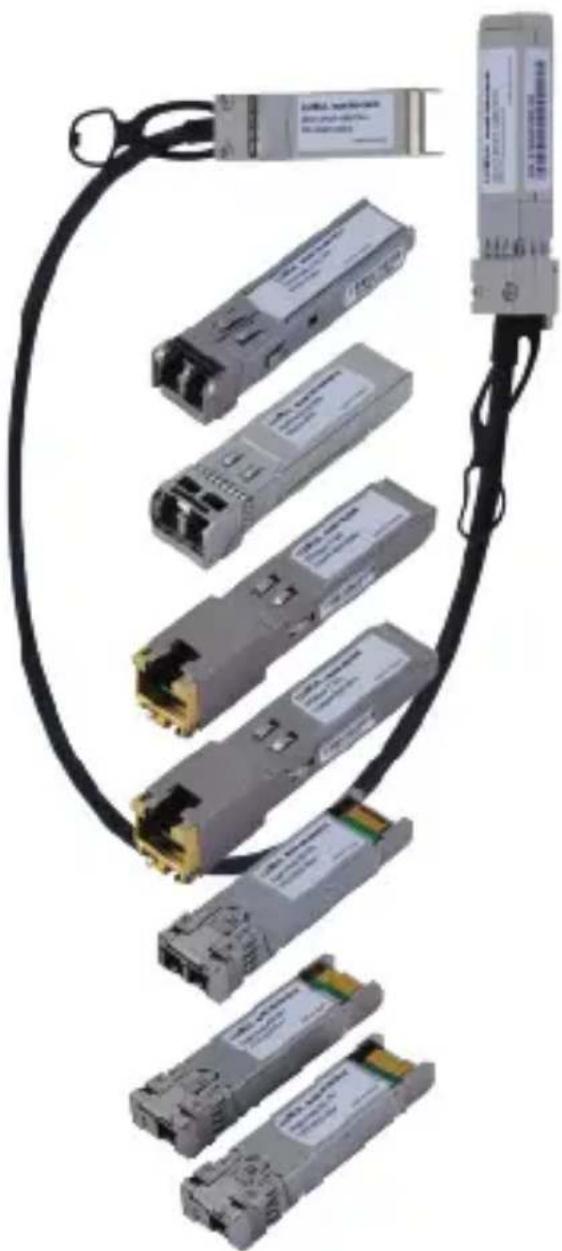

USER MANUAL 10G-CAB-05 Luxul

Direct-Attach Cable 0.5m 10G Copper Passive

1G-MM-DX-LC

1G Multimode Fiber Duplex SFP Module 850nm VCSEL

10G-MM-DX-LC

10Gb Multimode Fiber Duplex SFP+ Module 850nm VCSEL

1G-RJ45

1000Base-T RJ-45 SFP Module

10G-RJ45

10GBase-T RJ-45 SFP+ Module

10G-SM-DX-LC

10Gb Single-mode Fiber Duplex SFP+ Module 1310nm DFB Laser

10G-SM-SX-LC

10Gb Single-mode Fiber Simplex SFP+ Module 1310nm/1270nm DFB Laser

Close-up of multiple Ethernet cable connectors with network ports and connectors, no visible text or symbols

Use the SFP Module to:

Extend the distance of connected devices

Provide connectivity between switches

Quick Install Guide

Model Numbers: 1G-MM-DX-LC, 10G-MM-DX-LC, 1G-RJ45, 10G-RJ45, 10G-SM-DX-LC, 10G-SM-SX-LC, 10G-CAB-05-1

© 2018 Luxul. All Rights Reserved.

No part of this publication may be modified or adapted in any way, for any purposes, without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise, under any Luxul intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in this or any Luxul product.

DOCUMENT CONVENTIONS

The following alerts are used to indicate notable situations:

NOTE: Tips, hints, or special requirements that you should take note of.

CAUTION: Care is required. Disregarding a caution can result in data loss or equipment malfunction.

WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage.

FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation

CONTACT LUXUL

Sales

P: 801-822-5450, Option 1

E: [e-mail]

Technical Support

P: 801-822-5450, Option 2

E: [e-mail]

WHAT THIS PRODUCT DOES:

These SFP Modules are designed for use with Luxul Ethernet switches that have a corresponding SFP or SFP+ port. The modules can be used to interconnect Luxul switches or provide an additional port for connectivity to a networked device (computer, etc.). The modules allow for connectivity over various media, bandwidths, and distances: UTP copper or fiber optic cabling, short or long distances, 1 or 10 Gigabit.

WARNING!: Grasp module by the sides to install or remove from SFP ports. Do not use the cable.

WARNING!: Pulling, bending, kinking, or twisting fiber optic cable will cause damage to the cable.

WARNING!: Put on an electrostatic discharge (ESD) wrist strap and attach the clip end to a metal surface (such as an equipment rack) to act as ground during installation.

INSTALLATION

Remove the SFP Module from its protective packaging

Gently insert the SFP Module into the SFP port of the Luxul switch until it clicks into place. The SFP Modules are keyed to prevent incorrect insertion. A tab on the bottom of the SFP Module locks it to the front panel of the switch

Remove the protective covering from the port connectors of the SFP Module and store the covering for future use

The SFP Module is now ready to receive the compatible cable

NOTE: SFP Modules are hot swappable.

NOTE:

When connecting to devices that will require a SFP Module, the same module must be used on both sides of the connection (EX. a 1G-RJ45 SFP Module on one side of the connection requires that a 1G-RJ45 is used on the other side of the connection). The exception is the 10G-SM-SX-LC, which comes as a pair of compatible modules—one for each side of the connection.

SFP MODULES HARDWARE FEATURES

Module	Type	Cable Type	Mode	Interface
10G-CAB-05	Cable	N/A	N/A	N/A
1G-RJ45	UTP/STP	Cat.5e or Cat.6/7 UTP/STP	N/A	RJ-45
10G-RJ45		Cat.6/7 UTP/ST	N/A
1G-MM-DX-LC		Duplex Fiber	Multi	LC
10G-MM-DX-LC	Optical Fiber	Duplex Fiber	Multi
10G-SM-DX-LC		Duplex Fiber	Single
10G-SM-SX-LC		Simplex Fiber	Single
