Brand	Marshall Electronics
Model	V-1292
Product Type	2.5MP Full-HD Color Board Camera
Image Sensor	1/3-inch CMOS, 2.5 Megapixel
Lens Mount	M12
Lens Included	No (lens sold separately)
Video Output	3G/HD-SDI (BNC) & CVBS (BNC) on breakout cable
Supported Resolutions (V-1292B-2MP-1)	1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97 fps
Supported Resolutions (V-1292-2MP-1)	1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25 fps
Minimum Illumination	0.2 lux
WDR (Wide Dynamic Range)	Yes

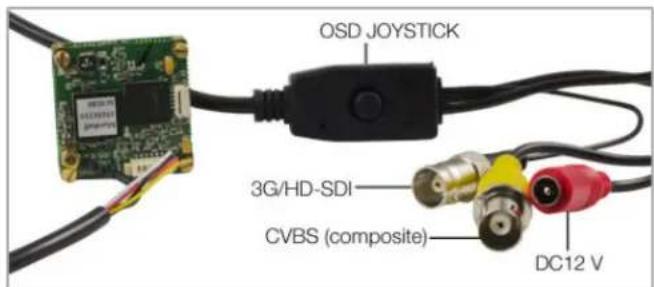

OSD Control	Joystick on breakout cable
Adjustable Parameters	Stepped Red/Blue Gain, Gamma, Brightness, Shutter
Included Accessories	Breakout cable with OSD joystick
Power Supply	12V DC (typical)
Maintenance	Clean with soft dry cloth. Avoid moisture.
Safety Instructions	Use with proper power supply. Do not expose to rain or moisture.
Spare Parts	Available through Marshall Electronics support.
Reparability	Repairs should be performed by qualified personnel.
General Information	Board camera for professional video applications.

Frequently Asked Questions - V-1292 Marshall Electronics

What is the resolution of the Marshall Electronics V-1292?

The V-1292 features a 2.5 Megapixel CMOS sensor capable of Full HD 1080p resolution at various frame rates up to 60 fps (depending on model variant).

What video outputs does the V-1292 provide?

It provides both 3G/HD-SDI and CVBS (composite) video outputs via BNC connectors on the included breakout cable.

Does the V-1292 work in low light conditions?

Yes, it is low light sensitive down to 0.2 lux, capturing sharp and vivid color images.

How do I adjust camera settings like gain and brightness?

Use the OSD joystick on the breakout cable to access the on-screen menu. Adjustments include stepped Red/Blue gain, gamma, brightness, and shutter.

What is the difference between V-1292B-2MP-1 and V-1292-2MP-1?

The V-1292B-2MP-1 supports 59.94/29.97 fps frame rates, while the V-1292-2MP-1 supports 60/50/30/25 fps. Both are Full HD.

What lens mount does the V-1292 use?

It uses an M12 lens mount. The lens is not included and must be purchased separately.

Does the V-1292 support Wide Dynamic Range (WDR)?

Yes, it features a new WDR function that supports high speed and high sensitivity to various light sources.

What power supply is required for the V-1292?

Typically, the V-1292 requires 12V DC power. Always verify with the device specifications.

How do I install the V-1292 board camera?

Mount the board securely, connect the breakout cable for video and OSD, and supply 12V DC power. Ensure proper ventilation.

Where can I find spare parts or get repairs for the V-1292?

Contact Marshall Electronics support for spare parts and authorized repair services.

USER MANUAL V-1292 Marshall Electronics

V-1292B-2MP-1 (59.94/29.97fps) | V-1292-2MP-1 (60/50/30/25fps)

2.5MP Full-HD Color Board Camera

• 2.5 Megapixel 1/3-inch CMOS Sensor • M12 Lens Mount • V-1292B-2MP-1: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps • V-1292-2MP-1: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps • 3G/HD-SDI (BNC) & CVBS (BNC) on breakout cable (included) • Captures sharp & vivid color images at 0.2 lux (low light sensitive) • New WDR function supports high speed & high sensitivity to various light sources • OSD Menu Joystick on Breakout Cable (included) • Stepped (Red/Blue) Gain Control, Gamma, Brightness and Shutter adjusts

Close-up of a green printed circuit board with a black camera lens and gold contacts (no readable text or symbols)

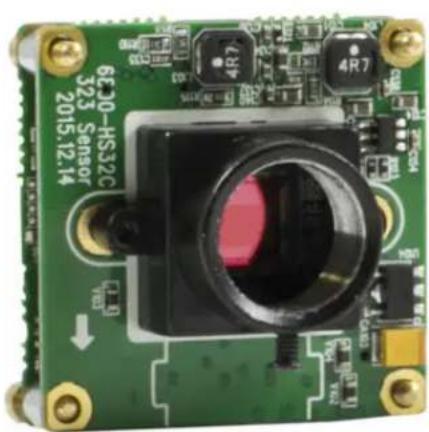

FRONT

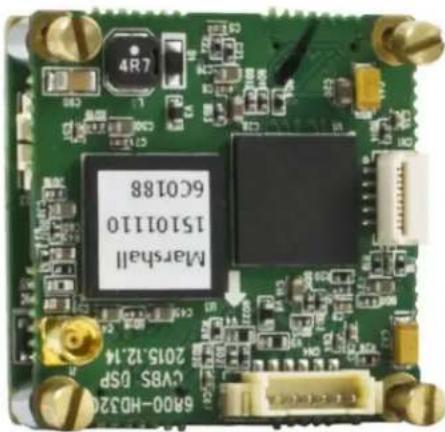

BACK

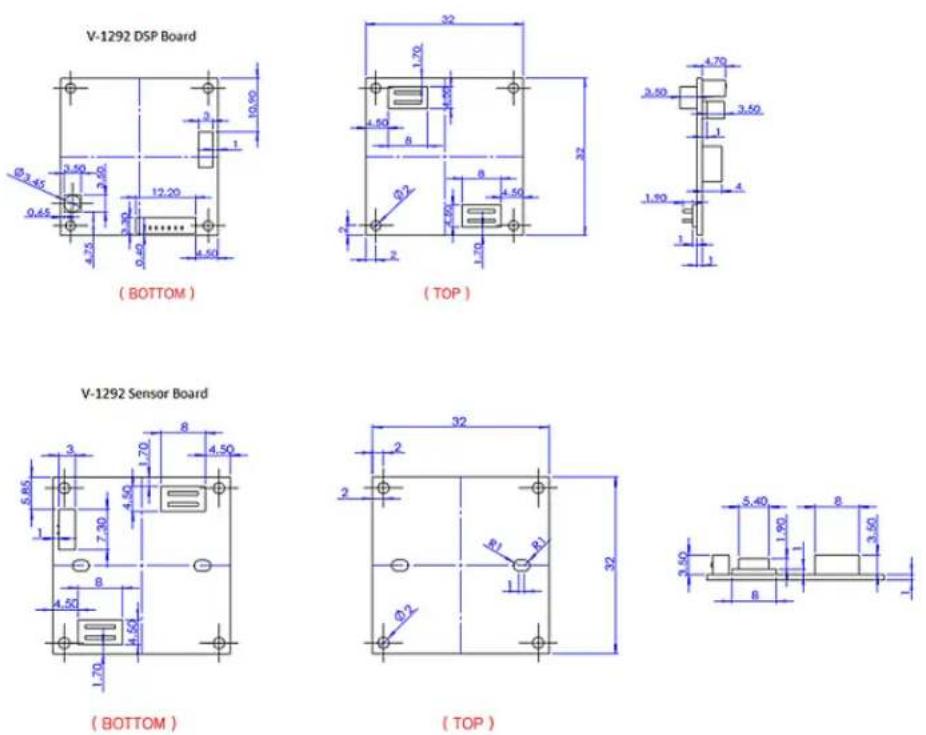

CAMERA BOARD
