Product Type	Small Form-Factor Pluggable (SFP) Module
Model Number	SFP-16
Applications	Copper and optical fiber Ethernet connectivity for managed switches, unmanaged switches, and media converters
Fiber Types Supported	Multimode and single mode optical fiber
Data Rates Available	Fast Ethernet, Gigabit Ethernet
Connector Types	LC or SC optical connectors; RJ45 for copper
Maximum Distance	Up to 120 km (single mode fiber)
Dimensions (Typical)	Approx. 60 x 13 x 10 mm
Weight (Typical)	Approx. 30 g
Power Consumption (Typical)	< 1 W
Operating Temperature Range	Industrial rated: -40°C to +85°C (typical)
Wavelength Options	Various (e.g., 850 nm, 1310 nm, 1550 nm)
Warranty	Lifetime warranty when used with ComNet SFP-configurable products
Installation and Removal	Keyed orientation; bale clasp for secure locking; static precautions required
Maintenance and Cleaning	Use clean dust plugs after fiber removal; clean optic surfaces before reconnecting
Safety Precautions	Static sensitive – handle with ESD precautions; avoid dust contamination in optical bores
Spare Parts	Dust plugs (keep for reuse)
General Information	ComNet SFP modules are required for use with ComNet SFP-configurable products to qualify for lifetime warranty

Frequently Asked Questions - SFP-16 ComNet

How do I install the SFP module?

Flip the bale clasp up, align the SFP module with the port, and slide it in until it locks. Remove rubber plugs before attaching optical fiber.

How do I remove the SFP module?

Disconnect the optical fiber, press the bale clasp down with your index finger, grasp the module, and carefully pull it out. Insert rubber plugs into optical bores and store in anti-static packaging.

What types of fiber does the SFP-16 support?

It supports both multimode and single mode optical fiber, with options for one or two fibers.

What is the maximum distance achievable?

Depending on the wavelength and optical power, distances range from 300 meters to 120 kilometers.

How should I clean the SFP module optics?

Use clean dust plugs after removing fiber, and clean the optic surfaces of the fiber before reconnecting. Avoid dust in optical bores.

Is the SFP-16 hot-swappable?

Yes, SFP modules are hot-swappable but ensure you follow ESD precautions and handle with care.

What is the warranty for the SFP-16?

ComNet offers a Lifetime Warranty when the SFP module is used with ComNet SFP-configurable products.

Can I use the SFP-16 with any switch?

The SFP-16 is designed for ComNet switches and media converters. Using it with other brands may not guarantee compatibility or warranty.

What should I do if the SFP module is not detected?

Check that the module is fully inserted and locked. Clean the contacts and fiber connectors. Verify compatibility with the host device.

How do I store the SFP module when not in use?

Insert dust plugs into optical bores and place the module in anti-static packaging to protect against static and dust.

USER MANUAL SFP-16 ComNet

comnet Communication Networks

Five different Ethernet flash drives shown in a row (no visible text or labels)

INSTALLATION AND OPERATION MANUAL

SFP-(X)

COPPER AND OPTICAL FIBER ETHERNET CONNECTORS

The ComNet™ selection of Small Form-Factor Pluggable modules allow for an optical or copper interface when using a ComNet managed switch, unmanaged switch or media converter.

These interchangeable SFP modules are available for use with copper media, or multimode and single mode optical fiber. The optical fiber SFP modules are available in fast Ethernet one and two fiber versions and Gigabit one and two fiber versions. They also are available with LC or SC optical connectors.

The ComNet SFP modules have different wavelengths and optical power to offer distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments.

The ComNet SFP interface is required for use with all ComNet SFP configurable products to qualify for the ComNet Lifetime Warranty.

See Page 2 for complete installation instructions.

SFP-(X) INSTALLATION/REMOVAL

CAUTION:

• The Fiber Optic sub-module is static sensitive. Use static handling precautions when installing or removing the sub-module.
• Protect your SFP sub-modules by inserting clean dust plugs into the SFP sub-modules after the optical fiber is extracted from them. Be sure to clean the optic surfaces of the optical fiber before you plug them back into the optical bores of another SFP sub-module. Avoid getting dust and other contaminants into the optical bores of your SFP sub-modules. The optics will not work correctly when obstructed by dust.

SFP Module:

• The SFP sub-module installs in the connector cage located on the unit corresponding to the port assignment to be used.
• The SFP sub-module is keyed and can only be installed in one orientation.

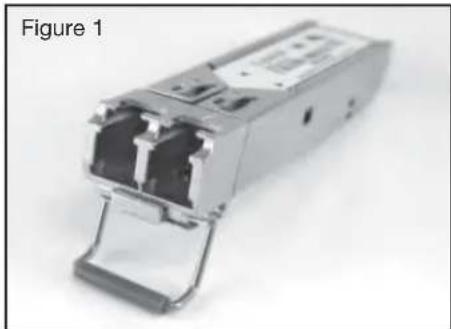

• The SFP sub-module (see Figure 1) has a bale clasp that you use to secure the SFP sub-module in a connector cage.

The photos used in the following sequence are intended to aid in the installation and removal of the SFP sub-module and may not match your particular model.

Close-up of a metallic broadband flash drive (no visible text or symbols)

Close-up of a hand holding a small electronic device with four ports, labeled as Figure 2 (no text or symbols on the device itself)

Installation:

Step 1 - Flip the bale clasp up before inserting the SFP module.

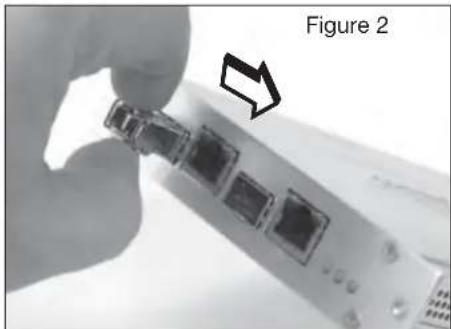

Step 2 - Line up the SFP sub-module with the port and slide it into the port. (see Figure 2)

Step 3 - When you are ready to attach the optical fiber, remove the rubber plugs from the sub-module and save for future use.

Note: When installed properly the SFP sub-module will lock in place.

Close-up of a device's cable connector with a hand pointing to it, showing internal components and a black arrow indicating a detail (no text or symbols on the device itself)

Close-up of a hand holding a device with four ports, showing a right-pointing arrow (no text or symbols on the device itself)

Removal:

Step 1 - Disconnect the optical fiber from the SFP sub-module.

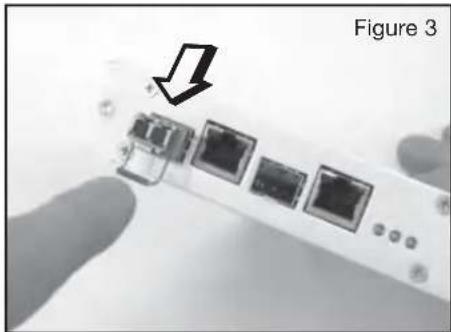

Step 2 - Open the bale clasp on the SFP sub-module by pressing it down with your index finger as shown in Figure 3.

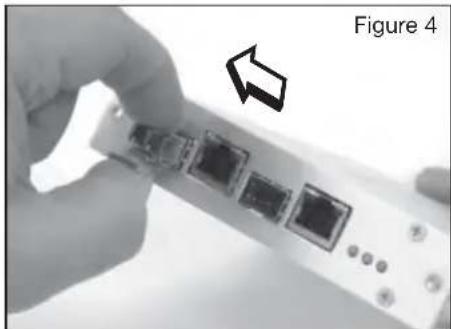

Step 3 - Grasp the SFP sub-module between your thumb and index finger and carefully remove it from the connector cage as shown in Figure 4.

Step 4 - Install the rubber plugs back into the SFP sub-module optical bores, and place the SFP sub-module in anti-static protective packaging.
