Product Type	Quad 4.3" Rack Mount Monitor
Model	V-MD434
Screen Size	4.3" diagonal
Display Area (H x V)	93.0 mm x 55.8 mm
Native Resolution	800 x RGB x 480 pixels
Brightness	200 cd/m²
Contrast Ratio	400:1
Viewing Angle (H x V)	65° x 65°
Input Modules	Modular design; supports optional 3G/HD/SDI, HDMI, DVI-I, Optical modules
Video Formats	480i, 576i, 720p, 1035i, 1080i, 1080p (various frame rates)
Power Consumption	24 W
Voltage Requirement	12 VDC
Power Supply (included)	V-PS12-5V-1: Input 100-240V AC, Output 12VDC, 5A

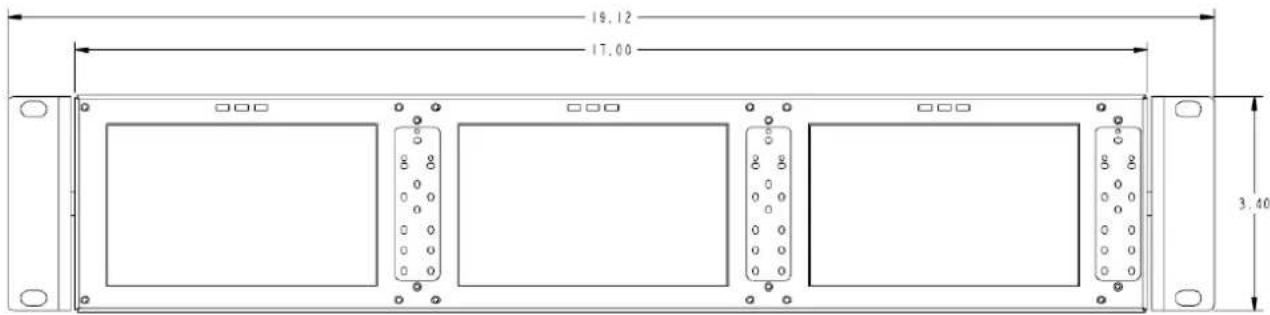

Dimensions (W x H x D)	19.12" x 3.4" x 1.73" (approx. 486 x 86 x 44 mm)
Weight (without modules)	2.68 lbs (1.22 kg)
Operating Temperature	32°F to 120°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Tally Interface	HD-15 connector for contact closure; also supports LAN tally
Network Control	Ethernet (RJ45) for web-based remote control
Screen Cleaning	Use ammonia-free cleaning wipes or micro-fiber cloth; avoid paper towels
Installation	19" rack mount, 3RU height
Warranty	1 year limited warranty for first consumer

Frequently Asked Questions - V-MD434 Marshall Electronics

What input modules are compatible with the V-MD434?

The V-MD434 supports Marshall Electronics Type B input modules, including MD-3GSDI-B (3G/HD/SDI), MD-HDSDIx2-B (dual HDSDI with switched output), and others. Contact Marshall for availability.

How do I access the on-screen menu?

Press and hold the MENU button on the front panel. Use the ▲ and ▼ buttons to navigate, and press SELECT to enter a submenu or select an option. Press MENU to exit.

Can I control the monitor over a network?

Yes. Connect an Ethernet cable to the LAN 100 port on the rear. Use a web browser to access the monitor's IP address or host name. You can adjust all settings via the Network Control Page.

How do I use the false color filter?

Enable False Colors in the Filter Configuration submenu. It assigns colors to luminance levels (e.g., pink at ~80 IRE) to aid exposure setting. Refer to the false color key in the manual.

What is Pixel-to-Pixel mode?

Pixel-to-Pixel mode bypasses scaling and displays incoming video at its native resolution. If smaller than 800x480, it appears centered with black borders; if larger, the center 800x480 is shown cropped.

How do I clean the screen?

Use ammonia-free cleaning wipes (Marshall V-HWP-K) or a soft micro-fiber cloth with non-abrasive cleaner. Do not use paper towels or apply excessive pressure.

What does the Tally connector do?

The HD-15 Tally connector allows external devices to activate the LED tally lights (yellow, red, green) by connecting corresponding pins to ground. See pinout in manual.

How do I set up user-definable function buttons?

Go to Function Presets submenu. Assign functions to F1 and F2 (e.g., Ratio, Check Field, False Colors). The chosen functions will be accessible via the front panel buttons.

Can I save and load monitor configurations?

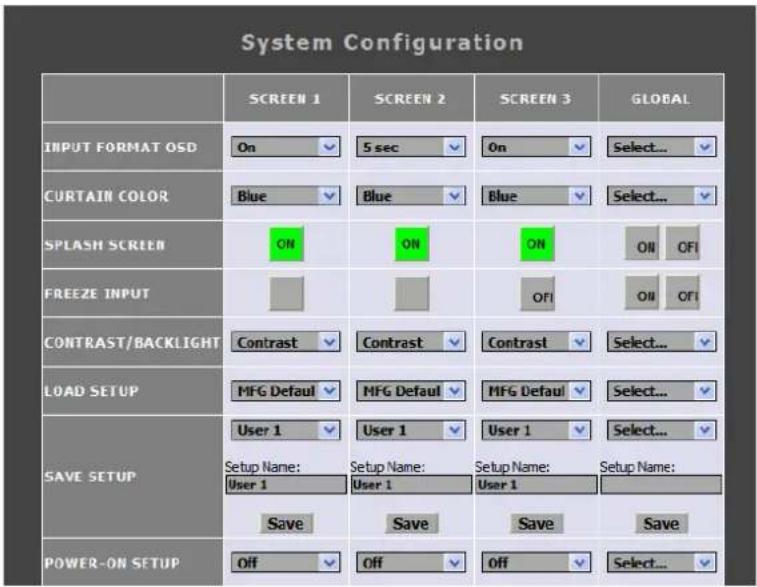

Yes. In System Configuration submenu, use Save Setup to store current settings as User 1-4, and Load Setup to restore them. Power-on Preset selects which setup loads at startup.

What is the native aspect ratio of the V-MD434?

The native aspect ratio is 15:9. The monitor can display in Full Screen, 4:3, or 16:9 modes, but Pixel-to-Pixel overrides ratio settings.

USER MANUAL V-MD434 Marshall Electronics

Marshall Electronics

Model No. V-MD503

Model No. V-MD434

Triple 5" Rack Mount Monitor

Quad 4.3" Rack Mount Monitor

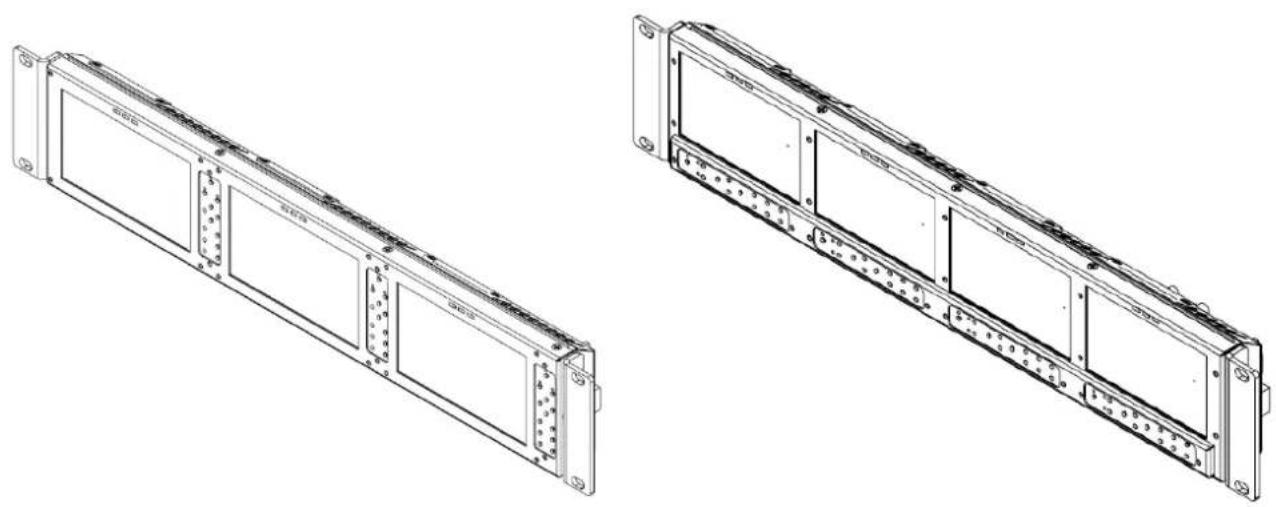

Technical line drawings of two rectangular electronic modules with mounting flanges and internal compartments (no text or symbols)

Operating Instructions

Table of Contents

Product Overview 5

Features....5

Installation and Accessories 6

Monitor Front 7

Monitor Rear....8

Compatible Input Formats 9

Menu and Navigation....10

Video Configuration Submenu....10

Marker Configuration Submenu....13

Filter Configuration Submenu 16

System Configuration Submenu 17

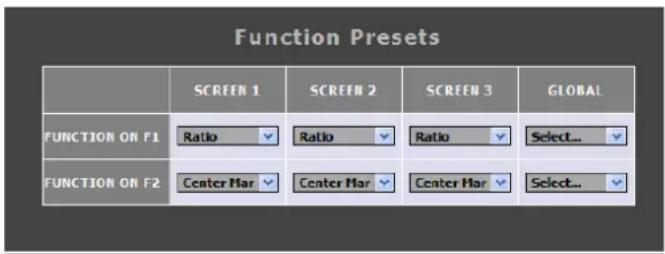

Function Presets Submenu 18

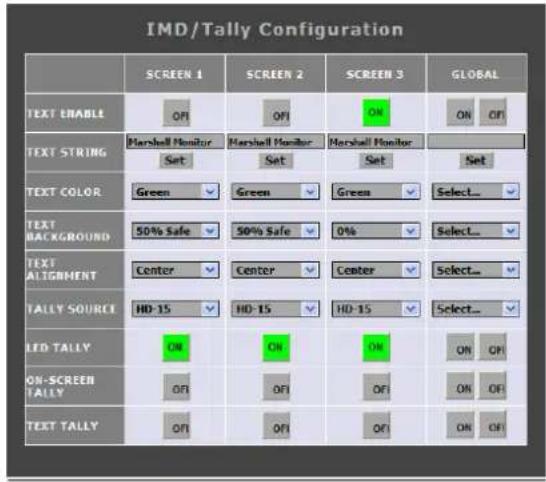

IMD & Tally Configuration....19

System Information Submenu 20

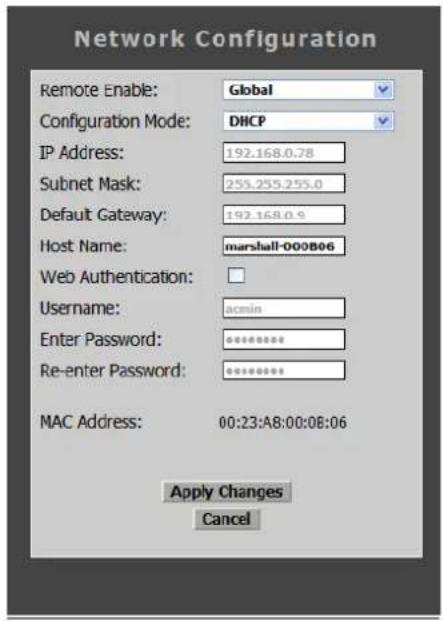

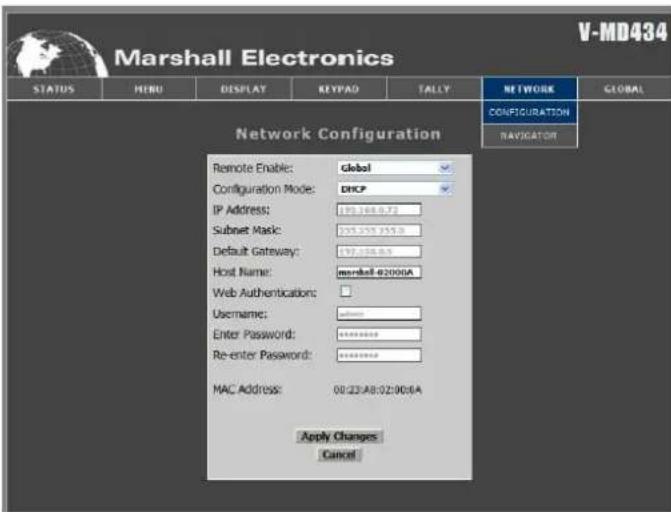

Network Configuration Submenu....20

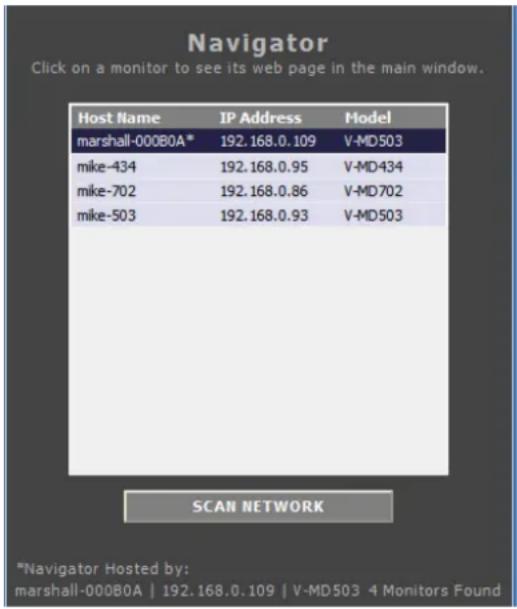

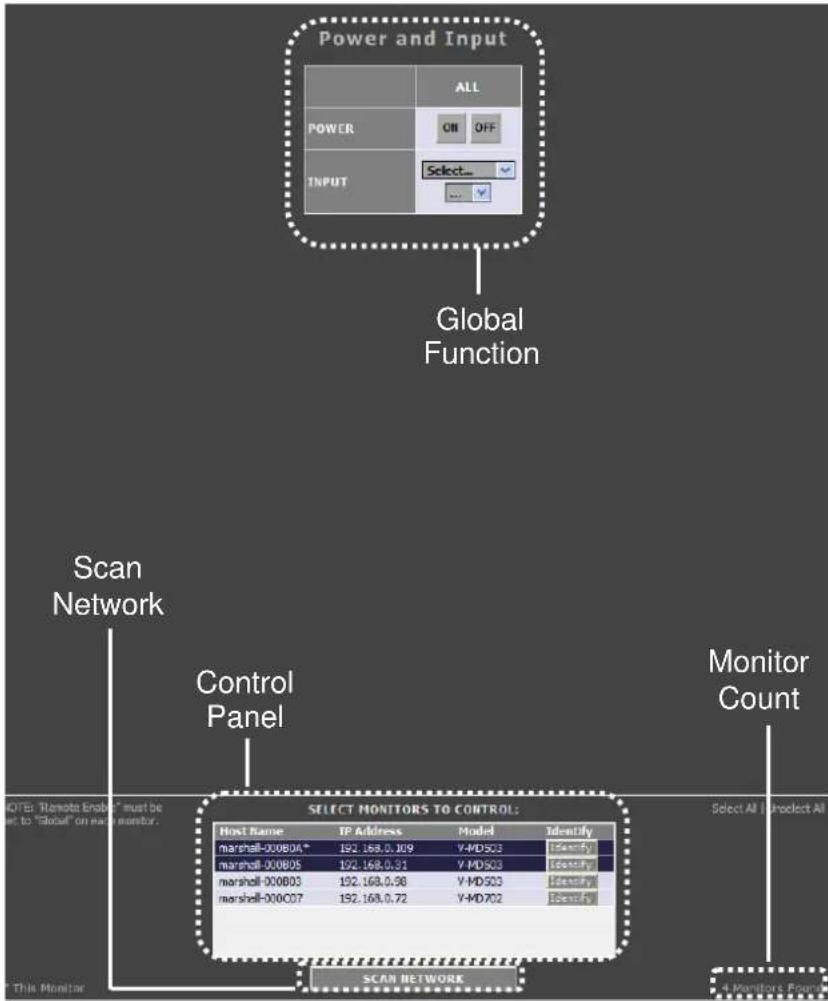

Network Control Page....22

Status Tab....22

Menu Tab....23

Display Tab 29

Keypad Tab....30

Network Tab....31

Global Tab 34

Specifications 35

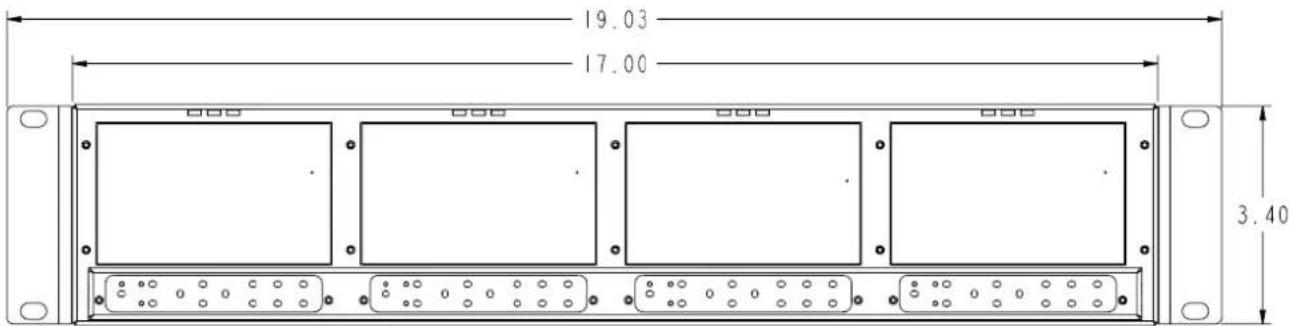

Dimensions....36

Maintenance 37

Warranty 37

This page intentionally left blank

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

Features

■ High-Resolution 5" and 4.3" Panel

The V-MD503 and V-MD434 feature an all-digital TFT-MegaPixel active matrix LCD system with 1.15 million pixels. The LCD panels feature a brightness of 300 cd/m^2 and 200 cd/m^2 and contrast ratios of 6000:1 and 400:1, respectively making the display ideal in a variety of environments and lighting conditions.

■ Modular Input Design

Each monitor has rear slots to support various Digital, Optical and Analog video input modules.

■ Multi-Format Compatibility

Accepted formats include 480i, 576i, 720p, 1035i, 1080i. 3G/HD/SDI, HDMI, DVI-I, Optical inputs available as optional Input Modules. Please contact Marshall Electronics for availability.

■ ColorMatch Conversion with Color Temperature Adjustment

Emulation of SMPTE-C/EBU color space allows these monitors to replace any broadcast CRT monitor. Presets include D65, D55 and D93. Bias

and Gain adjustment for each color enables precise color matching and white balance.

■ False Color Filter, and other Advanced Features

False Color filter, Aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features which make the V-MD503 and V-MD434 at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.

■ Flexible Screen Markers

A variety of screen markers in 4:3, 16:9, and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments.

■ User-Definable Function Buttons

Two user-definable function buttons on the front-panel allow quick access to numerous settings and features including false color filter, aspect ratio, screen markers, monochrome mode, color temperature and more.

Carefully unpack the V-MD503 / V-MD434 monitor and verify that the following items are included:

• V-MD503 / V-MD434 Monitor
• V-PS12-5V-1 Twist Lock Connector
- Operating Instructions

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately call Marshall Electronics Customer Service at [phone]. If you are not located within the continental United States, call [phone].

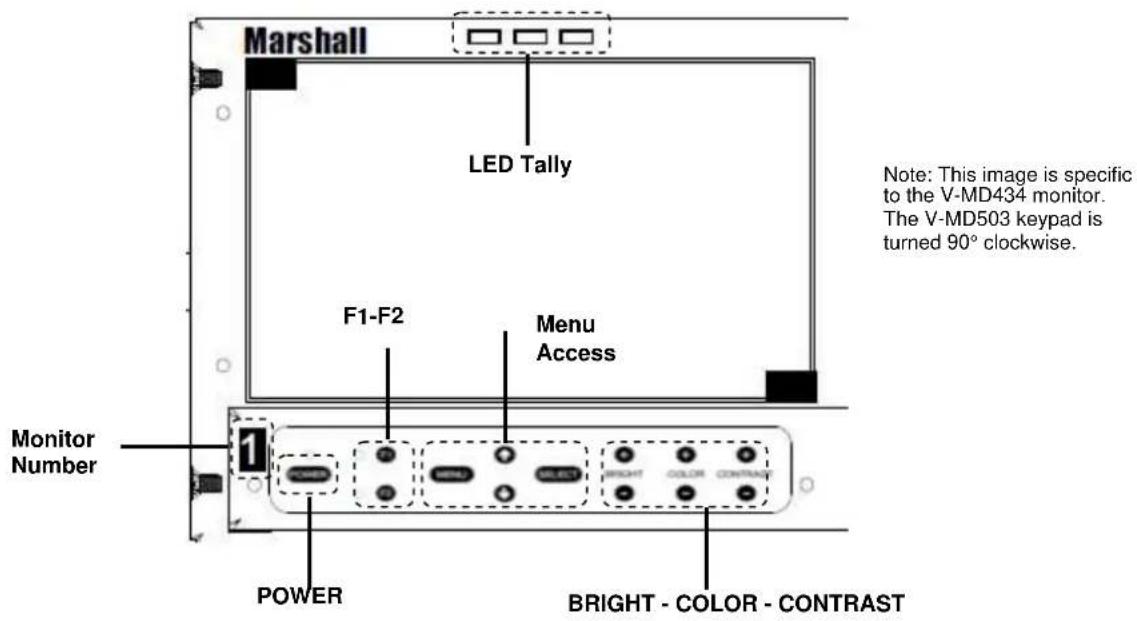

■ [Power]

Turn the monitor off or on by pressing the power button. The LED on the power button is at full illumination when the monitor is OFF.

■ [F1 - F2]

Two user-definable function buttons can be used for direct access to various settings. Functions are assigned using the on-screen menu

- Menu Access

Use the Menu, ▲, ▼, and Select buttons to display and navigate the on-screen menu.

- [BRIGHT, COLOR, CONTRAST]

The BRIGHT, COLOR and CONTRAST buttons function as Image Adjustment buttons. The status of each image adjustment parameter is shown on the top left of the screen, with values ranging from 0 to 100. Pressing a button once displays the current value. Pressing a button twice resets the corresponding adjustment to the default setting.

- Monitor Number

This silkscreened number will indicate the panel number on the V-MD503 system.

- LED Tally

Three LED tally lights (yellow, red, green) are available above the screen. Each tally light is controlled by the Tally Connector on the back of the monitor.

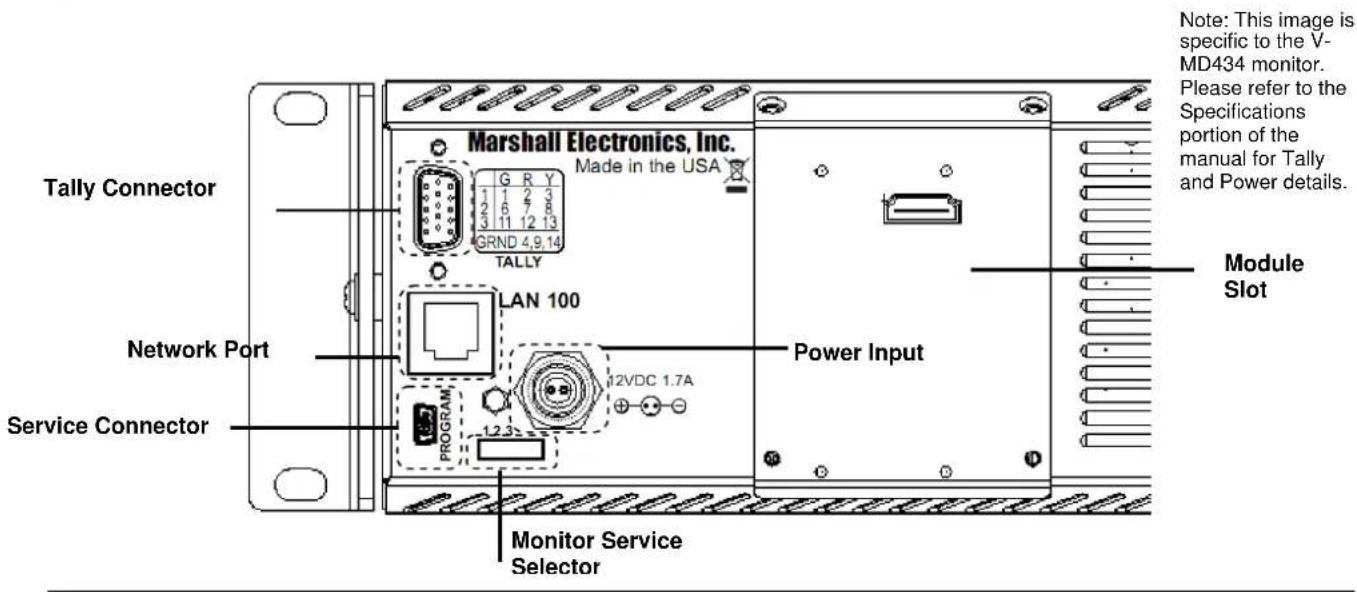

- Tally Connector

The LED tally can be activated via the HD-15 connector by connecting the corresponding pin to ground. A variety of external devices can be used to perform the contact closure. No additional power should be supplied to the HD-15 port.

Network Port

The Network Port is used to access the Network Control Page for the V-MD434 or V-MD503 monitor. Use a regular RJ45 Ethernet cable to connect the V-MD monitor to your network. Please see the Network Configuration Submenu section of this manual for further connection details.

- Service Connector

This is for factory and Upgrade use ONLY. Please contact Marshall Electronics for further information on upgrading the V-MD monitor.

- Monitor Service Selector

This, in conjunction with the Service Connector, serves to control which monitor to Service. Please contact Marshall Electronics before any attempted service to this monitor.

Power Input

Connect the 12 VDC input to the Twist-Lock power input connector. Power can be supplied from the included power supply or from a variety of DC sources supplying at least 5.0 Amps at 12 Volts.

IMPORTANT: If using a power source other than the included power supply, be sure that the polarity of the DC input is correct:

Pin 1: +12 VDC

Pin 2: GND

- Module Slot

The V-MD monitor comes with Module Slots for Marshall Electronics' line of future proof Input Modules. Please contact Marshall Electronics for a list of compatible Input Modules.

The following standards are supported by the V-MD434 or V-MD503 monitors and available input modules:

MD-3GSDI-B - 3G/HD/SDI Input Module

SD-SDI —

480i 59.94, 576i 50

HD-SDI –

720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080i (60 / 59.94 / 50)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

3G-SDI - YCbCr (4:2:2) 10 Bit - Level A and B

1080p (60 / 59.94 / 50)

YCbCr/RGB (4:4:4) 10 Bit – Level A and B

1080i (60 / 59.94 / 50)

1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)

MD-HDSDIx2-B - Two-channel HDSDI Input Module with Switched Output

SD-SDI —

480i 59.94, 576i 50

HD-SDI -

720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080i (60 / 59.94 / 50)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

Main Menu

▶ Video Configuration

Marker Configuration

Filter Configuration

System Configuration

Function Presets

IMD & Tally Configuration

System Information

Network Configuration

Access the main menu by pushing and holding the MENU button on the front panel of the monitor.

• Step through menu items using the ▲ and ▼ buttons.
• Choose a submenu or select a menu item by pressing SELECT.
• Return to the previous menu by pressing MENU.
• Exit the main menu by pressing MENU. The menu will automatically time out after 15 seconds.

Only unit screen 1 will have the Network Configuration option available. All network settings can be configured from unit screen 1.

Video Configuration Submenu

Video Configuration

▶ Color Temperature D65

RGB Bias and Gain

Check Field Off

Ratio 4:3

Pixel-to-Pixel On

■ Color Temperature

Use this setting to choose one of three color temperature presets:

• D55 (5500K)
• D65 (6500K)
• D93 (9300K)
- USER (Adjustable Color Bias and Gain)
• Linear (No processing is applied to the panel)

Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture.

■ RGB Bias and Gain

Select this submenu to fine-tune the monitor's color balance (R, G, B). This should only be done by someone experienced with video engineering, as this will alter the overall color shading of the screen. The purpose is to allow color matching to other types of monitors and/or displays. Note: The Color Temperature preset will automatically switch to USER when Color Bias settings are adjusted. It is normal for color bias adjustments to be very subtle.

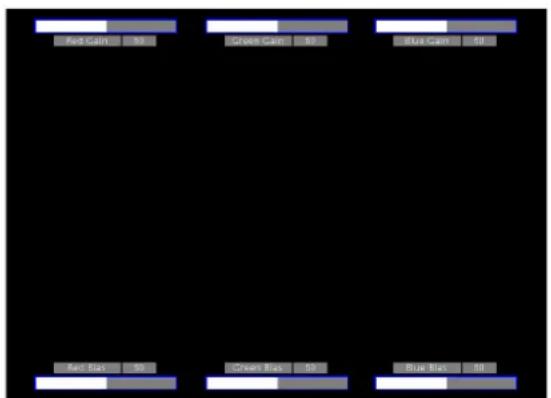

When selecting the RGB Bias and Gain submenu, gain adjustment indicators will appear at the top of the screen, and bias adjustment indicators will appear at the bottom of the screen:

RGB Bias and Gain

Use the ▲ and ▼ buttons to select each individual bias or gain control. Press SELECT to begin adjusting the control. Use the ▲ and ▼ buttons to increase or decrease the value.

Alternately, the image adjustment buttons (Brightness, Color, Tint, Contrast) can be used to easily adjust the bias and gain settings as shown below. The buttons affect whichever row of controls (gain or bias) is currently selected.

■ Check Field

Use the check field modes for monitor calibration or to analyze individual color components of an image. In Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check field modes, only the selected color will be shown.

Use the following procedure when calibrating the monitor to SMPTE color bars with the following procedure:

1. Allow the monitor to warm up for at least 5-10 minutes.
2. Display SMPTE split-field color bars on the monitor using an external source.
3. Enable Monochrome mode.

4. Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the Brightness button until there is no visible difference between the super black and black bars, but the gray bar is still visible.

5. Adjust the Contrast button until an even grayscale appears along the top bars.

6. Disable Monochrome mode.
7. Enable Blue Check Field mode and adjust the Color button so that the outermost bars (white and blue) appear to match in brightness.
8. Composite NTSC only: Adjust the Tint button until the third bar from the left (cyan) and the third bar from the right (magenta) appear to match in brightness.
9. Disable Blue Check Field mode.

■ Ratio Settings

Use to switch between Full Screen, 4:3 and 16:9 aspect ratios.

As the V-MD434 and V-MD503 monitors have a native resolution of 800 x 480 RGB pixels, incoming images are automatically scaled to fit the screen:

• In Full Screen mode, images are scaled to fill the entire screen (800 x 480).
• In 4:3 mode, images are scaled to fill the center 4:3 portion of the screen (640 x 480). With a 16:9 source, images will be centered with a black letter-box added on the left and right sides.
• In 16:9 mode, images are scaled to a 16:9 portion of the screen (800 x 450), with a black letter-box added top and bottom.

Note: The aspect ratio setting is ignored when Pixel-to-Pixel mode is enabled.

■ Pixel-to-Pixel

Use this setting to enable Pixel-to-Pixel mode.

This Pixel-to-Pixel mode bypasses the monitor's internal scaling function and displays incoming images in their native resolution and aspect ratio, with a one-to-one mapping:

- For incoming formats smaller than the native resolution of the LCD panel (800 x 480), the image will be displayed in the center of the screen using only the necessary LCD pixels. For example, NTSC images will occupy exactly 720 x 480 pixels. The surrounding pixels will be black.

- For incoming formats exceeding 800 x 480 pixels, only the center 800 x 480 of the incoming image will displayed occupying the whole screen, with the remainder of the picture cropped. For example, 1080i formats will both be cropped to 800 x 480 and displayed full-screen.

Note: Pixel-to-Pixel mode disables aspect ratio control and H/V Delay.

Marker Configuration Submenu

Marker Configuration

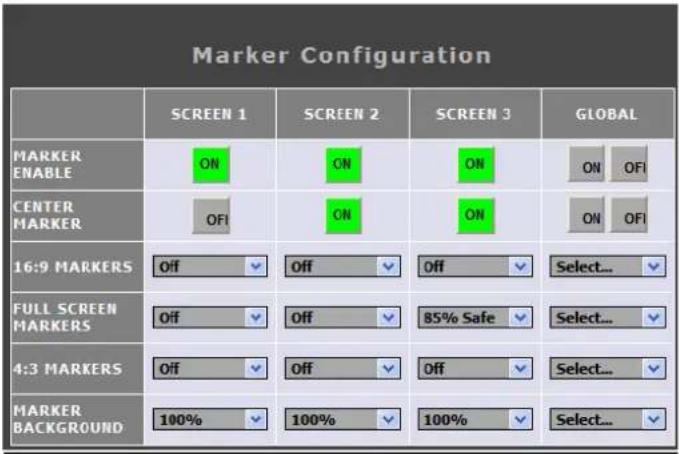

Marker Enable	On
Center Marker	Off
16:9 Marker	Off
Full Screen Markers	User
4:3 Markers	Off
Marker Background	100%

Marker Configuration Submenu

■ Markers

Use this setting to enable or disable all on-screen markers. This setting affects the center marker, full screen markers, 16:9 markers and 4:3 markers.

■ Center Marker

Use this setting to display a center marker on the screen.

■ 16:9 Markers

Use these settings to superimpose one of 12 markers on the screen when in 16:9 mode.

• 4:3
• 13:9
• 14:9
• 1.85:1
• 2.35:1

- 95% Safe

• 93% Safe

- 90%Safe

• 88% Safe

- 85% Safe

- 80% Safe

16:9 Marker Examples:

Empty white rectangle with black border (no text or symbols)

OFF (No Marker)

Blank white rectangle with two thin horizontal lines at the bottom (no text or symbols)

2.35:1 Aspect Ratio

Blank rectangular frame with no text, numbers, or symbols

4:3 Aspect Ratio Marker

Empty rectangular frame with no text, symbols, or markings

90% Safe Area

■ Full Screen Markers

Use these settings to superimpose one of 6 markers on the screen when in Full Screen mode.

• 95% Safe
• 93% Safe
• 90%Safe
• 88% Safe
• 85% Safe
• 80% Safe

■ 4:3 Markers

Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode.

• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 85% Safe Area
• 80% Safe Area

4:3 Marker Examples:

Empty white rectangle with a thin black border (no text or symbols)

OFF (No Marker)

Empty white square with a thin border (no text or symbols)

90% Safe Area

■ Marker Background

Use this setting to choose how selected markers are displayed on the screen. :

• 0% The marker is superimposed on the complete image.
  • 25% Image area beyond the marker is shown at 25% intensity.
• 50% Image area beyond the marker is shown at 50% intensity.
• 75% Image area beyond the marker is shown at 75% intensity.
  • 100% Image area beyond the marker is shown at 100% intensity (black).

Example (80% Marker in 4:3 Mode):

Empty rectangular frame with no text, numbers, or symbols

0% Background

Empty white rectangle with black border (no text or symbols)

100% Background

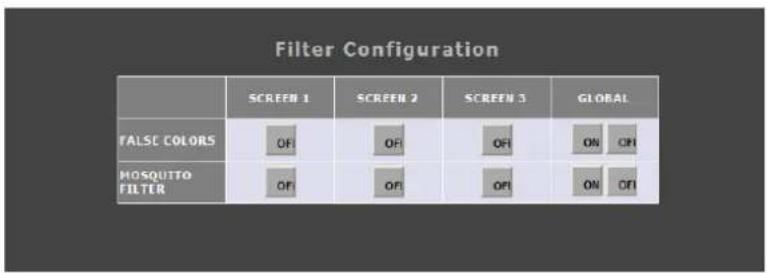

■ False Colors

The V-MD434 and V-MD503 have a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment. To best utilize this feature, you must understand the color chart below and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The false color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Over exposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a 'neutral' or 'mid-level' exposure commonly used for objects (not people).

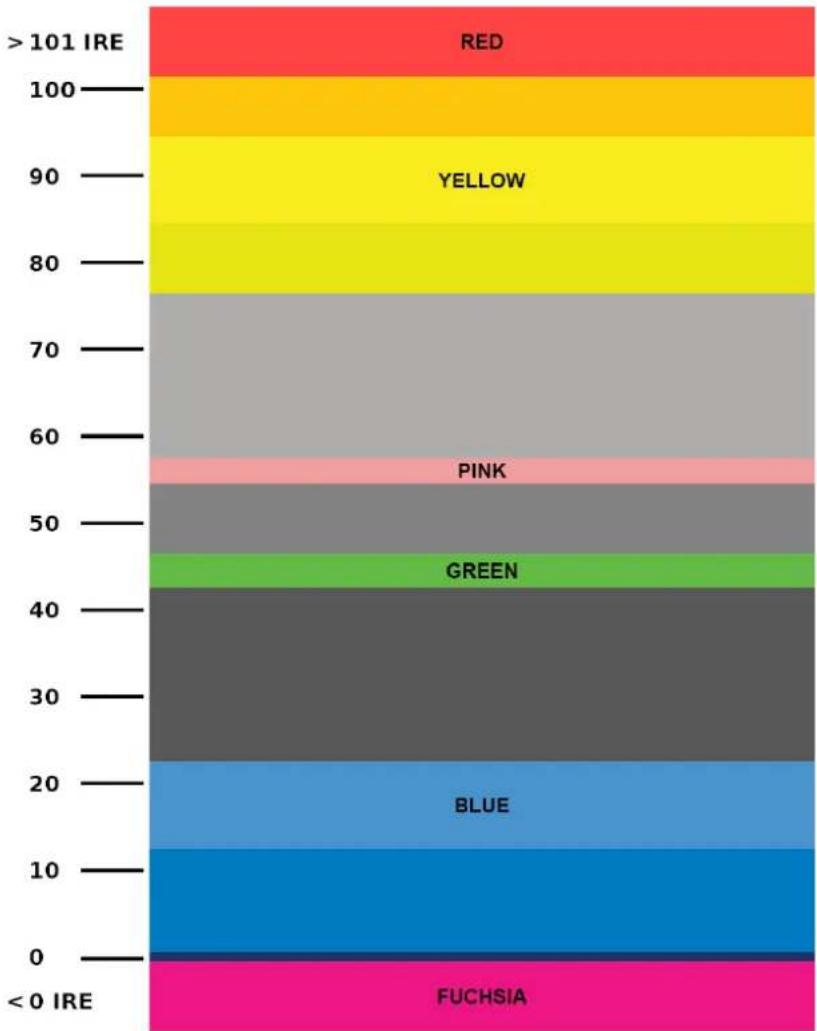

False Color Key

■ Mosquito Filter

Use this setting to filter out “Mosquito Noise” – an artifact that appears as specs around edges of objects. This artifact is the result of video that has been compressed at some point. Video sources from DVD-Players, PDA’s, Digital Cable Boxes, Camcorders, etc. often have this artifact.

System Configuration Submenu

System Configuration
Input Format OSD	5 sec
Curtain Color	Green
Splash Screen	On
Freeze	Off
Contrast / Backlight	Contrast
Load Setup	MFG Default
Save Setup	User 1
Power On Preset	Off

System Configuration Submenu

■ Input Format OSD

Use this option to enable on-screen display of input/format status in the upper-left corner of the screen.

■ Curtain Color

Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no signal input to the monitor.

■ Splash Screen

Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered on.

■ Freeze

Use the Freeze function to "freeze" the current image on the screen. Select this menu item again (Unfreeze) to return to the real-time video input.

■ Contrast / Backlight

Use this feature to choose between controlling the Contrast of the image or the intensity of the panel's Backlight with the CONTRAST button on your monitor. Note: While the Contrast control moves up and down at intervals of 1, the Backlight control will move up and down at intervals of 2, from 0-100.

■ Load Setup

Select this menu item to reset all adjustments and menu settings to the factory default configuration.

■ Save Setup

Select this menu item to reset all adjustments and menu settings to the factory default configuration.

Function Presets Submenu

Function Presets

▶ Function on F1

Function on F2

Ratio

Center Marker

■ User-Definable Function Buttons

Use the Function on F1, F2 menu items to define each function button on the front panel of the monitor. The following options are available for each button:

• Ratio
• Check Field
• Mosquito Filter
• False Colors
• Freeze Input
• Aspect Markers
• Center Marker
• Marker Enable
• Pixel-to-Pixel

IMD & Tally Configuration

Text Enable

Off

Text String

Marshall Monitor

Text Color

Green

Text Background

50%

Text Alignment

Center

Tally Source

HD-15 (Contact Closure)

LED Tally

On

On-Screen Tally

Off

Text Tally

Off

■ Text Enable

Use the Text Enable function to turn the MD Text feature ON. This will cause the Text String to appear on the lower portion of the screen.

■ Text String

Use this field to enter your own 16 character string on the screen.

■ Text Color

Use this field to change the color of the text in the Text String field.

■ Text Background

Use this field to change the opacity of the background behind the text in the Text String field. A value of 0% will cause the background to appear black. A value of 100% will make the background invisible.

■ Text Alignment

Use this field to change the alignment of the text string mentioned above.

■ Tally Source

Use this setting to change the source of the LED tally lights. Choosing the HD-15 (Contact Closure) option will render the LAN Tally interface disabled. Choosing the LAN 100 option will also render the HD-15 (Contact Closure) connector inoperable.

■ LED Tally

Use the LED Tally option to turn the physical LED tally lights ON or OFF.

■ On-Screen Tally

Use the On-Screen Tally option to turn the On-Screen tally ON or OFF.

■ Text Tally

Use the Text Tally option to lock the Text String color to the same color as the current Tally color. When there is no specific tally color enabled, the text string will default to the Text Color selection made in the IMD & Tally Configuration menu option.

System Information Submenu

System Information

System	v x.xx
Power Module	v x.xx
Input Module	v x.xx

■ System

This shows the System firmware version of your monitor.

■ Power Module

This shows the Power Module firmware version of your monitor.

■ Input Module

This shows your module version and the firmware version of your module. If no module is present, the words MODULE NOT INSTALLED will appear in parentheses.

Network Configuration Submenu

Network Configuration

Configuration Mode	DHCP
IP Address	xxx.xxx.xxx.xxx
Subnet Mask	255.255.255.0
Default Gateway	xxx.xxx.xxx.xxx
Host Name	mel-monitor
Web Authentication	Off
Username	admin
Password	password
MAC Address	xx:xx:xx:xx:xx:xx

The Network Configuration Submenu only appears on the first display of each V-MD434 or V-MD503 monitor. This Submenu is responsible for the network settings of the entire monitor.

■ Configuration Mode

Use this setting to choose between a DHCP IP address retrieval or Manual IP address selection.

■ IP Address

When using a Manual Configuration Mode, use this field to assign a specific IP address for your monitor. When in DHCP Configuration Mode, this field will automatically be filled by the IP address assigned by your network.

■ Subnet Mask

When using a Manual Configuration Mode, use this field to assign a specific Subnet Mask for your monitor. When in DHCP Configuration Mode, this field will automatically be filled by the Subnet Mask assigned by your network.

■ Default Gateway

When using a Manual Configuration Mode, use this field to assign a specific Default Gateway for your monitor. When in DHCP Configuration Mode, this field will automatically be filled by the Default Gateway assigned by your network.

■ Host Name

Use this field to enter a Host Name for your monitor. You may choose up to 16 alphanumeric characters for the host name.

■ Web Authentication

Use this field to turn Web Authentication ON or OFF. If turned on, you will be asked to select a Username and Password in the subsequent fields.

Username:16 Alphanumeric character string

Password: 16 Alphanumeric character string

■ MAC Address

This field will show the MAC address associated with the particular monitor in question.

The V-MD434 and V-MD503 monitors allows you to fully control all settings via the standard Lan100 ethernet port on the rear of the monitor. Simply connect the V-MD503 or V-MD434 monitor to your network with an Ethernet patch cable and access the monitor's host name or IP Address via any web browser on your computer and take control.

Status Tab

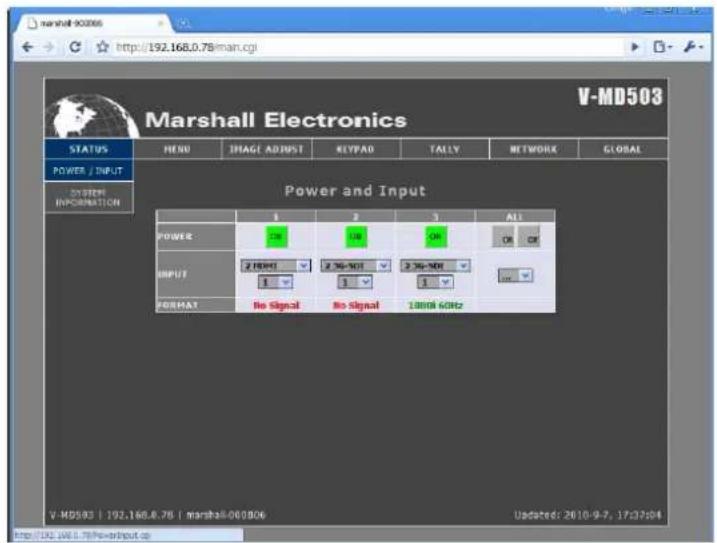

Power / Input Page

Power

Use this row to determine the Power status for each of the screens on the unit. A green ON box indicates that the screen is currently on. A red OFF box indicates that the unit is off. Press the box to toggle the screen ON or OFF. The last element, ALL, controls all screens on the monitor.

■ Input

The input field allows you to identify the module type currently in your monitor's slot. The ALL column in this row does not apply.

■ Format

This text field determines the input format currently being displayed on a particular monitor screen. A No Signal string indicates that there is no signal present.

System Information

■ System

This shows the System firmware version of each individual screen on your monitor.

■ Power Module

This shows the Power Module firmware version of your monitor.

■ Input Module

This text field determines the input format currently being displayed on a particular monitor screen. A No Signal string indicates that there is no signal present.

Menu Tab

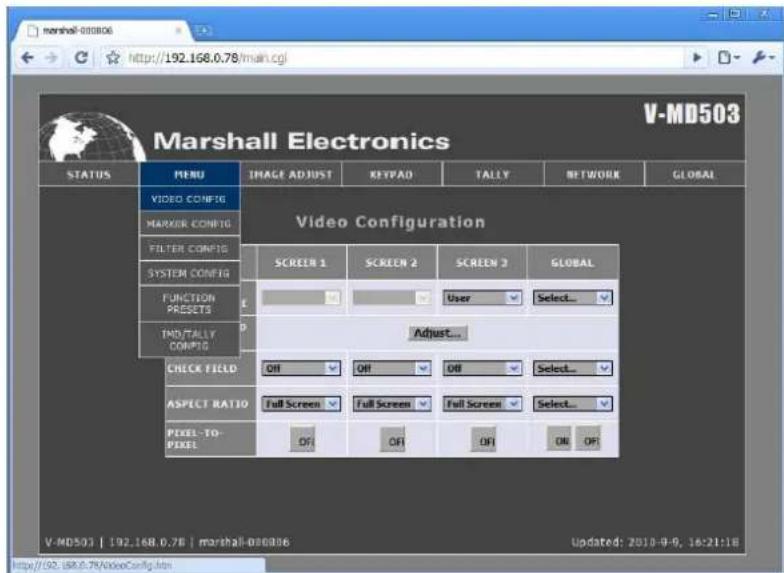

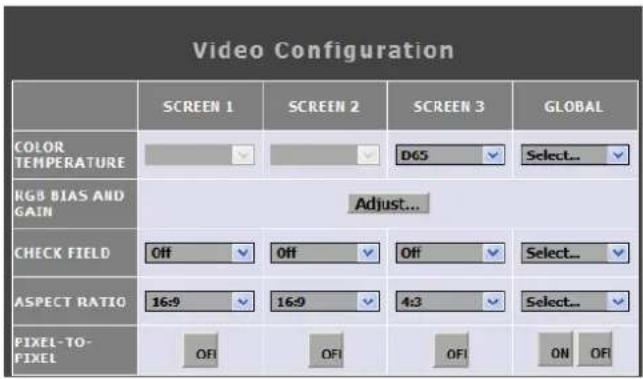

Video Config

■ Color Temperature

Use this row to determine the current Color Temperature preset being used on each screen. This row can also be used to change the Color Temperature preset used on an individual screen level or the global level under the GLOBAL column.

■ RGB Bias and Gain

Click the Adjust button in this row to move into the RGB Bias and Gain controls. This is covered in depth later in this manual, in the Image Adjust submenu.

■ Check Field

Use this row to determine the current Check Field mode being used on an individual screen. The drop down menu in this row can also be used to enable a Check Field color type on the individual screen level or the global level under the GLOBAL column.

■ Aspect Ratio

Use this row to determine the current Aspect Ratio mode being used on an individual screen. The drop down menu in this row can also be used to enable a particular Aspect Ratio on the individual screen level or the global level under the GLOBAL column.

■ Pixel-to-Pixel

Use this row to determine the current state of the Pixel-to-Pixel feature of the monitor. Pressing one of the boxes under each Screen type will either turn Pixel-to-Pixel mode OFF or ON. This can also be changed on the global level under the GLOBAL column.

Marker Enable

Use this row to turn the screen markers on an individual screen ON or OFF. This can also be changed on the global level under the GLOBAL column.

■ Center Marker

Use this row to turn the Center Marker on an individual screen ON or OFF. This can also be changed on the global level under the GLOBAL column.

■ 16:9 Markers

Use this row to determine the current status of the 16:9 markers on each individual panel. The drop down menus in this row can also be used to select 16:9 screen markers on the individual screen level or the global level under the GLOBAL column.

■ Full Screen Markers

Use this row to determine the current status of the Full Screen markers on each individual panel. The drop down menus in this row can also be used to select Full Screen markers on the individual screen level or the global level under the GLOBAL column.

■ 4:3 Markers

Use this row to determine the current status of the 4:3 markers on each individual panel. The drop down menus in this row can also be used to select 4:3 screen markers on the individual screen level or the global level under the GLOBAL column.

■ Marker Background

Use this row to determine the current status of the transparency settings of the screen markers on each individual panel. The drop down menus in this row can also be used to change your transparency values. This can also be done on the global level under the GLOBAL column.

Filter Config

■ False Colors

Use this row to turn the False Color filter on an individual screen ON or OFF. This can also be changed on the global level under the GLOBAL column.

■ Mosquito Filter

Use this row to turn the Mosquito Filter on an individual screen ON or OFF. This can also be changed on the global level under the GLOBAL column.

System Config

■ Input Format OSD

Use this row to turn determine the Input Format OSD state. Use the drop down menu to choose from the available options. This can also be changed on the global level under the GLOBAL column.

■ Curtain Color

Use this row to turn determine the current Curtain Color state. Use the drop down menu to choose from the available options. This can also be changed on the global level under the GLOBAL column.

■ Splash Screen

Use this row to turn the splash screen on each individual panel ON or OFF. This can also be changed on the global level under the GLOBAL column.

■ Freeze Input

Use this row to turn the freeze input function on each individual panel ON or OFF. This can also be changed on the global level under the GLOBAL column.

■ Contrast/Backlight

Use this row to select what function should be controlled by the CONTRAST buttons on the physical unit or on the Network Control Page. This can be changed for each individual panel, or on the global level under the GLOBAL column.

■ Load Setup

Use this row to load any of the Setup configuration files available on the monitor. This can be selected for each individual panel, or on the global level under the GLOBAL column. When selecting from the GLOBAL column, each individual panel will load its own individual settings. For example, if you select User 3 from the GLOBAL column, each panel will load a separate User 3 setting, not a single file.

■ Save Setup

Use this row to Save the current configuration on each individual panel or on the global level. When selecting from the GLOBAL column, each individual panel will save its own individual settings. For example, if you select User 3 from the GLOBAL column, each panel will save a separate User 3 setting, not a single file.

Setup Name

Use this dialogue box to rename the User configuration files available. Choose up to 16 characters to customize the names of the User configuration files. You can also assign each User configuration file a name globally. The name you select in this dialogue box will be stored and available from the Load and Save setup options previously mentioned.

■ Power-On Setup

Use this row to select the settings to be loaded when power is applied to the V-MD monitor. This can be selected for each individual panel or globally in the GLOBAL column.

Function Presets

■ Function on F1 / F2

Use these rows to select the functions set to be controlled by the F1 and F2 buttons on the physical unit or on the Network Control page. These functions can be set individually per panel or on the global scale using the GLOBAL column.

■ Text Enable

Use this row to turn the monitor's IMD text ON or OFF. This can also be changed on the global level under the GLOBAL column.

■ Text String

Use the dialogue box in this row to enter a text string that will be displayed on the monitors. You may enter up to 16 characters in this dialogue box. To confirm your text entry, press the Set button below the dialogue box. Text can be entered for each individual panel or globally in the GLOBAL column.

■ Text Color

Use this row to change the color of the text for each individual panel, or globally under the GLOBAL column.

■ Text Background

Use this row to toggle between different settings for the IMD Text String's background transparency. This can be changed for each individual panel or globally in the GLOBAL column.

■ Text Alignment

Use this row to select the alignment of the IMD text. This can be changed individually or globally in the GLOBAL column.

■ Tally Source

Use this row to determine the current source for the LED tally lights on each individual panel. Use the drop down menu to select between the different tally sources. This can be changed individually or globally.

■ LED Tally

Use this to turn the LED Tally lights ON or OFF. This can be changed individually or globally and overrides any of the Tally Source selections.

■ On-Screen Tally

Use this to turn the On-Screen Tally lights ON or OFF. This can be changed individually or globally.

■ Text Tally

Use this to turn the Text Tally function ON or OFF. This can be changed individually or globally.

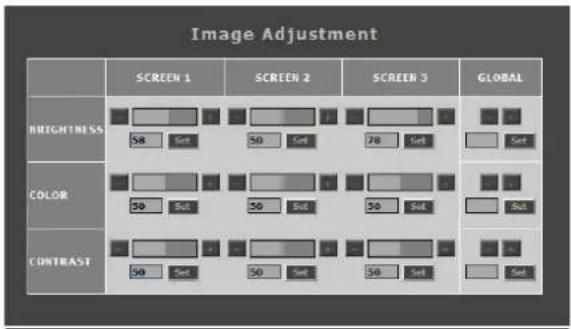

Image Adjustment

■ BRIGHTNESS, COLOR, CONTRAST

Use this section to adjust the Brightness, Color and Contrast of each individual panel, or to adjust these values globally. To enter a value manually, type in a number from 0-100 in the dialogue box and press Set. The value selected on this page will show up on the monitor screen in real time.

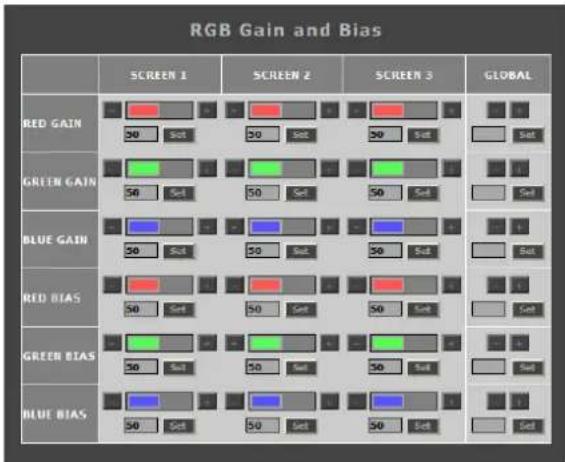

RGB Gain / Bias

■ RGB Gain and Bias

Use this section to adjust the Gain and Bias for the Red, Green and Blue components of the video signal. This can be done for each individual screen or globally. To enter a value manually, type in a number from 0-100 in the dialogue box and press Set.

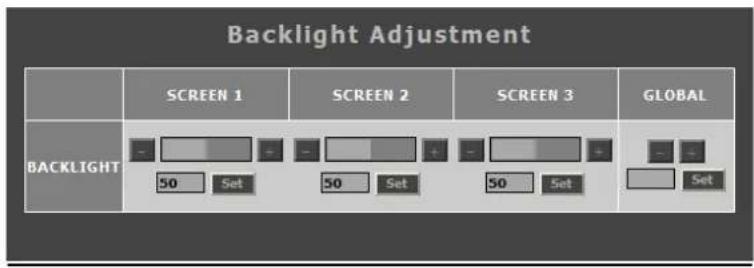

Backlight

■ Backlight

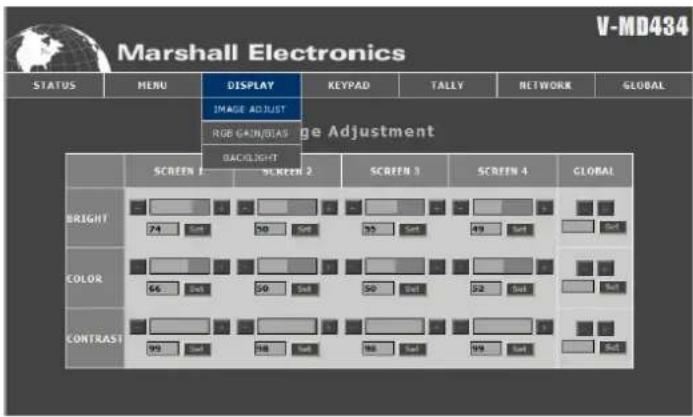

Use this section to adjust the Backlight value for each panel. This can be done for each individual screen or globally. To enter a value manually, type in a number from 0-100 in the dialogue box and press Set.

Keypad Tab

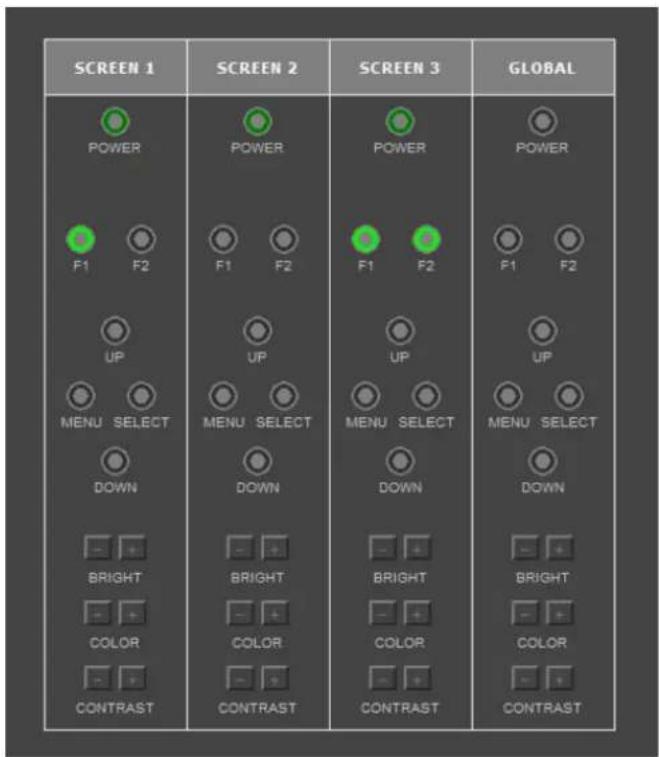

Use the keypad portion of the Network Control page to access all aspects of the physical keypad from the Network Control page. The GLOBAL column allows you to control a virtual Global Keypad that is like using all three keypads at the same time.

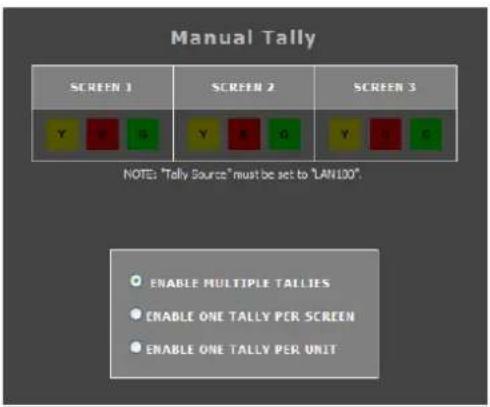

Use the Tally page, in conjunction with the LAN100 tally source, to control the LED and soft tally on the V-MD434 and V-Md503 monitors. The Tally can be controlled individually for each tally set above each panel.

The radio buttons allow for customization of tally lights to be used by the monitor. You can select between using all possible colors, one color per screen or one color per unit.

Network Tab

■ Remote Enable

Select whether you would like to be able to access a particular monitor's web page or web functions from another monitor on the same network.

■ Configuration Mode

Use this drop down menu to select between the different IP configuration modes available for the monitor.

■ IP Address

If you have selected the Manual configuration mode for the IP configuration mode, you will be able to enter an IP address manually in this field. If you have selected DHCP, the box will have an IP address already entered. This is not changeable when in DHCP mode.

■ Subnet Mask

If you have selected the Manual configuration mode for the IP configuration mode, you will be able to enter Subnet Mask address manually in this field. If you have selected DHCP, the box will have Subnet Mask already entered. This is not changeable when in DHCP mode.

■ Default Gateway

If you have selected the Manual configuration mode for the IP configuration mode, you will be able to enter Default Gateway address manually in this field. If you have selected DHCP, the box will have Default Gateway already entered. This is not changeable when in DHCP mode.

■ Host Name

Use this field to enter a Host Name for the V-MD434 or V-MD503 monitor. You may choose up to 16 alphanumeric characters for the Host Name.

■ Web Authentication

Fill in the Web Authentication box to protect the V-MD434 or V-MD503 monitor from being accessed by a user without a User Name and Password. Filling this box in will enable the Username and Password fields below.

Username

Enter a 15 alphanumeric character string Username in this field. This will only work if the Web Authentication option has been turned ON.

■ Enter Password / Re-enter Password

Enter a 15 alphanumeric character string Password in this field. You will need to Re-enter the password in the box below the Enter Password box for additional security.

■ MAC Address

This is the unique MAC address for this V-MD434 and V-MD503 monitor. This cannot be changed.

To save all changes, press the Apply Changes button. You may also cancel out of the changes you have made by pressing the Cancel button.

Navigator

The Network Control page's Navigator allows you to scan your network for other V-MD434 or V-MD503 monitors or any other Marshall Electronics Web Enabled MD monitors. From the navigator, you can find and sort all monitors by their Host Name, IP Address or Model number. You can also access each monitor's Network Control page.

Press the Scan Network button once to scan your network for other MD monitors. The navigator will not detect any monitors added to the network if the scan was performed prior to their installation.

The information field at the bottom will indicate the Host Name, IP Address and model number of the origin of the Navigator pop up page. It will also give a count of how many monitors have been found on the network.

Global Tab

Use the Global tab to control multiple Marshall Electronics MD monitors simultaneously. To control a monitor, highlight an MD monitor by clicking on its Host Name, IP Address or Model. Monitors being controlled will be highlighted in blue.

Scan Network

Use the Scan Network button to scan for any other Marshall Electronics MD monitor connected on your network. The results will show up in the Control Panel box.

Control Panel

The control panel is located in the lower portion of the screen and lists all Marshall Electronics MD monitors available on your network, along with their Host Name, IP Address and Model type. This information can also be sorted by category by pressing the Host Name, IP Address or Model bar at the top of the control panel box. The Identify button next to each monitor allows you to identify any monitor listed in the Control Panel. Pressing this button will cause the

LED Tally lights on the monitor to flash once. These lights will flash regardless of the monitor's Tally Source or LED Tally status in the IMD & Tally Configuration menu.

Monitor Count

Use this count to quickly identify the number of Marshall Electronics MD monitors on your network.

Global Function

The function controlled in this field is selectable through the Network Control page's GLOBAL tab on the top right. Choose between Power / Input, Image Adjust, Backlight, Video Config, Marker Config, Filter Config, System Config, Function Presets and IMD/Tally Config.

■ PANEL

V-MD503

Screen Size 5" Diagonal

Display Area (h x v) 108.0 x 64.8 mm

Aspect Ratio 15:9 Native

Pixels 800 x RGB x 480

Color Depth 8-bit

Viewing Angle (h x v) 85° x 85°

Brightness 300 cd/m

Contrast Ratio 600:1

Pixel Pitch (h x v) 0.135 mm x 0.135mm

V-MD434

Screen Size 4.3" Diagonal

Display Area (h x v) 93.0 x 55.8 mm

Aspect Ratio 15:9 Native

Pixels 800 x RGB x 480

Color Depth 6-bit

Viewing Angle (h x v) 65° x 65°

Brightness 200 cd/m

Contrast Ratio 400:1

Pixel Pitch (h x v) 0.116 mm x 0.116mm

Burn-In Warning

The V-MD503 and V-MD434 uses a high quality TFT LCD panels. However, if a static image is left on the screen for 48 hours, there may be a 10 to 20 minute recovery period for the panel. During recovery, a very faint image may be retained on the display. Put up a white image for 30 minutes to eliminate the retained image.

■ Modular Inputs

Marshall Electronics Type B Input Modules

■ CONNECTORS

Power Input

2-Pin Twist-Lock Connector

Tally Hardware Interface

HD-15 Female

RJ45 Ethernet Port

8P8C Female RJ45 Port

■ TALLY HARDWARE INTERFACE (HD-15)

Activation requires contact closure of pin to ground on the HD-15 connector:

Pin Tally

1 Panel 1 Green

2 Panel 1 Red

3 Panel 1 Yellow

4 Ground

5 Panel 4 Green

6 Panel 2 Green

7 Panel 2 Red

8 Panel 2 Yellow

9 Ground

10 Panel 4 Red

11 Panel 3 Green

12 Panel 3 Red

13 Panel 3 Yellow

14 Ground

15 Panel 4 Yellow

Note: The table above is specific to the V-MD434. For the V-MD503, pins 5, 10 and 15 are N/C (No Contact) and should not be used.

■ ELECTRICAL

V-MD503

Power Consumption 21 W

Voltage Requirement 12 VDC

V-MD434

Power Consumption 24 W

Voltage Requirement 12 VDC

V-PS12-5V-1 Power Supply:

Input 100V-240V, 1.5A, 50-60Hz

Output 12VDC, 5A, 60W Max

MECHANICAL

V-MD503

Dimensions (w x h x d): 19.12" x 3.4" x 1.73"

Weight (Without Modules): 2.52 lbs

V-MD434

Dimensions (w x h x d): 19.12" x 3.4" x 1.73"

Weight (Without Modules): 2.68 lbs

V-MD503 and V-MD434

Operating Temperature 32°F to 120°F (0°C to 40 °C)

Storage Temperature -4°F to 120°F (-20°C to 50°C)

RoHs

Do not dispose. Return to

Manufacturer or Authorized

Recycle Facility.

V-MD503

V-MD434

■ Screen Cleaning

Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply excessive pressure to the screen to avoid damaging the LCD.

■ Faceplate Dusting

Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface, attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.

Warranty

Marshall Electronics warranties to the first consumer that this V-MD503 or V-MD434 LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel failure if deemed unobtrusive to effective use of the monitor by our technicians. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above. Due to constant effort to improve products and product features, specifications may change without notice.

This page intentionally left blank

This page intentionally left blank

Marshall Electronics, Inc.

1910 East Maple Ave.

www.LCDRacks.com • [e-mail]

2010-1122
