AK7036BS - Range hood Zephyr - Free user manual and instructions
Find the device manual for free AK7036BS Zephyr in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Range hood |
| Brand | Zephyr |
| Model | AK7036BS |
| Width | 70 cm |
| Depth | 50 cm |
| Height | Adjustable (telescopic) |
| Net weight | Approximately 18 kg |
| Power supply | 120 V / 240 V, 60 Hz |
| Motor power | Up to 900 CFM |
| Number of speeds | 4 |
| Lighting | Integrated LED |
| Filter type | Aluminum grease filter, dishwasher safe |
| Material | Brushed stainless steel |
| Control type | Push buttons |
| Noise level | From 40 to 60 dB depending on speed |
| Functions | Ducted or recirculation mode (optional charcoal filter kit) |
| Maintenance | Clean filters monthly; clean stainless steel surface with a soft cloth |
| Safety | Automatic shut-off in case of overheating |
| Spare parts | Filters, LED bulbs, remote control (depending on version) |
| Warranty | 2 years parts and labor |
Frequently Asked Questions - AK7036BS Zephyr
What are the exact dimensions of the Zephyr AK7036BS hood?
The width is 70 cm, the depth is 50 cm and the height is variable depending on installation (telescopic).

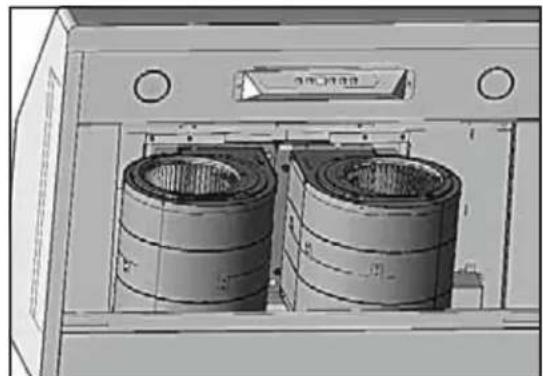

How to install the hood in recirculation mode?
You need to purchase a charcoal filter kit (sold separately) and install it in place of the exhaust duct. Follow the instructions in the manual for installation.
How often should the grease filters be cleaned?
It is recommended to clean the filters every month or more often if you cook a lot. The aluminum filters are dishwasher safe.

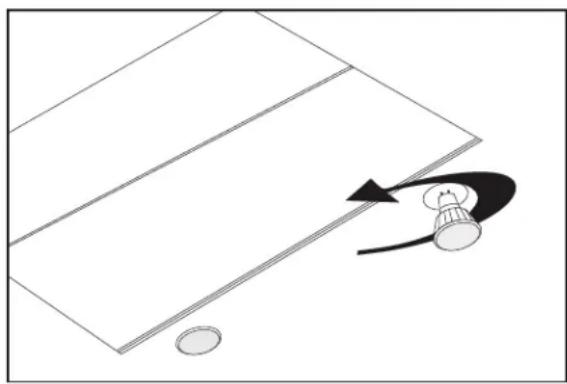

How to replace the LED bulb?
Unplug the hood, remove the bulb cover, unclip the old LED and insert the new one. Use a bulb of the same type and power (reference in the manual).
The hood is making noise, is it normal?
The noise level varies from 40 to 60 dB depending on the speed. If the noise is excessive, check that the filters are not clogged and that the installation is stable.

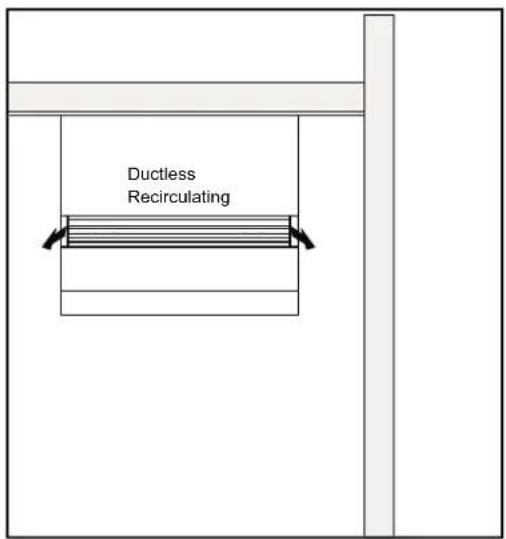

Can I use the hood without an exhaust duct?
Yes, in recirculation mode. You must install a charcoal filter to purify the air before returning it to the room.

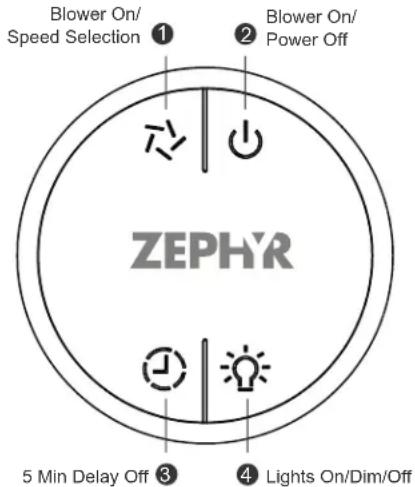

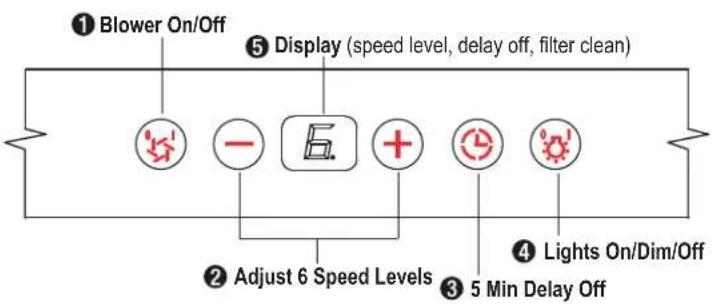

How to set the timer?
Press the Timer button to select a duration (usually 15, 30 or 60 minutes). The hood will turn off automatically.
What is the maximum suction power?
The hood provides an airflow of up to 900 CFM (cubic feet per minute) at maximum speed, which is suitable for a large kitchen.
How to clean the stainless steel surface?
Use a soft cloth and a non-abrasive cleaner for stainless steel. Wipe in the direction of the brush to avoid streaks.
Where to find spare parts for this model?
Contact Zephyr customer service or an authorized dealer. Common parts (filters, bulbs) are available online. Have your model number AK7036BS ready.
