| Product Type | Interactive Flat Panel Display |
| Model | TT-7518RS |
| Brand | Newline |
| Screen Size | 75 inches (diagonal) |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 350 cd/m² |
| Touch Technology | Infrared (20 touch points) |
| Dimensions (W x H x D) | 1709 mm x 1038 mm x 89 mm |
| Weight | 55 kg (121 lbs) |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption (Typical) | 200W |
| Built-in Speakers | 2 x 10W |
| Connectivity | HDMI, USB, VGA, Audio, LAN, RS232 |
| Operating System | Android 8.0 (optional OPS slot for Windows) |
| Main Functions | Interactive whiteboard, screen sharing, annotation, built-in apps |
| Cleaning | Wipe with a soft dry cloth; do not use abrasive cleaners or solvents |
| Safety Precautions | Install on stable mount; avoid liquids; do not block ventilation |
| Spare Parts | Replacement pens, remote control, power cord, OPS module (optional) |
| Repairability | Designed for component-level repair; service manual available |
| Warranty | 3 years standard (may vary by region) |
Frequently Asked Questions - TT-7518RS Newline
How do I turn on the Newline TT-7518RS?
Press the power button located on the front bottom-right corner. A blue LED indicates the display is on.
Can I connect my laptop to the display?
Yes, use an HDMI cable. Connect to any HDMI input port. The display will automatically detect the source.
How do I use the touch screen?
The display supports touch via infrared. Simply touch the screen with your finger or the included stylus. No calibration needed.
How do I clean the display?
Turn off the display and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly onto the screen.
Why is there no sound?
Check that the volume is not muted. Ensure the audio cable is connected properly. If using HDMI, audio is embedded; check the source settings.
How do I update the firmware?
Download the latest firmware from Newline's website. Save to a USB drive, insert into the display, and follow on-screen instructions in Settings > System Update.

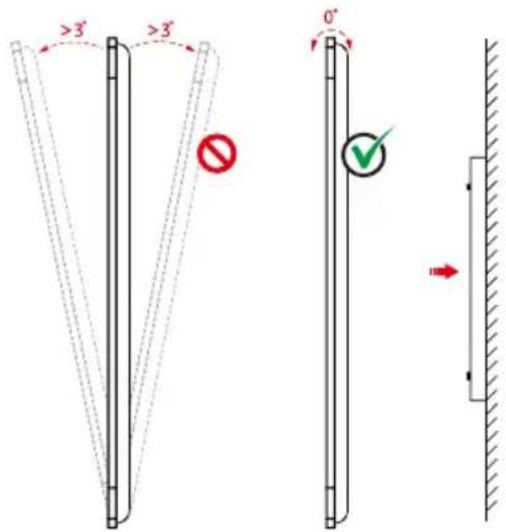

Can I mount the display on a wall?

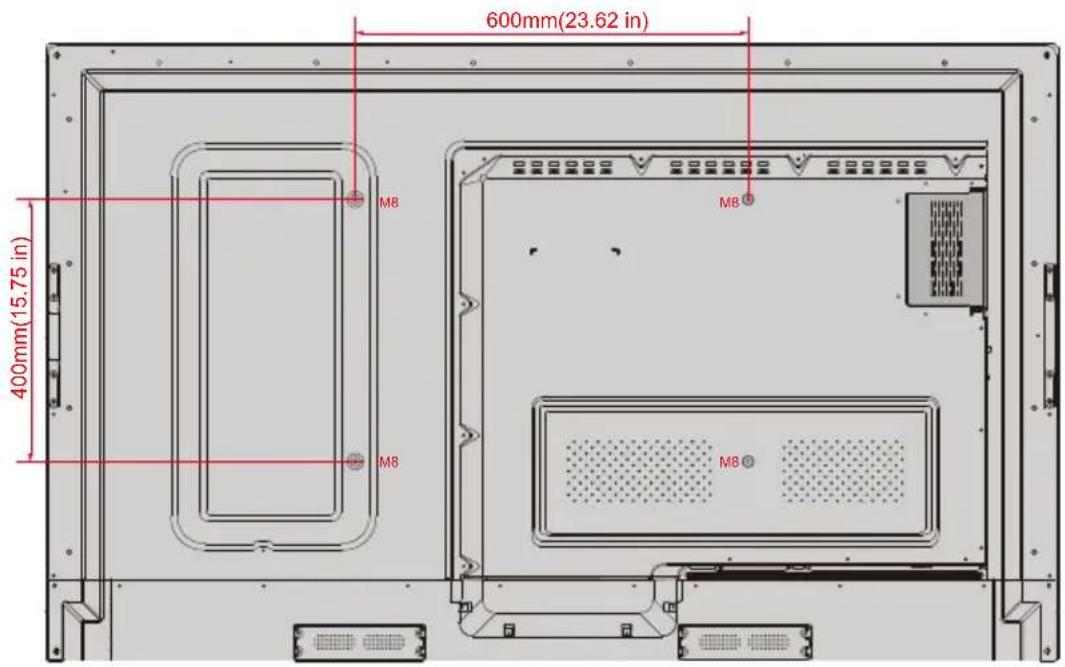

Yes, the display is VESA compatible (600x400 mm). Use a suitable wall mount rated for the weight (55 kg). Ensure the wall can support the load.
What should I do if the touch is not working?
Check that the USB touch cable is connected between the display and the computer. Restart the display. If issue persists, run the touch calibration tool in Settings.
How do I cast my phone screen?
Ensure Wi-Fi is enabled. On your phone, enable screen mirroring (Miracast for Android, AirPlay for iOS). Select 'Newline' from the available devices.
Where can I find the user manual?
The user manual is available for free download at notice-facile.com. Search for 'Newline TT-7518RS' or use the direct link on the product page.
