Product Type	Under-cabinet Range Hood
Model	DD36
Brand	Wolf
Width	36 inches
Depth	20 inches
Height	Adjustable 18-24 inches
Weight	55 lbs
Power Supply	120V, 60Hz, 15A
Motor	650 CFM blower
Fan Speeds	4 speeds (Low, Med, High, Boost)
Noise Level	40-65 dB (depending on speed)
Filters	Stainless steel baffle filters (dishwasher safe)
Lighting	2 x 50W halogen or LED (adjustable)
Controls	Electronic touch panel with remote control option
Installation	Under-cabinet or wall-mount (optional duct cover)
Ducting	8-inch round duct (vertical or horizontal)
Warranty	2 years parts and labor
Safety Features	Motor thermal overload protection, auto shut-off timer
Certifications	UL, ETL, Energy Star

Frequently Asked Questions - DD36 WOLF

How do I install the Wolf DD36 range hood?

Installation should be performed by a qualified professional. The hood can be mounted under a cabinet or against the wall. Ensure proper ductwork (8-inch round) and electrical supply (120V). Refer to the installation manual for exact clearances and steps.

How often should I clean the filters?

The stainless steel baffle filters should be cleaned every 1-2 months depending on usage. They are dishwasher safe. Remove them, wash with mild detergent, and dry thoroughly before reinserting.

How do I replace the light bulbs?

The DD36 uses 2 x 50W halogen bulbs (or LED equivalent). To replace, turn off power, remove the bulb cover (often a screw or clip), and replace with the same type. Ensure bulbs are cool before handling.

Why is my hood making excessive noise?

Check for loose duct connections or blocked filters. Ensure the motor is securely mounted. If noise persists, the blower may need servicing. Normal noise levels range from 40 dB on low to 65 dB on boost.

Can I use this hood with a remote control?

Yes, the DD36 is compatible with an optional remote control (sold separately). The remote allows you to adjust fan speed, lights, and set a timer. Pairing instructions are in the user manual.

What is the CFM rating and is it suitable for my kitchen?

The Wolf DD36 has a 650 CFM blower, ideal for residential kitchens with up to a 36-inch cooktop. For larger ranges or heavy cooking, consider a higher CFM model or consult a professional.

How do I reset the filter maintenance indicator?

After cleaning or replacing the filters, press and hold the fan speed button for 3-5 seconds until the indicator light turns off. The indicator reminds you when filters need servicing.

What if the hood stops working suddenly?

Check the circuit breaker and ensure the hood is plugged in. If power is fine, the thermal overload protection may have tripped. Wait 15-20 minutes for it to reset. If issue persists, contact Wolf service.

Can I convert this hood from ducted to recirculating?

Yes, the DD36 can be used in recirculating mode with a charcoal filter kit (sold separately). The kit includes filters and a deflector to redirect air back into the room.

Where can I find the serial number and model number?

The serial and model numbers are located on a label inside the hood behind the filters or on the back panel. Please have these ready when contacting support.

USER MANUAL DD36 WOLF

• Crafted of heavy-duty stainless steel.
- Internal, in-line or remote blower required.
- Downdraft lowers beneath countertop when not in use.
- Remote-mounted control module with LED indicators.
- Three-speed blower with boost to temporarily increase airflow.
- Delay-off feature to automatically turn unit off.
- Filter clean indicator.
• Dishwasher-safefilters.
- Reversible motor box.
-Adjustabledischarge.

Modern kitchen setup with a black electric stove, cooking pot, and chocolate slices on the grates (no visible text or symbols)

Line drawing of a server cabinet with ventilation grilles and a remote control unit (no text or symbols)

Model DD36

BLOWER OPTIONS

MODEL DD36 CFM

Internal 600

In-line 600

Remote 600 or 1200

Wolf downdrafts can be used with all Wolf induction, electric and gas cooktops, except contemporary or unframed models. Wolf downdrafts cannot be used with the steamer or fryer module and are not recommended for use with the electric grill module.

ACCESSORIES

• Internal, in-line and remote blowers (refer to chart).
• Trim kit for installation with sealed burner rangetop.
  • Make-up air damper.

Accessories avail able through an authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

wolfappliance.com

SPECIFICATIONS

PRODUCT
Dimensions	36"W x 14"H x 2"D
Weight	80 lb
DISCHARGE
Internal	6" Round
In-line or Remote	10" Round
ELECTRICAL
Supply	120 VAC, 60 Hz
Service	15 amp circuit
Power Cord	2^1/2 ft

Specifications are subject to change without notice. Visit wolfappliance.com/specs for the most up-to-date information.

Dimensions may vary ±^1/8" (3). Dimensions in parentheses are millimeters unless otherwise specified.

DIMENSIONS

NOTE: Shown with front mounted internal blower with 6" (152) round discharge, dashed line represents rear mount.

INSTALLATION WITH COOKTOP

TOP VIEW

INSTALLATION WITH SEALED BURNER RANGETOP

TOP VIEW

FRONT VIEW

FRONT VIEW
SIDE VIEW
*6" (152) back from countertop cut-out when internal blower is rear mounted.

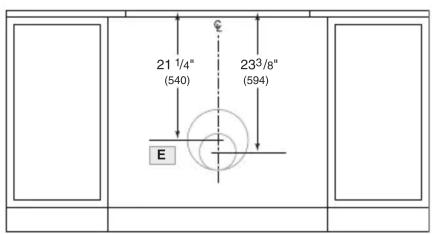

NOTE: Internal blower 6" (152) round, side, rear or bottom discharge. In-line and remote blower 10" (254) round, rear discharge.
Centerline indicates center of downdraft cut-out.
*6" (152) back from countertop cut-out when internal blower is rear mounted.
NOTE: Internal blower 6"(152) round, side, rear or bottom discharge. In-line and remote blower 10" (254) round, rear discharge.
Centerline indicates center of downdraft cut-out.
