HGM600X - Range hood HOOVER - Free user manual and instructions

Product Type	Range Hood
Brand	Hoover
Model	HGM600X
Width	60 cm
Installation Type	Under-cabinet / Wall-mounted
Extraction Type	Ducted / Recirculating (with carbon filter)
Maximum Extraction Rate	450 m³/h
Number of Speeds	3 + Intensive
Control Type	Electronic push buttons
Lighting	LED, 2 x 1.5 W
Noise Level	55 dB (A) at normal speed
Power Supply	220-240 V, 50 Hz
Power Consumption	180 W
Net Weight	8 kg
Duct Diameter	150 mm
Grease Filter Type	Aluminum, washable
Carbon Filter	Optional, replaceable
Energy Efficiency Class	A (pending EU regulation)
Annual Energy Consumption	45 kWh/year
Safety Features	Auto shut-off, thermal protection
Maintenance	Clean grease filter monthly; replace carbon filter every 6 months
Warranty	2 years

Frequently Asked Questions - HGM600X HOOVER

How often should I clean the grease filter?

It is recommended to clean the grease filter every month to maintain optimal performance. Use warm water and mild detergent, or place it in the dishwasher on a low temperature cycle.

Can the Hoover HGM600X be used in recirculation mode?

Yes, the hood can be used in recirculation mode with an optional carbon filter (sold separately). The carbon filter should be replaced every 6 months or as needed.

What is the maximum extraction rate?

The maximum extraction rate is 450 m³/h, which is suitable for kitchens up to 15-20 m². The intensive speed provides a temporary boost for strong odors.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. Contact Hoover support for assistance with bulb replacement.

What are the dimensions of the Hoover HGM600X?

The hood has a width of 60 cm, depth of approximately 50 cm, and height adjustable between 65-95 cm. Ensure your cabinet space matches these dimensions.

Is the noise level high?

At normal speed, the noise level is 55 dB (A), comparable to a quiet conversation. The intensive speed may produce higher noise temporarily.

Can I install the hood myself?

Installation is straightforward for a DIY enthusiast, but we recommend professional installation to ensure proper electrical connection and ducting. Follow the manual for detailed steps.

What is the warranty period?

The Hoover HGM600X comes with a 2-year manufacturer warranty covering defects in materials and workmanship. Register your product to activate the warranty.

How do I reset the filter alarm?

After cleaning or replacing filters, press and hold the filter reset button (usually indicated by a light) for 3 seconds until the alarm turns off. Refer to the manual for exact instructions.

What is the energy efficiency class?

The hood has an energy efficiency class of A under new EU regulations, with an annual energy consumption of approximately 45 kWh.

USER MANUAL HGM600X HOOVER

Line drawing of a kitchen chimney with a mesh grille and mounting holes (no text or symbols)

ENGLISH(EN)---- page 001

Cooker Hood Instruction Manual

Line drawing of a kitchen chimney with a mesh grille and two circular fixtures (no text or symbols)

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product.

The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation

of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not

occur.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
  ● Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
●Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10 ^-5 bar).
● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

MOUNTING OF THE V-FLAP

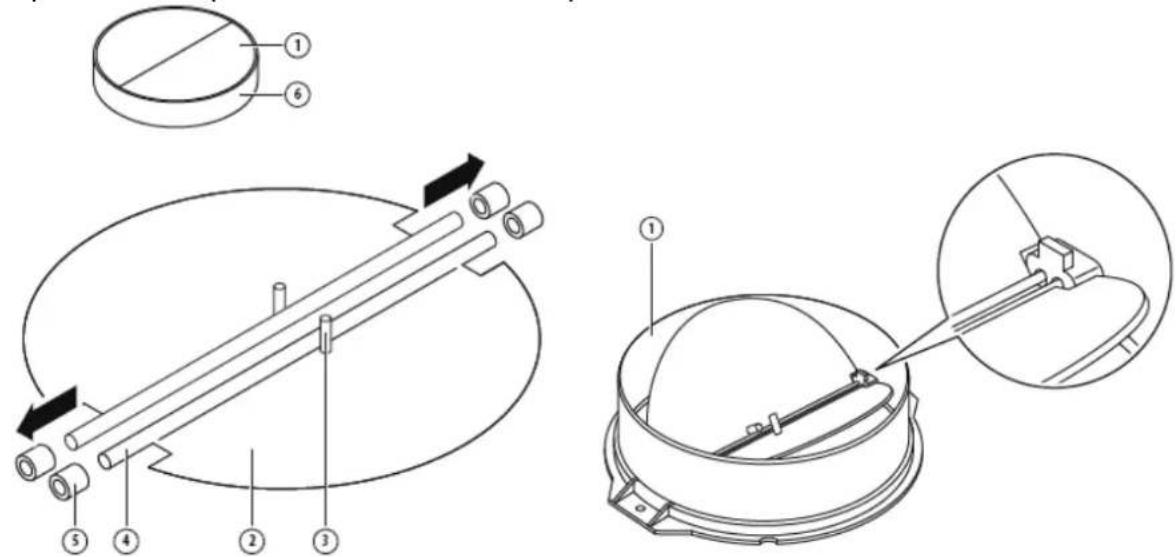

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6;
  • the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical structure with directional arrows (no text or symbols)

1. Before installation, turn the unit off.

2. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect. See pic 1.

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

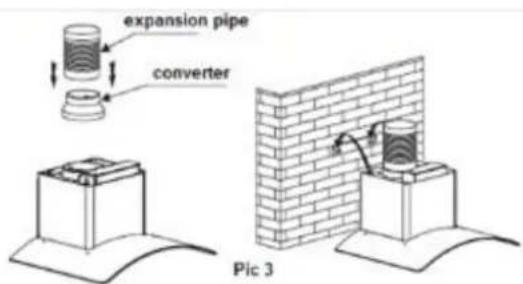

2. Attach the converter and expansion pipe, and fix the pipe on the converter with a cable tie. Then put the cooker hood on the hook. See pic 3. Note: The expansion pipe is not included in the product.

1. After adjust the height, fix the body with 2 pcs ST4*30mm safety screws. Note: The two safety vents are positioned on the back housing, with diameter of 6mm. See pic 4.
2. Lead the expansion pipe outside of the room, then use 2 pcs ST4*8mm screws to install the outside chimney bracket onto the outside chimney, here should be sure the inside chimney can be moved inside freely. See pic 5.
3. Put the two chimneys together onto the cooker hood body, meanwhile adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket with 2 pcs ST4*8mm screws. See pic 6.

Diagram of a mechanical assembly mounted on a brick wall, labeled 'Pic 4' (no text or symbols on the diagram itself)

Diagram of a brick wall-mounted device with directional arrows indicating movement, labeled 'Pic 6' (no text or symbols on the device itself)

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

• After the installation, make sure that the cooker hood is level to avoid grease collection at on end.
- Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Simple line drawing of a hat-like object with a vertical axis and curved base (no text or symbols)

Right

Simple line drawing of a top hat with a curved base and vertical line (no text or symbols)

Wrong

WARNING:

For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood Electronic button

又

[NO TEXT]

[Non-Text]

[Non-Text]

[Non-Text]

[NO TEXT]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

There are five buttons: ✉ (Low), ✉ (Mid), ✉ (High), ✉ (Lamp), (Power). See picture above.

1. After connecting to power, indicator light will lit on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.
2. Power on: Press power button ⏻ once, its indicator light will lit on, the hood

works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and run by circle. The speed buttons and lamp button can work separately and not controlled by the power button. When a certain function button is pressed, the hood operates at that function status. Press (Power) button under any status, the cooker hood will be switched off without any functions.

1. Press lamp button once; lights will be turn on. Indicator light of lamp button and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this.
2. Press the ⚙ (High) button once, motor runs on high speed, the indicator light of high button ⚙ and power button ⏻ will beam. Press high button ⚙ again and the motor will stop. Indicator light of high button and power button will be off, and run by circle.
3. Press the ☑ (Mid) button once, motor runs on middle speed, the indicator light of middle button and power button will beam. Press middle button again and the motor will stop. Indicator light of middle button and power button will be off, and run by circle.
4. Press the 🔗 (low) button once, motor runs on low speed, the indicator light of low button 🔗 and power button ⏻ will beam. Press low button 🔗 again and the motor will stop. Indicator light of low button and power button will be off, and run by circle.
5. Low speed, mid speed and high speed cannot work at the same time. When hood is on high speed, press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will turn to middle speed immediately, and so on.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Mains power cable is loose or disconnected	Refit mains power cable to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealedLeakage from the connection of chimney and cover	Take down the one way valve and seal with sealant.Take chimney down and seal.
Lights not working Broken or faulty bulbs		Replace bulbs as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so follow the cleaning instruction to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will

voidmanufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps:
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. In order to install the activated carbon filter, the mesh filter should be detached first. Press the lock and pull it downward.
2. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.
3. Place the mesh filter.
4. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note:

• Before replacing light that the cooker hood can be isolated from the supply mains by means of a plug or an all pole switch.
  ● Protect against danger when changing lights, such as wearing gloves.

Changing the lights:

Remove the grease filter.
Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 1. Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. See pic 2.
Apply the reverse procedure to install the light back.

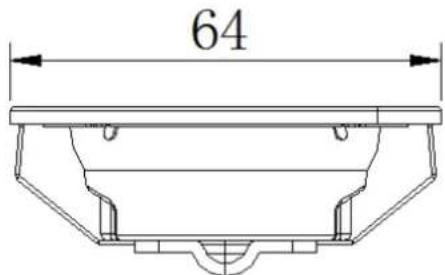

• ILCOS D code for this lamp is: DSR-1.5/65-S-64
• LED modules- round lamp
• Max wattage: 2×1.5W
• Voltage range: DC 12V
• Dimensions:

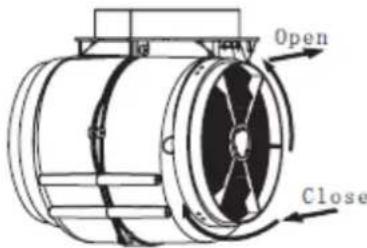

Mechanical assembly diagram showing a rotating component with arrows indicating motion direction (no text or labels)

Pic 1

Diagram of a ceiling lamp with hanging components and directional arrows indicating motion (no text or symbols)

Pic 2

ENVIRONMENTAL PROTECTION:

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:
the WEEE should not be treated as domestic waste;
the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.
