Product Type	Evaporative Cool Mist Humidifier
Brand	Honeywell
Model	HEV355
Power Supply	120 V, 60 Hz
Power Consumption	Approx. 50 W
Water Tank Capacity	1.5 gallons (approx.)
Fan Speeds	Low, Medium, High
Filter Type	Wicking filter (Replacement Part # HAC-504AW)
Humidification Technology	Evaporative (no visible mist)
Recommended Room Size	Up to 400 sq ft (approx.)
Cleaning Method	Water tank and tray top-rack dishwasher safe; base cleaned with vinegar or bleach solution
Safety Features	Polarized plug; requires unplugging before cleaning/moving
Spare Parts Available	Filter HAC-504AW, Water Tank HCM-350-TANK, Cap HCM-350-CAP
Warranty	3-year limited warranty
Dimensions (Approx.)	13" x 11" x 20" (WxDxH)
Weight (Approx.)	6.5 lbs

Frequently Asked Questions - HEV355 HONEYWELL

Why don't I see any mist coming out of my humidifier?

This is a cool moisture evaporative humidifier. Dry air is pulled through a wet wicking filter and moisture is dispersed invisibly. You will feel cool air but see no mist. Check water level over 24 hours to confirm operation.

How often should I clean the humidifier?

Regular cleaning is required. The water tank and tray are top-rack dishwasher safe. For manual cleaning, use undiluted vinegar to remove scale, then disinfect with a bleach solution (1 tsp bleach per 1 gallon water). Always remove the filter before cleaning.

How do I change the wicking filter?

Turn off and unplug the unit. Remove the water tank and upper enclosure. Discard the old filter. Soak a new HAC-504AW filter in cool water (do not wring). Place wet filter back, reassemble, and replace the water tank.

What do the fan speed settings mean?

Low for quiet operation (ideal for nighttime), Medium for everyday moisture control, and High for fast humidifying.

My filter turned brown. Do I need to replace it?

Probably not. The color change is usually mineral deposits, not mold. Soak the filter in cool water to break up deposits. The discoloration may remain but won't affect performance. Replace only if the filter is worn or damaged.

Can I put the entire humidifier in the dishwasher?

No. Only the water tank and water tray are top-rack dishwasher safe. Do not put the filter, tank cap, or main housing in the dishwasher. Use a gentle cycle and avoid detergents.

Where should I place the humidifier?

Place on a firm, level, water-resistant surface at least 6 inches (15 cm) from walls and furniture. Keep away from heat sources and out of reach of children.

Why is the water level not decreasing after several hours?

First, check if the filter is wet. If dry, rinse and reposition. Also, if room humidity is above 60%, evaporation slows. Ensure the upper enclosure and water tank are properly seated.

How do I store the humidifier at the end of the season?

Clean and disinfect the unit thoroughly. Discard the used filter. Make sure all parts are dry. Pack in the original carton and install a new filter before next use.

What is the warranty coverage?

This humidifier has a 3-year limited warranty covering defects in material or workmanship. It does not cover the filter or damage from misuse. Contact Kaz USA for repair or replacement.

USER MANUAL HEV355 HONEYWELL

Exterior view of a modern, metallic, curved electronic device (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly on an uneven surface.
2. Place this humidifier in an area where it is not accessible to children.
3. Do not place the humidifier near any heat sources such as stoves, radiators, and heaters.
4. Do not use the humidifier outdoors.
5. Before using the humidifier, check the power cord for any signs of damage. If the cord is found to be damaged, DO NOT USE and return the humidifier to the manufacturer under the warranty agreement for repair.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

HONEYWELL COOL MOISTURE HUMIDIFIER

MODEL SERIES HEV355

Replacement Wicking Filter Honeywell HAC-504AW Filter Type A

1. To disconnect the humidifier, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
2. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
3. The humidifier should always be unplugged and emptied when not in operation or while being serviced or cleaned.
4. Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the humidifier before moving.
5. This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean the humidifier in any manner other than as instructed in this manual.
6. Do not direct moisture flow directly at individuals, walls or furniture.
7. When a humidifier is used in a closed room or small rooms, check periodically for proper ventilation, as excessive humidity can cause condensation stains on walls.
8. Turn the humidifier OFF if you notice moisture on the inside of your windows. For proper humidity reading, use a humidity monitor like Honeywell HHM10 available at retailers or www.honeywellcomfort.com.

INTRODUCTION SETTING UP YOUR HUMIDIFIER AND PLACEMENT

HOW IT WORKS

Water from the water tank flows into the reservoir. A wicking filter absorbs the water from the reservoir and becomes saturated. Dry air from the room is pulled into the humidifier through the intake grills. Moisture evaporates off the saturated wicking filter and is pushed into the room with the help of a fan.

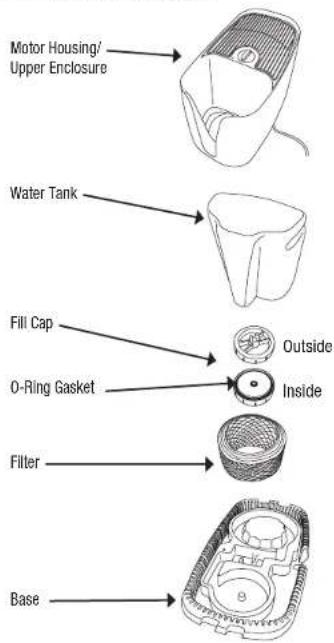

Your humidifier is made up of these parts:

Remove from box. Remove packaging material. Remove and set aside this owner's manual. Recycle box and packaging materials or save box for end of season storage

Select a firm, level location at least 6" (15cm) from any walls and furniture for proper airflow. Place the humidifier on a water resistant surface, as water can damage furniture and some flooring.

Kaz USA, Inc. will not accept responsibility for property damage caused by water spillage.

OPERATION

Remove tank and fill. Lift off upper enclosure.

Remove filter and soak in cool water.

Replace wet filter into unit and reassemble.

Fill tank with water and replace filled tank.

Make sure unit is off. Plug into polarized 120V outlet.

into polarized 120V outlet.

Set fan speed.

FAN SPEEDS

HIGH: For fast humidifying

MED: For everyday moisture control

LOW: For quiet operation (ideal for nighttime use)

CHANGING FILTER

Filter HAC-504AW. Turn off

f and unplug
unit.

Remove water tank. Lift off upper enclosure.

ff upper enclosure.

Remove and discard used filter.

Soak new filter in cool water.

Do not wring or squeeze.

Place wet filter into unit.

Replace upper enclosure.

Replace water tank.

CLEANING

WATER TANK AND WATER TRAY ARE TOP RACK DISHWASHER SAFE.

Please note we recommend washing in the TOP RACK a residential dishwashers operating at temperatures below 70°C/158°F.

It is recommended that you run the dishwasher on the light duty or normal cycle. Do not wash humidifier parts with soiled articles/dishes. DO NOT place tank cap in dishwasher.

DO NOT USE DETERGENTS. If you use your dishwasher to clean the following parts you will not need to follow the disinfecting and scaling procedure.

Please Note: Do not place parts on lower rack of dishwasher. Using the lower rack could cause damage to the humidifier parts and dishwasher.

DO NOT PUT TANK CAP, FILTER OR MAIN HOUSING IN DISHWASHER.

Cleaning base and tank cap involves two steps, SCALE REMOVAL and DISINFECTING. Be sure to perform these in the proper order to avoid harmful chemical interactions.

NOTE: REMOVE FILTER BEFORE SCALE REMOVAL OR DISINFECTING.

Failure to remove filter during cleaning will destroy the filter.

SCALE REMOVAL

Turn off and unplug unit.

Remove and empty water tank.

Lift off upper enclosure.

Remove Filter.

Wipe base, tank cap and tank with undiluted vinegar.

Rinse thoroughly.

CLEANING continued

DISINFECTING if dishwasher is not available

Turn off and unplug unit.

Remove and empty water tank.

Lift off upper enclosure.

Remove filter.

Fill water tank with 1 tsp bleach and 1 gallon cool water.

Wipe base with same solution.

Rinse until smell of bleach is gone.

END-OF-SEASON CARE AND STORAGE

Clean and disinfect unit.

Do not store with used filter.

Make sure unit is dry.

Pack unit in original carton.

Clean and install new filter before next use.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz USA, Inc.

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

TO ORDER REPLACEMENT PARTS

Replacement Filter Part # HAC-504AW

Please be sure to specify model number. Model HEV355.

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at:

www.honeywellcomfort.com

Replacement part # HCM-350-TANK

Replacement part # HCM-350-CAP

ELECTRICAL RATINGS

The Honeywell HEV355 Series models are rated at 120V, 60 Hz.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HUMIDIFIER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING OR TAMPER WITH INTERLOCK SWITCH YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

TROUBLE SHOOTING

Q: I hear the fan turning, but I don't see any mist. Is my humidifier operating properly?

A: Dry air is pulled through the system and a fan disperses invisible, moisture balanced air. There is no "mist" emitted. When operating normally you will feel only cool air coming from the unit. Monitor the water level in your Tank/ Base. If you notice a decrease in the Water Tank over 24 hours then the unit is operating normally.

Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the water level in the tank decreasing.

A: First, check the filter to ensure it is wet. If the pad appears dry, remove it from the Base and gently rinse under cool water. Reposition wet filter in the Base. You may also want to note the current moisture level in your home. If the humidity level is over 60% the unit will not put out much moisture as your air is already saturated. Also verify the upper enclosure and water tank are properly seated.

Q: My filter has turned light brown and rust colored. Do I need a new filter?

A: Probably not. Since your filter has been made with Protec™ antimicrobial the change in color indicates only a mineral deposit. Soak filter in a sink full of cool water to help break up deposits. The discoloration may remain but will not affect the humidifier's performance.

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. It also does not apply to the filter or Protec® Antimicrobial Cartridge. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

KAZ USA, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz USA, Inc. will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz USA, Inc. with a brief description of the problem. Include proof of purchase and a S10 US/\$15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to:

In U.S.A.:

Helen of Troy Attn: Returns Department 1 Helen of Troy Plaza El Paso, TX 79912 USA

In Canada:

Kaz Canada, Inc. Attn: Returns Department 510 Bronte Street South Milton, ON L9T 2X6 Canada

Please go to www.HoneywellComfort.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.

Manufactured by Kaz USA, Inc.

250 Turnpike Rd.

Southborough, MA 01772

All Rights Reserved.

www.honeywellcomfort.com

[e-mail]

Honeywell

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772 USA

Attn: Returns Department

1 Helen of Troy Plaza

El Paso, TX 79912 USA

En Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada
