SL6470SKT - Slow cooker BLACK & DECKER - Free user manual and instructions

Product type	Slow cooker
Brand	Black & Decker
Model	SL6470SKT
Color	Black / Stainless steel
Capacity	5.7 liters (6 quarts)
Dimensions (L x H x D)	38.1 x 27.9 x 27.9 cm
Weight	3.2 kg
Power supply	220-240 V / 50 Hz
Power	200 W
Pot material	Enameled ceramic
Lid material	Tempered glass
Temperature settings	Low, Medium, High (Keep warm)
Keep warm function	Yes
Timer	No (manual)
Power indicator	Indicator light
Handles	Cool-touch side handles
Non-slip feet	Yes
Cleaning	Pot and lid dishwasher safe
Maintenance	Wipe the base with a damp cloth
Safety	Automatic shut-off in case of overheating
Spare parts available	Pot, lid, gasket
Repairability	Repairability score: 8.2/10
Warranty	2 years
Manual included	Yes (French, English, Spanish)

Frequently Asked Questions - SL6470SKT BLACK & DECKER

What is the capacity of the Black & Decker SL6470SKT slow cooker?

The slow cooker has a capacity of 5.7 liters (6 quarts), ideal for family meals.

How to use the different temperature settings?

Use the Low setting for slow cooking (8-10h), Medium (5-7h) and High (3-4h). The Keep Warm mode maintains temperature without further cooking.

Can I wash the pot and lid in the dishwasher?

Yes, the enameled ceramic pot and tempered glass lid are dishwasher safe. Avoid intensive cycles.

How to clean the base of the slow cooker?

Unplug the appliance, allow it to cool, then wipe the base with a soft slightly damp cloth. Never immerse the base in water.

Does the slow cooker turn off automatically?

Yes, a thermal safety system automatically stops the appliance in case of overheating. There is no programmed timer.

What types of dishes can I prepare?

You can make stews, soups, sauces, braised meats, pasta dishes, desserts like custards or compotes. Adjust the cooking times.

How to avoid overcooking?

Respect the cooking times of the chosen setting and do not exceed the maximum capacity. For delicate dishes, prefer the low setting.

Are spare parts available?

Yes, you can order a replacement pot, a lid or a gasket from Black & Decker customer service.

What is the warranty of the appliance?

The slow cooker is covered by a 2-year warranty against defects in materials and workmanship.

Can I use voltage adapters?

No, the appliance is designed for 220-240 V voltage. Using an adapter may damage it. Check your mains voltage.

USER MANUAL SL6470SKT BLACK & DECKER

Steaming cook pot with food and cooking ingredients, digital display showing 6.0°F (no text or symbols on main subject)

Customer Care Line:

USA 1-800-231-9786

Accessories/Parts (USA)

1-800-738-0245

For online customer service

and to register your product, go to

www.prodprotect.com/applica

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.
  ○ Do not touch hot surfaces. Use handles or knobs.
  To protect against electrical shock, do not immerse cord, plug or appliance in water or other liquid.
  ○ Close supervision is necessary when any appliance is used by or near children.
  ○ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
  Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Contact Consumer Service for examination, repair or adjustment.
  The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
  ○ Do not use outdoors.
  Do not let cord hang over edge of table or counter, or touch hot surfaces.
  Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
  To disconnect, turn any control to OFF then remove plug from wall outlet.
  ○ Do not use appliance for other than intended use.
• Avoid sudden temperature changes, such as adding refrigerated foods into a heated pot.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

Additional Important Safeguards

CAUTION, HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property.

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Owner's Manual before operating or cleaning this appliance.
If this appliance falls or accidentally becomes immersed in water, unplug it from the wall outlet immediately. Do not reach into the water!
When using this appliance, provide adequate air space above and on all sides for air circulation. Do not operate this appliance while it is touching or near curtains, wall coverings, clothing, dishtowels or other flammable materials.
○ Do not leave this appliance unattended during use.
If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair a malfunctioning appliance!
The cord to this appliance should only be plugged into a 120V AC electrical wall outlet.
○ Do not use this appliance in an unstable position.
Never use the Stoneware Liner on a gas or electric cooktop or on an open flame.
○ Lift off Glass Lid carefully to avoid scalding, and allow water to drip into Stoneware Liner.

Caution: To prevent damage or shock hazard, do not cook in Cooking Base. Cook only in Stoneware Liner provided.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Do not use an extension cord with this product.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service.

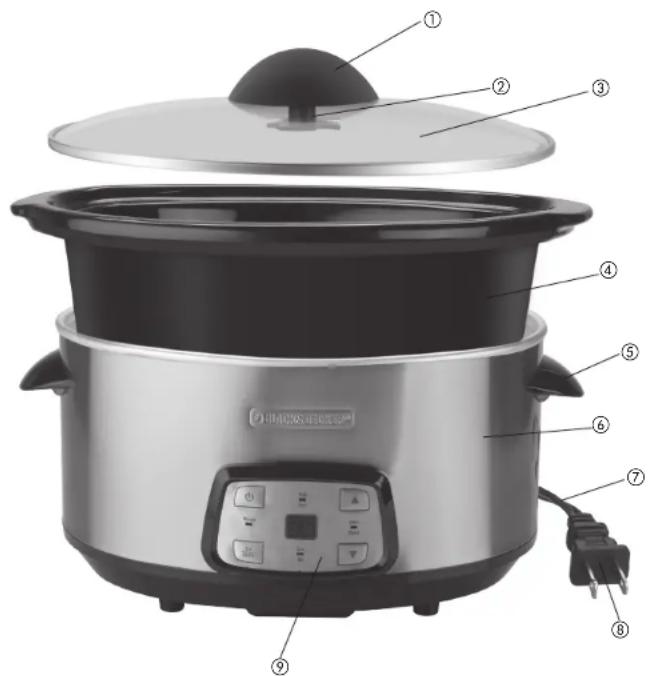

Product may vary slightly from what is illustrated.

1. Lid handle

2. Inverted lid handle

† 3. Tempered glass lid (Part # SL5470C-01)

† 4. Removable stoneware liner (Part # SL5470C-02)

1. Cool-touch handles

2. Cooking base

3. Power cord

4. Polarized plug

5. Digital temperature control

Note: † indicates consumer replaceable/removable parts

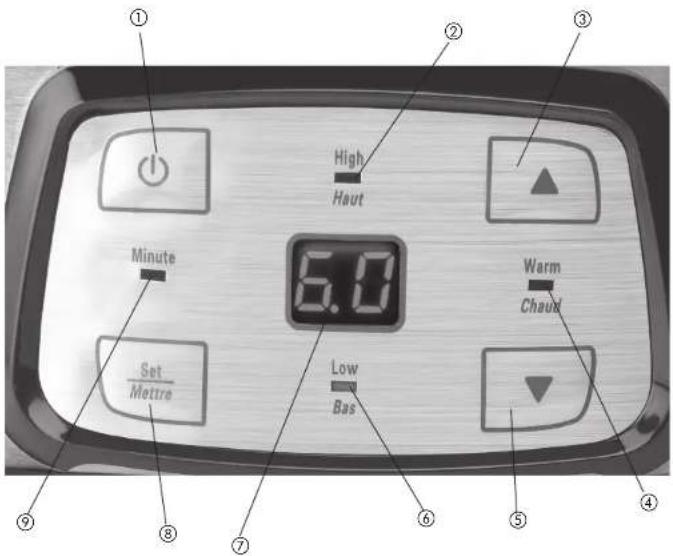

DIGITAL TEMPERATURE CONTROL

1. On / Off Button
2. High temperature indicator light
3. Up (▲) button

• To increase cooking time (hours)

1. Warm temperature indicator light

2. Down (▼) button

• To decrease cooking time (hours)
6. Low temperature indicator light

1. Hour and minute countdown display
2. Minute indicator light comes on when minutes are displayed
3. Temperature set button
4. Changes the temperature setting to: o Low (4 to 12 hours) o Warm (2 to 6 hours) o High (2 to 8 hours)
5. Minute indicator light

How to Use

This product is for household use only.

GETTING STARTED

• Remove all packing material, and any stickers from the product.
• Remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty.
• Wash the stoneware liner and the glass lid as instructed in Care and Cleaning section of this manual.
• Place the clean, dry stoneware liner into the cooking base.

HOW TO USE

1. Add the ingredients to be cooked into the stoneware liner (A).

1. Place the lid, handle side up, on the stoneware liner (B).

1. Plug in the appliance. The indicator light below HIGH blinks; the digital display shows 4.0 (4 hours). To cook on HIGH for 4 hours, press the ON/OFF button on the top left of the control panel (C). The indicator light below HIGH is lit constantly and cooking begins.

c
Note: The indicator light blinks when the appliance is plugged in but not turned on.

1. To change the time, press the UP ▲ or DOWN ▼ button on the right of the control panel, before pressing the ON/OFF button. You can change the time from 2 to 8 hours (D). When you see the desired time, press the ON/OFF button; the food starts cooking.

Note: Cook time options are: HIGH 2 to 8 hours; LOW 4 to 12 hours and WARM 2 to 6 hours.

1. To cook on LOW, press the SET button on the lower left of the control panel; the indicator light below the word LOW blinks. The digital display changes to 8.0 (8 hours) (E). Press the ON/OFF button on the top left of the control panel. The indicator light below LOW becomes constant and cooking begins.

1. To change the time, press the UP ▲ or DOWN ▼ button on the right of the control panel. You can change the time from 4 to 12 hours (F). When you see the desired time, press the ON/OFF button; the food starts cooking.

Note: When the time goes below 1 hour, the display switches to minutes and counts down from 59 to 0. The minute light is lit.

1. When cooking time is done, the slow cooker automatically switches to WARM and the indicator light below WARM comes on and 2.0 (2 hours) is displayed.

Note: Never cook on WARM. This feature is only for keeping cooked foods at serving temperature.

1. To change the WARM cycle time, press the UP ▲ button on the right of the control panel.

Note: You can change the time from 2 to 6 hours.

1. At the end of the WARM cycle the unit will beep 5 times.

2. Then the unit and all the indicator lights will automatically shutoff.

Note: The unit can be turned off at any time by pressing the ON/OFF button.

1. Unplug the appliance.

2. Food is ready to serve.

TIPS when using your slow cooker:

• The stoneware liner should always be filled from 12 to 34 , to avoid over and under cooking.
  When only half full, check for doneness 1 to 2 hours before recommended cooking time.
  o To avoid spillovers, do not fill slow cooker more than 34 full.

• Always cook with the lid on.

o Do not open lid during first 2 hours of cooking; this allows heat to rise efficiently.

o Open the lid as little as possible, to assure even cooking.

- If your recipe has a cooking time range, select the even number closest to the settings on your slow cooker. (For example, if recipe suggests 5 to 7 hours, use 6 hours)

- Most recipes can be cooked on either HIGH or LOW. Many recipes will give the time for both.

- Important: When the appliance is in use, always use pot holders when handling the lid or the stoneware liner.

- If your recipe has a cooking time range, select the even number closest to the settings on your slow cooker. (For example, if recipe suggests 5 to 7 hours, use 6 hours) - Most recipes can be cooked on either HIGH or LOW. Many recipes will give the time for both. - Important: When the appliance is in use, always use pot holders when handling the lid or the stoneware liner.

Caution: When removing the lid, always lift it away from the body to prevent getting burnt from the hot steam.

• To save time, fill the stoneware liner the night before and refrigerate. You may need to add some extra cooking time because the food and stoneware liner are cold.
• To store the stoneware liner or to place in the refrigerator, invert the lid. It is easy to use the small lid handle on the bottom of the lid, making it handy to remove and turn over.

Important: If there is a power outage, the slow cooker will turn off. If this is discovered quickly, reset the appliance. If you are not sure how long the slow cooker has not been functioning, discard the food.

HINTS ON INGREDIENTS IN THE SLOW COOKER

DAIRY

• Milk products, especially those low in fat, tend to curdle if cooked too long; add them toward the end of the cooking time.
• Evaporated milk and condensed soups are great substitutes for milk and cream.

SOUPS AND STEWS

• Because there is little evaporation, soups and stews require less liquid than usual.
• If too thick, add additional liquid in last 12 hour of cooking or at serving time.
• Condensed soups and dry soup mixes add great flavor and body to sauces.

MEATS

• The higher the fat content, the less liquid needed. Also, place thickly sliced onions under fattier meat to keep it above the drippings.
• Browning before cooking in the slow cooker is not necessary; however, browning meats, lightly coated in flour gives more body and flavor to sauces. This works for ground meat as well.
  • Make sure top of meat does not touch the lid.
• Cooking times are an estimate and will vary depending upon the size of the meat, the bones and the cut.

Meat with bone in will take longer to cook.

Lean meats and poultry will cook faster.

• Meats slow cooked in liquids develop great flavor with a minimum of effort.
• Use HIGH for more tender cuts of meat; use LOW for tougher cuts.

VEGETABLES

• Place vegetables below or on the sides; they usually take longer to cook than the meat.
• Vegetables cook well; they develop better flavor and don't break down as they would in your oven.

FISH

• Fish cooks quickly; add it for the last 15 minutes.

BEANS

• Do not add dried beans to the slow cooker; cook them first.
• Canned beans are the perfect substitute for dried beans.

SEASONINGS

• Fresh herbs should be added at the end of the cooking cycle. If cooked too long they lose their color and flavor.
• Dried herbs work well in the slow cooker and can be added at the beginning. They can become stronger on longer cooking; begin with less and add at end, if needed.
• Some spices and dried herbs, such as cinnamon sticks, bay leaves and whole peppercorns can become quite intense with long cooking, so use sparingly.
• If using bay leaves, remember to remove before serving.

Care and Cleaning

Caring For Your Slow Cooker

Avoid sudden, extreme temperature changes. For example, do not place the hot glass lid or stoneware liner into cold water or onto a wet surface.
○ Avoid hitting the stoneware liner or glass lid against the faucet or other hard surfaces.
○ Do not use stoneware liner or glass lid if chipped, cracked, or severely scratched.

User Maintenance Instructions

This slow cooker requires little maintenance. It contains no user serviceable parts.

Do not try to repair it yourself. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician.

Cleaning Your Slow Cooker

Caution: Never immerse cooking base or cord in water or other liquids.

1. Always unplug and allow to cool completely before cleaning.
2. Wash stoneware liner and glass lid in warm, soapy water. If food sticks to the stoneware liner, fill with warm, soapy water and allow to soak before cleaning with a plastic scouring pad.

Note: Both stoneware liner and glass lid are dishwasher-safe.

1. Rinse and dry thoroughly.

2. Wipe interior and exterior of the cooking base with a soft, slightly damp cloth or sponge.

Important: Never use abrasive cleansers or scouring pads to clean the cooking base, as they may damage the surfaces.

Storing Your Slow Cooker

1. Dry thoroughly before storing.
2. Never wrap the cord tightly around the appliance; keep it loosely coiled.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

TWO-YEAR LIMITED WARRANTY

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

- Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
- Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made and Printed in People's Republic of China

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

ServiTotal

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

www.applicaservice.com

[e-mail]

(C1425FUG) C.A.B.A. Argentina

C.U.I.T No. 30-70706168-1

Importado por / Imported by:

Instructions relatives au cordon
