Product Type	Child Safety Gate with Automatic Closing
Brand	Safety 1st
Model	Autoclose
Intended Use	Domestic, for openings between 73 and 136 cm wide
Age Range	6 to 24 months
Safety Standards	EN 1930:2011, tested to Order No. 91-1292
Mounting Type	Pressure mount (no drilling required) with wall cups
Closing Mechanism	Automatic self-closing with lock
Dimensions (Width)	Min 73 cm, Max 136 cm
Height	Approximately 76 cm (typical for this category)
Weight	Approximately 5 kg (estimated)
Material	Metal and plastic
Power Source	None (mechanical operation)
Maintenance	Wipe with sponge and mild soap; check regularly
Warranty	24 months from date of purchase
Country of Origin	Not specified (brand: UK/EU)

Frequently Asked Questions - Autoclose SAFETY 1ST

Can this gate be used at the top of stairs?

Yes, but it must be positioned at the top edge, not below the top step. Follow the manual for correct placement to avoid danger.

What is the minimum and maximum width it fits?

It fits openings from a minimum of 73 cm to a maximum of 136 cm. Do not use extensions in other configurations.

Does it require drilling into walls?

No, it is a pressure-mounted gate using wall cups for stability. Ensure the surface is solid and clean.

Is this gate suitable for children older than 24 months?

No, it is intended for children aged 6 to 24 months. Stop using if the child can climb over it.

How do I clean the safety gate?

Clean with a sponge and mild soap. Avoid harsh chemicals. Regular maintenance ensures longevity.

What safety standards does it comply with?

It complies with EN 1930:2011 and is tested in an approved laboratory.

Can I install this gate across a window?

No, it must not be fitted across windows. Only use in doorways or stair openings.

What should I do if a part is missing or damaged?

Do not use the gate. Contact the manufacturer or retailer for replacement parts. Use only original parts.

How long is the warranty period?

The warranty is valid for 24 months from the original purchase date. Keep your receipt.

Will the gate close automatically every time?

Yes, it features an automatic closing system that locks with a click. Always check that it is fully closed.

USER MANUAL Autoclose SAFETY 1ST

www.safety1st.com

Color palette bar with grayscale gradient and a small circular target symbol (no text or labels)

EN • IMPORTANT! READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Color palette bar with grayscale gradient and a small circular target symbol (no text or labels)

Color palette bar with grayscale gradient and a small circular target symbol (no text or labels)

SE • VIKTIGT! LÄS OCH FÖLJ DESSA INSTRUKTIONER NOGA OCH BEHÅLL DEM FÖR FRAMTIDA BRUK.

PL • WAŻNE! NALEŻY PRZECZYTAĆ NINIEJSZA INSTRUKCJĘ I POSTĘPOWAĆ ZGODNIE Z NIA ORAZ ZACHOWAĆ JA NA PRZYSZŁOŚĆ.

Gradient bar transitioning from black to white with no text or symbols

Safety 1st®

Index

Instructions for use/Warranty

EN • Congratulations on your purchase.

To ensure maximum protection and optimum comfort for your child, it is essential that you read through the entire manual carefully and follow all instructions.

12

Gradient bar transitioning from black to white with no text or symbols

13

14

Gradient bar transitioning from black to white with no text or symbols

15

18

Gray gradient bar with no text or symbols, ranging from black to white (no text or symbols)

Pure diagram of a rectangular frame with vertical supports and orange directional arrows, no text or symbols present.

20

Gradient bar transitioning from black to white with no text or symbols

7 cm

Diagram of a mechanical or electrical device with vertical supports and a central rectangular frame, no text or symbols present.

21

Gray gradient bar with no text or symbols, ranging from black to white (no text or symbols)

22

Gray gradient bar transitioning from black to white (no text or symbols)

28 cm

Diagram of a baby car stopper with vertical bars and lock, shown in two configurations (no text or symbols)

General Autoclose instructions.

• Complies with safety requirements - Tested in an approved laboratory in accordance with order no. 91-1292 - December 1991.
  • Safety barrier conforms to EN 1930:2011.

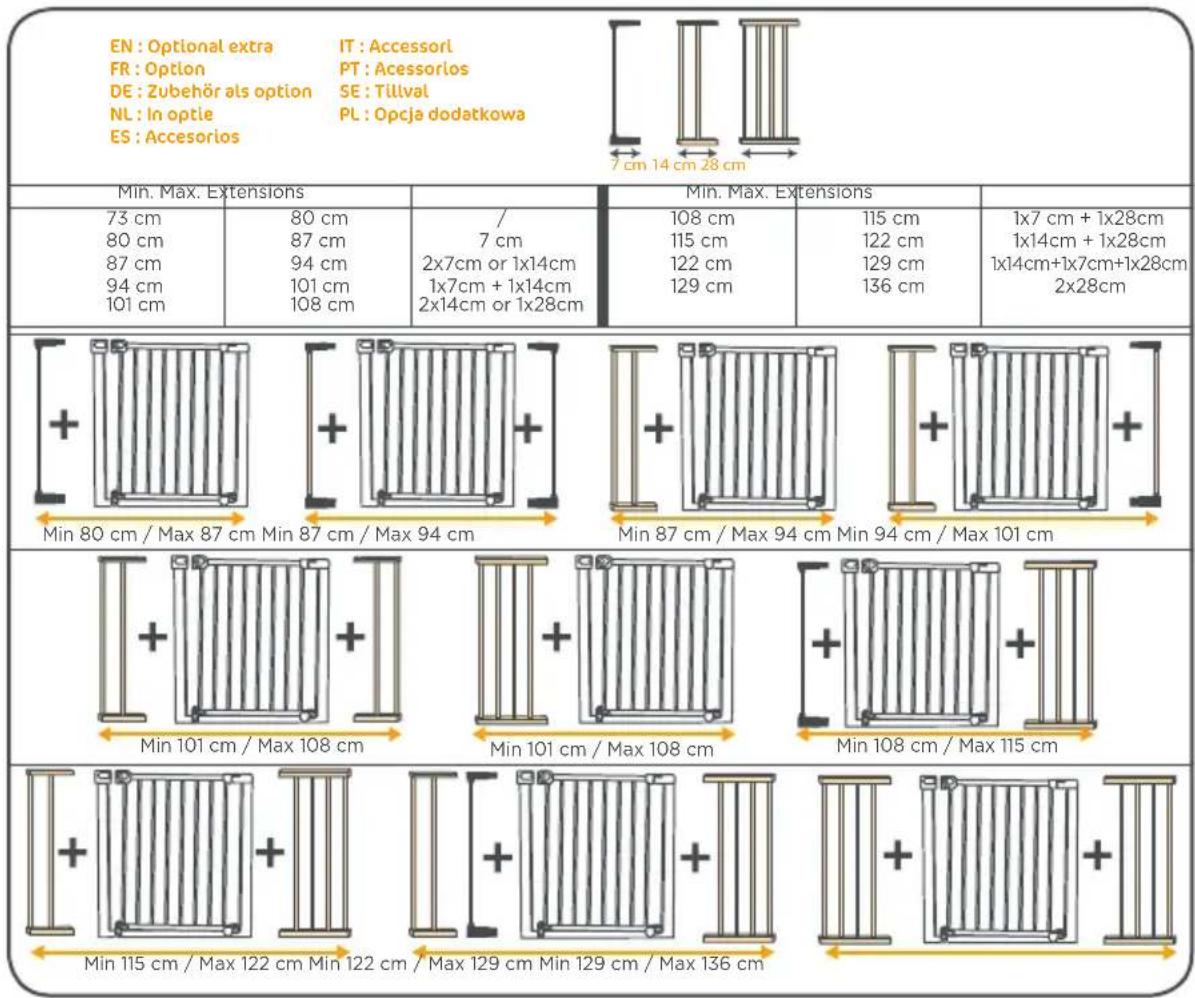

• The barrier is suitable for openings from a minimum of 73 cm, up to a maximum of 136 cm.
• Do not use the extensions in another configuration than those recommended by the manufacturer.
  • Intended for children between the ages of 6 and 24 months.
  • This safety barrier is for domestic use only
• Safety barrier should be checked regularly to ensure that it is secure and functioning in accordance with these instructions.
• Safety barrier with automatic closing system.

CAUTION: Used correctly, this barrier is designed to prevent accidents.

Children should never be left unattended. Incorrect positioning of the safety barrier in relation to the stairway may present a danger for your child. If the safety barrier is used at the top of the stairs, it should not be positioned below the top level. If the safety barrier is used at the bottom of the stairs, it should be positioned at the front of the lowest tread possible. Check that the safety barrier is correctly closed.

WARNING: Incorrect installation can be dangerous

WARNING: Do not use the safety barrier if any components are damaged or missing.

WARNING: The safety barrier must not be fitted across windows. Ensure that the wall, door

frame or newel post to which you fi x the barrier is solid, stable, smooth and has non-greasy.

WARNING: Stop using the barrier if the child is capable of climbing it. Danger to older children climbing over the safety barrier. Any additional or replacement parts should only be obtained from the manufacturer or distributor. Safety barrier should be checked regularly to ensure that it is properly fixed, secure and functioning.

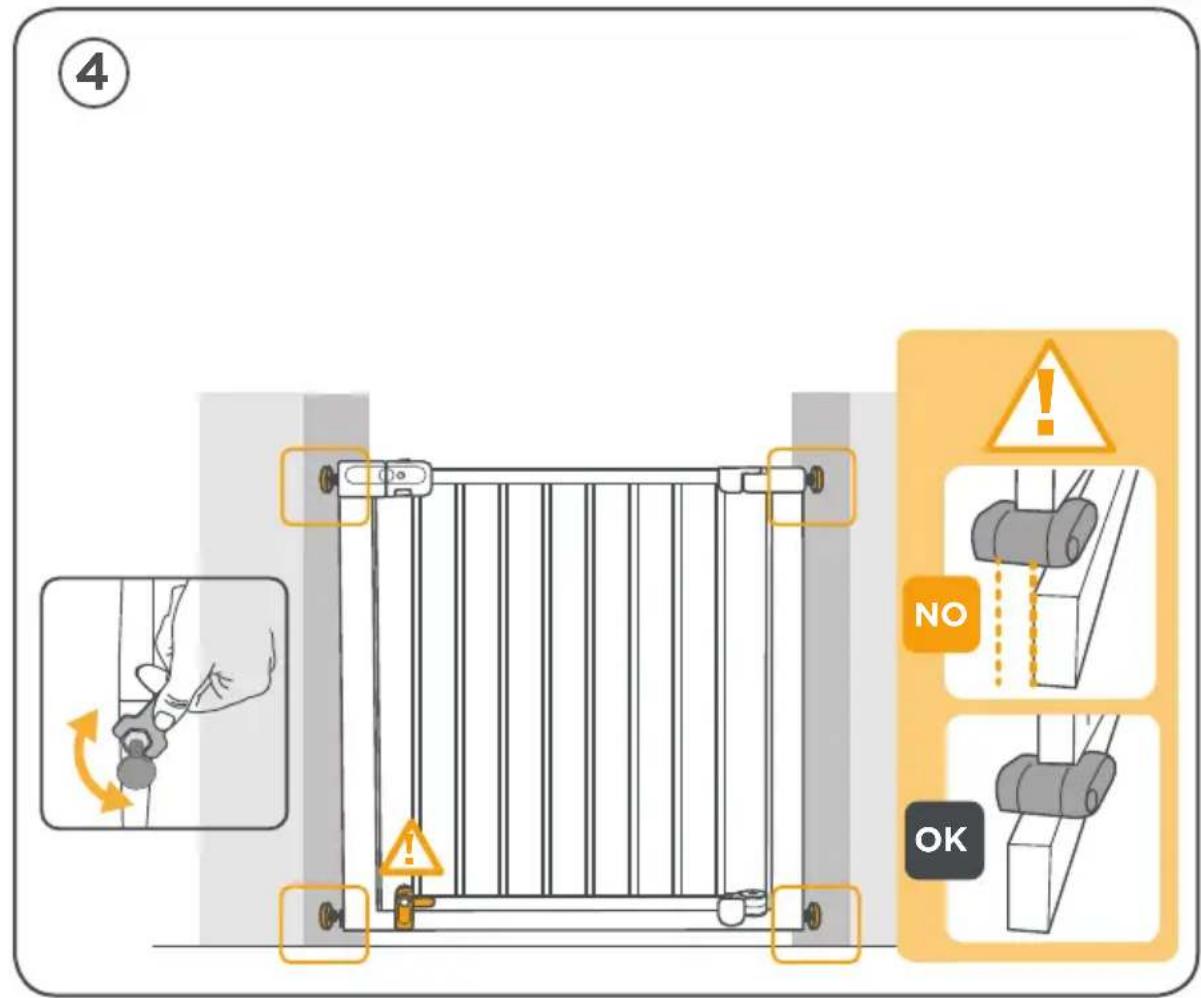

WARNING: Never use without wall cups.

Advice:

Always keep an eye on the child, since children quickly become more independent.

Maintenance:

Wash with a sponge and mild soap. Remember that all mechanical products need regular maintenance and careful use if they are to provide maximum satisfaction and last a long time.

EN

24

Warranty

"Dear Customer,

Thank you for the confi dence you have shown in us by choosing one of our products. We hope it will meet all your expectations. This certifi cate indicates that this product has been manufactured according to the quality standards applicable and that it has been subjected to numerous checks during the various manufacturing stages. Should an anomaly occur during the warranty period, we will respect the conditions stipulated in the guarantee. Guarantee Certifi cate:We guarantee that this product complies with the security regulations currently in effect, and that it is free from defects in material and craftsmanship at the time it is purchased by the retailer. If this product fails within 24 months of the original purchase and under normal use as defi ned in the user's manual, we will repair or replace the product (for more information regarding our warranty policy, ask your retailer or consult our website), except in the following cases:"

• Use and purpose other than those indicated in the instructions for use.
  • Installation not in accordance with the instructions.
  • Repair carried out by a non-approved person or retailer.
  • Proof of purchase not presented.
  • Product not maintained.
• Replacement of any parts subject to wear (wheels, areas which rub, etc.) during normal use.

From when?

From the date the product is purchased.

For how long?

For 24 consecutive months, non-transferable; only

the fi rst purchaser benefi ts from this.

What do you have to do?

After you purchase your product, you must keep the sales receipt showing the date of purchase. If a problem should arise, the product must be taken back to the retailer from whom it was bought. Any product sent directly to the manufacturer will not be covered by the guarantee.

This guarantee conforms with European Directive No. 1999/44/EC dated 25 May 1999.
