Product Type	86-inch Interactive Flat Panel Display
Display Size	86 inches (diagonal)
Resolution	3840 x 2160 (4K UHD)
Brightness	400 cd/m²
Contrast Ratio	4000:1
Touch Technology	Infrared touch (20 touch points)
Dimensions (W x H x D)	1957 x 1137 x 95 mm (without stand)
Weight	Approx. 65 kg (without stand)
Power Consumption	Typical: 250 W, Standby: <0.5 W
Input Voltage	100-240 V AC, 50/60 Hz
Main Functions	Interactive whiteboard, wireless presentation, built-in speakers, annotation tools
Connectivity	HDMI x3, USB 2.0 x2, USB 3.0 x1, VGA, Audio In/Out, RJ45, RS232
Operating System	Android 8.0 or later
Care and Cleaning	Clean with soft, dry cloth; avoid abrasive cleaners; do not spray liquid directly
Safety Features	VESA mount (600x400), anti-glare glass, overheat protection, Kensington lock slot
Spare Parts and Repairability	Replaceable power supply, touch module, and mainboard; contact Avocor support for parts
General Information	Designed for education and corporate use; warranty: 3 years standard

Frequently Asked Questions - E8610 Avocor

How do I connect my laptop to the Avocor E8610?

Connect using an HDMI cable (HDMI 1 or 2) or display via the wireless presentation feature. Ensure the correct input source is selected on the monitor.

Can I use the E8610 as a whiteboard?

Yes, the E8610 has built-in interactive whiteboard functionality. Use the included stylus or your finger to write, draw, and annotate.

How do I clean the screen safely?

Use a soft, lint-free cloth slightly dampened with water. Avoid chemical cleaners, abrasive materials, or spraying liquid directly onto the screen.

What is the recommended mounting for the E8610?

The display supports VESA 600x400 mm mounting. Use a wall mount rated for at least 70 kg. Ensure proper wall anchoring.

Why is there no sound coming from the built-in speakers?

Check that the audio cable is connected properly, or that the source device volume is up. Navigate to Settings > Sound and ensure the speakers are enabled.

How do I perform a factory reset?

Go to Settings > System > Reset Options and select Factory Reset. This will erase all user data and restore default settings.

Can I use the touch function with any operating system?

The touch function supports Windows, Android, and macOS without additional drivers. For Linux, limited support may be available.

What should I do if the display does not power on?

Ensure the power cable is securely connected and the outlet is working. Press the power button firmly. If still off, try a power cycle (unplug for 1 minute).

How do I update the firmware?

Check for updates in Settings > About > System Updates. Download and install the latest firmware from the Avocor support website if not available OTA.

Is the E8610 compatible with third-party software like Zoom?

Yes, the E8610 runs on Android and can install Zoom, Microsoft Teams, Google Meet from the app store. It also works as a peripheral for PC-based conferencing.

USER MANUAL E8610 Avocor

Three large black-framed display screens with abstract blue wave patterns and a C-series logo on the screen (no readable text or symbols beyond branding)

AVE Series

Quick Start Guide

AVE-6510, AVE-7510, AVE-8610

E Series Quick Start Guide Table of Contents

1. Contents of Packaging
2. The Display at a Glance
3. Display Input Sources
4. The Remote Control
5. Switching the display on and off Source Selection Connecting to the Display
6. Connecting to an external PC using a HDMI connection
7. Connecting to an external PC using a DisplayPort connection
8. Enabling the Touch System
9. Installing an OPS Module
10. Warranty Support

Contents of Packaging

1. Accessory Carton

• Quick Start Guide
  • Remote Control & Batteries
  • 2x Touch Stylus - 1x3mm & 1x6mm
• Eraser
  • Power Cables - UK Cable 2m & European Cable 2m
  • 2x 3m HDMI Cable
  • 2x 3m USB-A - USB-A Cable
• Cleaning Cloth
• Pen Holder

Black remote control device with 'civocor' branding and navigation buttons (no readable text beyond branding)

Two black pen-like pens with engraved markings, isolated on white background (no text or symbols)

3D rendered metallic object with three stepped surfaces, no text or symbols visible

Close-up of a black electrical outlet plug with three leads (no text or symbols visible)

Close-up of two black electrical power plug connectors (no text or symbols visible)

Two black USB connectors with gold connector, shown in side profile (no text or symbols visible)

Two black USB connectors with white leads, shown against a plain white background (no text or symbols visible)

Simple illustration of a folded or folded object with no text or symbols

Black rectangular electronic component with two orange leads, enclosed in a rounded square frame (no text or symbols)

Please visit www.avocor.com to download the full E-Series user manual and the Pen Aware Touch Drivers.

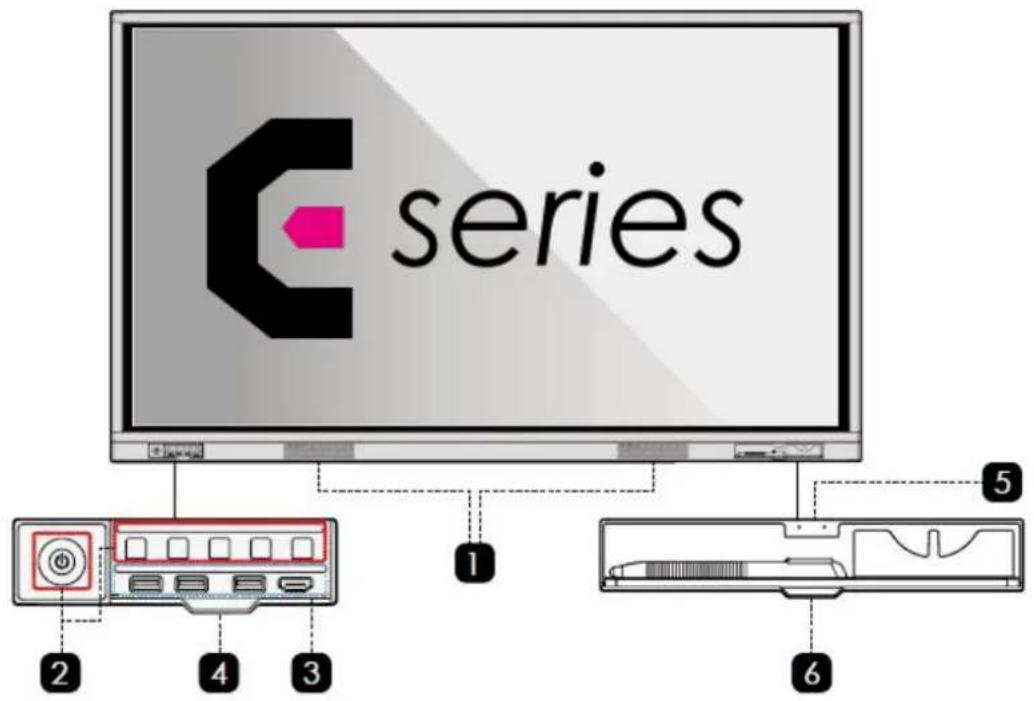

The Display at a Glance

Front View

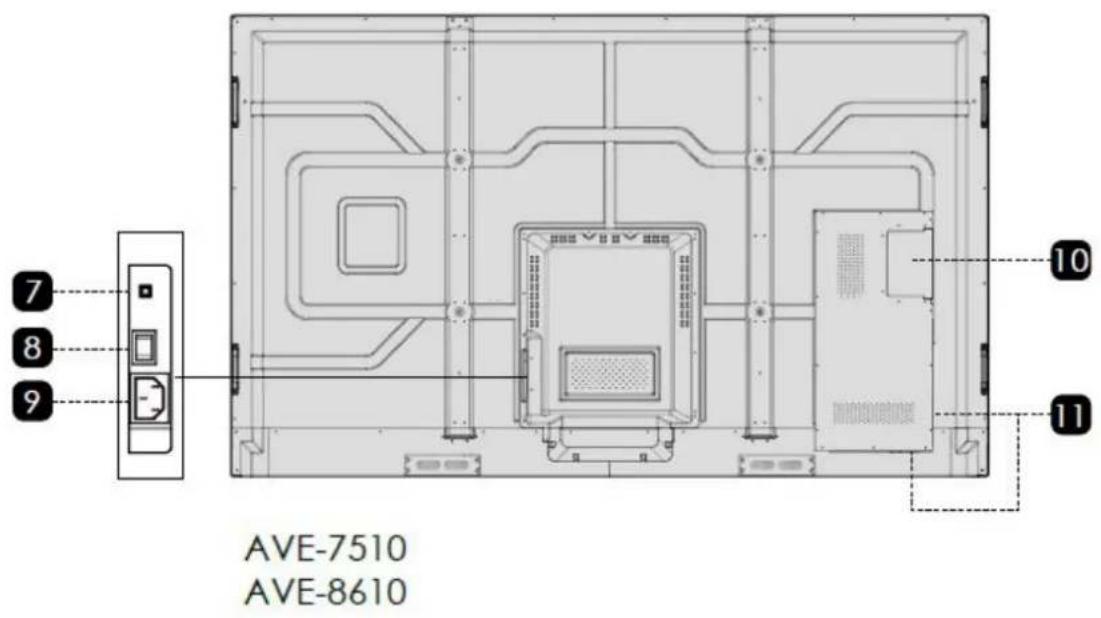

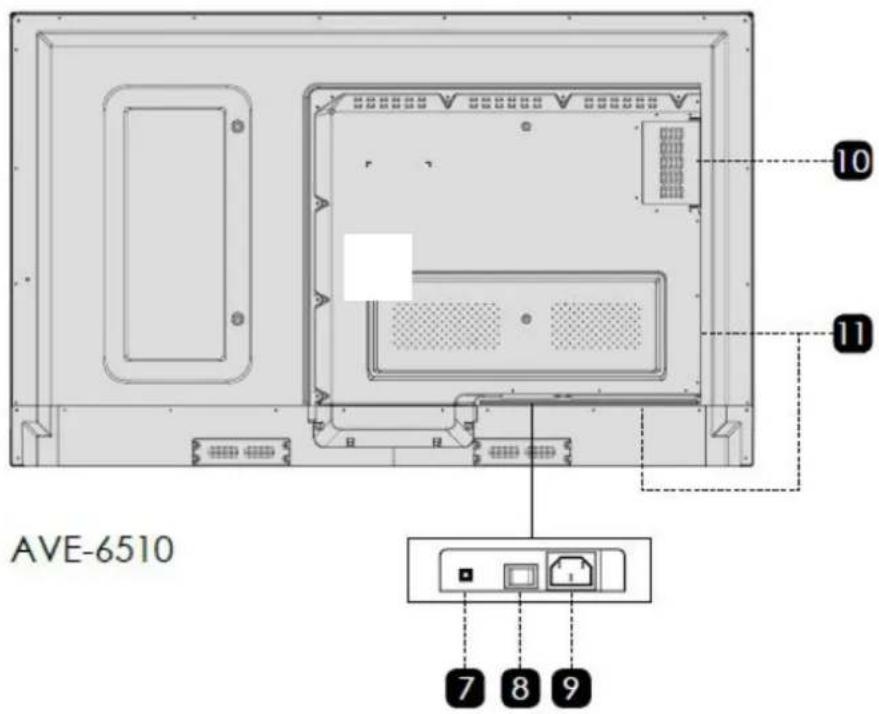

Rear View

1 Speakers
3 Front Ports
5 Pen/Eraser Tray
7 Reset Button
9 Power Supply
11 Rear Ports

2 Front Buttons
4 Button Cover
6 Pen/Eraser Tray Cover
8 Power Switch
10 OPS PC Slot

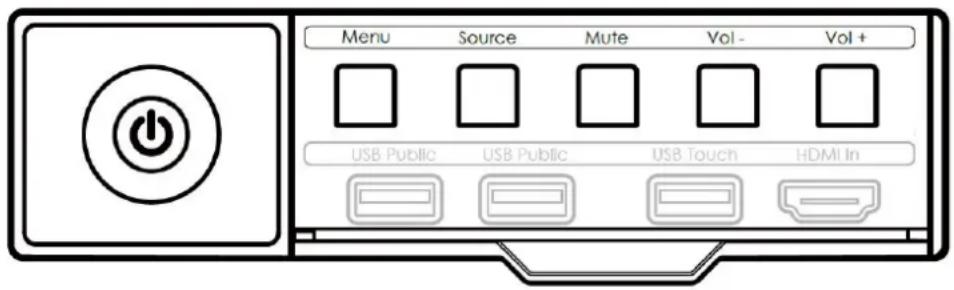

Front Buttons

Button	Operation	Function
Power Short Press		Power on/off IndicatorLED status:Solid Red : Sleep modeSolid Green : Working stateBlinking Red and Green : Standby mode
Menu	Short press	Open the Settings menu
Source	Short press	Open the Source menu
Mute	Short press	Mutes the audio
VOL -	Short press	Decrease the audio volume in steps
	Long press - more than 1 sec	Decrease the sound volume continuously
VOL+	Short press	Increase the audio volume in steps
	Long press - more than 1 sec	Increase the sound volume continuously

E-Series Display Inputs

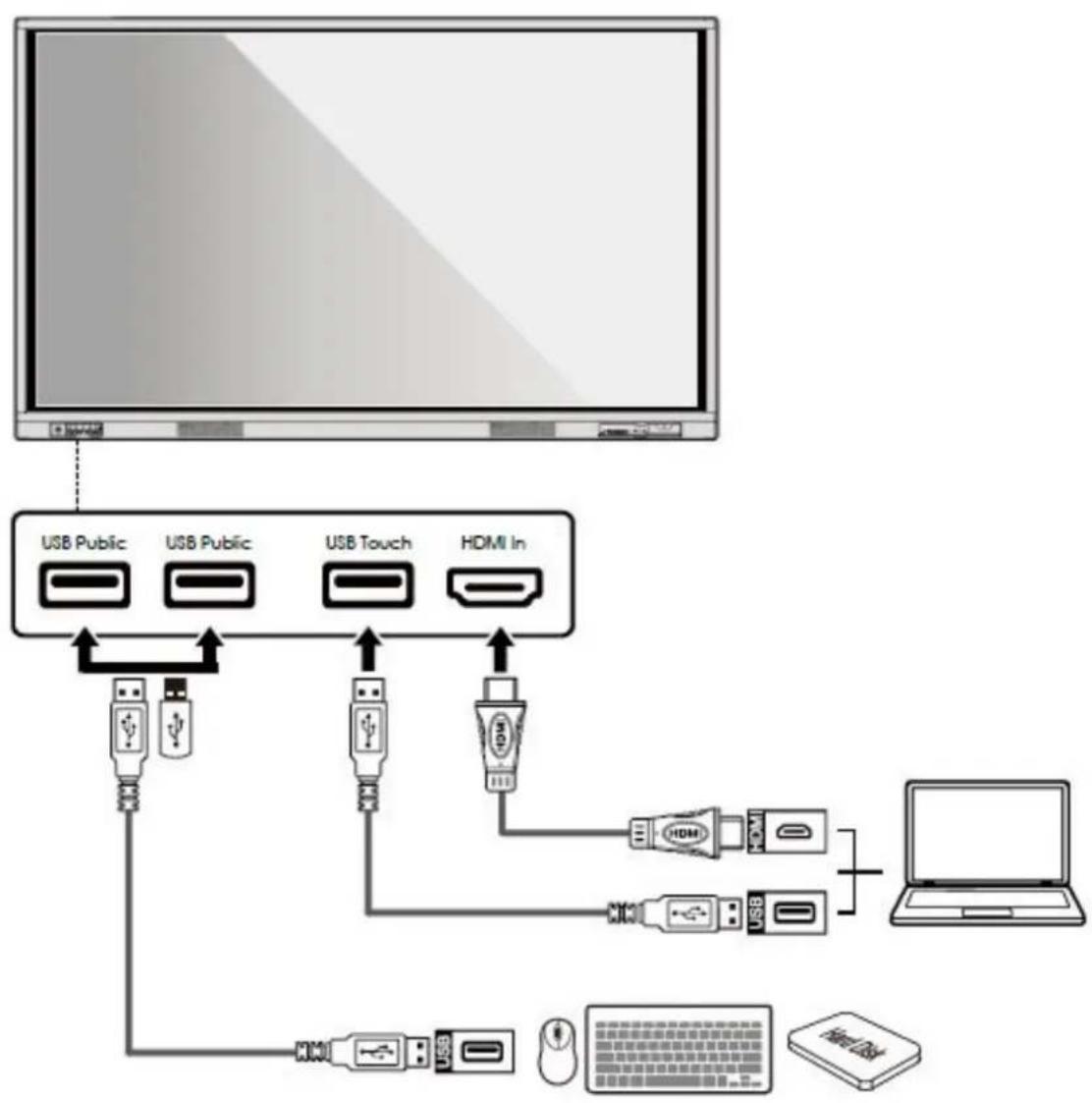

Front Ports


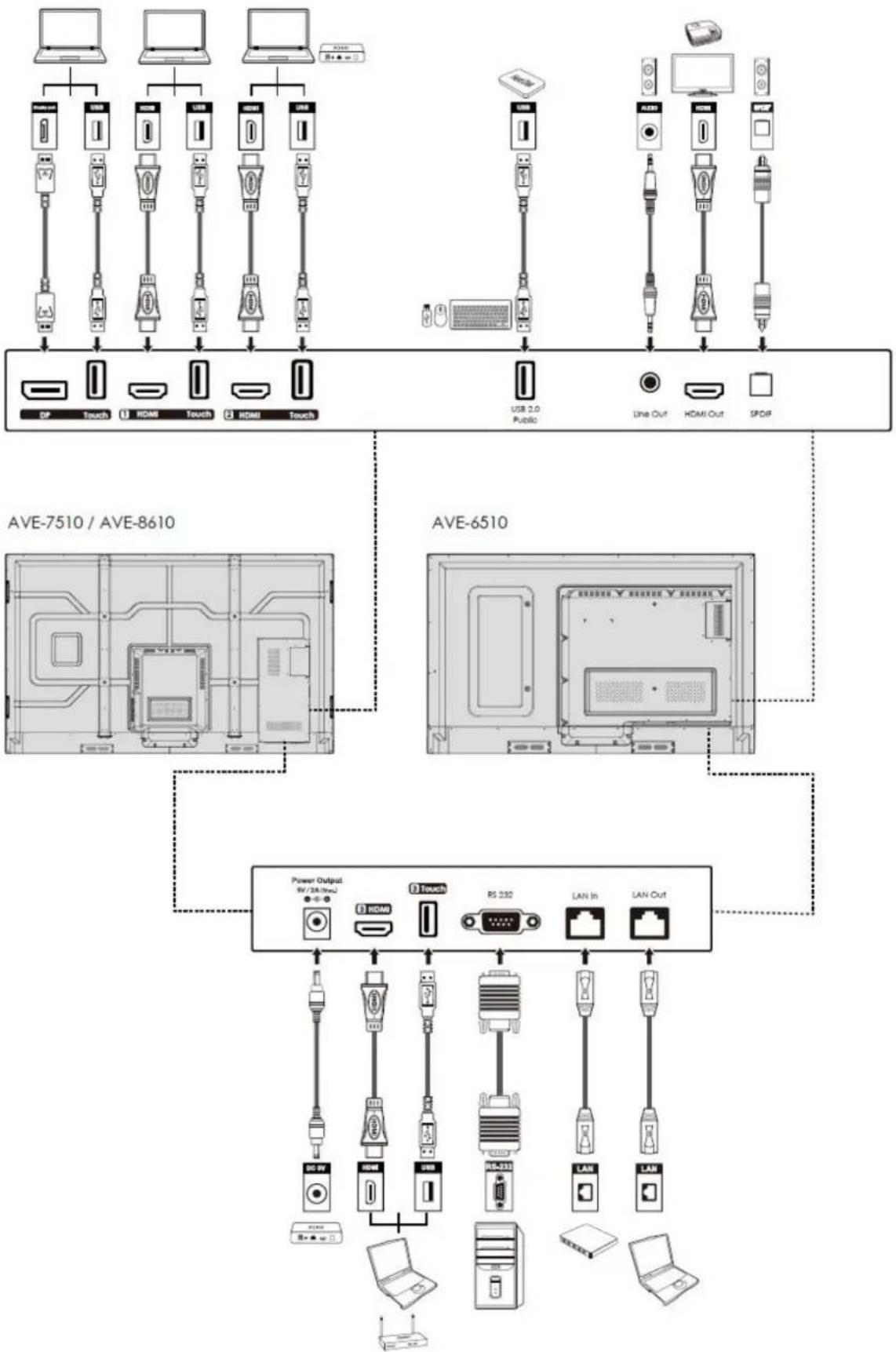

Rear Ports
        B1["AVE-7510 / AVE-8610"]
    end
    subgraph Power Output
            C["V/DA/Hz^2"]
            D["NOMA"]
            E["Touch"]
            F["RS 232"]
            G["LAN In"]
            H["LAN Out"]
            I["SOS PS"]
            J["HDMI"]
            K["KRR"]
            L["RSS-332"]
            M["LAN In"]
            N["LAN Out"]
            O["Laptop"]

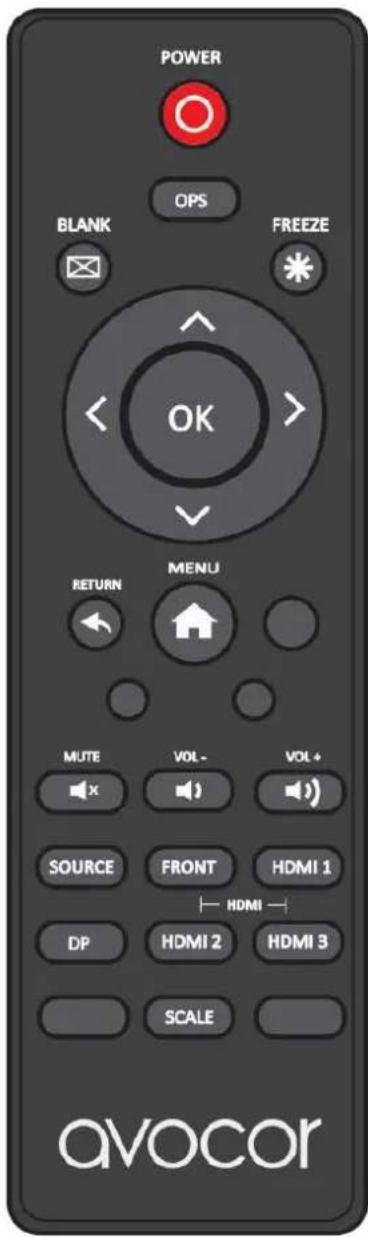

Remote Control

Label	Description
	Turns the display on and off.
	Select the OPS PC source.
	Blanks the display. Press again to restore.
	Freezes the display. Press again to restore.
	Navigates through menus and settings.Selects highlighted menu choice
	When the menu system is already open, pressing this button will close the on screen menu.
	Opens the display menu system.
	Mutes the audio. Pressing Mute again restores the audio
	Decreases the Volume by pressing the - key
	Increases the Volume by pressing the + key
	Opens the Source Menu.
	cts DisplayPort
	Selects the HDMI Sources
	Selects each aspect ratio, in sequence: Full Screen, Auto, Pillar Box

Switching the Avocor display on and off

Switching on

1. Plug the end of the supplied power cord into side of the display
2. Connect the other end to the power source.
3. Turn on the main power switch at the side of the display. The power LED indicator lights Red to indicate that the display is in "standby" mode.
4. Press the Power button and the power LED indicator on the left-hand side of the display will then light up in green, which tells you that the screen is switched on.
5. After a brief warm-up period, the display will display an image

Switching off

1. Switch the display off by pressing the Power button on the display.
2. The display will then cycle and shut down.

Selecting the Source

You can access several sources on the Avocor E-Series display including, HDMI, DisplayPort, & OPS.

The Source button is located on the Connect & Control Bar or on the Remote Control. Once the menu has been selected, you will see the option to select the source you require.

HDMI 1, HDMI 2, HDMI 3, DisplayPort, OPS, & Front HDMI

If there is no active signal from the chosen source, the screen will display the following message: "No Signal".

Connecting the Display

Proceed as follows to connect the display to your video sources, external controller.

When connecting your equipment:

1. Turn off all equipment before making any connections.
2. Use the correct signal cables for each source.
3. For best performance and to minimise cable clutter, use high-quality cables that are only as long as necessary to connect two devices. (Don't use a cable longer than 5 metres).
4. Ensure that the cables are securely connected.

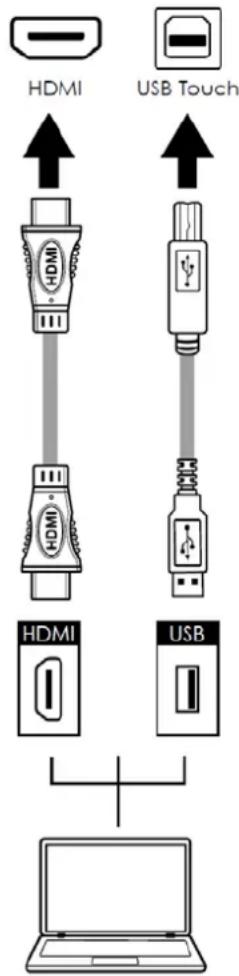

Connecting to an external PC using a HDMI connection

In addition to a HDMI connection, a USB touch connection is required when connecting an external PC.

1. Connect the enclosed HDMI cable to the HDMI port of the touchscreen and to the external PC.
2. Connect the enclosed USB cable to the corresponding touch USB port (USB-A) of the touchscreen and to the USB port (USB-A) on the external PC.
3. Using the Remote Control select the HDMI source button or press the Source Button (see operating buttons) on the Front Connection bar to select HDMI.

This display supports the VESA Display Data Channel (DDC) standard. This standard provides "Plug and Play" capability; the display and a VESA DDC-compatible computer communicate their setting requirements, allowing for quick and easy setup.

In order for Plug and Play to work correctly, you must turn on the display before you turn on the connected computer.

We recommend using a USB cable that is no longer than 5 metres.

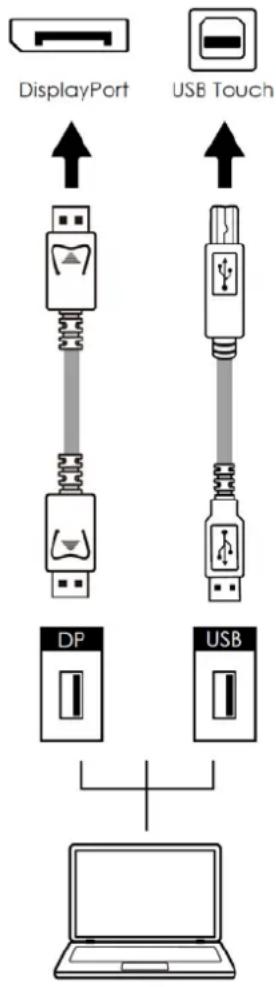

Connecting to an external PC using a DisplayPort connection

In addition to a DisplayPort connection, a USB touch connection is required when connecting an external PC.

1. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the external PC.
2. Connect the enclosed USB cable to the touch USB port (USB-A) of the touchscreen and to the USB port (USB-A) on the external PC.
3. Using the Remote Control select the DisplayPort source button or press the Source Button (see operating buttons) on the Front Connection bar to select DisplayPort.

In order for Plug and Play to work correctly, you must turn on the display before you turn on the connected computer. We recommend using a USB cable that is no longer than 5 metres.

Enabling the Touch Screen

Before setting up your display to support touch screen capability, ensure that:

• The touch screen controller host computer is turned off.
• The display is turned on.
• The video output from the computer is connected to a video input on the display.

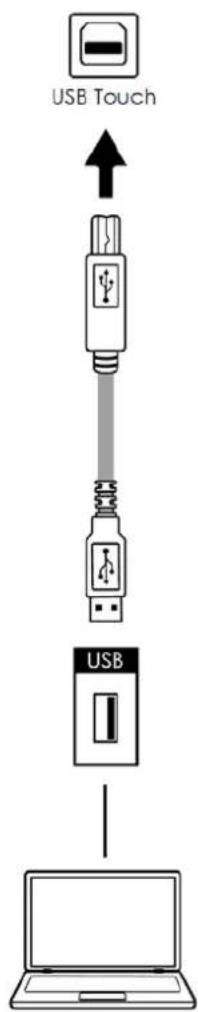

Connecting the Display to a Host Computer

1. Connect the signal cable to the display, and then turn on the display.
2. Connect the USB Cable (USB Type-A connector) to the display.
3. Connect the other end of USB cable (USB Type-A) to the USB port on the laptop/PC. See picture below.
4. Then turn on the computer.
5. When USB cable is fully connected, wait for 5 seconds and the touch function is ready. It can be activated by using the stylus or finger.

Installing an OPS Module

Follow the steps below to install an OPS module.

Step 1. Ensure that the display is turned off

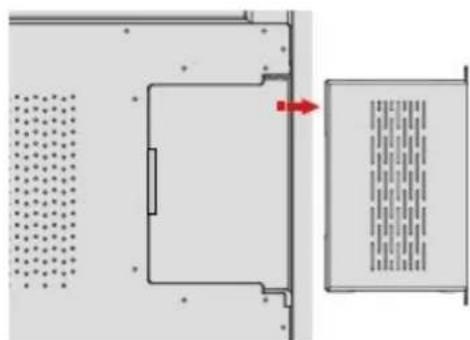

Step 2. Use a screw driver to unscrew the OPS slot shield on the display input panel. Do not lose the screws that are removed.

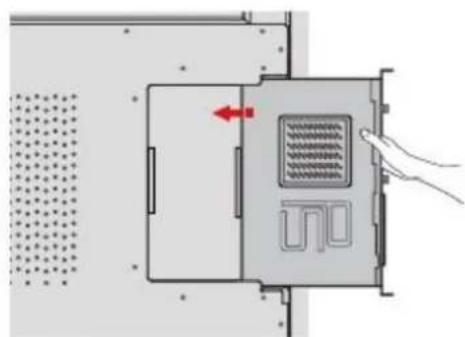

Step 3. Install the OPS module by sliding it into the OPS slot until you hear a click, indicating the module is securely inserted. When using an Avocor OPS PC, the fan should be visible

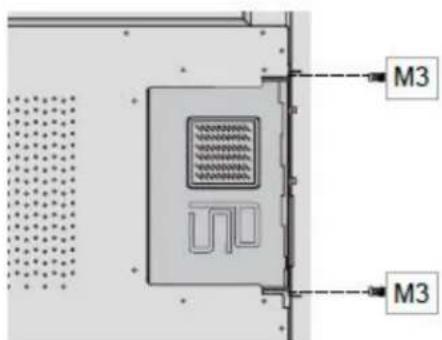

Step 4. Secure the OPS module in position by screwing it onto the display input panel using the screws that were removed earlier.

Step 5. Ensure the installation is complete before turning on the power.

Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational.

Note. When installing or de-installing an OPS PC, the display must be switched off. If the display is on when performing the installation or deinstallation of the OPS PC, this could cause damage to either the display or OPS PC invalidating the warranty for both.

Step 2

Diagram showing a room with a door, vent, and ventilation grilles (no text or symbols)

Step 3

Diagram of a device interior with a hand pressing a button, showing no text or symbols.

Step 4

Step 5

Pure electrical circuit lines without any symbols

Warranty Support

Should you require assistance with any suspected hardware fault, please contact the Warranty Support team. Please provide as much information to the support team about the fault and any steps you have taken in trying to try and resolve the fault.

Remember the first instance to look for known faults and how to resolve them on the avocor Website www.avocor.com/support

Organisation Name
Contact Person
1st Contact Number (Landline)
2nd Contact Number (Mobile/Cell)
Email
Address(of on-site repair or unit exchange)
City
State
Postcode/ZIP
County/State
Days and hours of operation
Loading & Parking Available? (Yes or No)

Reseller Information (If Known)
Organisation Name
Contact Person
Contact Number (Landline)
Email

Product Information
Product / Model
Serial Number
Date of Purchase (If Known)

avocor™

UK Warranty Support

UK & EMEA. Tel [phone] - [e-mail]

avocor™
