Product Type	Interactive Flat Panel Display
Brand	Avocor
Model	E7510
Screen Size	75 inches
Touch Technology	Pen and finger touch (supports 2 styluses with 1mm and 3mm tips and eraser)
Input Ports	HDMI (3), DisplayPort, OPS slot, USB Touch (multiple)
Output Ports	HDMI Out, Line Out, SPDIF
Audio	Built-in speakers, Line Out, SPDIF
Power Supply	Internal, AC 100-240V
Power Consumption	Typical 250W (estimated for 75-inch model)
Weight	Approximately 60 kg (without packaging)
Dimensions (W x H x D)	Approximately 1730 x 1010 x 100 mm (without stand)
Operating System Compatibility	Windows, macOS (via OPS module or external PC)
Accessories Included	Remote control with batteries, 2x touch stylus (1mm and 3mm), eraser, power cables (UK and EU), 2x HDMI cable (3m), 2x USB-A cable (3m), cleaning cloth, pen holder
Additional Features	OPS slot for PC module, multi-touch, pen aware, VESA mount compatible
Warranty	Contact Avocor support; register via website
Cleaning	Use included cleaning cloth; do not use harsh chemicals

Frequently Asked Questions - E7510 Avocor

How do I connect an external PC using HDMI?

Connect the HDMI cable from the display's HDMI port to the PC. Also connect the USB cable from the display's touch USB port to the PC for touch functionality. Then select the HDMI source using the remote control or front buttons.

How do I enable the touch screen?

Ensure the display is on and the computer is off initially. Connect the USB cable between the display and computer. Turn on the computer. Wait 5 seconds; the touch function is ready for use with finger or stylus.

What should I do if the screen shows 'No Signal'?

Check that the correct source is selected (HDMI, DisplayPort, OPS). Ensure the connected device is powered on and the cable is securely connected. Try a different cable or port.

How do I install an OPS module?

Turn off the display. Unscrew the OPS slot cover. Slide the OPS module into the slot until it clicks. Secure with the screws. Turn on the display; the OPS will power on (green LED indicates operation). Do not install/remove while display is on.

How do I clean the display?

Use the included cleaning cloth. Gently wipe the screen. Do not use abrasive cleaners, alcohol, or ammonia-based products. Avoid spraying liquid directly onto the screen.

What are the front button functions?

Front buttons include Power (on/off), Menu (settings), Source (input selection), Mute (audio), Volume - and +. Long press volume buttons for continuous adjustment.

How do I use the remote control?

The remote has buttons for Power, OPS, Blank (blank screen), Freeze (freeze image), Navigation arrows, OK, Menu, Mute, Volume +/- , Source, DisplayPort, HDMI, and Aspect Ratio. Aim at the display's IR receiver.

What cables are included in the box?

Included cables: UK and EU power cords (2m each), 2x HDMI cables (3m), 2x USB-A to USB-A cables (3m). Also includes remote with batteries, 2 touch styluses, eraser, cleaning cloth, and pen holder.

Can I mount the display on a wall?

Yes, the display supports VESA mounting. Use a compatible wall mount kit. Refer to the full user manual for specific VESA pattern and weight limits.

Where can I find the full user manual and drivers?

Visit www.avocor.com to download the full E-Series user manual and Pen Aware Touch Drivers. You can also find support and warranty information there.

USER MANUAL E7510 Avocor

Three large black-framed display screens with abstract blue wave patterns and a C-series logo on the screen (no readable text or symbols beyond branding)

AVE Series

Quick Start Guide

AVE-6510, AVE-7510, AVE-8610

E Series Quick Start Guide Table of Contents

1. Contents of Packaging
2. The Display at a Glance
3. Display Input Sources
4. The Remote Control
5. Switching the display on and off Source Selection Connecting to the Display
6. Connecting to an external PC using a HDMI connection
7. Connecting to an external PC using a DisplayPort connection
8. Enabling the Touch System
9. Installing an OPS Module
10. Warranty Support

Contents of Packaging

1. Accessory Carton

• Quick Start Guide
  • Remote Control & Batteries
  • 2x Touch Stylus - 1x3mm & 1x6mm
• Eraser
  • Power Cables - UK Cable 2m & European Cable 2m
  • 2x 3m HDMI Cable
  • 2x 3m USB-A - USB-A Cable
• Cleaning Cloth
• Pen Holder

Black remote control device with 'civocor' branding and navigation buttons (no readable text beyond branding)

Two black pen-like pens with engraved markings, isolated on white background (no text or symbols)

3D rendered metallic object with three stepped surfaces, no text or symbols visible

Close-up of a black electrical outlet plug with three leads (no text or symbols visible)

Close-up of two black electrical power plug connectors (no text or symbols visible)

Two black USB connectors with gold connector, shown in side profile (no text or symbols visible)

Two black USB connectors with white insulation, shown against a plain white background (no text or symbols visible)

Simple illustration of a folded or folded object with no text or symbols

Black rectangular electronic component with two orange leads, enclosed in a rounded square frame (no text or symbols)

Please visit www.avocor.com to download the full E-Series user manual and the Pen Aware Touch Drivers.

The Display at a Glance

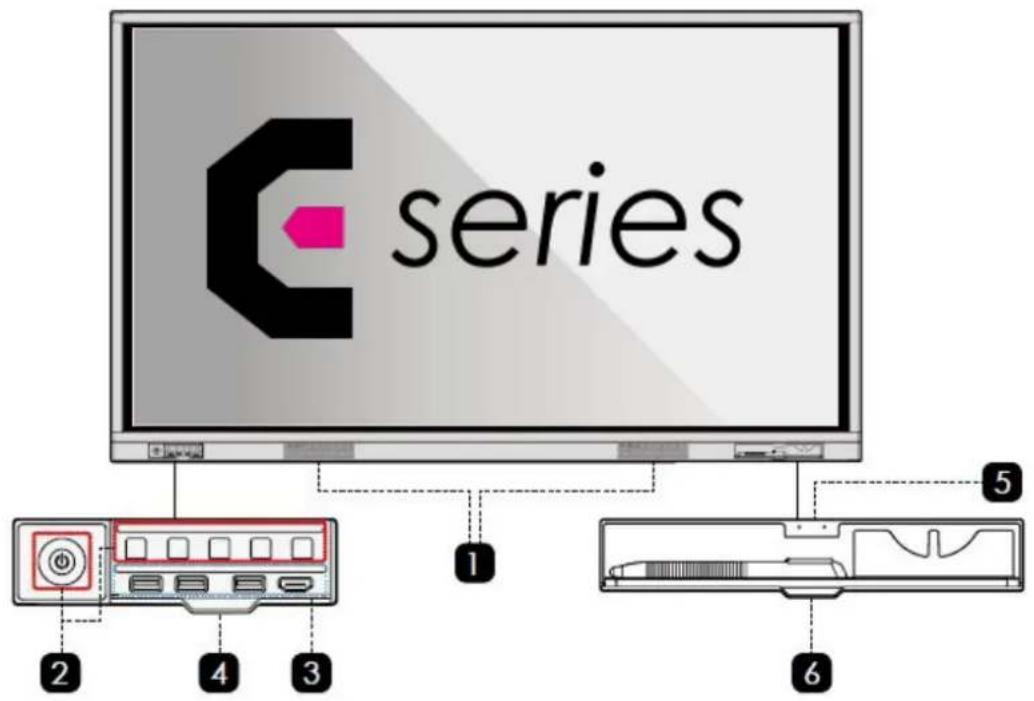

Front View

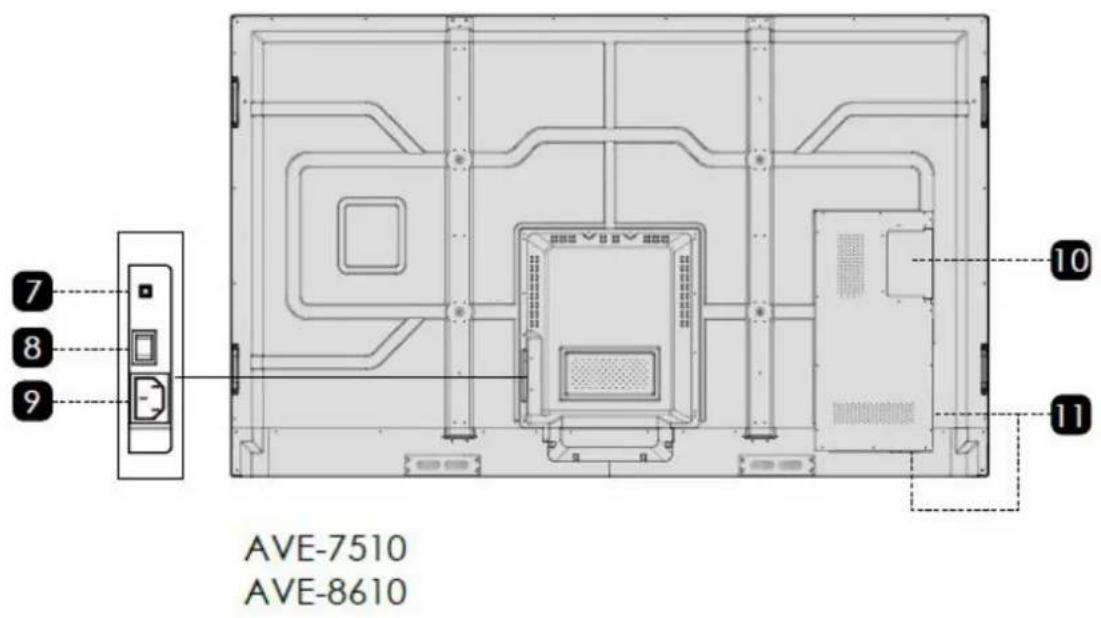

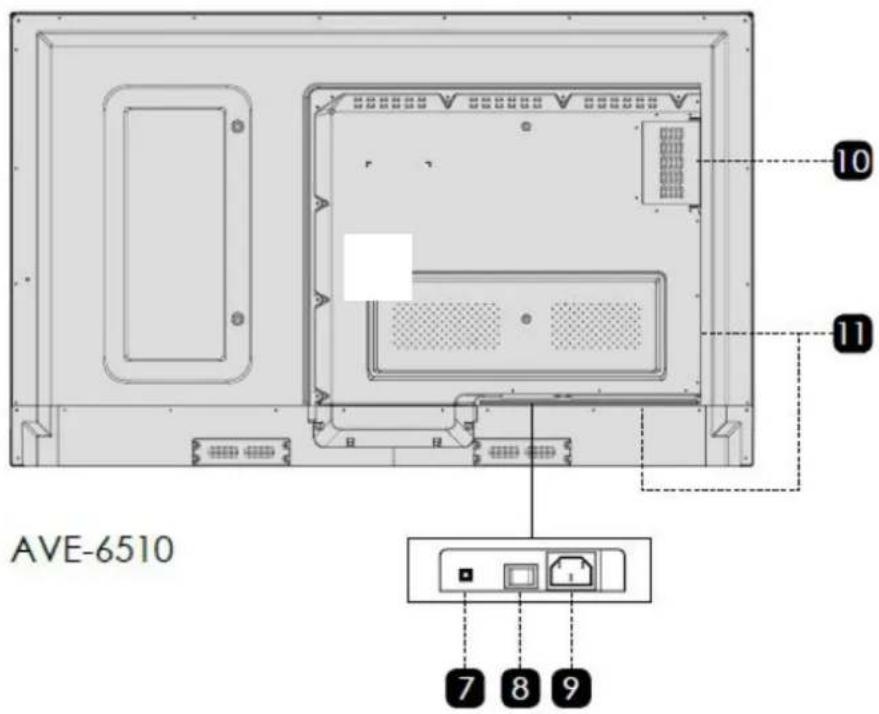

Rear View

1 Speakers
3 Front Ports
5 Pen/Eraser Tray
7 Reset Button
9 Power Supply
11 Rear Ports

2 Front Buttons
4 Button Cover
6 Pen/Eraser Tray Cover
8 Power Switch
10 OPS PC Slot

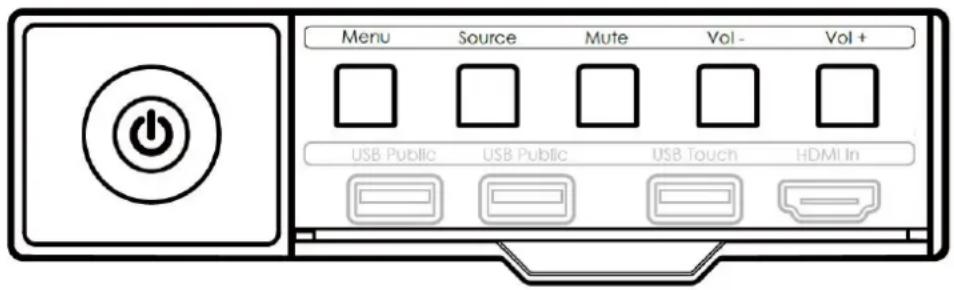

Front Buttons

Button	Operation	Function
Power Short Press		Power on/off IndicatorLED status:Solid Red : Sleep modeSolid Green : Working stateBlinking Red and Green : Standby mode
Menu	Short press	Open the Settings menu
Source	Short press	Open the Source menu
Mute	Short press	Mutes the audio
VOL -	Short press	Decrease the audio volume in steps
	Long press - more than 1 sec	Decrease the sound volume continuously
VOL+	Short press	Increase the audio volume in steps
	Long press - more than 1 sec	Increase the sound volume continuously

E-Series Display Inputs

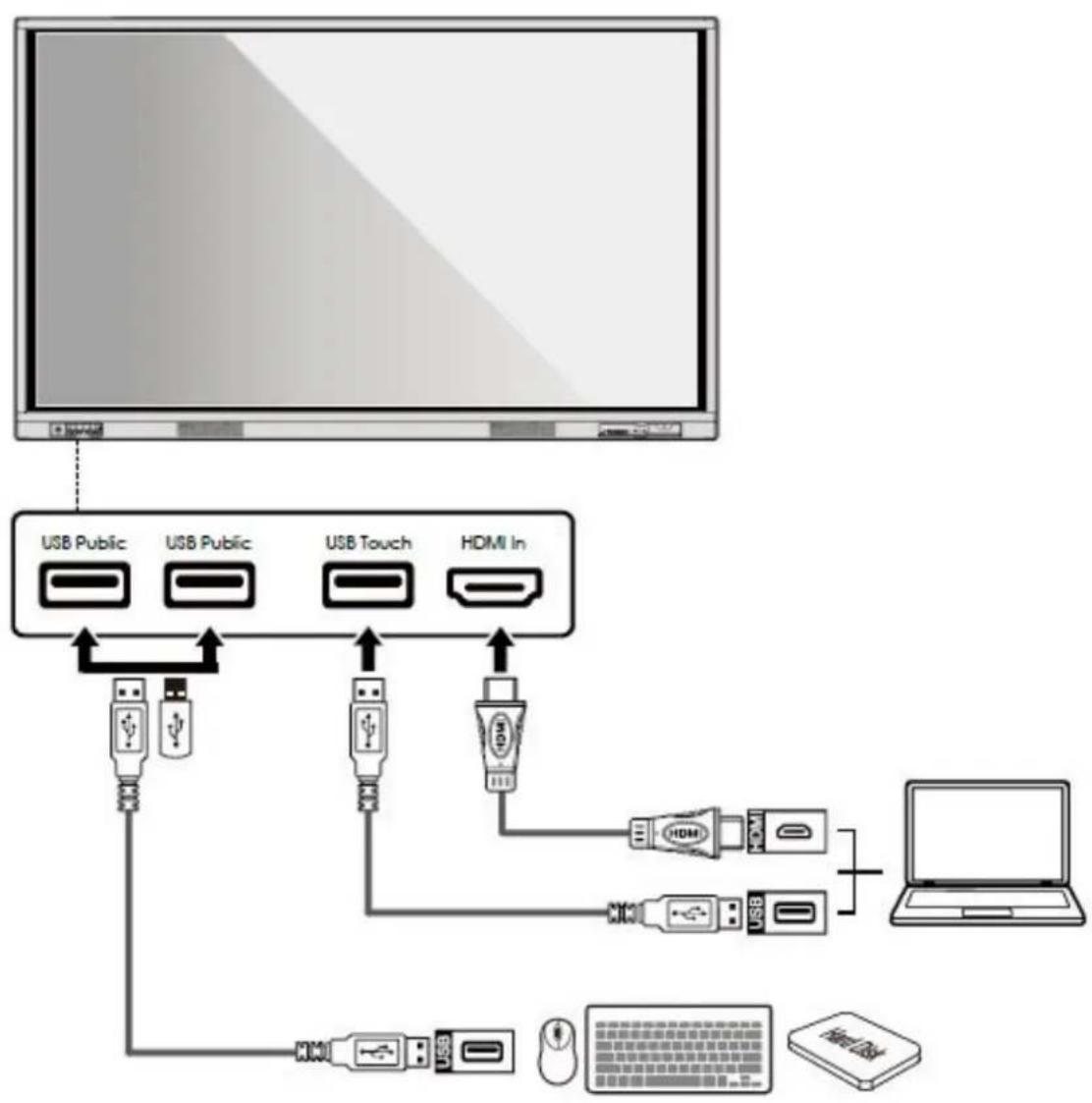

Front Ports


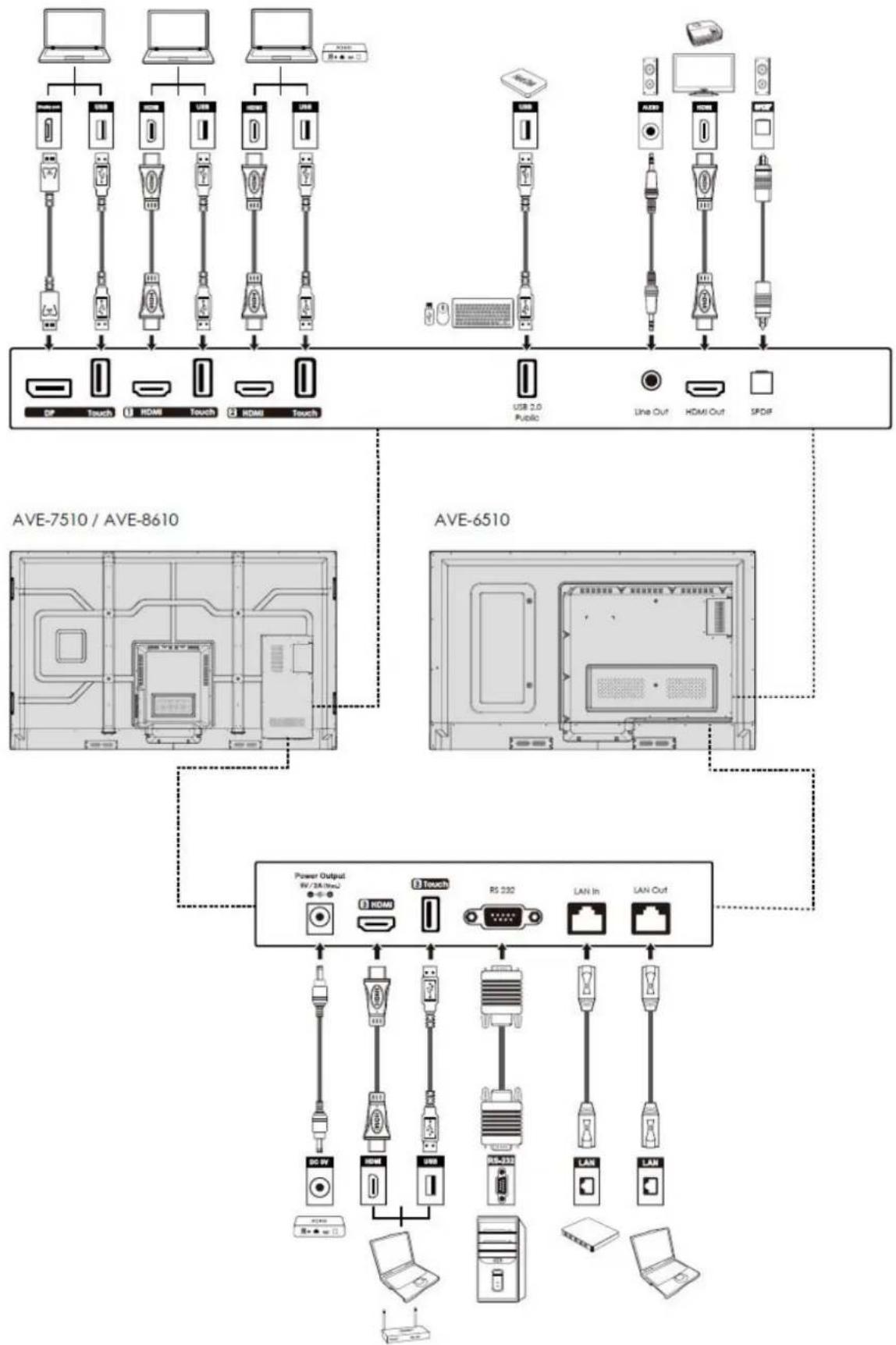

Rear Ports
    end

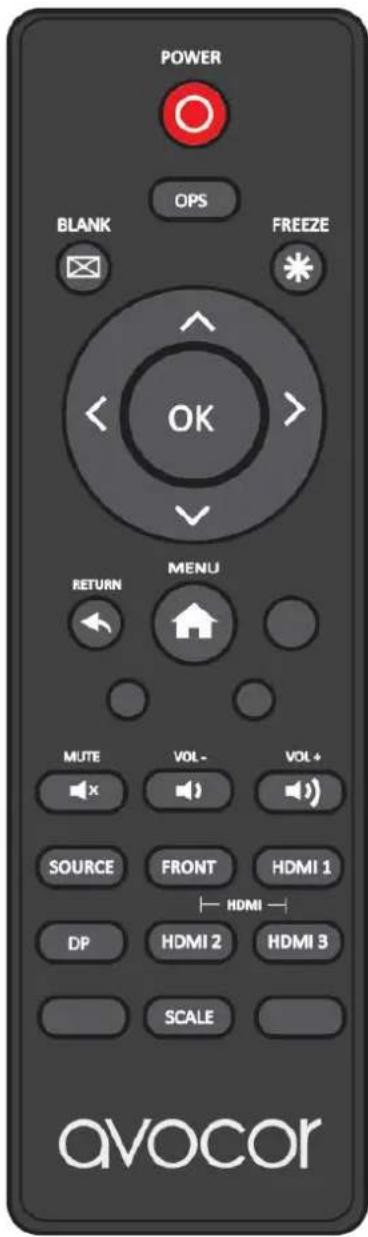

Remote Control

Label	Description
	Turns the display on and off.
	Select the OPS PC source.
	Blanks the display. Press again to restore.
	Freezes the display. Press again to restore.
	Navigates through menus and settings.Selects highlighted menu choice
	When the menu system is already open, pressing this button will close the on screen menu.
	Opens the display menu system.
	Mutes the audio. Pressing Mute again restores the audio
	Decreases the Volume by pressing the - key
	Increases the Volume by pressing the + key
	Opens the Source Menu.
	cts DisplayPort
	Selects the HDMI Sources
	Selects each aspect ratio, in sequence: Full Screen, Auto, Pillar Box

Switching the Avocor display on and off

Switching on

1. Plug the end of the supplied power cord into side of the display
2. Connect the other end to the power source.
3. Turn on the main power switch at the side of the display. The power LED indicator lights Red to indicate that the display is in "standby" mode.
4. Press the Power button and the power LED indicator on the left-hand side of the display will then light up in green, which tells you that the screen is switched on.
5. After a brief warm-up period, the display will display an image

Switching off

1. Switch the display off by pressing the Power button on the display.
2. The display will then cycle and shut down.

Selecting the Source

You can access several sources on the Avocor E-Series display including, HDMI, DisplayPort, & OPS.

The Source button is located on the Connect & Control Bar or on the Remote Control. Once the menu has been selected, you will see the option to select the source you require.

HDMI 1, HDMI 2, HDMI 3, DisplayPort, OPS, & Front HDMI

If there is no active signal from the chosen source, the screen will display the following message: "No Signal".

Connecting the Display

Proceed as follows to connect the display to your video sources, external controller.

When connecting your equipment:

1. Turn off all equipment before making any connections.
2. Use the correct signal cables for each source.
3. For best performance and to minimise cable clutter, use high-quality cables that are only as long as necessary to connect two devices. (Don't use a cable longer than 5 metres).
4. Ensure that the cables are securely connected.

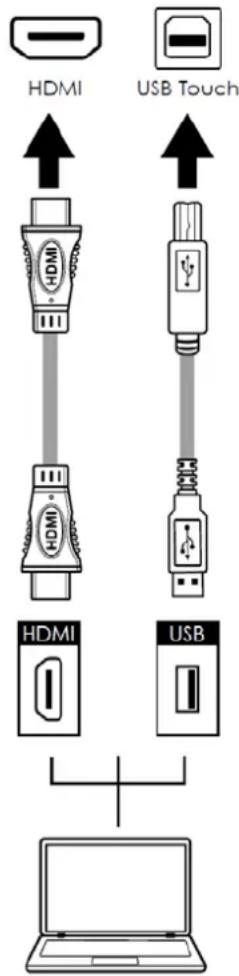

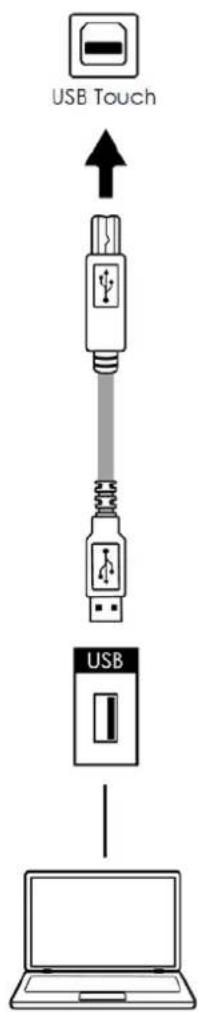

Connecting to an external PC using a HDMI connection

In addition to a HDMI connection, a USB touch connection is required when connecting an external PC.

1. Connect the enclosed HDMI cable to the HDMI port of the touchscreen and to the external PC.
2. Connect the enclosed USB cable to the corresponding touch USB port (USB-A) of the touchscreen and to the USB port (USB-A) on the external PC.
3. Using the Remote Control select the HDMI source button or press the Source Button (see operating buttons) on the Front Connection bar to select HDMI.

This display supports the VESA Display Data Channel (DDC) standard. This standard provides "Plug and Play" capability; the display and a VESA DDC-compatible computer communicate their setting requirements, allowing for quick and easy setup.

In order for Plug and Play to work correctly, you must turn on the display before you turn on the connected computer.

We recommend using a USB cable that is no longer than 5 metres.

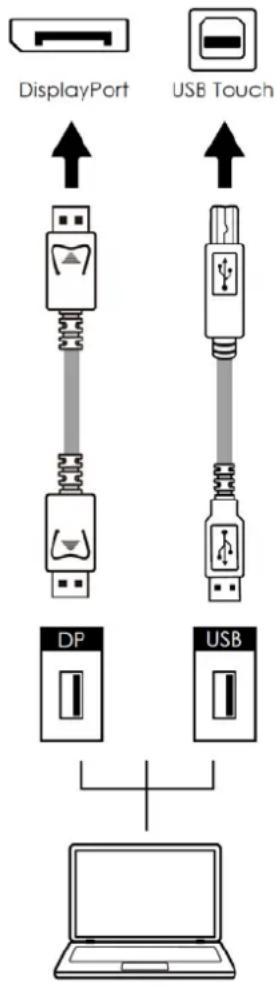

Connecting to an external PC using a DisplayPort connection

In addition to a DisplayPort connection, a USB touch connection is required when connecting an external PC.

1. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the external PC.
2. Connect the enclosed USB cable to the touch USB port (USB-A) of the touchscreen and to the USB port (USB-A) on the external PC.
3. Using the Remote Control select the DisplayPort source button or press the Source Button (see operating buttons) on the Front Connection bar to select DisplayPort.

In order for Plug and Play to work correctly, you must turn on the display before you turn on the connected computer. We recommend using a USB cable that is no longer than 5 metres.

Enabling the Touch Screen

Before setting up your display to support touch screen capability, ensure that:

• The touch screen controller host computer is turned off.
• The display is turned on.
• The video output from the computer is connected to a video input on the display.

Connecting the Display to a Host Computer

1. Connect the signal cable to the display, and then turn on the display.
2. Connect the USB Cable (USB Type-A connector) to the display.
3. Connect the other end of USB cable (USB Type-A) to the USB port on the laptop/PC. See picture below.
4. Then turn on the computer.
5. When USB cable is fully connected, wait for 5 seconds and the touch function is ready. It can be activated by using the stylus or finger.

Installing an OPS Module

Follow the steps below to install an OPS module.

Step 1. Ensure that the display is turned off

Step 2. Use a screw driver to unscrew the OPS slot shield on the display input panel. Do not lose the screws that are removed.

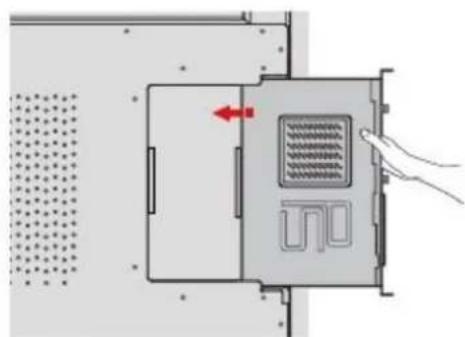

Step 3. Install the OPS module by sliding it into the OPS slot until you hear a click, indicating the module is securely inserted. When using an Avocor OPS PC, the fan should be visible

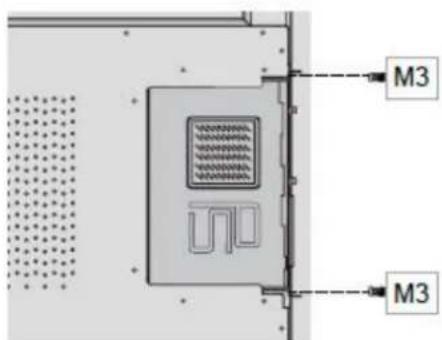

Step 4. Secure the OPS module in position by screwing it onto the display input panel using the screws that were removed earlier.

Step 5. Ensure the installation is complete before turning on the power.

Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational.

Note. When installing or de-installing an OPS PC, the display must be switched off. If the display is on when performing the installation or deinstallation of the OPS PC, this could cause damage to either the display or OPS PC invalidating the warranty for both.

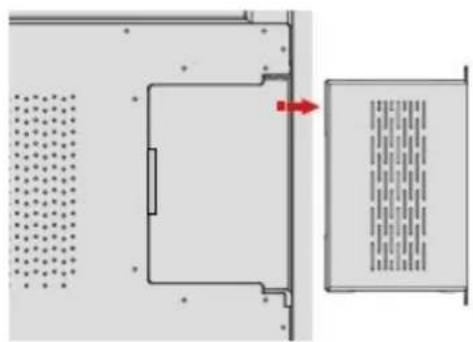

Step 2

Diagram showing a door with a red arrow pointing to a panel, no text or symbols present

Step 3

Diagram of a computer interface showing a door, ventilation grille, and mouse cursor (no text or symbols)

Step 4

Step 5

Pure electrical circuit lines without any symbols

Warranty Support

Should you require assistance with any suspected hardware fault, please contact the Warranty Support team. Please provide as much information to the support team about the fault and any steps you have taken in trying to try and resolve the fault.

Remember the first instance to look for known faults and how to resolve them on the avocor Website www.avocor.com/support

Organisation Name
Contact Person
1st Contact Number (Landline)
2nd Contact Number (Mobile/Cell)
Email
Address(of on-site repair or unit exchange)
City
State
Postcode/ZIP
County/State
Days and hours of operation
Loading & Parking Available? (Yes or No)

Reseller Information (If Known)
Organisation Name
Contact Person
Contact Number (Landline)
Email

Product Information
Product / Model
Serial Number
Date of Purchase (If Known)
