Product Type	Dehumidifier
Brand	Ivation
Model	IVADH30PW
Dimensions	13.39" x 9.92" x 21.3"
Weight	30 lbs
Power Supply	115V~60Hz
Current Consumption	3.0 A
Moisture Removal	30 Pints per day (at 80°F/60% RH)
Refrigerant	R-410A
Operating Temperature Range	41°F to 89.6°F (5°C to 32°C)
Control Panel	Power On/Off, Fan Speed (High/Low), Timer, Humidity Set (30%-90% RH), Temperature Display (°C/°F), Defrost Indicator, Reservoir Full Indicator
Fan Speeds	High and Low
Continuous Drainage	Yes, using included drain hose
Water Reservoir Capacity	Standard bucket (automatic shut-off when full)
Auto Defrost	Yes, activates at low temperatures
Air Filter	Washable, clean every 2 weeks
Energy Star Rated	Yes
Safety Features	Overheat protection, auto shut-off when bucket full, child safety considerations
Warranty	Limited 1-year warranty
Mobility	Roll casters and handle
Intended Use	Household use only

Frequently Asked Questions - IVADH30PW Ivation

Why won't my dehumidifier start?

Ensure the plug is fully inserted into the outlet. Check your home's fuse or circuit breaker. The unit may have reached its preset humidity level or the water bucket is full. Also verify the bucket is properly positioned.

What does the Reservoir Full light mean?

The water reservoir is full. The unit will stop operating. Slide out the reservoir, empty it, and reinsert it. The unit will resume automatically.

How does the Defrost Mode work?

When the unit operates below 56.6°F (12°C), frost may form on the evaporator coils. The dehumidifier automatically enters Defrost Mode to melt the frost. This is normal and may occur periodically.

How do I set up continuous drainage?

Unscrew the drain cover at the back of the unit, remove the soft rubber stopper, insert the included drain hose through the cover, connect it to the outlet, and tighten the cover. Place the other end of the hose over a floor drain.

How often should I clean the air filter?

Clean the air filter every two weeks. A clogged filter reduces efficiency and increases energy consumption. Gently pull out the filter, vacuum or wash with water, dry it, and reinsert.

What do error codes ES, AS, P2, and EC mean?

These are error or protection codes. Refer to the control buttons section of the manual for specific meanings. Common causes include sensor issues or system malfunctions. If persistent, contact customer service.

Why is the dehumidifier making loud noise?

Possible causes: a clogged air filter, the unit is tilted (should be upright), or the floor is uneven. Check the filter, ensure the unit is level, and place it on a flat surface.

Why is water leaking on the floor?

If using the bucket, ensure the rear drain plug is installed. If using continuous drainage, check that the hose connection is tight and the hose is not kinked or blocked.

Is it safe to leave the dehumidifier unattended?

Yes, the unit has safety features like automatic shut-off when the bucket is full and overheat protection. However, always follow safety precautions: do not cover intake/exhaust, keep away from combustibles, and unplug before cleaning.

What is the warranty for this dehumidifier?

It comes with a limited one-year warranty. Coverage is subject to limits and exclusions. For warranty service, contact the distributor: C&A Marketing at [e-mail] or 866-849-3049.

USER MANUAL IVADH30PW Ivation

Thank you for purchasing the Ivation 30 Pint Dehumidifier. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty.

Please read all directions before using the product and retain this guide for reference. This product is intended for household use only.

This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See warranty for details. This dehumidifier is Energy Star rated for quality assurance (www.energystar.gov).

White IVation air purifier with ventilation slots and control panel (no visible text or symbols on device body)

European Disposal Instructions

When using this product in European countries, follow the instructions below:

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Disposal of this appliance in domestic household waste is prohibited. For proper disposal, there are several possibilities:

A) Each municipality has established collection systems, where electronic waste can be disposed of free of charge to the user.
B) When buying a new product, the retailer will take back the old product free of charge.
C) The manufacturer will take back the old appliance for disposal free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.

Unauthorized disposal of waste in forests and other natural land endangers public health when hazardous substances leak into the ground water and infiltrate the food chain.

CAUTION!

• This appliance should not be operated by children or by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. Children should not play with this appliance. Cleaning and maintenance should not be performed by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance must be installed in accordance with wiring regulations.
  • Operation should take place at least three feet (one meter) from combustible materials.
• Contact an authorized service technician for repair or maintenance of this unit.

Safety Precautions

To prevent injury to the user or others as well as property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.

WARNING

Do not exceed the power rating of the outlet or connection device.

This may cause electric shock or fire due to excess heat generation.

Do not modify power cord length or share the outlet with other appliances

This may cause electric shock or fire due to heat generation.

Disconnect the power if strange sounds, smell, or smoke comes from it.

This may cause fire and electric shock.

Do not use the machine near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.

This may cause an explosion or fire.

Do not operate or stop the unit by switching on or off the power.

This may cause electric shock or fire due to heat generation.

Do not insert or pull out plug with wet hands.

This may cause electric shock.

Never try to take apart or repair the unit by yourself.

This may cause failure of machine or electric shock.

Do not drink or use the water drained from the unit.

This contains contaminants and could make you sick.

Do not damage or use an unspecified power cord.

This may cause electric shock or fire.

Do not place the unit near a heat source.

Plastic parts may melt and cause a fire.

Before cleaning, turn off the power and unplug the unit.

This may cause electrical shock or injury.

Do not remove water bucket during operation.

This may cause electric shock.

CAUTION

Do not cover the intake or exhaust openings with cloths or towels.

A lack of airflow can lead to overheating or fire.

Never insert fingers or other foreign objects into grills or openings. Take special care to warn children of these dangers.

It may cause electric shock or failure of appliance.

Always insert the filters securely. Clean filter once every two weeks.

Operation without filters may cause failure of appliance.

Care should be taken when using the unit in a room with the following persons:

Infants, children, elderly people, and people not sensitive to humidity.

Do not place heavy objects on the power cord and take care so that the cord is not compressed.

This presents a danger of fire or electric shock.

If water enters the unit, turn the unit off and disconnect the power. Contact a qualified service technician.

This may cause failure of appliance or accident.

Do not use in areas where chemicals are handled.

This will cause the unit to deteriorate due to chemicals and solvents dissolved in the air.

Do not climb up on or sit on the unit.

You may be injured if you fall or if the unit falls over.

Do not place flower vases or other water containers on top of the unit.

Water may spill inside the unit, causing insulation failure and electrical shock or fire.

Electrical Information

• See the information on the rear panel of the unit for electrical and other technical data specific to this unit.

- Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding is necessary.

- The power cord is equipped with a three-prong grounding plug for protection against shock hazards.

- Your unit must be used in a properly grounded wall outlet. If the wall outlet you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet.

- Ensure the outlet is accessible after unit installation.

- Do not use extension cords or an adapter plug with this unit. However, if it is necessary to use an extension cord, use an approved dehumidifier extension cord only (available at most local hardware stores).

• To avoid the possibility of personal injury, always disconnect the power supply to the unit, before installing and/or servicing.

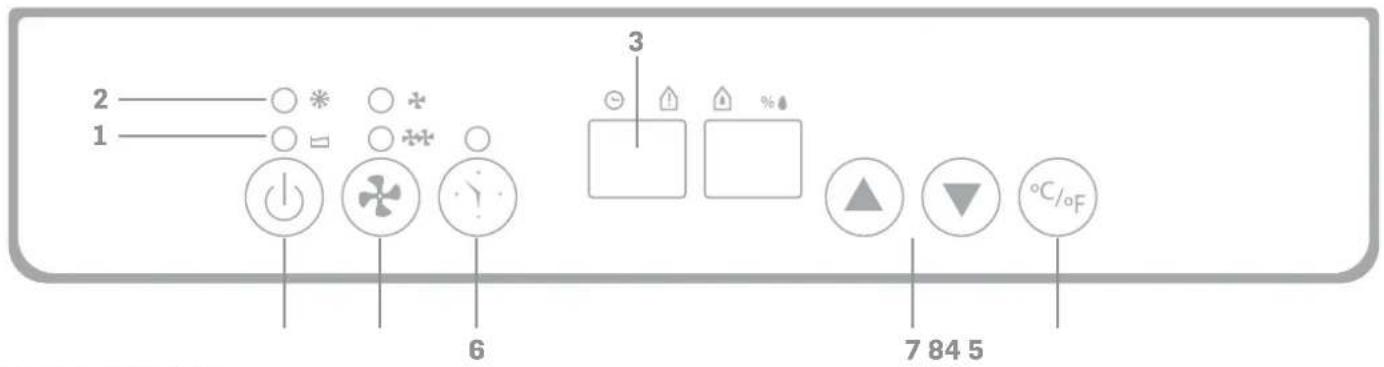

Understanding the Control Panel

The control panel may differ slightly from the illustration below.

Lights and Displays

1 Reservoir Full Light

Indicates when water reservoir is full

2 Defrost Light

Indicates Defrost Mode activation when temperature is low.

3 Current Temp/Timer Display

Displays current temperature when unit is in operation. When "Timer" button is pressed to set operation time, this display shows set time for ten (10) seconds before returning to current temperature display.

7 Set Humidity/Current Humidity Display

Displays current humidity when unit is in operation. To select preferred humidity, press ▲ or ▼. Selections will display here in increments of 5% with each press. Adjustable range is between 30% and 90% RH (relative humidity). Once humidity is set, display will return to current humidity after ten (10) seconds.

Control Buttons

4 Power ON/OFF Button

Turns the unit ON or OFF manually.

5 Fan Speed Button

Choose HIGH ( ✦) or LOW ( ✦) fan speed (speed indicator lights above button)

6 Timer Button

Press to initiate the Auto start and Auto stop feature.

8 °C/°F Button

Press to switch between Celsius and Fahrenheit.

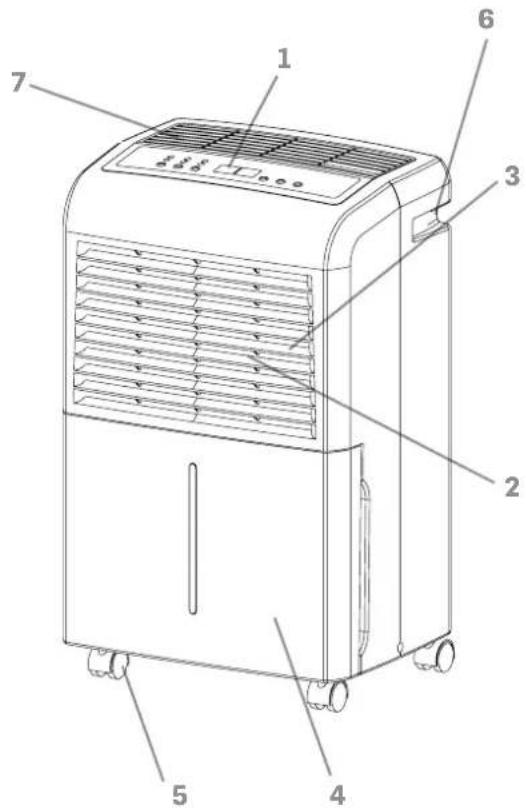

Components

1. Control Panel
2. Moist Air Intake
3. Air Filter
4. Drain Reservoir
5. Roll Casters
6. Handle
7. Dehumidified Dry Air Vent
8. Continuous Drainage Outlet

Technical line drawing of a portable air purifier unit with labeled component '8' (no text or symbols beyond label)

Operational Instructions

General Operation

1. Place the unit in the upright position ensuring that it is on a flat, stable, heat-resistant surface.
   Note: To avoid a hazardous condition, do NOT place within 39 inches (100 mm) of anything that is flammable or heat-sensitive.

2. Plug unit into wall socket (check the rating label to ensure that it matches the voltage of your electrical outlet).

3. Ensure that the Water Reservoir is properly attached and placed.

Note: If the Reservoir Full light illuminates on first use, slide water reservoir out and make sure that "Float" lever moves freely. Return reservoir to proper position.

When Reservoir Full Light is ON

When the reservoir is full, the unit will stop and the "Reservoir Full" light will illuminate. Carefully remove the reservoir from the unit by sliding it out from the front of the unit, and discard water. Once the reservoir is empty, return it to position. The unit will return to normal operation.

Note: Use both hands when emptying the reservoir to avoid spillage.

Illustration of hands using a mechanical device to lift or lift material (no text or symbols visible)

Defrost Mode

When the unit operates at low temperatures (less than 56.6^ F/ 12^ C, a layer of frost may develop on the evaporator surface, which reduces the dehumidifier's efficiency. In these cases, the unit goes into periodic Defrost Mode. Time to defrost may vary. Note: This unit can operate in temperatures as low as 41^ F/ 5^ C. If the unit freezes, turn OFF and restart. If the room temperature remains below 41^ F/ 5^ C, switch the unit OFF.

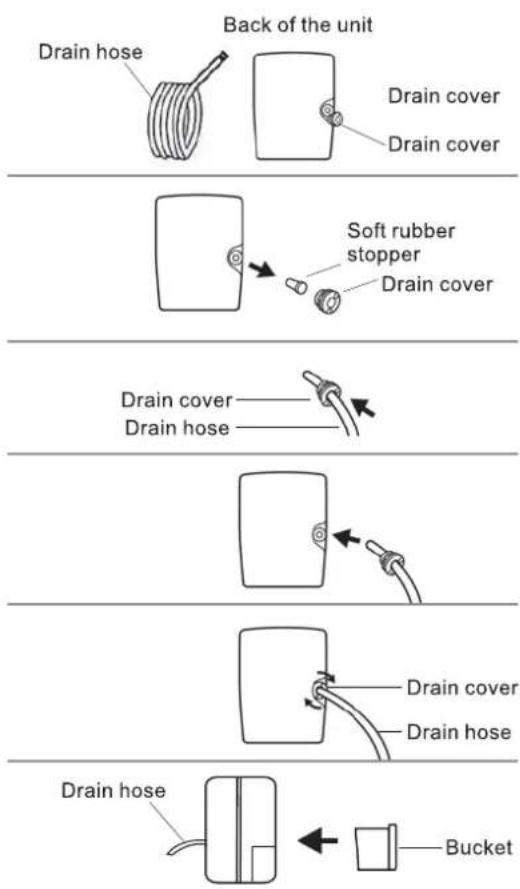

Continuous Drainage Function

Continuous Drainage Function

If the unit is operating in a location with good drainage, follow the steps below to use the Continuous Drainage Function:

1. To avoid periodic emptying of the water reservoir, use the Continuous Drainage Function by attaching the drain hose (included) to the continuous drainage outlet at the back of the unit.

2. Unscrew and remove drain cover.

3. Remove soft rubber stopper (place in water reservoir for storage).

4. Insert the drain hose through the hole in the drain cover.

5. Connect drain hose to continuous drainage outlet.

6. Tighten drain cover by turning clockwise.

7. Return water reservoir to original position.

Maintenance Guide

Make sure the unit in unplugged from wall unit before cleaning.

Cleaning the exterior

1. Wipe with clean soft cloth.

2. If unit is especially dirty, use mild detergent with a moist cloth.

3. Do NOT clean with hose or immerse in water as this may short circuit the unit causing it to malfunction.

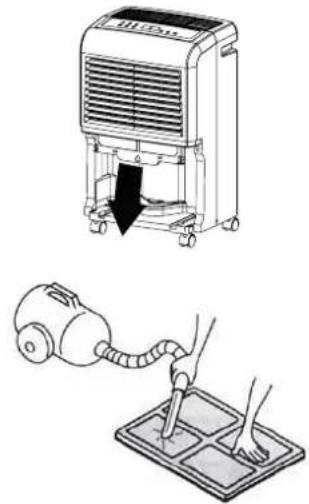

Cleaning the air filter

The air filter is designed to filter dust and other materials from the air. When the air filter is clogged, the unit will use more electricity to operate. For optimal efficiency, clean the air filter once every two (2) weeks.

1. Pull air filter out gently.

Illustration of a vacuum cleaner and a hand-painted cleaning machine (no text or symbols)

1. Clean with a vacuum cleaner or wash with clean water and dry with a soft cloth.

2. Carefully re-install air filter to the unit

Troubleshooting Guide

Unit does not start

• Make sure the dehumidifier's plug is secured entirely into the outlet.

- Check your home fuse/circuit breaker box.

- Dehumidifier has reached its preset level or bucket is full.

• Water bucket is not in the proper position.

Dehumidifier does not dry the air as it should

- Allow enough time to remove the moisture.

• Make sure there are no curtains, blinds or furniture blocking the front or back of the dehumidifier.

• The humidity control may not be set low enough.

- Check that all doors, windows and other openings are securely closed.

• Room temperature is too low, below 41^ F ( 5^ C).

- There is a kerosene heater or something giving off water vapor in the room.

The unit makes a loud noise when operating

• The air filter is clogged.

• The unit is tilted instead of upright as it should be.

• The floor surface is not level.

Frost appears on the Coils

• This is normal. The dehumidifier has Auto defrost feature.

Water on floor

- Hose to connector or hose connection may be loose.

- Intend to use the bucket to collect water, but the rear drain plug is removed.

ES, AS, P2 and EC appear in the display

• These are error codes and protection code. See the CONTROL BUTTONS ON THE DEHUMIDIFIER section.

Specifications

Power: 115V\~60Hz

Moisture Removal: 30 Pint (80°F/60%RH)

Refrigerant: R-410A

Current Consumption: 3.A

Dimensions: 13.39" x 9.92" x 21.3"

Weight: 30 lbs.

Operating Temperature: 41°F – 89.6°F
