Product Type	Portable Air Conditioner
Model	IVAPAC8KBTU
Brand	Ivation
Cooling Capacity (BTU)	8,000 BTU
Coverage Area	Up to 300 sq. ft.
Power Supply	115V / 60Hz / 6.5A
Plug Type	NEMA 5-15P
Dimensions (W x D x H)	16.5 x 13 x 27 inches
Net Weight	55 lbs
Refrigerant Type	R-410A
Modes	Cool, Fan, Dehumidify
Fan Speeds	3 speeds (Low, Medium, High)
Thermostat Control	Digital with remote
Timer	24-hour programmable timer
Air Flow (CFM)	300 CFM max
Noise Level	54 dB on high speed
Installation	Window kit included (horizontal sliding window)
Maintenance	Clean air filter monthly; drain condensate manually or via continuous drain hose
Safety Features	Overheat protection, auto-restart after power outage
Repairability	Spare parts available online; user-replaceable filter
Warranty	1 year limited warranty
Energy Efficiency Ratio (EER)	9.8

Frequently Asked Questions - IVAPAC8KBTU Ivation

How do I install the Ivation IVAPAC8KBTU air conditioner?

Installation requires a horizontal sliding window. Use the included window kit to seal the opening. Attach the exhaust hose to the unit and window bracket. Ensure the unit is level and plugged into a grounded outlet. Refer to the manual for detailed steps.

What does the error code E1 mean?

Error code E1 indicates a room temperature sensor failure. Unplug the unit for 5 minutes and restart. If the error persists, contact customer support.

How often should I clean the air filter?

Clean the air filter every month during heavy use. Slide out the filter, vacuum or wash with mild soap, and let it dry completely before reinstalling.

Can I use an extension cord?

It is not recommended. Plug the unit directly into a dedicated 115V outlet. If necessary, use a heavy-duty 14 AWG cord of 10 ft or less.

How do I drain the condensate?

The unit has a self-evaporation system but may need manual draining in high humidity. Remove the bottom drain plug or attach a garden hose for continuous drainage.

What is the maximum room size for this AC?

The IVAPAC8KBTU effectively cools rooms up to 300 square feet.

Does it have a heating function?

No, this model is a cooling-only air conditioner. It does not provide heat.

How do I set the timer?

Press the Timer button on the remote or control panel. Use the +/- buttons to set the desired off time (1-24 hours). Confirm with the Timer button again.

The unit turns off by itself. Why?

Possible causes: the room temperature reached the set point, the timer is active, the water tank is full, or there's a power interruption. Check the settings and drain the condensate if needed.

Where can I find spare parts?

Spare parts such as filters, remote controls, and window kits are available on the Ivation website or through authorized dealers. Use the model number IVAPAC8KBTU.

USER MANUAL IVAPAC8KBTU Ivation

White portable air conditioner unit with black ventilation slots and 'ivation' logo on front (no text-heavy elements)

Thank you for purchasing the Ivation® 8000 BTU Portable Air Conditioner. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty.

Please read all directions before using the product and retain this guide for reference. This product is intended for household use only.

This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See warranty for details.

Box contents

Air conditioner

Assembly materials

Remote controller with 2 AAA batteries

User guide

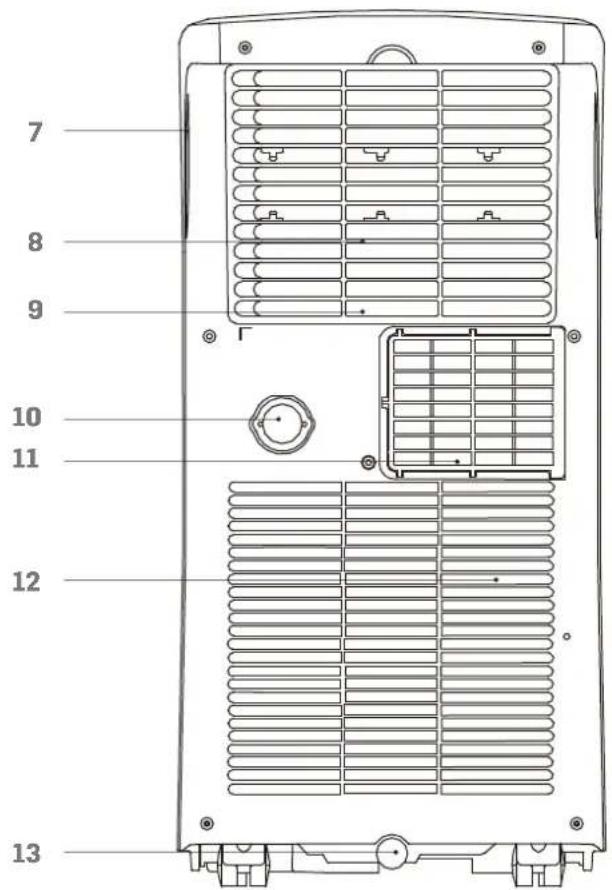

Parts

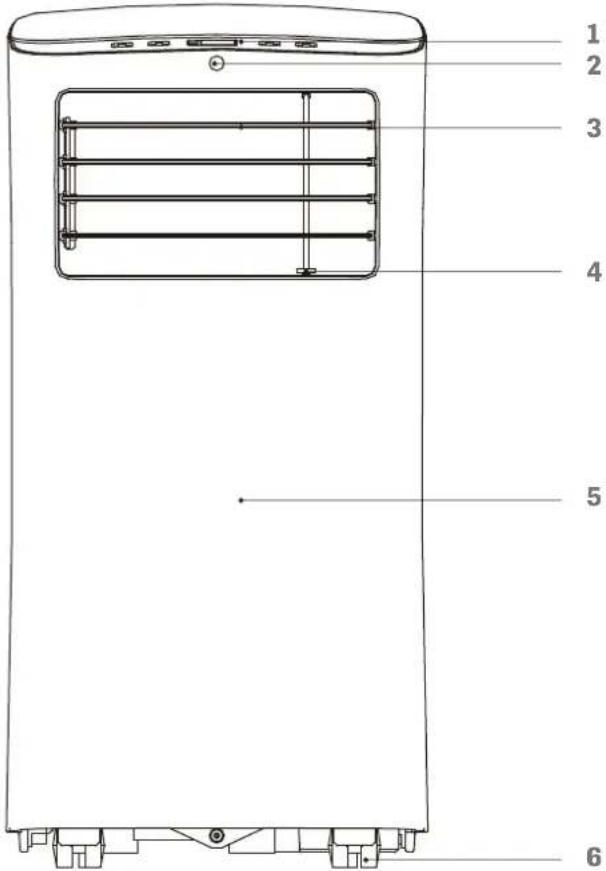

1. Control panel
2. Remote signal receiver
3. Horizontal control lever
4. Vertical control lever
5. Panel
6. Caster
7. Handle
8. Air filter
9. Upper air intake vent
10. Drain outlet
11. Air outlet
12. Lower air intake vent
13. Bottom tray drain outlet

Hardware

1. Unit adapter
2. Exhaust hose
3. Window slider adapter
4. Bolt
5. Window slider A
6. Window slider B
7. Adhesive foam seal A (2)
8. Adhesive foam seal B (2)
9. Foam seal C
10. Security bracket
11. Screws (2)
12. Drain hose
13. Remote controller with 2 AAA batteries

1

2

3

4

5

6

7

8

9

10 11 1312

Safety precautions

• Only use the included accessories and parts. Using non-standard parts may increase the risk of leakage, electrical shock, fire, injury, or damage to the unit.
  • Always use a grounded outlet with the appropriate voltage.
• Only install the unit onto a flat, sturdy surface, or risk excessive noise and vibration.
• Do not block the intake or outlet vents.
• Do not modify the length of the power cord or use an extension cord to power the unit.
• Do not share a single outlet with other electrical appliances. Risk of fire or electric shock.
• Do not install the unit in an area where it may become wet or damp. Risk of short circuit.
• Do not install the unit in a room where it may be exposed to combustible gas. Risk of fire.
• Do not roll the unit over other objects or thick carpet or risk tipping the unit over.
• Do not operate the unit if it has been dropped or damaged.
• Keep out of reach of children and pets.
• If the unit is knocked over during use, turn off the power immediately and unplug it from the power supply. Check the unit for damage before turning on again.
• This appliance is not intended for use by children or people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Do not use the unit if the power cord is damaged.
  • Always disconnect the unit before performing maintenance.
• Do not run the power cord under carpeting, rugs, furniture, or other coverings.

Installation Setup

Before installing the unit, be sure to have the following tools:

a. Medium Phillips screwdriver
b. Tape measure or ruler
c. Knife or scissors

1. When choosing an appropriate location to install the unit, keep in mind the following:

a. The surface should be flat and even.
b. It must be near a grounded plug.
c. The collection tray drain must be accessible.

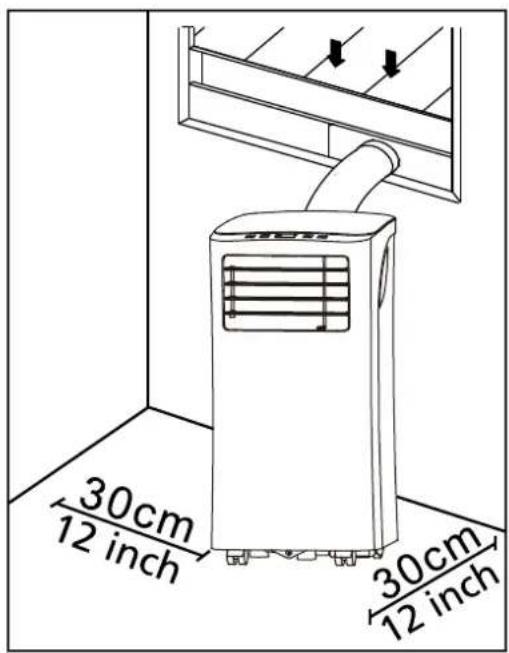

d. The unit should be at least 12" (30cm) from the nearest wall to ensure proper air conditioning.
e. Do not cover the intakes, outlets, or remote signal receptor.

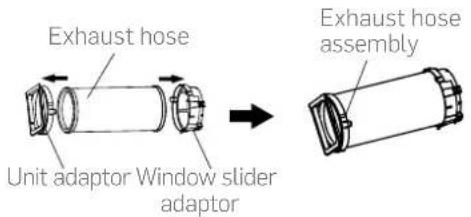

1. Insert the exhaust hose into the window slider adaptor and unit adapter. Then clamp together with the elastic buckles of the adapter.

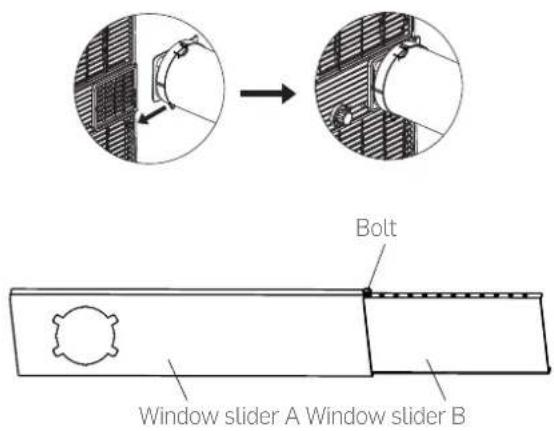

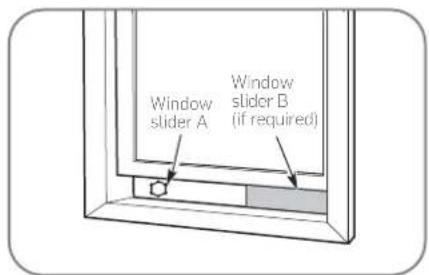

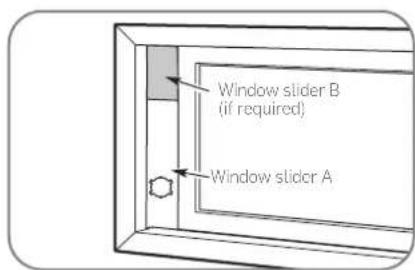

1. Adjust the size of the window slider according to the size of the window. If the length of the window requires two window sliders, use the bolt to fasten the window sliders, after adjusting to the proper length.

2. Insert the exhaust hose into the air outlet vent as seen below.

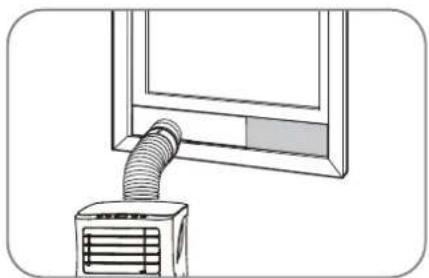

Hung window installation

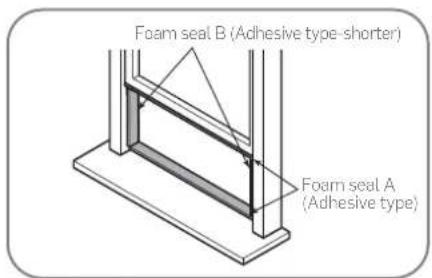

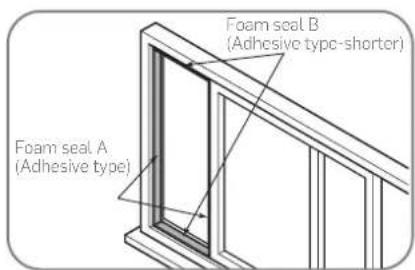

1. Cut the adhesive foam seals A and B to the appropriate length, depending on the size of the window. Attach them to the window sash and frame as shown.

1. Insert the window slider into the window opening.

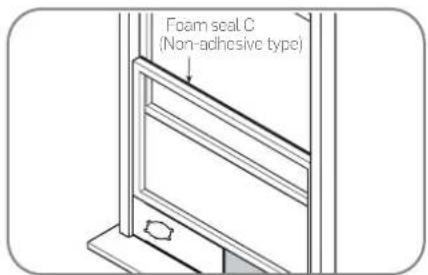

1. Cut the non-adhesive foam seal C to match the width of the window. Then insert the seal between the glass and the window frame.

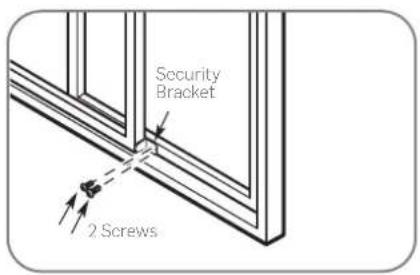

1. Install the security bracket with 2 screws as shown (optional).

Line drawing of a window with a coiled air tube inserted into the air gap (no text or symbols)

1. Insert the window slider adapter into the hole of the window slider.

Sliding window installation

1. Cut the adhesive foam seals A and B to the proper lengths. Then attach them to the window sash and frame as shown.

1. Insert the window slider into the window opening.

1. Cut the non-adhesive foam seal C to match the window height. Then insert the foam seal between the glass and the window frame.

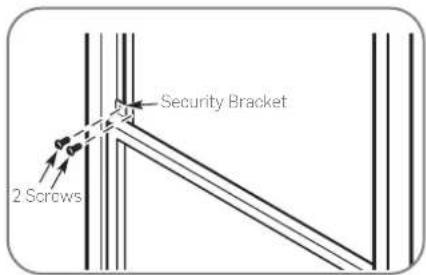

1. Install the security bracket with 2 screws as shown (optional).

Line drawing of a window with a coiled pipe and ventilation unit (no text or symbols)

1. Insert the window slider adapter into the hole of the window slider.

NOTE: do not overextend, bend, or block the hose. This will prevent the air conditioner from functioning properly.

Control panel

1. Mode button: use this button to cycle through modes (cool, fan, dry). The indicator light will illuminate to show which mode the unit is currently in.
2. +/ - buttons: use these buttons to increase or decrease the temperature setting by 1°F/1°C increments. The temperature can be adjusted from 62°F (17°C) to 86°F (30°C). To switch from Fahrenheit to Celsius, hold down the + and - buttons for 3 seconds.
3. Power button: powers the unit on or off.
4. LED display: shows the set temperature while on cool mode. Shows current room temperature while on dry or fan mode. If "P1" is displayed, the bottom tray is full and must be drained.
5. Cool mode:

a. Press the mode button until the indicator light next to COOL turns on.
b. Press the + or - button to adjust the temperature.

1. Fan mode:

a. Press the mode button until the indicator light next to FAN turns on.
b. Press the fan speed button on the remote controller to choose the fan speed. The temperature cannot be adjusted while in this mode.

1. Dry mode:

a. Press the mode button until the indicator light next to DRY turns on.
b. When in this mode, the fan will be set to the lowest speed and the unit will act as a dehumidifier.

1. Sleep mode:

NOTE: this mode is unavailable during fan or dry mode.

a. Use the remote controller to activate sleep mode.
b. When this mode is active, the temperature will increase by 2^ F/1°C after 30 minutes. Then the temperature will increase again by 2^ F/1°C after another 30 minutes.
c. The new temperature will be maintained for 7 hours before returning to the previously set temperature.
d. After this cycle, sleep mode will automatically end.

Auto-restart

If the unit stops unexpectedly due to a power cut, it will restart with the previous function setting 3 minutes after the power resumes.

Water drainage

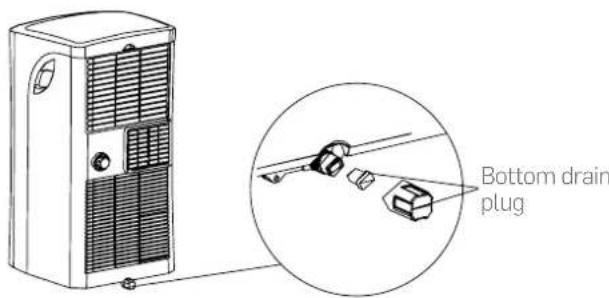

1. When in dry mode, remove the drain plug from the back of the unit.

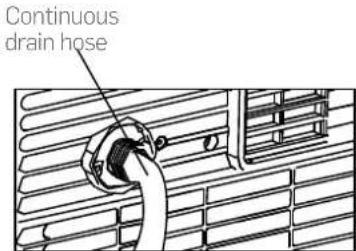

2. Install the drain connector with the continuous drain hose, placing the open end of the hose directly over the drain area.

1. When the collected water reaches the maximum level, the unit will beep 8 times and the digital display will read P1. The unit will stop dehumidifying until the collection tray is emptied.
2. After emptying the collection tray, restart the unit.

Care and maintenance

Before performing any maintenance always keep in mind the following:

• Always unplug the unit before cleaning or servicing.
- Never use flammable liquids or chemicals to clean the unit.
- Do not wash the unit under running water. Risk of electric shock.

Cleaning the filter

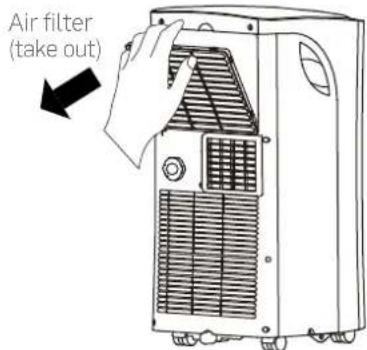

1. Remove the filter as shown.
2. Wipe away any collected debris and replace.

The filter should be cleaned every 2 weeks for optimal performance.

Cleaning the unit

1. Clean the unit with a damp cloth and mild detergent.
2. Dry with a lint-free cloth.

Remove the air filter

Storing the unit

1. Drain the water collection tray before putting the unit into storage.
2. Run the unit in fan mode for 12 hours in a warm room. This will dry the unit and prevent mold.
3. Turn off and unplug the unit.
4. Clean the filter as instructed above.
5. Remove the batteries from the remote controller.
6. Store the unit in a cool, dark place. Keep out of direct sunlight and extreme heat.

Troubleshooting

Problem	Possible	cause
Unit will not turn on. P1 error code.	The water collection tray is full.	Turn off the unit, drain the water, and restart the unit.
	If in cool mode, the room temperature may be lower than the set temperature.	Restart the temperature.
The unit is not cooling adequately.	The air filter is blocked. Turn off the filter.	unit and clean the filter.
	The exhaust hose is not connected or is blocked.	Turn off the unit, disconnect the hose and check for blockage. Then reconnect the hose.
	The unit is low on refrigerant. Call a service technician to inspect the unit and replace refrigerant.
	The temperature setting is too high.	Decrease the set temperature.
	The windows or doors in the room are open.	Check that all windows and doors are closed.
	The room is too large. Double-check the cooling area.
	There are heat sources inside the room.	Remove heat sources if possible.
The unit is noisy and is vibrating excessively.	The surface is not level. Place the unit on a flat, level surface.
	The air filter is blocked. Turn off the unit and clean the filter.
The unit makes a gurgling sound.	This sound is caused by the flow of refrigerant inside the unit.	This is normal.

Specifications

Rated voltage: 115V AC

Frequency: 60Hz

Rated current: 8A

BTU/hr: 8000

REMOTE CONTROLLER

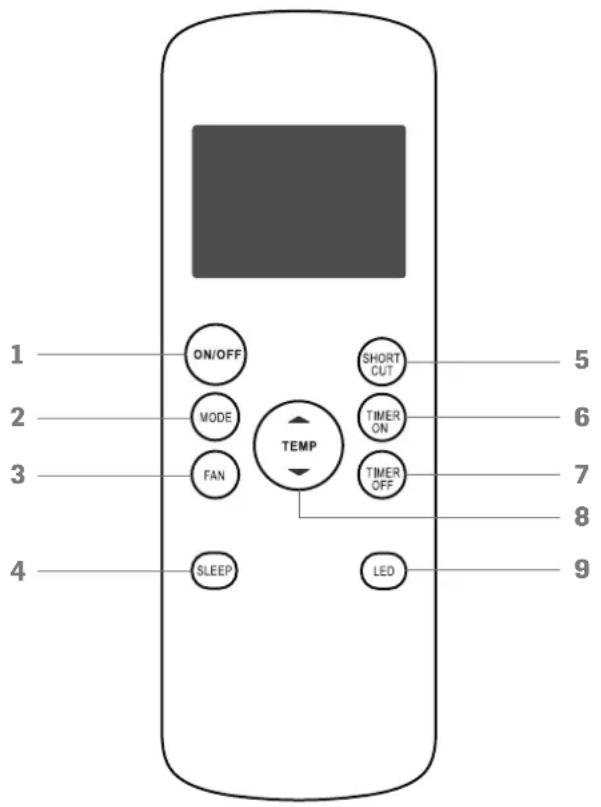

Function buttons

1. ON/OFF: Turns the unit on or off
2. Mode: Cycles through each mode (cool, fan, dry)
3. Fan: Cycle through the fan speeds (auto, low, medium, high)
4. Sleep: Places the unit into sleep mode
5. Shortcut: Restores previous settings or restores to default settings
6. Timer on: Sets a timer to turn the unit on
7. Timer off: Sets a timer to turn the unit off
8. Temperature control: Increase or decrease the temperature by 1^ F/ 1^ C increments. To change the reading from F to C, hold down both buttons for 3 seconds.
9. LED: Toggles the unit's LED display on and off

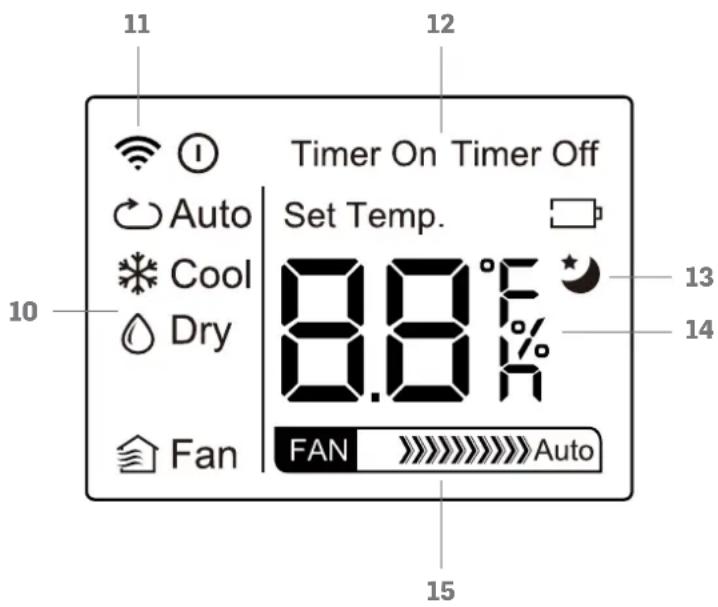

LCD screen display

1. Mode display: Displays the current mode (auto, cool, dry, fan)
2. Transmission indicator: Lights up when the remote sends a signal to the unit
3. Timer: Displays the timer, if set
4. Sleep mode: Indicates that sleep mode is active
5. Temperature display: Displays the current temperature the unit is set to. This option is unavailable in fan mode
6. Fan speed: Displays the current fan speed (low, medium, high). This option is unavailable in auto and dry modes)

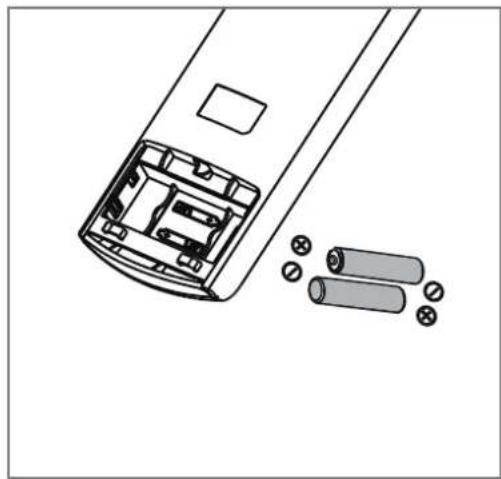

Inserting batteries

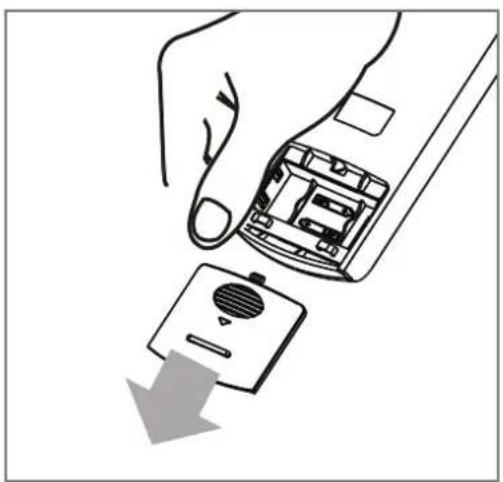

1. Slide the back cover of the remote downward, opening the battery compartment.
2. Insert the two included AAA batteries, matching correct polarities.
3. Slide the battery cover back into place.

Hand inserting a device into a small electronic component with a downward arrow indicating insertion (no text or symbols present)

Diagram of a remote control panel with battery and two cylindrical batteries (no text or symbols)

Operation

Auto mode

While in auto mode, the unit will automatically select cool, fan, or dry mode based on the set temperature. Note: the fan speed cannot be set while in auto mode.

To activate auto mode:

1. Press the MODE button until the AUTO icon 📋 appears on the controller's LCD screen.
2. Use the temperature control buttons to adjust the running temperature of the unit in 1°F/1°C increments. The temperature range is 62°F–86°F (17°C–30°C).

Cool mode

1. Press the MODE button until the cool icon ✦ appears on the controller's LCD screen.
2. Use the temperature control buttons to adjust the running temperature of the unit in 1^ F/ 1^ C increments. The temperature range is 62^ F– 86^ F ( 17^ C– 30^ C).
3. Press the FAN button to select the desired fan speed (auto, low, medium, high).

Dry mode (dehumidifying)

Note: the fan speed cannot be set while in dry mode.

1. Press the MODE button until the dry icon 📋 appears on the controller's LCD display.
2. Use the temperature control buttons to adjust the running temperature of the unit in 1°F/1°C increments. The temperature range is 62°F–86°F (17°C–30°C).

Fan mode

Note: the temperature cannot be set while in fan mode.

1. Press the MODE button until the fan icon 📋 appears on the controller's LCD display.
2. Press the FAN button to select the fan speed (auto, low, medium, high).

Sleep mode

1. Press the SLEEP button to activate sleep mode.
2. When this mode is active, the temperature will increase by 2^ F/1°C after 30 minutes. Then the temperature will increase again by 2^ F/1°C after another 30 minutes.
3. The new temperature will be maintained for 7 hours before returning to the previously set temperature.
4. After this cycle, sleep mode will automatically end.
   NOTE: this mode is unavailable during fan or dry mode.

Setting the ON Timer

To set the timer to automatically turn the unit on:

1. Press the TIMER ON button. TIMER ON will appear on the controller's LCD display.
2. Continue pressing the TIMER ON button to increase the timer value in 0.5 hour increments up to 24 hours.
3. When the desired time is selected, wait until the screen goes back to the temperature display.
4. The unit will turn on according to the time set on the timer

Setting the OFF Timer

To set the timer to automatically turn the unit off:

1. Press the TIMER OFF button. TIMER OFF will appear on the controller's LCD display.
2. Continue pressing the TIMER OFF button to increase the timer value in 0.5 hour increments up to 24 hours.
3. When the desired time is selected, wait until the screen goes back to the temperature display.
4. The unit will turn off according to the time set on the timer.

Shortcut Function

Use this function to set the unit to operate with the last settings used.

1. Press the SHORTCUT button on the remote controller. The previous settings will be used, including mode, temperature, fan speed, and sleep.
2. To restore the unit to default settings, press and hold the SHORTCUT button for 2 seconds until the settings change.

Specifications

Rated voltage: 3V

Power source: 2 AAA batteries

Signal range: 26 ft. (8m)

Customer service

[e-mail]

866-849-3049

Distributed by

C&A Marketing, Inc.

114 Tived Lane East

Edison, NJ 08837 USA

Europe: C&A Europe

167 Hermitage Road

Crusader Industrial Estate

London N4 1L2

United Kingdom

[e-mail]

Made in China

Ivation and the Ivation logo are registered

trademarks of C&A Holdings, LLC in the U.S.

©2017 All rights reserved
