| Product Type | Network Video Recorder (NVR) |
| Model | NVR302-16Q |
| Brand | UniView |
| Video Channels | 16 |
| Recording Resolution | Up to 8MP (4K) per channel |
| Compression | H.265+/H.265/H.264 |
| Hard Drive Support | 2x SATA III, up to 10TB each |
| HDMI Output | 1x HDMI 1.4, 1x VGA |
| Network Interface | 1x Gigabit Ethernet |
| USB Ports | 2x USB 2.0 |
| Power Supply | DC 12V, 2A |
| Power Consumption | ≤10W (without HDD) |
| Dimensions (W×D×H) | 315 × 230 × 48 mm |
| Net Weight | 1.8 kg (without HDD) |
| Operating Temperature | -10°C to 55°C |
| Remote Access | Via UniView App or web browser |

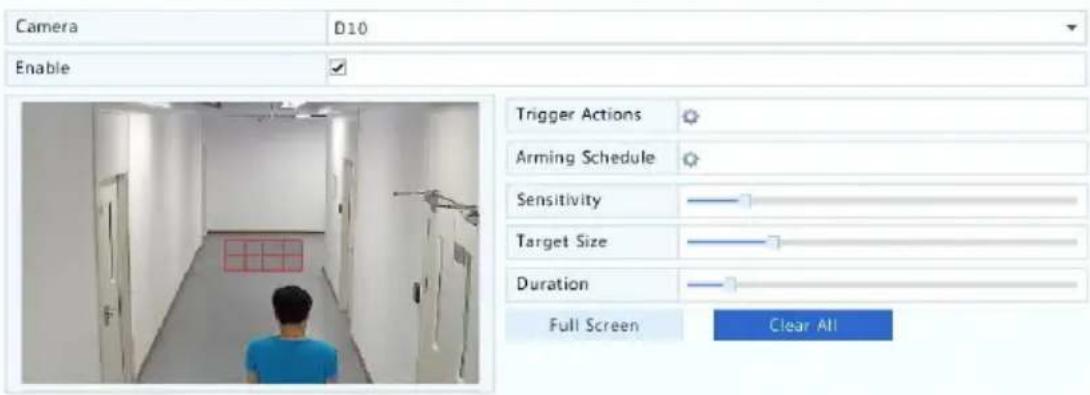

| Motion Detection | Supports intelligent motion detection |
| Backup Method | USB, network, HDD |
| Audio Support | 1-channel audio input, 1-channel output |
| Certification | CE, FCC |
Frequently Asked Questions - NVR302-16Q UniView
How many cameras can the NVR302-16Q support?
The NVR302-16Q supports up to 16 IP cameras with resolutions up to 8MP.
What hard drives are compatible with this NVR?
It supports 2 SATA III hard drives (up to 10TB each). Use drives designed for surveillance.
Can I access the NVR remotely?
Yes, via the UniView App (iOS/Android) or through a web browser after configuring network settings.
How do I reset the NVR to factory defaults?
Press and hold the Reset button on the back panel for 10 seconds using a pin.
What video compression formats are supported?
The NVR supports H.265+, H.265, H.264 for efficient storage.
Can I record audio?
Yes, it has 1 audio input for audio recording and 1 audio output.
How do I update the firmware?
Download the latest firmware from the UniView website and upload via the web interface under System Maintenance.
What is the maximum storage capacity?
With two 10TB hard drives, the maximum storage is 20TB.
Does it support PoE?
No, the NVR302-16Q does not have built-in PoE. You need a separate PoE switch or injectors.
How do I troubleshoot connection issues?
Check network cables, ensure IP addresses are on the same subnet, and verify that the NVR and cameras are using ONVIF protocol.
