Product Type	Beard and Hair Trimmer
Model	BHC1050
Brand	Becken
Power Supply	100-240V ~ 50/60Hz
Motor Voltage	2.4V
Charging Time	8 hours (first charge or after long storage: 12 hours, max 24 hours)
Operating Time (Full Charge)	Approximately 40 minutes
Comb Attachments	4-6mm, 7-9mm, 10-12mm, 16-18mm, 22-24mm, 28-30mm
Additional Attachments	Thinning attachment
Blade Type	Removable blade unit, washable
Cleaning Brush	Included
Lubricating Oil	Included
Charge Indicator	Red LED while charging
Water Resistance	Blade unit can be rinsed under water; main body not waterproof
Safety Features	Automatic shut-off? Not specified; manual switch
Material	Plastic body, metal blades
Weight	Not specified (typical ~200g)
Dimensions	Not specified (typical handheld size)
Warranty	2 years for manufacturing defects

Frequently Asked Questions - BHC1050 Becken

How long does it take to fully charge the Becken BHC1050?

The initial charge or after long storage takes 12 hours. Subsequent charges take 8 hours. Do not charge more than 24 hours.

How long does the battery last on a full charge?

A full charge provides approximately 40 minutes of continuous use.

Can I use the trimmer while it is charging?

The manual does not specify corded use. It is recommended to unplug the appliance after charging, except when charging. For safety, use it cordless.

How do I clean the Becken BHC1050?

Turn off and unplug the trimmer. Remove the blade unit and clean with the brush. The blade can be rinsed under running water. Dry thoroughly before reassembly. Do not use solvent, benzine or alcohol.

Can I replace the battery myself?

The battery is not intended to be replaced by consumers. It can only be removed by an authorized service center for disposal purposes.

How do I fit the blade?

Insert the blade into the slot on the clipper head unit and push gently until it locks with a click. See fig. 6 in the manual.

How do I attach the comb length guide?

Insert the pin into the hole on the clipper body on the comb side, then press the other side until it clicks. To remove, press the comb release button.

Is the Becken BHC1050 waterproof?

The main body is not waterproof. Only the blade unit can be rinsed under water. Do not immerse the trimmer or adapter.

What should I do if the trimmer stops working?

Check that it is charged. If problem persists, do not attempt to open the appliance. Contact Worten, Modelo or Continente customer support or a qualified technician.

Can I use this trimmer on pets?

No, the manual states: do not use it to trim pet fur. It is for human use only.

USER MANUAL BHC1050 Becken

Beard and Hair Groomer

MANUAL DE INSTRUÇÕES

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

1.2. Power Cord and Other Cables 5

2. USE AND OPERATION 11

2.1. Product Description 11
2.2. Operating Instructions 12
2.3. Maintenance 13

3. TECHNICAL SPECIFICATIONS 13

1. POST-SALE SERVICE 14

2. ENVIRONMENTAL PROTECTION 14

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

1.4. Cleaning

Unplug the device before cleaning it. Do not use cleaning products. Please do not clean the clipper or AC adapter using solvent, benzine or alcohol.

Clean the plug regularly to remove any dust or dirt.

For cleanliness and convenience, we recommend you clean your hair clipper regularly. Regular cleaning will keep your hair clipper in good condition while preventing smells or bacteria from developing, and will maintain cutting performance.

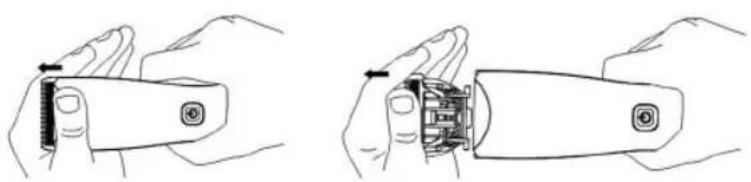

Press the switch to turn the clipper off. Pull the blade off as shown in the illustration (see fig. 4). Clean the cutting head and the clipper using the brush. Rinse the blade unit directly under the tap (see fig. 5). After rinsing it, wipe the blade unit with a cloth and then leave it to dry. Reassemble the clipper in the reverse order.

1.5. General Precautions

• Do not leave this clipper within the reach of children.
• Do not use while bathing or in the shower.
• Do not place or store this appliance where it can fall or be pulled into a tub or sink.
• Except when charging, always unplug this appliance from the electrical outlet immediately after using.
  • This appliance is for household use only.
• An appliance should never be left unattended when it is plugged in, except when charging the appliance.
• Use this appliance only for its intended use as described in this manual.

[you can trust]

- Keep the cord away from heated surfaces.

- Disconnect the AC adapter from the outlet when cleaning the clipper. Always disconnect by pulling the AC adapter and not the power cord.

- Please do not use the clipper if the power cord or the AC adapter is worn, or if the AC adapter does not fit snugly into the outlet.

- Please do not place heavy objects on the power cord or trap it between objects. Do not damage or deform the power cord.

- The power cord cannot be replaced. If it is damaged, the AC adapter should be discarded.

- Do not use any power cord or AC adapter other than the one specifically designed for this model.

- Please do not insert and remove the AC adapter with wet hands. Do not wet the AC adapter.

- Never drop or insert any object into any of the appliance's openings.

- Do not dismantle or modify the clipper. Do not attempt repairs. Repairs must always be carried out by your dealer.

- Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

- Always store this appliance and cord in a moisture-free area. Do not store it in places where temperatures exceed 60 °C.

- Charge the clipper at temperatures of between 5 °C and 35 °C for it to work correctly. Please do not store the clipper in a place exposed to direct sunlight or near a heater or other source of heat.

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

• Make sure the cord is disconnected from the trimmer stand when storing.
• Do not use this appliance with a damaged or broken cutter unit, as injury may occur. Always make sure the blades are aligned properly.
• Check that the blades are not damaged or deformed before use.
• Please do not press the blade against the skin.
• Do not use an extension cord or a voltage converter with this appliance.
• Do not wrap the cord around the appliance.
• The power unit is intended to be correctly oriented in a vertical or floor mount position.
• When the power plug or connector is used as the disconnect device, it must be easily accessible.
• Do not use the equipment near water reservoirs (such as baths, basins, sinks, etc.).
• The clipper may become warm during operation and/or charging. This is normal.
• Please do not use the clipper for any purpose other than trimming, and do not use it to trim pet fur.

[you can trust]

1

2

3
Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

4

Illustration of two hands holding a device, showing internal components and a directional arrow (no text or symbols)

5

Three-step line drawing showing hand positioning, cleaning, and disassembly of a mechanical component (no text or symbols)

6

After cleaning the blade with water or using the brush, apply a few drops of the oil to the points indicated by the arrows.

7

Line drawings of hands holding a tool, with an inset showing a close-up of a small object (no text or symbols present)

[you can trust]

8

9

Line drawing of an electric vehicle's cable and plug connection (no text or symbols)

Connect the power cord to the hair clipper and plug the other end into a power outlet.

The charge LED will be red while the clipper is charging.

2. USE AND OPERATION

2.1. Product Description Part identification (see fig. 1)

1. Blade

2. Switch

3. Charge status lamp

4. Comb length 4-6 mm

5. Comb length 7-9 mm

6. Comb length 10-12 mm

7. Thinning attachment

8. Comb length 16-18 mm

9. Comb length 22-24 mm

10. Comb length 28-30 mm

11. Cleaning brush

12. Adapter

13. "Do not wash" symbol

14. Lubricating oil

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

2.2. Operating Instructions

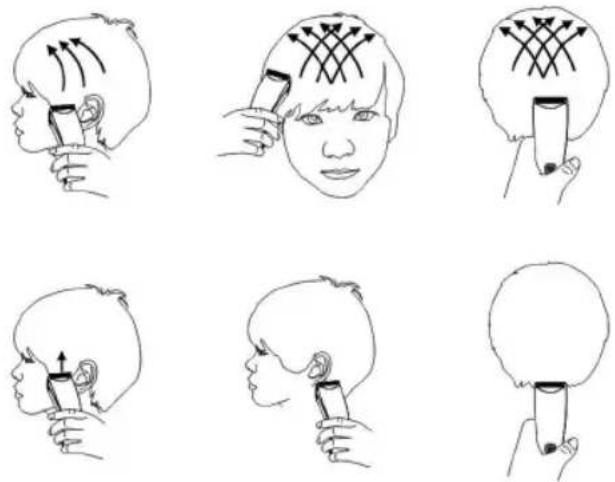

Using your hair clipper (see fig. 2)

1. Press the switch to turn the clipper on.
2. Cut your hair using a suitable length comb. Don't use the clipper in the opposite direction, otherwise it may over-cut your hair.
3. Press the switch to turn the clipper off.

Fitting the blade (see fig. 6)

1. Insert the blade into the slot on the clipper head unit.
2. Hold the blade and push it gently into place.
3. Pushing the blade will lock it into position and you will hear a "click" when it locks.
4. The blade is now fitted.

Fitting and using the length comb (see fig. 7)

1. You can install any of the cutting length accessories.
2. Insert the pin into the hole on the clipper body on the comb side, Then press the other side of the comb to lock it into the cutting head. You will hear a "click" when it fits into place. You can now use the clipper to cut your hair.
3. When you have finished, press the comb button to release it.

Charging (see fig. 8)

1. Connect the power cord to the hair clipper and plug the other end into a power outlet. The charge LED will be red while the clipper is charging.

[you can trust]

1. If the clipper begins to slow down, you can fully charge it in 8 hours. When charging the hair clipper for the first time, or if you have not used it for a long time, you should charge it for 12 hours. Do not charge it for more than 24 hours.
2. A full charge will provide approximately 40 minutes of continuous use.
3. Before travelling, charge it fully if you do not intend to take the adapter with you.

2.3. Maintenance

Recycling the battery (see fig. 9)

Batteries contain substances that may pollute the environment. The batteries in this clipper are not intended to be replaced by consumers. However, the batteries may be replaced at an authorized service center.

1. The procedure described below is only intended for removal of the rechargeable battery for the purpose of disposing of it properly.
2. Only remove the battery if it is completely exhausted.
3. Do not remove the battery during charging.

3. TECHNICAL SPECIFICATIONS

Model No.: BHC1050

Power source: 100-240V - 50/60Hz

Motor voltage: 2.4V

Recharging time: 8 hours

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

4. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

[you can trust]

Vertical gradient bar with two shades of blue, no text or symbols present

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

EN

15

Estimado cliente,

2

3
Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

4

Illustration of two hands holding a device, showing internal components and a directional arrow (no text or symbols)

5

Three-step line drawing showing hand positioning, cleaning, and disassembly of a mechanical component (no text or symbols)

6

Line drawings of hands holding a tool, with an inset showing a close-up of a small object (no text or symbols present)

[you can trust]

8

9

Line drawing of an electric vehicle's cable and plug connection (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

[you can trust]

Vertical gradient bar with two shades of blue, no text or symbols present

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

ES

29

Caro(a) cliente,

2

Six line drawings showing a person's head and neck with hand positions, illustrating facial hair manipulation or facial correction techniques (no text or symbols)

3
Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

BECKEN

4

Illustration of two hands holding a device, showing internal components and a directional arrow (no text or symbols)

5

Three-step line drawing showing hand positioning, cleaning, and disassembly of a mechanical component (no text or symbols)

6

Line drawings of hands holding a tool, with an inset showing a close-up of a small object (no text or symbols present)

[you can trust]

8

9

Line drawing of an electric vehicle's cable and plug connection (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

[you can trust]

Vertical gradient bar with two shades of blue, no text or symbols present

Beard and Hair Groomer | Cortador de Barba y Pelo | Aparador de Barba e Cabelo

PT

43

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
