Product Type	Split Air Conditioner (Wall-mounted indoor unit)
Power Supply	220-240V ~50Hz, single phase (requires dedicated circuit with circuit breaker)
Operating Modes	Auto, Cool, Dry, Fan, Heat (Heat only for compatible models)
Fan Speeds	Auto, Low (Speed 1), Medium (Speed 2), High (Speed 3), Turbo (Speed 4) – 4 speeds + auto
Remote Control	Infrared, range up to 8m, with LCD display
Timer	On/Off timer, range 0.5–24 hours
Sleep Function	Yes, available in Cool, Heat, Dry modes
Swing Function	Up/down automatic swing (horizontal louver)
Filter	Washable mesh filter; clean every 3 months (more in dusty environments)
Refrigerant Type	R410A (typical) – additional charge per meter if pipe extension exceeds standard length
Connection Pipe Length	Standard: 5m, 7.5m, or 8m; Max length varies by capacity (up to 30m)
Operating Temperature Range	Cooling: outdoor -15°C to 43°C; Heating: outdoor -15°C to 24°C (with electric heater: -20°C to 24°C)
Installation Requirement	Professional installation required; unit must be grounded; all-pole disconnection switch with ≥3mm contact gap
Safety Features	Overheat protection, auto restart after power failure, child lock on remote, error code display
Emergency Operation	Manual AUX button on indoor unit for on/off without remote (use insulated object)
Weight & Dimensions	Not specified in manual – refer to product label or contact manufacturer

Frequently Asked Questions - BAC2321 Becken

How do I clean the air conditioner filter?

Open the front panel, remove the filter by pulling it out. Clean with water (max 45°C) and let it dry in shade. Do not use fire or hair dryer. Reinstall after drying. Clean every 3 months or more often in dusty conditions.

How do I set the timer on the remote?

Press the TIMER button. When the unit is on, it sets Timer Off (T-OFF). When off, it sets Timer On (T-ON). Use +/- buttons to adjust time in 0.5h increments (range 0.5–24h). Press TIMER again to confirm. Cancel by pressing TIMER twice within 5 seconds.

What does error code E5 mean on the display?

Error code E5 indicates a malfunction. Try restarting the unit. If it persists, contact a qualified technician. Other common codes: E8, U8, H6 (restart first), C5, F1, F2 (require professional service).

Why is there no air coming from the indoor unit?

Possible causes: air inlet/outlet blocked, heating mode just started (delay to prevent cold blow), or set temperature reached. Check for obstructions. In heating mode, wait a few minutes. If problem persists, check remote settings.

How do I replace the remote control batteries?

Press the marked spot on the back of the remote and slide out the battery cover. Replace with two AAA 1.5V batteries, ensuring correct polarity. Reattach the cover. If not used for long periods, remove batteries to prevent leakage.

Can I install the air conditioner myself?

No. Installation must be performed by qualified professionals in accordance with local electrical codes (NEC, CEC). Improper installation can cause electric shock, fire, or damage. Only trained technicians should handle refrigerant lines and electrical connections.

Why is mist coming out of the indoor unit?

Mist is normal when indoor temperature and humidity are high. Rapid cooling of humid air causes condensation visible as mist. It disappears after the room reaches lower humidity. This does not indicate a malfunction.

How do I switch between Celsius and Fahrenheit on the remote?

With the unit OFF, press and hold the - and MODE buttons simultaneously. The display will toggle between °C and °F. Release after switch.

What is the child lock function and how do I use it?

Child lock prevents accidental button presses. Press the + and - buttons simultaneously to activate/deactivate. When active, the LOCK icon appears on the remote and no signals are sent. Press the same combination again to unlock.

How do I operate the air conditioner if the remote is lost or damaged?

Open the front panel of the indoor unit and press the AUX button (use an insulated object like a pen). This toggles the unit on/off in Auto mode. For full control, replace the remote or contact customer service.

USER MANUAL BAC2321 Becken

Thank you for purchasing this product. The quality of this appliance has been certified by several laboratory tests. This instruction manual is provided to simplify the use of the appliance. The instructions guarantee quick and safe use. Please read the instructions and safety measures described in this manual carefully.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 4
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 5
1.5. General Precautions 5

2. USE AND OPERATION 7

2.1. Product Description 7
2.2. Operating Instructions 10

2.2.1. Installation 10

2.2.2. Operation 20

2.3. Maintenance 23
2.4. Troubleshooting 24
3. CUSTOMER SERVICE 26
4. PROTECTION OF THE ENVIRONMENT 27

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

3

BECKEN

1. SAFETY INSTRUCTIONS

ATTENCION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instruction manual carefully and keep it in a safe place as you may need to consult it in the future.

Before powering on your appliance, and to ensure correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards and deterioration of your appliance through incorrect use it is advisable to read the instructions carefully and attentively.

Your appliance must not be used for other purposes than those described in the instruction manual. Safety is only guaranteed for household use and not for commercial use. Incorrect use is not covered and automatically voids the warranty.

Assistance

If there is a malfunction take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instruction in using the appliance safely and if they understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available on www.suporteworten.pt

1.1. Power Supply

Make sure the mains voltage is compatible with the appliance voltage. If this is not the case consult the vendor or Customer Support Service.

[you can trust]

1.2. Power Cord and Other Cables

Do not roll up or pull the cord to disconnect the appliance, and do not use it to twine the appliance. Keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

If the power cord is damaged, do not use your appliance. Take it to technical assistance for replacement.

Do not use inadequately rated power cord.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example to wash it).

1.4. Cleaning

Before cleaning make sure the appliance is powered off and the plug is disconnected from the mains power supply.

Always allow the unit to cool down before cleaning.

Cleaning and user maintenance shall not be carried out by children without supervision.

Do not wash the air conditioner with water to avoid an electric shock. Do not use volatile liquids to clean the air conditioner.

1.5. General Precautions

• Please follow the user manual instructions to correctly install and use this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized dealers.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than originally designed, or if it is not correctly connected, the product may suffer damage and the warranty will be voided.
  • Children shall not play with the appliance.
• Do not connect the air conditioner to a multi-purpose socket; it may cause a fire hazard.
• Do not spray water on the indoor unit. It may cause an electric shock or malfunction.
  • To avoid injury, do not touch the fins after removing the filter.
• To avoid deformation or fire hazard, do not use fire or a hair dryer to dry the filter.
• Do not repair the air conditioner by yourself. It may cause electric shock or damage. Please contact the dealer when you need to repair the air conditioner.
• Do not insert fingers or objects into air inlets or air outlets. It may cause personal injury or damage.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

• Do not block air outlets or air inlets. It may cause a malfunction.
• Do not spill water on the remote control, as this may damage the remote control.
• If any of the phenomena below occur, please turn off the air conditioner, disconnect the power immediately, and then contact the dealer or qualified professionals for service:

  Power cord is overheating or damaged.
  There is an abnormal sound during operation.
  Frequent tripping of the circuit breaker.
  Air conditioner gives off a burning smell.
  Indoor unit is leaking

• If the air conditioner operates under abnormal conditions, it may cause a malfunction, electric shock or fire hazard.
• When turning the unit on or off using the emergency operation switch, please press this switch using a non-metallic insulating object.
• Do not step onto or place heavy objects on top of the outdoor unit. It may cause damage or personal injury.
• Installation must be performed by qualified professionals in accordance with the requirements of NEC and CEC. Otherwise, it may cause personal injury or damage.
• Electrical safety regulations must be followed when installing the unit.
• In accordance with the local safety regulations, use a compliant power supply circuit and circuit breaker. Do install a circuit break. Not doing so, may cause malfunction.
• An all-pole disconnection switch with a contact separation of at least 3 mm for all poles should be connected in fixed wiring.
• When including a circuit breaker with suitable capacity, please note the table in subsequent pages. The air switch should include a magnet buckle and a heating buckle function to protect the unit from short-circuit and overload.
• Make sure the power supply matches the air conditioner's requirements. An unstable power supply or incorrect wiring may cause a malfunction. Please install suitable power supply cables before using the air conditioner.
• Correctly connect the live wire, neutral wire and ground wire of the power socket.
• Be sure to cut off the power supply before proceeding with any work related to electricity and safety.
• Do not reconnect the power before finishing the installation.
• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
• The appliance shall be installed in accordance with national wiring regulations.
• The air conditioner is a first class electric appliance. It must be properly grounded with a specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shocks.
• The yellow-green wire in the air conditioner is the grounding wire, which cannot be used for any other purposes.

[you can trust]

• The grounding resistance should comply with national electric safety regulations.
• The appliance must be positioned so that the plug is accessible.
• All wiring of the indoor and outdoor units should be connected by a professional.
• If the length of power connection wire is insufficient, please contact the supplier for a new one. Do not extend the wire yourself.
• For air conditioners with plugs, the plug should be accessible after the installation is completed.
• For air conditioners without plugs, a circuit breaker must be installed in the line.
• If you need to relocate the air conditioner to another place, only a qualified person can perform the work. Otherwise, it may cause personal injury or damage.
• Select a location which is out of reach of children and far away from animals or plants. If this is unavoidable, please add a fence for safety purposes.
• The indoor unit should be installed tight to the wall.

2. USE AND OPERATION

2.1. Product Description

Indoor Unit

Line drawing of a wall-mounted air conditioner unit (no text or symbols)

air inlet
panel
filter
aux. button
horizontal louver
air outlet

remote control

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

For some models:

For some models:

For some models:

For some models:

Actual content or position may be different from above graphics. Please refer to actual products.

[you can trust]

Buttons on remote controller

1 ON/OFF button
2 MODE button
3 +/- button
4 FAN button
5 SWING button
6 SLEEP button
7 TIMER button

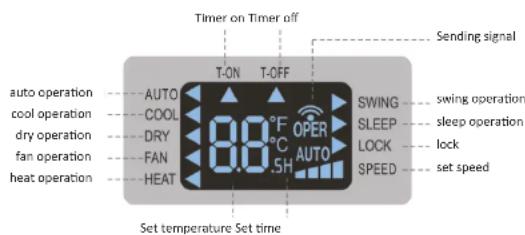

Introduction for icons on display screenTools for Installation

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

2.2. Operating Instructions

2.2.1. Installation

Dimensioned installation diagram

1. Level
2. Screw driver
3. Impact drill
4. Drill head
5. Pipe expander
   6 Torque wrench
   7.Open-end wrench
6. Pipe cutter
7. Leakage detector
8. Vacuum pump
   11 Pressure meter
9. Universal meter
10. Inner hexagon spanner
11. Measuring tape

Note:

• Please contact the local agent for installation.
• Don't use an inadequately rated power cord.

[you can trust]

Selection of installation location

Basic requirement Indoor unit

Installing the unit in the following locations may cause it to malfunction. If this is unavoidable, please consult the local dealer.Locations with strong heat sources, or where vapors, flammable or explosive gases, or airborne volatile objects.Locations with high-frequency emitting devices (such as welding machines or medical equipment).Coastal locations with high salinity.Locations with airborne oil vapors or fumes.Locations with sulphured gas.Other locations with special circumstances.The appliance should not be installed in a laundry.

1. There should be no obstructions near the air inlet or outlet.2. Select a location where the condensate water can be drained easily and won't affect other people.3. Select a location which is convenient for connecting the outdoor unit and is near a power socket.4. Select a location which is out of reach of children.5. The location should be able to withstand the weight of the indoor unit and should not increase noise or vibration.6. The appliance should be installed 2.5m above floor level.7. Do not install the indoor unit directly above an electric appliance.8. Please attempt to keep it away from fluorescent lamps.

Requirements for electric connection

Safety precaution

• Electric safety regulations must be followed when installing the unit.
- A suitably rated power supply circuit and air switch must be used, in compliance with local safety regulations.
- Make sure the power supply matches the requirements of the air conditioner.
- An unstable power supply or incorrect wiring may cause a malfunction. Please install suitable power supply cables before using the air conditioner.
- Correctly connect the live wire, neutral wire and grounding wire of the power socket.
- Be sure to disconnect the power supply before proceeding with any work related to electricity and safety.
- Do not connect the power before finishing the installation.
- If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid creating a hazard.
- The temperature of the refrigerant circuit, may be high, please keep the interconnection cable away from the copper tube.
- The appliance shall be installed in accordance with national wiring regulations.

Grounding requirements

- The air conditioner is a first class electric appliance. It must be properly grounded with a specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause an electric shock.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

• The yellow-green wire in the air conditioner is the grounding wire, which cannot be used for any other purposes.
• The grounding resistance should comply with national electric safety regulations.
• The appliance must be positioned so that the plug is accessible.
• An all-pole disconnection switch with a contact separation of at least 3mm for all poles should be connected in fixed wiring.

Installation of indoor unit

Step 1: choosing the installation location

Recommend the installation location to the client and then confirm it with the client.

Step 2: install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust its position horizontally with the level and then mark the screw fixing holes on the wall.
2. Drill the screw fixing holes in the wall with impact drill (the specification of drill head should be the same as the plastic expansion anchors) and then insert the plastic expansion anchors in the holes.
3. Fix the wall-mounting frame to the wall self with tapping screws (ST4.2X25TA) and then check if the frame is firmly installed by pulling on the frame. If a plastic expansion anchor is loose, please drill another fixing hole nearby.

Step 3: open pipe hole

1. Choose the position of the pipe hole according to the direction of the outlet pipe. The position of the pipe hole should be a little lower than the wall-mounted frame, as shown below.

1. Bore a pipe hole with a diameter of 55 in the selected outlet pipe position. In order to drain smoothly, slant the pipe hole in the wall slightly downward towards the outdoor side with the gradient of 5-10°.

Note:

• Pay attention to dust prevention and take appropriate safety measures when opening the hole.
• The plastic expansion anchors are not provided and should be bought locally.

[you can trust]

Step 4: outlet pipe

1. The pipe can exit the unit to the right, rear right, left or rear left.

1. If the left or right exit for the pipe is chosen, please cut out the corresponding opening in the bottom of the housing.

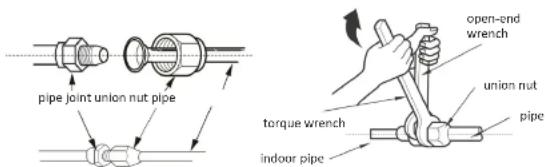

Step 5: connect the pipe of indoor unit

1. Align the pipe joint with the corresponding bellmouth.
2. Pretighten the union nut by hand.
3. Adjust the torque force by referring to the following table. Place the open-end wrench on the pipe joint and place the torque wrench on the union nut. Tighten the union nut with the torque wrench.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

Hex nut diameter Tightening torque (N.m)
ø 6 15~20
ø 9.52 30~40
ø 12 45~55
ø16 60~65
ø 19 70~75

1. Wrap the indoor pipe and joint with the connection pipe with pipe insulation, and then wrap it with tape.

Step 6: install drain hose

1. Connect the drain hose to the outlet pipe of indoor unit.
2. Bind the joint with tape.

Note:

• Add pipe insulation to the indoor drain hose in order to prevent condensation.
• The plastic expansion anchors are not provided.

Step 7: connect indoor unit wiring

1. Open the panel, remove the screw on the wiring cover and then remove the cover.

[you can trust]

1. Insert the power connection wire through the cable-cross hole at the back of the indoor unit and then pull it out from the front side.

1. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color; tighten the screw and then fix the power connection wire with a wire clip.

1. Replace the wiring cover and then tighten the screw.
2. Close the panel.

Note:

• All wiring in the indoor and outdoor units should be connected by a professional.
• If the length of the power connection is insufficient, please contact the supplier.
• For air conditioners with a plug, the plug should be accessible after completing the installation.
• For the air conditioners without a plug, an air switch must be installed in the circuit.
• The air switch should be all-pole parting and the contact parting distance should be more than 3 mm.

Step 8: bind up pipe

1. Bind up the connection pipe, power cord and drain hose with the tape.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

1. Reserve a certain length of drain hose and power cord for installation when binding them. When binding, separate the indoor power to a certain degree, and then separate the drain hose.

1. Bind them evenly.

2. The liquid pipe and gas pipe should be bound separately at the end.

Note:

• The power cord and control wire cannot be crossed or wound.
• The drain hose should be bound at the bottom.

Step 9: hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing compound.
4. Attach the wall pipe.
5. Check if the indoor unit is installed firmly and tight to the wall.

Note:

- Do not bend the drain hose excessively in order to prevent blockage.

Check after installation

- Check according to the following requirement after finishing installation.

Items to be checked Possible malfunction
Has the unit been installed firmly? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test? It may cause insufficient cooling (heating) capacity.
Is thermal insulation of pipeline sufficient? It may cause condensation and water dripping.
Does the water drain well? It may cause condensation and water dripping.

[you can trust]

Is the power supply voltage in accordance with the voltage marked on the nameplate?	It may cause a malfunction or damage the components.
Is the electric wiring and pipeline installed correctly?	It may cause a malfunction or damage the components.
Is the unit grounded securely? It may cause electrical leakage.
Does the power supply cord comply with the specification?	It may cause a malfunction or damage the components
Is there any obstruction in the air inlet or outlet? It may cause insufficient cooling (heating) capacity.
Were the dust and debris caused during installation removed?	It may cause a malfunction or damage the components.
Are the gas valve and liquid valve of the connection pipe completely open?	It may cause insufficient cooling (heating) capacity.
Have the inlet and outlet of pipe hole been covered?	It may cause insufficient cooling (heating) capacity or waste electricity.

Test operation

1. Preparation of test operation

• The client approves the air conditioner.
- Specify the important notes regarding the air conditioner for the client.

2. Test operation method

• Connect the power and press the ON/OFF button on the remote controller to start operation.
• Press the MODE button to select AUTO, COOL, DRY, FAN and HEAT to check whether or not it is operating normally.
• If the ambient temperature is lower than 16^ , the air conditioner can't start cooling.

Configuration of connection pipe

1. Standard length of connection pipe 5m, 7.5m, 8m
2. Min. length of connection pipe is 3m.
3. Max. length of connection pipe and max. height difference.

Cooling capacity	Max length of connection pipe	Max height difference
5000Btu/h (1465W)	15	5
7000Btu/h (2051W)	15	5
9000Btu/h (2637W)	15	5
12000Btu/h (3516W)	20	10
18000Btu/h (5274W)	25	10
24000Btu/h (7032W)	25	10
28000Btu/h (8204W)	30	10
36000Btu/h (10548W)	30	20
42000Btu/h (12306W)	30	20
48000Btu/h (14064W)	30	20

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

1. The additional refrigerant oil and refrigerant charging required after extending the connection pipe

2. After the length of connection pipe is extended for 10m based on its standard length, you should add 5 ml of refrigerant oil for each additional 5m of connection pipe.

3. The method of calculating the additional refrigerant charging amount (on the basis of liquid pipe):
4. Additional refrigerant charging amount = extended length of liquid pipe × additional refrigerant charging amount per meter
5. Basing on the length of standard pipe, add refrigerant according to the requirement as shown in the table. The additional refrigerant charging amount per meter varies according to the diameter of liquid pipe. See the following table.

Configuration of the connection pipe

Additional refrigerant charge amount for the R22, R407C, R410A and R134a

Diameter of connection pipe Outdoor unit throttle
Liquid pipe (mm) Gas pipe (mm) Cooling only (g/m)			Cooling and heating (g/m)
6 9.52 or 12 15 20
6 or 9.52 16 or 19 15 50
12 19 or 22.2 30 120
16 25.4 or 31.8 60 120
19	-	250	250
22.2	-	350	350

Pipe expanding method

Note: Incorrect pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps:

A: Cut the pipe

• Confirm the pipe length according to the distance between the indoor and outdoor units.
• Cut the required pipe with pipe cutter.

[you can trust]

B: Remove the burrs

- Remove the burrs with a shaper and prevent the burrs from getting into the pipe.

C: Attach a suitable insulating pipe

D: Attach the union nut

- Remove the union nut on the indoor connection pipe and outdoor valve; install the union nut on the pipe.

E: Expand the port

- Expand the port with expander.

Note:

- "A" varies according to diameter. Please refer to the table below:

Outer diameter (mm)	A (mm)
	Max	Min
6 - 6.35(1/4")	1.3	0.7
9.52(3/8")	1.6	1.0
12-12.7(1/2")	1.8	1.0
15.8-16(5/8")	2.4	2.2

F: Inspection

- Check the quality of the expanded port. If there is any blemish, expand the port again according to the steps above.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

smooth surface

equal length

improper expanding

2.2.2. Operation

Introduction for buttons on remote controller

Note:

• This is a general use remote control. It can be used for various multifunction air conditioners; If a button on the remote control is pressed for a function that is not available on a particular model, the unit will maintain its current running status.
• When power is switched on (stand by condition), you can operate the air conditioner through the remote control.
• When unit is on, each time you press the button on the remote control, the sending signal icon “on the remote control display will blink once. If the air conditioner emits a beep sound, it means the signal has been sent.
• When unit is off, Set temperature will be displayed on the remote control (If the light of indoor unit display is turned on, the corresponding icon will be displayed);
  When unit is on, it will display the icon of the current function.

ON/OFF button

Press this button to turn unit on/off.

MODE button

Press this button once to cycle through the modes and select the one required as shown below (the corresponding icon “◀” will be lit up after the mode is selected):

AUTO ▶ COOL ▶ DRY ▶ FAN ▶ HEAT (Only for models with heating function)

• When auto mode is selected, the air conditioner will operate automatically according to ambient temperature. Set temperature can't be adjusted and won't be displayed either. Press FAN button to adjust fan speed.
• When cool mode is selected, the air conditioner will operate in cool mode. Then press + or - button to adjust Set temperature. Press FAN button to adjust fan speed.
• When dry mode is selected, the air conditioner will operate at low fan speed in dry mode. In dry mode, the fan speed can't be adjusted.
• When fan mode is selected, air conditioner will operate in fan mode only. Press the FAN button to adjust fan speed.

[you can trust]

• When heat mode is selected, the air conditioner will operate in heat mode. Then press + or - button to adjust Set temperature. Press the FAN button to adjust fan speed.
  (The cooling only unit can't receive the HEAT mode signal. If HEAT mode is set by the remote control, press ON/OFF button if you can't turn on the air conditioner.)

+ / - Button

• Pressing + or - button once will increase or decrease Set temperature by 1°F (°C).
  Hold + or - button for 2s, Set temperature on the remote control will change quickly.
  Release the button after your required Set temperature is reached.
• When setting Timer On or Timer Off, press the + or - button to adjust the time. (See TIMER Button for setting details)

FAN button

Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ), SPEED 2 ( ), SPEED 3 ( ), SPEED 4 ( ).

Note:

• In Auto speed, air conditioner will select the proper fan speed automatically according to the ambient temperature.
• Fan speed can't be adjusted under Dry mode.

SWING button

Press this button to turn on up & down air swing.

SLEEP button

In Cool, Heat and Dry modes, press this button to turn on Sleep function. Press this button to cancel Sleep function. In Fan and Auto mode, this function is unavailable.

TIMER button

• When unit is on, press this button to set Timer Off. The T-OFF and H icons will be blinking. Within 5s, press + or - button to adjust the time for Timer Off. Pressing the + or - button once will increase or decrease the time by 0.5h. Holding + or - button for 2s, will change the time more quickly. Release the button when your required set time is reached. Then press the TIMER button to confirm it. The T-OFF and H icon will stop blinking.
• When unit is off, press this button to set Timer On. The T-ON and H icons will be blinking. Within 5s, press the + or - button to adjust the time for Timer On. Pressing the + or - button once will increase or decrease the time by 0.5h. Holding the + or - button for 2s, will change the time more quickly. Release the when your required set time is reached. Then press TIMER button to confirm it. The T-ON and H icons will stop blinking.
• Cancel Timer On/Off: If the Timer function is set up, press the TIMER button

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

once to review the remaining time. Within 5s, press the TIMER button again to cancel this function.

Note:

• Range for the timer setting is: 0.5\~24h
• The interval between two actions can't exceed 5s, otherwise the remote control will exit setting status.

Introduction to button combination functions

Child lock function

Pressing the "+" and "-" buttons simultaneously can turn the child lock function on or off. When the child lock function is activated, the LOCK indicator on the remote control is ON. If you attempt to operate the remote control, it won't send a signal.

Temperature display switchover function

In OFF status, pressing the "-" and "MODE" buttons simultaneously can switch between °C and °F.

Operation guide

1. After connecting the power, press the "ON/OFF" button on the remote control to turn on the air conditioner.
2. Press the "MODE" button to select your required mode: AUTO, COOL, DRY, FAN, HEAT.
3. Press the "+" or "-" button to select your required temperature (temperature can't be adjusted in Auto mode).
4. Press the "FAN" button to set your required fan speed: auto, low, medium and high.
5. Press the "SWING" button to select the fan blowing angle.

NOTICE

• During operation, point the remote control signal sender at the receiving window on indoor unit.
• The distance between signal sender and the receiving window should be no more than 8m, and there should be no obstacles between them.
• Signal may be susceptible to interference in a room where there is a fluorescent light or wireless telephone; remote controller should be close to indoor unit during operation.
• Replace batteries of the same type when replacement is required.
• If the remote control is not to be used for a long time, please remove the batteries.
• If the display on remote control is fuzzy or there is no display, please replace the batteries.

Emergency operation

If the remote control is lost or damaged, please use the auxiliary button to turn the air conditioner on or off. The operation is detailed as below: As shown in the Fig. open the panel and press the aux. button to turn the air

[you can trust]

conditioner on or off. When the air conditioner is turned on, it will operate in auto mode.

WARNING

Use an insulated object to press the auto button.

Working temperature range

	Indoor side DB/WB(°C) Outdoor side DB/WB (°C)
Maximum cooling 32/23 48/30
Maximum heating 27/- 24/18

NOTICE: The operating temperature range (outdoor temperature) for cooling is -15^ - 43^ . The heating temperature range for models without an electric chassis heating belt is -15^ - 24^ . The heating temperature range for models with an electric chassis heating belt is -20^ - 24^ .

2.3. Maintenance

Replacement of batteries in remote control

1. Press the back side of the remote control on the spot marked "√", and then push out the cover of battery compartment in the direction of the arrow.
2. Replace two No.7 (AAA 1.5V) dry batteries and make sure the positions of the + and - polarities are correct.
3. Reinstall the cover of battery compartment.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended that a soft dry cloth or wet cloth is used to wipe it.

NOTICE: Do not remove the panel when cleaning it.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

Clean filter

1. Open panel

Pull the panel out to a certain angle as shown in the figure.

2. Remove filter

Remove the filter as indicated in the figure.

• The filter should be cleaned every three months. If there is a lot of dust in the operation environment, the frequency of cleaning can be increased.
  • To avoid injury, do not touch the fins after removing the filter.
• To avoid deformation or fire hazard, do not use fire or a hair dryer to dry the filter.

NOTICE: Checking before seasonal use

1. Check whether air inlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether the filter is clean.
4. Check whether drainage pipe is damaged.

NOTICE: Checking after seasonal use

1. Disconnect power supply.
2. Clean indoor unit's filter and panel.

2.4. Troubleshooting

General phenomenon analysis

Please check the items below before asking for maintenance. If the malfunction still can't be eliminated, please contact a local dealer or qualified professional.

[you can trust]

Phenomenon Check items	Solution
Indoor unit can't receive remote control's signal or remote control is inactive.	Is it experiencing severe interference (such as from static electricity or unstable voltage)?	Pull out the plug. Reinsert the plug after about 3min, and then turn the unit on again.
	Is the remote control within the signal receiving range?	Signal receiving range is 8m.
	Are there any obstacles? Remove	obstacles.
	Is the remote control pointing at the receiving window?	Select proper angle and point the remote control at the receiving window on the indoor unit.
	Does the remote control have low; sensitivity, fuzzy display, or no display?	Check the batteries. If the battery power is too low, please replace them.
	No display when operating remote control?	Check whether remote control appears to be damaged.If yes, replace it.
	Fluorescent lamp in room? Move	the remote control closer to indoor unit.Turn off the fluorescent lamp and then try it again.
No air emitted from indoor unit	Indoor unit's air inlet or outlet is blocked?	Eliminate obstructions.
	If in heating mode, has the Indoor temperature reached the set temperature?	After reaching to set temperature, the Indoor unit will stop blowing out air.
	Has heating mode just been turned on?	In order to prevent blowing out cold air, the indoor unit will only be started after several minutes delay. This is a normal phenomenon.
Air conditioner can't operate	Power failure? Wait until power is restores.
	Is the plug loose? Reinsert the plug.
	Air switch trips off or fuse is blown?	Ask a professional to replace the air switch or fuse.
	Wiring has a malfunction? Ask a professional to replace it.
	Unit restarts immediately after stopping operation?	Wait for 3min, and then turn the unit on again.
	Is the function setting on the remote control correct?	Reset the function.
Mist is emitted from indoor unit's air outlet	Is there high indoor temperature and humidity?	This is due to the indoor air being cooled rapidly. After a while the indoor temperature and humidity will decrease and the mist will disappear.
Set temperature can't be adjusted	Is unit operating in auto mode? Temperature can't be adjusted in auto mode.Please switch the operating mode if you need to adjust the temperature.
	Your required temperature exceeds the set temperature range?	Set temperature range:16°C ~30°C.
Cooling (heating) effect is not good.	Voltage is too low? Wait until the voltage returns to normal.
	Filter is dirty?	Clean the filter.
	Is Set temperature within the proper range?	Adjust temperature to within the proper range.
	Door or window are open?	Close doors and windows.

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

BECKEN

Odors are emitted	Is there a source of the odor, such as furniture or cigarettes, etc.?	Eliminate the odor source.Clean the filter.
Air conditioner operates abnormally suddenly	Is there interference, such as thunder, wireless devices, etc.?	Disconnect the power, reconnect the power, and then turn the unit on again.
"Water flowing" noise	Has the air conditioner just been turned on or off?	The noise is the sound of refrigerant flowing inside the unit, which is a normal phenomenon.
Cracking noise	Has the air conditioner just been turned on or off?	This is the sound of friction caused by expansion and/or contraction of the panel or other parts, due to the change of temperature.

Error Code

When the air conditioner status is abnormal, the temperature indicator on indoor unit will blink to display the corresponding error code. Please refer to below list to identify the error code.

Error code Troubleshooting

E5 It can be eliminated by restarting the unit. If not, please contact qualified professionals for service.

E8 It can be eliminated by restarting the unit. If not, please contact qualified professionals for service.

U8 It can be eliminated by restarting the unit. If not, please contact qualified professionals for service.

H6 It can be eliminated by restarting the unit. If not, please contact qualified professionals for service.

C5 Please contact qualified professionals for service.

F1 Please contact qualified professionals for service.

F2 Please contact qualified professionals for service.

Note: For other error codes, please contact qualified professionals for service.

WARNING

• If any of the phenomena indicated below occurs, please turn off the air conditioner, disconnect the power immediately and then contact a dealer or qualified professionals for service.
  • The power cord is overheating or damaged.
  • There is an abnormal sound during operation.
  • The air switch trips frequently.
  • The air conditioner emits a burning smell.
  • The indoor unit is leaking.
• Do not repair or refit the air conditioner yourself
• If the air conditioner operates under abnormal conditions, it may cause a malfunction, electric shock or fire hazard.

3. CUSTOMER SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs you may be able to determine its cause by following the procedures suggested in this section.

[you can trust]

Do not attempt to open the appliance – there is a risk of electrical shock.

If you are not able to solve the problem please contact your seller or manufacturer. All users must be familiar with this section. Knowing what could go wrong can help to prevent problems occurring.

WARNING

Any attempt to repair the appliance without contacting the manufacturer will void the warranty.

If the problem persists take your appliance to the customer service of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar provides a 2 year warranty for manufacturing defects from the date of purchase of the appliance. The warranty is applicable for correct use and maintenance of the appliance, namely according to the instructions in this manual. Malfunctions caused by any other situations are not covered by the warranty.

The repair of electric appliances must only be made by qualified technicians in order to prevent future problems.

To avoid unnecessary risks, any malfunctions concerning wires or other components must be repaired in a specialized technical support workshop because suitable tools are required.

4. PROTECTION OF THE ENVIRONMENT

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials once disassembled by a specialized company. Comply with local regulations concerning recycling of all materials.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

Split Air Conditioner | Aire acondicionado Split | Ar condicionado Split

ES

Estimado cliente:

B: Remova as rebarbas

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
