DRF36C000SR - Refrigerator Dacor - Free user manual and instructions

Product type	Built-in refrigerator
Brand	Dacor
Model	DRF36C000SR
Dimensions (H x W x D)	213.4 x 91.4 x 76.2 cm
Weight	182 kg
Power supply	115 V, 60 Hz
Total capacity	566 liters
Climate class	SN-T (16°C to 43°C)
Noise level	42 dB
Energy class	A+
Annual consumption	350 kWh
Refrigerant	R600a
Main functions	Automatic cooling, LED lighting, digital display, water dispenser, open door alarm
Defrost	Automatic
Maintenance and cleaning	Coil cleaning every 6 months, water filter replacement every 6 months
Safety	Child lock, door alarm, surge protection
Spare parts	Available on Dacor official website
Repairability	Repairability index: 7.2 / 10
Color	Stainless steel
Panel compatibility	Yes, for built-in installation
Manufacturer warranty	2 years

Frequently Asked Questions - DRF36C000SR Dacor

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature is 4°C for the refrigerator and -18°C for the freezer. Use the digital settings to adjust.

How to install the built-in refrigerator?

Make sure the location is level and the opening measures at least 213.4 cm in height, 91.4 cm in width, and 76.2 cm in depth. Leave a ventilation space of at least 5 cm at the back.

What to do if the refrigerator makes an abnormal noise?

Check that it is level and not in contact with furniture. A gurgling noise is normal. If the noise persists, contact customer service.

How to clean the water dispenser?

Clean the spout with a soft cloth and white vinegar. Replace the water filter every 6 months to ensure water quality.

Why does the door alarm sound?

The alarm triggers if the door remains open for more than 2 minutes. Close it completely to stop it. If the problem persists, check the seals.

How to change the LED bulb?

The LED bulbs are integrated and cannot be changed individually. In case of failure, contact a Dacor authorized technician.

Can I install the refrigerator outdoors?

No, this model is designed for indoor use only. The climate class SN-T allows use between 16°C and 43°C.

How to defrost the freezer?

This model is equipped with automatic defrost. No manual intervention is necessary. In case of excessive frost, check the door.

Where to find the serial number?

The serial number is on a nameplate inside the refrigerator, usually on the left wall or at the top of the door.

How to lock the controls?

Press the 'Alarm' and 'Freezer Temp' buttons simultaneously for 3 seconds to activate the child lock. A padlock symbol will appear.

USER MANUAL DRF36C000SR Dacor

Important safety symbols and precautions: 7

State of California Proposition 65 Warning (US only) 7

Severe warning signs for transportation and site 7

Critical installation warnings 8

Installation cautions 10

Critical usage warnings 11

Usage cautions 14

Cleaning cautions 15

Critical disposal warnings 16

This appliance is intended to be used in household and similar applications such as 16

Installation 17

Refrigerator at a glance 17

Step-by-step installation 19

Operations 35

Main panel 35

Dacor iQ Kitchen 43

Dispenser panel 45

Special features 47

Maintenance 53

Handling and care 53

Cleaning 63

Replacement 64

English2

Troubleshooting 67

General 67

Do you hear abnormal sounds from the refrigerator? 71

Dacor iQ Kitchen 73

Warranty and Service 74

Customer Service 74 Warranty 74

Open Source Announcement 78

Regulatory Notice 79

FCC Notice 79

IC Notice 80

dacor®

To Our Valued Customer:

Congratulations on your purchase of the very latest in Dacor® products! Our unique combination of features, style and performance make us The Life of the Kitchen™, and a great addition to your home.

In order to familiarize yourself with the controls, functions and full potential of your new Dacor Appliance, read this use and care manual thoroughly, beginning with the Important Safety Instructions section.

All Dacor appliances are designed and manufactured with quality and pride, while working within the framework of our company value. Should you ever experience a problem with your product, please first check the Troubleshooting section of this manual for guidance. It provides useful suggestions and remedies prior to calling for service.

Valuable customer input helps us to continuously improve our products and services, so please feel free to contact our Customer Service Team for assistance with any of your product support needs.

Dacor Customer Service Team

14425 Clark Avenue

City of Industry, CA 91745

Telephone: [phone]

Fax: [phone]

Hours of Operation: Monday through Friday 6:00 A.M. to 5:00 P.M. Pacific Time

Website: www.Dacor.com

Thank you for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor product will deliver a high level of performance and enjoyment for many years to come.

Sincerely,

The Dacon Customer Service Team

English4

Important Information

Before You Begin

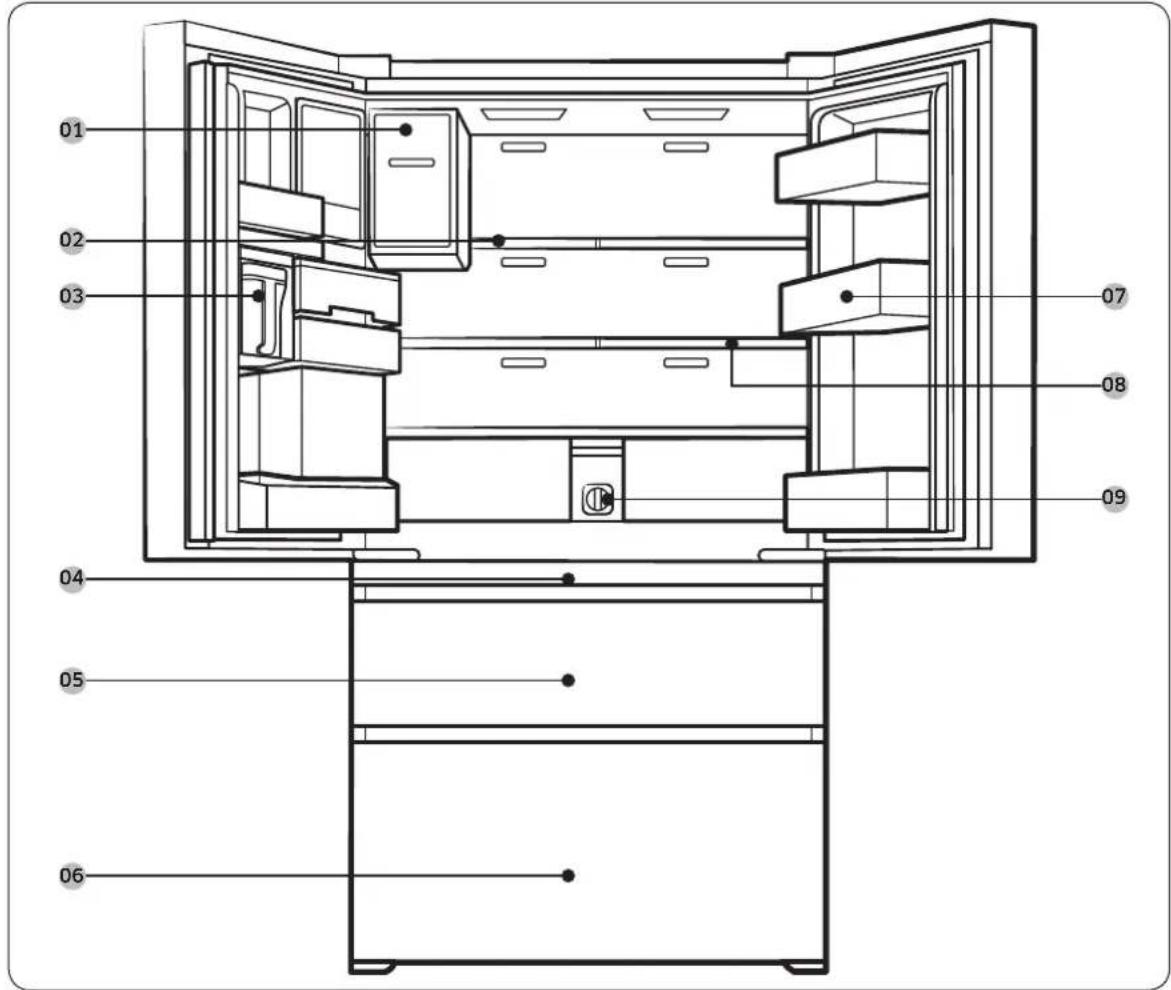

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Installer

- Leave these Use and Care instructions with the appliance.

Consumer

- Please read this Use and Care Manual completely before using your refrigerator. Save it for future reference.

Retain your sales receipt or canceled check. Proof of original purchase date is required for warranty service.

Have the complete model and serial number identification for your appliance ready.

These numbers are found on the label located inside of the refrigerator wall. Record these numbers below for easy access.

Model Number
Serial Number
Date of Purchase

Since we continually improve the quality and performance of our products, we may make changes to the appliance without updating this manual. Visit www.dacor.com to download the latest version of this manual.

Dacor Customer Service

Phone: [phone] (U.S.A. and Canada) Monday – Friday 6:00 A.M. to 5:00 P.M. Pacific Time

Website: www.dacor.com

Safety Information

• Before using your new Dacor Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.
• It is hazardous for anyone other than an Authorised Service Person to service this appliance.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.
• Failing to do so may result in fire or explosion.

WARNING

• R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft ^3 in size for every 8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.
• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

Warning; Risk of fire / flammable materials

English6

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning (US only)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
• This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also flammable. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

English 7

Safety Information

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock of fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• This may result in an electric shock or fire.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
• Damage to the cord may cause a short-circuit, fire, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not install this appliance near a heater or flammable material.
• Do not install this appliance in a location where gas may leak.
• This may result in an electric shock or fire.
• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

English8

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Dacor service center.
• Otherwise there is a risk of fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.
• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• This may result in an electric shock, fire, explosion, or problems with the product.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

English 9

Safety Information

• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.
• Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.
• Failing to do so may result in an electric shock or personal injury.
• The wall socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.
• When positioning the appliance, ensure the power cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.
• It is strongly recommended you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
  • Overloading one door may make the refrigerator fall, causing physical injury.

English10

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
• This refrigerator is for storing food only.
• This may result in fire or explosion.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of the "pinch point" or hinge areas of the doors. Be careful closing the doors when children are in the areas.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
• Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact your Dacor service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Dacor service center.
• Otherwise there is a risk of fire.

English 11

Safety Information

• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.
• Do not allow babies or children go into a drawer.
• It can cause death from suffocation by entrapment or personal injury.
• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.
• It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Fill the water tank, ice tray, and water cubes with potable water only (tap water, mineral water, or purified water).
• Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work.
• The glass shelf could fall and cause personal injury.
• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.
• Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall over or out.
• This product is intended only for the storage of food in a domestic environment.

English12

• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.
• This can cause a personal injury or material damage.
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the interior or exterior LED lamp has gone out, contact your nearest Dacor service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Dacor service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Dacor service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.
• Contact a Dacor service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.

Safety Information

Usage cautions

CAUTION

- Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

• Use only the ice maker provided with the refrigerator.
  • To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Do not put glass bottles or carbonated beverages into the freezer. They can freeze and break. Broken beverage containers can cause injury.
• Please observe maximum storage times and expiration dates of frozen goods.

- Do not put glass containers or bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Dacor warranty service, nor is Dacor responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a Dacor service center.
• Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

- If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Dacor service center.

- There is a risk of electric shock or fire.

English14

Cleaning cautions

CAUTION

- Do not spray water directly on the inside or outside the refrigerator.

- There is a risk of fire or electric shock.

- Do not use a hair dryer to dry the inside of the refrigerator.

- Do not place a lighted candle in the refrigerator to remove bad odors.

- This may result in an electric shock or fire.

- Do not spray cleaning products directly on the display.

- Printed letters on the display may come off.

- If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.

- Failing to do so may result in an electric shock or fire.

- Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric shock.

- Do not clean the appliance by spraying water directly onto it.

- Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.

- They may damage the surface of the appliance and may cause a fire.

- Never put fingers or any objects into the dispenser outlet.

- This can cause a personal injury or material damage.

- Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failing to do so may result in an electric shock or fire.

Safety Information

Critical disposal warnings

WARNING

- DANGER : Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors and door latch.
• Leave the shelves in place so that children may not easily climb inside.

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.

- If trapped inside, the child could be injured or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over his or her head, the child could suffocate.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

English16

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
  • To prevent electric shock, unplug the power plug before servicing or replacing parts.

Refrigerator at a glance

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

English 17

Installation

01 Auto Ice Maker (Ice Master)

03 Water tank (Auto Water Fill)

05 Fresh Zone 06 Freezer

07 Door bins 08 2-Step Foldable Shelf

09 Water filter

02 1-Step Foldable Shelf

04 Main panel (on the Fresh Zone handle)

* applicable models only

NOTE

• For energy efficiency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• When a door opens, the interlock switch automatically disables the auger motor of the ice maker for safety reasons.
• If the internal or external LED lamp is out of order, contact a local Dacor Customer Service at [phone].

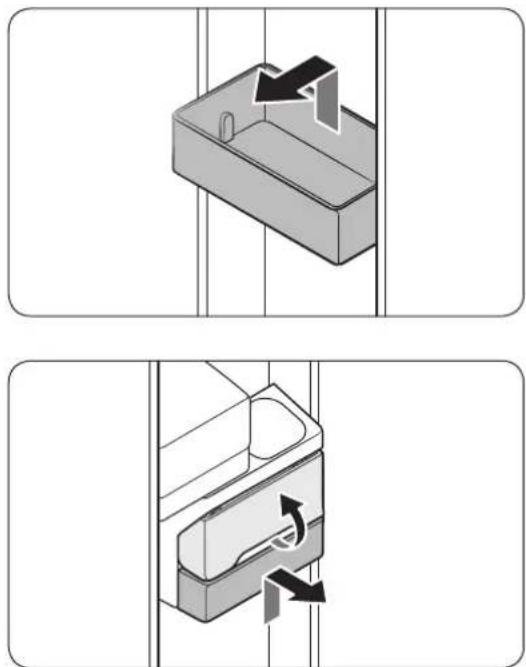

Door bins

Your refrigerator ships with door bins of different types and sizes. If the door bins for your refrigerator were packaged separately, use the figure below to help you position the bins properly.

English18

Step-by-step installation

STEP 1 Select a site

Select a site that:

• Has a solid, level surface without carpeting or flooring that may obstruct ventilation
  • Is away from direct sunlight
• Has adequate room for opening and closing the door
  • Is away from any heat sources
• Provides room for maintenance and servicing
• Has a temperature range between 50^ (10 °C) and 109^ (43 °C)

CAUTION

• If your refrigerator is equipped with an ice maker, secure extra space at the rear of the refrigerator for the water line connection.
• When you install the refrigerator next to a fixed wall, you must secure a minimum clearance of 3^3/4 (95 mm) from the wall to allow the door to swing open.

NOTE

To facilitate moving your refrigerator to its final location, be sure to measure the width and height of doorways, thresholds, ceilings, stairways, and anything else that needs to be taken into consideration to ensure you can move your refrigerator safely. The following diagram illustrates the exact height and depth (factory specifications) of your refrigerator.

Clearance

See the pictures and table below for space requirements for installation.

Model DRF36C0** DRF36C1**
Depth “A” -		30 7/8"(786 mm)
Width “B”	35 3/4"(908 mm)	35 3/4"(908 mm)
Height “C”	68 7/8"(1749 mm)	68 7/8"(1749 mm)
Overall Height “D”	70"(1777 mm)	70"(1777 mm)
Depth “E”	29 1/4"(742 mm)	29 1/4"(742 mm)

Installation

Model	DRF36C0**	DRF36C1**
01 2"	(50 mm) 2"	(50 mm)
02 135°	135°
03 62"	(1575 mm) 64"	(1624 mm)
04	13 ^1/_4 " (333.5 mm)	14 ^1/_8 " (358 mm)
05	35 ^3/_4 " (908 mm)	35 ^3/_4 " (908 mm)
06 24"	(610 mm) 24"	(610 mm)
07 2	^1/_2 " (64 mm) 2	^1/_2 " (64 mm)
08 -	4	^1/_8 " (104 mm)
09	1 ^3/_4 " (45.4 mm)	1 ^3/_4 " (45.4 mm)
10	43 ^1/_8 " (1095.5 mm)	43 ^1/_8 " (1095.5 mm)
11 45"	(1143 mm) 45"	(1143 mm)

NOTE

The measurements in the table above may differ slightly from the actual measurements, depending on the measuring and rounding method.

English20

STEP 2 Flooring

If the refrigerator cannot pass through the entrance due to its size, see STEP 3 Door removal for entrance.

NOTE

To prevent floor damage, make sure the front levelling legs are in the upright position.

• The surface you install the refrigerator must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard along the path to the refrigerator's final installation location.
• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to move the refrigerator, place thick paper or cloth such as old carpets along the path of movement.

Installation

STEP 3 Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 29 to continue the installation procedure.

WARNING

Unplug the power cord of the refrigerator before removing the doors.

Tools required (not provided)

Phillips screwdriver Flat-heat screwdriver Socket wrench

^3/_8 " (10 mm)

Pliers Allen wrench

^1/_4 " (5 mm)

English22

Detach the fridge doors

Technical diagram of a mechanical assembly with mounting holes and a black arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

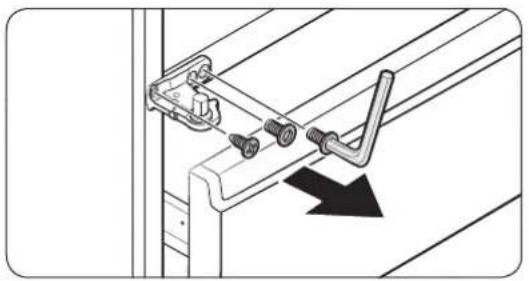

1. With the door opened, remove the screws from the top cover.

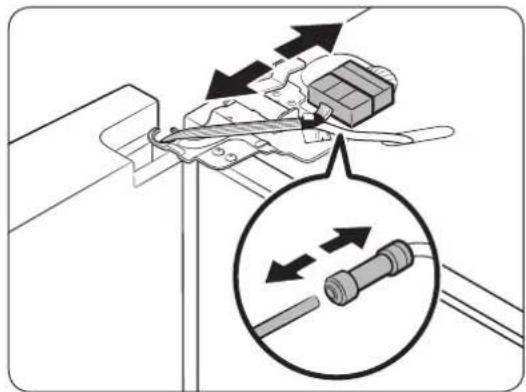

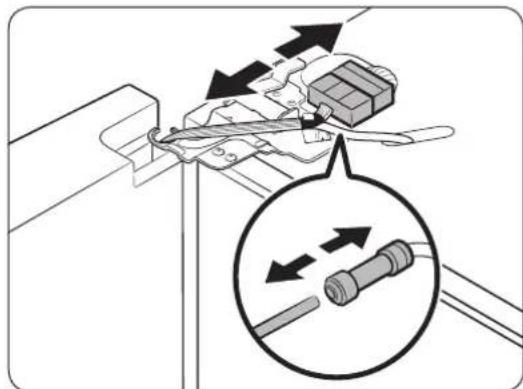

2. Disconnect the wires and the water tube from the left-side door. Do the following sequentially:

• Decouple the connector.
- While holding down one end of the water line coupler, disconnect the water tube.

CAUTION

Keep the water tube clips out of children's reach.

1. Remove the top hinges.

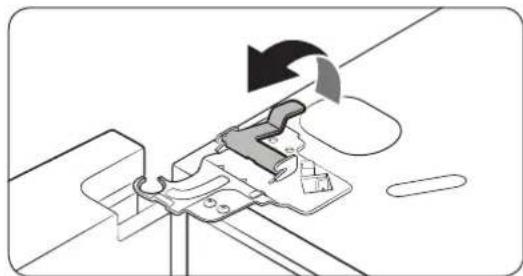

2. Pull and remove the hinge lever.

3. Then, remove the door hinge.
4. Repeat this step on the other side.

Installation

Diagram of a refrigerator interior showing internal compartments and door handle (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a lever, no text or symbols present

1. Lift straight up to remove the door.

- Repeat this step on the other side.

CAUTION

Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.

1. Remove the middle hinge.

2. Remove the screw from the hinge using a Phillips screwdriver.

3. Remove 1 hex-head bolts from the hinge using an Allen wrench ( ^1/_4 ", 5 mm).
4. Remove the middle hinge.
5. Repeat this step on the other side.

To reattach the fridge door

After you have moved the refrigerator to its final location, reattach the doors by following the removal instructions in reverse order.

01 Dispenser
02 Center of transparent coupler
03 Guidelines

CAUTION

To prevent water leaks from the dispenser, the water line must be fully connected. Make sure both tubes of the water line are inserted fully to the center of transparent coupler (A) or the guidelines (B).

English24

Detach the Fresh Zone drawer

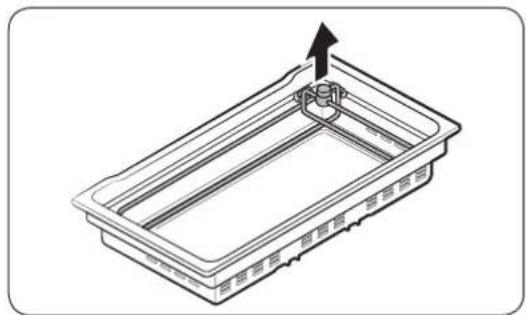

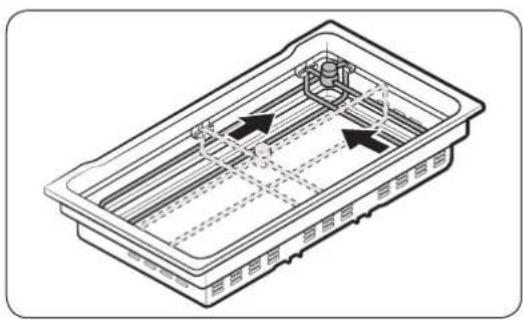

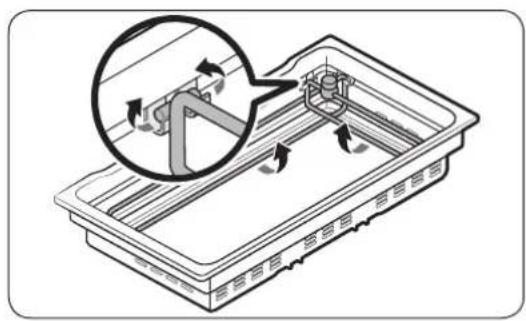

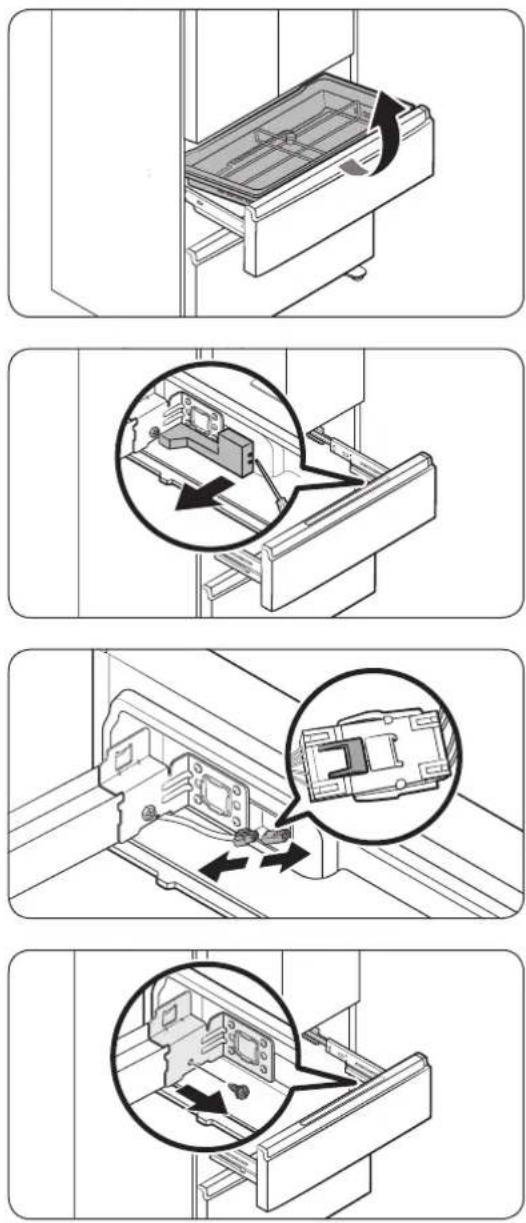

1. Lift up to remove the Fresh Zone basket.

2. Remove the wire cover with harness using a flat-head screwdriver.

3. Press the locking tab to disconnect the wire connector.

4. Remove the hex-head bolt from each side using a socket wrench ( ^3/_8 ", 10 mm) or a screwdriver.

Installation

Diagram of a mechanical assembly with an arrow indicating direction (no text or symbols present)

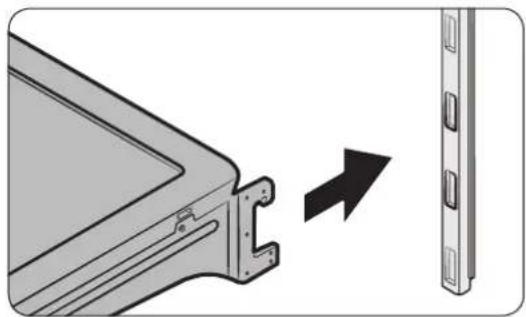

1. Lift up to remove the drawer front of the Fresh Zone from the rail assembly.

Diagram of a refrigerator interior with a magnified view showing a slot and base, no text or symbols present.

CAUTION

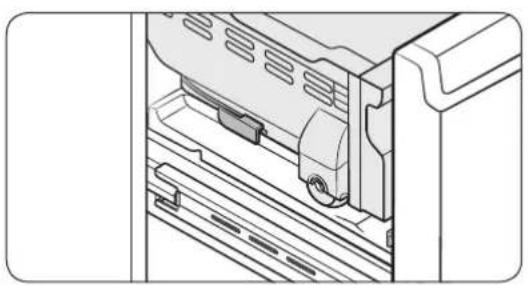

• Use caution when removing the rail assembly, which may fall off causing damage to the floor.
• Make sure to put the Fresh Zone drawer in place after removing or mounting the Fresh Zone basket. The Fresh Zone drawer may not open or close if the freezer drawer is not in place.
• Do not store too much food in the Fresh Zone drawer. This prevents the Fresh Zone drawer from closing properly, resulting in frost buildup.

To reattach the Fresh Zone drawer

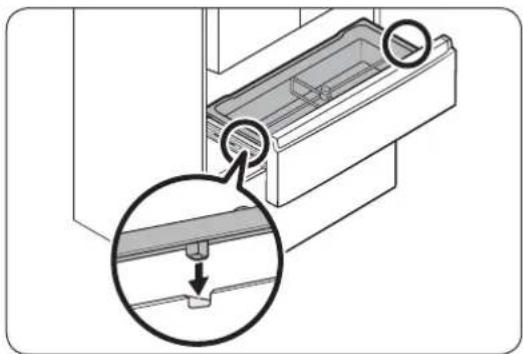

After you have moved the refrigerator to its final location, reattach the Fresh Zone drawer by following the removal instructions in reverse order.

CAUTION

If the Fresh Zone or the indicator does not operate properly, make sure the connectors are connected properly.

English26

Detach the freezer drawer

1. Push the upper basket to the end, and then pull up to remove.

2. Pull up to remove the lower basket from the rail assembly.

3. Press down the hooks to unlock the rail assembly.

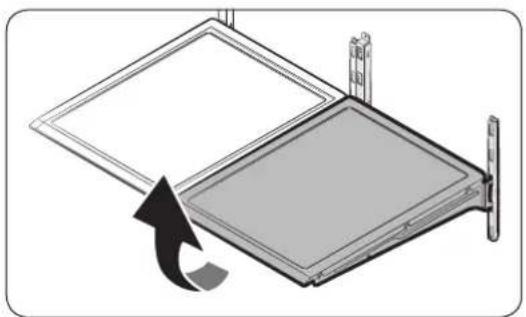

4. While holding the upper area of the drawer front of the freezer, slide out all the way to remove the freezer drawer from the rail assembly.

Installation

Diagram of a refrigerator interior showing internal compartments and storage areas, with arrows indicating movement (no text or symbols present)

Diagram showing two scenarios of a vehicle being stopped or blocked, with no text or symbols present.

Technical line drawing of a mechanical device with mounting brackets and a central component (no text or symbols)

CAUTION

• Make sure you mount the freezer baskets in the right position. Otherwise, the drawer will not open or close properly, which causes frost to build up.
- Do not store too much food in the freezer baskets. This prevents the freezer drawer from closing properly, resulting in frost buildup.
- While the lower basket is fully open, put the upper basket into the freezer drawer. Make sure the wheels of the upper basket are on the end of the rails of the lower basket.
- Put the wheels of the upper basket on the end of the rails of the lower basket. Then, slide the upper basket all the way to the front.
- Be careful not to scratch or dent the rail assembly.

To reattach the freezer drawer

After you have moved the refrigerator to its final location, reattach the freezer drawer by following the removal instructions in reverse order.

English28

STEP 4 Levelling the refrigerator

CAUTION

• The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
• Levelling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.
• Also, open the freezer drawer and remove the lower basket.
• For safety reasons, adjust the refrigerator so that the front is a little higher than the rear.

Level the refrigerator using the special screws (levellers) on the front legs. Use a flat-head screwdriver to turn the levellers.

Diagram showing a mechanical device with rotating components and directional arrows, no text or symbols present.

- To adjust the height on one side: Insert a flat-head screwdriver into a notch in the leveller on that side. (left or right) Turn the leveller clockwise to raise the refrigerator. Turn it counterclockwise to lower. Repeat on the other side.

Installation

STEP 5 Adjust the door height and the door gap

Two abstract curved shapes with internal lines, no text or symbols present

Snap rings

The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm).

To adjust the height of a door

Technical illustration of a door lock mechanism with a close-up view showing the switch and component (no text or symbols)

1. Check the height difference between the doors, and then raise and hold the door with the lower height.

2. Insert a suitable-sized snap ring (A) between the door and the hinge as shown.

CAUTION

• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.
• Keep the snap rings out of children's reach and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.

English30

STEP 6 Connect the water dispenser line

A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that.

The water line also connects to the ice maker. For the ice maker to operate properly, water pressure of 20-125 psi (138-862 kPa) is required.

If the refrigerator is installed in an area with low water pressure (below 20 psi (138 kPa)), you can install a booster pump to compensate for the low pressure.

After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until water runs from the water outlet.

NOTE

• Water line installation kits are available at extra cost from your retailer. We recommend using a water line installation kit that contains copper tubing and a 1/4'' (6 mm) compression nut.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

WARNING

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Connect to potable water supply only.

1. Shut off the main water source.

2. Insert the pipe clamp (B) and the shutoff valve (C) into the cold water line (A).

3. Connect the water line installation kit (A) to the shutoff valve (B).

Installation

Connect the water supply line to the refrigerator

There are several items you must purchase to complete this connection. You may find these items sold as a kit at your local hardware store.

Copper Tubing	^1/_4" copper tubing ^1/_4" compression nut (1 pc)Ferrule (2 pc)
Plastic Tubing	^1/_4" plastic tubing → Molded end (Bulb) ^1/_4" compression nut (1 pc)

A. Refrigerator
B. Household water supply line

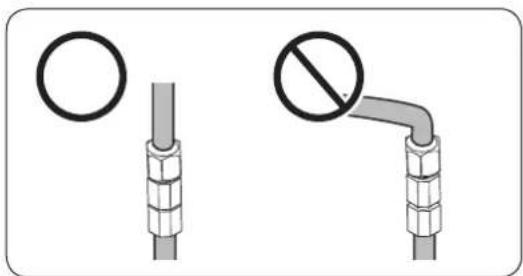

C. Water Line: must be kept straight.

01 Compression Nut ( ^1/_4 ) (Assembled)

02 Ferrule (Not supplied)

03 Copper tubing (Not supplied)

04 Plastic Tubing (Assembled)

05 Compression Fitting (Assembled)

06 Molded end (Bulb)

07 Compression nut (B) (1/4") (Not supplied)

08 Plastic Tubing (A) (Not supplied)

NOTE

If you have to relocate the refrigerator after connecting the water line (C), make sure the joined section of the water line must is straight.

1. Connect the household water line to the assembled compression fitting.

2. If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown.

3. If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing (A) into the compression fitting.

English32

CAUTION

• If you use plastic tubing (A), do not use it without the molded end (Bulb).
- Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure that the ice making function is turned "OFF" and do not attempt to use the water dispenser.
2. Tighten the compression nut (B) onto the compression fitting. Do not over-tighten the compression nut (B).
3. Turn the water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.
4. Flush 1 gallon of water through the filter before drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it, and then repeat.
5. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line.

NOTE

Only connect the water line to a potable water source.

- If you have to repair or disassemble the water line, cut off ^1/4 of the plastic tubing to make sure you get a snug, leak-free connection.

- You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can fill a 5 34 oz. (170 cc) cup in about 10 seconds.

Installation

STEP 7 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

CAUTION

Before installing the refrigerator, make sure to remove the Cover Interlock (1) from the top of the fridge door. Otherwise, injuries may be caused by the ice crushing blade.

1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

STEP 8 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from walls and cabinets.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English34

Operations

Main panel

01 Fridge / Power Cool 02 Freezer / Power Freeze

03 Fresh Zone 04 Ice Maker

05 Auto Water Fill 06 Filter Reset

07 Energy Saver

08 Door Alarm / °F ↔ °C

09 Control Lock 10 Cooling Off

11 Sabbath Mode

12 Network connection

NOTE

• When you change the temperature on the panel, the panel displays the actual temperature inside the refrigerator until the temperature matches the temperature you set. Then, the panel displays the new set temperature. Note that it will take time for the refrigerator to reach the new temperature. This is normal. During this time, you do not need to set the temperature again.
• To ensure optimal performance, we recommend setting the temperature to 0 °F (-18 °C) for the freezer, and 37 °F (3 °C) for the fridge.
• The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator. If this happens, the temperature display blinks until the refrigerator returns to the specified temperature settings.
• If a communication error occurs between the temperature display and the main controller, this blinking continues for an extended time. Contact a local Dacor Customer Service for technical assistance.
• The display of the main panel turns on only if the door is opened and turns off if the door is closed.
• If no button is input for 1 minute, the main panel will be locked automatically by activation of Control Lock.

English 35

Operations

01 Fridge / Power Cool (3 sec)

Fridge

You can use the Fridge button to set the fridge temperature or to activate/deactivate Power Cool.PressFridgerepeatedly to select a desired temperature between 34 °F (1 °C) and 44 °F (7 °C). The temperature indicator displays the currently set or selected temperature.

Power Cool

Power Cool speeds up the cooling process at maximum power to lower the fridge temperature. The cooling process continues to run for several hours, and then the fridge returns to the previous temperature setting.Use Power Cool to rapidly cool food that spoils quickly or to rapidly cool the refrigerator after the door has been left open for some time.To activate Power Cool, press and holdFridgefor 3 seconds.The corresponding indicator (💡) lights up and the refrigerator speeds up the cooling process.To deactivate Power Cool, press and holdFridgeagain for 3 seconds. The fridge returns to the previous temperature setting.NOTEUsing Power Cool increases power consumption. Make sure you turn it off if you no longer need it and let the refrigerator return to its previous temperature.

English36

02 Freezer / Power Freeze (3 sec)

Freezer

You can use the Freezer button to set the freezer temperature or to activate and deactivate Power Freeze.To set the freezer temperature manually, press Freezer repeatedly. The currently set or selected temperature appears on the temperature display. Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C).

Power Freeze

Power Freeze speeds up the freezing process at maximum power to lower the freezer temperature. The freezing process continues to run for several hours, and then the freezer returns to the previous temperature setting with normal power.To activate Power Freeze, press and hold Freezer for 3 seconds. The corresponding indicator ( ⚙ ) lights up and the refrigerator speeds up the freezing process.To deactivate Power Freeze, press and hold Freezer for 3 seconds again. The freezer returns to its previous temperature setting.To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting the food in the freezer.NOTEUsing Power Freeze increases power consumption. Make sure you turn it off if you no longer need it and let the refrigerator return to its previous temperature.

Operations

03 Fresh Zone

The Fresh Zone is a full-width drawer featuring temperature control. It has a temperature sensor that adjusts the amount of cold air allowed into the zone.

• Press Fresh Zone repeatedly to select a desired mode. By default, Cheese is selected.
• The refrigerator adjusts the temperature in the Fresh Zone according to the selected mode.

Mode Description Examples
Wine	Select Wine to keep food fresh for a long time. The temperature of the Fresh Zone will be kept around 42 °F (5 °C).	Wine, cocktails, cake, cheese
Cheese	Select Cheese to keep food fresh for a longer time.The temperature of the Fresh Zone will be kept around 37 °F (3 °C).	Pineapples, lemons, biscuits, potatoes
Cold Drinks	Select Cold Drinks to keep drinks cold and refreshing.The temperature of the Fresh Zone will be kept around 33 °F (1 °C).	Bottled water, juice, soft drinks, beer
Chill/Meat	Select Chill/Meat to keep meat or fish fresh for a longer time.The temperature of the Fresh Zone will be kept around 29 °F (-1 °C).	Steaks, cold cuts, bacon, chili dogs

CAUTION

• Do not use the Fresh Zone to store most kinds of fruit or leafy vegetables. These food items may suffer cold-temperature damage.
• Do not store glass bottles in the Fresh Zone in Chill/Meat mode. They may break and cause physical injury.

English38

04 Ice Maker (3 sec)

Ice Maker

Press and hold Ice Maker for more than 3 seconds to turn the ice maker on or off.The ice maker has 2 indicators (ON/OFF) to indicate the operating status.When the ice maker operates, the ON indicator turns on.When the ice maker is turned off, the OFF indicator turns on.In this case, ice making is disabled even if you press the Cubed or Crushed Ice buttons on the dispenser panel. To enable ice making, you must turn the ice maker on.NOTEIf the ice maker is turned off, it will turn on if you press and hold the ice lever for more than 5 seconds.

05 Auto Water Fill (3 sec)

Auto Water Fill

Press and hold Auto Water Fill for 3 seconds to turn the function on. Open the left door of the fridge, and then insert the water tank. Close the door and the water tank starts to be filled with water up to the a preset level some time later.To turn the function off, press and hold Auto Water Fill again for 3 seconds.NOTEBy default, Auto Water Fill is disabled. Enable this function after you have installed the water line.If you open the door or push the dispenser lever, this function is stopped temporarily.While the water tank is filled with water, the mood light on the dispenser panel stays lit.The Auto Water Fill indicators blink if there is a leak. This may occur because the water tank overflows, or the water-line or water-level sensor fails. If this is the case, follow these steps.Open the rubber cap and drain water.When draining is complete, the indicators stop blinking and turn solid.Close the rubber cap.If the indicators continue to blink, this might be a system failure. Contact a local service center.

Operations

06 Filter Reset (3 sec)

Filter Reset

After about 6 months (and typically, about 300 gallons (1200 L) of water), the Filter indicator blinks red for several seconds when you open or close the door, reminding you that the filter needs to be replaced.When this happens, replace the filter, and then press and holdFilter Resetfor 3 seconds. The filter lifecycle will be reset and the Filter indicator turns off.NOTESome regions have relatively large amounts of lime in their water. This can reduce the lifecycle of the filter. In these areas, you will have to replace the water filter more often than specified above.If water is not dispensing properly, the water filter is most likely clogged. Replace the water filter.

07 Energy Saver

Energy Saver

Use Energy Saver mode to reduce power consumption.Press Energy Saver to turn on or off Energy Saver mode and the corresponding indicator. By default, Energy Saver mode is enabled.NOTEIf condensation or water drops form on or around the doors, turn Energy Saver mode off.

08 Door Alarm / °F ↔ °C (3 sec)

Door Alarm	If the door is left open for more than 2 minutes, an alarm will sound and the Alarm Indicator will blink. You can toggle the alarm on and off by pressing Door Alarm. The alarm is enabled by factory default.
°F ↔°C	You can also use the Door Alarm button to switch the temperature scale between Celsius and Fahrenheit.To switch the temperature scale, press and hold Door Alarm for 3 seconds to change the current temperature scale.

English40

09 Control Lock (3 sec)

Control Lock(Main panel)

To prevent accidental setting changes, press and hold Control Lock for 3 seconds. The main panel will be disabled and the Lock indicator (● will turn on.When Control Lock is on, the indicator blinks if any button (except for the Control Lock button) on the main panel is pressed.If you press and hold the button again for more than 3 seconds, Control Lock will be deactivated.However, Control Lock will be reactivated if no button is pressed within 1 minute.NOTEControl Lock on the main panel does not affect the dispenser.The dispenser operates independently and so does the dispenser lever. To lock the dispenser and the dispenser lever, use the Lock function on the dispenser.

Device authentication

When connecting the refrigerator to Dacor iQ Kitchen App, follow the app's or device's onscreen instructions and press and hold Control Lock for 5 seconds. The temperature panel displays “on” for 5 seconds before proceeding with the authentication procedure. Note that the Control Lock function will be not affected by this authentication.

10 Cooling Off

Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on a retail floor.

In Cooling Off mode, the refrigerator's fan motor and lights operate normally, but the compressors do not run so that neither the refrigerator nor the freezer get cold.

To enter Cooling Off mode, press and hold Ice Maker, Auto Water Fill, and Door Alarm for 5 seconds.

The refrigerator chime sounds, and the refrigerator shows 0 on the fridge display and FF on the freezer display.

Operations

11 Sabbath Mode

The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate, press and hold Freezer and Door Alarm simultaneously for 5 seconds to enter Sabbath mode. Then the refrigerator operates in Sabbath mode where the buttons, the display, and the room lamps are all under control.
• To deactivate, press and hold the buttons again for 5 seconds to exit Sabbath mode.

NOTE

Even after the refrigerator powers off and restarts, the Sabbath mode remains active. To exit, you must deactivate it first.

12 Network connection

You can control and monitor your refrigerator through the Dacor iQ Kitchen app. For more information, see the Dacor iQ Kitchen section.

NOTE

• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or unstandardized Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Dacor Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Dacor Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Dacor service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP.
• Dacor Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols. (IEEE 802.11 n is recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Dacor Smart Refrigerators.

English42

Dacor iQ Kitchen

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for "Dacor iQ Kitchen". Download and install the Dacor iQ Kitchen app to your smart device.

NOTE

• The Dacor iQ Kitchen app is designed for Android 4.0 (ICS) or higher, or iOS 8.0 or higher.
• For improved performance, the Dacor iQ Kitchen app is subject to change without notice, or discontinued support according to the manufacturer's policy.

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

Getting started

1. Run the Dacor iQ Kitchen app and log in with your Samsung account. iPhone users are required to provide the login information each time they access the app.
2. Select Add Device and then tap Refrigerator.
3. Follow the onscreen instructions to provide the necessary information about the router, and then tap Next.
4. Press and hold Fridge for more than 5 seconds until the "AP" message appears on the freezer display. Your refrigerator will be registered with the app.
5. When device registration is complete, the refrigerator icon will appear on the Dacor iQ Kitchen app.
6. Tap the refrigerator icon to open the refrigerator page.
7. When a network connection is established, the Wi-Fi icon lights up on your refrigerator.

Refrigerator app

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon in the Dacor iQ Kitchen to open the refrigerator page.
• Check the operation status or notifications related to your refrigerator, and change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

Operations

Category Item	Description
Monitoring	Fridge temperature	Displays the current temperature setting of the fridge.
	Freezer temperature	Displays the current temperature setting of the freezer.
	Fresh Zone settings Dis	plays the settings of the Fresh Zone.
	Diagnosis	Detects abnormal operations of the refrigerator.
	Energy monitoring	Checks the accumulated power consumption of the refrigerator for the last 180 days.
Functions	Ice making	You can turn the ice making function on or off, and check the current settings of the function.
		You can also check the status and progress of ice making.
	Power Cool	You can turn Power Cool on or off, and check the current settings.
	Power Freeze	You can turn Power Freeze on or off, and check the current settings.
Alarms	Abnormally high temperature	This alarm is triggered when the fridge, the freezer, or the Fresh Zone has abnormally high temperatures.
	Door opening	This alarm is triggered if the fridge door, the freezer drawer, or the Fresh Zone drawer is open for a specific time.
	Auto Water Fill overflowing	If the Auto Water Fill function senses an overflow, it triggers this alarm to let you know the status of the overflow.
	Water filter replacement	This alarm reminds you that the water filter must be replaced.

English44

Dispenser panel

01 Water / Lock 02 Cubed Ice

03 Crushed Ice / Lighting 04 Dispenser mood light

01 Water / Lock (3 sec)

Water	To dispense chilled water, press Water. The corresponding indicator turns on.
Lock(Dispenser panel / Dispenser lever)	To prevent use of the dispenser panel buttons and the dispenser lever, press and hold Water for more than 3 seconds.If you press and hold the button again for more than 3 seconds, the dispenser lock will be deactivated.[IMAGE]NOTEThe Lock on the dispenser panel does not affect the controls on the main panel. To lock the main panel, use the Control Lock function on the main panel.

02 Cubed Ice

Cubed Ice

Press Cubed Ice to dispense cubed ice. The corresponding indicator turns on.

Operations

03 Crushed Ice / Lighting (3 sec)

Crushed Ice	Press Crushed Ice to dispense crushed ice. The corresponding indicator turns on.
Lighting	By default, the dispenser lamp turns on only when the dispenser is used. To keep the dispenser lamp turning on, press and hold Crushed Ice for 3 seconds. To turn the lamp off, press and hold Crushed Ice for 3 seconds again.

04 Dispenser mood light

The Dispenser mood light lights up in the following conditions:

• When you push the dispenser lever with the dispenser lock disabled
• Push the dispenser lever and the dispenser mood light turns on. Release the lever and the light turns off after a some time.
• While the water tank is being filled with water with the Auto Water Fill function turned on
• The dispenser mood light stays lit.

English46

Special features

Water tank (Auto Water Fill)

The Auto Water Fill function lets you enjoy cold brewed tea in your refrigerator.

To fill the water tank

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a door latch mechanism with a trash bin and directional arrow (no text or symbols)

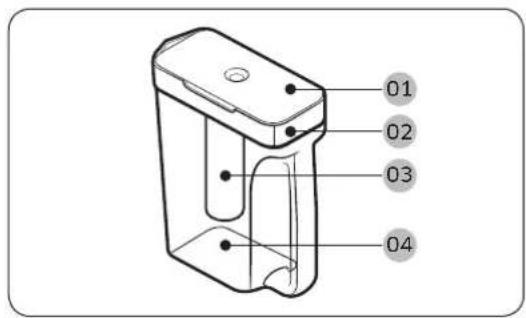

01 Lid
02 Sealed mouth
03 Infuser
04 Body

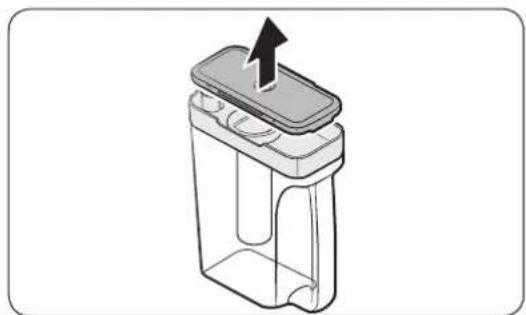

1. Grasp a handle groove of the sealed mouth, and then pull up to open the lid.
2. Put tea leaves or fruits to your taste into the infuser.

NOTE

If you want to keep the infused water in its initial concentration, turn the Auto Water Fill function off.

1. Enable the Auto Water Fill function on the main panel. Open the left door of the fridge door, and then mount the water tank onto the holder. Push it straight in as shown in the illustration on the left.
2. Close the door. The infuser will start to fill with chilled water some time later.

CAUTION

Make sure the infuser fits in the water tank holder.

Operations

Technical diagram of a door or cabinet interior with an arrow indicating a movement or force (no text or symbols present)

1. To drink tea, open the door and detach the water tank. Pull it straight out.

CAUTION

• We recommend consuming fruit infused water within 24 hours. After that, the infused water can spoil over time.
• You must clean the water tank after you have consumed up the infused water or when a long time has passed without using the water tank.

Diagram showing two mechanical components with no visible text or symbols, one marked with a circle and the other with a prohibition sign (no text or symbols present)

• To prevent the water tank from tipping over or leaking, make sure the water tank fits in the water tank holder.

Two identical plastic containers with circular and diagonal symbols, one marked with a circle and the other with a prohibition sign (no text or labels)

- To prevent the water tank from spilling over or leaking, make sure the sealed mouth is properly inserted.

English48

Technical illustration showing a mechanical component with a magnified inset highlighting a detail (no text or symbols present)

NOTE

• If the front side (specifically marked area) of the water tank has too much moisture, the water tank may not fully fill. Remove the moisture, and then try again.

• Auto Water Fill will stop supplying water for the water tank if the water tank does not fill after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water tank, and then try again.

• Wipe around the infuser holder if the infuser overflows or leaks.
  • Water drops off if the rubber cap is opened.

• The Auto Water Fill indicator blinks if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. The indicator will then turn off. However, if the indicator continues to blink, there might be a system failure. Contact your local Dacor Customer Service.
• The Auto Water Fill indicators blink if there is a leak. See page 39 for more information.

Operations

Water/Ice dispenser

Using the dispenser, you can dispense water with or without ice.

The water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. To dispense chilled water, press Water on the dispenser panel. Put a water glass under the dispenser, and then push the dispenser lever.

To dispense water with ice

1. With the Ice Maker enabled, press Cubed Ice or Crushed Ice to select the ice type.
2. Put a water glass under the dispenser, and then push the dispenser lever with the glass. Ice will be dispensed from the dispenser.
3. Press Water to select water.
4. Push the dispenser lever with the glass. Water will be dispensed from the dispenser.

NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

Ice maker

The refrigerator has a built-in ice maker that automatically dispenses ice so that you can enjoy filtered water with cubed or crushed ice.

Ice making

After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice:

1. Let the refrigerator operate for at least 24 hours to ensure optimal performance.
2. Dispense the first 4 to 6 ice cubes into a glass.
3. Wait another 8 hours and dispense another 4 to 6 ice cubes.
4. Then, wait another 16 hours and dispense the first glass-full of ice.

English50

NOTE

• If you consume all the ice at once, you must wait 8 hours before dispensing the first 4 to 6 cubes. This ensures that the ice bucket is filled with ice properly.
• Ice cubes generated rapidly may look white, which is normal.

Diagnosis

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

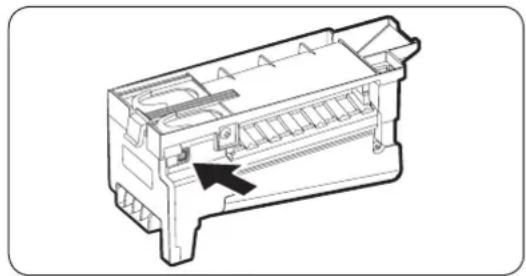

If ice does not dispense, first check the ice maker.

1. Press Test on the side of the ice maker. You will hear a chime (ding-dong) when you press the button.
2. You will hear another chime if the ice maker is operating properly.

CAUTION

• If the ice making chime rings repeatedly, contact your waterline installer or a local Dacor Customer Service.
• Do not press Test repeatedly after the ice tray is filled with ice or water. Water may overflow or ice may jam.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket so the ice bucket can refill with fresh, loose ice cubes.
• Do not put fingers or any objects into the dispenser outlet or the ice maker. This can cause physical injury or property damage.
• When reinserting the ice maker tray, make sure that the tray is properly centered at the entrance. Otherwise, the tray can get stuck.

If You Turn the Ice Maker Off

If you press and hold Ice Maker for more than 3 seconds to turn the ice maker off, make sure to remove all ice cubes from the ice bucket. Remaining ice cubes may clump together, making it difficult to remove them.

To remove the ice bucket, see the Ice bucket section on page 53.

NOTE

- Removal of the ice bucket does not affect the thermal and mechanical performance of the refrigerator.

Operations

Water clouding

Water supplied to the refrigerator flows through a core alkaline filter. During this filtering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds.

Fresh Zone divider

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

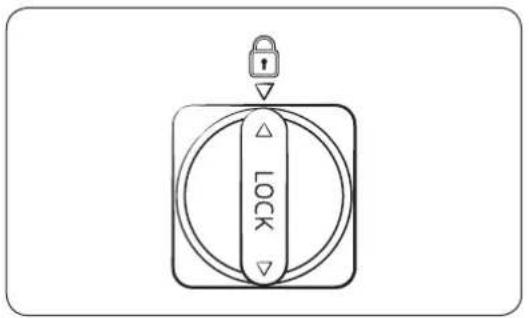

You can change the divider position. To do this, unlock the divider by turning the divider dial counter clockwise. Then, move the width and height bars as appropriate. When done, turn the dial clockwise to lock the divider.

NOTE

If the divider lock does not function, wipe the bars to remove moisture on them.

English52

Maintenance

Handling and care

Ice bucket

If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

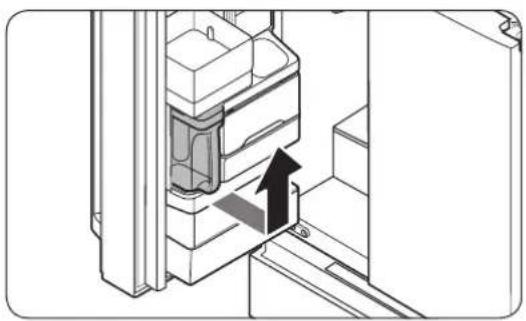

1. While grabbing the handle of the ice bucket, slightly lift up the bucket, and then remove it to the front.

2. Remove the remaining ice cubes and put the ice bucket back into place.

Maintenance

Line drawing of a refrigerator interior showing internal compartments and wheels (no text or labels)

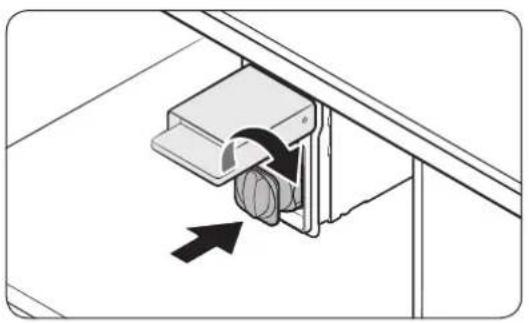

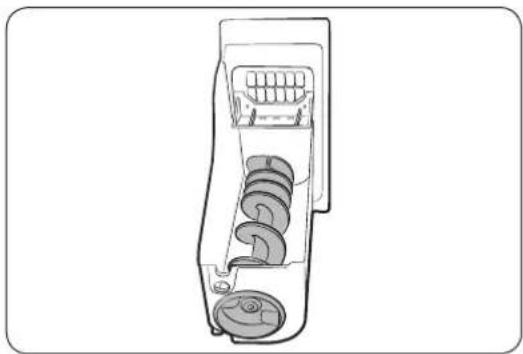

If the ice bucket is not firmly inserted, turn the ice screw 90 degrees, and then try again.

CAUTION

• Do not apply excessive force to the bucket cover. The cover may break.
• Do not forcefully close the door. Water may spill over the ice maker.
  • To prevent injury, make sure to clean up any ice or water that has spilled on the floor.
• To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.
• Do not put your hand or an object into the ice chute. This may cause physical injury or product damage.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
• Use only potable water that is connected to the water supply line.

NOTE

• The water pressure required for ice making is between 20 and 125 psi (138 and 862 kPa).
• If the Ice Off indicator blinks, remove and reinsert the ice bucket. Make sure it is reinserted properly.
• Noise from the ice maker as it produces ice during the ice making process is normal.
• While the door is open, neither the ice maker nor the water dispenser operates.

English54

Auto Water Fill

Three-step diagram showing a mechanical component with an upward arrow, a cross-section view, and a downward arrow (no text or symbols)

1. Grasp a handle groove of the sealed mouth, and then pull up to remove.

2. Grasp both sides of the sealed mouth, and then lift to remove.

3. While slightly twisting the infuser, pull it out of the sealed mouth.

4. Clean the infuser with neutral agents and running water. Rinse and dry well.
5. Reassemble the Auto Water Fill in the reverse order of disassembly.

CAUTION

Water pitcher and lid are not dishwasher safe and can deform under high temperatures. Please hand wash as needed.

Maintenance

Fridge shelves

The appearance of the shelves differs by model.

Diagram showing a folding panel with an arrow indicating rotation, no text or symbols present

Diagram showing a mechanical bracket with an arrow indicating direction, next to a vertical panel (no text or symbols present)

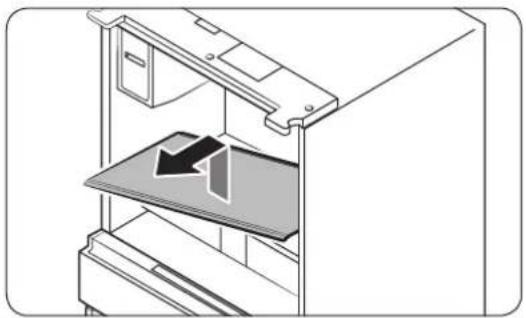

- To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and slide out.

NOTE

Do not lift up the shelf fully when removing or reinserting the shelf. The rear wall of the fridge room can be dented.

- To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch.

CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.
• The shelf must be inserted correctly. Do not insert upside down.
• Glass containers may scratch the surface of glass shelves.

English56

Foldable shelf

Diagram of a window frame with an arrow pointing to the left side (no text or symbols present)

Diagram of a mechanical assembly with two circular components and an arrow indicating rotation (no text or symbols)

Recommended foldable shelf location

Interior view of a kitchen with a door, cabinet, and shelves; no text or symbols present.

To remove, slide up the front of the shelf so that it folds. Then gently lift up and pull out. To reinsert, place the shelf on the angled frame in the main unit, and then, press down to unfold.

CAUTION

After sliding the foldable shelf in and folding it, the front of the shelf can be removed for your convenience. If you use the shelf without removing the front of the shelf, be aware that it can separate from the rear portion, be careful of its possible separation.

The foldable shelf folds up from the center, giving you more room for storage.

• Insert the shelf in the right side of the fridge. Left side insertion does not allow the shelf to fold completely.
• To fold, push the front area of the shelf inward so that it folds up from the middle.

CAUTION

Do not lift up quickly or twist the foldable shelf to take out food under it. It may fall off.

Maintenance

Vegetable shelf

Diagram of a mechanical device with a handle and internal compartments, showing a black arrow indicating direction (no text or symbols present)

1. Slide out the left-side vegetable drawer.

Diagram showing a folding panel with an arrow indicating rotation, no text or symbols present

1. Fully open the door, and then remove the shelf.

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

1. While supporting the vegetable shelf with one hand, slide it out with the other hand.

NOTE

To use the space that is opened up after removing the foldable shelf, take out the vegetable shelf.

To reinsert, follow the steps above in the reverse order.

English58

Door bins

Two-step diagram showing a mechanical component with directional arrows, no text or symbols present.

- To remove the top door bin, hold the front sides of the bin, and then gently lift up to remove. - To reinsert, insert the door bin slightly above its final location making sure that the back of the bin is against the door. Hold the rear of the door bin with both hands, and then press down so that it fits snugly.

CAUTION

• Do not remove a bin that is filled with food. Empty the bin beforehand.
• Use caution when opening the door if the bottom bin contains larger bottles, which may fall over.
• Do not allow children to play with the bins. Sharp corners of the bin may cause injury.

Maintenance

Fridge drawers

Vegetable / fruit drawers

Diagram of a mechanical device with a handle and internal compartments, showing a black arrow indicating direction (no text or symbols present)

Gently lift up the front of the drawer and slide out.

• We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.
- To reinsert, insert the drawer into the frame rails and then slide inward.

Fresh Zone basket

Diagram of a refrigerator drawer with an arrow indicating rotation (no text or symbols present)

• To remove, fully open the Fresh Zone drawer. Lift up the Fresh Zone basket, and then pull out with both hands.
• To reinsert, fully open the Fresh Zone drawer. While tilting up the front of the basket, insert the rear of the basket into the rail assembly. Lower the front until the basket settles down.
• If the divider lock does not function, wipe the bars to remove moisture on them.

To remove the divider and the metal cooling plate (applicable models only) from the Fresh Zone basket

Technical line drawing of a rectangular electronic device with internal components and directional arrows (no text or symbols)

1. Unlock the divider by turning the divider dial counter clockwise.
2. Slide the divider to the end as shown.

English60

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

1. As the divider has the width and length bars, push the lower part of each bar inward to unlock. See the figures for details.

Isometric line drawing of a rectangular container with internal structure and an arrow indicating upward motion (no text or symbols)

1. Hold the divider and pull up to remove.

1. Turn over the basket to remove the metal cooling plate.

CAUTION

The basket and the metal cooling plate are heavy. Use caution when handling them. Careless handling may cause personal injury or property damage.

To reinsert the metal cooling plate

Reinsertion in the reverse order of removal.

Reinsert the divider into the Fresh Zone basket firmly until you hear a clicking sound.

Maintenance

Freezer baskets

Upper basket

Diagram of a refrigerator drawer with an arrow indicating a loading or movement (no text or symbols present)

Lower basket

Diagram of a refrigerator drawer with an arrow indicating rotation (no text or symbols present)

- To remove, fully slide open the freezer drawer. Push the upper basket to the end, and then pull up to remove. - To reinsert, align the front wheels of the upper basket with the end of the lower basket. Slide the upper basket to the front.

- To remove, first remove the upper basket. Then, tilt up the front of the lower basket to pull out. - To reinsert, put the basket into the rail assembly with the rear side first.

CAUTION

• Do not twist the basket when removing or reinserting the basket. The basket can be scratched.
• To prevent physical injury, property damage, or suffocation, keep children away from freezer baskets that have been removed.
• Do not remove the divider.
• Put the wheels of the upper basket on the end of the rails of the lower basket. Then, slide the upper basket all the way to the front. Otherwise, the drawer does not open or close properly, which causes frost to build up.

English62

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, home/car detergent, or Clorox™ to clean the refrigerator. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. When done, use a dry cloth or paper towel to dry well.

3. Plug in the power cord.

4. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.

Ice / Water dispenser

CAUTION

When crushed ice is selected, some residual ice chips may collect in the ice chute. To prevent this, remove the residual ice from the chute using a soft, clean cloth.

Rubber seals

If the rubber seals of a door become dirty, the door may not close properly and reducing refrigerator performance and efficiency. Use a mild detergent and damp cloth to clean the rubber seals. Then, dry well with a cloth.

Rear panel

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

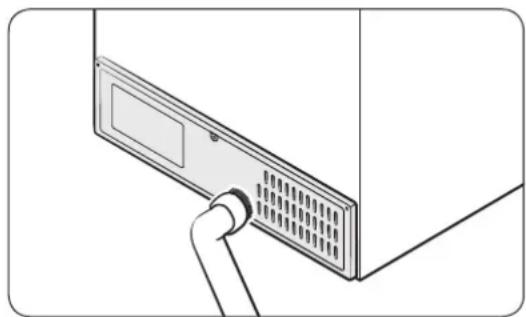

To keep cords and exposed parts of the rear panel free of dirt, vacuum the panel once or twice a year.

CAUTION

Do not remove the rear panel cover. Electric shock may occur.

Maintenance

Replacement

Water filter

WARNING

- Do not use third-party water filters. Use only Samsung-provided or -approved filters. - Unapproved filters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water filters.

The Filter Reset indicator (●) turns red to let you know it is time to replace the water filter. Before replacing the filter, make sure the water supply line is shut off.

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

1. While opening the filter cover, turn the knob of the filter cartridge counter clockwise by 90 degrees ( ^1/_4 turn). The filter cartridge unlocks.

2. Pull out to remove the cartridge.

- If the water filter is severely contaminated, the cartridge may not be easily removable. In that case, use force to pull it out. - To prevent water leaks from the opening, pull the cartridge straight out while removing it.

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

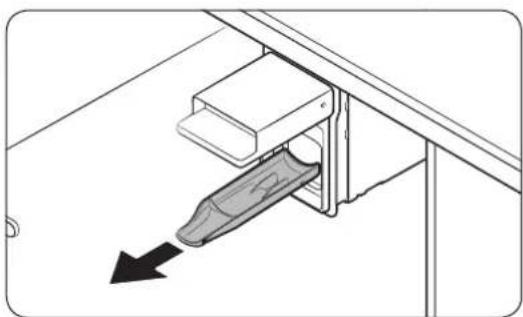

NOTE

To prevent overflow, empty and dry the water filter tray.

English64

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

1. Insert a new filter cartridge. Use only Samsung-provided or approved filters.

2. Turn the cartridge knob clockwise to lock into place.

3. Press and hold Filter Reset on the main panel for 3 seconds to reset the life cycle detector. The Filter Reset indicator (●) turns off.

4. When you are done replacing the filter, open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line.

NOTE

• A newly installed filter may cause the water dispenser to spurt water briefly. This is because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the floor with a dry towel.

Reverse osmosis water filtration system

The water pressure of the water supply system to a reverse osmosis water filtration system must be between 35 psi and 120 psi (241 kPa and 827 kPa).

The water pressure of the reverse osmosis water filtration system to the refrigerator's cold water line must be at least 40 psi (276 kPa). If the water pressure is below these specifications:

• Check if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Refill the water tank in the reverse osmosis system with water.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.

For more information or servicing, contact a licensed plumbing professional.

Maintenance

Ordering a new filter

To purchase a new water filter, contact a local service agent or Dacor Customer Service at [phone].

LED Lamps

To replace the lamps of the refrigerator, contact a local service agent. Contact Dacor Customer Service at [phone].

WARNING

- The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

English66

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and nearby walls or cabinets.Energy Saver mode is activated.The refrigerator is overloaded. Food is blocking the refrigerator vents.	Properly plug in the power cord.Set the temperature lower.Keep the refrigerator away from direct sunlight or a heat source.Make sure there is a gap of at least 2 inches (5 cm) between the refrigerator back and sides and any nearby walls or cabinets.Deactivate Energy Saver mode.Do not overload the refrigerator. Do not allow food to block vents.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.

Troubleshooting

Symptom Possible causes Solution
Interior wall is hot.	• Refrigerator has heat-proof piping in the interior wall.	• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	·Food is blocking the vents.	·Make sure no food blocks the refrigerator vents.
Frost on interior walls.	·Door is not closed properly.	·Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	·Fruits or vegetables are stored in the Fresh Zone.	·Do not store most kinds of fruit or vegetables in the Fresh Zone.

English68

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	If door is left open, moisture enters the refrigerator.	Remove the moisture and do not leave a door open for extended periods of time.
	Food with high moisture content.	Make sure food is wrapped airtight.

Water/ice (dispenser models only)

Symptom Possible causes Solution
Water flow is weaker than normal.	• Water pressure is too low.	• Make sure the water pressure is between 20 and 125 psi (138 and 862 kPa).
Ice maker makes a buzzing sound.	• The ice maker function is activated, but the water supply to the refrigerator has not been connected.	• Turn off the ice maker.
Ice maker does not make ice.	• Ice maker has just been installed.	• You must wait for 12 hours for the refrigerator to make ice.
	• Freezer temperature is too high.	• Set the freezer temperature below 0 °F (-18 °C) or -4 °F (-20 °C) in warm ambient air.
	• Dispenser panel Lock is activated.	• Deactivate dispenser panel Lock.
	• Ice maker is off. • Turn on the ice maker.	• Ice maker.

Troubleshooting

Symptom Possible causes Solution
Ice does not dispense.	· Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).	· If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.
	· Ice bucket is not properly inserted.	· Make sure the ice bucket is properly inserted.
	· Water line is not connected properly or water supply is not on.	· Check if the water line is installed correctly. Check if the water line stop cock is closed.
Water does not dispense.	· Water line is not connected properly or water supply is not on.	· Check if the water line is installed correctly. Check if the water line stop cock is closed.
	· Dispenser panel Lock is activated.	· Deactivate dispenser panel Lock.
	· A third-party water filter was installed.	· Use only Samsung-provided or approved filters.· Unapproved filters may leak and damage the refrigerator.
	· Water filter indicator turns on or blinks.	· Replace the water filter. After replacing, reset the filter indicator sensor.

English70

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

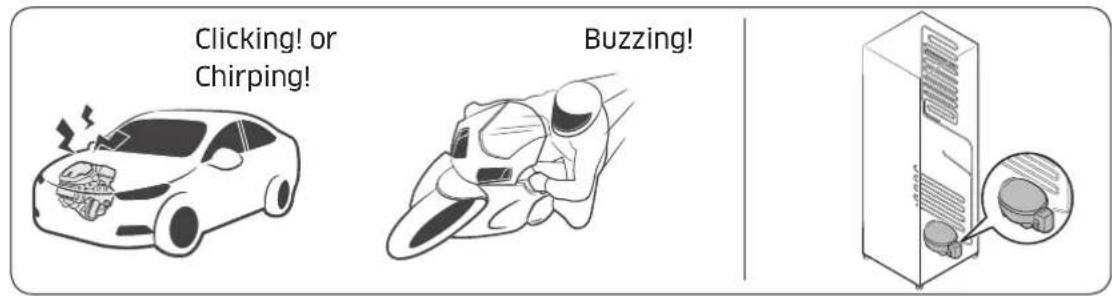

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

English 71

Troubleshooting

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

Simple line drawing of a kettle emitting smoke (no text or symbols)

Bubbling!

Diagram of a refrigerant unit with heat exchanger and cooling fins (no text or labels)

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Diagram of a tree branch with leaves and a lightning bolt, no text or symbols present

Cracking!

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

English72

Dacor iQ Kitchen

Symptom Action
Could not find “Dacor iQ Kitchen” on the app market.	The Dacor iQ Kitchen app is available for smartphones that run Android 4.0 (ICS) or higher, or iOS 8.0 or higher.
The Dacor iQ Kitchen app fails to operate.	The Dacor iQ Kitchen app is available on applicable models only.The old Dacor iQ Kitchen app cannot connect with Dacor iQ Kitchen models.
The Dacor iQ Kitchen app is installed but is not connected to my refrigerator.	You must log into your Samsung account to use the app.Make sure that your router is operating normally.If the Wi-Fi icon on the refrigerator's display is off, this indicates that no network connection has been established yet. In this case, use the Dacor iQ Kitchen app to connect and register your refrigerator to the access point (AP) of your house.
Could not log into the app.	You must log into your Samsung account to use the app.If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The Dacor iQ Kitchen app is successfully connected to my refrigerator but does not run.	Exit and restart the Dacor iQ Kitchen app, or disconnect and reconnect the router.Power off the refrigerator, and then power it on again after 1 minute.

Warranty and Service

Customer Service

Before you request help or schedule service:

1. Try the Solutions offered in the Problem–Solution table in the “Troubleshooting” section.
2. Become familiar with the warranty terms and conditions of your product.
3. If none of these tips or suggestions resolves your problem, call our Customer Service center at the number below.

Dacor's Customer Service center is available 6:00 a.m. to 5:00 p.m. Pacific Time.

For warranty repairs or questions and for Dacor Distinctive Service (DDS) in the US and Canada

Phone: [phone]

For non-warranty repairs or questions in the US and Canada

Phone: [phone], extension 2813

Contact us through our website at:

www.dacor.com

Warranty

What is Covered

CERTIFICATE OF WARRANTY ON

DACOR REFRIGERATOR

WITHIN THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA:

FULL TWO-YEAR WARRANTY

The warranty applies to only the Dacor appliance that was sold to the first-use purchaser.

Warranty is also valid on products purchased brand new from a Dacor Authorized Dealer or other seller authorized by Dacor.

Starting from the date of original retail purchase receipt or closing date for new construction, whichever period is longer.

• 60-day Cosmetic
  • 2-Year Full Warranty
  • 6-Year Sealed System Warranty: Parts/Labor
  • 12-Year Sealed System Warranty: Parts only

English74

Water filter: For 30 days from the date of purchase, if the filter is operated and maintained according to instructions attached to or furnished with the product, Dacor will pay for replacement parts to correct defects in materials and workmanship.

Except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the purchaser.

LIMITED WARRANTY

In three to six years after the date of purchase, when this refrigerator is used and maintained according to the instructions or care guide that came with the product, Dacor will pay for factory specified parts and repair labor costs to correct defects in materials or workmanship in the sealed refrigeration system. These parts are: the compressor, evaporator, condenser, dryer and connecting tubing.

In seven to twelve years after the date of purchase, when this refrigerator is used and maintained according to the instructions or care guide that came with the product, Dacor will pay for factory specified parts for the following components to correct defects in materials or workmanship in the sealed refrigeration system that existed when this major appliance was purchased: the compressor, evaporator, condenser, dryer and connecting tubing.

LIMITATIONS OF COVERAGE

Service will be provided by a Dacor designated service company during regular business hours. Please note service providers are independent entities and are not agents of Dacor.

Dealer displays and model home displays with a production date longer than 5 years, products sold “As-Is,” and products installed for non-residential use, which include but not limited to religious organizations, fire stations, bed and breakfast, and spas, carry a one-year parts warranty only. All delivery, installation, labor costs, and other service fees are the responsibility of the purchaser.

The owner must provide proof-of-purchase or a closing statement for new construction upon request. All Dacor products must be accessible for service. All cosmetic damage (such as scratches on stainless steel, paint/porcelain blemishes, etc.) to the product or included accessories must be reported to Dacor within 60 days of the original purchase date to qualify for warranty coverage.

Warranty will be null and void on product that has altered, defaced, or missing serial numbers and tags.

Warranty is null and void if non-CSA approved product is transported from the U.S.A.

OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA, AND CANADA: LIMITED FIRST YEAR WARRANTY

Warranty and Service

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B. factory to replace the defective part.

All delivery, installation, labor costs, and other service fees are the responsibility of the purchaser.

What is Not Covered

• Slight color variations may be noticed because of differences in painted parts, kitchen lighting, product placement, and other factors; this warranty does not apply to color variation.
  • Service calls to educate the customer on proper use and care of the product.
• Service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses.
• Consequential or incidental damage, including but not limited to: food or medicine loss, time away from work, or restaurant meals.
• Failure of the product when used for commercial, business, rental, or any application other than for residential consumer use.
• Failure of the product caused by improper product installation.
• Replacement of house fuses, fuse boxes, or resetting of circuit breakers.
• Damage to the product caused by accident, fire, flood, power interruption, power surges, or acts of God.
• Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects around the product.
• Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect.

Out-of-Warranty

Should you experience a service issue beyond the standard warranty period, please contact us.

Dacor reviews each issue and customer concern to provide the best possible solution based on the circumstances.

English76

THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES, THE DISTRICT OF COLUMBIA AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY'S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of inconsequential damages, therefore the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/REF_A20_TZ/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

English78

Regulatory Notice

FCC Notice

! FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contains Transmitter Module FCC ID: A3LSWL-CQ52

This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired operation.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

Warranty and Service

IC Notice

Contains Transmitter Module IC: 649E-SWLCQ52

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTION

English80

Memo

Memo

Memo

dacor®

Manual del usuario

Refrigerador

DRF36C*

Contenido

Aviso de la FCC (Federal Communications Commission) 80

Aviso de la IC 81

dacor®

Estimado cliente:

Dacor Customer Service Team

14425 Clark Avenue

City of Industry, CA 91745

The Dacon Customer Service Team

Español4

Line drawing of an open refrigerator with multiple compartments and doors (no text or symbols)

Instalador

Español 18

NOTA

Technical diagram of a device with mounting holes and an upward arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified inset of a cylindrical component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and a door handle (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and storage areas, with arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

PRECAUCIÓN

Diagram showing a mechanical device with rotating components and directional arrows, no text or symbols present.

Two abstract curved shapes resembling stylized letters or symbols, no text or labels present

Anillos elásticos

Line drawing of a refrigerator with a handle and side panel (no text or symbols)

Technical diagram showing a mechanical joint or bracket assembly with a labeled component (A), no text or symbols present.

NOTA

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a lever and plastic container (no text or symbols)

PRECAUCIÓN

Technical diagram of a mechanical assembly with an arrow indicating a component or connection (no text or symbols present)

Diagram showing two mechanical components with no visible text or symbols, one marked with a circle and the other with a prohibition sign (no text or symbols present)

Two identical plastic containers with a stopper, one marked with a circle and the other with a prohibition symbol (no text or labels)

Line drawing of a rectangular plastic container with a circular inset highlighting a section (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component detail (no text or symbols present)

NOTA

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram showing a mechanical assembly with a highlighted component and directional arrow (no text or symbols)

Diagram of a file folder inserted into a rack, with an arrow pointing to the folder (no text or symbols present)

Cross-sectional diagram of a mechanical device showing internal spiral components (no text or labels)

Three-step diagram showing a mechanical component with arrows indicating movement, no text or symbols present.

Diagram showing a folding panel with an arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical component with an arrow indicating direction, next to a vertical panel (no text or symbols present)

Diagram of a folded document or scroll with an arrow pointing to it, no text or symbols present

Diagram showing a mechanical assembly with two circular components and an arrow indicating motion (no text or symbols)

Interior view of a refrigerator with a highlighted section showing a starburst graphic (no text or symbols)

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a mechanical device with a handle and arrow indicating direction (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a rectangular electronic device with internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and an arrow indicating upward motion (no text or symbols)

Diagram of a refrigerator interior showing the door, drawer, and storage tray (no text or symbols)

Cesta inferior

Diagram of a refrigerator drawer with an arrow indicating rotation (no text or symbols present)

Diagram of a computer monitor with ventilation grilles and a cable inserted (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical assembly with a tool inserted into a housing (no text or symbols visible)

Mantenimiento

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

Simple line drawing of a kettle emitting smoke (no text or symbols)

Isometric line drawing of a rectangular device with internal heat exchanger and a magnified inset showing internal structure (no text or symbols)

Aviso de la FCC (Federal Communications Commission)

City of Industry, CA 91745

The Dacon Customer Service Team

Français4

Informations importantes

Avant de commencer

Line drawing of an open refrigerator with multiple compartments and doors (no text or symbols)

Installateur

Service client Dacor

Français18

REMARQUE

Technical diagram of a device with mounting holes and an upward arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified inset of a cylindrical component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing the door, drawer, and cabinet (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior with a magnified view showing a slot and base, no text or symbols present.

Diagram of a refrigerator interior showing internal compartments and storage areas, with arrows indicating movement (no text or symbols present)

Illustration of two mechanical components with a prohibition symbol, no text or labels present

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

ATTENTION

Diagram showing a mechanical device with rotating arms and a base, no text or symbols present

Two abstract curved shapes resembling stylized letters or symbols, no text or labels present

Circlips

Line drawing of a refrigerator with a handle and side panel (no text or symbols)

Technical diagram showing a mechanical joint or bracket assembly with a labeled component (A), no text or symbols present.

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement, showing internal components (no text or symbols)

ATTENTION

Technical diagram of a mechanical assembly with an arrow indicating a directional component (no text or symbols present)

Diagram showing two mechanical components with no visible text or symbols, one marked with a circle and the other with a prohibition sign (no text or symbols present)

Two identical plastic containers with no visible text or symbols, one marked with a circle and the other with a prohibition sign (no text or symbols on the containers themselves)

Line drawing of a plastic bin with a circular hole and lid, no text or symbols present

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

REMARQUE

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram showing a mechanical assembly with a highlighted component and directional arrow (no text or symbols)

Diagram of a file folder with an arrow pointing to it, no text or symbols present

Cross-sectional diagram of a mechanical device showing internal spiral components (no text or labels)

Three-step diagram showing a mechanical component with arrows indicating movement, no text or symbols present.

Diagram showing a folding panel with an arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical component with an arrow indicating direction, next to a vertical panel (no text or symbols present)

Diagram of a folded document or scroll with an arrow pointing to it, no text or symbols present

Diagram showing a mechanical assembly with two circular components and an arrow indicating motion (no text or symbols)

ATTENTION

Interior view of a modern kitchen cabinet with a highlighted star-shaped detail (no text or symbols)

3D diagram of a rectangular container with a black arrow pointing to the top section (no text or symbols)

Diagram showing a mechanical device with an arrow indicating direction, no text or symbols present

Diagram of a refrigerator drawer with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a rectangular electronic device with internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and an arrow indicating upward motion (no text or symbols)

Diagram of a refrigerator interior showing the door, drawer, and storage tray (no text or symbols)

Bac inférieur

Diagram of a refrigerator drawer with an arrow indicating rotation (no text or symbols present)

Diagram of a device rear panel with a connecting rod inserted, showing no text or symbols

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

REMARQUE

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

Simple line drawing of a kettle emitting smoke (no text or symbols)

Bouillonnement

Diagram of a refrigerator internal structure with heat exchanger and fan (no text or labels)

Please visit www.Dacor.com to activate your warranty online.

WARRANTY INFORMATION

IMPORTANT:

Your warranty will not begin until you activate it online or return this form to Dacor. If you have purchased more than one Dacor product, please return all forms in one envelope, or activate the warranty for each product online.

Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Dacor products for your home and we do not consider the sale of such information to be a proper way of expressing our gratitude!

Owner's Name:

Last (Please Print or Type) First Middle

Street:

City: State: Zip:

Purchase Date: Email: Telephone:

Dealer:

City: State: Zip:

Your willingness to take a few seconds to fill in the section below will be sincerely appreciated. Thank you.

1. How were you first exposed to Dacor products? (Please check one only.)

A. T.V. Cooking Show
B. Magazine
□ C. Appliance Dealer Showroom
D. Kitchen Dealer Showroom
E. Home Show

F Builder
□ G. Architect/Designer
H. Another Dacor Owner
□ I. Model Home
□ J. Other

1. Where did you buy your Dacor appliances?

A. Appliance Dealer
B. Kitchen Dealer
C. Builder Supplier

D. Builder
E. Other

1. For what purpose was the product purchased?

A. Replacement only
B. Part of a Remodel

C. New Home
□ E. Other

1. What is your household income?

□ A. Under \$75,000
B. \75,000 - \100,000
C. \100,000 - \150,000

D. \150,000 - \200,000
E. \200,000 - \250,000
F. Over \$250,000

1. What are the brands of appliances that you have in your kitchen?

A. Cooktop
B. Oven

C. Dishwasher
D. Refrigerator

1. Would you buy or recommend another Dacor product?

□ Yes

Comments:

Thank you very much for your assistance. The information you have provided will be extremely valuable in helping us plan for the future and giving you the support you deserve.

□ No

Place Serial Number Label Here

Website: www.Dacor.com

Phone: 1+800+793-0093

NO POSTAGE NECESSARY

IF MAILED

IN THE

UNITED STATES

BUSINESS REPLY MAIL

FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA

POSTAGE WILL BE PAID BY ADDRESSEE

DACOR

ATTN: WARRANTY PROCESSING DEPT

PO BOX 90070

CITY OF INDUSTRY, CA 990-917157

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

fold here

DA68-03563J-02

dacor.

Dacor • 14425 Clark Avenue, City of Industry, CA 91745 • Tél. : [phone] • Fax : [phone] • www.dacor.com
