FS-75 - Cutting machine CUISINART - Free user manual and instructions

Product Type	Food Slicer
Brand	Cuisinart
Model	FS-75
Power	130W, 120V/60Hz
Blade Diameter	7.5 inches (stainless steel)
Slicing Carriage Material	Stainless steel
Slice Thickness Range	1/32 inch to 1/2 inch (0.8 mm to 15 mm)
Controls	ON/OFF switch and slice control knob
Safety Features	Plastic safety guard, non-slip feet, polarized plug
Maximum Continuous Operation	10 minutes
Cleaning	Hand wash with mild soap and water; not dishwasher safe
Blade Removal	Center hub with press tab, twist clockwise to remove
Carriage Removal	Press-to-release button for easy cleaning
Warranty	Limited 3-year warranty (U.S. and Canada)
Intended Use	Household only
Cord Type	Polarized plug

Frequently Asked Questions - FS-75 CUISINART

How do I adjust the slice thickness?

Turn the slice control knob to the desired thickness, ranging from 1/32 inch (0.8 mm) to 1/2 inch (15 mm).

How should I clean the food slicer?

Always unplug and turn the slice control knob to zero before cleaning. Do not immerse in water. Remove the food carriage and blade, wash with mild soap and water, and dry thoroughly. Do not wash any parts in the dishwasher.

How do I remove the slicing blade?

Press in the tab on the center hub, twist clockwise, and carefully lift the blade. Handle with extreme caution as the blade is very sharp.

Can I wash the parts in a dishwasher?

No. Do not wash any part of the slicer in a dishwasher. Only hand wash with mild soap and water.

What is the maximum operating time?

The slicer is designed for short periods, maximum 10 minutes of continuous use. Allow it to cool before using again.

What types of food can I slice?

You can slice a variety of foods including cheeses, meats, breads, fruits, and vegetables. For best results, use hard cheeses that have been refrigerated.

How should I store the slicer?

Store in a dry place, unplugged. If storing in an appliance garage, always unplug to avoid fire risk. Keep all packing materials if shipping is needed.

Is the blade very sharp? How do I handle it safely?

Yes, the blade is exceptionally sharp. Always handle with extreme caution, never touch the blade directly, and use the provided food guide and safety guard.

What is the warranty period?

Cuisinart offers a limited 3-year warranty for normal household use from the date of original purchase (U.S. and Canada only).

Can I use this slicer for commercial purposes?

No, the Cuisinart Food Slicer is intended for household use only. Commercial use is not covered under warranty.

USER MANUAL FS-75 CUISINART

Exterior view of a Cuisinart digital kitchen machine (no signage or text on the device itself)

Kitchen Pro Food Slicer

FS-75 Series

For your safety and continued enjoyment of this product, always read the Instruction Book carefully before using.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. Read all instructions.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. Blade is exceptionally sharp. Handle very carefully.
4. To protect against risk of electrical shock, do not put appliance in water or other liquids.
5. This appliance should not be used by or near children or individuals with certain disabilities.
6. Avoid contact with moving parts.
7. Never put the unit near a hot burner, in an oven, or in a dishwasher.
8. Do not operate the Cuisinart® Food Slicer, or any other electrical equipment, with a damaged cord or plug or after the unit malfunctions or is dropped or damaged in any manner. Return unit to the nearest authorized service center for examination, repair, or adjustment.

9. Do not use outdoors.

10. Do not let cord hang over edge of a table or counter, come into contact with sharp edges, or touch hot surfaces.

11. Do not pull on the power cord to disconnect.

12. Never plug in the appliance where water may flood the area.

13. Place the appliance on a firm and stable surface.

14. NEVER PUT YOUR FINGERS NEAR THE BLADE WHILE IT IS IN OPERATION.

15. Ensure that the appliance is not placed close to the edge of the table, worktop, etc., where it can be pushed off or fall.

16. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

17. Never use abrasive cleaning agents or abrasive cloths when cleaning the unit.
18. The Cuisinart Food Slicer has a sharp blade. To avoid injury, never hand-feed food to be sliced. Always use the unit when completely assembled with food carriage and food press.
19. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit the outlet perfectly, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.
20. Do not leave the Cuisinart Food Slicer unattended while it is running.
21. Always place hand on food guide when slicing.
22. Never place hand behind food carriage.
23. Do not use this food slicer without food guide.
24. To avoid injury, never use hand to push food when slicing.
25. Unplug before cleaning.
26. Do not use for any other purpose than it's intended use.
27. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

In case of any maintenance operations or repairs not specifically stated in this manual, please refer to a qualified service center recommended by Cuisinart. Always read the instructions for use carefully before using and keep them in a place where they can be referred to whenever necessary.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit the outlet perfectly, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

IMPORTANT UNPACKING INSTRUCTIONS

CAUTION: THE SLICING BLADE HAS A VERY SHARP EDGE.

To avoid injury when unpacking the unit, please follow these instructions:

1. Put the box on a large, sturdy, flat surface.
2. Remove the instruction book and any other literature.
3. Position box on its side. Slide the packaged unit out of the box.
4. Remove the Styrofoam ^® inserts.
5. Carefully take the Cuisinart® Food Slicer out of the plastic bag. Please use extreme caution in removing the rubber guards from slicing blade area. We suggest you save all the packing materials in the event that future shipping of the machine is needed.

Keep all plastic bags away from children.

REPACKING INSTRUCTIONS

1. Put food slicer on a large, sturdy, flat surface.
2. Put food slicer into plastic bag.
3. Position Styrofoam ^® inserts on each end of food slicer.
4. Put the packaged unit into the upright box.
5. Replace top corrugation, instruction book and any other literature.

Contents

Important Safeguards 2

Unpacking and Repacking Instructions 3

Introduction 4

Tips....4

Parts 5

Use and Care 6

Cleaning and Maintenance 6

Technical Data 6

Warranty 7

INTRODUCTION

The Cuisinart® Food Slicer eliminates one of the most time-consuming jobs in food prep. This commercial-quality slicer adjusts from 12 " (0.8mm) to 12 " (15mm) to let you slice everything from paper-thin pepperoni to perfect servings of roast beef. It makes life a little more fun, and entertaining as easy as 1-2-3!

TIPS FOR USING YOUR CUISINART® FOOD SLICER

The Cuisinart® Food Slicer does a great job on a variety of foods. Throwing a great dinner party is as easy as 1-2-3. Start with a simple and delicious antipasto appetizer of sliced cheese, salami and French bread. For best results, always use a hard cheese that has been refrigerated. Slicing the salami and then the French bread will allow for an easier cleanup. Then, move on to slice salad ingredients, potatoes for potatoes au gratin, and even roast beef.

Homemade apple pie can be fast and delicious when the Cuisinart® Food Slicer does all the slicing work for you.

A child's birthday party can be fun and easy. Just slice all your ingredients for pizza in advance, and the children can have a great time making their own pizzas.

Having a summer barbecue is effortless with the Cuisinart® Food Slicer. Tomatoes, onions, cheese and even lettuce take no time at all to prepare.

For all your slicing needs, from paper thin to extra thick, the Cuisinart® Food Slicer makes food preparation fast and easy.

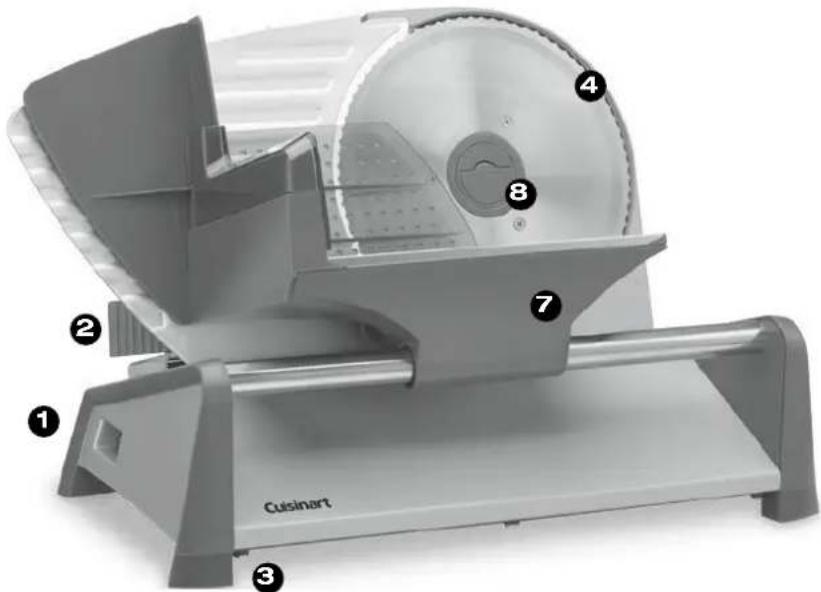

PARTS

1. ON/OFF Switch
2. Slice Control Knob
3. Non-Slip Feet
4. 7.5" Stainless Steel Blade
5. Food Guide
6. Plastic Safety Guard
7. Removable Stainless Steel Slicing Carriage
8. Center Hub for Blade Removal

5

6

USE AND CARE

1. To use your Cuisinart Food Slicer, place on a sturdy, flat surface.
2. Check that the switch is turned OFF before plugging in the appliance.
3. Adjust the slice control knob to desired slicing thickness ( 1/32" 0.8mm to 1/2" 15mm).
4. Position food to be cut on the stainless steel carriage and secure with plastic safety guard.
5. Turn the Cuisinart Food Slicer ON.
6. Position hand on food guide handles and smoothly slide carriage backward and forward. NEVER USE YOUR FINGERS.
7. To ensure even slicing, do not press the food against the blade too firmly.
8. At this point, check for desired thickness and adjust accordingly with the slice control knob.
9. Continue to slide food carriage back and forth in an even and steady motion. NOTE: Food carriage is removable for cleaning.
10. After all your slicing is done, turn the slicer OFF and unplug.

TheCuisinart ^® Food Slicer has been designed to operate for short periods (maximum 10 minutes). Do not run for more than 10 minutes in constant use. Allow it to cool before using it again. If the power cord is damaged, a service center recommended by the manufacturer must repair it.

CLEANING AND MAINTENANCE

Always unplug your Cuisinart ^® Food Slicer and turn the slice control knob back to zero before cleaning the appliance. DO NOT PUT THE APPLIANCE IN WATER. This could cause damage to electrical parts.

1. Clean and dry all parts immediately after use.
2. Fold out food carriage away from the base for easy cleaning of crumbs, seeds, etc.
3. To remove food carriage for cleaning, hold food carriage with two hands and tilt frontward toward you. There is a button to release the carriage marked "Press to release." Press, release, and wash with warm, soapy water. Dry thoroughly. To reassemble, align top part of food carriage to bottom part of food carriage and click into place.
4. To remove blade, press in tab where indicated in center hub; twist clockwise and carefully lift and remove blade.
5. With a soft sponge or cleaning cloth, clean both sides of blade with mild soap and water. Rinse and dry blade thoroughly.
6. To replace blade, hold tab, aligning the blade with the drive gears so it engages fully. Turn tab counterclockwise to tighten.
7. Any other servicing should be performed by an authorized service representative.

DO NOT WASH ANY PART OF THIS SLICER IN A DISHWASHER.

TECHNICAL DATA

CARRIAGE SURFACE: Stainless Steel

Blade: Stainless Steel

POWER: 130W 120V/60Hz

WARRANTY

LIMITED THREE-YEAR WARRANTY

(U.S. and Canada ONLY)

This warranty is available to consumers only. You are a consumer if you own a Cuisinart® Food Slicer that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.

We warrant that your Cuisinart ^® Food Slicer will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase. We recommend that you visit our website, www.cuisinart.com for a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase in order to obtain the warranty benefits. In the event that you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

If your Cuisinart® Food Slicer should prove to be defective within the warranty period, we will repair it, or if we think necessary, replace it. To obtain warranty service, simply call our toll-free number 1-800-726-0190 for additional information from our Consumer Service Representatives, or send the defective product to Consumer Service at Cuisinart, 7475 North Glen Harbor Blvd., Glendale, AZ 85307.

To facilitate the speed and accuracy of your return, please enclose \$10.00 for shipping and handling of the product.

Please pay by check or money order payable to Cuisinart (California residents need only supply proof of purchase and should call 1-800-726-0190 for shipping instructions).

NOTE: For added protection and secure handling of any Cuisinart product that is being returned, we recommend you use a traceable, insured delivery service. Cuisinart cannot be held responsible for in-transit damage or for packages that are not delivered to us. Lost and/or damaged products are not covered under warranty. Please be sure to include your return address, daytime phone number, description of the product defect, product model number (located on bottom of product), original date of purchase, and any other information pertinent to the product's return.

CALIFORNIA RESIDENTS ONLY:

California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming product (A) to the store where it was purchased or (B) to another retail store that sells Cuisinart products of the same type.

The retail store shall then, at its discretion, either repair the product, refer the consumer to an independent repair facility, replace the product, or refund the purchase price less the amount directly attributable to the consumer's prior usage of the product. If the above two options do not result in the appropriate relief to the consumer, the consumer

may then take the product to an independent repair facility if service or repair can be economically accomplished. Cuisinart and not the consumer will be responsible for the reasonable cost of such service, repair, replacement, or refund for nonconforming products under warranty.

California residents may also, according to their preference, return nonconforming products directly to Cuisinart for repair, or if necessary, replacement, by calling our Consumer Service Center toll-free at 1-800-726-0190.

Cuisinart will be responsible for the cost of the repair, replacement, and shipping and handling for such products under warranty.

BEFORE RETURNING YOUR CUISINART PRODUCT

If you are experiencing problems with your Cuisinart product, we suggest that you call our Cuisinart Service Center at 1-800-726-0190 before returning the product for service. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

Your Cuisinart ^® Food Slicer has been manufactured to the strictest specifications and has been designed for use only in 120-volt outlets and only with authorized accessories and replacement parts. This warranty expressly excludes any defects or damages caused by attempted use of this unit with a converter, as well as by use with accessories, replacement parts or repair service other than those authorized by Cuisinart. This warranty does not cover any damage caused by accident, misuse, shipment or other than ordinary household use. This warranty excludes all incidental or consequential damages. Some states do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. You may also have other rights, which vary from state to state.

Important: If the nonconforming product is to be serviced by someone other than Cuisinart's Authorized Service Center, please remind the servicer to call our Consumer Service Center at 1-800-726-0190 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and the product is still under warranty.

©2015 Cuisinart

150 Milford Road

East Windsor, NJ 08520

Printed in China

Trademarks or service marks of third parties used herein are the trademarks or service marks of their respective owners.

15CE016188

IB-13907-ESP-A
