Punch PMX-8DH - Radio Rockford Fosgate - Free user manual and instructions
Find the device manual for free Punch PMX-8DH Rockford Fosgate in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Car radio |
| Brand | Rockford Fosgate |
| Model | Punch PMX-8DH |
| Category | Radio |
| Dimensions (W x H x D) | 180 x 50 x 160 mm |
| Weight | 1.2 kg |
| Power supply | 12 V DC (10.5 - 16 V) |
| Output power | 4 x 50 W RMS |
| FM/AM tuner | Yes |
| Bluetooth | Yes, version 4.2 |
| USB port | Yes (front) |
| AUX input | Yes, 3.5 mm jack |
| Pre-outs | 2 pairs (front/rear) |
| Equalizer | 7 bands |
| Display | LCD backlit |
| Security code | Not required (removable panel) |
| Maintenance | Soft dry cloth |
| Cleaning | Avoid solvents and abrasive products |
| Safety | Professional installation recommended |
| Spare parts | Available on order |
| Warranty | 1 year |
Frequently Asked Questions - Punch PMX-8DH Rockford Fosgate
How to install the Rockford Fosgate Punch PMX-8DH car radio?

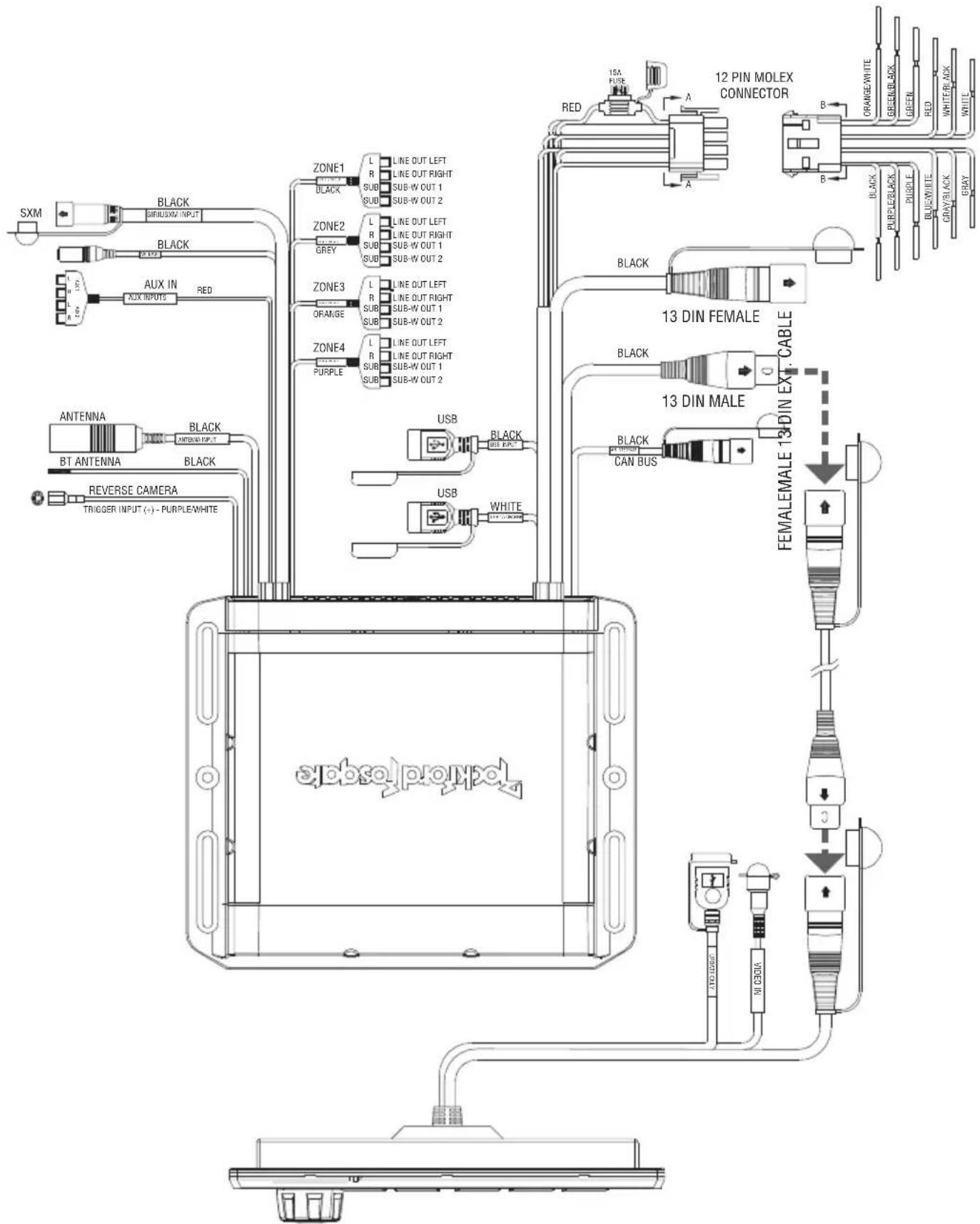

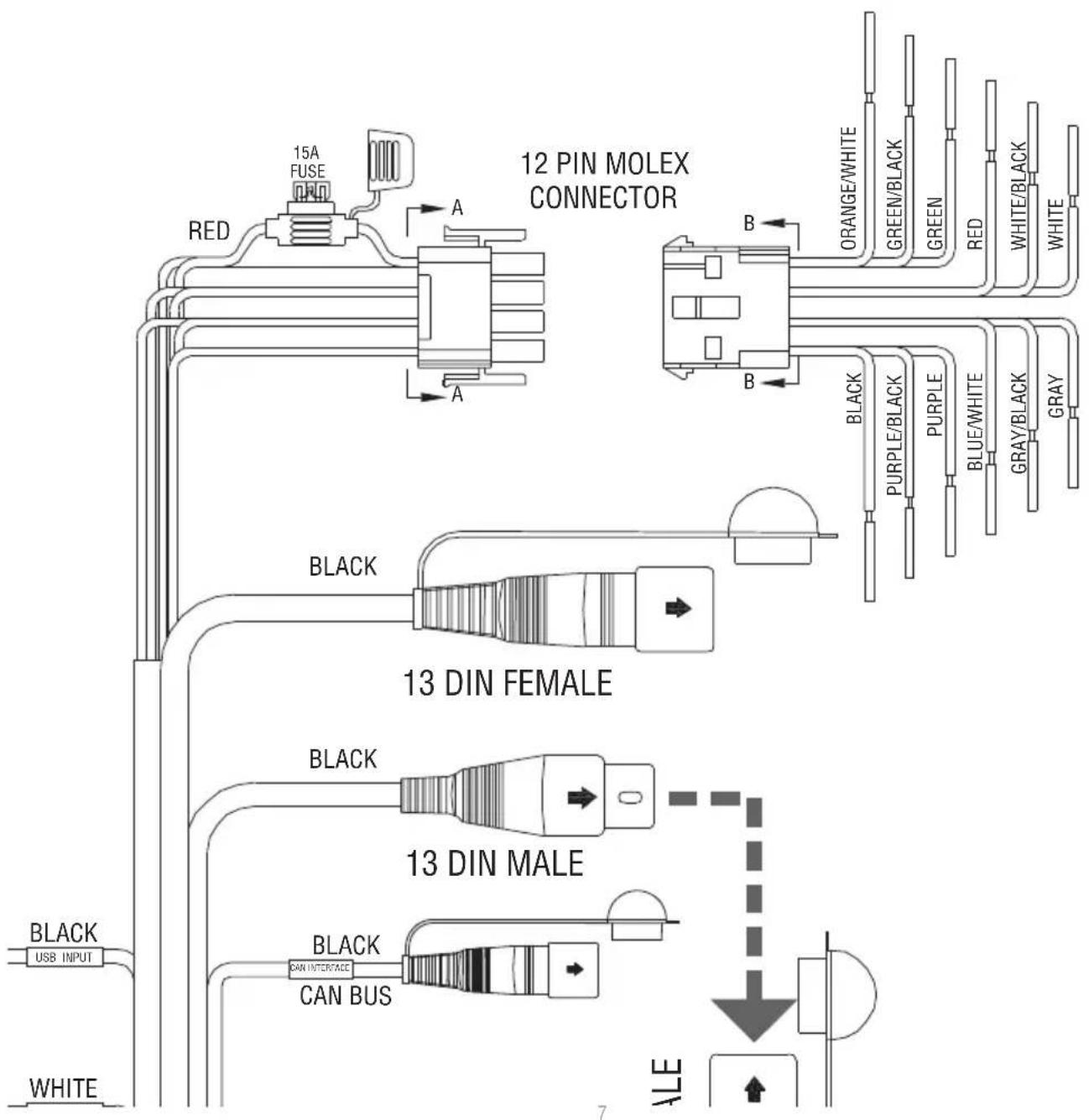

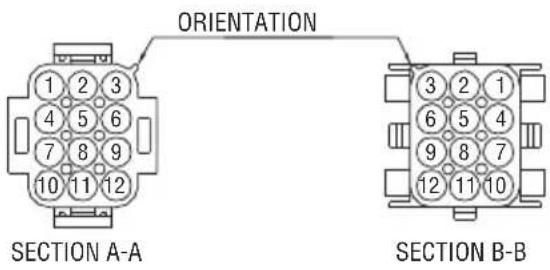

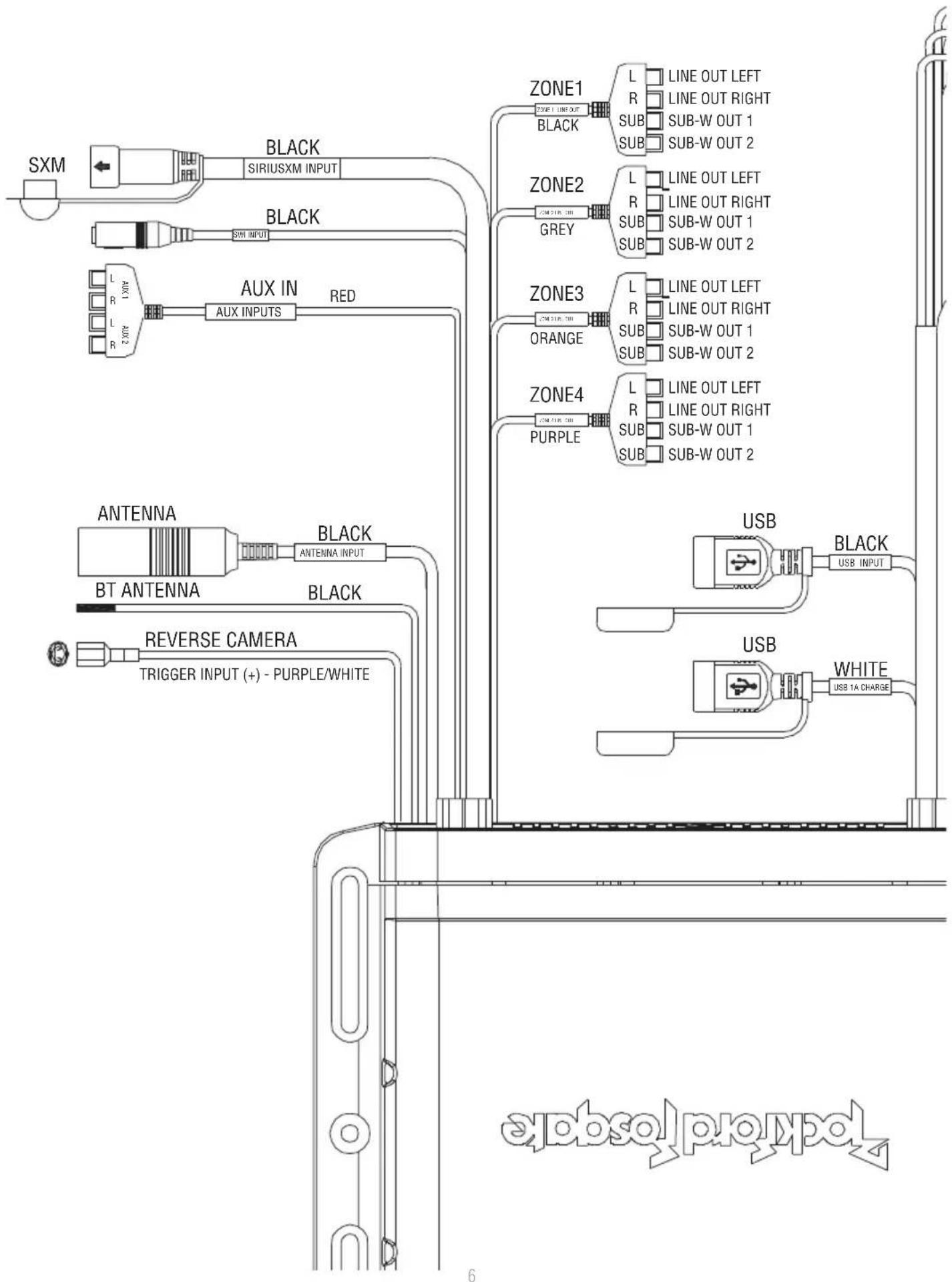

Installation must be carried out by a professional. Make sure to cut the car's power supply. Use the provided wiring harness and connect the wires according to the color code indicated in the manual. Secure the car radio with the chassis and the panel cover.
The car radio does not turn on, what to do?
Check the fuse (ATO 10A type) on the power wire. Make sure the yellow wire (constant 12V) and the red wire (accessory) are properly connected. Test with a multimeter.

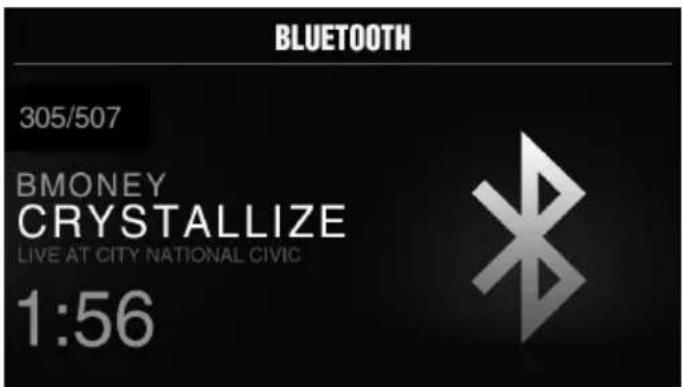

How to connect my phone via Bluetooth?
Turn on Bluetooth on your phone. On the car radio, press the SRC button then select Bluetooth. Search for devices and select 'Punch PMX-8DH'. The pairing code is '0000' by default.

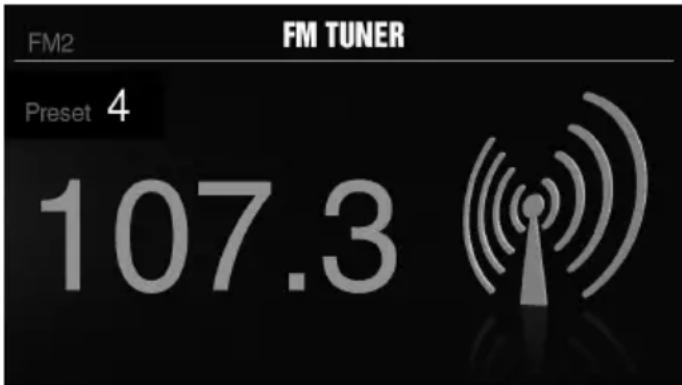

The radio does not pick up FM/AM stations well.
Check the antenna connection. Make sure it is not damaged. In weak signal areas, enable the LOC/DX function to improve reception. Avoid nearby electronic interference.
How to adjust the equalizer?
Press the EQ button to access presets (Rock, Pop, Jazz, etc.). For manual adjustment, hold EQ and use the knob to adjust the 7 frequency bands.
How to remove the front panel?
Turn off the car radio. Press the RELEASE button located at the top left of the panel. Gently pull the panel towards you. Store it in the provided pouch.
What type of fuse to use?
Use a ATO 10A fuse of 1.25 inches. Never replace with a higher rated fuse. A spare fuse is provided in the packaging.
How to reset the device?
Press the RESET button located behind the front panel (on the left side) using a pen or a small screwdriver. This will erase all personal settings.
Can I use 4 ohm speakers?
Yes, the car radio is designed for 4 ohm speakers (minimum impedance per channel). Do not go below 2 ohms to avoid overheating.
Where to find the complete user manual?
The manual is available for free download on the notice-facile.com website in PDF format. You can also view it online in available languages (FR, EN, DE, ES, IT).
