SGP 62 M OA/F Smart Plus - Oven FRANKE - Free user manual and instructions
Find the device manual for free SGP 62 M OA/F Smart Plus FRANKE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Built-in oven |
| Brand | Franke |
| Model | SGP 62 M OA/F Smart Plus |
| Dimensions (W x H x D) | 595 x 595 x 568 mm |
| Usable volume | 72 liters |
| Net weight | 35 kg |
| Power supply type | Electric, 230 V / 50 Hz |
| Maximum power | 3400 W |
| Energy class | A+ |
| Number of functions | 12 cooking modes |
| Main functions | Fan-assisted, natural convection, grill, pyrolysis, defrost, keep warm, quick cook, temperature probe, electronic programmer, child lock, interior light, Smart Plus connectivity |
| Cleaning | Pyrolysis (self-cleaning) |
| Pyrolysis type | High temperature (500°C) with automatic locking |
| Safety | Child lock, automatic shut-off, fan cooling, overheating safety, cool door |
| Door | Cool door with removable double glazing |
| Lighting | Halogen lamp 40 W |
| Connectivity | Smart Plus (Wi-Fi) with Franke app |
| Included accessories | 2 metal grids, 1 drip tray, 1 rotisserie (depending on version), temperature probe |
| Spare parts available | Bulbs, heating elements, fans, door seals, glass panels, probes, electronic boards |
| Repairability | Repairability index: 8.0/10 (indicative data) |
| General information | High-end multifunction oven Made in Italy |
Frequently Asked Questions - SGP 62 M OA/F Smart Plus FRANKE
How to perform the first start-up of the Franke SGP 62 M OA/F Smart Plus oven?
Before first use, remove all packaging and accessories. Heat the empty oven to 250°C for 30 minutes in fan-assisted mode to eliminate new odors. Let it cool and clean the interior with a damp cloth.
How to use the pyrolysis function to clean the oven?
Make sure the oven is empty of any accessories. Select the pyrolysis mode (usually at 500°C). The cycle lasts about 2 hours. The door locks automatically. After cooling, wipe away residues with a damp cloth.
What to do if the oven does not heat up?
Check that the appliance is properly plugged in and the circuit breaker has not tripped. Ensure that the cooking mode is selected and the temperature is set. If the problem persists, contact after-sales service.
How to clean the oven door glass panels?
To clean the glass panels, remove the door following the instructions in the manual. Disassemble the panels by unscrewing the side screws. Wash them with soapy water, rinse and dry. Reassemble in reverse order.
How to activate the child lock on the oven?
Press the 'Menu' and 'OK' buttons simultaneously for 3 seconds until the lock symbol appears. To deactivate, repeat the operation.
How to connect the oven to the Franke Smart Plus app?
Download the Franke Smart Plus app. Activate Wi-Fi on the oven via the settings menu. Follow the instructions in the app to pair the devices. Make sure your Wi-Fi network is on 2.4 GHz.
What cooking modes are available?
The oven offers 12 modes: fan-assisted, natural convection, grill, ventilated grill, pizza, bread, pastry, defrost, low temperature, keep warm, temperature probe, quick cook.

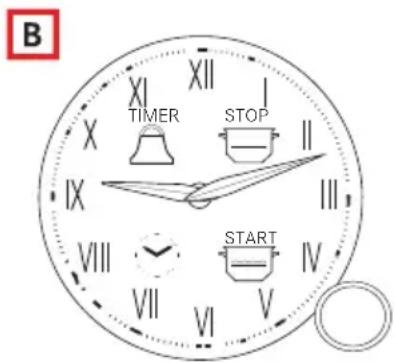

How to set the time on the oven?
Press the 'Clock' button until the time flashes. Use the '+' and '-' buttons to set the hours and minutes. Confirm with 'OK'.
What does the error code E02 displayed on the screen mean?
Error code E02 generally indicates a temperature probe problem. Turn off the oven, wait 10 minutes and turn it on again. If the code persists, contact technical service.
Where to find spare parts for this oven?
Spare parts (bulbs, heating elements, fans, seals) are available on the official Franke website, from authorized dealers or through after-sales service. Use your model reference to order.
